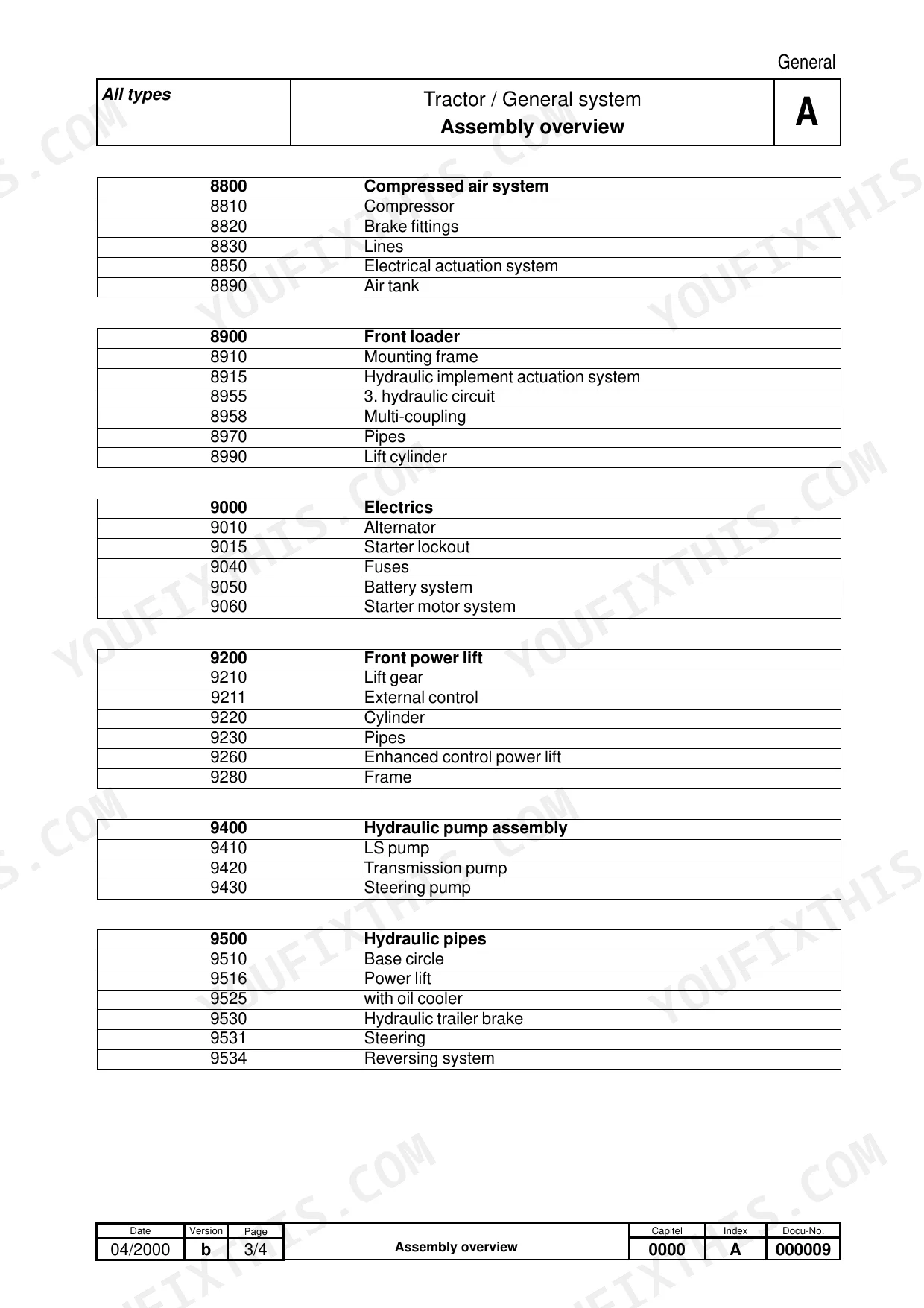

This is the factory workshop manual for the Fendt Farmer 409, 410, 411 and 412 Vario, built 2000 to 2006, the small-frame Varios with the Deutz BF4M 2013E engine and the stepless ML gearbox. It is organised by Fendt's own group numbers: Group 0000 covers specs per model, the Vario fault code table and calibration procedures, Group 1000 the transmission, clutch actuation, PTOs and Hydrodamp, Group 2000 the engine and injection pump, then front axle, steering, cab, EPC power lift, air compressor and brake fittings, and a large electrics section with fuses, wiring and circuit diagrams. Electronics, radar sensor and control units get their own group, plus the special tools list. Written for the workshop, not the showroom.
What's Inside This Fendt Farmer 409 / 410 / 411 / 412 Vario Manual
| System | Pages | Key Topics |
|---|---|---|
| Tractor (Group 0000) | 2-256 | Technical Specifications per Model, Vario Fault-Code Table, Component Location, Calibration Procedures, Troubleshooting Charts |

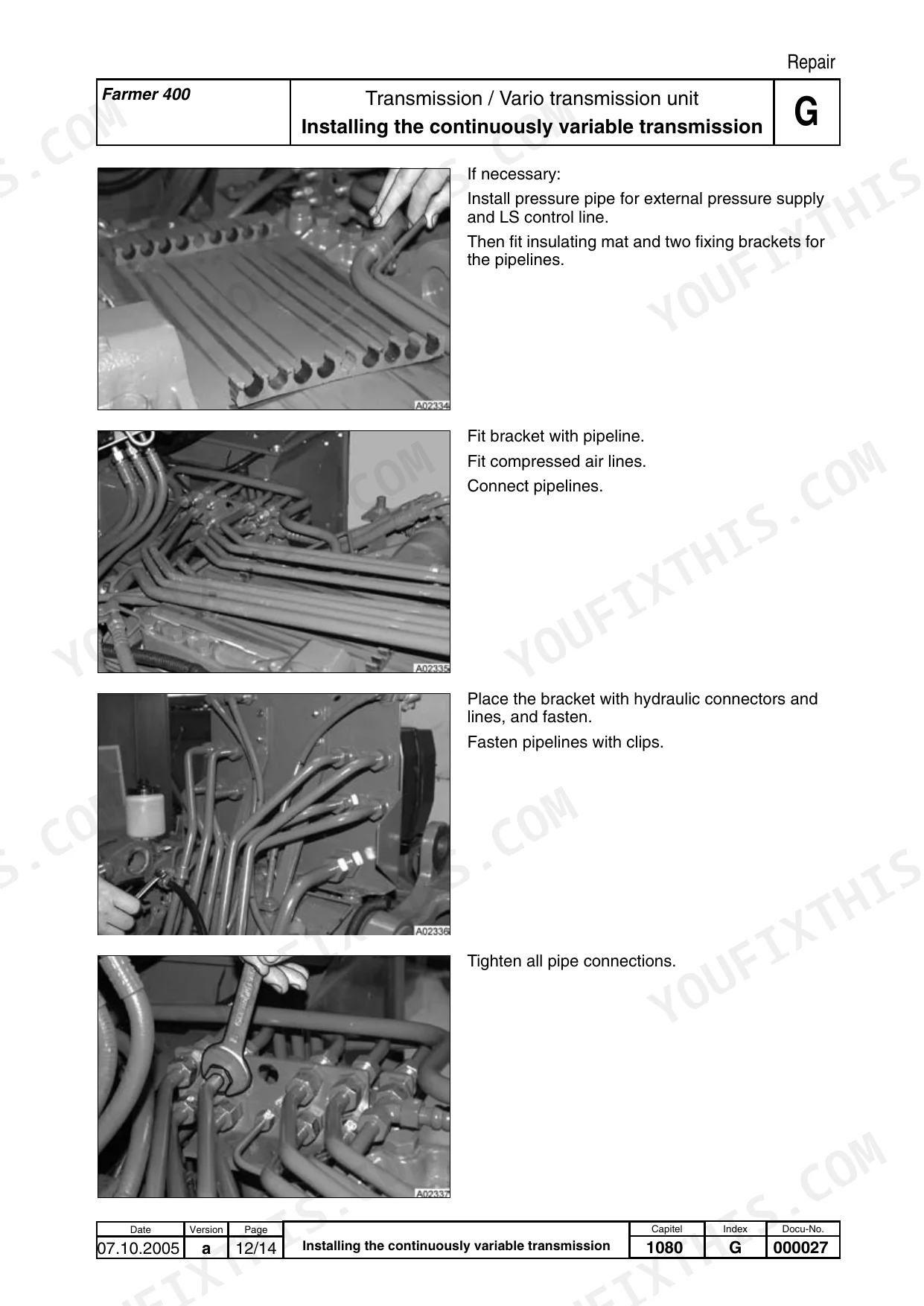

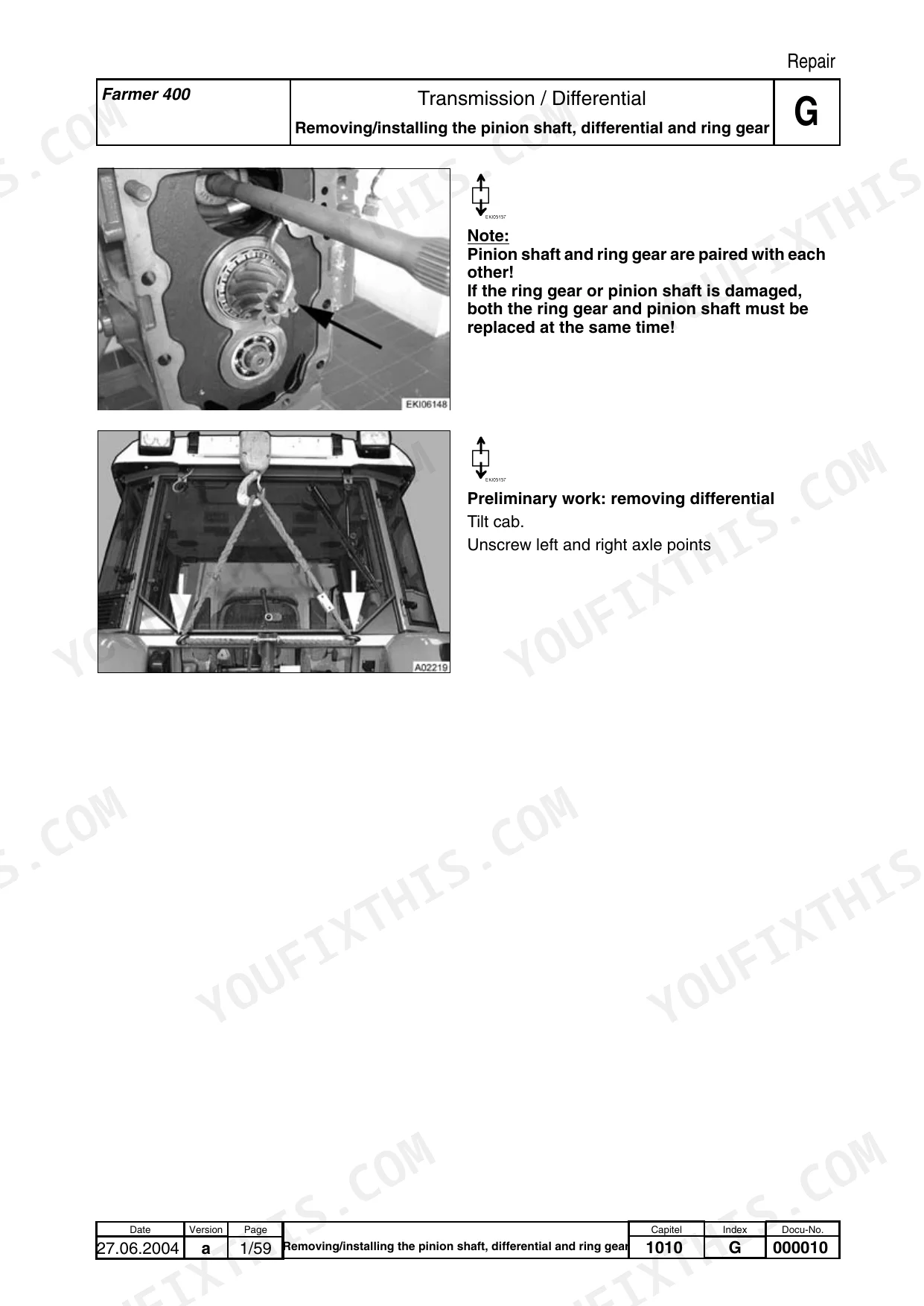

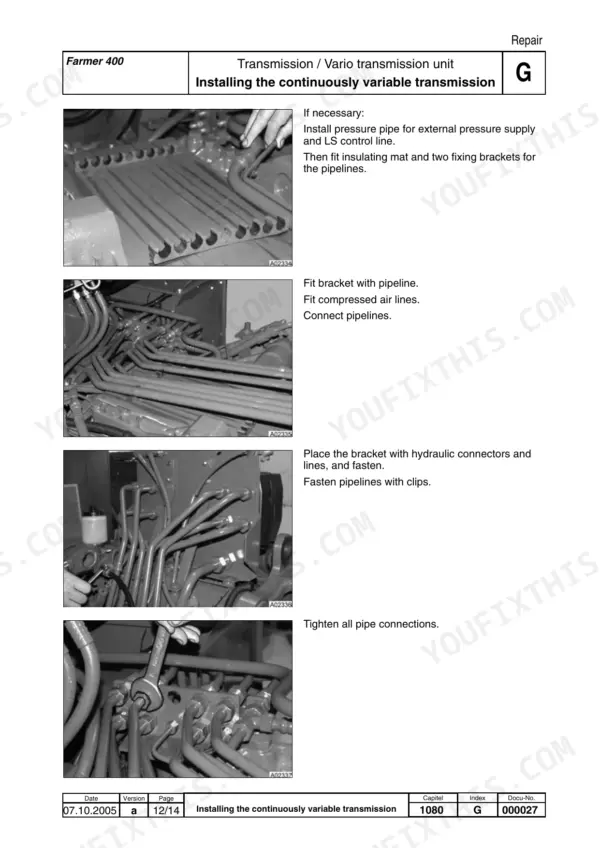

| Transmission (Group 1000) | 257-566 | Transmission Control Unit, Differential, Hand Brake, Brake System, Vario Transmission Unit, Clutch Actuation, Front PTO Shaft, Live PTO, Front Wheel Drive, Hydrodamp, Actuation Valves |
| Engine (Group 2000) | 567-649 | Timing Gear, Fuel System, Cold-Start System, Lubrication, Fuel Injection Pump, Injectors, Engine Controller |
| Front Axle (Group 3000) | 650-662 | Axle Housing, Suspension, Cardan Shaft |
| Steering (Group 4000) | 663-666 | Steering General System and Faults |
| Air-Conditioning (Group 5500) | 667-672 | Air-Conditioning General System |
| Cab (Group 8100) | 673-679 | Cab Repair |
| Power Lift (Group 8600) | 680-776 | Electrohydraulic Control EPC, Remote Control Valves |
| Air Compressor (Group 8800) | 777-812 | Air Compressor General System, Brake Fittings |
| Electrics (Group 9000) | 813-1169 | Electrics General System, Fuses, Wiring and Circuit Diagrams |
| Front Power Lift (Group 9200) | 1170-1173 | Front Power Lift Overall System |
| Hydraulic Pump Installation (Group 9400) | 1174-1176 | Steering Pump, Hydraulic Pump Installation |
| Hydraulics (Group 9600) | 1177-1202 | Hydraulics General System, Valve Assemblies, External Pressure Supply |
| Electronics (Group 9700) | 1203-1254 | Electronics General System, Radar Sensor, Control Unit, ECU Lift Gear |
| Service (Group 9900) | 1255-1262 | Special Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Farmer 409 | ||
| Rated power | 63 kW (86 hp) | p. 20 |
| Max. torque at speed | 386 Nm (1450 rpm) | p. 20 |
| Hydraulic pump rate of delivery at rated speed | 76,7 l/min | p. 28 |
| Unladen weight | 5070 kg | p. 18 |
| Overall width | 2165 mm | p. 18 |
| Front tyres (series) | 440/65 R24 | p. 26 |
| Rear tyres (series) | 540/65 R38 | p. 26 |
| Farmer 410 | ||
| Rated power | 74 kW (100 hp) | p. 31 |
| Max. torque at speed | 458 Nm (1400 rpm) | p. 31 |
| Hydraulic pump rate of delivery at rated speed | 76,7 l/min (110 l/min with optional pump) | p. 39 |
| Unladen weight | 5210 kg | p. 29 |
| Overall width | 2260 mm | p. 29 |
| Front tyres (series) | 420/70 R24 | p. 37 |
| Rear tyres (series) | 480/70 R38 | p. 37 |
| Farmer 411 | ||
| Rated power | 81 kW (110 hp) | p. 42 |
| Max. torque at speed | 497 Nm (1400 rpm) | p. 42 |
| Hydraulic pump rate of delivery at rated speed | 76,7 l/min (110 l/min with optional pump) | p. 50 |
| Unladen weight | 5240 kg | p. 40 |
| Overall width | 2395 mm | p. 40 |
| Front tyres (series) | 480/65 R24 | p. 48 |
| Rear tyres (series) | 540/65 R38 | p. 48 |
| Farmer 412 | ||
| Rated power | 88 kW (120 hp) | p. 53 |
| Max. torque at speed | 540 Nm (1450 rpm) | p. 53 |
| Hydraulic pump rate of delivery at rated speed | 76,7 l/min (110 l/min with optional pump) | p. 61 |
| Unladen weight | 5240 kg | p. 51 |
| Overall width | 2455 mm | p. 51 |
| Front tyres (series) | 540/65 R24 | p. 59 |
| Rear tyres (series) | 600/65 R38 | p. 59 |
| All models | ||
| Rear PTO Max. torque (permanent load) | 1800/1400/1000 Nm | p. 20 |
| Front PTO Max. torque (permanent load) | 1000/1800 Nm | p. 20 |
| Rated rpm | 2100 rpm | p. 20 |
| Fuel capacity (Diesel filling volume) | 165 Litres | p. 25 |
| Engine oil capacity (Max./min. engine volume) | 11/8,5 Litres | p. 25 |
| Coolant capacity (Cooling system filling volume) | 16 Litres | p. 25 |
| Transmission oil capacity (Initial filling) | 38 Litres | p. 19 |
| Rear axle oil capacity (axle drive) | 6,5 Litres per side | p. 19 |
| Front axle differential hub drive oil capacity | 6,0 Litres | p. 25 |
| Hydraulic equipment oil capacity (Max. filling volume) | 42 approx. litres | p. 28 |
| Auxiliary pump rate of delivery at rated speed | 31,5 l/min | p. 28 |
| Hydraulic system pressure (Max. working pressure) | 200 bar | p. 28 |
| Rear 3-point lift capacity (Max. lift capacity on tractor linkage drawbar) | 64,4 kN | p. 27 |
| Front 3-point lift capacity (Max. lift capacity at coupler point) | 29,2 kN | p. 28 |
| Transmission speeds (Speed range I forward) | 0,02-24 kph | p. 18 |
| Transmission speeds (Speed range I reverse) | 0,02-17 kph | p. 18 |
| Transmission speeds (Speed range II forward) | 0,02-50 kph | p. 18 |
| Transmission speeds (Speed range II reverse) | 0,02-40 kph | p. 18 |
| Wheelbase | 2417 mm | p. 18 |
| Wheel nut tightening torque | 275 Nm | p. 651 |
| Vario transmission designation | ML 90 | p. 16 |
| Rear axle designation | HA 90 (flange) | p. 16 |
| Engine | Deutz BF4M 2013E | p. 20 |
| Engine, early build (to chassis 3098/3567/3492/1867) | Deutz BF4M 2013 COM I, 3.8 L (98 x 126 mm), with cylinder liners | p. 16 |
| Engine, later build (from chassis 3098/3567/3492/1867) | Deutz BF4M 2013 COM II, 4.04 L (101 x 126 mm), no cylinder liners | p. 16 |
| Rear PTO speeds | 540 / 750 / 1000 rpm (standard) | p. 16 |
| Front PTO speed | 1000 rpm standard, 540 rpm optional | p. 16 |
| Software version | Variotronic 1.0 to chassis 3001 (updatable), Variotronic 2.0 from 3001 | p. 17 |
Fendt Farmer 409 / 410 / 411 / 412 Vario Common Problems This Manual Covers
Complete electronics blackout: Vario terminal dark, no functions respond anywhere on the tractor.
That pattern is a CAN bus fault, not five dead modules. The bus power supply is on circuit board A013 via fuses F040 and F041, so check those first. The Electrics section (Group 9000) has the fuse chart and circuit diagrams to trace the supply.
Manual Section: Electrics (Group 9000) p. 88Transmission behaves oddly or throws a dotted-decimal fault code after clutch or gearbox work.
After work on the drivetrain the Vario needs recalibration: code 4007 for transmission ratio, 4001 for clutch pedal, 4003 for range control, 4009 for turboclutch. The calibration procedures and the fault code table are in the Tractor section (Group 0000), run via the A008 terminal or FENDIAS.
Manual Section: Tractor (Group 0000) p. 250Residual pressure in the front suspension when servicing the front axle, even with the engine off.
The suspension accumulators hold 200 bar with the engine off and the suspension lowered, by design; the lock and lower command does not release it. Relieve pressure at stopcocks AV1 and AV2 on the central control block before opening lines. The manual prints this warning in the Tractor group safety instructions, ahead of the front axle work.
Manual Section: Tractor (Group 0000) - safety instructions / Hydraulics (Group 9600) p. 9Hydraulics noticeably louder after a switch to bio oil, owner suspects pump wear.
The manual states this noise on bio oil is system related and explicitly not a fault, so no parts need replacing. The Hydraulics section (Group 9600) covers the general system, valve assemblies and external pressure supply if you want to check the 200 bar working pressure regardless.
Manual Section: Hydraulics (Group 9600) p. 149Frequently Asked Questions

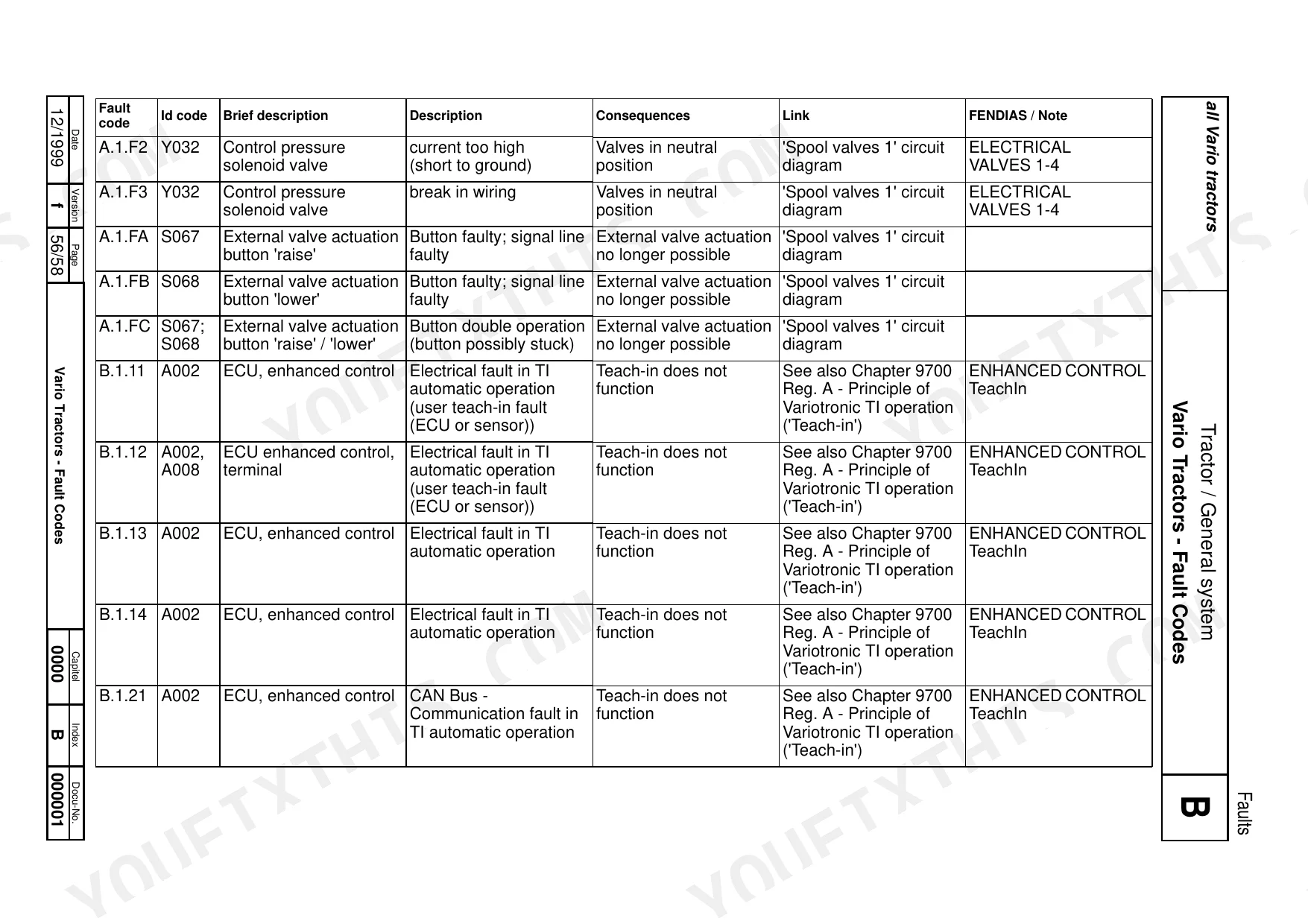

How do I read and reset the fault codes on a Farmer 400 Vario?
First thing to know: these tractors do not use E-prefixed codes, whatever the forums tell you. Faults come up as dotted-decimal numbers like 0.0.11 or 0.0.15, paired with an A-prefixed component ID such as A008 for the Vario terminal, A009 for the transmission control unit or A013 for the circuit board. The Group 0000 fault code table decodes them, and diagnosis runs through the A008 terminal or FENDIAS. Fix the cause and the code clears; the manual walks you through the table entry by entry. p. 86
The Vario terminal is dead, no display, nothing works. Is the terminal shot?
Do not order an A008 terminal yet. A bus fault on these tractors means no display and no functions at once, and the CAN bus power supply sits on circuit board A013, protected by fuses F040 and F041. Check those two fuses before you condemn any module. The Group 9000 electrics section shows the fuse assignments and the circuit diagrams to trace it properly. p. 88
Is there anything I need to know before working on the front axle suspension?
Yes, and it is a genuine safety trap. With the engine off and the suspension lowered, the front suspension accumulators still hold 200 bar, and this is by design - the lock and lower command has no effect on it. Before opening anything, relieve the pressure at stopcocks AV1 and AV2 on the central control block. The manual prints this in the Tractor group safety instructions; skip it and you will find out the hard way. p. 9
What is the wheel nut torque, and does the manual give calibration values after repairs?
Wheel nuts are 275 Nm. And yes, the manual covers the 4-digit calibration procedures the Vario needs after transmission or pedal work: code 4007 for transmission ratio, 4001 for the clutch pedal, 4003 for range control and 4009 for the turboclutch, all in the Group 0000 calibration procedures. p. 651
My hydraulics got loud after switching to bio oil. Is something failing?
No. The manual is explicit that louder hydraulic noise when running on bio oil is system related and not a fault. Do not start swapping pumps over it. The Group 9600 hydraulics section covers the system, valve assemblies and external pressure supply if you want to verify pressures anyway; max working pressure is 200 bar. p. 149
