Factory workshop manual for the Fendt Favorit 916, 920, 924 and 926 Vario tractors built from 1996 to 2002, organised by AGCO group codes the way the dealer shelf copy was. You get the Vario CVT covered properly in Group 1000 - ranges, swivel angles, control - plus the 6.87 litre 6-cylinder turbo diesel in Group 2000, hydraulics and EHR in 9400/9600, full wiring circuit diagrams in Group 9000, and Vario terminal diagnostics with fault codes in Group 9700. Front axle, cab, air conditioning, power lifts front and rear, and the brake air compressor all have their own groups. This is the manual for the transmission nobody else will touch, with the pressures and test values to back your work.
What's Inside This Fendt Favorit 916-926 Manual

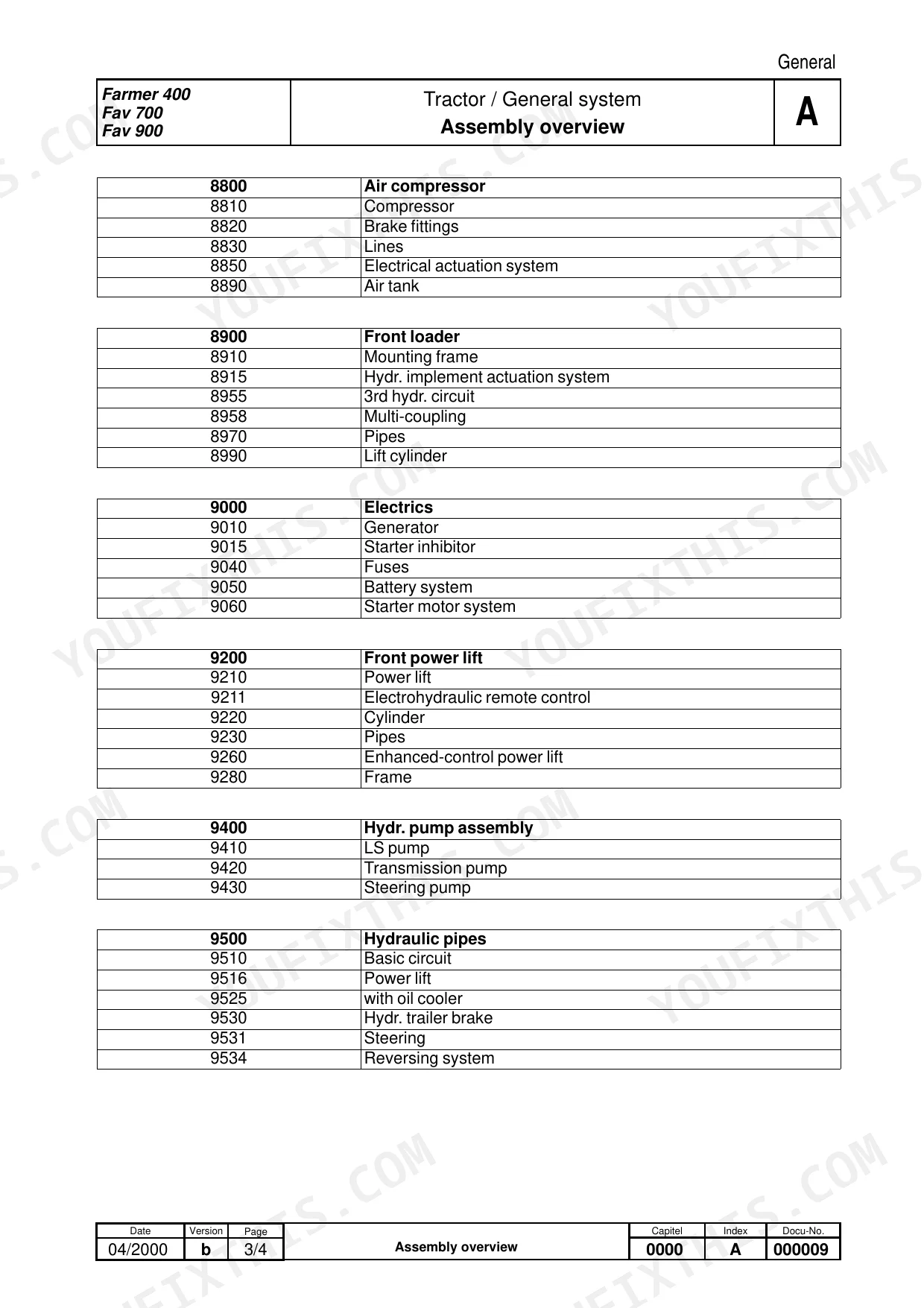

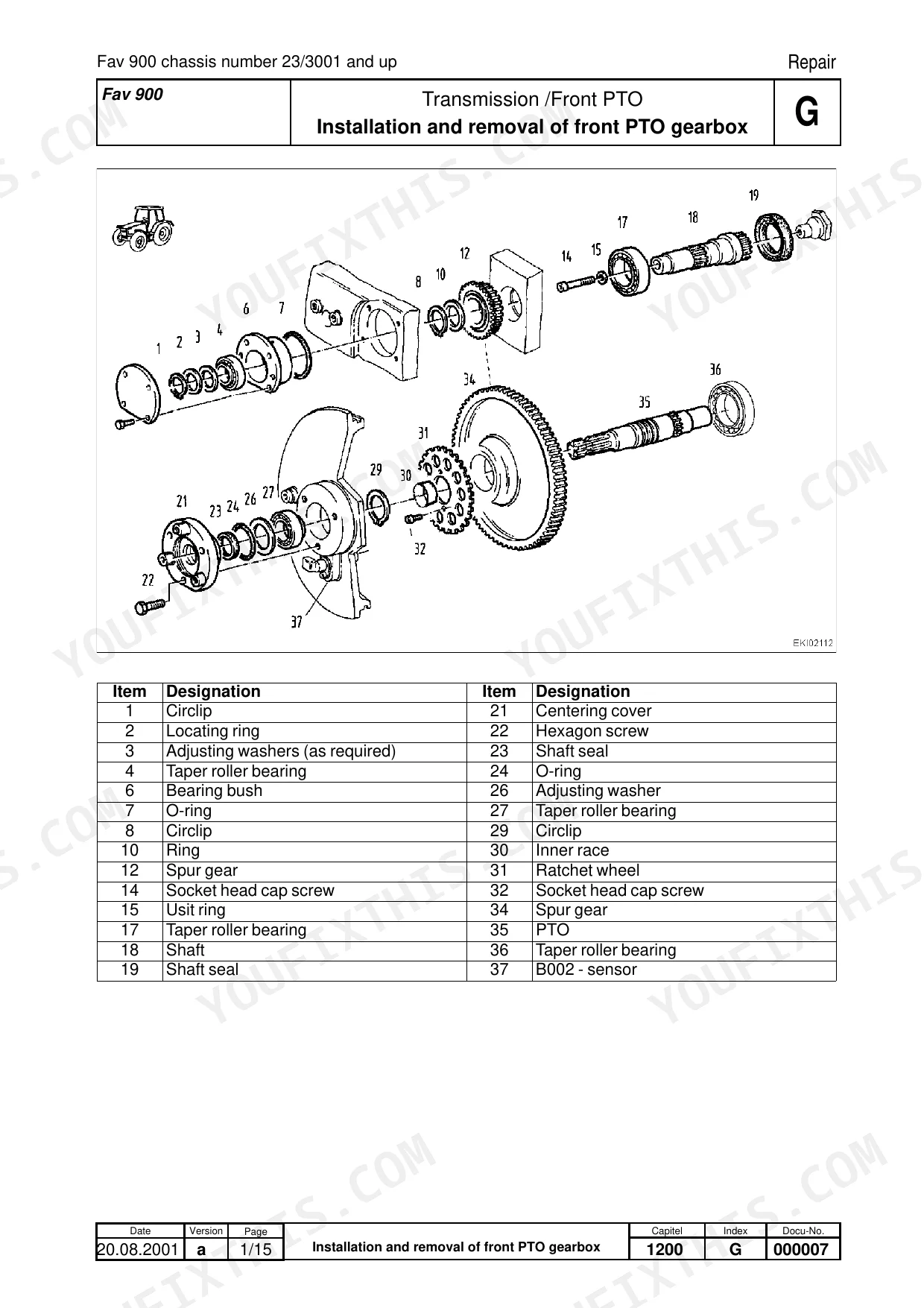

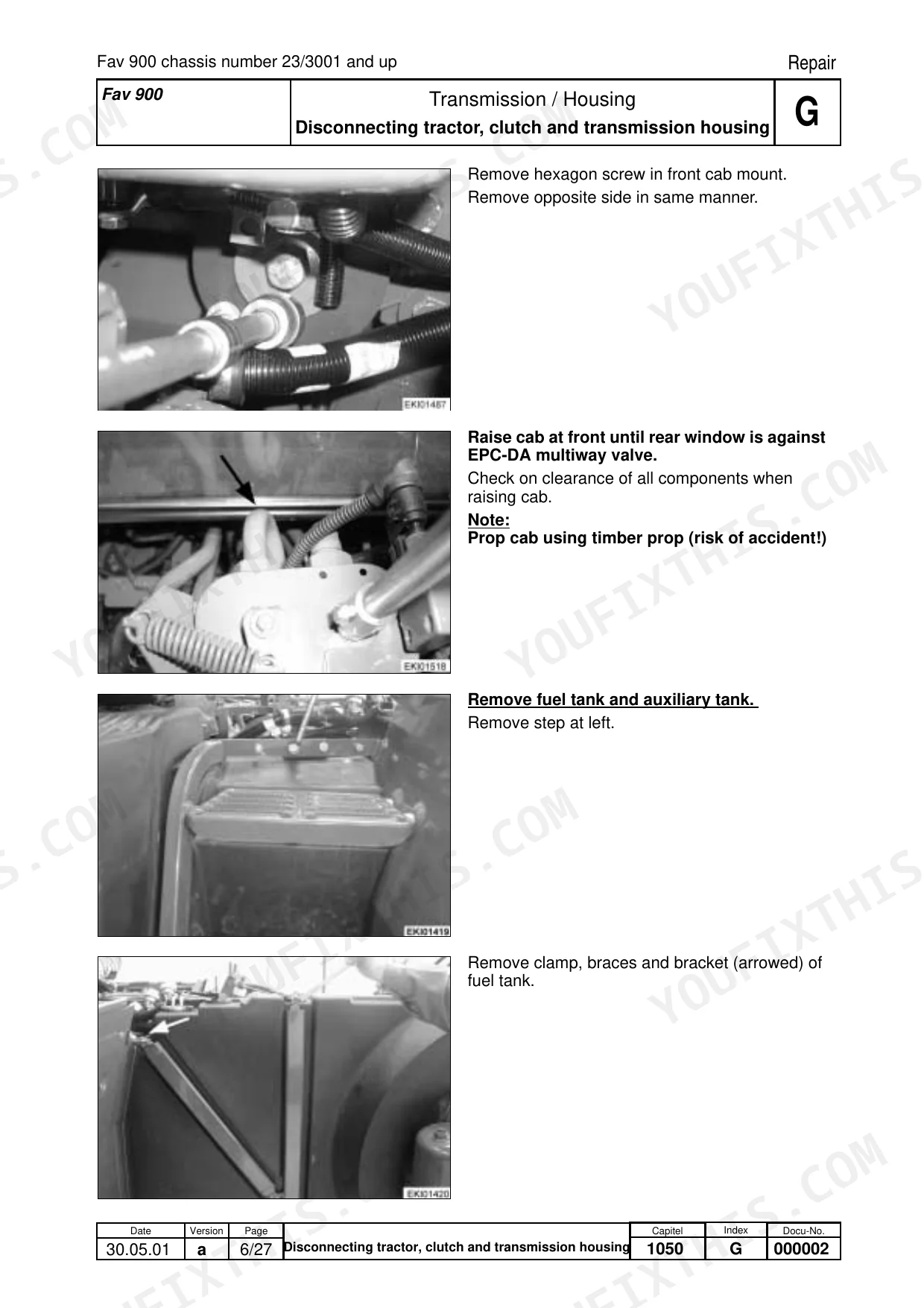

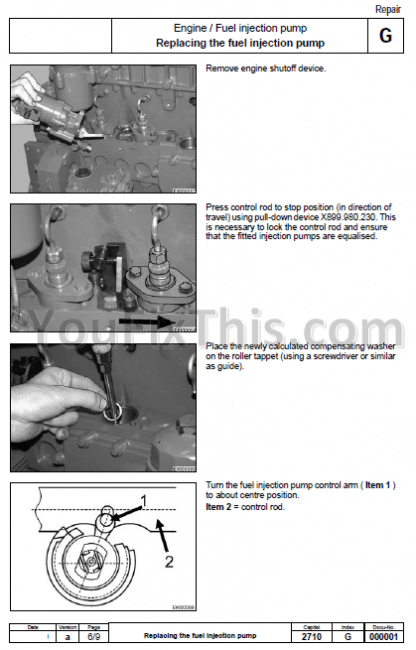

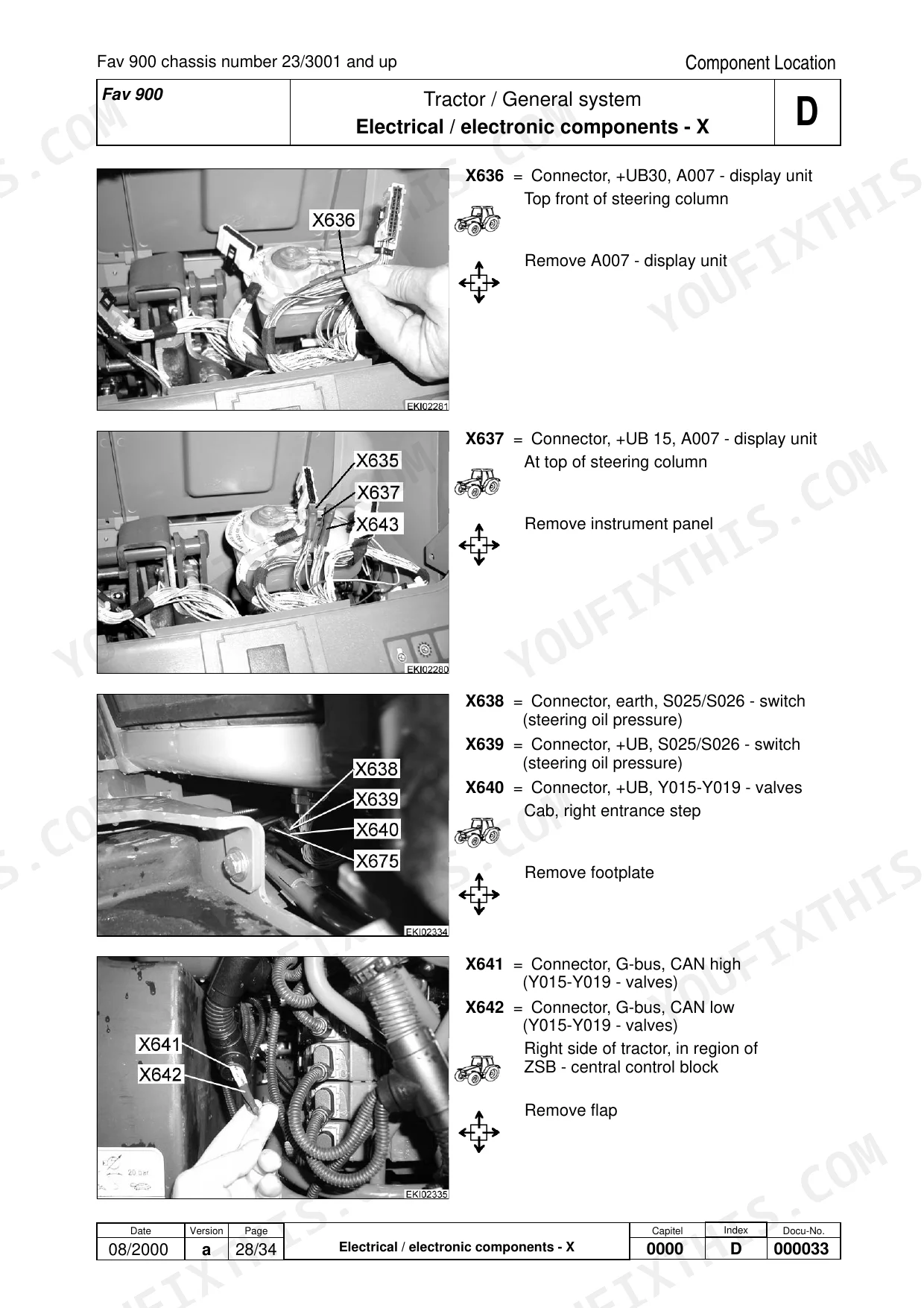

| System | Pages | Key Topics |
|---|---|---|
| General & Tractor (Group 0000) | 2-207 | Technical Specifications, Tractor Overview, Maintenance and Service Data |
| Transmission (Group 1000) | 208-484 | Vario Continuously Variable Transmission, Drive Ranges and Swivel Angles, Transmission Control |
| Engine (Group 2000) | 485-727 | 6-Cylinder Diesel Service, Cooling System, Fuel Injection |
| Front Axle and Steering (Groups 3000/4000) | 728-759 | Front Axle and Four-Wheel Drive, Hydrostatic Steering |
| Cab (Group 8100) | 760-779 | Cab and Controls, Instruments, Heating and Ventilation |
| Power Lift (Group 8600) | 780-860 | Rear Power Lift Ehr, Three-Point Hitch, Lift Control |
| Air Compressor (Group 8800) | 861-884 | Air Compressor, Brake Air Supply |
| Electrics (Group 9000) | 885-1104 | Wiring Circuit Diagrams, Lighting, Sensors and Switches |
| Front Power Lift and Hydraulic Pump (Groups 9200/9400) | 1105-1125 | Front Power Lift, Hydraulic Pump Assembly |
| Hydraulics (Group 9600) | 1126-1205 | System Pressures and Valves, Ehr Circuit Diagram, Hydraulic Testing |
| Electronics (Group 9700) | 1206-1245 | Vario Terminal, Control Units, Fault-Code Diagnostics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine | 6-cylinder turbocharged intercooled diesel, water-cooled | p. 15 |
| Bore x Stroke | 108 mm x 125 mm | p. 15 |
| Displacement | 6.87 L (6870 cc) | p. 15 |
| Idle Speed | 780 +/- 30 rpm | p. 15 |
| Overall Length | 4940 mm | p. 15 |
| Wheelbase | 2840 mm | p. 15 |
| Ground Clearance | 605 mm | p. 15 |
| Transmission | Vario continuously variable, 0.02-50 km/h | p. 15 |
| Gross Vehicle Weight | 12000 kg (50 km/h) / 14000 kg with implements | p. 15 |
| Max Axle Load (front/rear) | 6500 kg / 7730 kg | p. 15 |
| PTO Max Torque | 3500 Nm (540) / 2100 Nm (750) / 1600 Nm (1000) | p. 15 |
| PTO Profile | 1 3/4 inch 6-spline | p. 15 |
| Front Power Lift | Category 2, 50 kN lift capacity | p. 15 |
| Min Turning Circle Radius | 5.9 / 5.4 m | p. 15 |
| Electrical System | 12 V, 2 x 90 Ah battery, 2520 W / 14 V alternator | p. 15 |
| Available Hydraulic Oil | 50 L | p. 15 |
Fendt Favorit 916-926 Common Problems This Manual Covers
Hydraulic system does not lift, especially straight after startup
Work the troubleshooting sequence in the hydraulics groups: check oil level and temperature, inspect the suction line for air leaks, then pull and clean the suction filter. The manual lists system pressures so you can confirm the pump before condemning it.
Manual Section: Hydraulic Pump and Hydraulics (Groups 9400/9600)Overheating from a failed viscous fan or cracked V-belt
The engine group covers the cooling system service: viscous fan checks, belt condition and tension, and coolant level warnings. Catching a cracked belt at inspection is cheap; losing the fan drive in the field mid-baling is not.
Manual Section: Engine (Group 2000)Oil pressure warning with continuous beep and warning light
Before assuming the worst, the engine section takes you through oil level, the pressure sensor and its wiring. Cross-reference the sensor circuit in the electrics diagrams to separate a real lubrication problem from a lying sender in about twenty minutes.
Manual Section: Engine (Group 2000) with wiring in Electrics (Group 9000)Vario adjustment sluggish or not responding, terminal showing fault codes
Start with servo pressure checks in the transmission and hydraulics coverage, since low servo pressure disables adjustment. Then read the stored codes through the Vario terminal procedures and follow the diagnostic tables to the failed component instead of guessing.
Manual Section: Transmission (Group 1000) and Electronics (Group 9700)Frequently Asked Questions
Does this cover the Vario transmission in real repair depth, or just describe how it works?
Real depth. Group 1000 is the workshop coverage: hydrostatic ranges, swivel angle checks, control system, and the test values you need to diagnose before you commit to splitting anything. On a 900-series that transmission is the whole tractor, and most generic manuals dodge it. This one does not.
My hydraulics will not lift right after a cold start. Is that failure mode in here?
Yes, and it is a known 900-series complaint. The hydraulics troubleshooting in Groups 9400/9600 walks the exact chain: cold thick oil, low reservoir level, air pulled into the suction line, or a soiled suction filter. It also covers low servo pressure, which is what kills the adjustment functions. You check pressures against spec instead of swapping parts blind.
Can I read and understand the fault codes on the Vario terminal with this manual?
Yes. Group 9700 covers the terminal, the control units, and fault-code diagnostics. Fair warning: this generation uses dotted codes with A-prefixed component IDs, not the E-style codes forums keep quoting for other machines. The manual gives you the correct tables for the 916/920/924/926, which is exactly where internet guesswork gets people in trouble.
Are full wiring diagrams included, or just a sensor overview?
Full wiring circuit diagrams sit in Group 9000, covering lighting, sensors and switches, and hydraulic circuit diagrams come with the hydraulics groups. On a tractor with this much electronics over the mechanicals, you trace faults with the diagram or you do not trace them at all.
Which exact models and years does this fit?
The Favorit 900-series Vario: 916, 920, 924 and 926, roughly 1996 to 2002, with the 6-cylinder 6.87 litre turbocharged intercooled diesel and the Vario CVT running 0.02 to 50 km/h. It is the AGCO workshop manual for these four models specifically, not a general Fendt range book.
