Check the wheel bolts after the first hour in the field: that instruction, and the torque figure behind it, sits inside 44 pages covering how a Versatile 900 is started, fueled, greased, and put away for the winter. Versatile issued the book as operator manual 42090004 for the 900 four wheel drive tractor built around the V903-C engine, and it comes here as a PDF download.
Inside are the normal and cold starting procedures, break-in limits for a new engine, shifting patterns for range and gear, clutch adjustment, brake bleeding, air filter and cab pressurizer element cleaning, cooling system service, ballast recommendations, and troubleshooting aimed at the steering and implement hydraulics.
When a filter change stalls for want of one number, the filter specifications and replacement schedule pages let you order the right element the first time and get the tractor back in the field.
What's Inside This Versatile 900 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Identification - Tractor | 3-5 | Tractor Model, Tractor Serial Number, Engine Model, Engine Serial Number |
| Safety Precautions | 6 | |
| Overall Dimensions | 7-9 | Width, Overall Length, Wheelbase, Drawbar Height, Overall Height |
| Instrument and Controls | 10-12 | Tachometer, Engine Oil Pressure, Engine Temperature Gauge, Fuel Solenoid Switch, Ammeter, Starter Button |
| Operation | 13-16 | New Engine Break-In, Normal Starting Procedure, Cold Starting Procedure, Steering, Auxiliary Hydraulics, Cab Ventilation, Transmission Lever, Range, Gear, Reverse, Gearshift, Towing Speed, Steering Difficulty, Pressurizer Fan, Temperature Control, Fan Speed, Thermostat, Evaporator, Weight Distribution |
| Fuel Storage | 17-18 | |
| Maintenance and Lubrication | 19-20 | Compressed Air, Warm Water, Visual Check, Air Dry, Plastic Knobs, Cover, Filter Element, Cab Pressurizer Element, Orifice, Outer Element, Safety Element, Dust Unloader, Service Indicator |
| Cooling System | 21-23 | Coolant Level, Drain Plugs, Chromate Filter, Anti-Freeze, Tie Rods, Cooling System Filter, Air Cleaner Element, Lubrication - Drivelines, Lubrication - Wheel Hubs, Specifications - Filters, Specifications - Fuel Oil, Specifications - Hydraulic Oil, Specifications - Tire Pressure & Sizes, Specifications - Tractor - General, Non-Sudsing Detergent, Lubrication - Clutch, Lubrication - Crankcase |
| Electrical | 24 | Alternator, Batteries, Electrolyte, Battery Cables, Lighting System |
| Wheels & Tires | 25-26 | Single Wheels, Dual Wheels, Inner Wheel Bolts, Tire Size, Ply Rating, Rim Type, Inflation, Wheel Hub Mounting Bolts, Ballast Recommendations, Gross Vehicle Weight |
| Engine Clutch | 27-28 | Clutch Adjustment, Clutch Lubrication |
| Cleaning Grill | 29-29 | Disc Type, Master Cylinder, Reservoir, Bleed Valve, Parking Brake, Front Grill, Cooling Fins, Foreign Material, Air Pressure, Pump |
| Filter Replacement Schedule | 30-30 | Inline Screen, Suction Hose, Steering Circuit, Auxiliary Circuit, Engine Oil Filter, Fuel Filter, Air Cleaner, Oil Viscosity |
| By Pass Oil Filter | 31-32 | O-Rings, Filter Cover Gasket, Filter Support Screw, Clamps, Drain Plug, Inline Filter |
| Transmission Circuit | 33-36 | Breather, Filler Plug, Oil Level Plug, Oil Pressure Sending Unit |
| Troubleshooting | 37 | Steering, Implement Hydraulic System, Hydraulic Pumps |
| Storage Preperations | 38-40 | Crankcase, Engine Filters, Cooling System, Drive Belts, Batteries, Axle Housing, Hydraulic Circuit Reservoir, Transmission Circuit |
| Service Record | 41-44 | Daily Service, 50 Hour Service, 200 Hour Service, 400 Hour Service, Emergency Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Single wheel bolt torque | 220 ft-lbs | p. 25 |
| Dual wheel inner wheel bolt torque | 220 ft-lbs | p. 25 |
| Clutch free pedal travel | 1 1/2 to 2 inches | p. 27 |
| Release bearing to clutch disc gap | 7/16 inch | p. 27 |

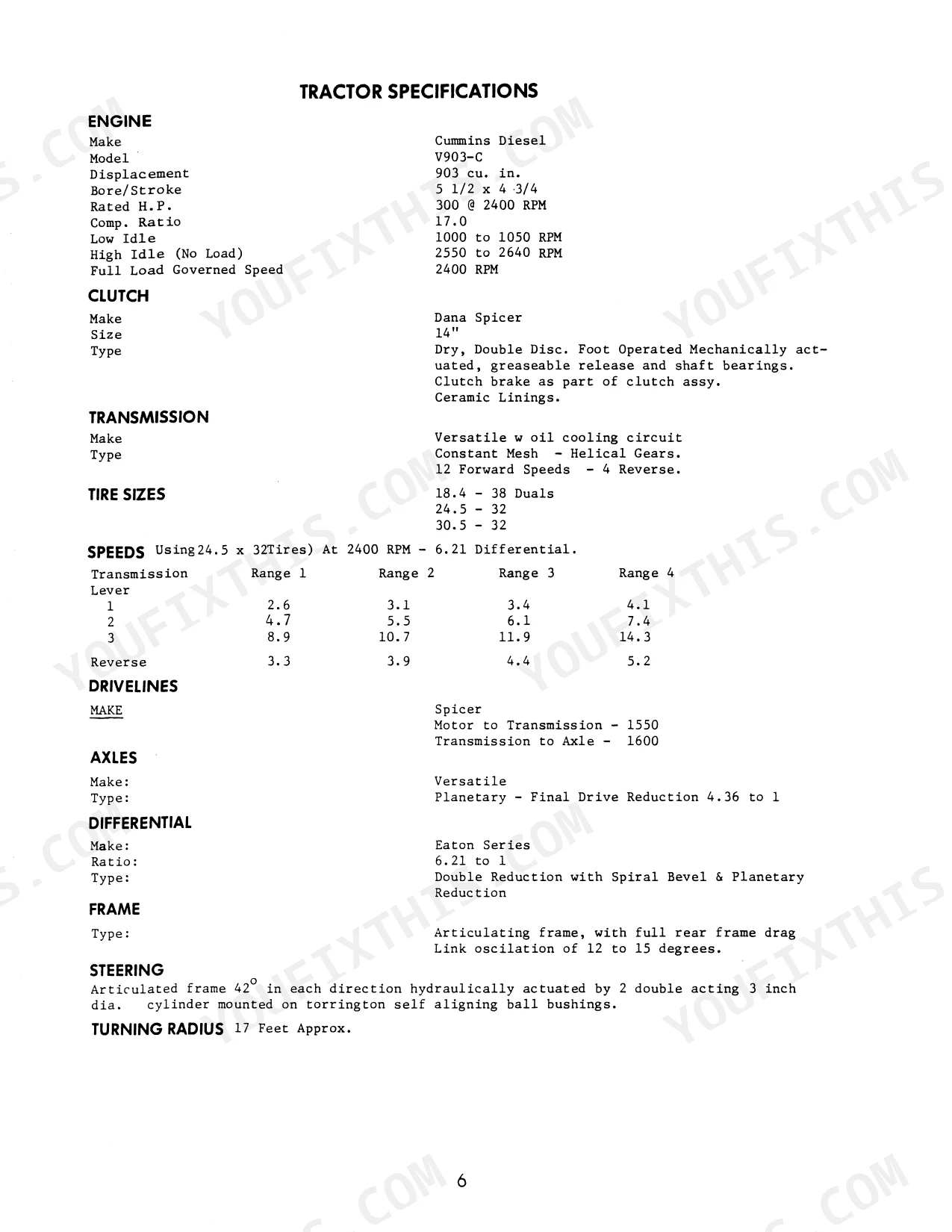

| Engine Rated H.P. | 300 @ 2400 RPM | p. 8 |
| Turning Radius | 17 Feet | p. 8 |
| Cooling System Capacity | 53 quarts | p. 9 |
| Engine Oil Capacity | 34 quarts | p. 9 |
| Transmission Oil Capacity | 23 quarts | p. 9 |
| Implement & Steering Hydraulics Capacity | 95 quarts | p. 9 |
| Wheel Bolt Torque | 220 ft-lbs | p. 25 |
Versatile 900 Common Problems This Manual Covers
Wheel bolts back off after first hour
Freshly mounted wheels lose clamp load fast, and a bolt that walks will elongate the holes before anyone hears it. The Tires & Wheel section calls for 220 ft-lbs on the wheel bolts and 150 ft-lbs on the tie rods, checked after the first hour of operation and periodically after that.
Manual Section: Tires & Wheel p. 25Clutch slips under heavy drawbar load
Free pedal travel closes up as the discs wear, and the release bearing begins riding, which cooks the clutch on a hard pull. The Clutch section sets free travel at 1 1/2 to 2 inches before the yoke contacts the release bearing pad, with the adjustment procedure alongside it.
Manual Section: Clutch p. 27Steering goes heavy or slow

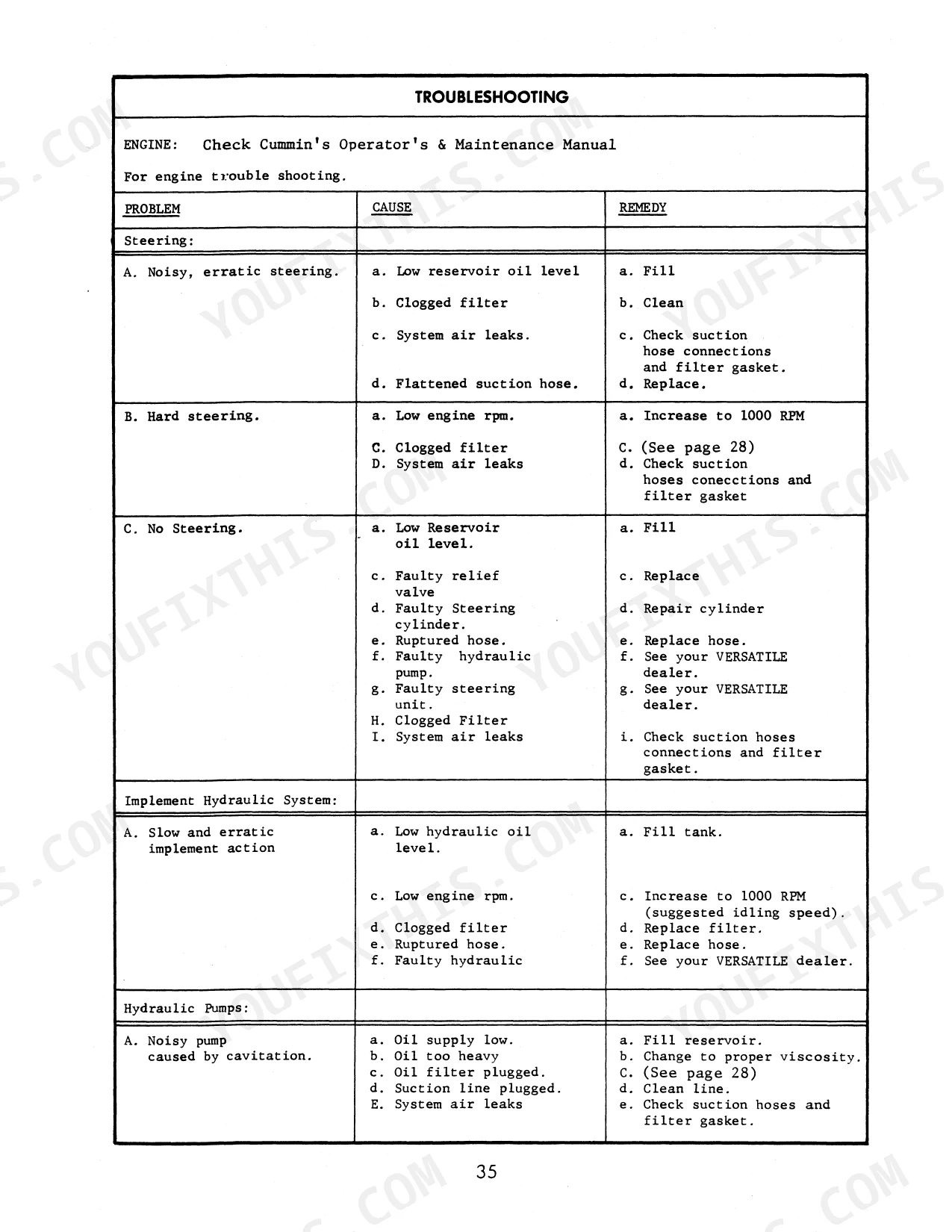

On an articulated four wheel drive tractor, heavy steering usually traces back to the pump, the control valve, or low oil before it traces to the cylinders. The Troubleshooting section walks steering, implement hydraulic system, hydraulic pump, and control valve symptoms in order.
Manual Section: Troubleshooting p. 37Grill packs with chaff, temperature climbs
Straw and chaff mat the front grill and cooling fins during harvest, and the temperature gauge moves long before anything sounds wrong. The Cleaning Grill section covers clearing foreign material out of the fins with air pressure.
Manual Section: Cleaning Grill p. 29Power drops in dusty field conditions
A plugged outer element chokes the engine, and the service indicator is often the only warning before exhaust darkens. The Filters - Air section covers the outer element, safety element, dust unloader, and service indicator, with element cleaning procedures following it.
Manual Section: Filters - Air p. 19Low or erratic transmission oil pressure
A collapsed suction hose, a plugged inline filter, or a breather that has stopped venting will all show up at the gauge as pressure loss. The Transmission Oil Circuit section maps the pump, suction hose, inline filter, level and drain plugs, and the oil pressure sending unit.
Manual Section: Transmission Oil Circuit p. 33Slow cranking on a cold morning
A 900 that turns over lazily in cold weather is usually down to electrolyte level or corroded battery cables rather than the starter itself. The Electrical section covers the alternator, batteries, electrolyte, battery cables, and lighting system.
Manual Section: Electrical p. 24Frequently Asked Questions
Which tractor does this manual cover?
The Versatile 900 four wheel drive tractor with the V903-C engine, published as operator manual 42090004. The Identification - Tractor section shows where the tractor model, tractor serial number, engine model, and engine serial number are found, so you can confirm your machine matches before ordering parts. p. 3
What is the wheel bolt torque on a 900?
220 ft-lbs, checked after the first hour of operation or the first mile in road gear, then periodically after that. Dual inner wheel bolts take the same 220 ft-lbs, and the tie rods take 150 ft-lbs. p. 25
Does it give fluid capacities?
Yes. The specification pages list 34 quarts of engine oil, 23 quarts of transmission oil, 95 quarts for the implement and steering hydraulics, and 53 quarts of coolant. Antifreeze, fuel oil, hydraulic oil, and tire pressure specifications are grouped in their own section. p. 9
Does this cover overhaul work or just operation?

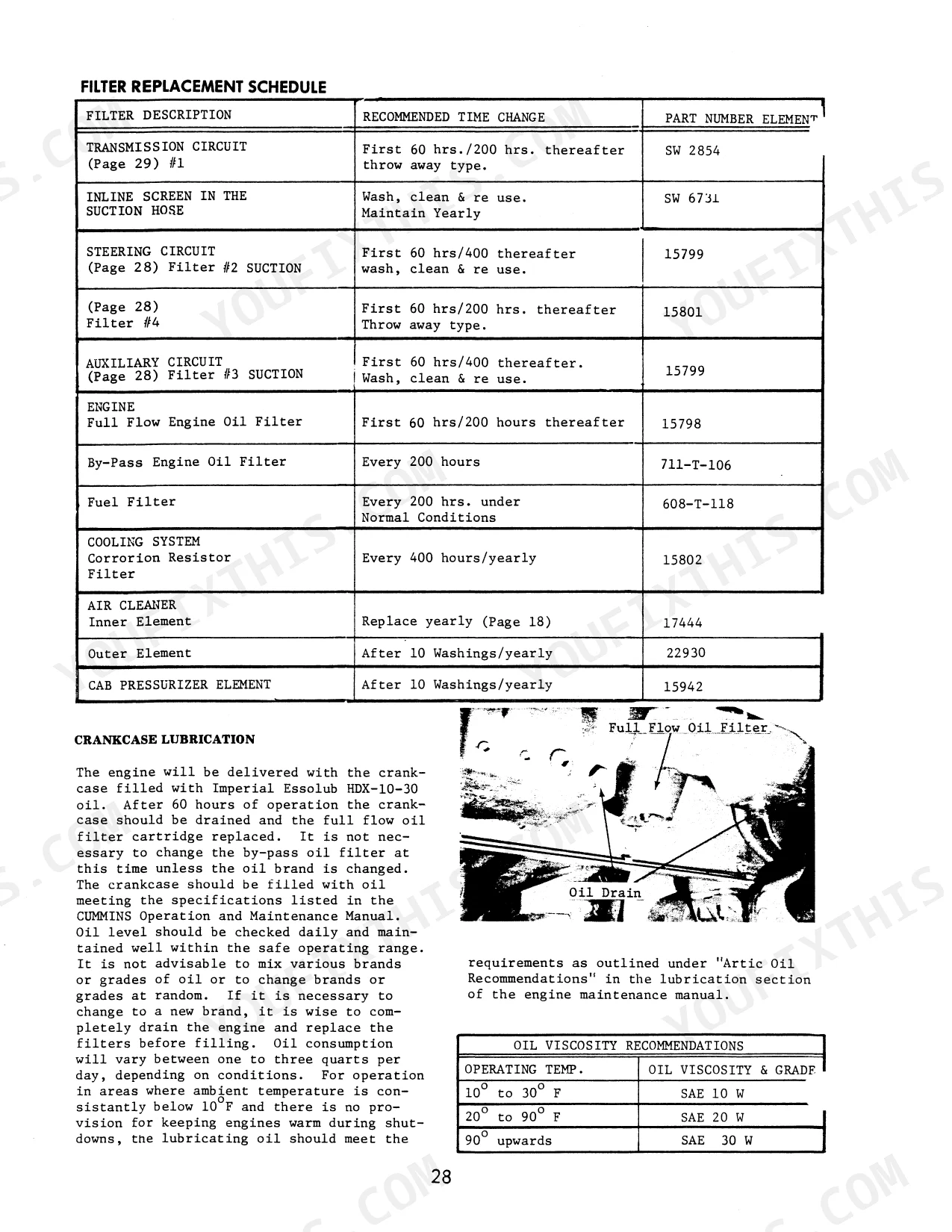

It is an operator manual, so it covers running and servicing the tractor rather than splitting the transmission or rebuilding the engine. The Filters - Replacement Schedule section lists transmission, steering, auxiliary, engine oil, and cooling filter intervals, and the Service Record pages give check-off columns for logging scheduled service. p. 30
Is this Versatile 900 manual a download or a disc?
Instant PDF download. You get the full 44-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is printing allowed for this Versatile 900 Operator Manual?
Yes. Print the pages or sections you need for your own shop use. Any standard printer works.
