Steering goes heavy on a 945 halfway down a headland, and the first question is whether it's the pump, the oil level, or something further back in the drive train. The Troubleshooting section walks that chain for the hydraulic and steering system, drive train, engine, and electrical system, and the Lubrication and Maintenance chapter behind it gives the service intervals and capacities those checks depend on.
It's the 82-page operator manual for the Versatile 945 and 975 tractors, publication 42094520, written for the Cummins NT855-A335 and NT855-A360 engines. Inside: safety, operation from engine break-in through starting and clutch use, air cleaner service, axles and differentials, electrical system maintenance, off-season storage, and specifications with schematics.
Download it as a PDF, keep it on the shop computer or on a phone in the cab, print only the pages the job needs, and get the tractor back in the field.
What's Inside This Versatile 945, 975 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-11 | General Safety, Maintenance Safety |

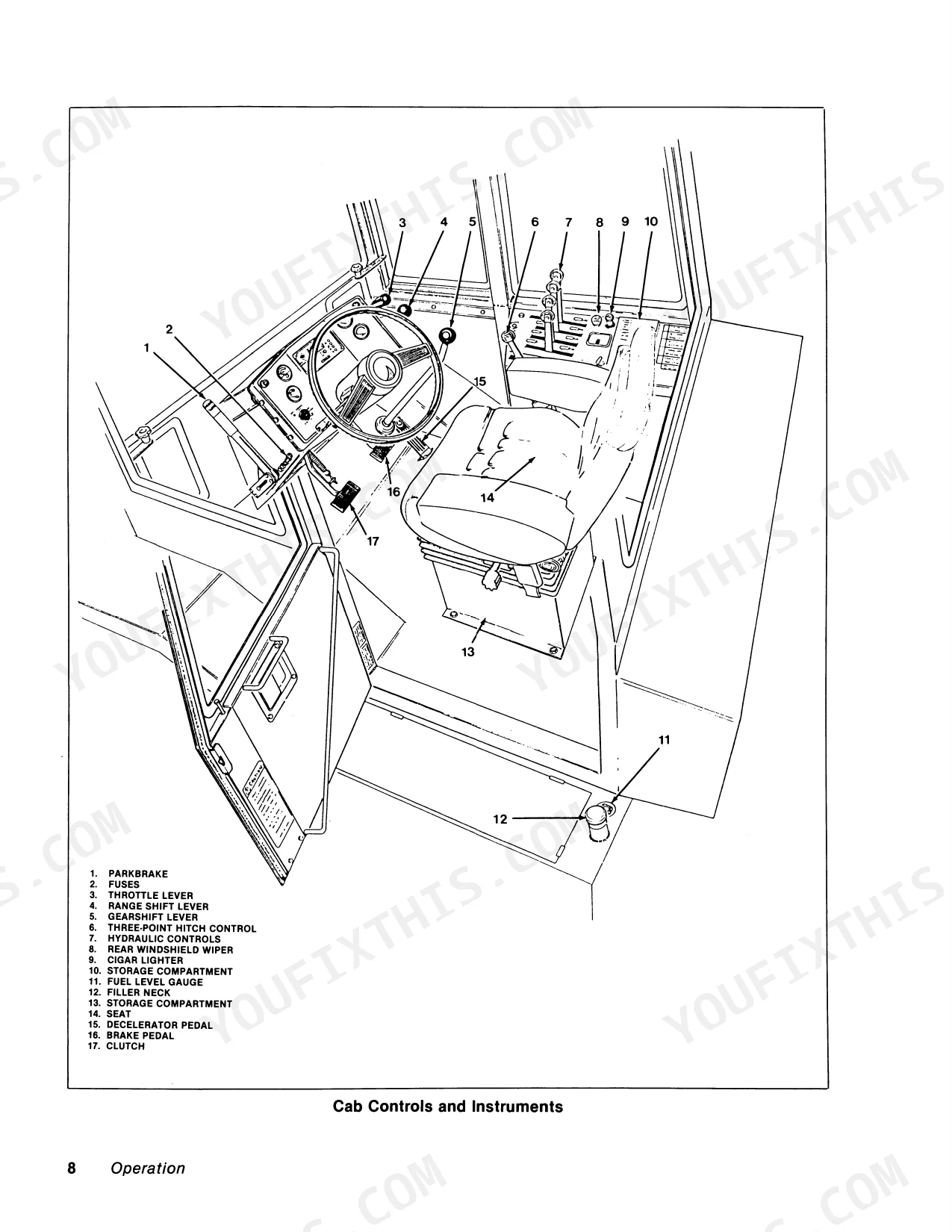

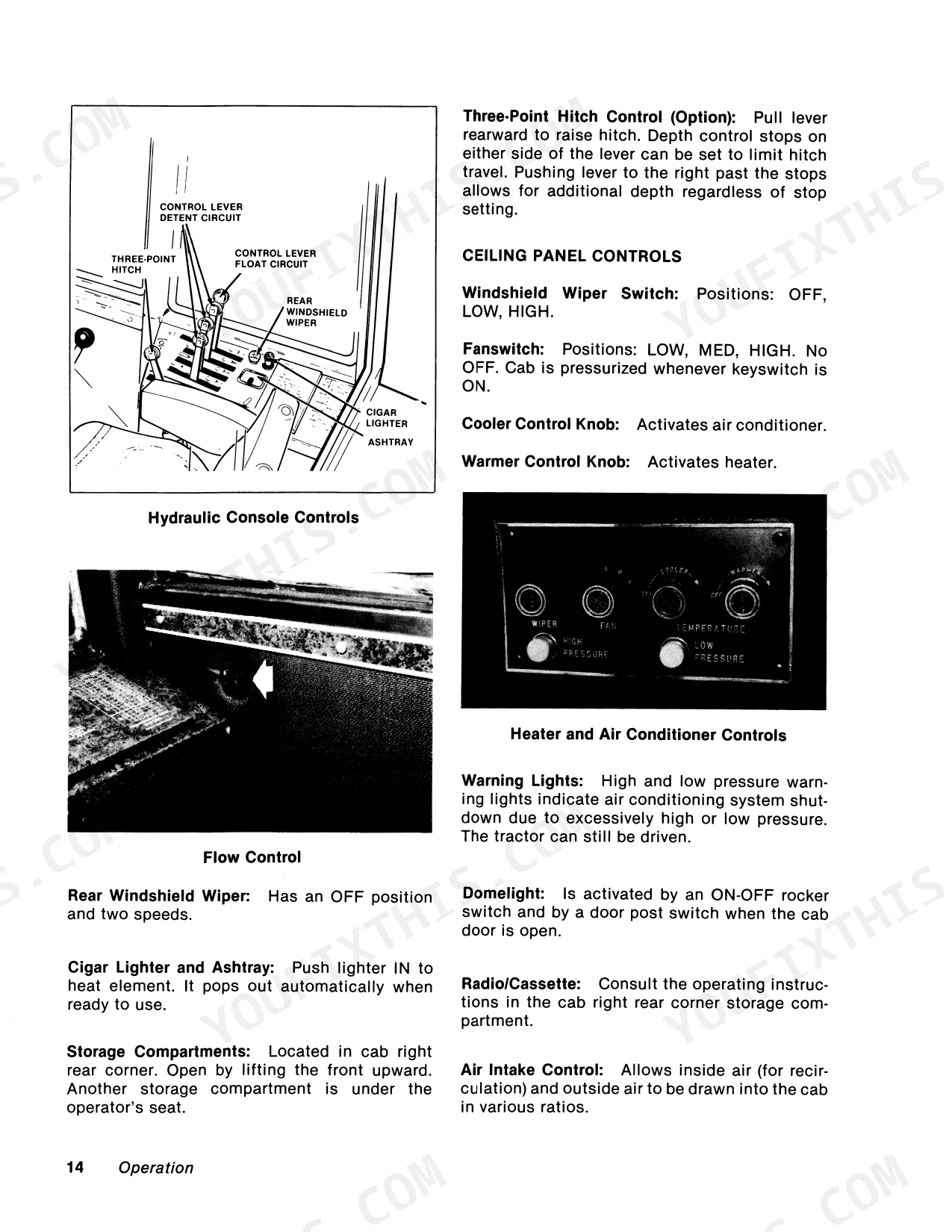

| Operation | 12-29 | Engine Break-In, Engine Starting, Clutch Operation |

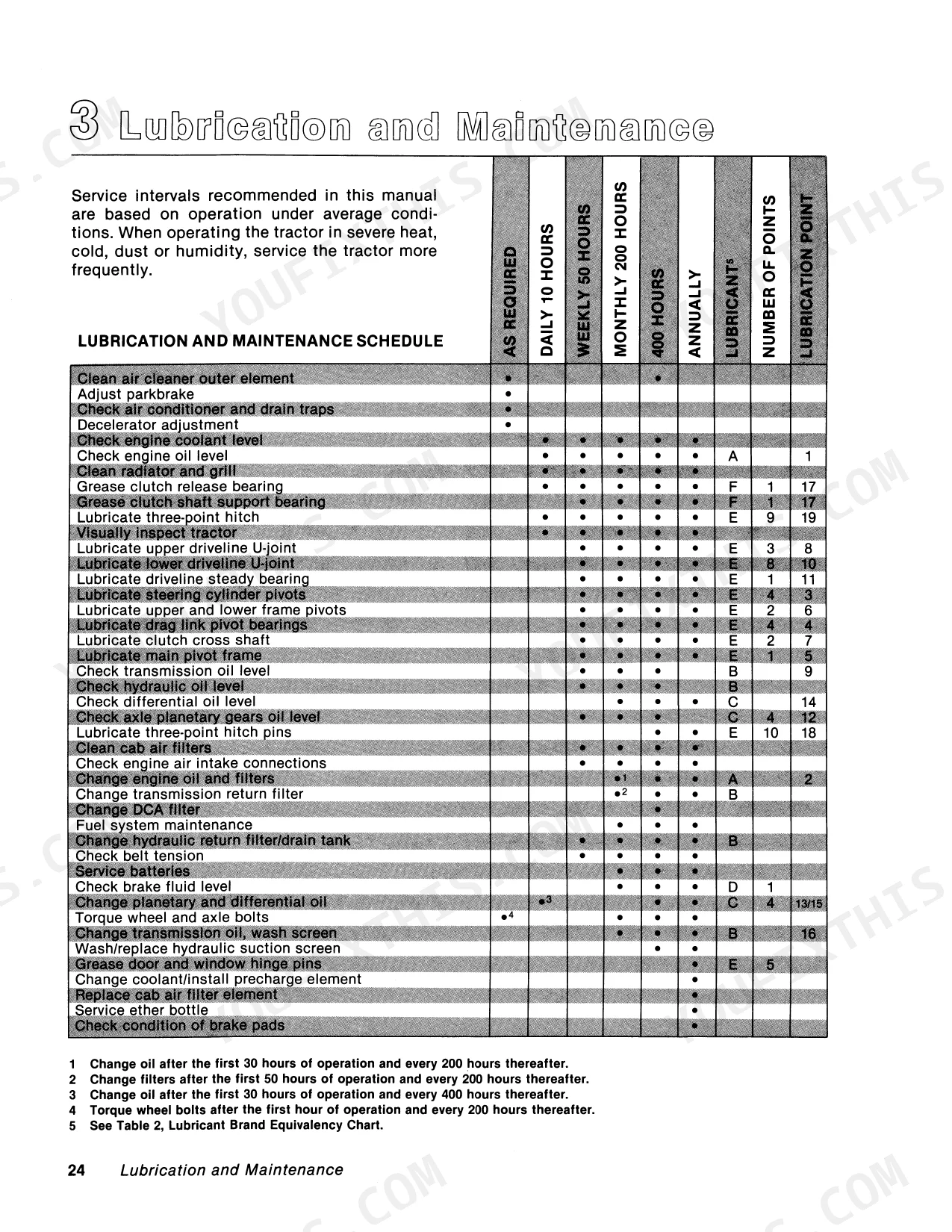

| Lubrication and Maintenance | 30-57 | Air Cleaner, Axles and Differentials, Electrical System |

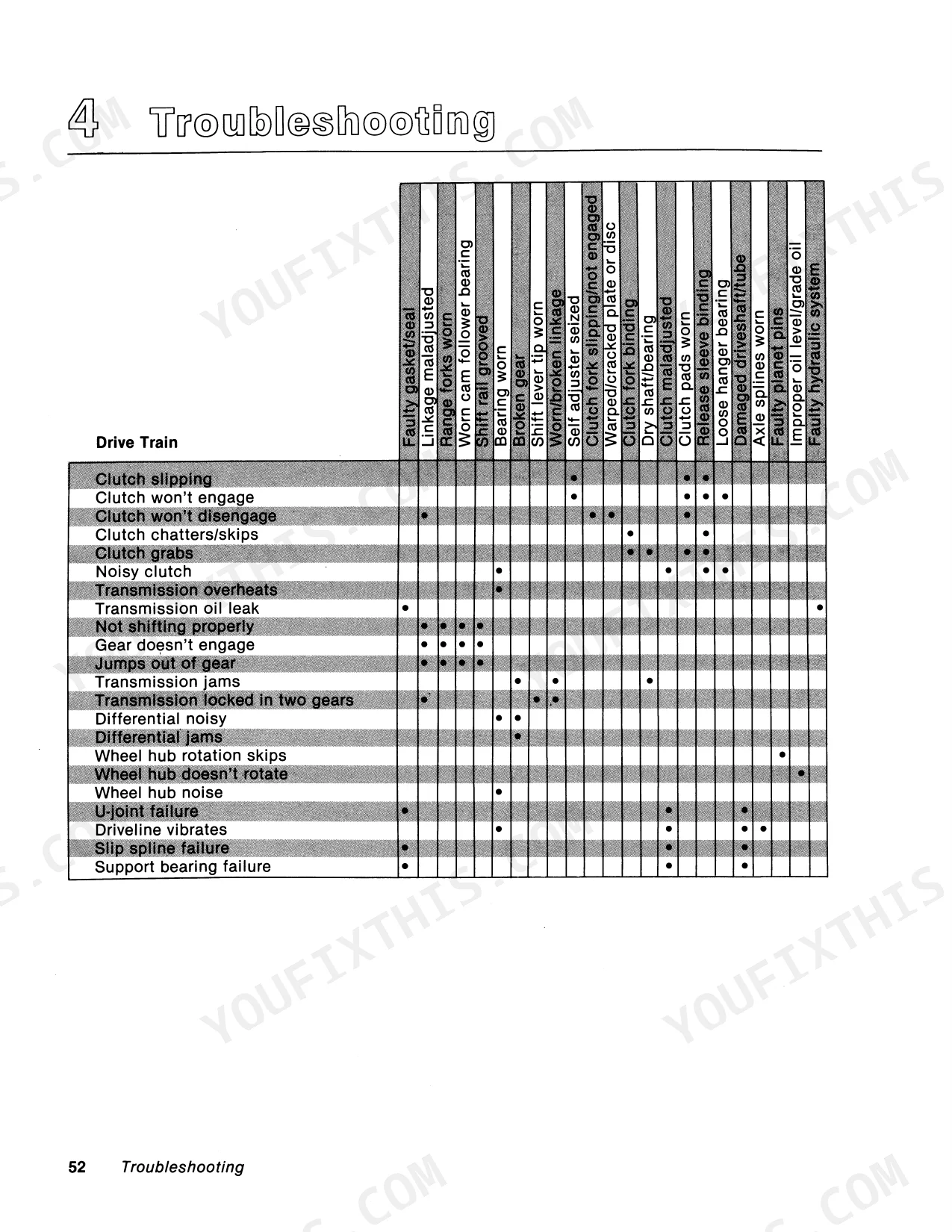

| Troubleshooting | 58-60 | Drive Train, Electrical System, Engine, Environmental System, Hydraulic/Steering System |
| Storage | 61-62 | Storing the Tractor |
| Specifications and Schematics | 63-73 | Capacities, Engine |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Clutch pedal free play | 37 mm (1-1/2 in.) | p. 41 |
| Clutch pedal free play minimum | 25 mm (one in.) | p. 41 |
| Engine Oil Capacity | 38.5 L | p. 45 |
| Cooling System Capacity | 58 L | p. 41 |
| Fuel Tank Capacity | 700 L | p. 47 |
| Hydraulic System Capacity | 79.5 L | p. 48 |
| Transmission Oil Capacity | 20.5 L | p. 50 |
| Axle Oil Capacity | 38.5 L | p. 37 |
| Axle Mounting Bolt Torque (First Nut) | 815 N-m | p. 37 |
| Axle Mounting Bolt Torque (Jam Nut) | 275 N-m | p. 37 |
| 945 | ||
| Maximum Brake Horsepower (Model 945) | 250 kW | p. 65 |
| 975 | ||
| Maximum Brake Horsepower (Model 975) | 269 kW | p. 65 |
Versatile 945, 975 Common Problems This Manual Covers
Wheel nuts loosen after tire or rim work
Nuts on a tractor this heavy back off during the first hours after a rim or tire change, and a wheel that starts to wallow ruins the stud holes quickly. The Lubrication and Maintenance section specifies single wheel nuts at 440 N-m and tells you when to recheck them.
Manual Section: Lubrication and Maintenance p. 52Clutch pedal free play drifts out of spec
A clutch that drags or slips usually announces itself first through changed pedal feel. The manual notes the clutch is wear compensating and should maintain free pedal at 37 mm, which gives you a hard number to measure against before you start pulling anything apart.
Manual Section: Lubrication and Maintenance p. 35Engine runs hot under heavy draft load
Chaff packed into the radiator core and a cooling system that is quietly down on coolant will push temperature up the moment you hook onto heavy tillage. Lubrication and Maintenance lists cooling system capacity at 58 L, so you can tell a routine top-up from a leak you need to chase.
Manual Section: Lubrication and Maintenance p. 41Driveline rumble from axle and bearing wear
Carrier bearing and pivot pin wear is a known source of vibration and noise on these tractors, and loose axle mounting hardware makes it worse fast. The axles and differentials coverage gives the axle mounting bolt first nut at 815 N-m and the jam nut at 275 N-m.
Manual Section: Lubrication and Maintenance p. 37Heavy steering and slow remote hydraulics
Sluggish remotes and steering that fights you often trace back to one low-flow condition rather than two separate faults. The Troubleshooting section lists hydraulic and steering symptoms alongside drive train, engine, and electrical ones so you work a chart instead of guessing in the field.
Manual Section: Troubleshooting p. 58No start after the tractor sits all winter
A tractor parked after harvest comes back in spring with flat batteries, stale fuel, and controls that have seized from sitting. The Storage section covers how to put the tractor away properly and what to go through before you put it back to work.
Manual Section: Storage p. 61Fresh engine worked too hard too early
Putting a new tractor straight onto a full draft load before the engine is broken in glazes cylinder walls, and you live with the oil consumption afterward. The Operation section covers the first 50 hours of engine break-in and the starting procedure for the Cummins NT855 so the first hours are done in the right order.
Manual Section: Operation p. 12Frequently Asked Questions
Which tractors and engines does this manual cover?
It covers the Versatile 945 and 975 tractors under publication number 42094520, built around the Cummins NT855-A335 and NT855-A360 engines. Where the two models differ, the specifications section calls out the figures separately.
Does it give fluid capacities before I drain anything?
Yes. The Lubrication and Maintenance section lists service capacities, including hydraulic system capacity at 79.5 L, so you can order oil and filters ahead of the job rather than during it. p. 48
Is this an operator manual or a full service manual?
It is the operator manual. It covers running the tractor, lubrication and maintenance intervals, storage, and a Troubleshooting section for drive train, electrical, engine, environmental, and hydraulic or steering faults. It does not walk through splitting the tractor or rebuilding the Cummins. p. 58
How do the 945 and 975 differ in power?
The Specifications and Schematics section lists maximum brake horsepower at 250 kW for the 945 and 269 kW for the 975. Both models are powered by the Cummins NT855. p. 65
What format is this Versatile 945 manual in?
Instant PDF download. You get the full 82-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Versatile 945 Operator Manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
