Factory-printed under OEM number 42025620, this 128-page Versatile 256, 276 II operator manual PDF is the book that shipped with the tractor, covering both models across safety, controls, operation, lubrication, troubleshooting, and storage. Wiring diagrams and hydraulic schematics close out the specifications chapter, tracing circuit routing and hydrostatic system plumbing so you can follow a dead accessory circuit back to its source. Nearly a third of the book goes to lubrication and maintenance, with service charts, air cleaner and brake work, and torque values written out. Troubleshooting tables sort engine, three-point hitch, and hydrostatic faults by symptom. Capacities are listed plainly: 22 litres for the cooling system, 8.7 litres for the transmission, and 148 litres in the fuel tank. Bookmarked and text-searchable, this PDF puts the right spec in front of you the first time, so the field does not wait.
Other edition of this manual
- Versatile 256, 276 Operator Manual — Wiring Diagrams Original price was: $28.99.$19.99Current price is: $19.99.
What's Inside This Versatile 256, 276 II Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 9-16 | General Safety, Maintenance Safety |

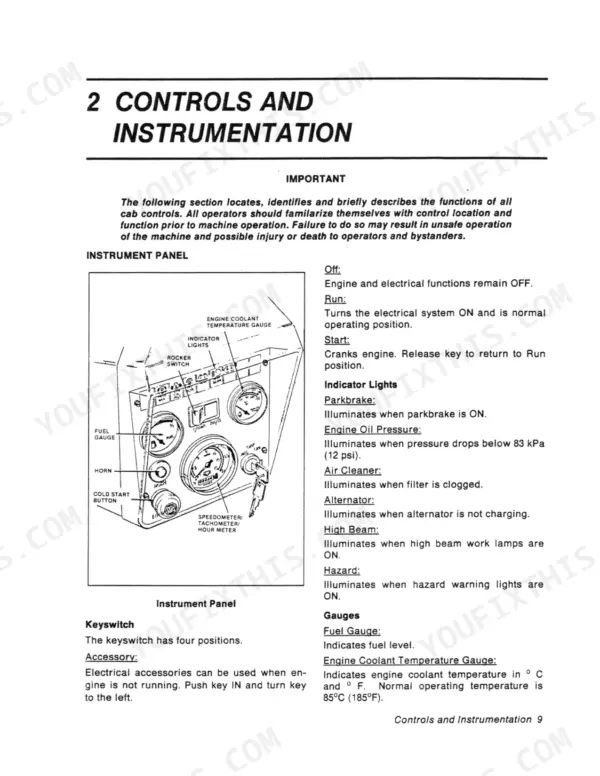

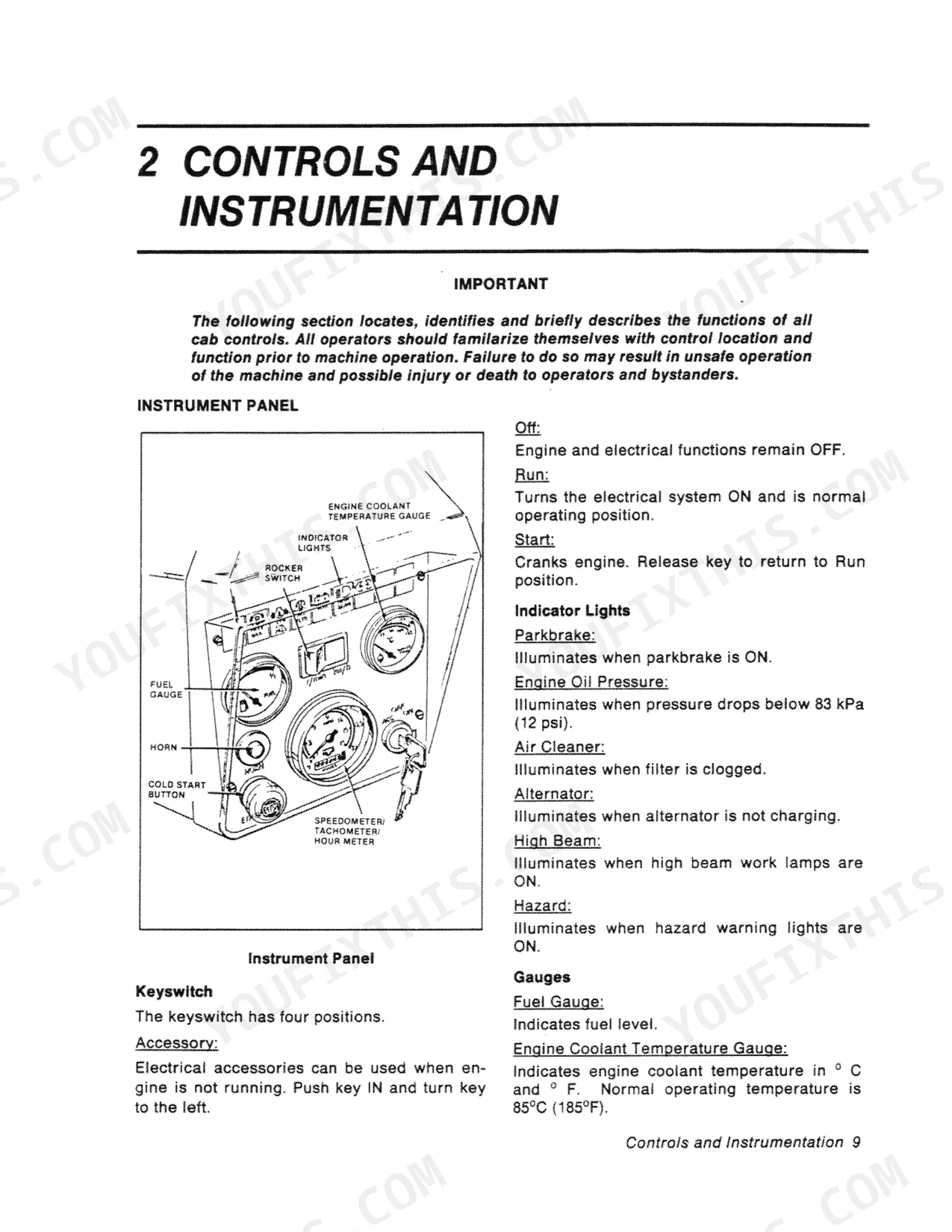

| Controls and Instrumentation | 17-22 | Instrument Panel, Cab Left Hand Side Console, Cab Right Hand Side Console |

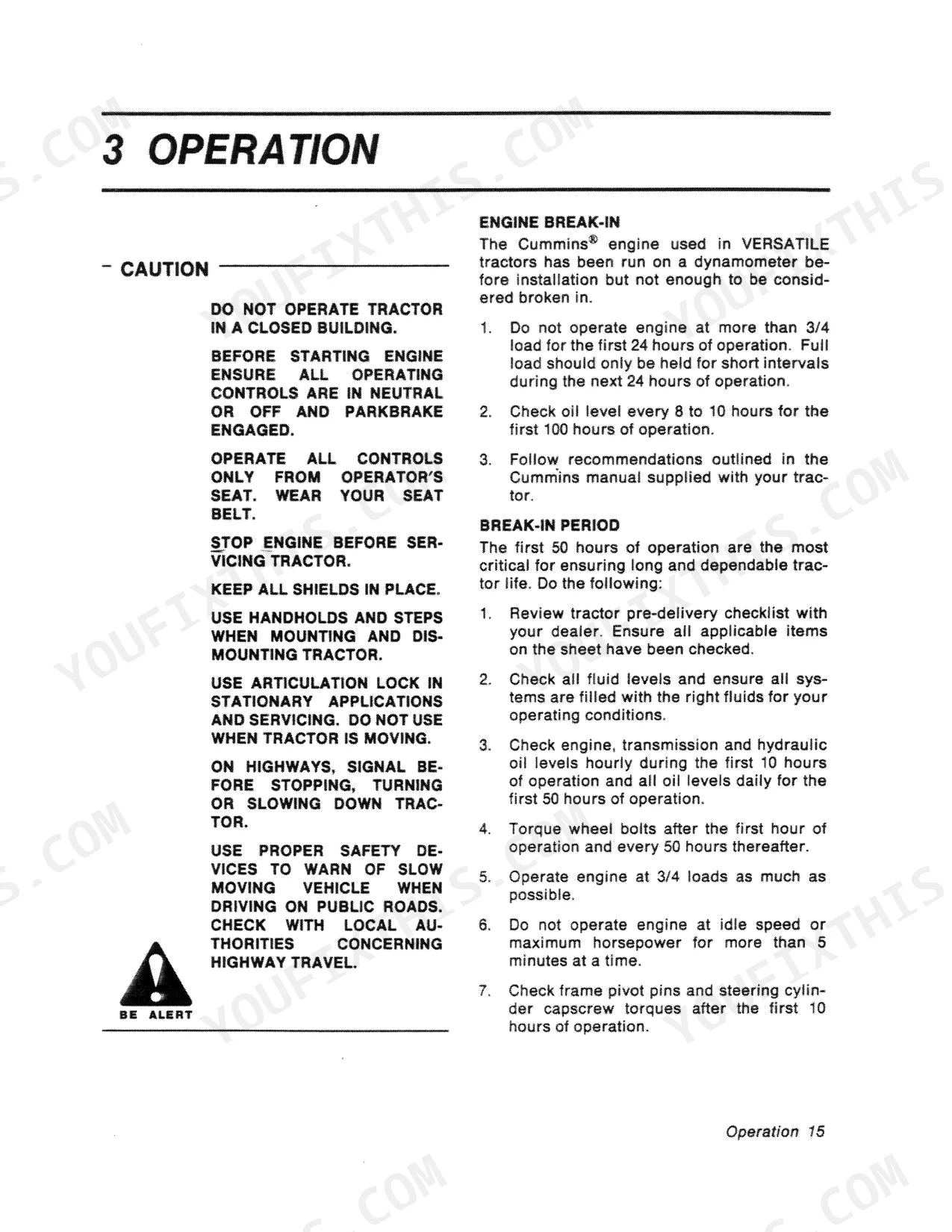

| Operation | 23-54 | Engine Break-In, Tractor Start-Up and Operation, Hydrostatic System |

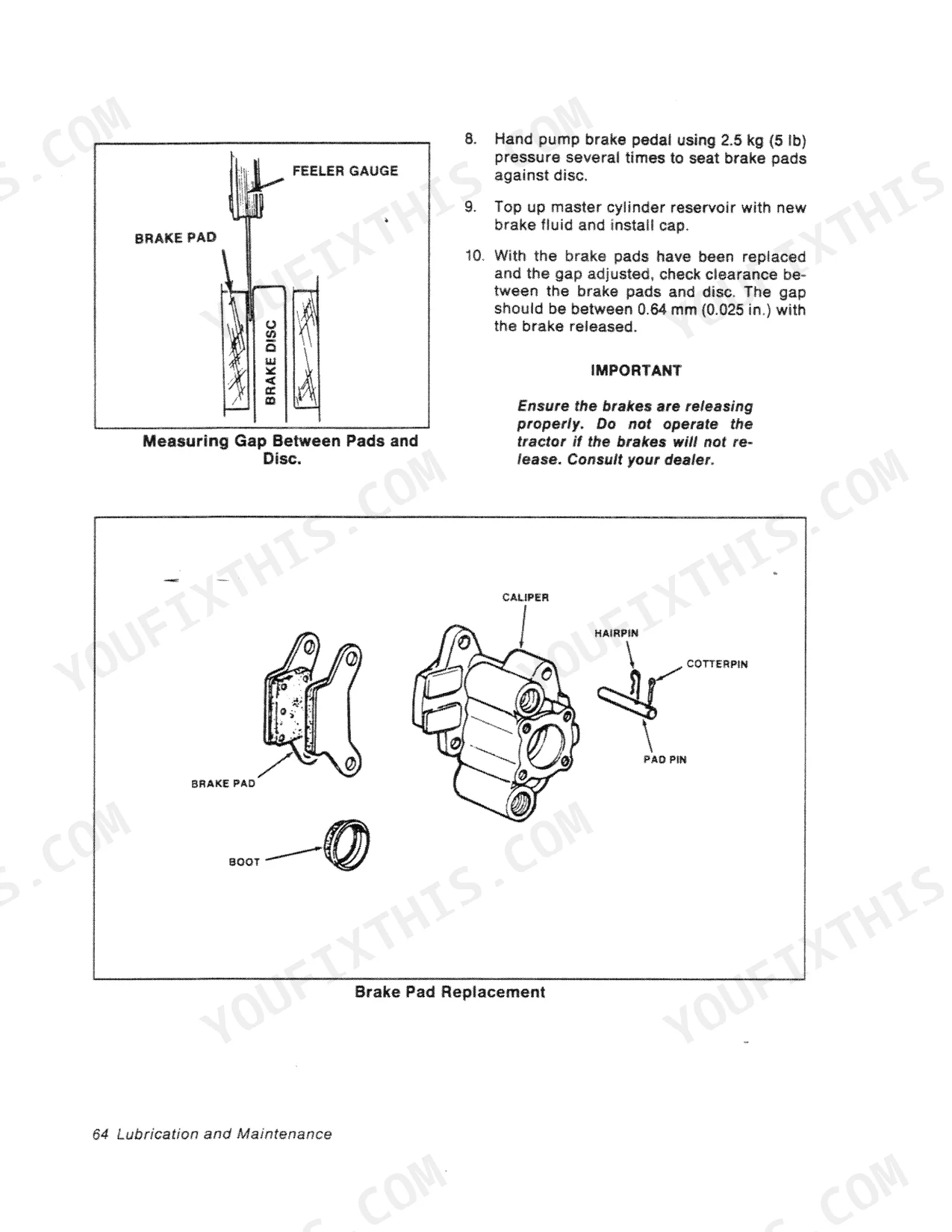

| Lubrication and Maintenance | 55-95 | Lubrication and Maintenance Chart, Air Cleaner, Brakes |

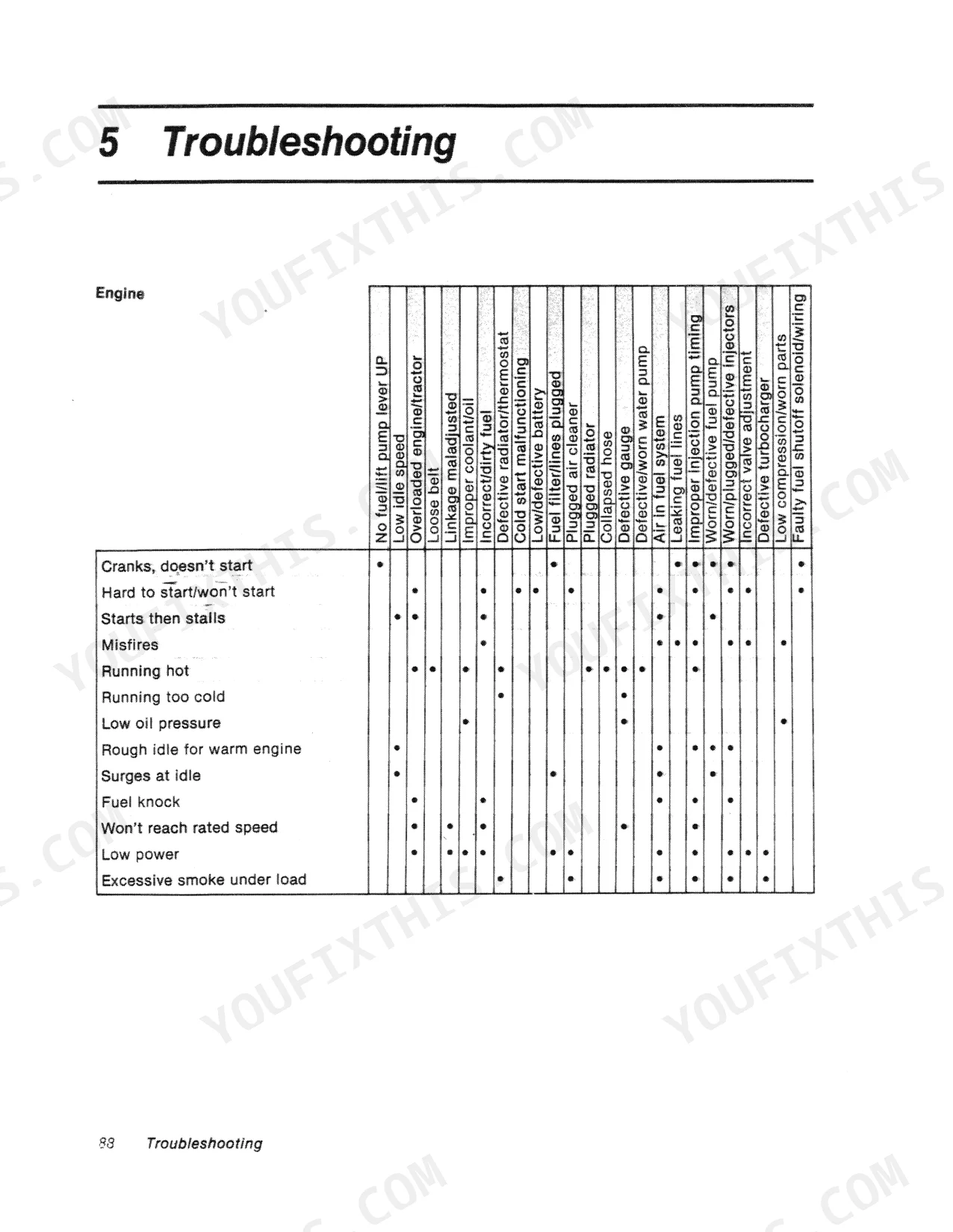

| Troubleshooting | 96-100 | Engine, Three-Point Hitch, Hydrostatic System |
| Storage | 101-102 | Storing the Tractor |
| Specifications and Schematics | 103-121 | Capacities |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

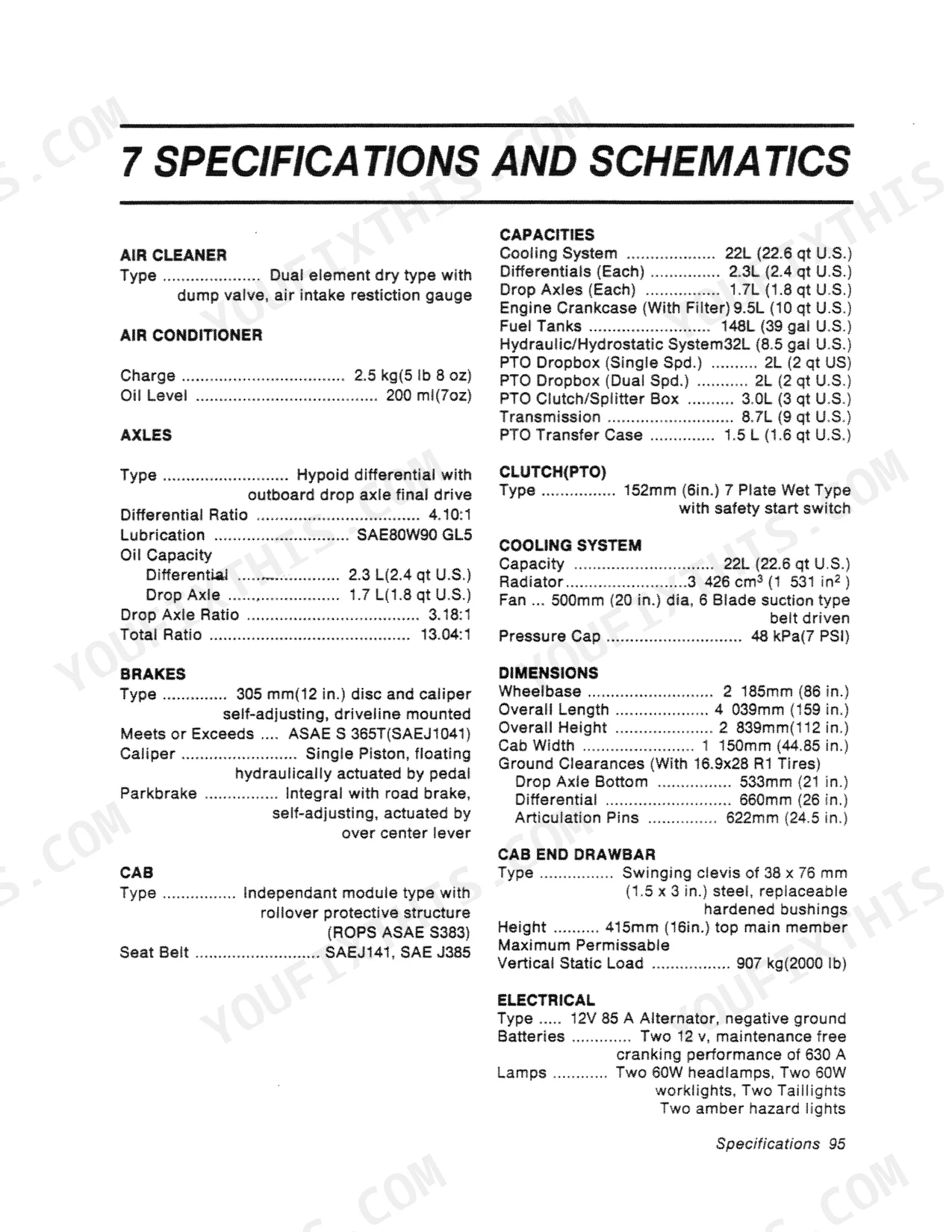

| Transmission Oil Capacity | 8.7L | p. 103 |
| Fuel Tank Capacity | 148L | p. 103 |
| Cooling System Capacity | 22L | p. 103 |
Versatile 256, 276 II Common Problems This Manual Covers
Versatile 256 hard steering or no steering response when turning the articulated tractor at low idle
Check the hydraulic troubleshooting chart on page 99 for hard and erratic steering conditions. Verify the reservoir level at the sight glass before anything else, since a small fitting leak can pull the system down fast. Inspect the hose runs through the center pivot for chafe marks, then grease the pivot pins and bearings.
Manual Section: Hydraulic System Troubleshooting p. 99Three-point hitch will not raise or lower, or drops out of position with an implement mounted
Walk the three-point hitch troubleshooting chart on page 97, which covers no-raise, slow operation, and failure to hold position. Verify the hitch control switches respond and the rockshaft linkage is free, not seized from missed greasing. Confirm hydraulic oil level is in range before hanging the implement back on the drawbar.
Manual Section: Three-Point Hitch Troubleshooting p. 97Engine cranks slowly or starter solenoid chatters on a cold morning before field work
Start with the electrical troubleshooting chart on page 100 covering sluggish starting and solenoid chatter. Clean and tighten both battery cable ends, then check the charging circuit output. Verify the fuel tanks hold usable fuel against the 148L (39 gal U.S.) rated capacity, since summer diesel can gel and drag starting down in cold weather.
Manual Section: Electrical System Troubleshooting p. 100Hydrostatic drive overheats, gets sluggish, or the control lever is hard to find neutral
Check the hydrostatic troubleshooting chart on page 98 for overheating, sluggish performance, and neutral control faults. Clean the cooler core and radiator screens of chaff before the next round in the field. Verify coolant is at the full mark against the 22L (22.6 qt U.S.) cooling system capacity listed on page 103, and let the system cool before removing the cap.
Manual Section: Hydrostatic System Troubleshooting p. 98Transmission shifts hard, makes noise, or the oil foams under load
Work through the transmission troubleshooting chart on page 98 for hard shifting, noise, and foaming. Drain and refill to the 8.7L (9 qt U.S.) transmission capacity shown on page 103, using only the oil grade the lubrication chart calls for. Inspect fittings and O-rings for weeping, then run the range shift through every position.
Manual Section: Transmission Troubleshooting p. 98Loader pins, center pivot bushings, and drop box bolts feel loose with visible play
Grease every pivot pin and bushing on the loader and center joint at the interval the lubrication and maintenance chart specifies starting on page 55. Inspect the drop box to axle flange bolts for looseness or cracked faces, and retighten to the values in the torque specifications on page 94 before heavy pushing.
Manual Section: Lubrication and Maintenance p. 55Frequently Asked Questions
What are the torque specs for the main driveline bolts on a Versatile 256, 276 II tractor?
The torque specification for the main driveline bolts is 34 to 40 N.m (25 to 30 lb.ft). p. 115
What is the transmission oil capacity on the Versatile 256, 276 II tractor?
The transmission oil capacity is 8.7 L (9 qt US). p. 103
How often should the hydraulic/hydrostatic oil filters be replaced?
The hydraulic/hydrostatic oil filter elements should be replaced every 200 hours. p. 85
What is the correct torque for the wheel clamp bolts on a Versatile 256, 276 II tractor?
The wheel clamp bolts should be torqued to 210 to 270 N.m (156 to 200 lb.ft). p. 115
What exactly do I receive with this Versatile 256 Operator Manual?
Immediate download of the complete 128-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Does this Versatile 256 manual allow printing?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
