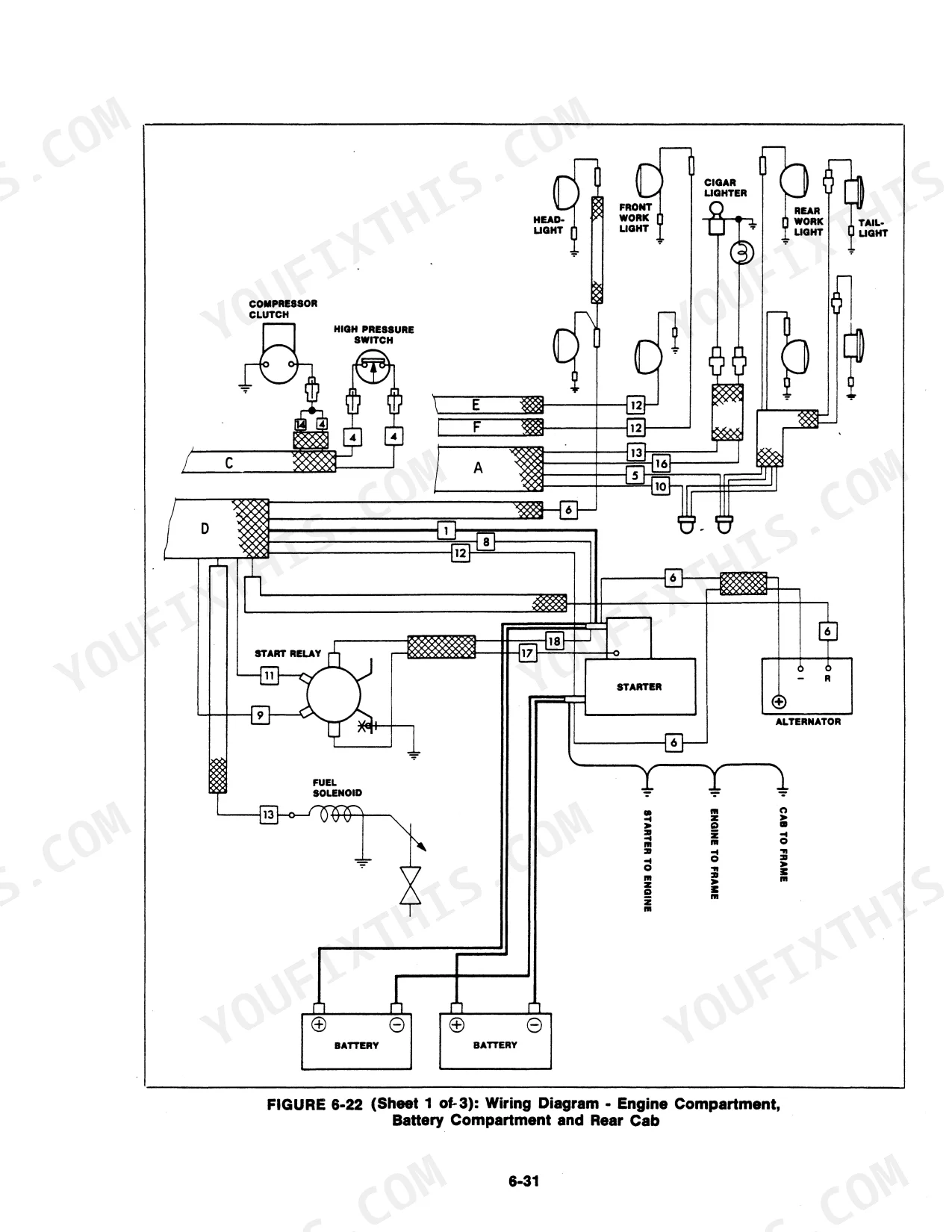

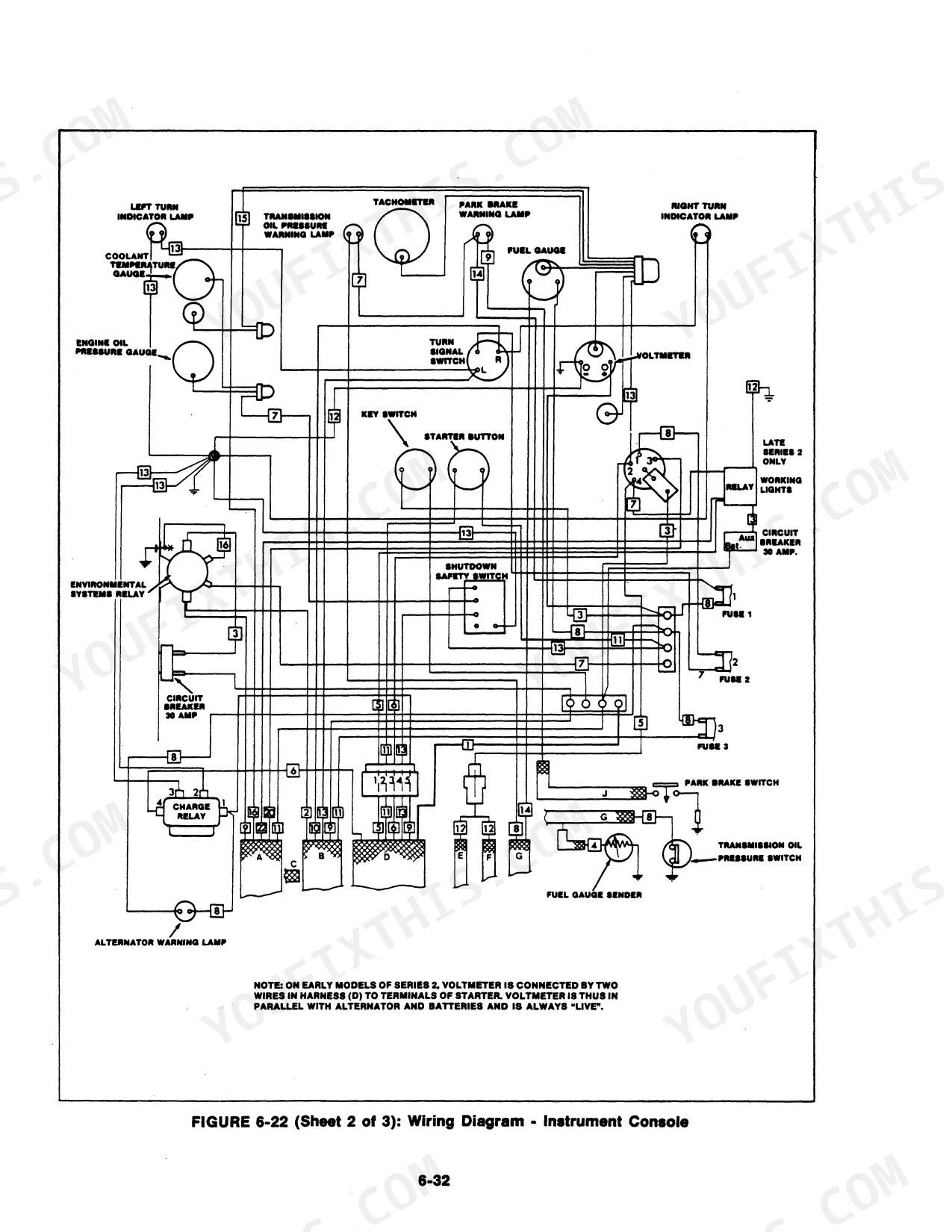

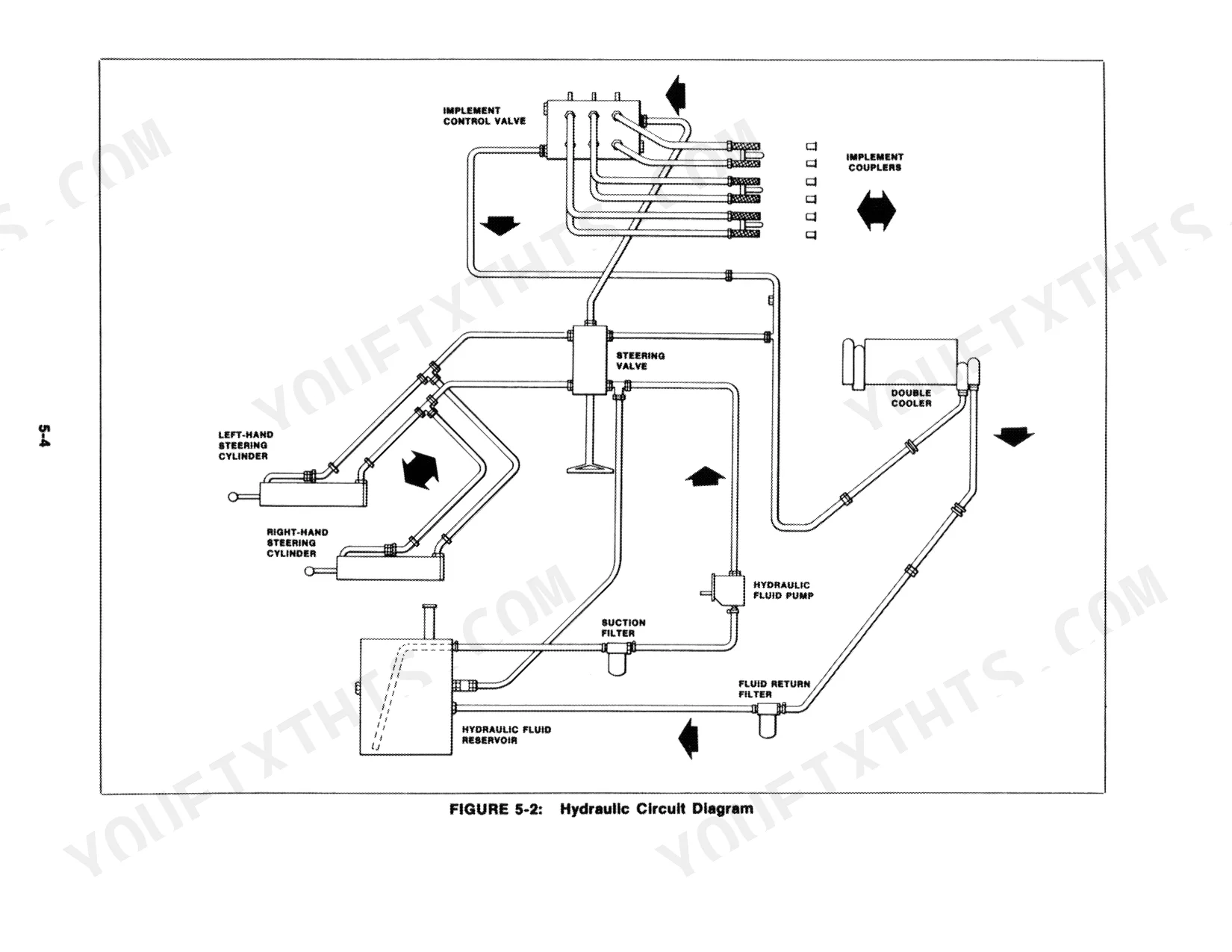

Before the hood comes up on your Versatile four-wheel drive tractor within the hour, you will have the 348-page factory Service Manual (OEM 40070060) open beside it, written in 1977 for the seven-model 700 to 950 series. Troubleshooting for the drive train, hydraulics, electrical system and cab environmental unit fills most of this Versatile 700, 750, 800, 825, 850, 900, 950 service manual PDF, with wiring diagrams for tracing electrical faults and hydraulic schematics showing oil routing. Ahead of that sit capacities, tire inflation, fuels and lubricants, belt and filter replacement, and storage prep. Check turbocharger turbine shaft end play against the 0.018 inch (0.46 mm) limit, and pull differential carrier capscrews to 160 to 175 ft lb. A guessed torque on a carrier capscrew costs you an axle, not an afternoon. Bookmarks and a text layer land you on the right troubleshooting chart in seconds, and the tractor is back in the field before the weather turns.
What's Inside This Versatile 700–950 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 11 | Specifications, Capacities, Lubricants, Fluids, Fuels |

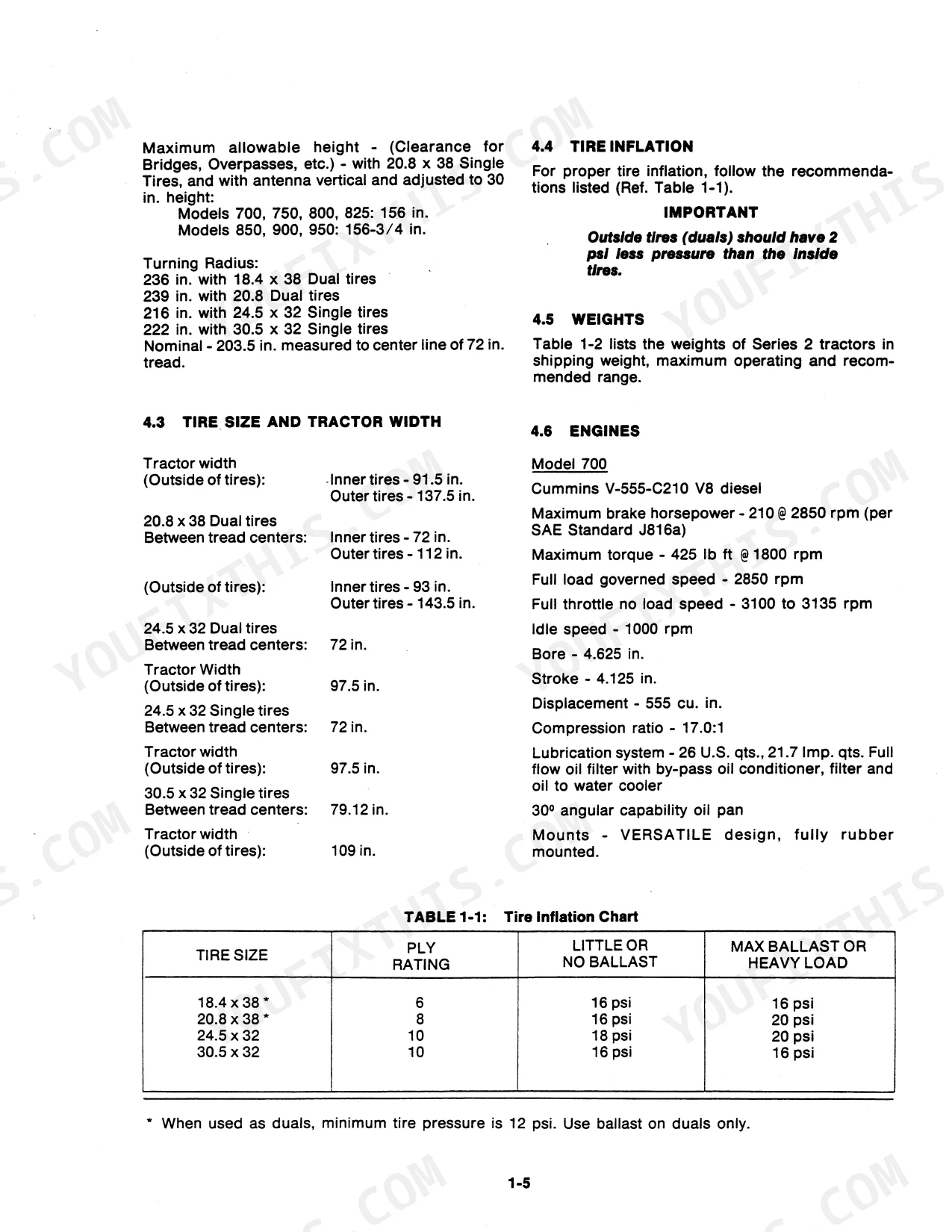

| Specifications and Capacities | 12-16 | General, Dimensions, Tire Size and Tractor Width, Tire Inflation, Weights, Engines, Cooling System, Air Cleaner |
| Fuels, Fluids and Lubricants | 17-18 | General, Fuel, Fluids, Lubricants |
| Lubrication | 19-22 | Engine Crankcase, Transmission System, Hydraulic System, Differential Gears, Axle Planetary Gears |

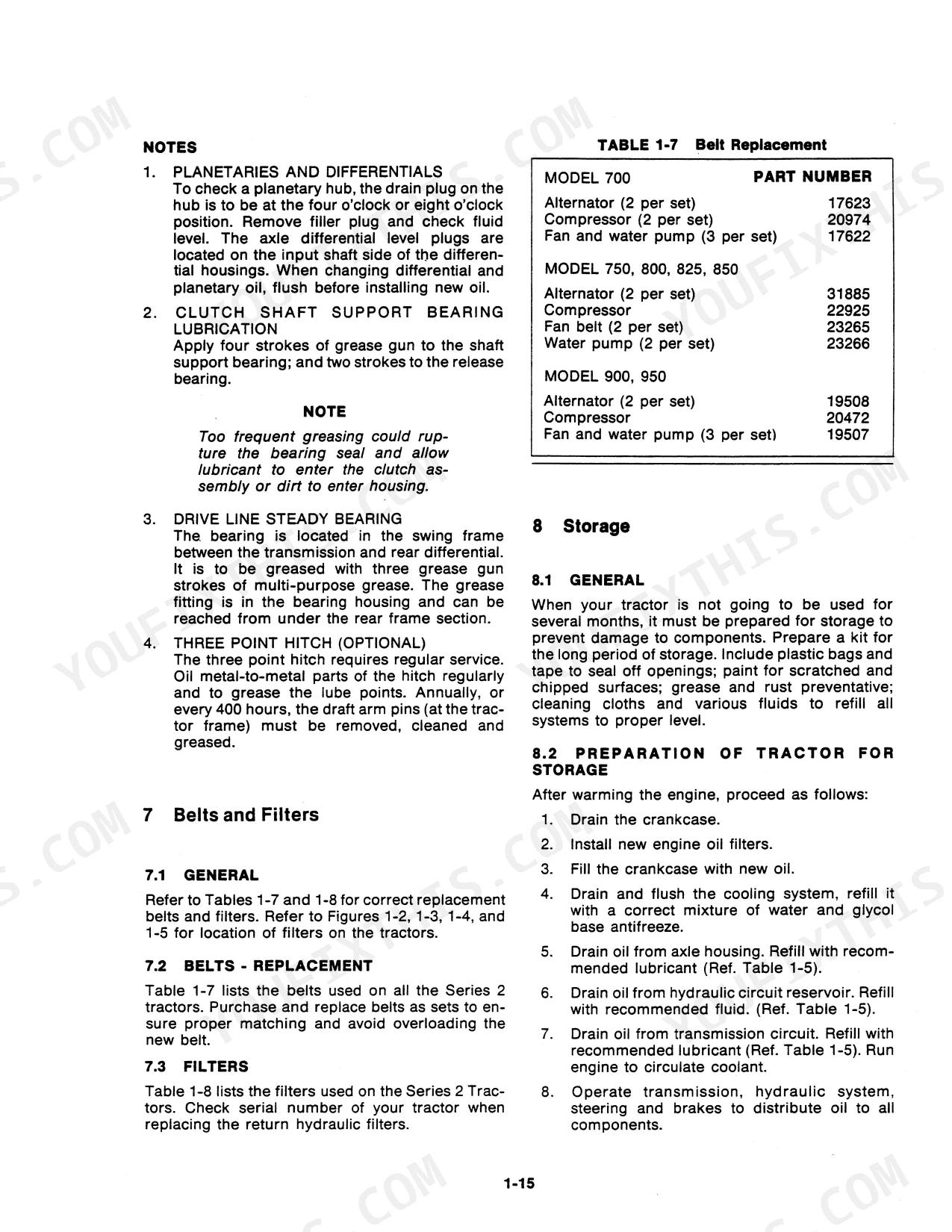

| Belts and Filters | 23-26 | General, Belts-Replacement, Filters |

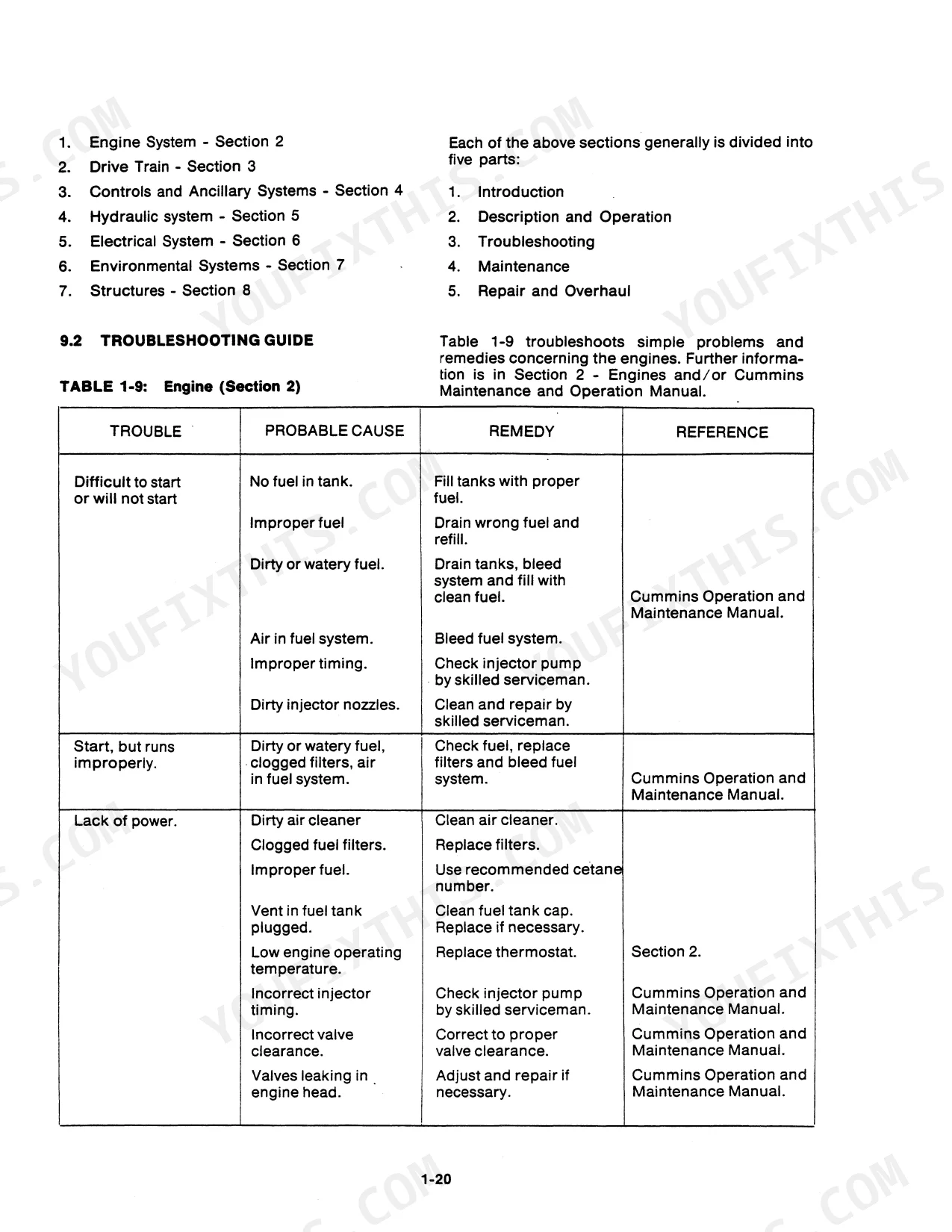

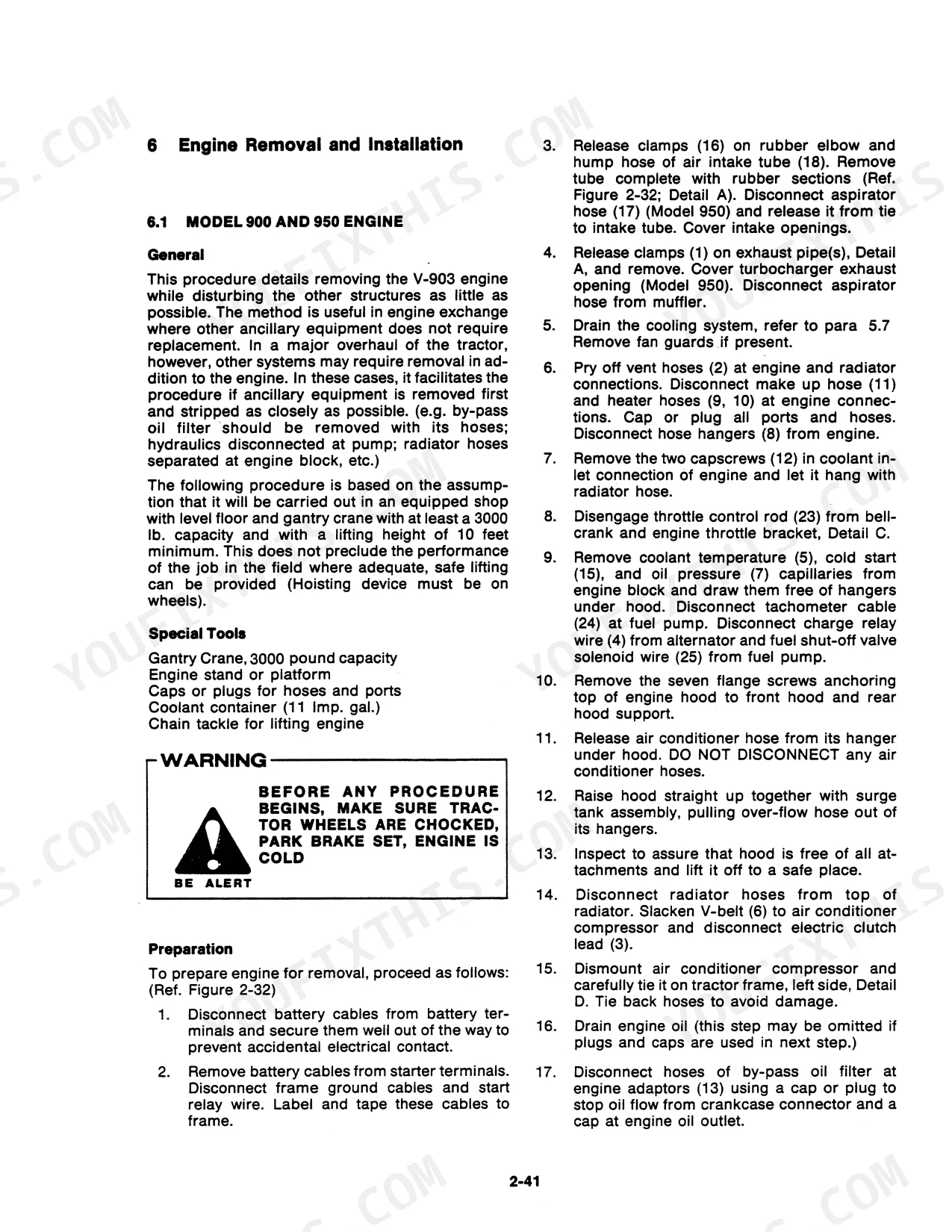

| Troubleshooting | 27-40 | General, Troubleshooting Guide, Troubleshooting Drive Train, Hydraulics, Troubleshooting Electrical System, Troubleshooting Environmental System |
| Engine Systems | 41-92 | Fuel System, Cooling System, Air Intake/Exhaust System, Engine Lubrication System, Cold Start System |
| Drive Train | 93-162 | Clutch, Transmission, Axles, No-Spin Unit |
| Controls and Ancillary Systems | 163-192 | Instrument Panel, Transmission Lubrication System, Road Brake System, Park Brake Linkage |
| Hydraulic System | 193-240 | Implement Control Valve |
| Electrical System | 241-278 | Lighting Circuits |
| Environmental Systems | 279-316 | Air Conditioning System |
| Structures | 317-348 | Engine Hood Assembly, Operator's Cab, Three-Point Hitch, Fenders and Ladders, Operator's Seat |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Oil pressure gauge switch contacts closing pressure | 20 psi (138 kPa) | p. 246 |
| Maximum air pressure for blowing out clogged cyclone tubes | 100 psi | p. 62 |
| Maximum vacuum for muffler aspirator | 4 inches of water | p. 64 |
| Differential carrier capscrew torque | 160 to 175 ft lb | p. 122 |
| Planet carrier capscrew torque | 70 - 75 ft lb | p. 124 |
| Steering wheel nut torque | 32.5 to 37.5 ft. lb. | p. 205 |
| Lift actuator torque wrench | 85 ft. lb. | p. 215 |
| Spool travel measurement | 0.085 to 0.110 inch | p. 218 |
| Transmission oil pressure warning switch closing pressure | 4 psi | p. 247 |
| Compressor clutch field coil bolt torque | 15-20 ft.lb. | p. 302 |
| Compressor clutch bearing bolt torque | 15-20 ft.lb. | p. 303 |
| Maximum brake horsepower (Model 700) | 210 @ 2850 rpm | p. 13 |
Versatile 700–950 Common Problems This Manual Covers
Versatile 700 to 950 four-wheel drive hydraulic system showing low lift force with oil heating and foaming
Test the hydraulic relief valve with a gauge and compare against the 2300 ± 50 psi setting on page 16, which applies to every model in this manual. If pressure is right, work down the hydraulic troubleshooting list for a sticky valve spool or foaming oil before condemning anything bigger. Hydraulic heat kills a harvest day fast.
Manual Section: Hydraulic System Troubleshooting p. 16Hydraulic valve spool sticking or out of adjustment, giving erratic implement control
Measure spool travel following page 218 and confirm the difference reads 0.085 to 0.110 inch. Adjust with the setscrew; a 90 degree turn moves spool travel about 0.030 inch, so go a quarter turn at a time. Torque the end plate capscrews to 17-20 ft. lb. before testing under load.
Manual Section: Troubleshooting p. 218With a heavy implement on the drawbar, clutch slips, grabs or squeaks on engagement
Pull the clutch and inspect the intermediate plate against page 130. Measure clearance between the flywheel drive pins and plate slots: it must fall between 0.006 and 0.020 inch. Replace the intermediate plate if the friction surface is scored, heat checked or dished beyond 0.010 inch, and replace driven plates warped past 0.015 inch.
Manual Section: Drive Train TroubleshootingAxle planetary drive making rumbling noise, skipping, or wheel hub not rotating properly
Remove the planet carrier following page 124 and measure every needle roller; replace any under 0.2495 in. diameter. On reassembly, align the planet carrier holes with the wheel hub, install the lockwashers, and torque the capscrews to 70 to 75 ft lb. Refill the axle planetary gears per the lubrication schedule on page 19 before heading back out.
Manual Section: Differential and Planetaries Troubleshooting p. 124Engine running short on power and throwing excess smoke under a heavy pull
Clean the air cleaner first: blow out clogged cyclone tubes with no more than 100 psi as page 62 directs. Then disconnect the intake tube and exhaust pipe and inspect the turbocharger for oil leakage, broken vanes, or turbine shaft end play beyond 0.018 inch (0.46 mm) per page 65.
Manual Section: Engine TroubleshootingSafety shutdown switch or oil pressure gauge contacts giving an oil pressure light malfunction
Test the oil pressure gauge switch first: its contacts should close only when oil pressure drops below 20 psi (138 kPa), as page 246 explains. Then meter the safety shutdown switch using the chart on page 267. The relay coil should read 70 ohms and the internal resistor 100 ohms; infinite resistance means an open circuit.
Manual Section: Troubleshooting p. 246Frequently Asked Questions
What are the torque specifications for the Versatile 850 wheel mounting bolts?
The wheel mounting bolts for the Versatile 850 tractor have a diameter of 0.75 inches. The manual specifies that there are twelve bolts used for mounting. p. 16
What is the engine oil capacity for the Versatile 700 tractor?
The engine oil capacity for the Model 700 tractor is 26 U.S. quarts or 21.7 Imperial quarts. p. 19
What is the correct torque for the front engine mounting bolt on a Versatile tractor?
The front engine mounting bolt must be torqued to 260 ft. lb. (350 N-m). p. 326
How do I check the transmission oil pressure warning light on a Versatile 700–950?
The transmission oil pressure warning light should extinguish as the clutch engages. If it does not, stop the engine and inspect the transmission for leaks. p. 121
What is the required torque for the transmission mounting bolts on a Versatile 700-950 tractor?
The transmission mounting bolts must be torqued to 260 ft. lb. (350 N-m). p. 327
Is this Versatile 700 manual a PDF I download?
A single searchable PDF file of 348 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Is printing allowed for this Versatile 700 Service Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
