A slipping clutch or a dragging brake in the middle of seeding is when the Versatile 1156 service manual PDF earns its keep: 560 pages of factory data for the 1156 tractor, OEM ID 40115610, in two volumes. Wiring diagrams trace the starting, charging and instrument cluster circuits through an electrical section filling roughly a fifth of the book, while hydraulic schematics map oil from the pumps to the implement valve for your pressure tests. Clutch overhaul, shift controls, differential locks, steering cylinders and dual-wheel ballasting get the same factory treatment. Set the transmission lube check relief valve at 15 psi (1 bar), and bring universal joint bolts to 115-135 ft. lbs. (155-183 N·m). A guessed torque on a driveline yoke lets go under load. Measure brake disc facing against the 0.125 in. new thickness and you order the right parts on the first call, from a bookmarked, text-searchable file you can have open before the weather turns.
What's Inside This Versatile 1156 Manual

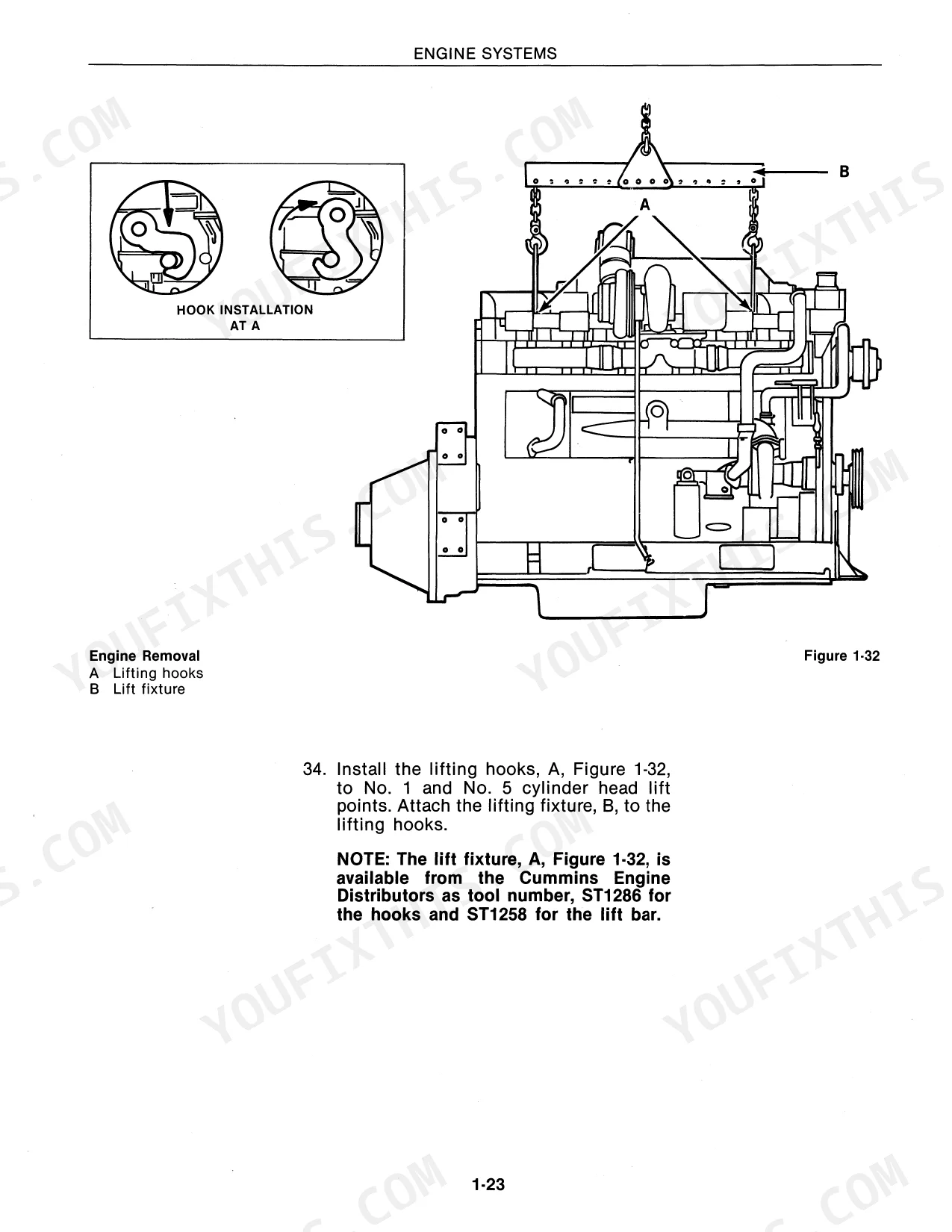

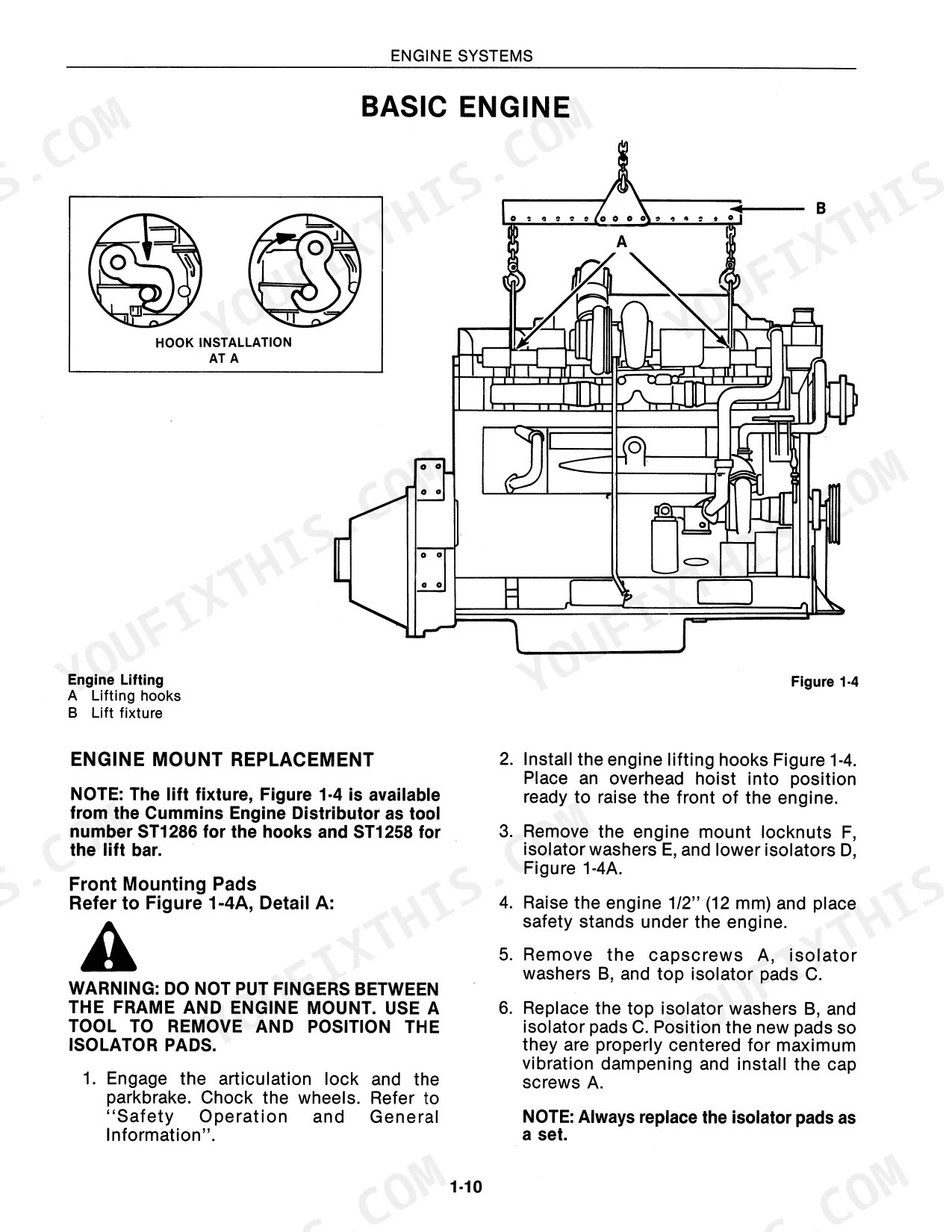

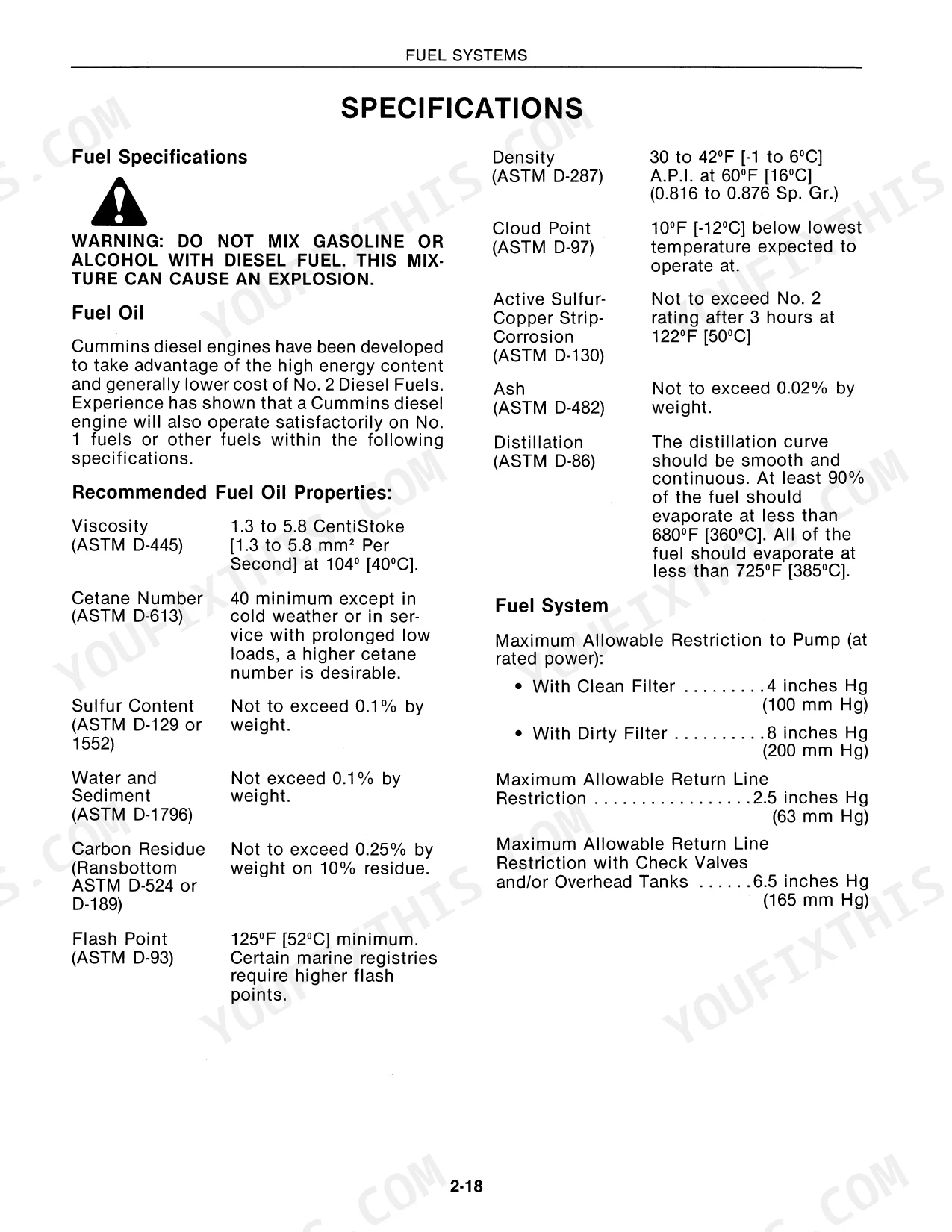

| System | Pages | Key Topics |
|---|---|---|
| Engine Systems | 17-84 | Lubrication System, Air Intake and Exhaust System, Cooling System |
| Fuel System | 85-102 | Fuel System General, Controls, Fuel Tank System |

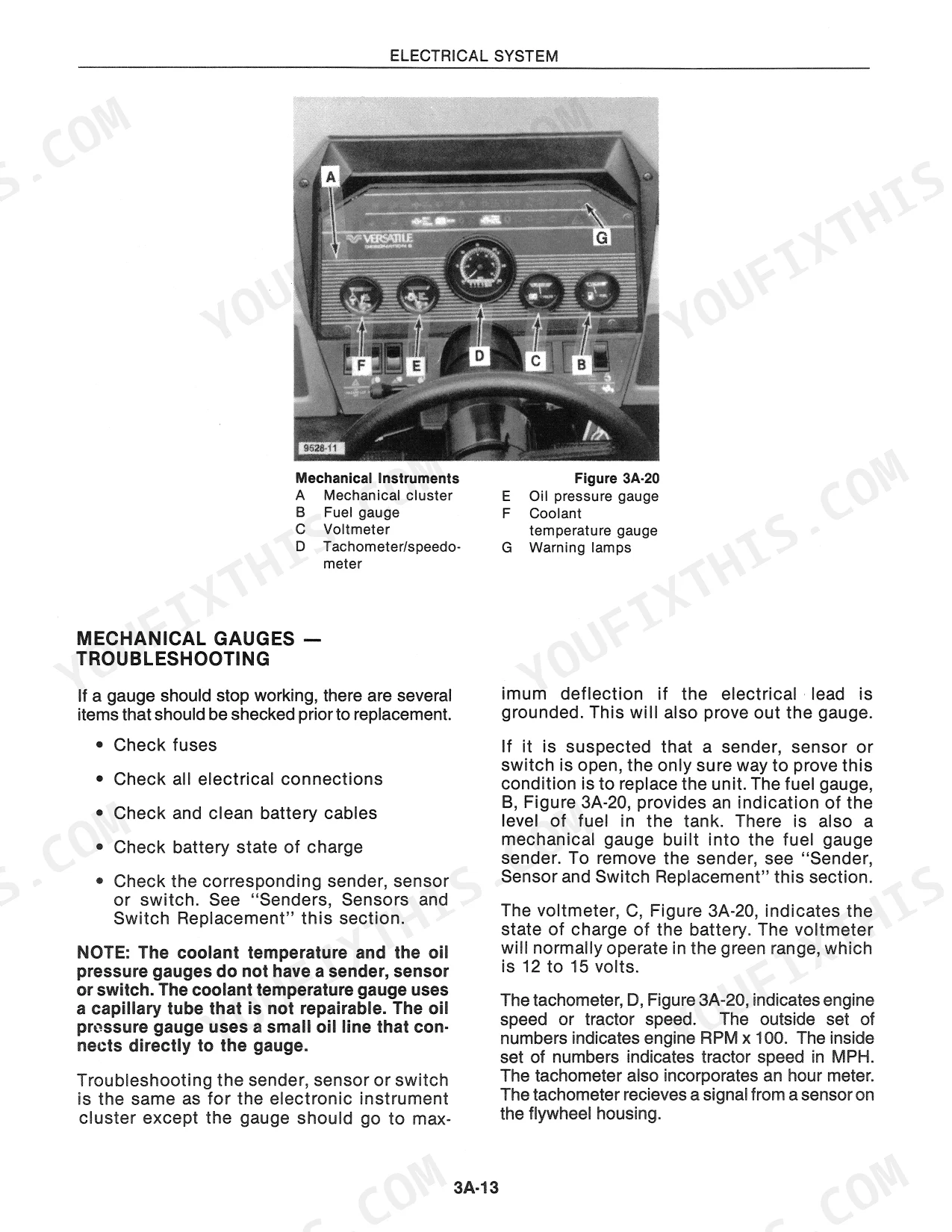

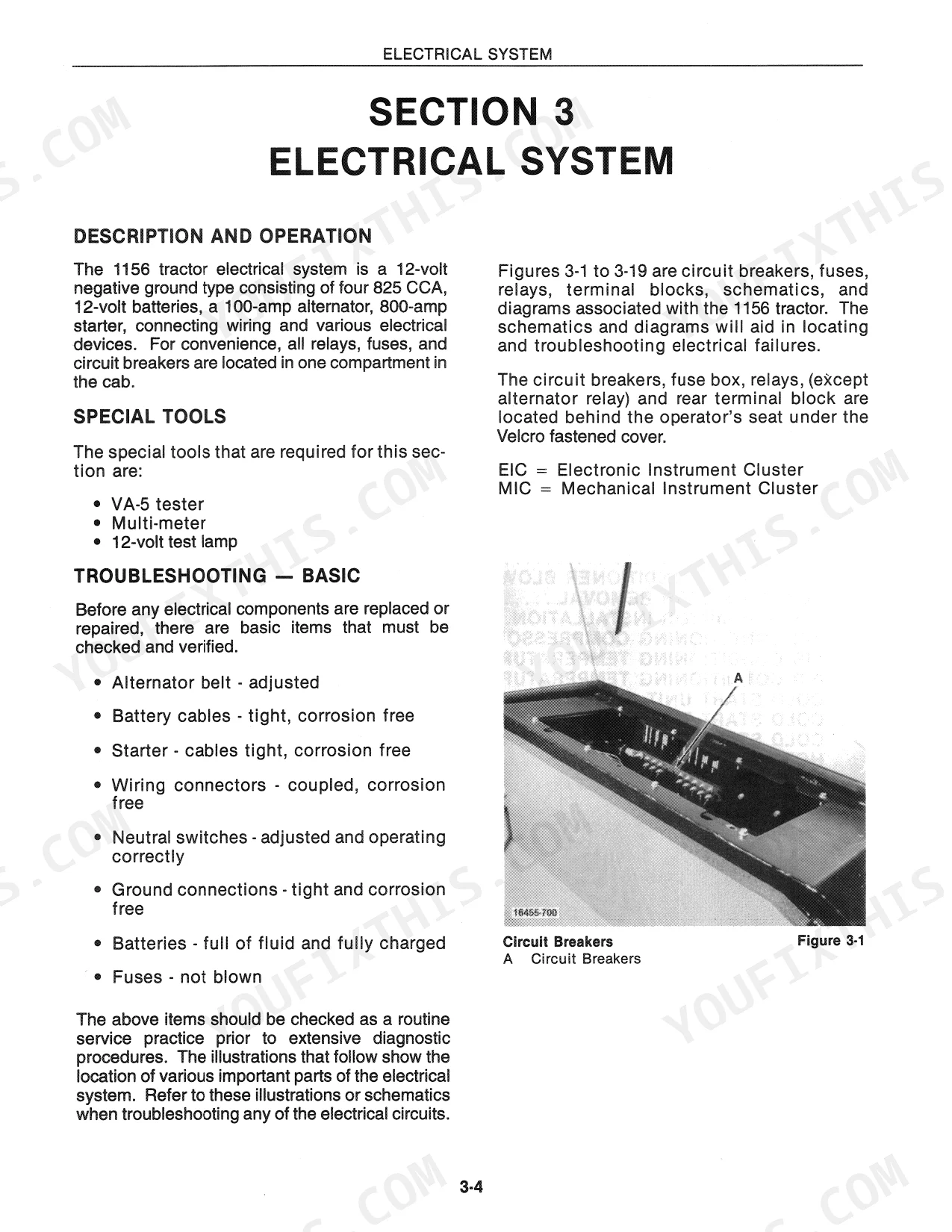

| Electrical System | 103-218 | Electronic Instrument Cluster, Starting System, Charging System |
| Clutch | 219-240 | Clutch Overhaul, Clutch Adjustments |
| Transmission & Brake System | 241-320 | Transmission Shift Controls, Brake System |
| Driveline System | 321-334 | Driveline Overhaul, Lubrication of Universal Joints |
| Axles | 335-382 | Planet Carriers and Axle Shafts, Operator Controlled Differential Locks |
| Hydraulic System | 383-418 | Pressure Tests, Hydraulic Pumps, Implement Valve |
| Steering System | 419-456 | Steering Column, Steering Valve, Steering Cylinders |
| Cab, Seat, Frame & Environmental | 457-524 | Operators Seat, Heating and Air Conditioning |
| Wheels, Tires, and Weighting | 525-542 | Installation of Dual Wheels, Weight Distribution and Ballasting |
| Specifications | 543-560 | General Dimensions, Weight, Tires, Engine, Fuel System, Cooling System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Universal Joint Bolts | 115-135 ft. lbs. (155-183 N·m) | p. 239 |
| Transmission oil pump front and back plate assembly cap screws | 25-28 ft. lbs. (35-40 N·m) | p. 282 |
| Brake Disc Facing-Each | 0.125” (3.175mm) New | p. 239 |
| Transmission lubrication system check relief valve | 15 psi (1 bar) | p. 284 |
| Brake caliper assembly to output shaft yoke cap screw torque | 80 ft. lbs. (110 N·m) | p. 275 |
| Brake disc to output shaft yoke cap screw torque | 80 ft. lbs. (110 N·m) | p. 275 |
| Transmission hydraulic filter bypass valve | 25 psi (1.73 bar) | p. 283 |
| Transmission hydraulic filter low pressure switch | 4 psi (0.27 bar) | p. 283 |
| Oil cooler mounting bolt torque | 13 lbs. ft. (18 N.m) | p. 399 |
| Bearing pre-load | 15 to 35 lbs.-in. (1.7 to 9 N·m) | p. 354 |
| Bearing carrier gap | 0.001 in. (0.025 mm) | p. 354 |
| Cab mount replacement criteria (height loss) | 35-40% of original unloaded height of 3.00 in. (76.2 mm) | p. 460 |
Versatile 1156 Common Problems This Manual Covers
Versatile 1156 transmission noisy, gears hard to shift or sticking, slips out of gear, leaking oil
Check the transmission oil level first and fill to the 19 qts. (18.5 L) capacity listed on page 275. Inspect the transmission hydraulic filter next; page 283 sets the bypass valve at 25 psi (1.73 bar) and the low pressure switch at 4 psi (0.27 bar). Work through the shift and leak checks before splitting the case.
Manual Section: Transmission and Brake System Troubleshooting p. 241Hydraulic system pump running noisy, oil overheating, low system pressure, or low flow
Test the hydraulic system pressure against 2500 psi (172.0 bar) listed on page 417. If the oil runs hot, inspect the oil cooler and mounting, torquing the cooler cap screws to 13 lbs. ft. (18 N.m) per page 399. Confirm pressure before you swap a pump in the middle of the season.
Manual Section: Hydraulic System Troubleshooting p. 383Implement valve spools sticking, detent not releasing, or flow control and load sense not responding
Inspect the spools, detent and flow control parts, then reassemble to the torques on page 417: detent housing cap screw 6 to 10 lbs.-ft. (8 to 14 N·m), flow control assembly 18 to 22 lbs.-ft. (24 to 30 N·m), end cover stud nuts 18 to 20 lbs.-ft. (24 to 27 N·m). Check the shuttle seats too.
Manual Section: Implement Valve Troubleshooting p. 417Steering pump noisy, oil overheating, low steering pressure or low flow at the steering valve

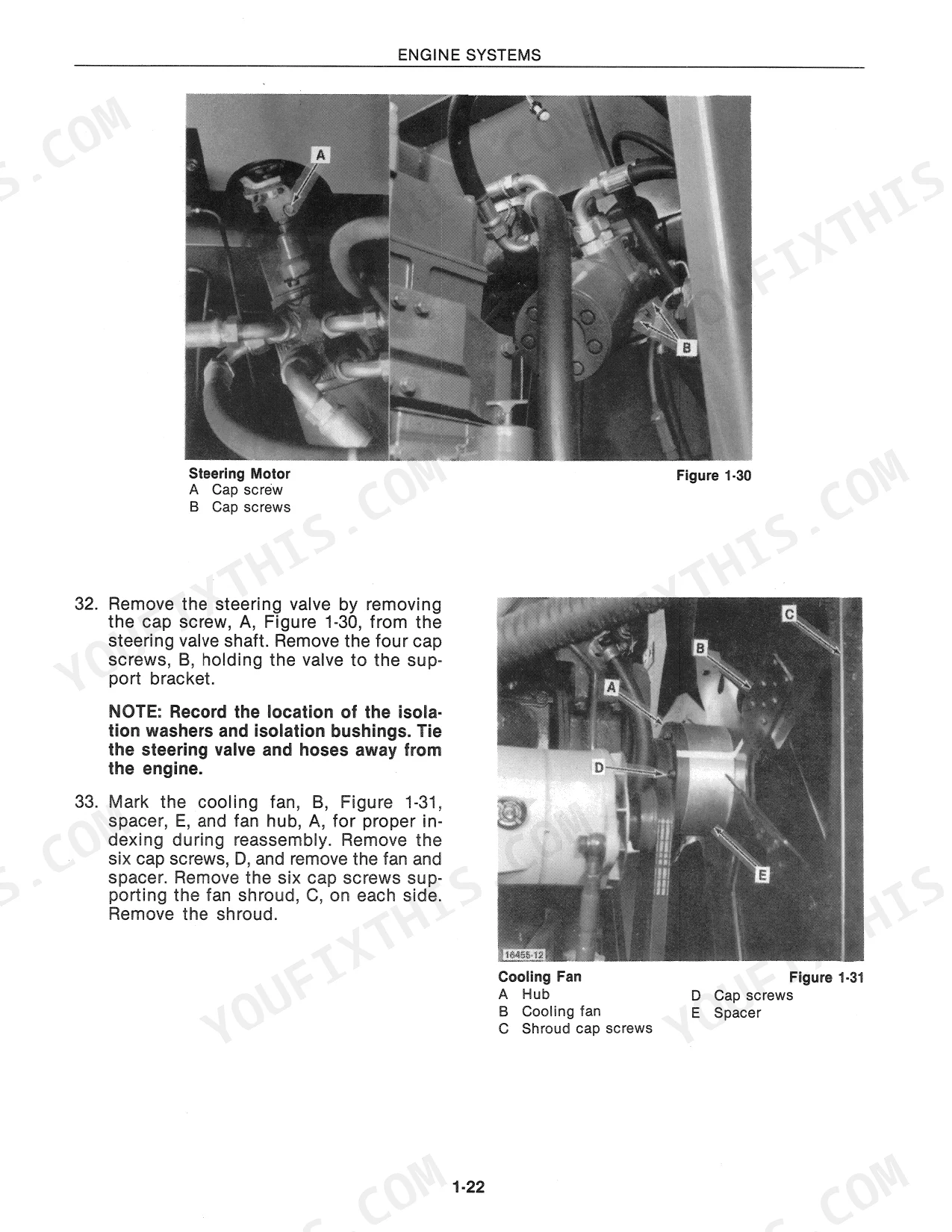

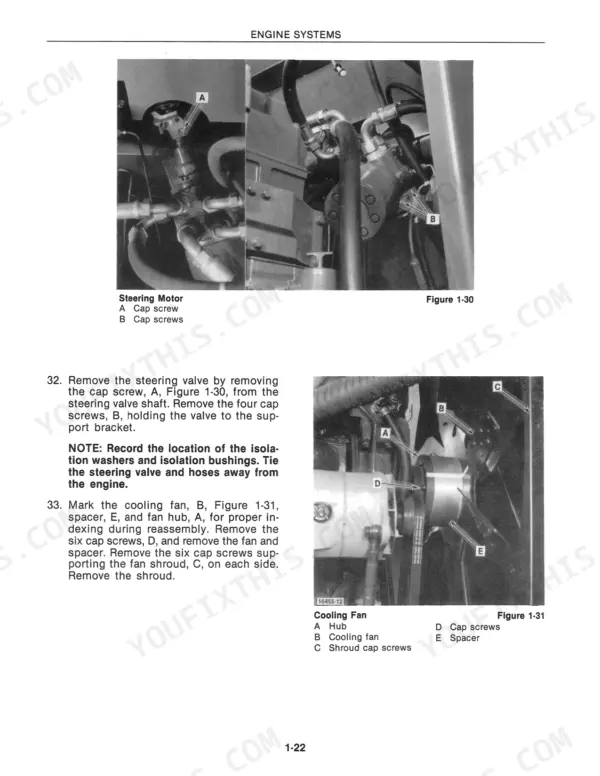

Check the steering relief setting with a gauge and compare it to 2300 psi (158.6 bar) listed on page 454. If you pull the steering cylinders while chasing the problem, torque the cylinder rod locknut to 350 to 375 lbs.-ft. (475 to 508 N·m) and the mounting pin nuts to 240 lbs.-ft. (325 N·m) on page 493.
Manual Section: Steering System Troubleshooting p. 454Engine hard to start or will not start, low power, low oil pressure, excess smoke

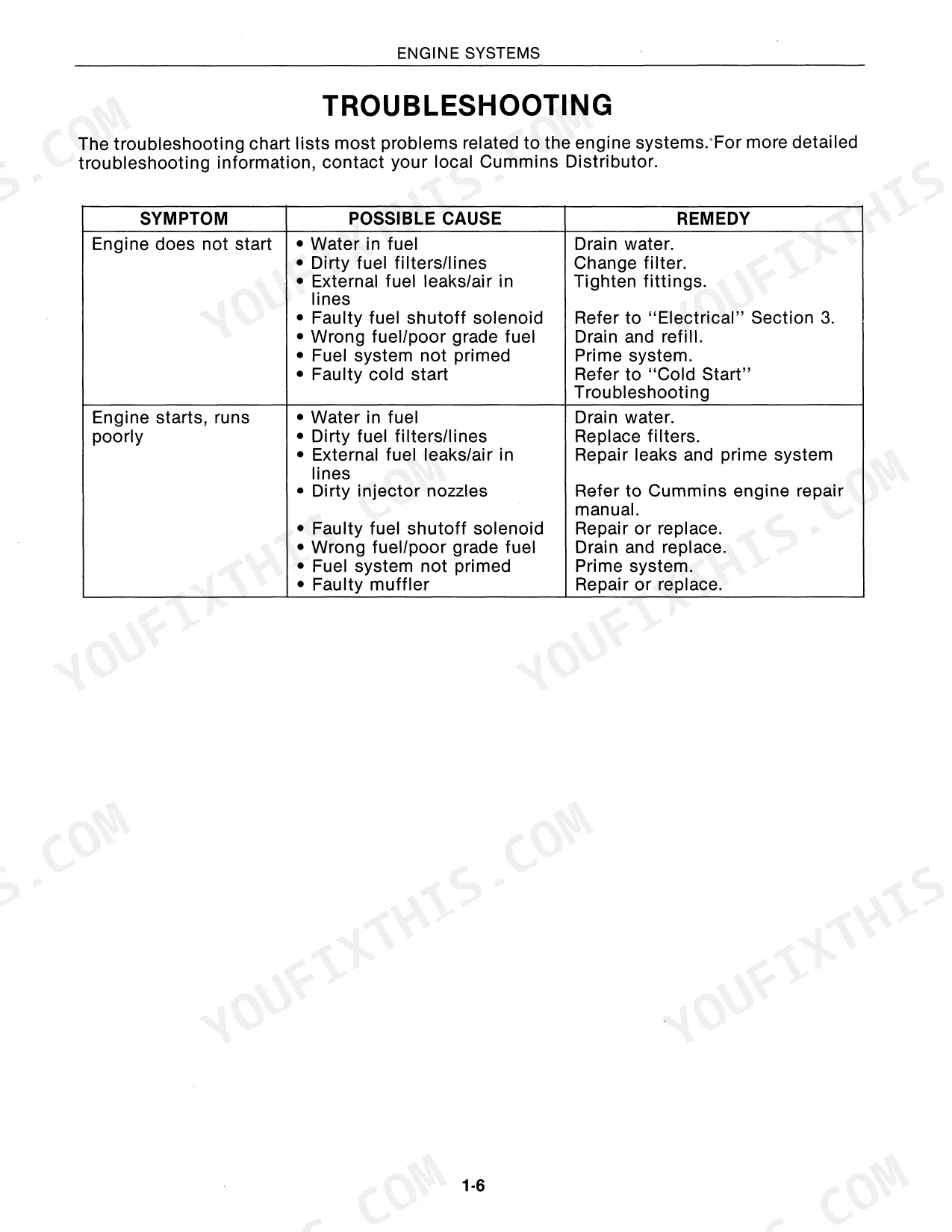

Follow the engine troubleshooting procedures on pages 22 through 24 in order before swapping parts. Sort out whether it is a cold start issue, low engine rpm, or low oil pressure, then check excessive oil consumption on the same pages. If it starts hard, stalls, or idles erratically, move to the fuel system troubleshooting section.
Manual Section: Engine Systems TroubleshootingBrake disc worn thin or warped at the outside edge past refacing limits
Measure the brake disc thickness against 0.739 ± 0.005 in. (18.95 ± 0.38 mm) on page 552. Reface only if you remove no more than 0.015 in. (0.38 mm) per side and warpage stays within 0.010 in. (0.25 mm) at the outside circumference. Torque caliper mounting cap screws to 115 ft. lbs. (155 N·m) per page 304.
Manual Section: Transmission & Brake System p. 552Frequently Asked Questions
What is the torque spec for the transmission mounting cap screws on a Versatile 1156?
The torque specification for the transmission mounting cap screws is 200 ft. lbs. (270 N-m). p. 274
What's the recommended torque for the differential to axle cap screws on a Versatile 1156?
The differential to axle cap screws should be torqued to 230 ft. lbs. (313 N-m). p. 381
How do I check the engine oil pressure on a Versatile 1156?
Remove the engine oil pressure sender at the filters and install a low pressure gauge. Start the engine; a pressure of 20 psi (1.4 bar) is considered satisfactory. p. 55
What is the correct coolant mixture ratio for the cooling system?
The cooling system should be filled with a minimum 1:1 mixture of water to glycol base antifreeze. Additionally, one unit of DCA should be added to each gallon (3.75 L) of water. p. 74
What is the torque specification for the clutch assembly bolts on a Versatile 1156?
The clutch assembly bolts should be torqued to 50 ft. lbs. (70 N-m). p. 239
What format is this Versatile 1156 manual in?
This is a 560-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Versatile 1156 manual print-friendly?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
