A boom that settles overnight or a travel pedal that hesitates on the ramp means the B75W is telling you something, and this Yanmar service manual translates it. It walks a technician through the wheeled excavator, model years 2018 through 2026, across 912 pages of service procedures.
When a B75W is down, a crew stands around it, so the value here is speed: find the system, follow the diagnostic path, make the repair, and confirm it. Owners and independent mechanics work from the same material a dealer workshop does, without waiting on a service appointment.
The manual is an English-language PDF, 73.81 MB, organized under 508 bookmarks so you can jump straight to the system in front of you. Download it after purchase, keep it on a laptop in the cab, or print the pages headed for the shop floor. The point is simple: the machine running again.
What's Inside This Yanmar B75W Manual
| System | Pages | Key Topics |
|---|---|---|

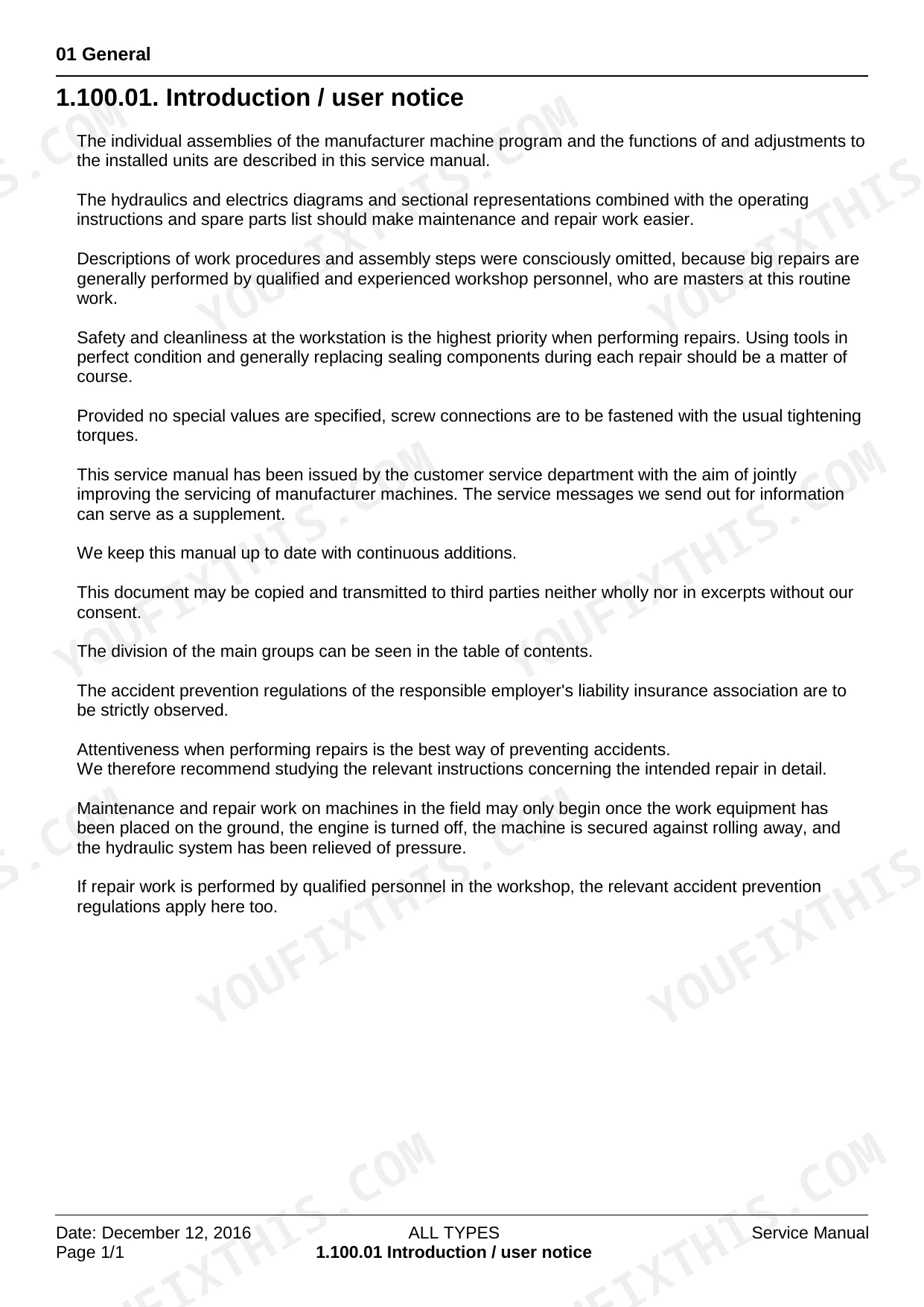

| General | Manual Use, Safety, Model Identification, Abbreviations | |
| Technical Data | Engine, Hydraulic, Travel, Steering and Brake Specifications, Pressures, Capacities | |

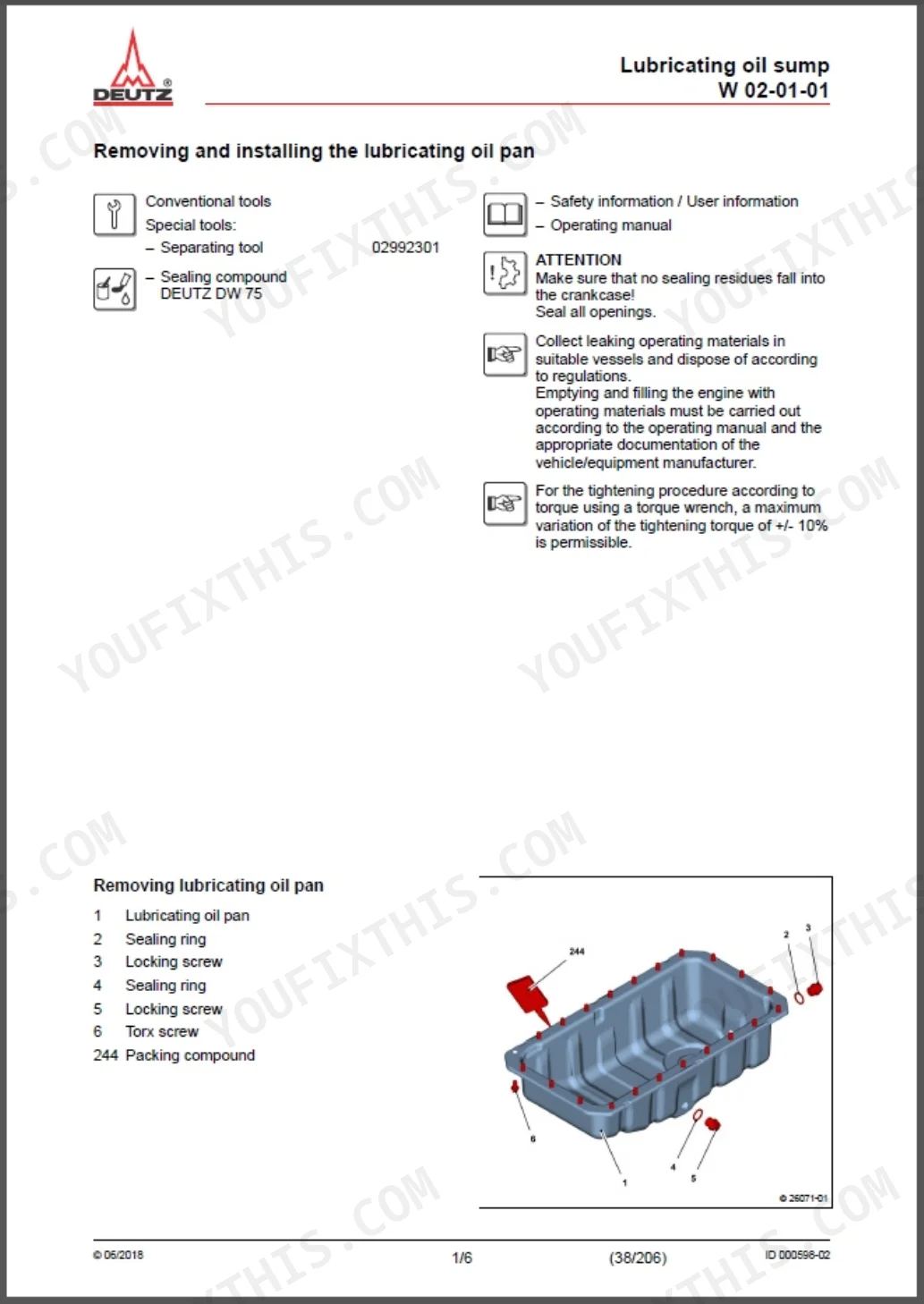

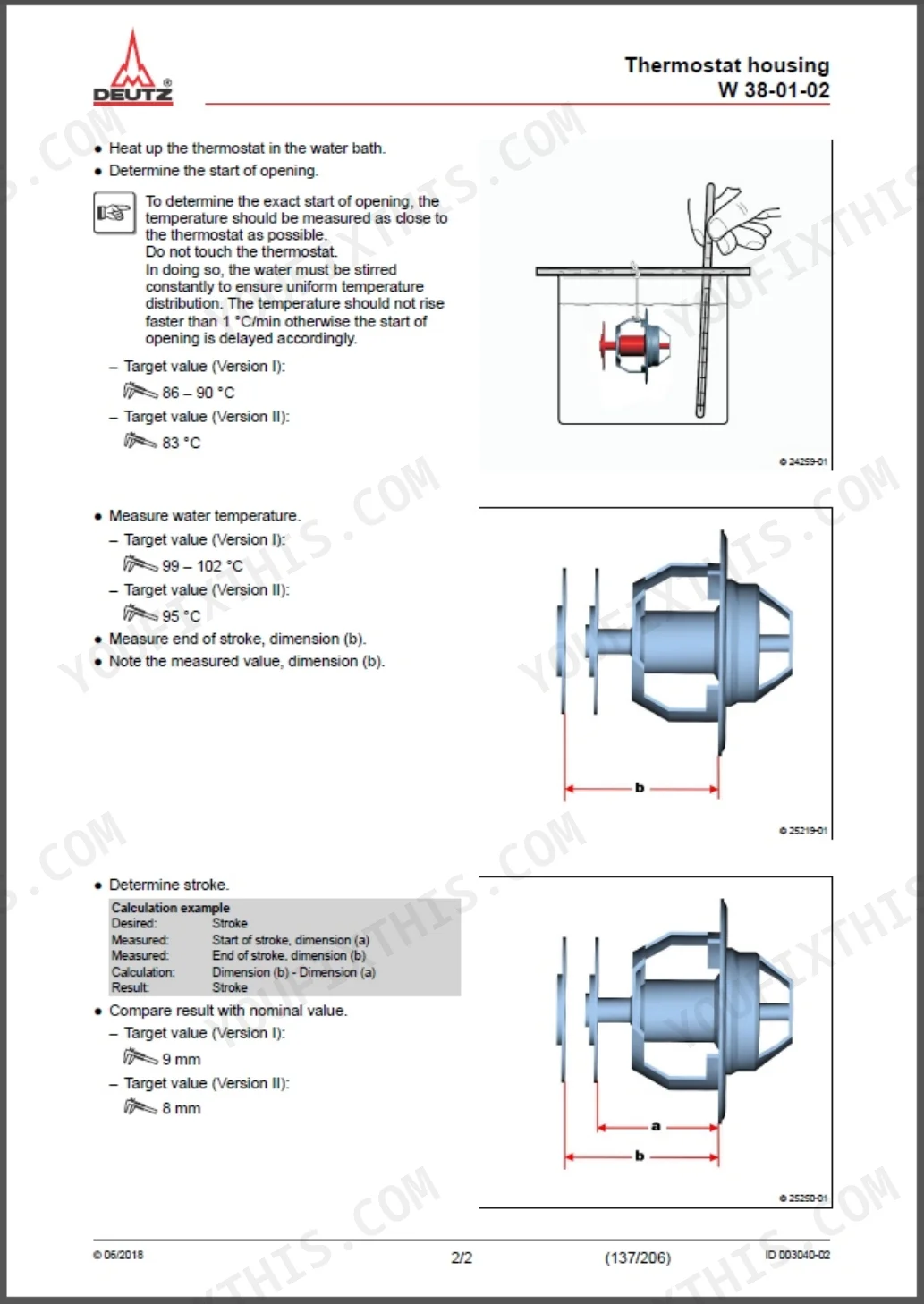

| Diesel Engine | Deutz Tcd 2.9 L4 Service, Valve Clearance, Fuel Injection, Cooling | |
| Hydraulics | Main and Gear Pumps, Control Valves, Working and Pilot Pressures, Cylinders | |
| Setting Instructions | Pressure Settings, Valve Adjustments, Calibration Values | |
| Function Description | How the Hydraulic, Travel and Work Circuits Operate | |
| Electrics | Battery, Generator, Starter, Lighting, Sensors, Wiring | |
| Maintenance | Service Intervals (50, 250, 500 Hour), Fluids, Filters, Lubrication | |

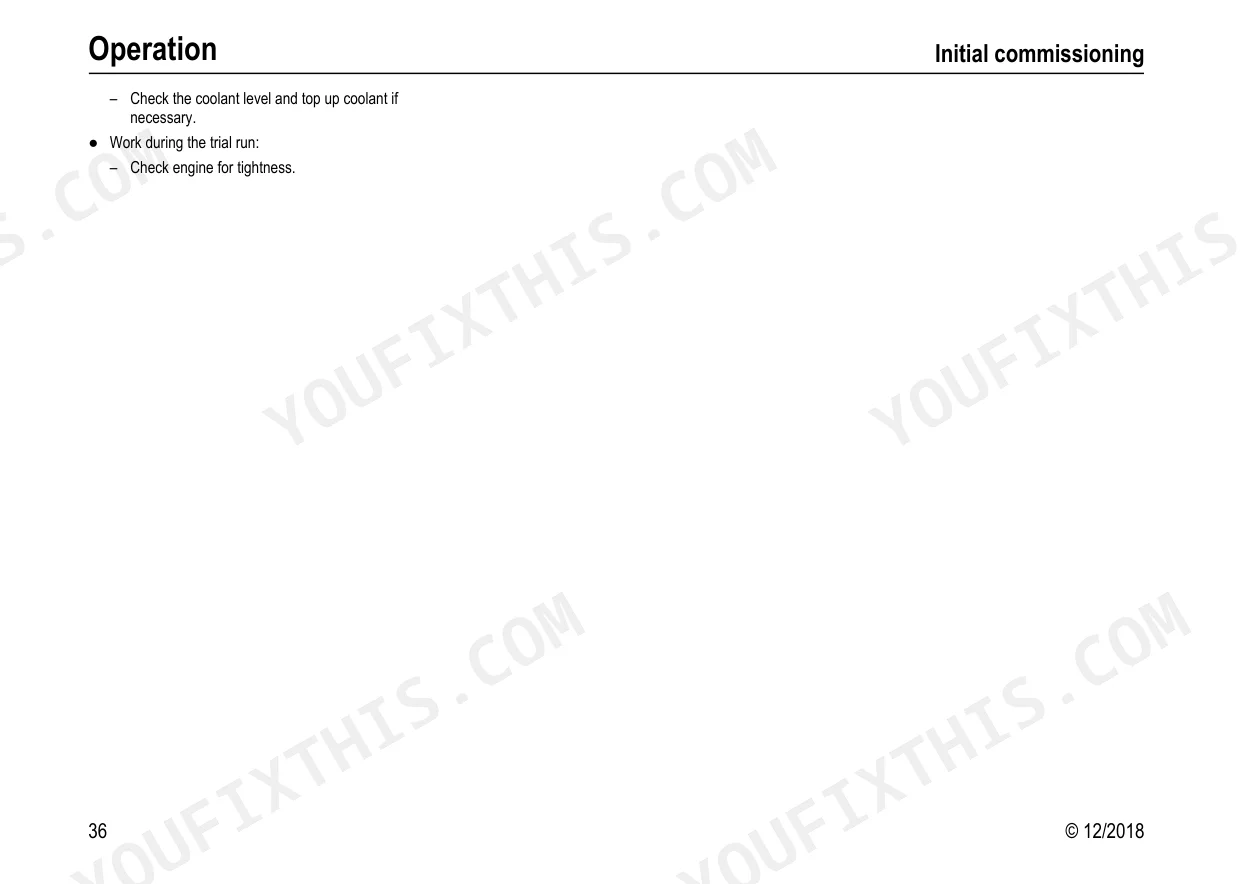

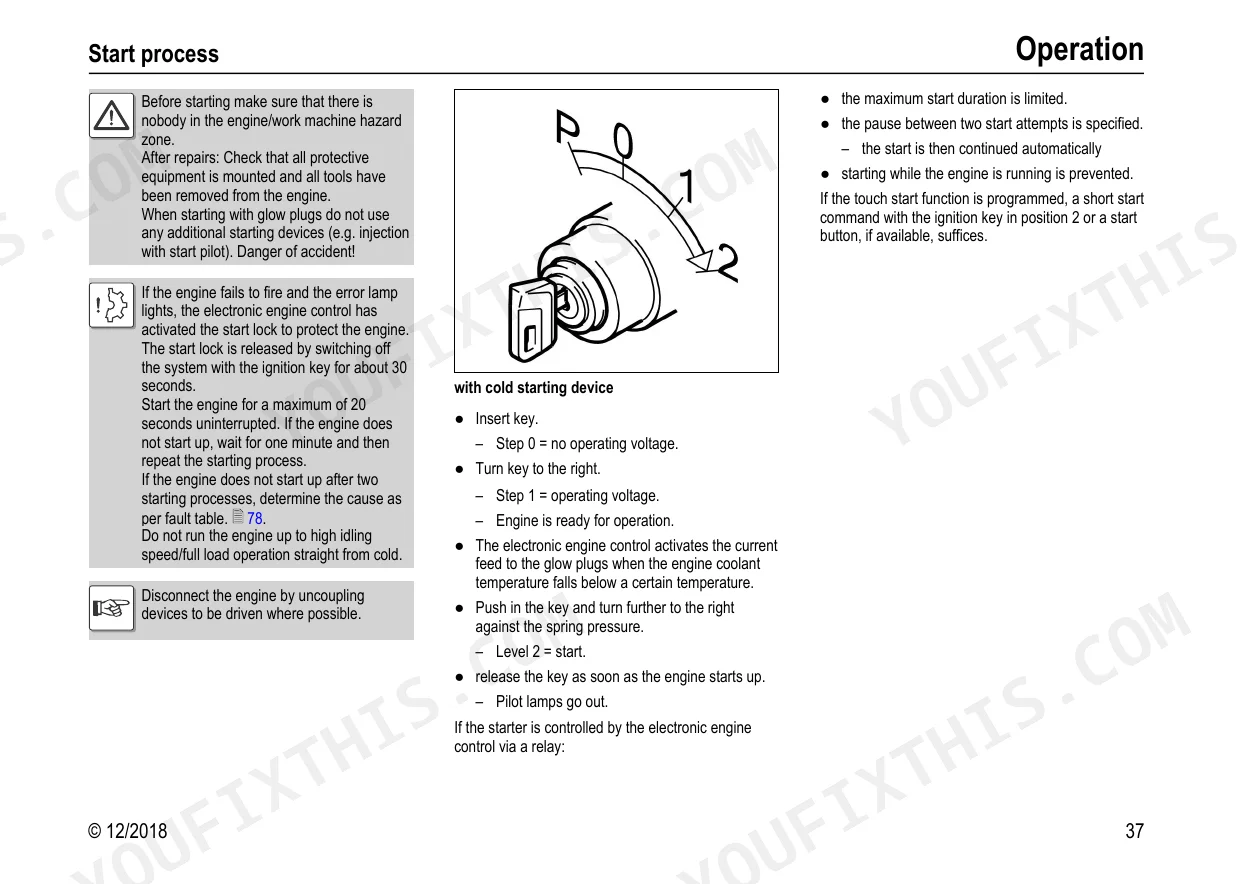

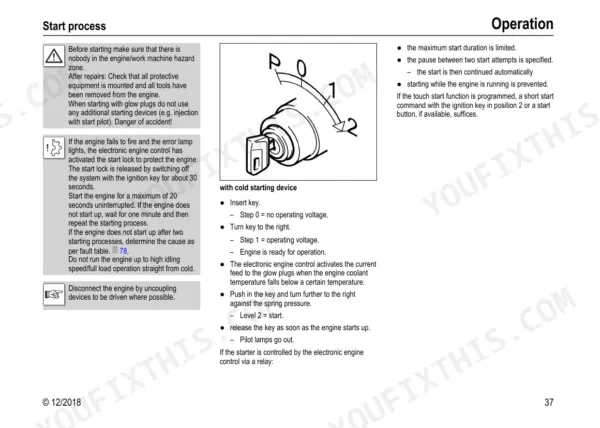

| Operation | Controls, 20 and 30 km/h Travel Ranges, Quick-Mount Hitch Operation | |
| Options | Lehnhoff HS08 and Cseri HCSW08 Quick-Mount Hitch Circuits, Attachments | |
| Repair Instructions | Component Removal, Disassembly and Reassembly Procedures | |
| Diagnosis and Tools | Fault Diagnosis, Special Tools, Test Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine | Deutz TCD 2.9 L4, 4-cylinder diesel | |
| Engine power (ISO 3046) | 55.4 kW / 75.3 HP | |
| Bore / stroke | 92 / 110 mm | |
| Total displacement | 2.925 L | |
| Working hydraulics safety valve | 280 bar | |
| Working pump supply volume (main pump) | 138 l/min | |
| Pilot control supply pressure (high idle) | 30 +2 bar | |
| Travel drive high pressure (relief valve) | 480 bar | |
| Travel drive displacement motor (max) | 55 cc/rev | |
| Travel speed (30 km/h version) | Gear 1: 0-6.0/0-17 km/h, Gear 2: 0-11/0-30 km/h | |
| Quick hitch HS08 Lehnhoff (lock / unlock) | 50 bar / 220 bar | |
| Quick hitch HCSW08 CSERI (close / open) | 120 bar / 150 bar | |
| Driving brake inching (start / end) | 5 / 25 bar |
Yanmar B75W Common Problems This Manual Covers
Boom or arm drifts under load
A bucket that will not hold height points to internal cylinder leakage or a valve that is no longer sealing. The Hydraulic System section takes you through isolating the leak and repairing the component instead of swapping parts on a hunch.
Manual Section: Hydraulic SystemWeak, slow hydraulics once warmed up
Functions that feel strong on a cold morning and lazy by mid-shift usually trace to pressure loss somewhere in the circuit. The Hydraulic System section lays out the testing sequence so you measure the problem before you open anything.
Manual Section: Hydraulic SystemSluggish swing or travel response
Hesitation when you swing the house or roll onto the trailer is a symptom worth chasing early, before it becomes a motor rebuild. The Hydraulic System section covers diagnosis and repair for the circuits that drive swing and travel.
Manual Section: Hydraulic SystemEngine cranks but will not start
A machine that spins over and never fires stops the whole day, and guessing at fuel versus air versus electrical burns hours. The Engine section gives a structured path through fuel delivery and starting checks so you find the actual cause.
Manual Section: EngineOverheating under sustained load
Temperature climbing during hard digging cycles means the cooling system is losing the fight somewhere. The Engine section covers inspecting and servicing the cooling side so you can correct it before heat takes the engine with it.
Manual Section: EngineIntermittent electrical faults and warning lights
Gauges that flicker, relays that click without result, or a machine that dies over a bump are classic harness and connection failures. The Electrical System section supports working circuit by circuit until the fault shows itself.
Manual Section: Electrical SystemFrequently Asked Questions
Which machine does this manual cover?
It covers the Yanmar B75W wheeled excavator, model years 2018 through 2026. It is a service manual, meaning it is written for diagnosing, disassembling, repairing, and reassembling the machine, not just operating it.
Is it easy to find a specific procedure?
Yes. The PDF is organized under 508 bookmarks, so you can jump directly to the system you are working on, such as Engine, Hydraulic System, or Electrical System, without scrolling through the whole document.
Does it cover hydraulic troubleshooting on the B75W?
Yes. The Hydraulic System section covers diagnosis and repair of the machine's hydraulic circuits, which is where most excavator downtime lives: drifting cylinders, weak functions, and sluggish swing or travel. Engine and Electrical System sections cover the rest of the machine.
What format is this Yanmar B75W manual in?
Instant PDF download (74 MB). You get the full 912-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this Yanmar B75W manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are there hydraulic schematics in this Yanmar B75W manual?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Yanmar B75W.
