Keeping a Bomag sanitary landfill compactor working its cell by the book is what this Bomag BC 462 RB, BC 472 RB, BC 472 RS operator manual PDF (OEM ID 008 053 21) is for, 146 pages running from pre-start checks to final shut-down. Maintenance fills the better part of the book, organized by service clock: 10-hour walkarounds through the 500, 1000, 2000, 3000 and 6000-hour intervals, backed by a full table of fuels and lubricants. Operating chapters walk you through the electronic immobilizer, jump-lead starting, dozer blade operation, bucket work on the RS, towing and transport, and every light and switch on the instrument cluster. Set the scrapers 5 mm off the compactor wheels, and plan on 21.5 liters when you change the engine oil. A compactor parked on the fill for want of one interval is a long afternoon. Bookmarked and text-searchable, the PDF goes wherever the machine does.
What's Inside This Bomag BC 462 RB, BC 472 RB, BC 472 RS Operator Manual

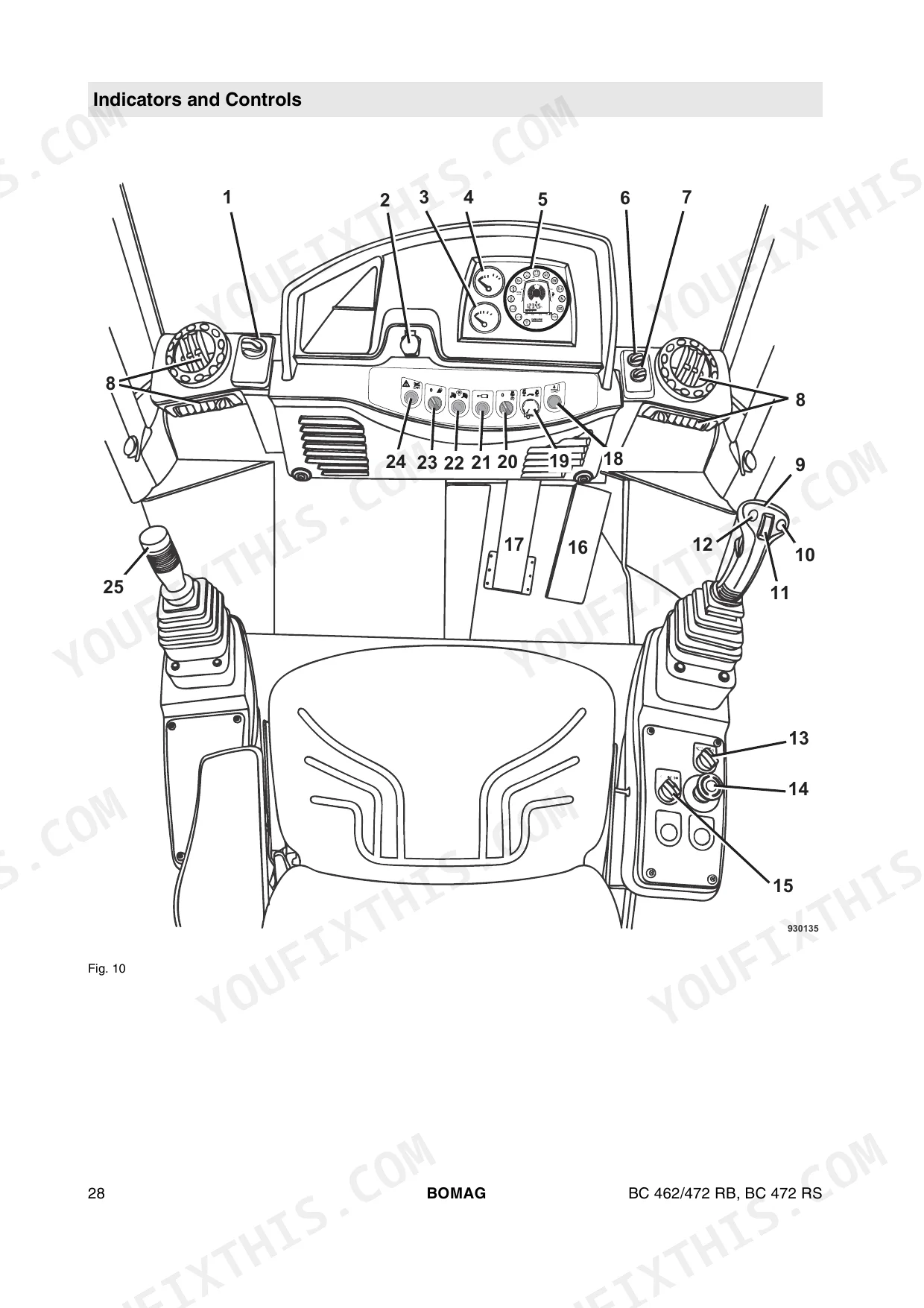

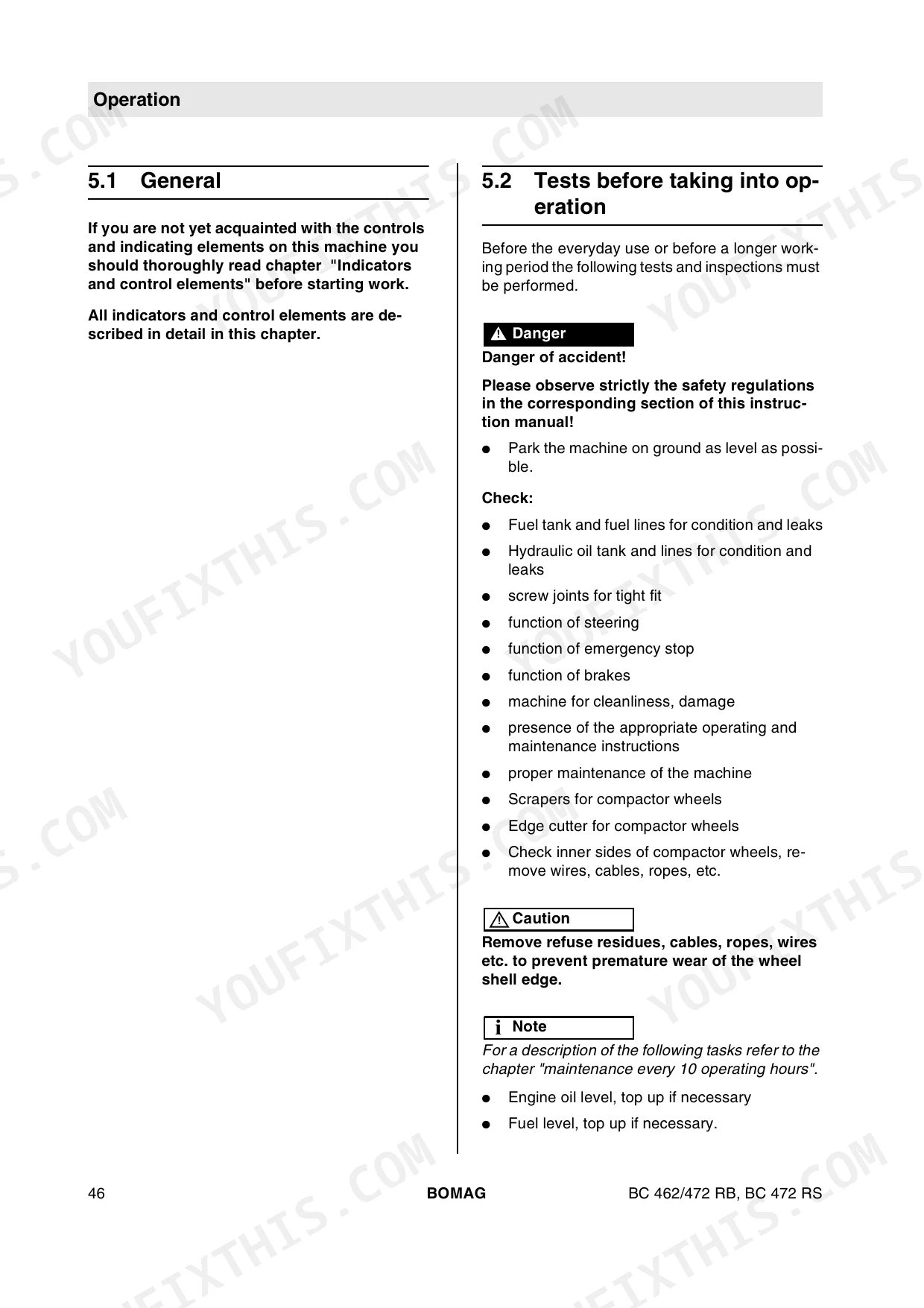

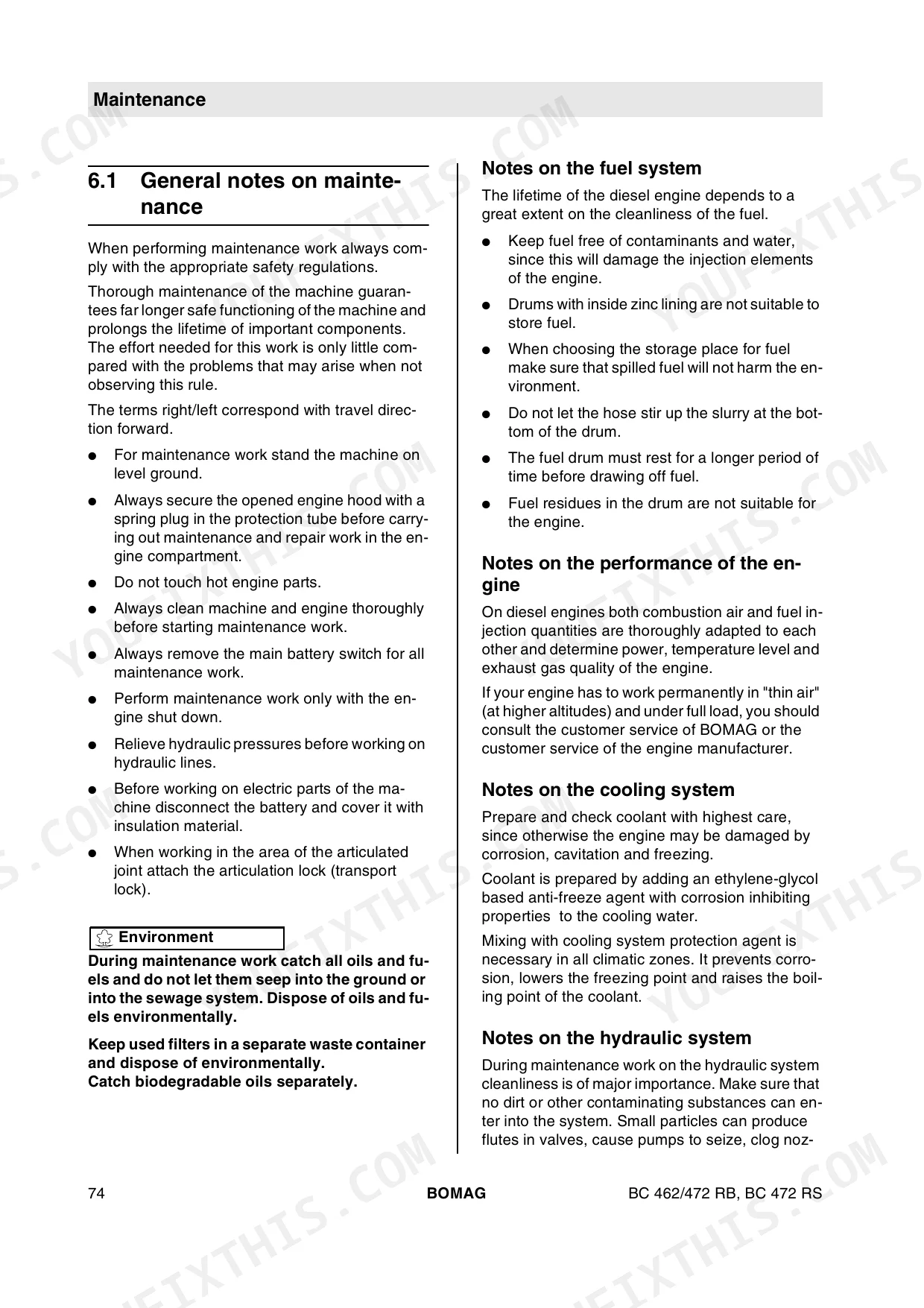

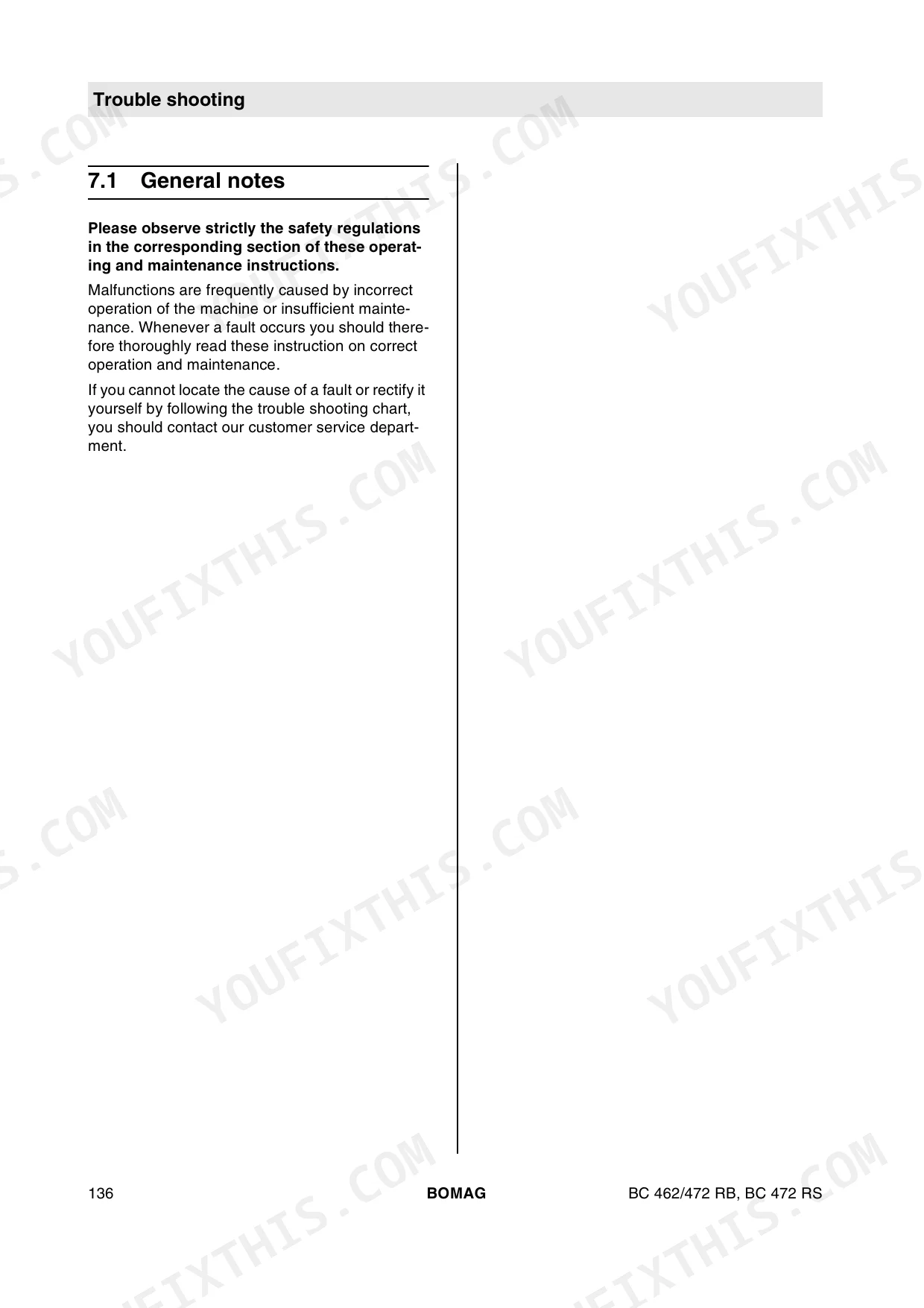

| System | Pages | Key Topics |
|---|---|---|
| Technical Data | 9-16 | Weights, Travel Characteristics, Drive, Compactor Wheels, Steering, Dozer Blade |
| Safety Regulations | 17-26 | General Safety, Safety During Maintenance |
| Indicators and Controls | 27-44 | Instrument Cluster |
| Operation | 45-72 | General, Tests Before Taking Into Operation, Electronic Immobilizer, Starting the Engine, Starting the Engine with Jump Leads, Driving the Machine |
| General Notes on Maintenance | 74 | Fuel System, Cooling System, Hydraulic System |
| Fuels and Lubricants | 75-78 | Engine Oil, Oil Viscosity, Fuels, Coolant, Gear Oil, Lubrication Grease |
| Table of Fuels and Lubricants | 79 | Engine Oil, Fuel, Coolant, Hydraulic System, Travel Gear, Central Lubrication System |
| Running-In Instructions | 80 | Engine Oil, Oil Filter, Drive Gears, Bolted Connections, Engine Mounts |
| Maintenance Table | 81-84 | Engine Oil Level, Fuel Level, Hydraulic Oil Level, Coolant Level, Ribbed V-Belts, Scrapers |
| Every 10 Operating Hours | 85-92 | Checking the Engine Oil Level, Checking the Fuel Level, Checking the Hydraulic Oil Level, Check the Coolant Level |
| Every 500 Operating Hours | 93-106 | Change Engine Oil and Oil Filter Cartridge, Checking, Cleaning the Water Separator, Checking the Anti-Freeze Concentration and the Condition of the Coolant |
| Every 1000 Operating Hours | 107-114 | Replacing the Fuel Filter Cartridges, Replacing the Fuel Pre-Filter Cartridge, Bleeding the Fuel System, Checking the Fastening of Engine / Turbocharger / Combustion Air Hoses |
| Every 2000 Operating Hours | 115-120 | Adjust the Valve Clearance, Change Hydraulic Oil and Breather Filter, Changing the Coolant, Check Condition of Oscillating Articulated Joint |
| Every 3000 Operating Hours | 121-122 | Replacing Ribbed V-Belt and Idler Pulley |
| Every 6000 Operating Hours | 123-124 | Replacing the Crank Case Ventilation Valve, Changing the Injection Valve |
| As Required | 125-134 | Air Filter Maintenance, Adjust Scrapers and Edge Cutter, Replacing the Wheel Caps, Checking the Cutting Plates, Replacing the Cutting Plates If Necessary |
| Trouble Shooting | 135-142 | Engine Problems |
| Disposal | 143-146 | Final Shut-Down of Machine |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine oil quantity | 21.5 l | p. 79 |
| Hydraulic oil filter replacement interval | 500 operating hours | p. 78 |
| Ribbed V-belt replacement distance | 3 mm (0.12 in) | p. 96 |
| Compressor V-belt deflection | 10 to 15 mm (0.4 – 0.6 inches) | p. 96 |
| Gap between scrapers and compactor wheels | 5 mm (0.2 inch) | p. 102 |
| Fastening screw for idler pulley | 80 Nm (59 ft.lbs) | p. 121 |
| Scrapers | 502 Nm | p. 127 |
| Inner scraper gap | 0 mm | p. 127 |
| Engine Rated Power ISO 9249 | 190 KW | p. 10 |
| Fuel Tank Capacity | 375 L | p. 11 |
| Engine Oil Capacity | 21.5 L | p. 79 |
| BC 462/472 RB | ||
| Hydraulic Oil Capacity (BC 462 RB / 472 RB) | 280 L | p. 79 |
| BC 472 RS | ||
| Hydraulic Oil Capacity (BC 472 RS) | 300 L | p. 79 |
Bomag BC 462 RB, BC 472 RB, BC 472 RS Common Problems This Manual Covers
Bomag BC 462 RB engine will not start, diagnostic control lamp flashing after key on
Check that the immobilizer is disarmed with the user code before chasing anything electrical. Verify fuel level; the tank holds 375 L and a full landfill shift drains it faster than it looks. Then count the diagnostic lamp flashes to read the stored fault and follow the engine troubleshooting steps starting on page 136.
Manual Section: Trouble Shooting p. 136Engine misfires or runs rough, squealing from the ribbed V-belt on the fuel pump drive
Inspect the ribbed V-belt on the fuel pump drive with the engine stopped and the main battery switch off. Replace the belt once wear reaches the 3 mm (0.12 in) limit given on page 96, and check compressor V-belt deflection while you are in there: 10 to 15 mm under thumb pressure is correct.
Manual Section: Every 500 Operating Hours p. 96Coolant temperature climbing and engine down on power during dusty refuse pushing
Check the air filter first; refuse dust plugs elements faster than any spec book assumes, so service it per the procedure in the As Required section starting on page 125. Verify the coolant level every 10 operating hours during the daily checks on page 85, and blow the radiator fins clean before blaming the thermostat.
Manual Section: As Required p. 125Engine hard to start and idles rough after fuel filter cartridge replacement or running the tank dry
Bleed the fuel system any time the filters are changed or the tank runs empty, following the procedure in the 1000 operating hour service section starting on page 107. Fill the new cartridges with clean fuel before fitting them, crank in short bursts, and check every union for leaks once the engine settles into idle.
Manual Section: Every 1000 Operating Hours p. 107Wire and refuse building up on the compactor wheels, scrapers no longer clearing them
Adjust the outer scrapers to a 5 mm (0.2 inch) gap from the compactor wheels and set the inner scrapers to 0 mm, per the settings on page 127. Torque the scraper fastening bolts to 502 Nm when finished, then cut away wrapped wire before it works into the wheel seals and costs you the cell.
Manual Section: As Required p. 127Frequently Asked Questions
How do I clear a fault on a BOMAG BC 462 RB?
To clear a fault on the central lubrication system, press the push button for 1 second. This resets an existing fault, and the flashing central lubrication control light in the instrument cluster will change to a permanent light. p. 38
What are the air filter element replacement specs for the Bomag BC 462 RB, BC 472 RB, BC 472 RS compactor?
The air filter element may be cleaned up to six times. After one year at the latest it must be replaced together with the safety element. p. 125
What are the fuel filter replacement specifications for the Bomag BC 462 RB, BC 472 RB, BC 472 RS?
Fuel filter cartridges should be replaced every 1000 operating hours. It is mandatory to bleed the fuel system after replacing the fuel pre-filter cartridge and perform a 5-minute test run in idle speed or low load to check for leaks. p. 107
What is the valve clearance adjustment angle on the Bomag BC 462 RB, BC 472 RB, BC 472 RS engine?
The valve clearance adjustment angle is 90° ±15° for the intake valve and 150° ±15° for the exhaust valve. This work should be carried out by trained personnel or the after-sales service. p. 115
What is the tightening torque for the scraper fastening screws on the Bomag BC 462 RB, BC 472 RB, BC 472 RS?
The tightening torque for the scraper fastening screws is 502 Nm. These torques apply for screws covered with OKS 240 copper paste. p. 127
Is this Bomag BC 462 RB Operator Manual a digital download?
A 146-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print just the pages I need from this Bomag BC 462 RB manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
