Part of the Case Repair Manuals.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic filter tightening instruction | 1/2 turn after the filter O-ring touches the filter head | p. 540 |
| Oil filter housing retaining bolts torque | 21 to 27 Nm | p. 189 |
| Backup Alarm fuse | 10 amperes | p. 258 |
| Rear piston pump backup alarm switch replacement instruction | replace the rear piston pump backup alarm switch | p. 267 |
| Axle sprocket inspection criteria | Check the splines on the axle and in the axle sprocket for wear and damage. | p. 493 |
| Steering control levers clearance in front panel (initial adjustment) | 38 to 42 mm (1.50 to 1.65 inches) | p. 751 |
| Loader control lever angle | 25 DEGREES | p. 760 |
| Hydraulic filter restriction switch closing pressure | 3 ±.3 Bar∆ (40 ±4 PSIA) | p. 268 |
| Action when hydraulic filter indicator illuminates | replace the filter | p. 540 |

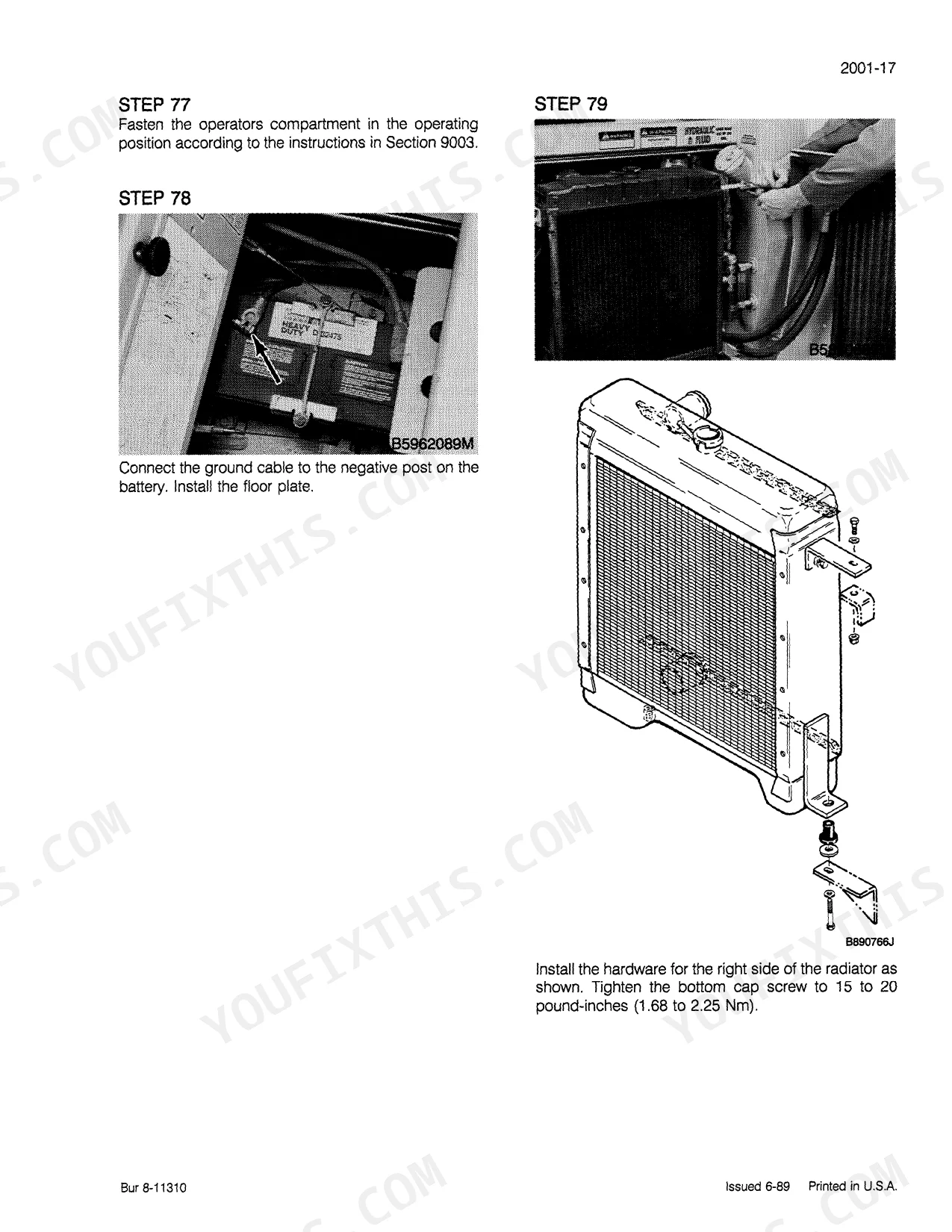

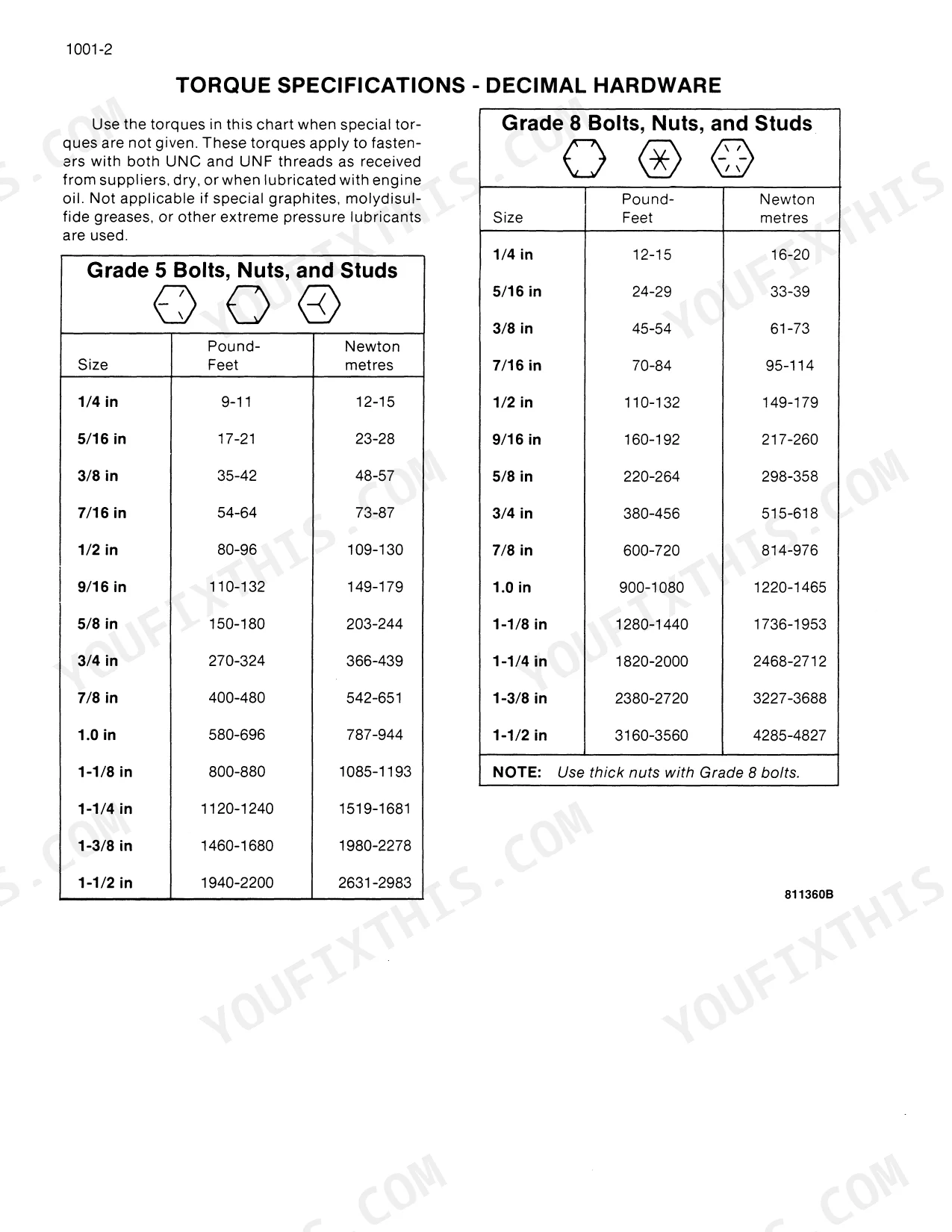

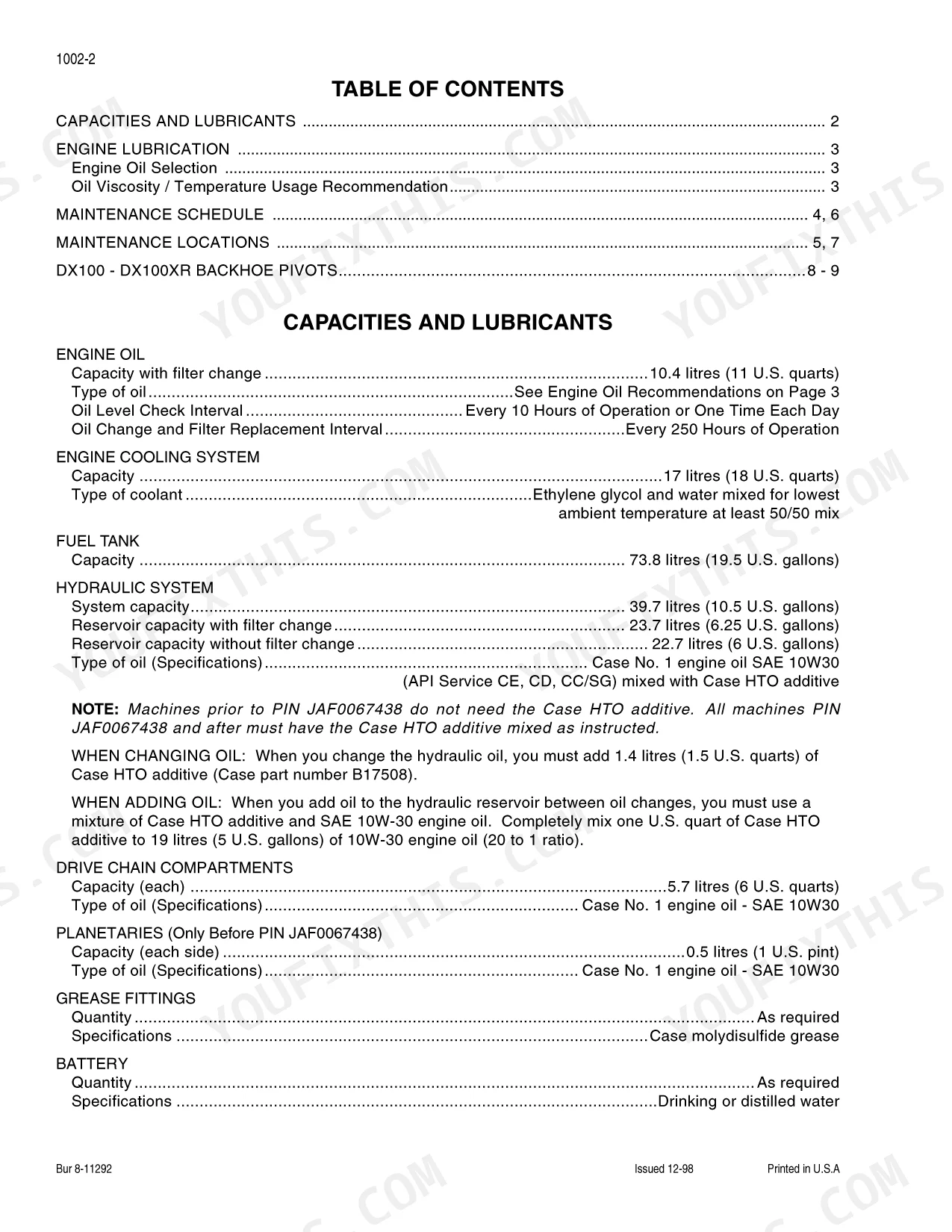

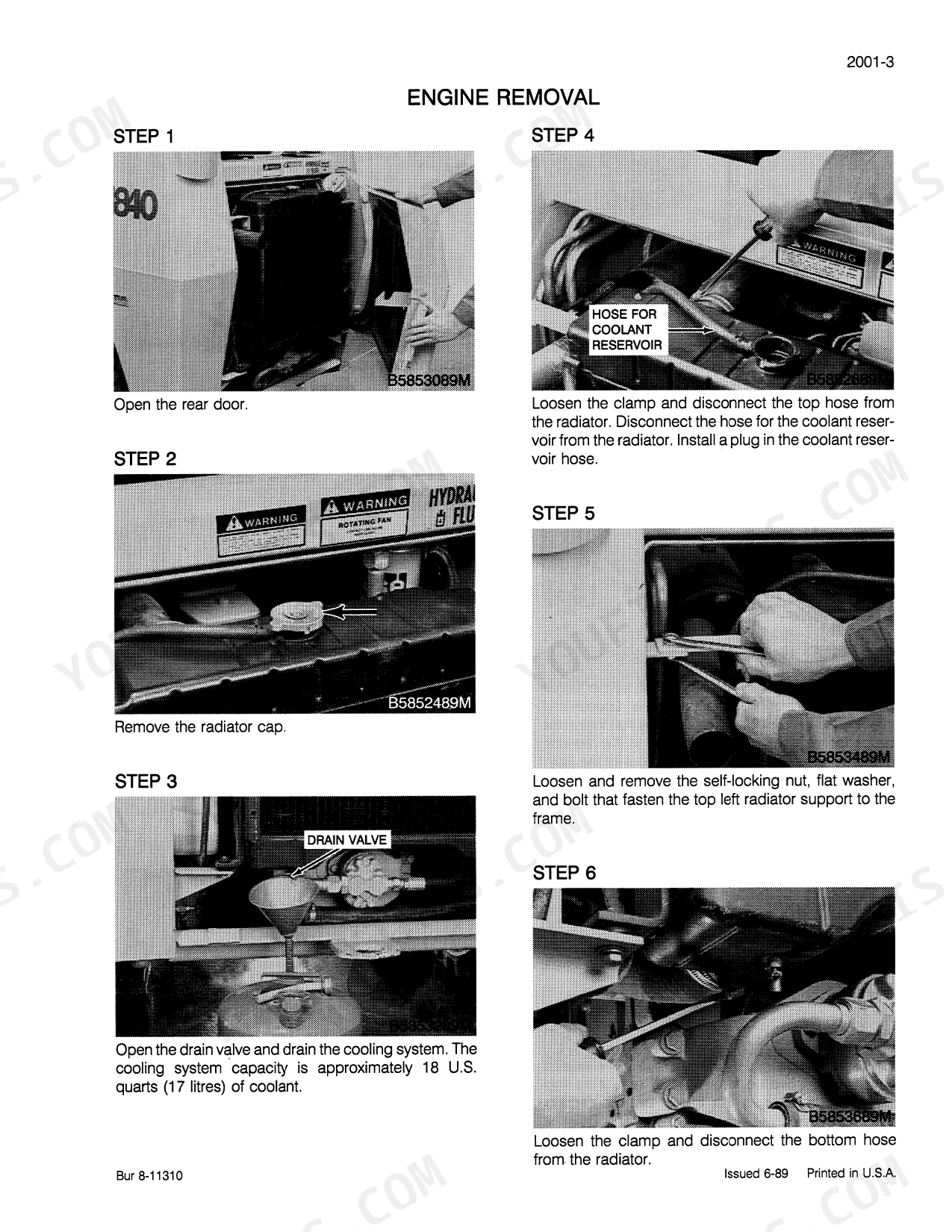

| Grade 8 Bolts, Nuts, and Studs (1/4 in) Torque | 12-15 Pound-Feet | p. 6 |
| Cooling System Capacity | 18 U.S. quarts | p. 24 |
| Alternator Rated Output | 14 volts at 65 amperes | p. 334 |

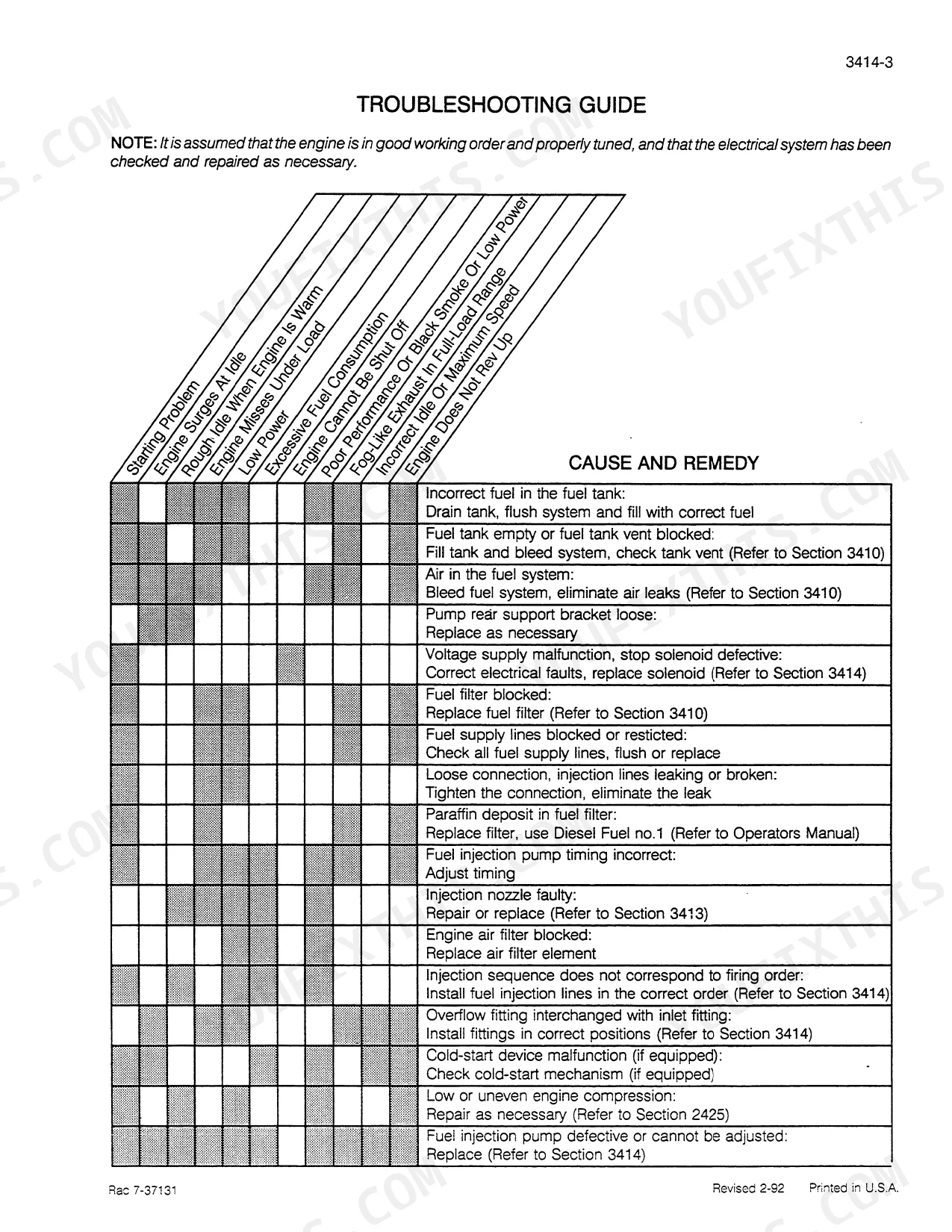

Case 1840 SKID STEER, 1845C Uni-Loader Common Problems This Manual Covers
Case 1840 right side drive does not engage or stalls under load during operation p. 392
Pressure test the hydrostatic charge circuit at full throttle; minimum charge pressure must read 26 to 28 bar (390 to 415 psi) on page 392. If the reading is low, inspect the piston pump for internal wear and recheck the neutral adjustment before replacing the pump assembly.
Manual Section: Hydrostatic Drive System TroubleshootingBackup alarm fails to sound when both control levers are moved rearward toward the operator p. 267
Jump the front piston pump backup alarm switch circuit and start the engine. Move both control levers to the rear; the alarm must sound. If silent, check wire 2 and ground wire 3 between switches, then replace the rear piston pump backup alarm switch per page 267 and check the 10 ampere fuse on page 258.

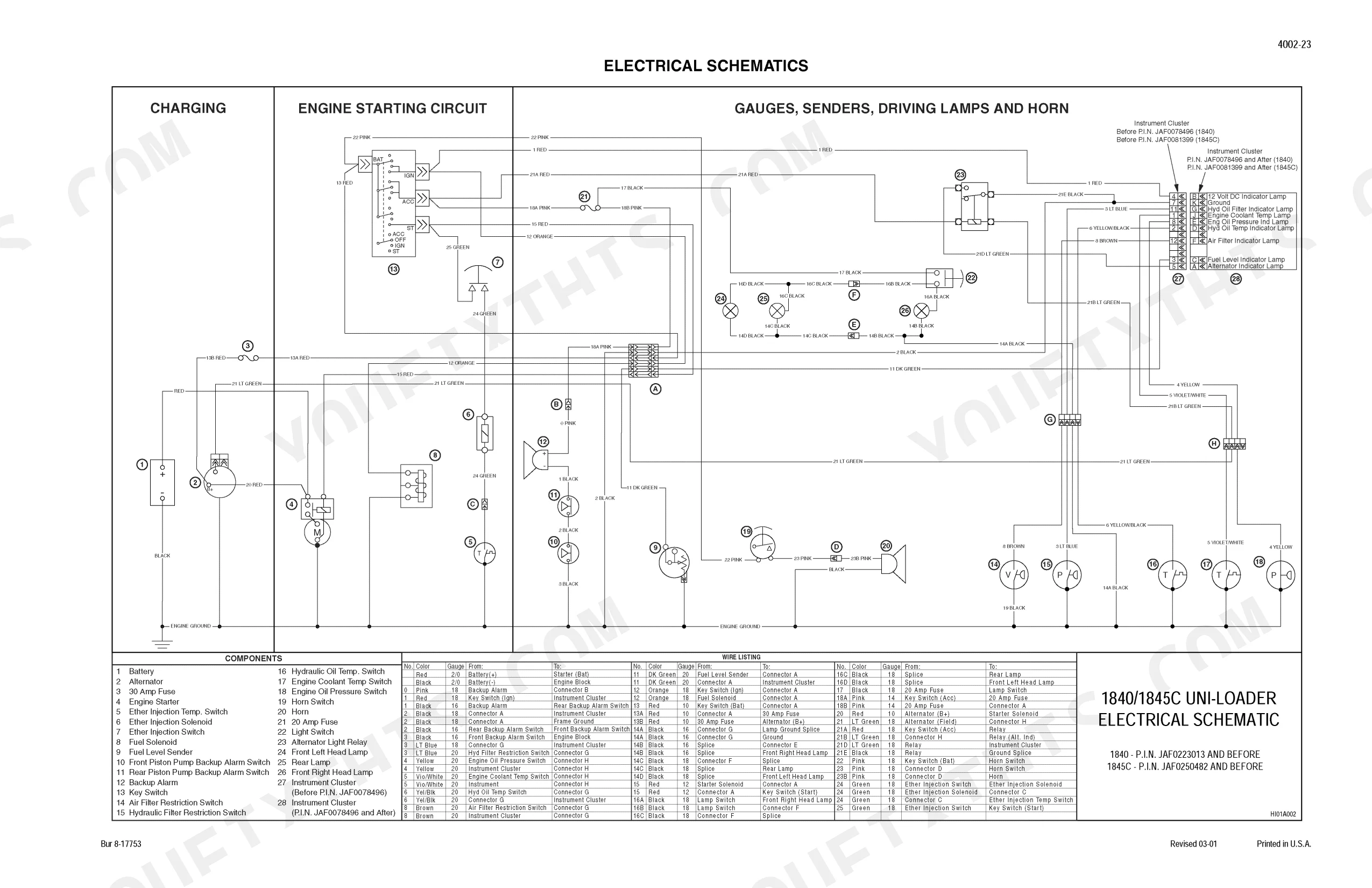

Manual Section: Electrical System TestingAir filter restriction indicator does not light despite a visibly clogged or dirty filter element
Disconnect the air filter restriction switch connector and test continuity with the engine off; the switch should close as vacuum builds past its rated restriction point. Check the wiring back to the instrument cluster for an open circuit or corroded connector, and verify the cluster bulb itself before condemning the switch.
Manual Section: Electrical System TestingHydraulic filter warning light illuminates on the dash while the engine is running at full throttle p. 268
Run the engine at full throttle and watch the warning lamp per page 540; if it stays lit, replace the hydraulic filter. The restriction switch is normally open and closes at 3 ±0.3 bar differential (40 ±4 psi) per page 268; replace the switch if it falls outside that range. Hand tighten the new filter 1/2 turn past O-ring contact.
Manual Section: Hydraulic System Troubleshooting ProcedureSteering or loader control levers feel loose, sloppy, or fail to return to neutral position p. 751
Check clearance of the steering control levers in the front panel; initial adjustment minimum is 38 to 42 mm (1.50 to 1.65 inches) per page 751. Inspect the centering mechanism for worn pins or bushings and adjust until the lever returns squarely to center, confirming loader lever travel matches the 25 degree angle on page 760.
Manual Section: Pedals and LeversFrequently Asked Questions
How do you fix right side drive does not engage or stalls under load during operation?
Pressure test the hydrostatic charge circuit at full throttle; minimum charge pressure must read 26 to 28 bar (390 to 415 psi) on page 392. If the reading is low, inspect the piston pump for internal wear and recheck the neutral adjustment before replacing the pump assembly.
How do you fix backup alarm fails to sound when both control levers are moved rearward toward the operator?
Jump the front piston pump backup alarm switch circuit and start the engine. Move both control levers to the rear; the alarm must sound. If silent, check wire 2 and ground wire 3 between switches, then replace the front piston pump backup alarm switch per page 267 and check the 10 ampere fuse on page 258.
How do you fix air filter restriction indicator does not light despite a visibly clogged or dirty filter element?
Disconnect the air filter restriction switch connector and test continuity with the engine off; the switch should close as vacuum builds past its rated restriction point. Check the wiring back to the instrument cluster for an open circuit or corroded connector, and verify the cluster bulb itself before condemning the switch.
How do you fix hydraulic filter warning light illuminates on the dash while the engine is running at full throttle?
Run the engine at full throttle and watch the warning lamp per page 540; if it stays lit, replace the hydraulic filter. The restriction switch is normally open and closes at 3 ±0.3 bar differential (40 ±4 psi) per page 268; replace the switch if it falls outside that range. Hand tighten the new filter 1/2 turn past O-ring contact.
Is this Skid Steer Loader manual a digital download?
Instant PDF download. You get the full 856-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Skid Steer Loader manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

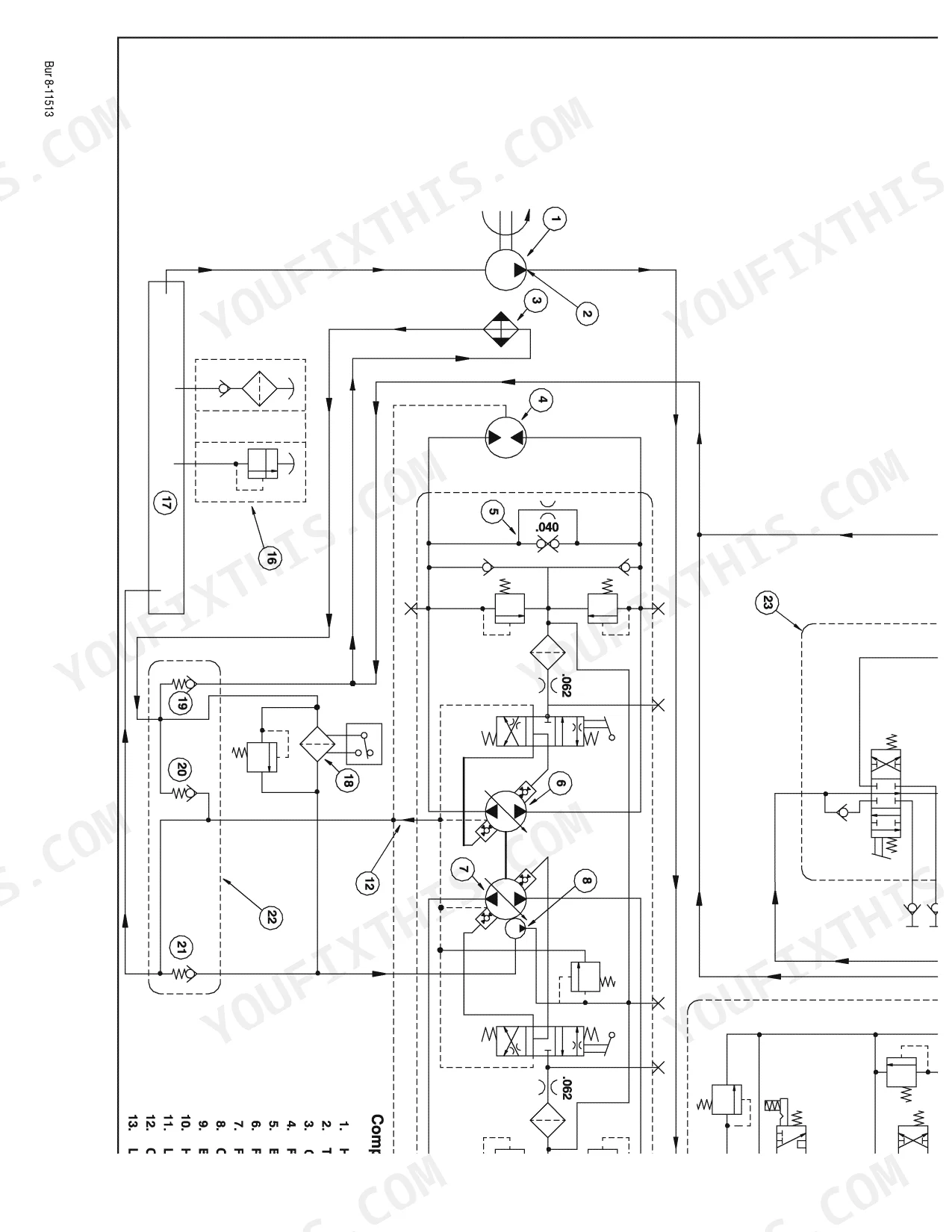

Are there hydraulic schematics in this Skid Steer Loader manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
