Looking for an International Harvester 274, 284 shop manual PDF you can actually trust? This 56-page factory shop manual covers both compact tractors, gas and diesel, front to back. Inside: exploded views of the final drive and steering gear, wiring diagrams for the alternator, starter, and lighting circuits, and hydraulic schematics with relief pressure test procedures. You also get full engine teardown steps, from cylinder head and valve timing down to crankshaft main bearings, plus clutch, transmission, differential, PTO, and brakes. Set injector opening pressure at 9812 kPa (1422 psi) and torque the nozzle holder to 68-88 N·m before it goes back in the head. No more chasing wiring faults with a multimeter and a prayer. Bookmarked with a real text layer: search any spec, jump to any section, pull it up on your phone in the shop.
What's Inside This International Harvester 274, 284 Manual

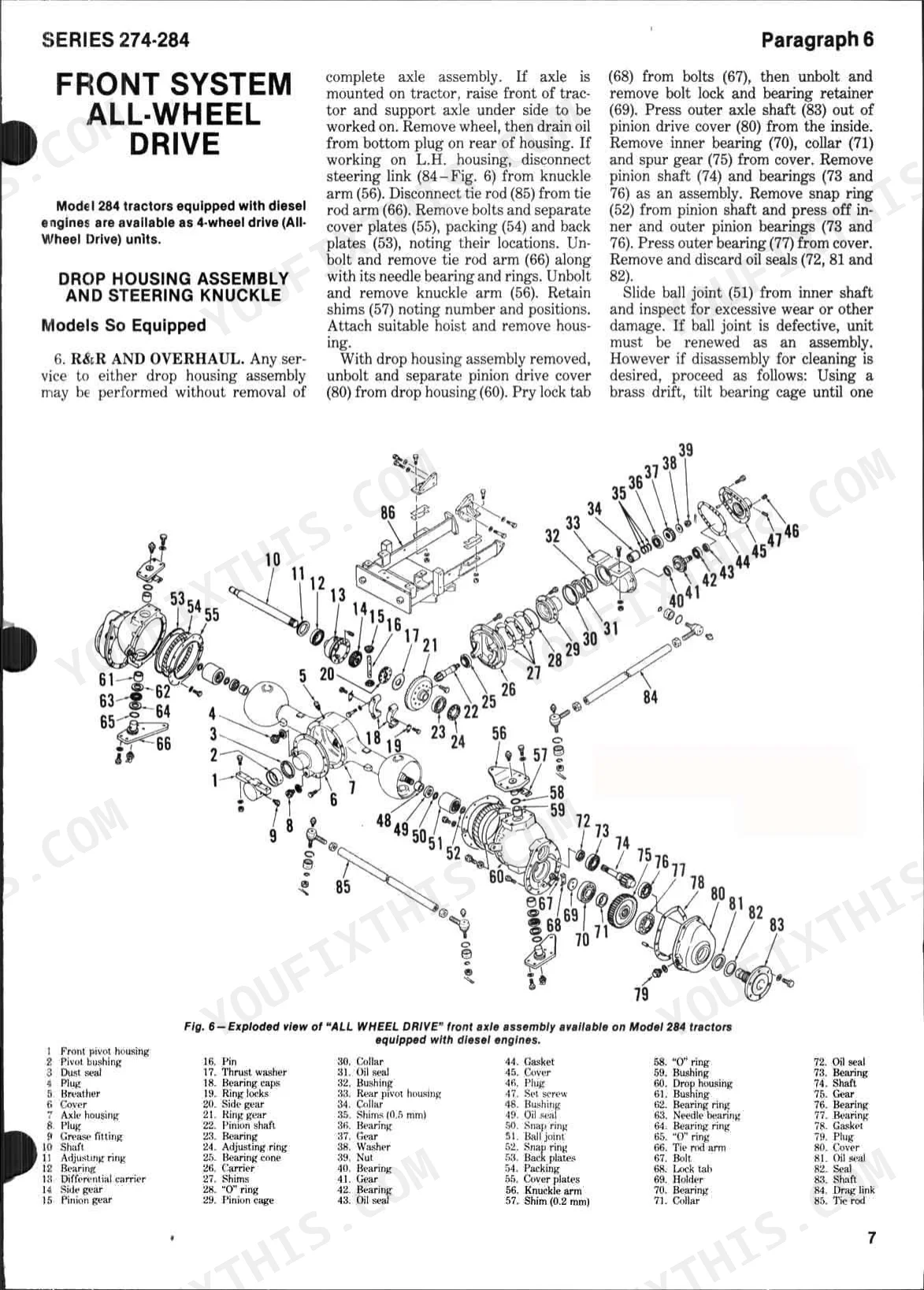

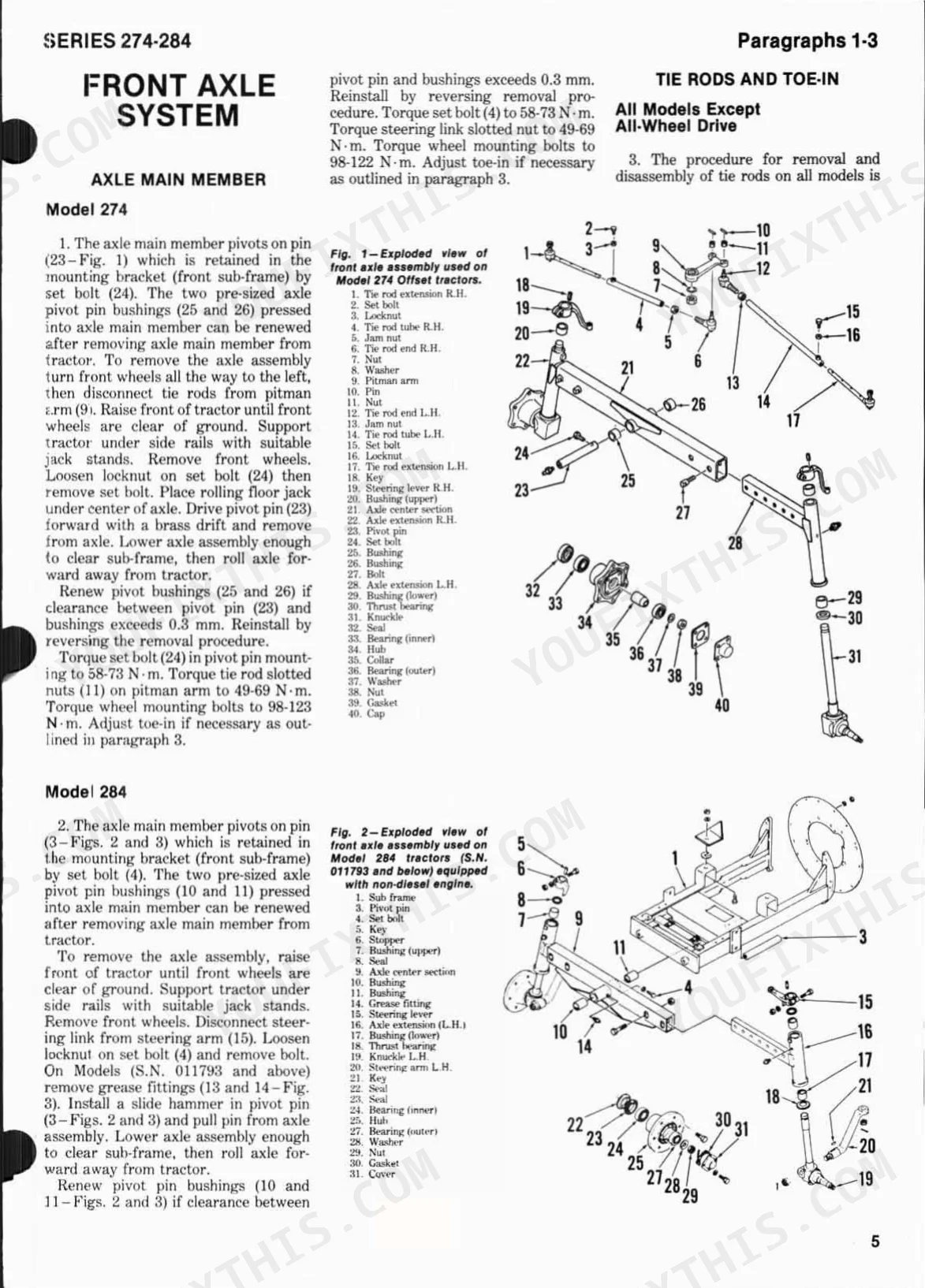

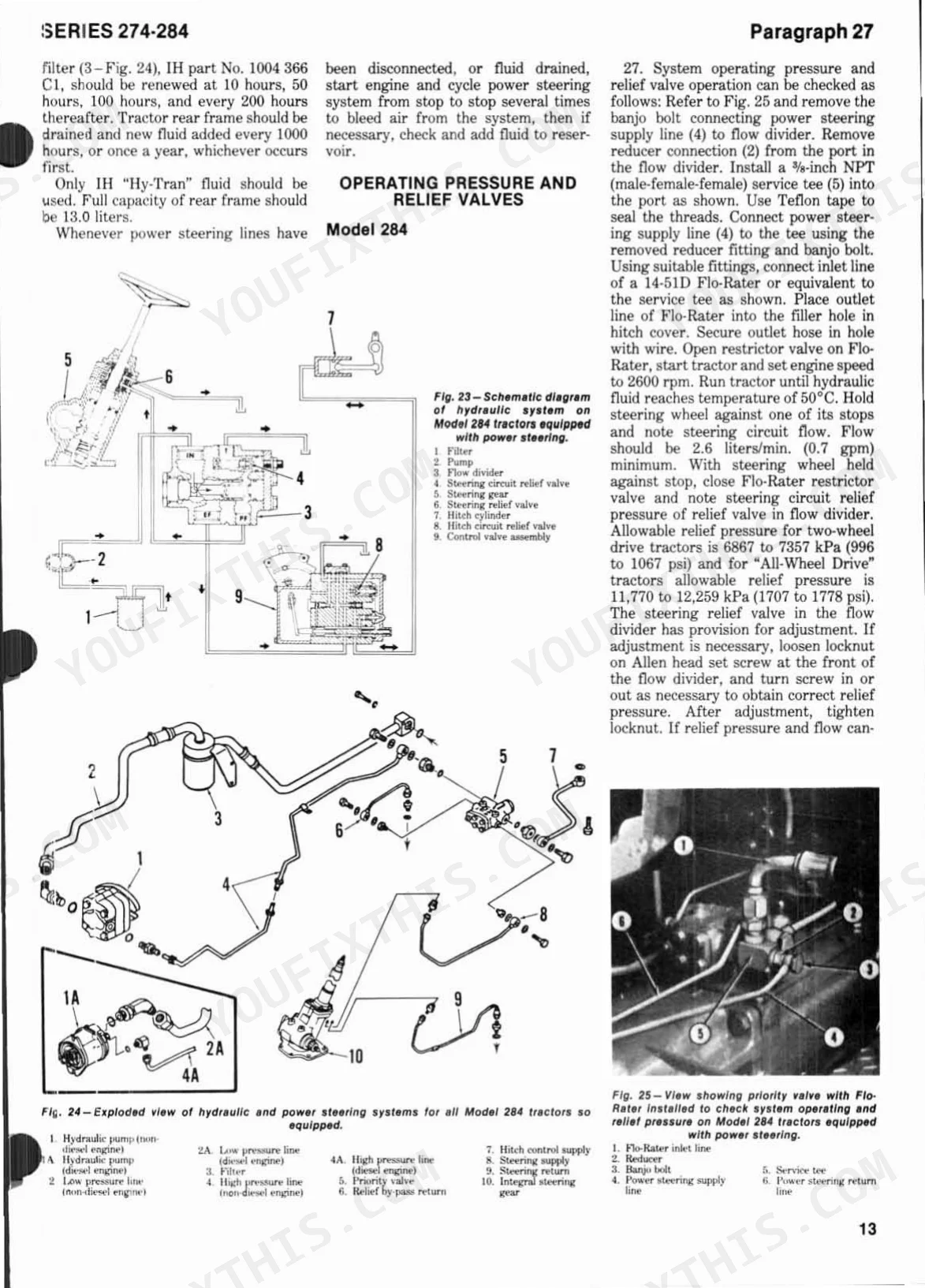

| System | Pages | Key Topics |
|---|---|---|
| Cover Page | 1 | - |
| Index | 2-3 | - |
| Service Data | 4 | Engine, Alternator, Starter, Ignition Distributor, Injection Pump, Crankshaft, Camshaft, Transmission |
| Front System | 5-10 | Axle Main Member, Tie Rods, Steering Knuckles, Hub, Drop Housing Assembly, Differential, Axle Pivot Housings |
| Manual Steering System | 11 | Drive Housing Assembly, Worm Shaft, Ball Nut, Sector Shaft, Pitman Arm, Steering Gear |
| Power Steering System | 12-16 | Steering Gear Box, Hydraulic Pump, Flow Divider, Steering Relief Valve, Pitman Arm, Worm Shaft, Ball Nut |
| Engine | 17-30 | Flow Divider, Cylinder Head, Valves and Seats, Valve Tappets, Timing Chain and Sprockets, Piston and Rod Units, Crankshaft and Main Bearings, Oil Pump |
| Carburetor | 31 | Oil Pump, Oil Pan, Main Jet, Idle Needle, Power Jet, Float Valve |
| Diesel Fuel System | 32-33 | Fuel Pump, Fuel Filter, Injection Pump, Injector Nozzles, Automatic Timer Assembly, Fuel Strainer |
| Air Filter System | 34 | Injection Nozzle, Glow Plugs, Air Cleaner Assembly, Injector Line, Nozzle Holder |
| Governor | 35 | Governor Unit, Governor Shaft, Flyweights, Idler Pulley, Throttle Control Rod, Carburetor |
| Cooling System | 36-37 | Radiator, Fan, Water Pump, Belts, Alternator, Thermostat |
| Electrical System | 38 | Thermostat, Alternator, Regulator, Starting Motors |

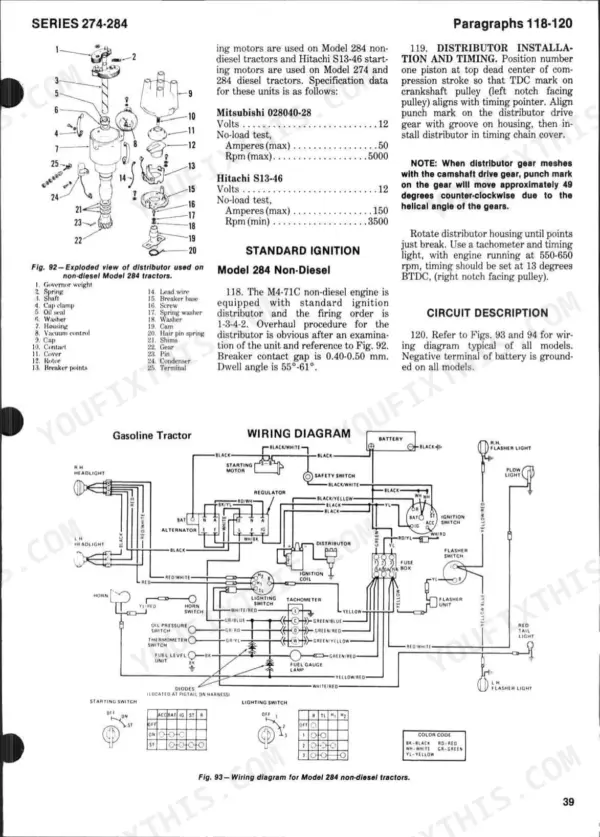

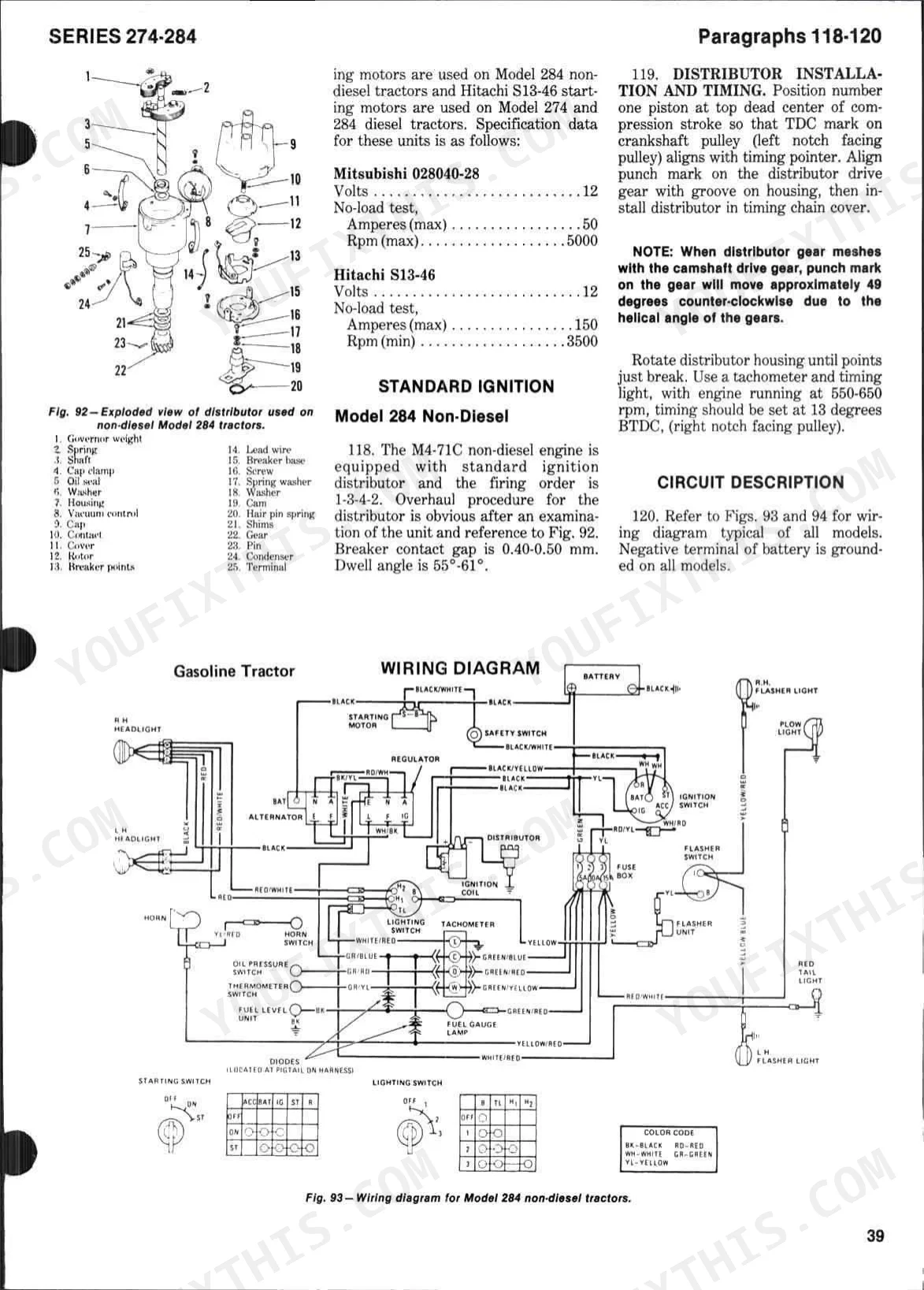

| Wiring Diagrams | 39 | Distributor, Starting Motor, Ignition Coil, Alternator, Lighting Switch, Battery, Wiring Diagram |
| Clutch, Engine | 40 | Clutch, Starting Safety Switch, Hydraulic Pump, Injection Pump, Steering Drag Link, Flywheel |
| Transmission | 41-45 | Clutch Shaft, Release Bearing, Transmission Input Shaft, Output Shaft, Idler Shaft, Mainshaft, Countershaft |
| Differential | 46-47 | Main Drive Bevel Gears, Differential Assembly, Differential Lock, Pinion Shaft, Ring Gear, Carrier Bearings |
| Final Drive | 48-49 | Axle Housing, Planetary Gear Assembly, Drop Housing, Rear Axle Housing, Pinion Shaft |
| Brakes | 50 | Axle Shaft, Spur Gear, Brake Piston, Brake Disc, Master Cylinder, Brake Pedal |
| PTO | 51-52 | Brake Cylinders, Parking Brake, Power Take-Off, PTO Gears, PTO Shafts, Shift Linkage, Input Shaft, Output Shaft |
| Hydraulic System | 53-56 | Hydraulic Lift System, Control Valve, Hydraulic Lift Housing, Hydraulic Pump, Auxiliary Valve, Cultivator Lift Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Nozzle holder torque | 68-88 N·m | p. 34 |
| Nozzle retaining nut torque | 61-75 N·m | p. 34 |
| Automatic timer assembly mounting nut torque | 58-68 N·m | p. 33 |
| Feed pump operating pressure | 177 kPa (25.6 psi) | p. 33 |
| Governor shaft coupling nut torque | 24-30 N·m | p. 35 |
| Governor shaft end play | 0.1-0.3 mm | p. 35 |
| Fan belt deflection | 10 mm | p. 36 |
| Hydraulic pump drive shaft connecting bolts torque | 11-23 N·m | p. 36 |
| Valve Tappet Gap (Hot) (274 Diesel) | 0.3-0.4 mm | p. 4 |
International Harvester 274, 284 Common Problems This Manual Covers
International Harvester 274 diesel hard to start, cranks strong but will not fire after filter change
Bleed the fuel system at the filter and injection pump before condemning parts. Test feed pump output; operating pressure should be 177 kPa (25.6 psi) per the spec on page 33. Low pressure means a weak transfer pump, so replace it. Drain the filter bowl and check for water before restarting.
Manual Section: Diesel Fuel System p. 33Engine smokes black and knocks under load, power falls off above half throttle
Pull the injectors and pop-test each one; opening pressure should be 9812 kPa (1422 psi). Replace any nozzle that dribbles or throws a solid stream instead of a fine mist. On reinstall, torque the nozzle holder into the cylinder head to 68-88 N·m and the retaining nut to 61-75 N·m, both listed on page 34.
Manual Section: Diesel Fuel System p. 34Engine surges and hunts at idle, rpm swings will not settle with steady throttle
Inspect the governor flyweights, damper spring, and speed shaft for wear before condemning the injection pump. Measure governor shaft end play; the spec on page 35 is 0.1-0.3 mm. Torque the shaft coupling nut to 24-30 N·m on reassembly. Weak or stretched governor springs are the usual cause of hunting, so replace them as a set.
Manual Section: Governor p. 35Runs hot at working rpm, coolant pushes out the overflow after an hour of loader work
Check fan belt tension first; adjust until the belt deflects 10 mm with 110 N applied to the longest span, per page 36. Replace a glazed or grease-soaked belt rather than dressing it. Then test the thermostat, inspect the radiator for blocked fins, and flush the system if the coolant shows rust.
Manual Section: Cooling System p. 36Valve train clatter at operating temperature, noise gets louder as the engine warms
Adjust the valve tappet gap with the engine hot. On the 274 diesel, set intake clearance to 0.3-0.4 mm using the spec table on page 4. Bring each piston to top dead center on compression before checking each pair. Clatter that survives a proper adjustment points to worn cam followers or camshaft lobes, so measure those next.
Manual Section: Service Data p. 4Frequently Asked Questions
What are the torque specifications for the cylinder head bolts on an International Harvester 284 diesel tractor?
The cylinder head bolts on the 284 diesel tractor must be tightened in two stages. The first stage requires 58 N·m for the main bolts and 28 N·m for the sub-bolts, followed by a second stage of 127 N·m for the main bolts and 49 N·m for the sub-bolts. p. 25
What are the torque specifications for the wheel mounting bolts on an IH 274 tractor?
The wheel mounting bolts on the Model 274 tractor should be torqued to 98-123 N·m. p. 5
What is the replacement interval for the hydraulic system filter on an International Harvester 284?
The spin-on type hydraulic filter (IH part No. 1004 366 C1) should be renewed at 10 hours, 50 hours, 100 hours, and every 200 hours thereafter. p. 53
What is the correct valve tappet gap for the International Harvester 284 non-diesel engine?
The valve tappet gap (hot) for both intake and exhaust valves on the 284 non-diesel engine is 0.25 mm. p. 4
What is the specified cooling system capacity for the International Harvester 274 diesel tractor?
The cooling system capacity for the Model 274 diesel tractor is 7.0 liters. p. 36
Do I get instant access to this International Harvester 274 Shop Manual?
One searchable PDF covering 56 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Are there any print restrictions on this International Harvester 274 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
