Running any tractor in the Case IH 786, 886, 986, 1086, 1486, 1586, or Hydro 186 lineup? This 138-page operator manual (OEM #1096207R4) is the factory-issued operating reference for all seven variants. Open it to detailed pre-operation checklists, a full section on instrument panel and Data Center controls, and step-by-step procedures for three-point hitch operation across both open-center and pressure-flow hydraulic systems. You also get PTO engagement procedures, differential lock operation, all-wheel drive guidance, and a complete tire inflation and load-capacity table. Fluid capacities for the engine crankcase, transmission and hydraulic system, rear axle housings, and hydrostatic drive unit are all spelled out with exact factory volumes. Every hour your tractor sits broken costs money. Bookmarked by section, jump straight to the spec you need on any device and get back to the field.
What's Inside This Case IH 786–Hydro-186 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Serial Numbers | 8 | Right Side of Engine Crankcase, Right Side of Rear Frame, Left Side of Engine Crankcase, Right Side of Cab or ROPS, Engine Serial Number, Tractor Serial Number |
| Terms of Location | 9 | Front, Right, Rear, Left |
| Work Safely - Follow These Rules | 10-11 | Servicing and Before Starting, Starting, During Operation, Transporting, Tractors with Cabs |
| Energy Conservation - Follow These Recommendations | 12 | Equipment Adjustment, Operator Training, Lubrication and Maintenance, Tractor Size and Implement Matching, Fuel System, Tire Inflation |

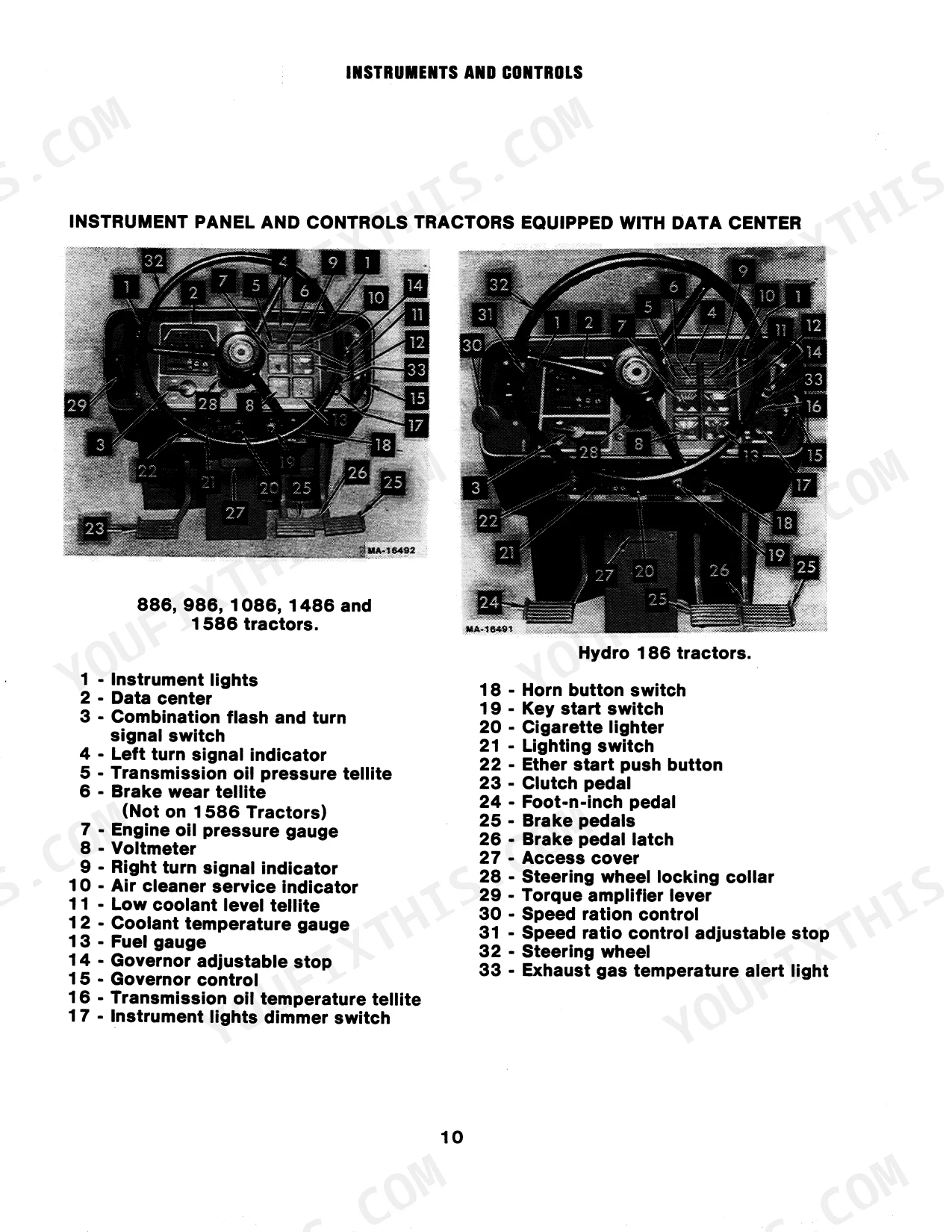

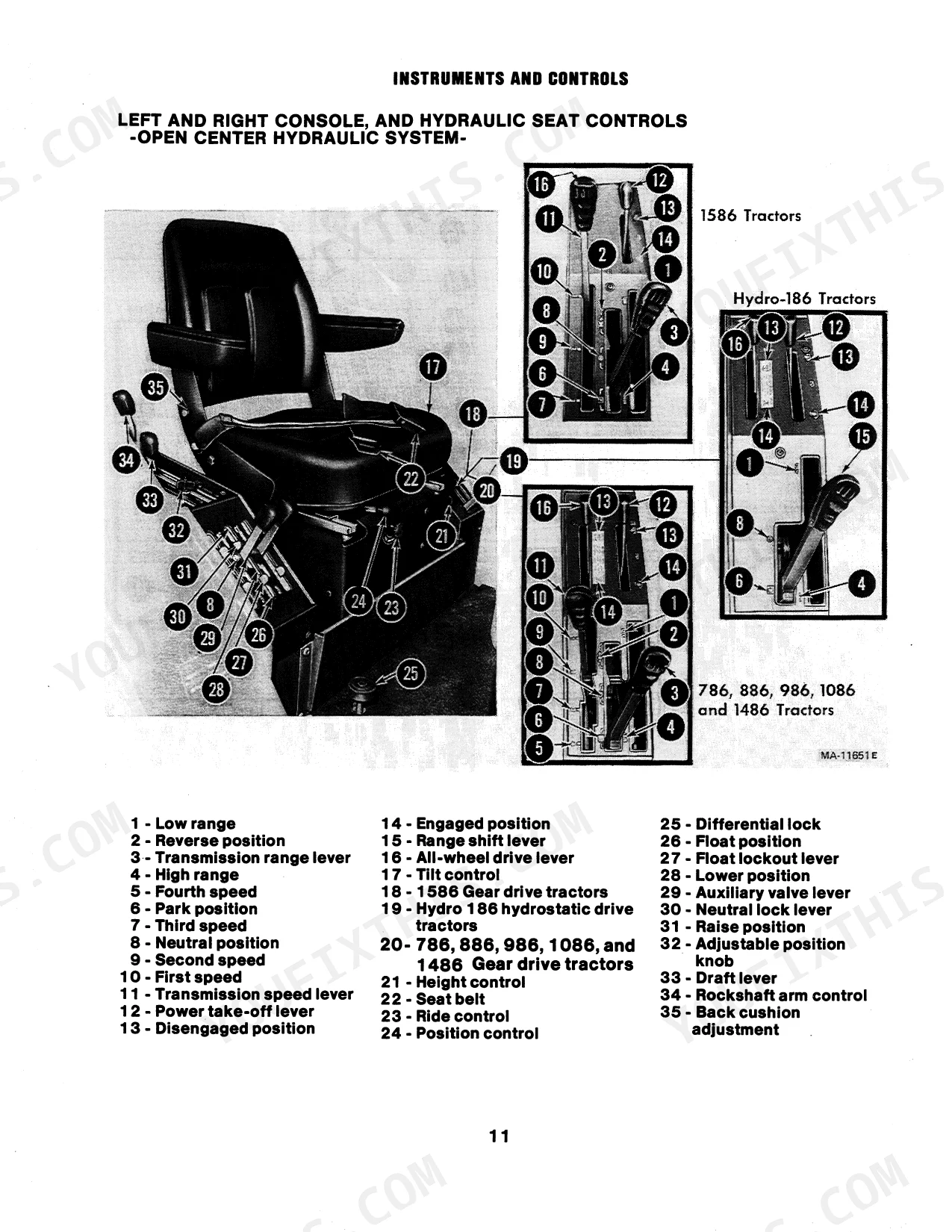

| Instruments and Controls | 13-17 | Instrument Panel Controls, Data Center Controls, Left and Right Console Controls, Hydraulic Seat Controls, Open Center Hydraulic System Controls |
| Before Operating Your Tractor/Operating the Tractor | 18-27 | Pre-Operation Checks, Starting the Engine, Engine and Transmission Monitoring, Steering and Driving, Speed Selection, Data Center Operation |
| Cab Interior and Controls | 28-32 | Air Conditioning and Heating, Air Recirculation and Filtration, Radio Units, Seat Adjustments |
| Engine and Fuel System | 33-37 | Engine Components, Fuel System Operation, Fuel Filters, Fuel Injection, Turbocharger Priming |
| Cooling System | 38-40 | Coolant and Conditioner, Draining the System, Checking and Filling Coolant, Radiator and Core Cleaning, Belt Tension |
| Air Cleaning System | 41-43 | Adjusting the Belt Tension, Tractors with Automatic Dust Unloader, Tractors with Aspirated Air Cleaner, Removing and Cleaning the Primary Filter Element, Inspection |
| Electrical System | 44-48 | Charging System for Alternator-Generator, Cranking System, Lighting System, Instrument Light Dimmer Switch, Turn Signal Indicators, Combination Turn Signals and Warning Lights |
| Hydraulic Controls for three-Point Hitch - Open Center Hydraulic System | 49-51 | Position Control, Position Control Lock Lever, Draft Control, Run Range |
| Hydraulic Controls for Three-Point Hitch - Pressure Flow Hydraulic System | 52-55 | Position Control, Position Control Lock Lever, Draft Control, Raise Rate Control, Run Range, Hitch Drop Rate Adjustment |
| Three-Point Hitch | 56-63 | Hitch Category Chart, Lift Links and Turnbuckles, Hitch Upper Link, Hitch Lower Links, Lateral Limiter, Sway Limiter Blocks |
| Hitching Trailing Equipment to the Tractor | 64-66 | Swinging Drawbar for Tractors Without Three-Point Hitch, Swinging Drawbar for Tractors with Three-Point Hitch, Clevis for Swinging Drawbar |
| Auxiliary Valves, Remote Cylinders and Hydraulic Outlets - Open Center Hydraulic | 67-70 | Connecting Hoses to the Rear Hydraulic Outlets, Check Valves, Operating Double-Acting Cylinders, Operating Single-Acting Cylinders, Neutral Lock, Float Lockout |
| Auxiliary Valves, Remote Cylinders and Hydraulic Outlets - Pressure Flow Hydraul | 71-75 | - |
| Power Take-Off | 76-77 | Operating the Independent Power Take-Off, Power Take-Off Shield, Independent Power Take-Off Clutch, Shield Position |
| All-Wheel Drive | 78 | All-Wheel Drive Front Axle Assembly, All-Wheel Drive Lever, Depress the Clutch Pedal, All-Wheel Drive Shift Lever |
| Differential Lock/Front Wheels | 79-82 | Differential Lock, Adjustable Wide Tread Front Axle, Farmall Hi-Clear Adjustable Front Axle, Tricycle Front Axle, Adjusting the Toe-In, All-Wheel Drive Front Axle |
| Rear Wheels | 83-95 | Adjusting the Tread Widths, Assembling the Rear Wheel Double-Beaded Rims, Reversing the Rear Wheels, Wheels with Fixed Clamp Rims, Tractors with Wedge Wheels, Dual Rear Wheels |
| Tires | 96-98 | Inflation, Front Tire Inflation Pressure, Rear Tire Inflation Pressure, Load Capacity per Tire, Tire Code Marking, Tire Industry Type |
| Weights | 99-101 | Front End Weights, Front End Weight Hold Down and Locking Device, Weight Table, All-Wheel Drive Tractors, Rear Wheel Weights (Two Piece), Locking the Weights in Place |
| Cold Weather Precautions | 102 | Fuel System, Electrical, Lubrication, Cooling System |
| Storing the Tractors | 103 | Storage, Removing From Storage, Fuel Tank Water Drain Valve, Coolant, Batteries, Engine Lubrication |
| Lubrication | 104-106 | Engine Oil, Gear Lubricant, Lubrication Fitting Grease, Engine Oil Filter, Hydraulic Fluid Filter, Hydrostatic Drive Housing Hydraulic Fluid Filter |
| Lubrication Table | 107-108 | Engine Crankcase, Lubrication Fittings, Front Wheel Hubs, Tractor Transmission Differential Case, Rear Axle Housings, Hydrostatic Drive Unit |

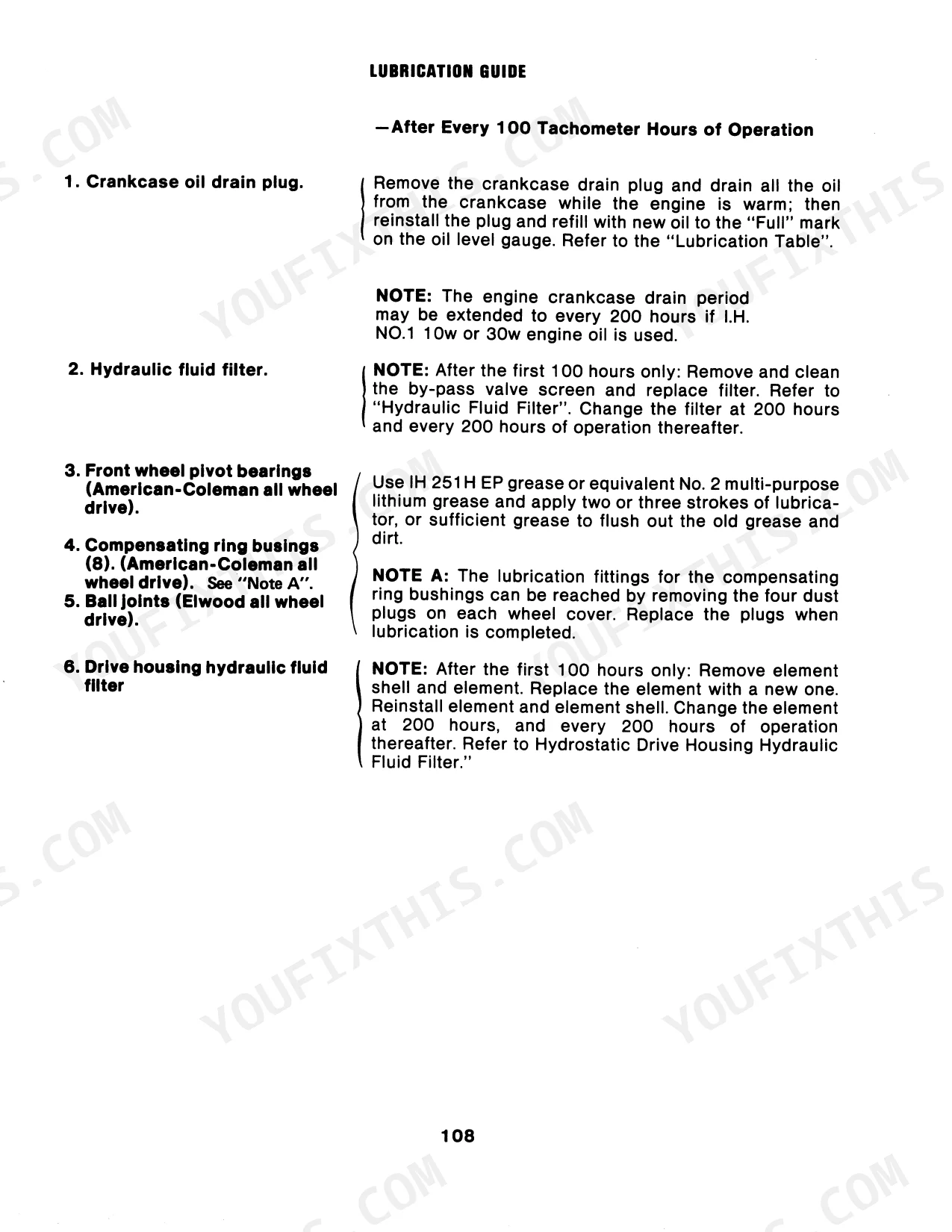

| Lubrication Guide | 109-115 | Crankcase Oil, Hydraulic Fluid Filter, Front Wheel Hubs, Transmission and Hydraulic System, Rear Axle Carrier, Three-Point Hitch |

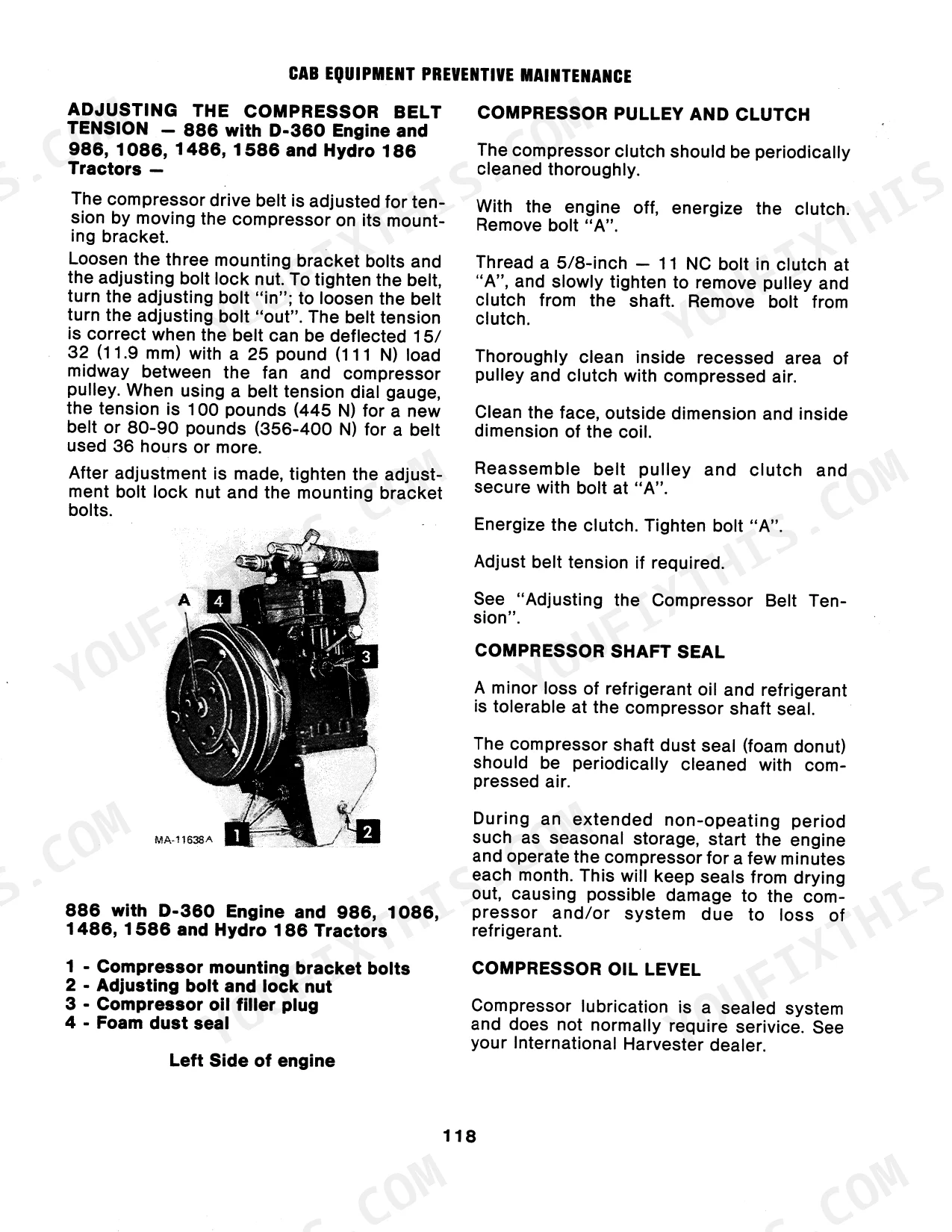

| Cab Equipment Preventive Maintenance | 119-123 | Outside Air Filter, Recirculation Air Filter, Air Conditioner Condenser, Refrigerant Sight Glass, Evaporator Drain Valves, Compressor Belt Tension |
| Specifications | 124-130 | Ground Speeds, Capacities, Engine, Power Take-Off Shaft Speeds, Tire Sizes, General Dimensions |
| Optional Equipment | 131-134 | Adjustable Front Axle, Air Conditioner, Auxiliary Fuel Tank, Data Center, Hydraulic Differential Lock, Three Point Hitch with Cam Sway Limiter |
| Metric (Si) Measurements | 135-138 | Area, Force, Length, Mass, Power, Pressure |
Case IH 786–Hydro-186 Common Problems This Manual Covers
Case IH 786/886/986/1086 engine cranks but won't start or stalls repeatedly under load p. 21
Check the fuel system troubleshooting steps on page 21. Verify the fuel shutoff valve is fully open and the tank has clean fuel. Drain water from the fuel tank via the drain valve before each cold-season startup. If the engine fires but dies under load, inspect the primary fuel filter for restriction and prime the system according to the priming procedure on page 33.
Manual Section: Engine and Fuel SystemHydraulic three-point hitch lifts too slowly or won't raise implements to full height p. 49
Verify hydraulic fluid level is at the correct mark per the lubrication guide on page 109. On Open Center models, check the run range adjustment and position control lever settings on page 49. On Pressure Flow models, inspect the raise rate control and hitch drop rate settings on page 52. If fluid is low, add only the approved hydraulic fluid type specified in the Lubrication Table on page 107.
Manual Section: Hydraulic Controls for three-Point Hitch - Open Center Hydraulic SystemEngine temperature gauge climbs into the red after 30-45 minutes of field operation p. 38
Stop the engine immediately and let it cool before opening the cooling system. Check coolant level at the reservoir and radiator cap — never open a hot cap. Clean debris from the radiator core faces with compressed air or a soft brush, working front to back. Inspect the fan belt tension and look for coolant leaks at hoses and connections. Full cooling system maintenance procedures are on page 38.
Manual Section: Cooling SystemEngine won't start or turns over sluggishly on cold mornings below freezing p. 102
Check the battery terminals for corrosion and verify the battery is fully charged — cold weather drops battery capacity sharply. Review the cold weather precautions on page 102 for fuel system, electrical, and lubrication recommendations specific to winter operation. If using block heater or booster cables, follow the booster cable connection sequence on page 44 to avoid electrical damage.

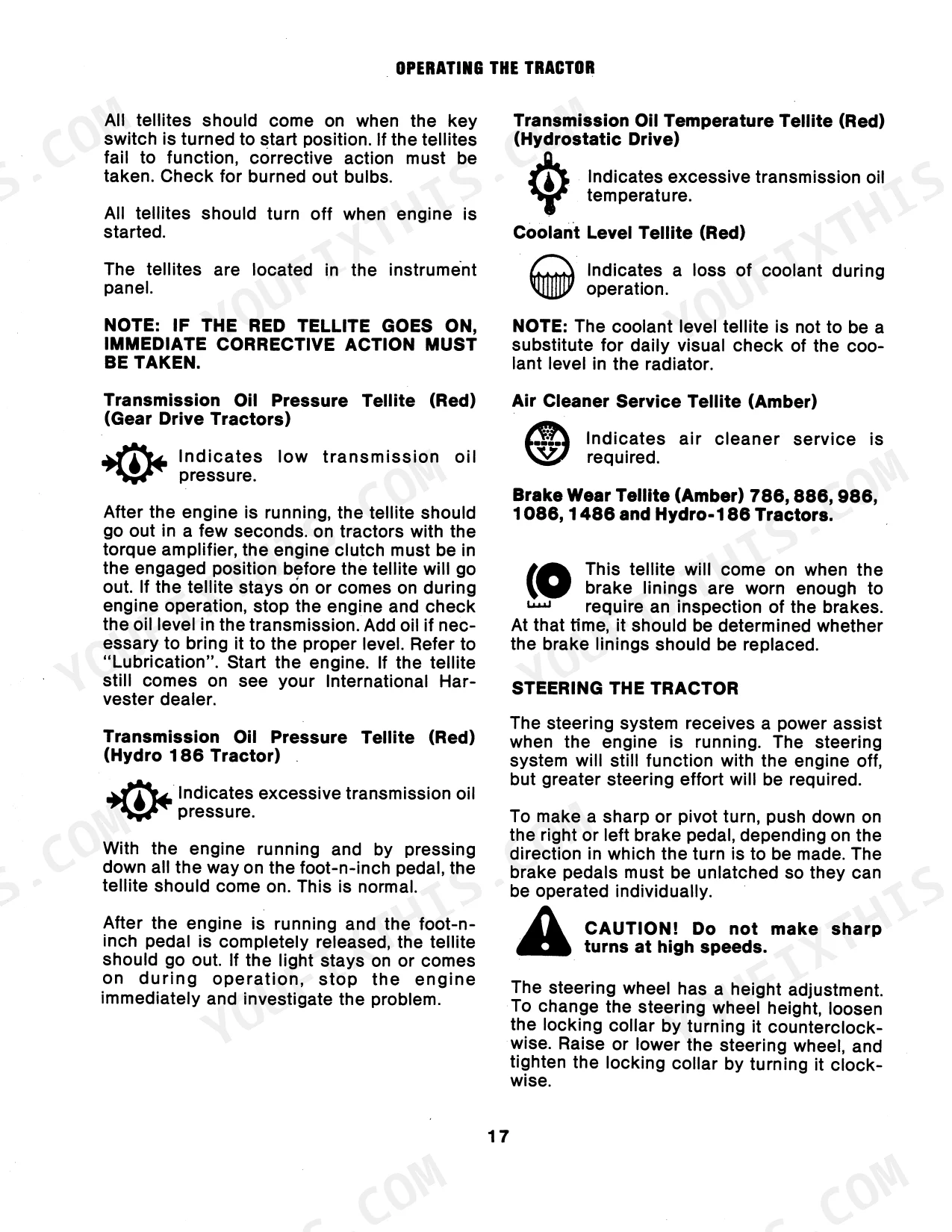

Manual Section: Cold Weather PrecautionsWarning or indicator light stays on after engine reaches normal operating temperature p. 13
Identify the specific indicator using the instrument panel controls diagram on page 13. Check the corresponding fluid level or system condition the light monitors before continuing operation. If the oil pressure or temperature indicator is active, shut down immediately and inspect. For electrical system faults, check fuses and the charging system per page 44.
Manual Section: Instruments and ControlsAuxiliary hydraulic remote cylinders respond erratically or fail to hold position p. 67
Inspect the hose connections at the rear hydraulic outlets for proper seating and check that check valves are functioning. On Open Center systems, verify the neutral lock is engaged when not in use and review cylinder operation steps on page 67. On Pressure Flow systems, check the flow control setting and inspect for trapped air per page 71. Low fluid level causes erratic movement — top up using only the fluid type shown in the Lubrication Table on page 107.
Manual Section: Auxiliary Valves, Remote Cylinders and Hydraulic Outlets - Open Center HydraulicFrequently Asked Questions
How to reset the error code on Case IH 786-1586 tractors?
To reset the Exhaust Gas Temperature (EGT) alarm, turn the alarm "reset" to the desired temperature. Ensure the temperature is not set above 1420 deg. F. (770 deg. C.). This procedure is for the EGT alarm displayed in the Data Center.
How do you fix engine cranks but won't start or stalls repeatedly under load?
Check the fuel system troubleshooting steps on page 21. Verify the fuel shutoff valve is fully open and the tank has clean fuel. Drain water from the fuel tank via the drain valve before each cold-season startup. If the engine fires but dies under load, inspect the primary fuel filter for restriction and prime the system according to the priming procedure on page 33.
How do you set up and use the three-point hitch draft control on Case IH 786-1586 tractors?
On tractors with the Pressure Flow Hydraulic System (pp. 52-55), set the Position Control lever to position the implement, engage Draft Control to maintain consistent depth under load, and use the Raise Rate Control to adjust how fast the hitch lifts. The Run Range detent lets you cycle the hitch repeatedly to the same working depth. Hitch Drop Rate Adjustment controls lowering speed to match soil conditions.
How do you check oil levels and service the hydraulic filter on Case IH 786-1586 tractors?
Check engine oil level with the dipstick before each day of operation (p. 104). The transmission/hydraulic system shares fluid — verify level at the sight glass or dipstick per the Lubrication Table (pp. 107-108). Change the hydraulic fluid filter at intervals specified in the Lubrication Guide (pp. 109-115). Use the correct viscosity oil listed for your operating temperature range; the hydrostatic drive unit has a separate fluid check point on models so equipped.
