All 118 pages of this International 3388, 3588, 3788 Operator Manual (OEM #1096188R4) exist to keep you running these articulated tractors right, from the first key turn to long-term storage. Inside: a full safety section with pre-start checks, cab rules, and post-upset protocol, plus step-by-step sequences for starting, hydraulic clutch operation, Torque Amplifier engagement, and three-point hitch setup. You also get a lubrication table, fluid capacity chart, and preventive maintenance guide with every service interval spelled out across all three models. Fill the crankcase to 20 qts (18.9 L), top the transfer case to 4.25 L, and change the hydraulic filter at 10, 100, and 200 hours, then every 200 hours thereafter. Quit chasing specs across worn paper manuals. This one's bookmarked and keyword-searchable, so you open it on your tablet, find the procedure, and get back on the machine.

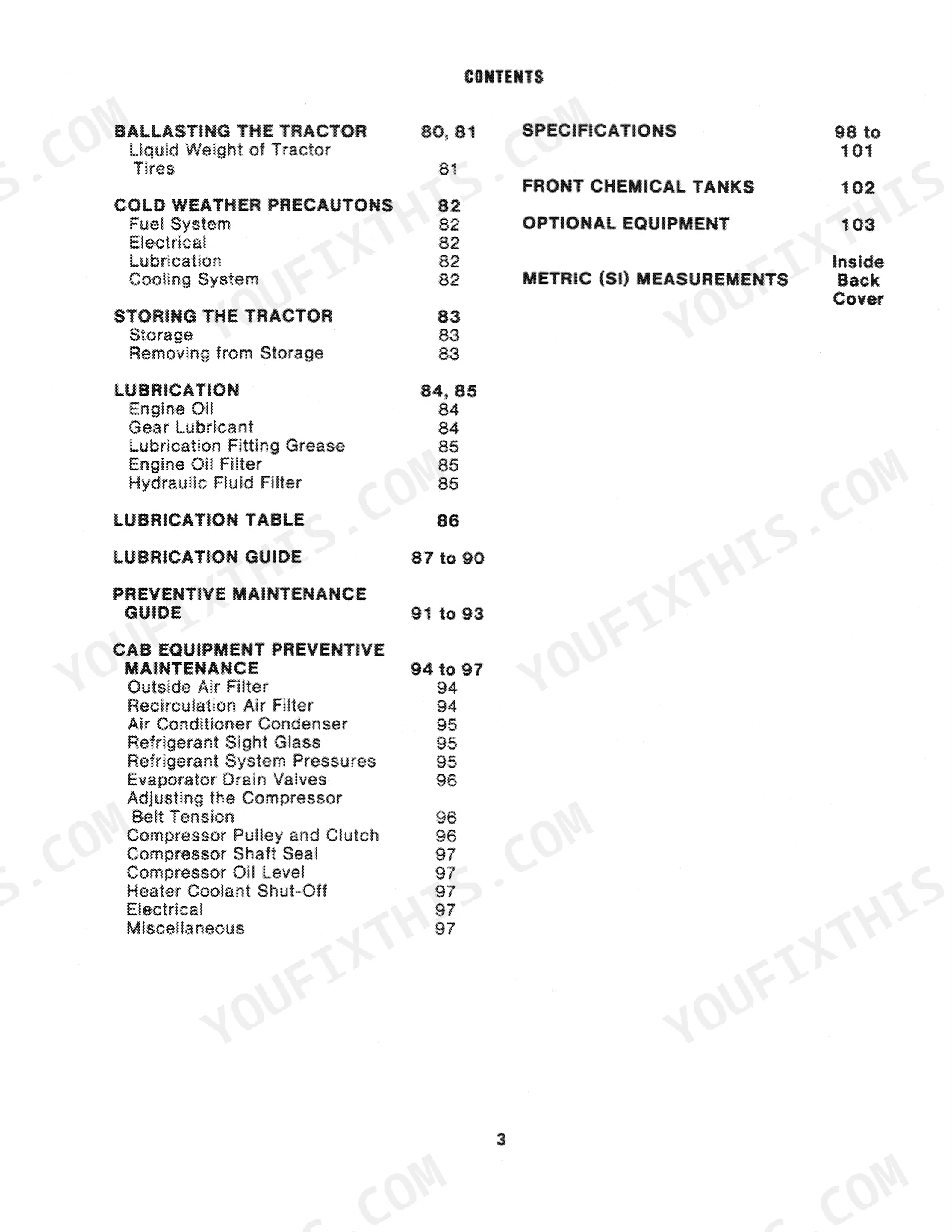

What's Inside This International 3388, 3588, 3788 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Serial Numbers | 12-13 | Left Side of Engine Crankcase, Right Side of Rear Frame, Right Side of Cab, Front Axle |

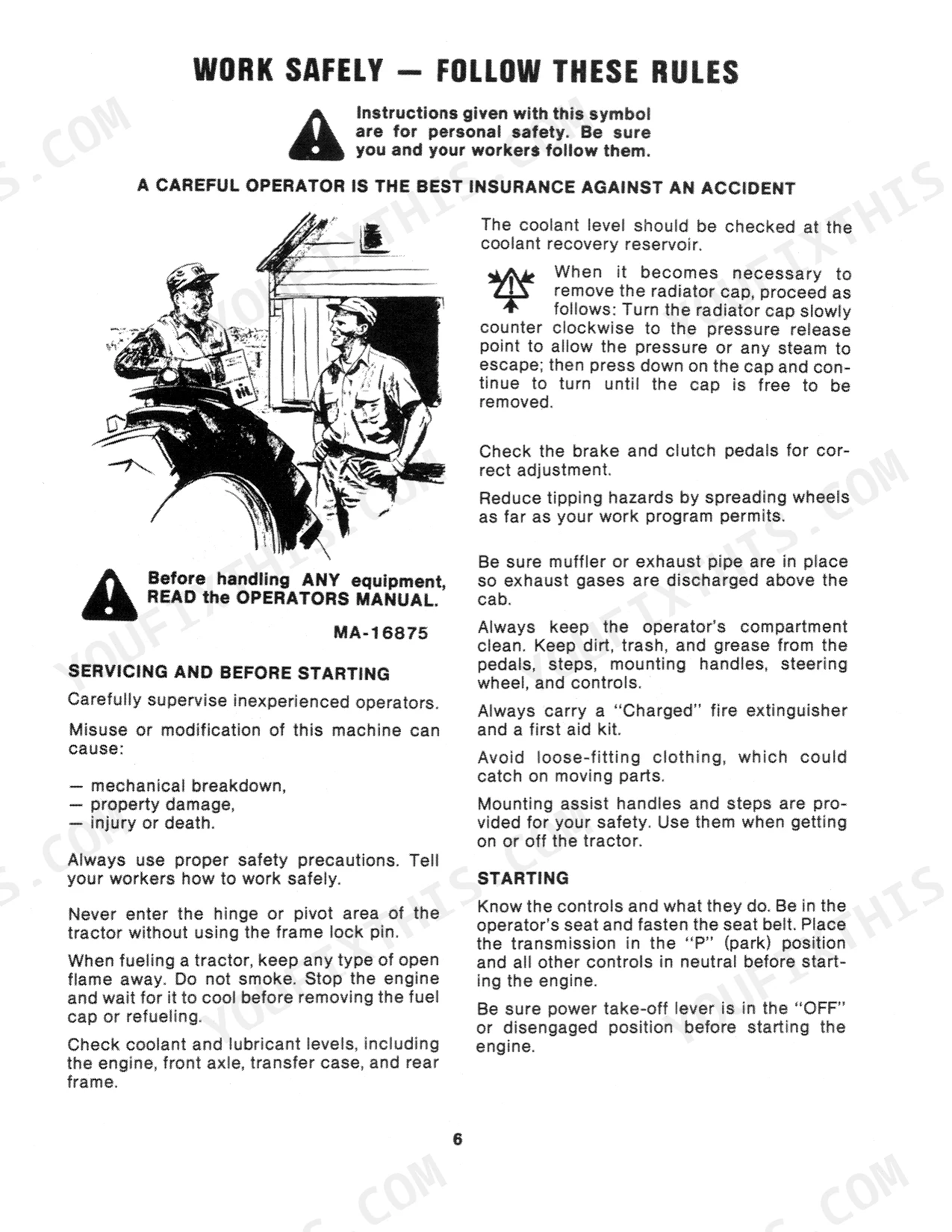

| Work Safety -Follow These Rules | 14-16 | Servicing and Before Starting, During Operation, Transporting, Cabs, Before Dismounting, After an Upset |
| Energy Conservation Follow These Recommendations | 17-18 | Valve Adjustments, Fuel Injection Pump Timing, Air Filter Servicing, Proper Lubricants, Radial Tires, Tire Inflation |
| Instruments and Controls | 19-20 | Instrument Panel and Controls, Left and Right Console and Seat Controls, Cab Interior |
| Before Operating the Tractor | 21 | Pre-Start Checklist, Daily Walk-Around Inspection, Fuel and Oil Level Check, Pre-Operation Safety Preparation, Operator Readiness |

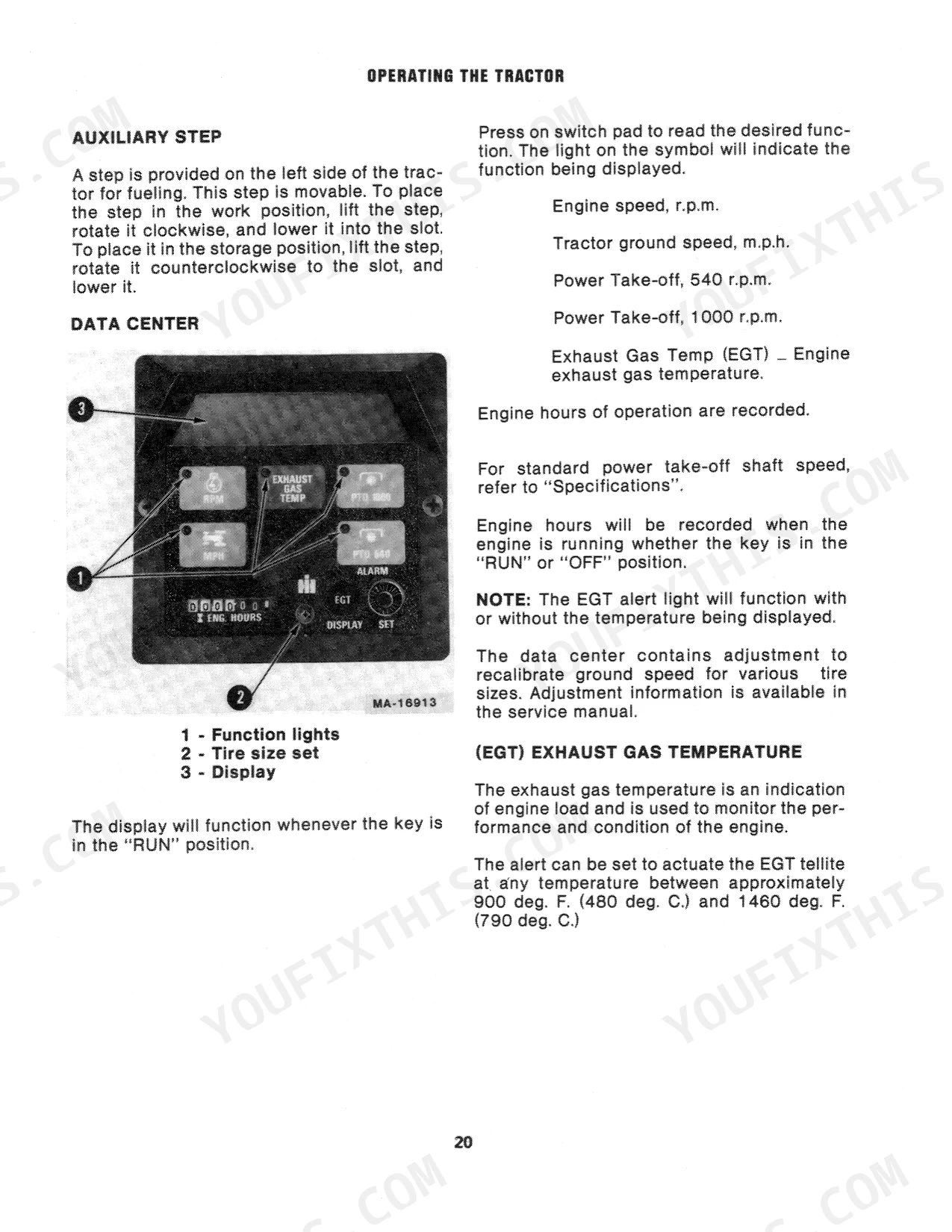

| Operating the Tractor | 22-31 | Neutral Starting Switch, Starting the Engine, Stopping the Engine, With the Engine Running, Steering the Tractor, Driving the Tractor, Hydraulic Powered Clutch Control |
| Cab Interior and Controls | 32-35 | Operating the Controls, Control Settings, Radio Units, Seat |
| Engine and Fuel System | 36-39 | Warranty Notice, Fuel System, Fuel Injection Pump and Nozzles, Priming the Turbocharger |
| Cooling System | 40-42 | Coolants, Checking the Coolant Level, Draining and Filling the Cooling System, Thermostat, Cleaning the Radiator, Transmission Oil Cooler and Condenser Core Fins, Hoses and Clamps |
| Air Cleaning System | 43-45 | Tractors with Automatic Dust Unloader, Tractors with Aspirated Air Cleaner, Removing and Cleaning the Primary Filter Element, Inspection, Secondary Filter Element |
| Electrical System | 46-50 | Charging System for Alternator-Generator, Cranking System, Lighting System, Lights, Breakaway Connector, Instrument Light Dimmer Switch, Rocker Switches, Turn Signal Indicators |
| Hydraulic Controls for Three-Point Hitch | 51-54 | Position Control, Position Control Lock Lever, Draft Control, Run Range, Raise Rate Control, Hitch Drop Rate Adjustment |
| Three-Point Hitch | 55-62 | Hitch Category Chart, Lift Links and Turnbuckles, Hitch Lower Links, Hitch Upper Link, Lateral Limiter, Lateral Limiter Adjustment Procedure, Sway Limiter Blocks |
| Hitching Trailing Equipment to the Tractor | 63-64 | PTO Shaft, Drawbar, Clevis Pin, Quick-Attachable Cotter Pin, Spacer |
| Auxiliary Valves, Remote Cylinders and Hydraulic Outlets | 65-69 | Flow Control Lever, Color Code, Motor Valve, Hydraulic Motor Operation, Connecting Hoses, Check Valves |
| Power Take-Off | 70-71 | Operating the Independent Power Take-Off, Power Take-Off Shield, Power Take-Off Tube |
| Differential Lock/Wheels | 72-85 | Differential Lock, Adjusting the Tread Widths, Assembling the Double-Beaded Rims, Reversing the Wheels, Oscillation Stop Mounting, Articulation Angle |
| Tires | 86-87 | Inflation, Front and Rear Tire Inflation, Pressure |
| Ballasting the Tractor | 88-89 | Single Tires, Dual Tires, Liquid Weight of Tractor Tires, Approximate Tractor Weight |
| Cold Weather Precautions | 90 | Fuel System, Lubrication, Cooling System, Electrical |

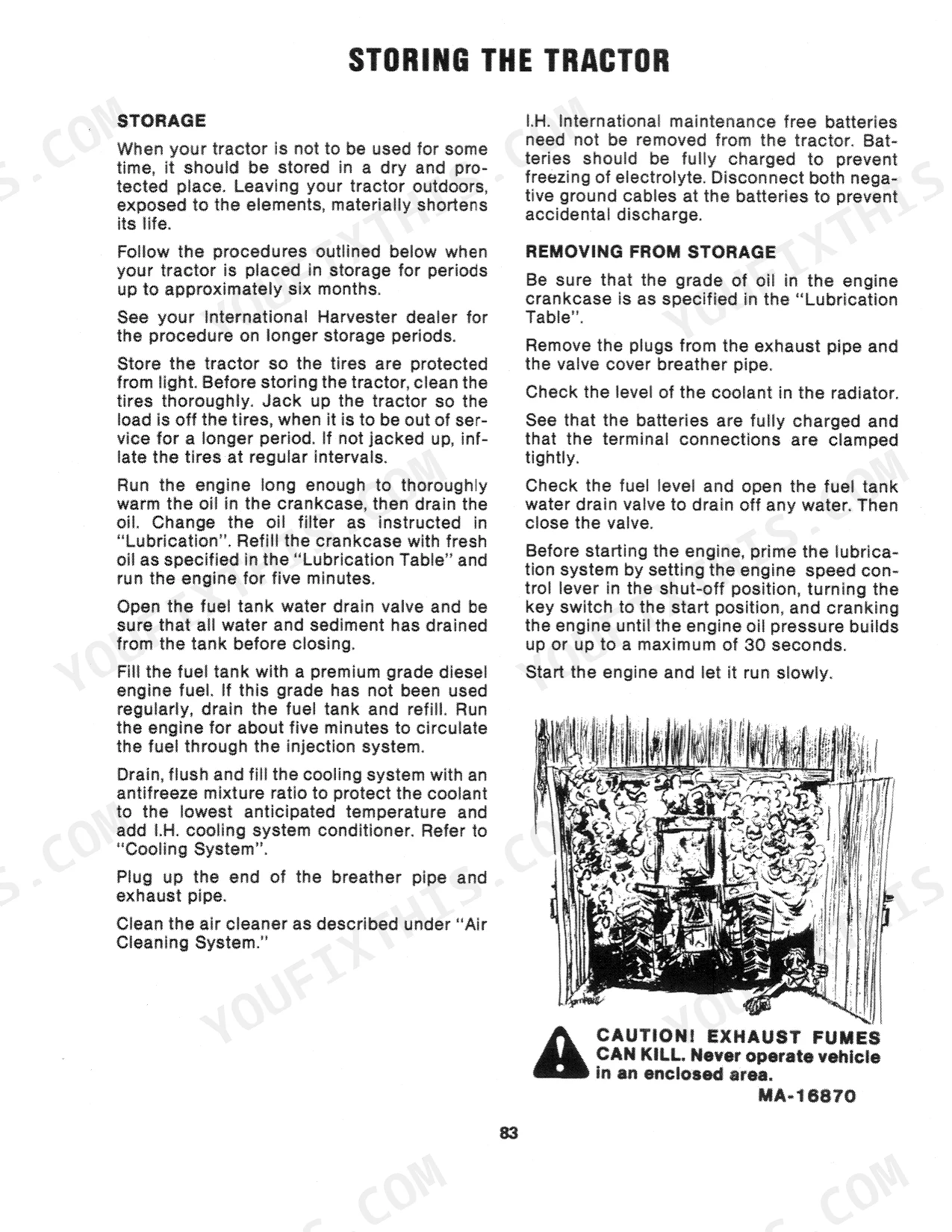

| Storing the Tractor | 91 | - |
| Lubrication | 92-93 | Engine Oil, Gear Lubricant, Lubrication Fitting Grease, Engine Oil Filter, Hydraulic Fluid Filter |
| Lubrication Table | 94-98 | Engine Crankcase, Front Axle Differential, Rear Frame, Transfer Case, Lubrication Fittings |

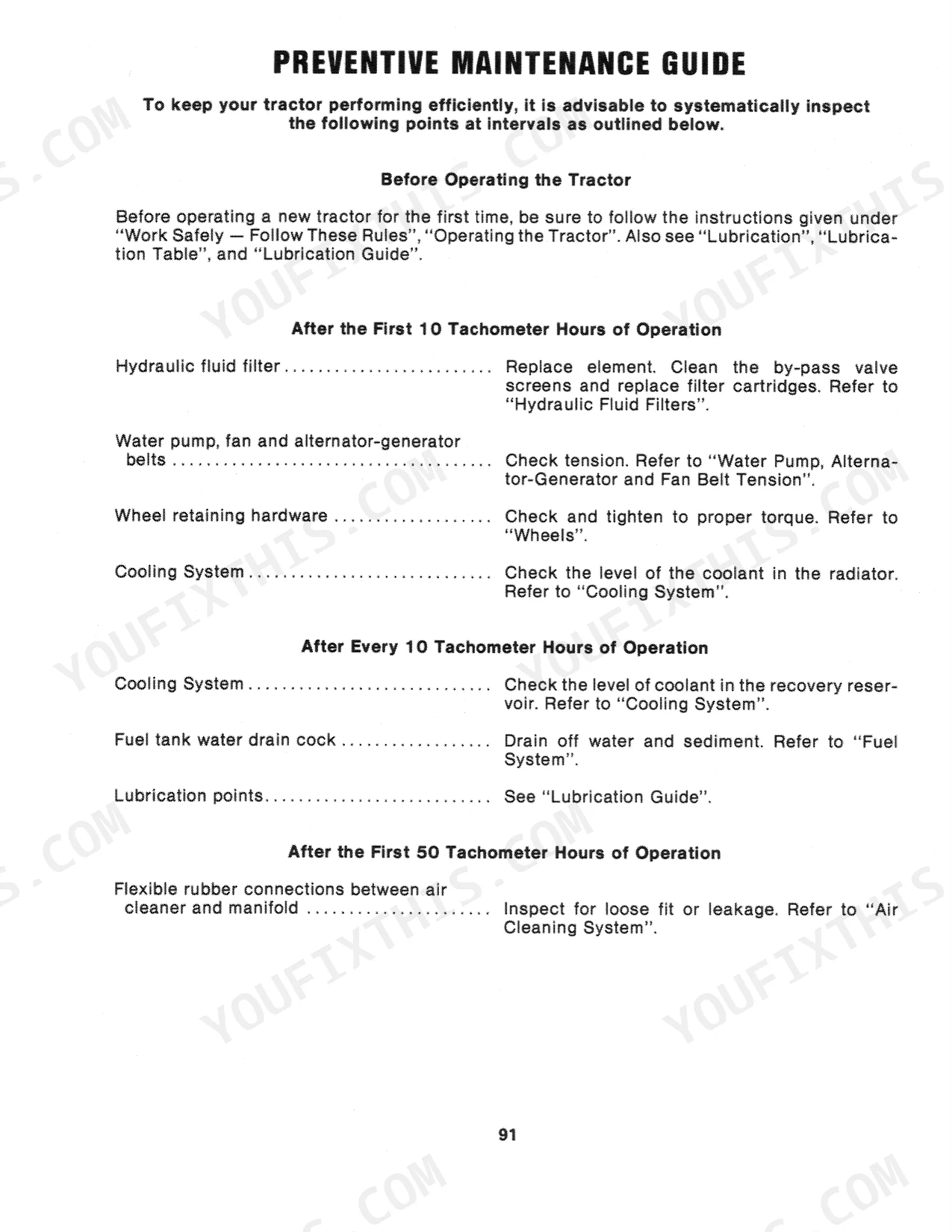

| Preventive Maintenance Guide | 99-101 | Hydraulic Fluid Filter, Water Pump, Cooling System, Fuel Tank, Engine Oil, Air Cleaner |
| Cab Equipment Preventive Maintenance | 102-105 | Outside Air Filter, Recirculation Air Filter, Air Conditioner Condenser, Refrigerant Sight Glass, Refrigerant System Pressures, Evaporator Drain Valves |
| Specifications | 106-109 | Ground Speeds, Capacities, Engine, Power Take-Off Shaft Speeds, Clutch, Foot Brakes, Tire Sizes, General Dimensions |
| Front Chemical Tanks | 110 | Mounting Holes, Frame Edge, Tank Center, Mounting Diagram |
| Optional Equipment | 111-114 | Additional Quick Couplers, Air Conditioner, Alternate Tires, Auxiliary Fuel Tank, Differential Lock, Dual Wheels |
| Metric (Si) Measurements | 115-118 | Area, Force, Length, Mass, Power, Pressure |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic oil filter replacement interval | After the first 10, 100 and 200 tachometer hours of operation and every 200 hours of operation thereafter. More frequently when operating under unusual dirt or dust conditions. Also whenever the transmission and hydraulic fluid is changed. | p. 93 |
| Engine Oil Capacity (Crankcase with filter) | 20 qts (18.9 L) | p. 97 |
| Transfer Case Capacity | 4.5 qts (4.25 L) | p. 97 |
International 3388, 3588, 3788 Common Problems This Manual Covers
International 3388 engine oil pressure tellite illuminates or gauge drops during operation p. 26
Stop the engine immediately — do not continue running with low oil pressure. Check the engine oil level on the dipstick and add oil if below the MIN mark; crankcase capacity with filter is 20 qts (18.9 L). Follow the diagnosis steps on page 26 to determine whether the issue is a faulty sender, low oil level, or a pressure problem requiring dealer attention.
Manual Section: Operating the TractorAir cleaner service tellite comes on mid-field and stays lit p. 43
Stop at a safe location and service the air cleaner before continuing. Pull the primary filter element and clean or replace it per the procedure starting on page 43. Inspect the secondary element — replace it, never clean it. Recheck that the dust unloader valve moves freely. Ignoring a lit air cleaner tellite accelerates engine wear significantly.
Manual Section: Air Cleaning SystemEngine temperature gauge pointer moves into the red band during operation p. 40
Reduce load immediately and let the engine idle; if the gauge does not drop within a few minutes, shut down. Check coolant level at the recovery tank and radiator — top up only when cool. Inspect the radiator, transmission oil cooler, and condenser core fins for packed debris and clean if blocked, per page 40. Check fan belt tension at the same time.
Manual Section: Cooling SystemAuxiliary hydraulic valve delivers weak or slow cylinder movement with implement attached p. 65
Verify the flow control lever position on the console and confirm the hydraulic fluid level is correct. Check the hydraulic fluid filter service interval — replace the filter element after the first 10, 100, and 200 tachometer hours, then every 200 hours thereafter (more often in dusty conditions). Review the color-coded hose connection diagram on page 65 to confirm hoses are routed to the correct valve ports and check valves are fully seated.
Manual Section: Auxiliary Valves, Remote Cylinders and Hydraulic OutletsThree-point hitch drops too fast or too slow when lowering an implement p. 54
Adjust the drop rate using the hitch drop rate control described on page 54. Turn the control clockwise to slow the drop, counterclockwise to increase it. Test with the implement raised to full height, then lower and observe the rate. If the hitch still drops abruptly at the slowest setting, inspect the drop-rate orifice for debris before calling a dealer.
Manual Section: Hydraulic Controls for Three-Point HitchEngine cranks slowly or won't turn over in cold weather conditions p. 90
Check battery condition and cable connections first — cold temperatures cut battery capacity sharply. Review cold weather precautions on page 90: use the correct viscosity engine oil for the expected temperature, verify the fuel system is free of water contamination, and confirm the coolant mixture is adequate for the forecast low. Never use ether starting aids unless the operator manual explicitly permits it.
Manual Section: Cold Weather PrecautionsFrequently Asked Questions
What are the replacement specifications for Hydraulic oil filters?
The hydraulic fluid filter element should be replaced after the first 10, 100, and 200 tachometer hours of operation, and every 200 hours thereafter. This involves cleaning the by-pass valve screens and inspecting the cover o-ring. For detailed instructions, refer to the "Hydraulic Fluid Filters" section.
How do you fix international 3388 engine oil pressure tellite illuminates or gauge drops during operation?
Stop the engine immediately — do not continue running with low oil pressure. Check the engine oil level on the dipstick and add oil if below the MIN mark; crankcase capacity with filter is 20 qts (18.9 L). Follow the diagnosis steps on page 26 to determine whether the issue is a faulty sender, low oil level, or a pressure problem requiring dealer attention.
How do you fix air cleaner service tellite comes on mid-field and stays lit?
Stop at a safe location and service the air cleaner before continuing. Pull the primary filter element and clean or replace it per the procedure starting on page 43. Inspect the secondary element — replace it, never clean it. Recheck that the dust unloader valve moves freely. Ignoring a lit air cleaner tellite accelerates engine wear significantly.
How do you fix engine temperature gauge pointer moves into the red band during operation?
Reduce load immediately and let the engine idle; if the gauge does not drop within a few minutes, shut down. Check coolant level at the recovery tank and radiator — top up only when cool. Inspect the radiator, transmission oil cooler, and condenser core fins for packed debris and clean if blocked, per page 40. Check fan belt tension at the same time.
How quickly can I access this manual after?
Immediate download of the complete 118-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this International 3388, 3588, 3788 Operator Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
