Need factory-level rebuild data for your Case IH JX1060C, JX1070C, or JX1075C tractor? All 676 pages of this repair manual (OEM #87046863) are structured around the complete machine: gearbox teardown, MFD transfer box, front axle, rear mechanical drive, PTO, brakes, hydraulic system, steering, and cab air conditioning. Inside: hydraulic schematics with full fluid routing, a thorough error code section, troubleshooting procedures, calibration steps, pinout diagrams, and exploded views for every major assembly. You also get a front-of-book torque settings table, clearance specs, and test values before you ever touch a wrench. Each clutch pack runs 6 driven plates; rebuild thickness is 2.00–2.08 mm, and creeper clutch casing bolts torque to 117–129 Nm (87–96 ft. lbs.). The dealer clock is ticking. Bookmarked by chapter: jump straight to the spec you need, on any device, right at the machine.
What's Inside This Case IH JX1060C–JX1075C Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Main Data | 2-13 | Torque Settings, Tools, Cross-Sectional Views, Description and Operation |

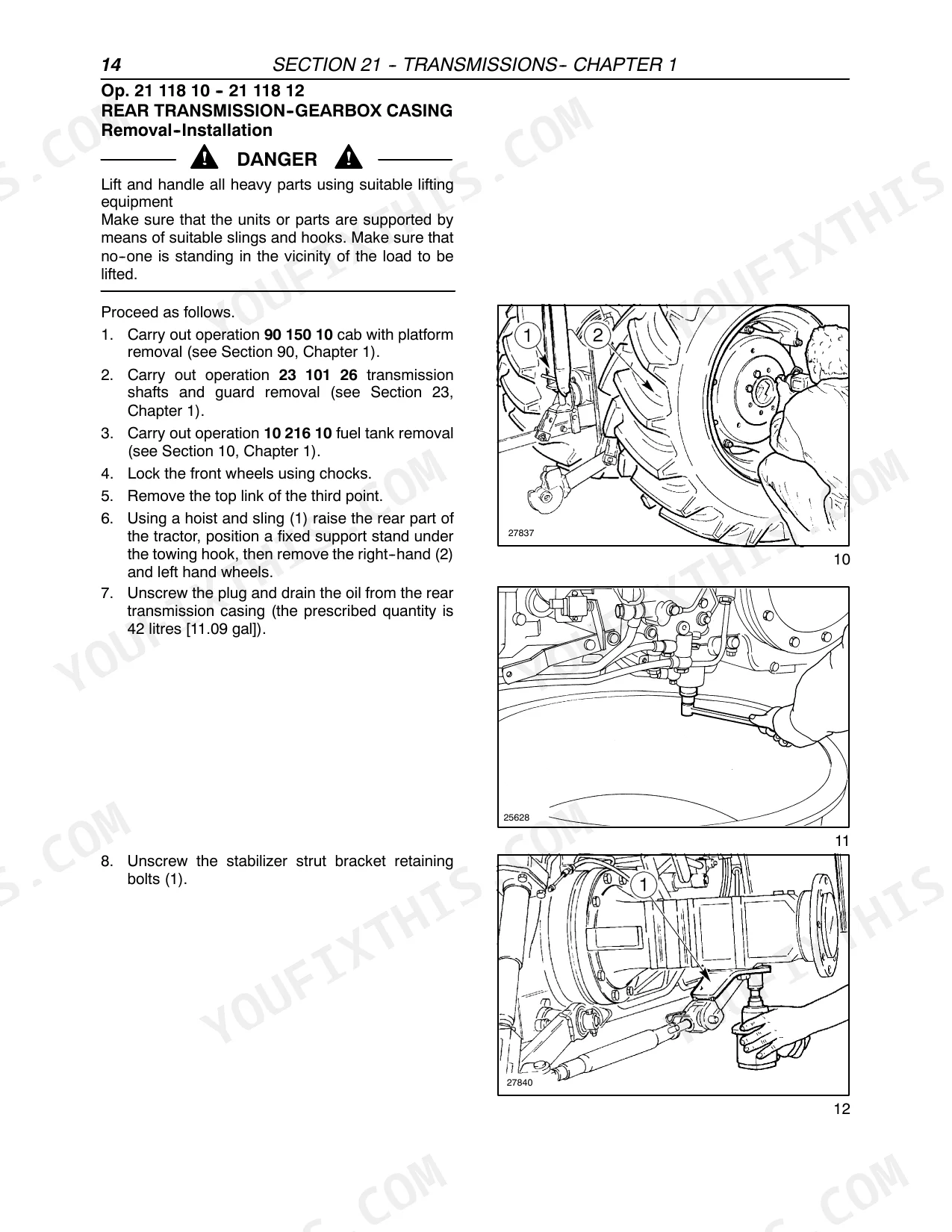

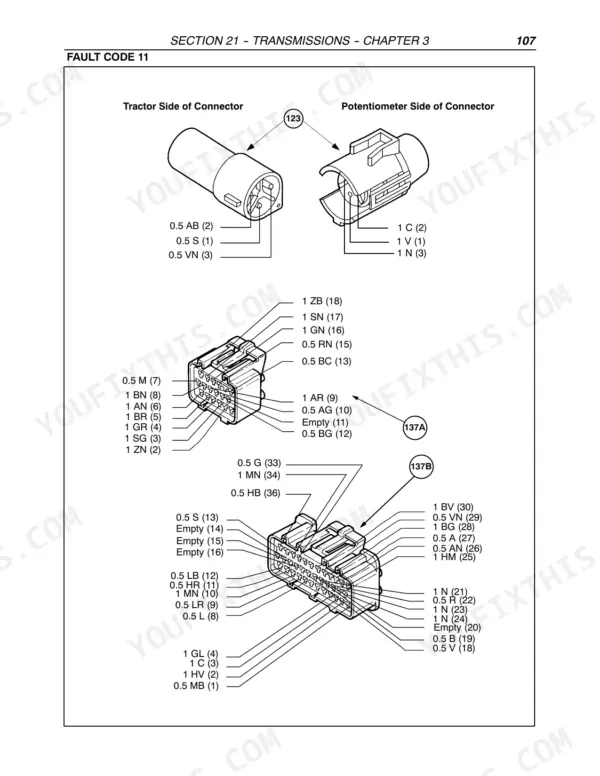

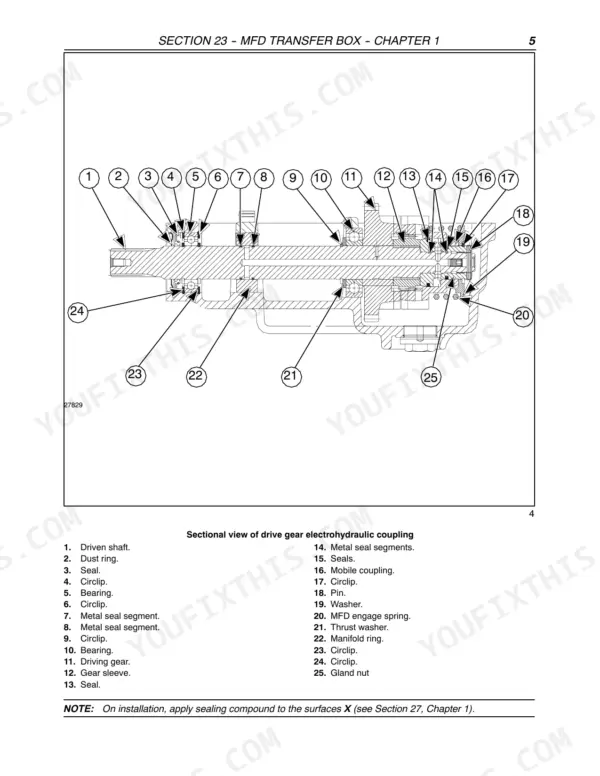

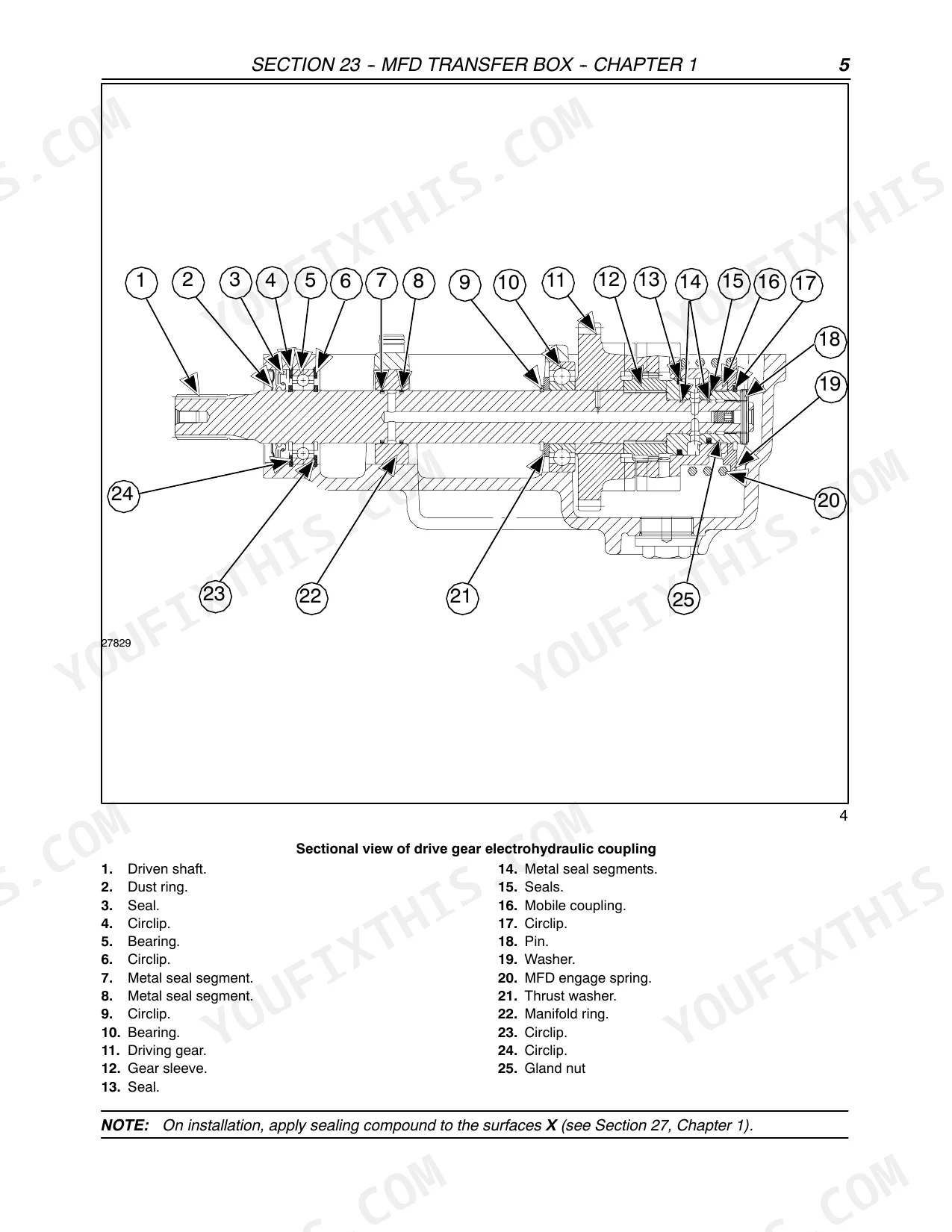

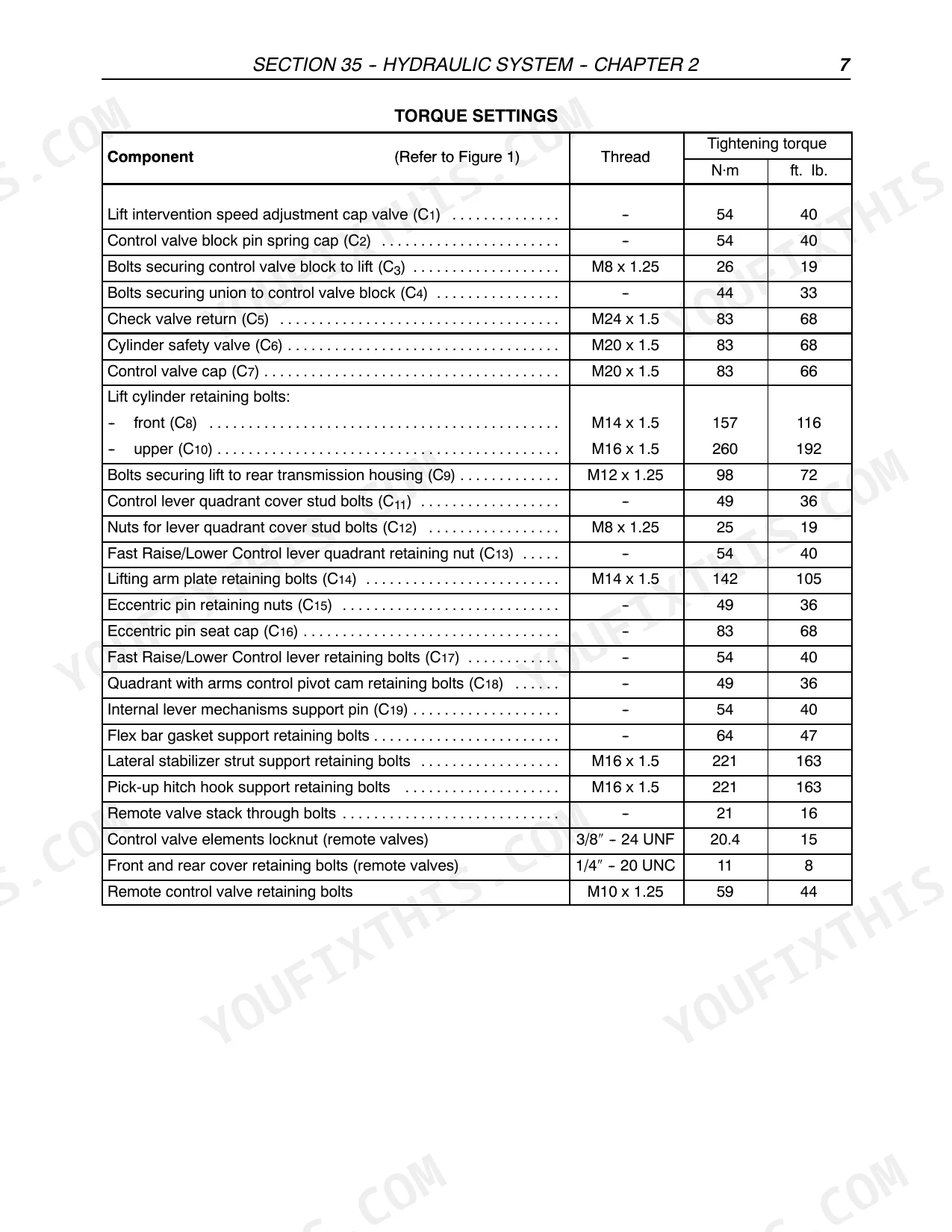

| Rear Transmission/Gearbox Casing Removal - Installation | 14-20 | Cab with Platform, Transmission Shafts, Fuel Tank, Rear Transmission Casing, Lift Auxiliary Control Valve Pipe, Services Control Valve |
| Gearbox Transmission Casing Disassembly - Assembly | 21-30 | Rotating Stand, Drive Gear Casing, Power Take-Off Control Shaft, Parking Brake Control Lever, Gearbox Driving Shaft, Gearbox Driven Shaft |
| Gearbox Control Lever Removal - Installation | 31 | Retaining Bolts, Guard Retaining Flange, Gearbox Control Lever, Control Sleeve |
| Transmissions - Chapter 1: Range Gear Control Lever Removal - Installation | 32-34 | Retaining Bolts, Guard Retaining Flange, Range Control Lever, Control Sleeve |
| Transmissions - Chapter 2: 16 X 16 with Power Shuttle Transmission | 35-364 | Main Data, Torque Values, Special Tools, Cross-Sectional Views, Description and Operation, Transmission-Gearbox Disassembly - Assembly, Power Shuttle Control Valve Disassembly - Assembly, A + B Clutch Valve Solenoids Removal - Installation, Dump Valve Solenoid Removal - Installation, Clutch Casing Disassembly - Assembly |
| Case_JX1060C_JX1070C_JX1075C_Repair_Manual_Tractor_87046864 | 365-484 | Table of Contents, MFD Transfer Box, Front Axle (MFD), Rear Mechanical Drive, Mechanical Power Take-Off, Braking System |
| Case_JX1060C_JX1070C_JX1075C_Repair_Manual_Tractor_87046865 | 485-676 | Table of Contents, Hydraulic System, Steering, Axles and Wheels, Cab Air Conditioning System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Bolts or nuts securing creeper clutch casing to the engine (C8) torque | 117 to 129 Nm (87 to 96 ft. lbs.) | p. 4 |
| Hydraulic filter type | Full-flow, with replaceable paper cartridge | p. 516 |
| Hydraulic filter location | Pump Suction | p. 516 |
| Number of driven plates in each clutch | 6 no. | p. 36 |
| Thickness of driven plates | 0.0787 to 0.0818 in. (2.00 to 2.08 mm) | p. 36 |
| Gearbox detent ball spring free length | 42 mm | p. 4 |
| Power Shuttle and services transmission working pressure | 227 psi | p. 36 |

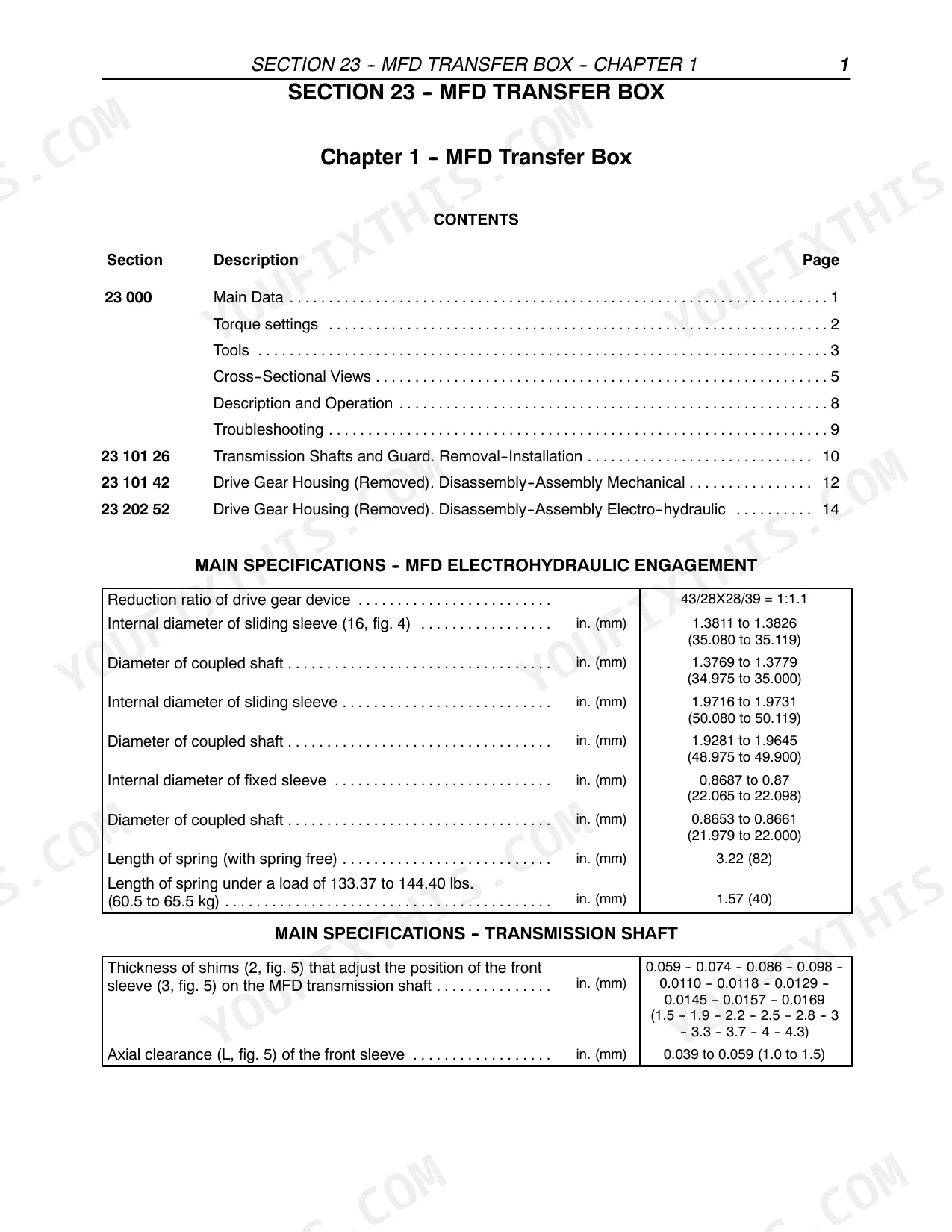

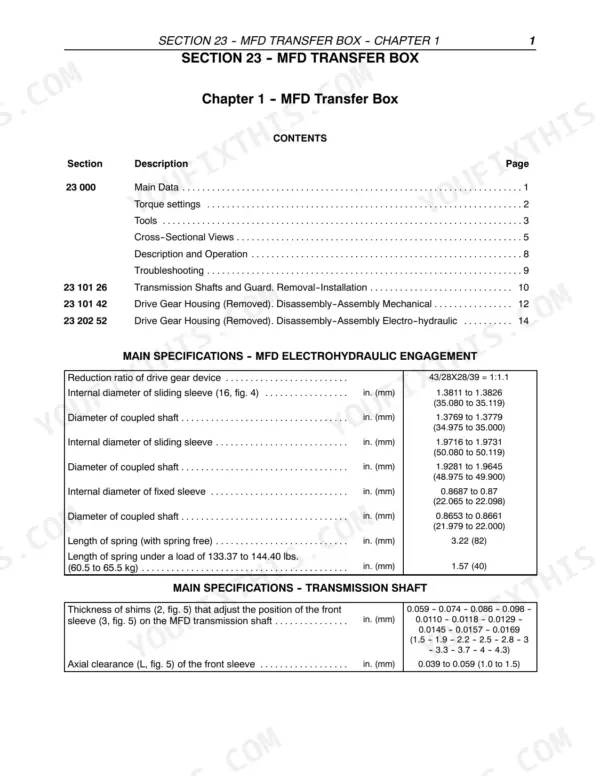

| MFD drive gear device reduction ratio | 1:1.1 | p. 367 |
| Front axle bevel pinion shaft lock nut torque | 294 Nm | p. 386 |
| Rear transmission bevel gear pair ratio (18.64 mph model) | 1:4.4 | p. 419 |
| PTO 540 rpm engine speed | 2196 rpm | p. 449 |
| Service brake disk thickness | 10 mm | p. 465 |
Case IH JX1060C–JX1075C Common Problems This Manual Covers

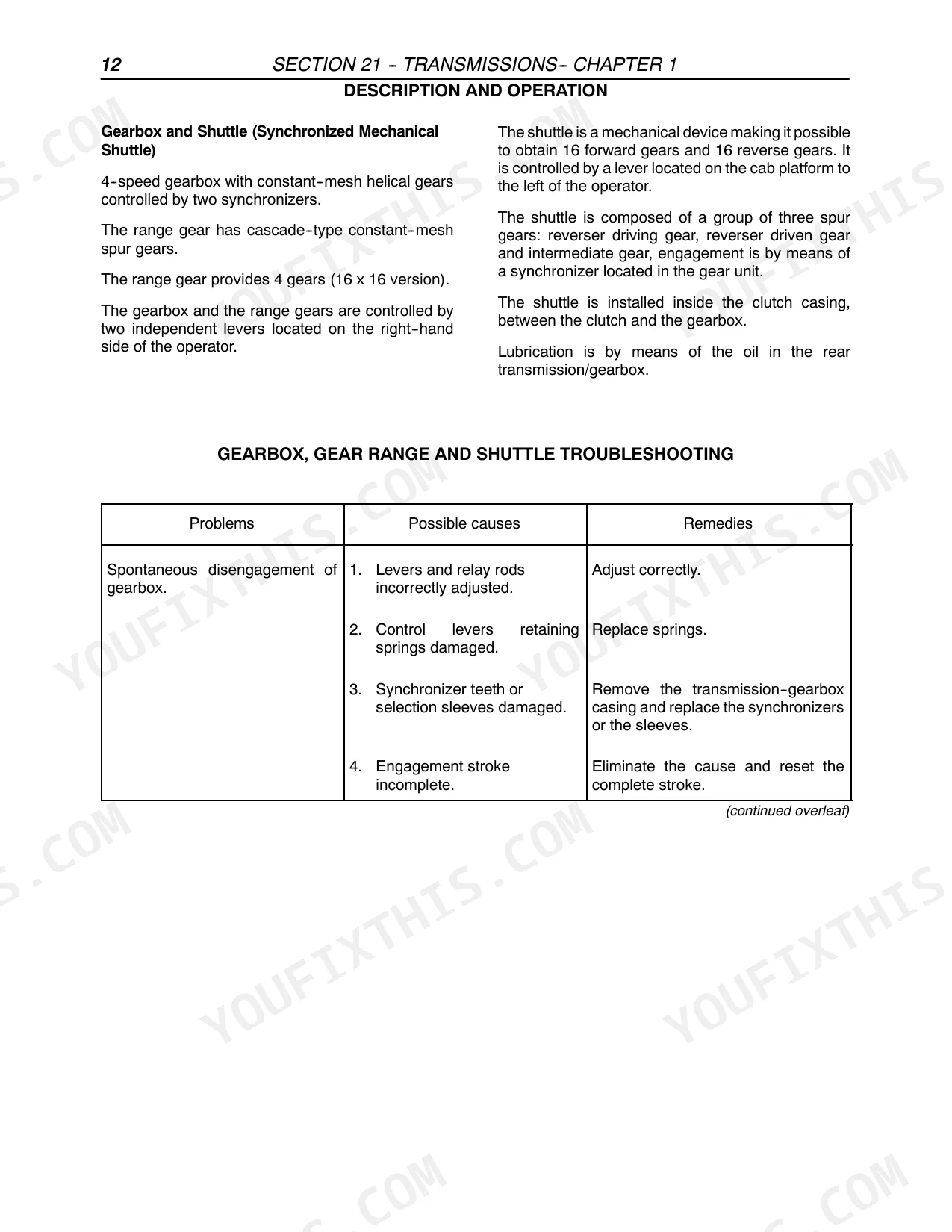

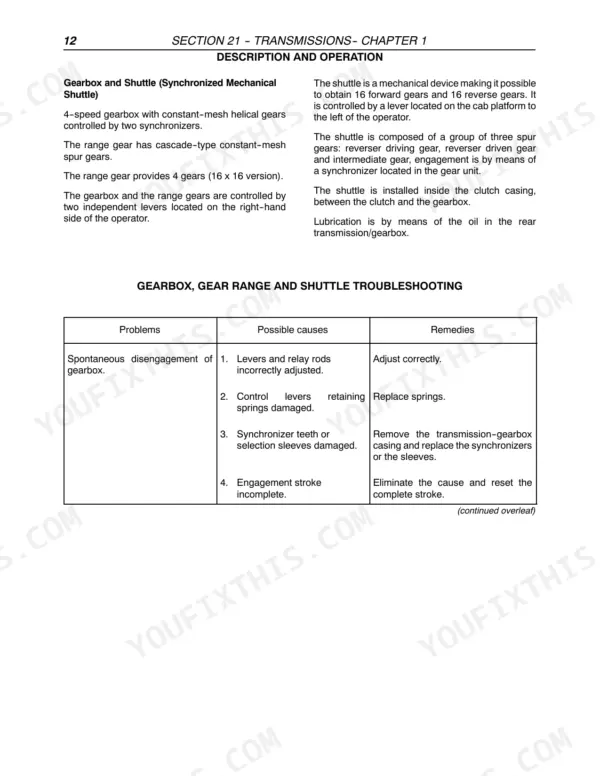

Case IH JX1060C transmission slips and delays gear engagement frequently when shifting under load p. 36
Test the transmission hydraulics. Connect a gauge to the test port and verify the Power Shuttle and services transmission working pressure reads 227 psi. If pressure drops, inspect the clutch assembly on page 36. Measure the sintered driven plates and replace any measuring outside the 2.00 to 2.08 mm spec.
Manual Section: Rear Transmission/Gearbox Casing Removal - InstallationThree-point hitch fails to lift heavy implements and moves in jerky motions during operation
Inspect the pump suction line for blockages. Replace the full-flow replaceable paper cartridge hydraulic filter located on page 516. Connect a pressure gauge to the auxiliary valve. Adjust the hydraulic lift pressure relief valve setting to reach exactly 190-195 bar as detailed on page 514.
Manual Section: Hydraulic Lift TroubleshootingCab air conditioning system blows warm air and compressor clutch makes unusual noise when engaged
Inspect the compressor drive belt deflection and adjust the tensioner to achieve 12 to 13 mm of play as shown on page 669. Evacuate the system and recharge with exactly 800 gr of HFC-134a refrigerant. Inspect the clutch hub for wear and replace if damaged.
Manual Section: Air Conditioning System TroubleshootingMechanical PTO slips with severe speed loss when operating a heavy brush hog attachment p. 449
Check the clutch lever adjustment mechanism. Start the engine and verify the PTO 540 rpm engine speed is reached at exactly 2196 rpm as specified on page 449. If slipping continues, split the tractor and inspect the PTO clutch discs for glazing or excessive wear.
Manual Section: Mechanical PTO TroubleshootingFrequently Asked Questions

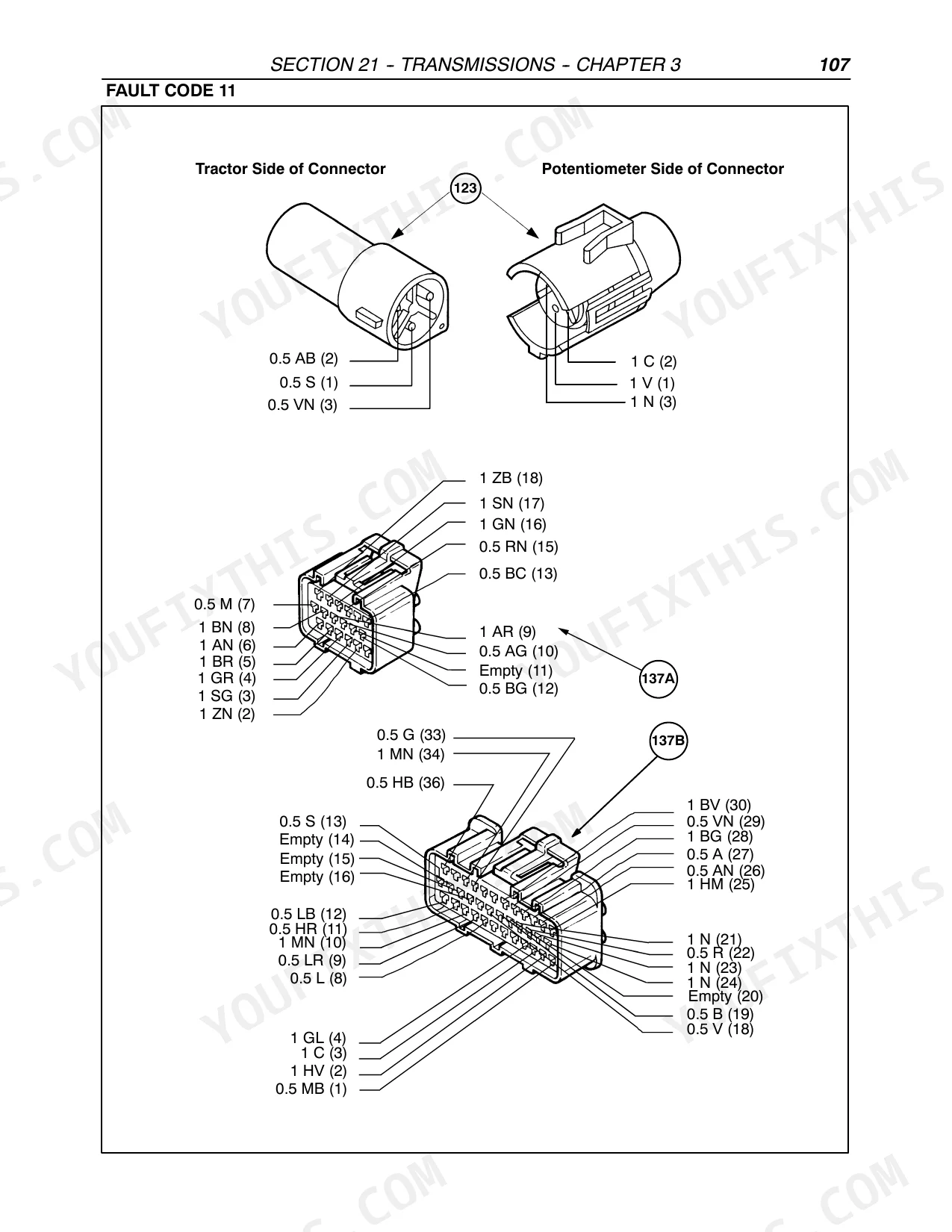

How to reset the error code on Case IH JX1060C tractor?
To reset error codes, use the CDU (Calibration and Diagnostic Unit) or EST (Electronic Service Tool). Press and hold the down arrow button until the display shows a countdown sequence: "ERASE 5s, ERASE4s, ERASE 3s, ERASE 2s, ERASE 1s, ERASED". Releasing the button during this countdown will abort the erasure.
How to reset the transmission warning light on Case IH JX1060C?
The transmission warning light is linked to error codes. To clear stored errors, use the CDU (Calibration and Diagnostic Unit) or EST (Electronic Service Tool). Press and hold the down arrow button until the display shows a countdown sequence: "ERASE 5s, ERASE4s, ERASE 3s, ERASE 2s, ERASE 1s, ERASED".
Torque specs for the drivetrain components on Case IH JX1070C?
Torque specifications for drivetrain components are detailed across several sections. For example, the Transmission gearbox driven gear shaft locknut (C4) requires 280 to 309 Nm (207 to 228 ft. lbs.) (Section 21, page 4). The MFD Transfer Box Transmission shaft central support retaining bolt (C1) is 88 Nm (65 ft. lbs.) (Section 23, page 368). Further torque values for front axle, rear mechanical drive, PTO, and braking system components are listed in their respective "TORQUE SETTINGS" tables.
How do you fix case IH JX1060C transmission slips and delays gear engagement frequently when shifting under load?
Test the transmission hydraulics. Connect a gauge to the test port and verify the Power Shuttle and services transmission working pressure reads 227 psi. If pressure drops, inspect the clutch assembly on page 36. Measure the sintered driven plates and replace any measuring outside the 2.00 to 2.08 mm spec.
What do I get after purchasing this Case IH JX1060C, JX1070C, JX1075C manual?
Instant PDF download. You get the full 676-page searchable Repair Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

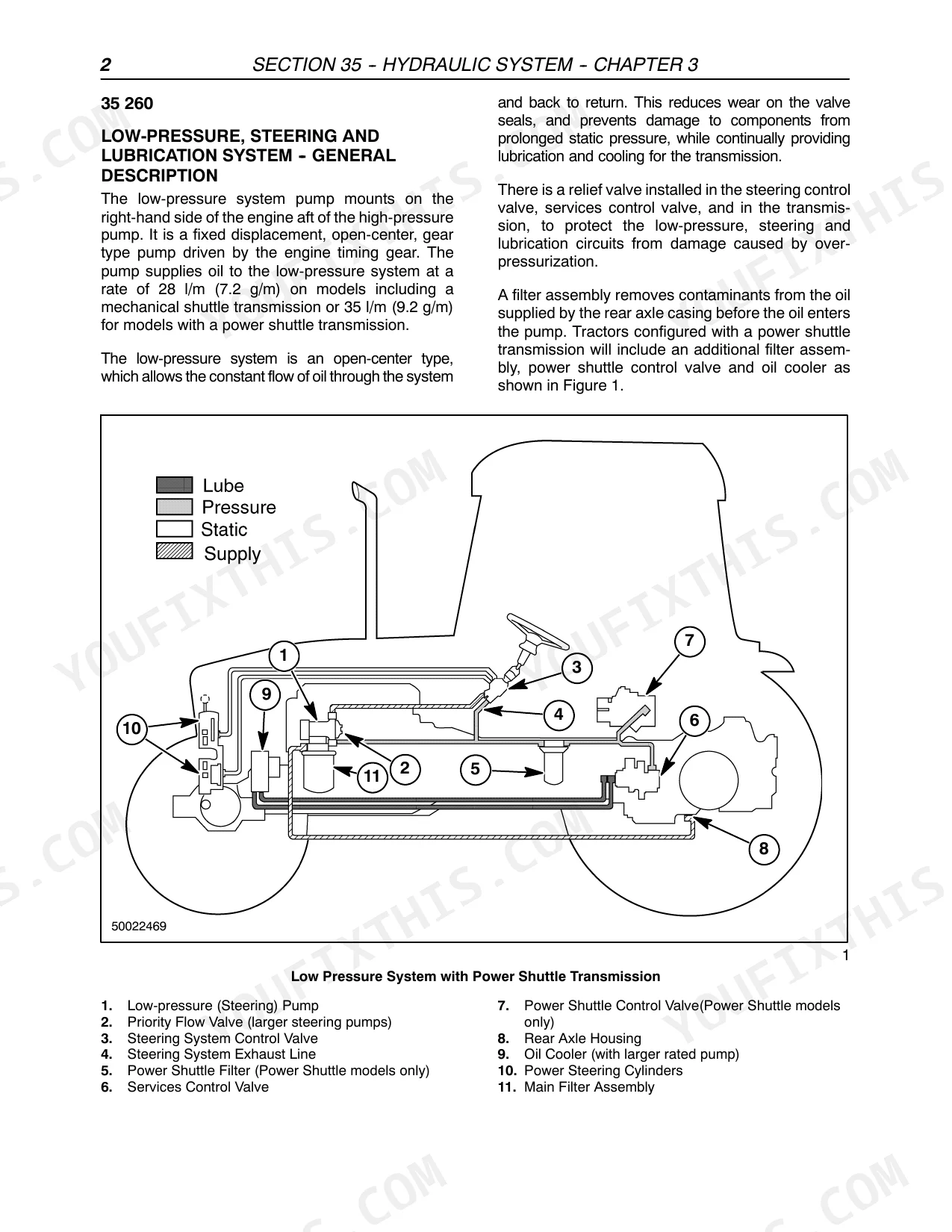

Does this Case IH JX1060C, JX1070C, JX1075C manual include hydraulic schematics?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Case IH JX1060C, JX1070C, JX1075C.
