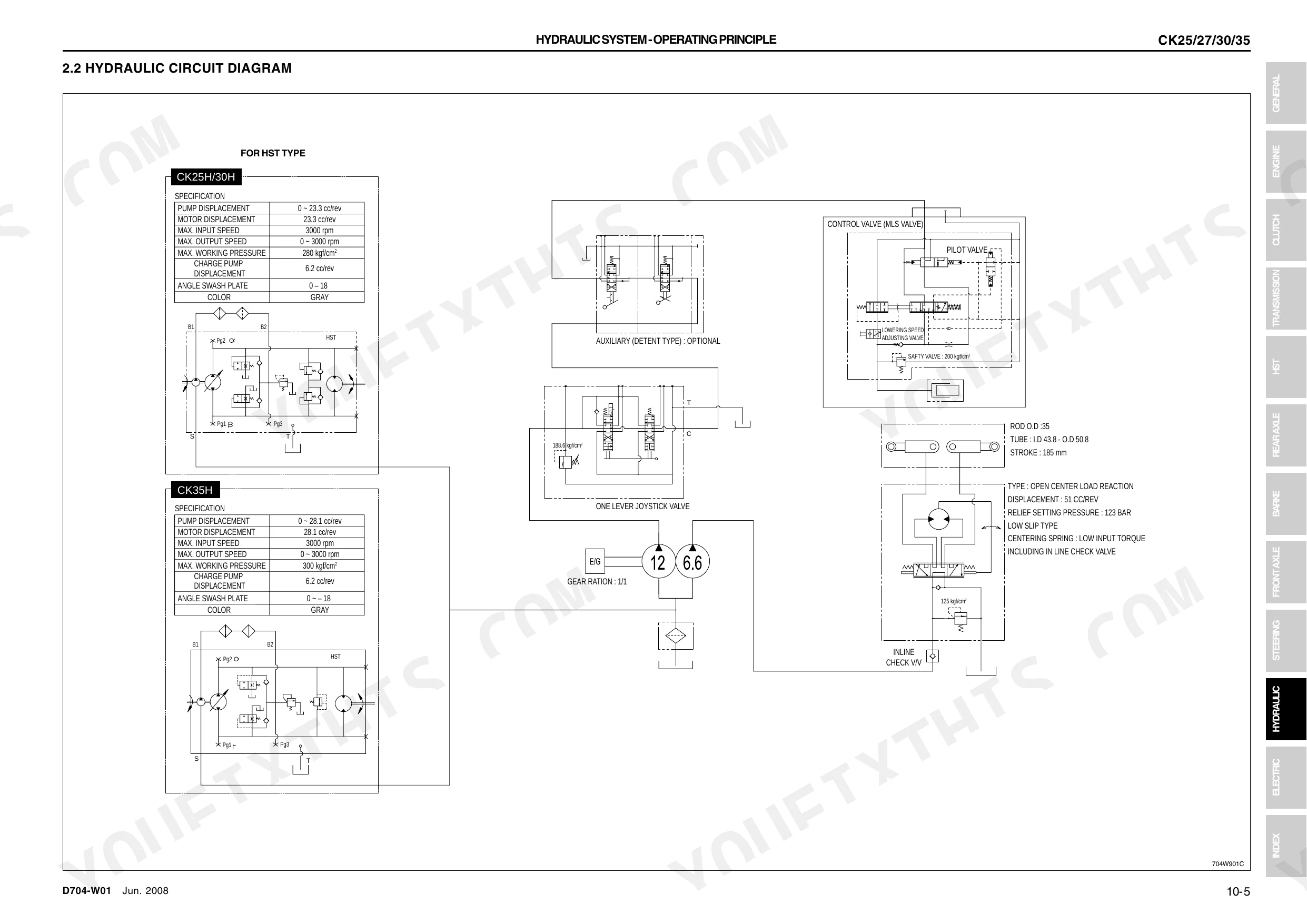

Kioti's factory technicians wrote this manual (OEM #D704-W01) to do one job: tear down and rebuild your 2008 CK-series compact tractor to spec. Hydraulic schematics map the 3-point lift system, power steering circuit, and joystick valve routing. Wiring diagrams give you circuit locations, color codes, and component legends. Troubleshooting trees walk through every major system: engine, clutch, transmission, HST, brakes, front axle, steering, and electrics. Torque the cylinder head screws to 103.0 to 107.9 N-m, change the fuel filter element at 200 hours, and pull the transmission oil filter on that same interval. Stop guessing whether a forum number fits your serial range. Download once, search any spec by keyword, and open it on whatever device rides out to the shop with you.
What's Inside This Kioti CK25/27/30/35, CK25H/27H/30H/35H Manual

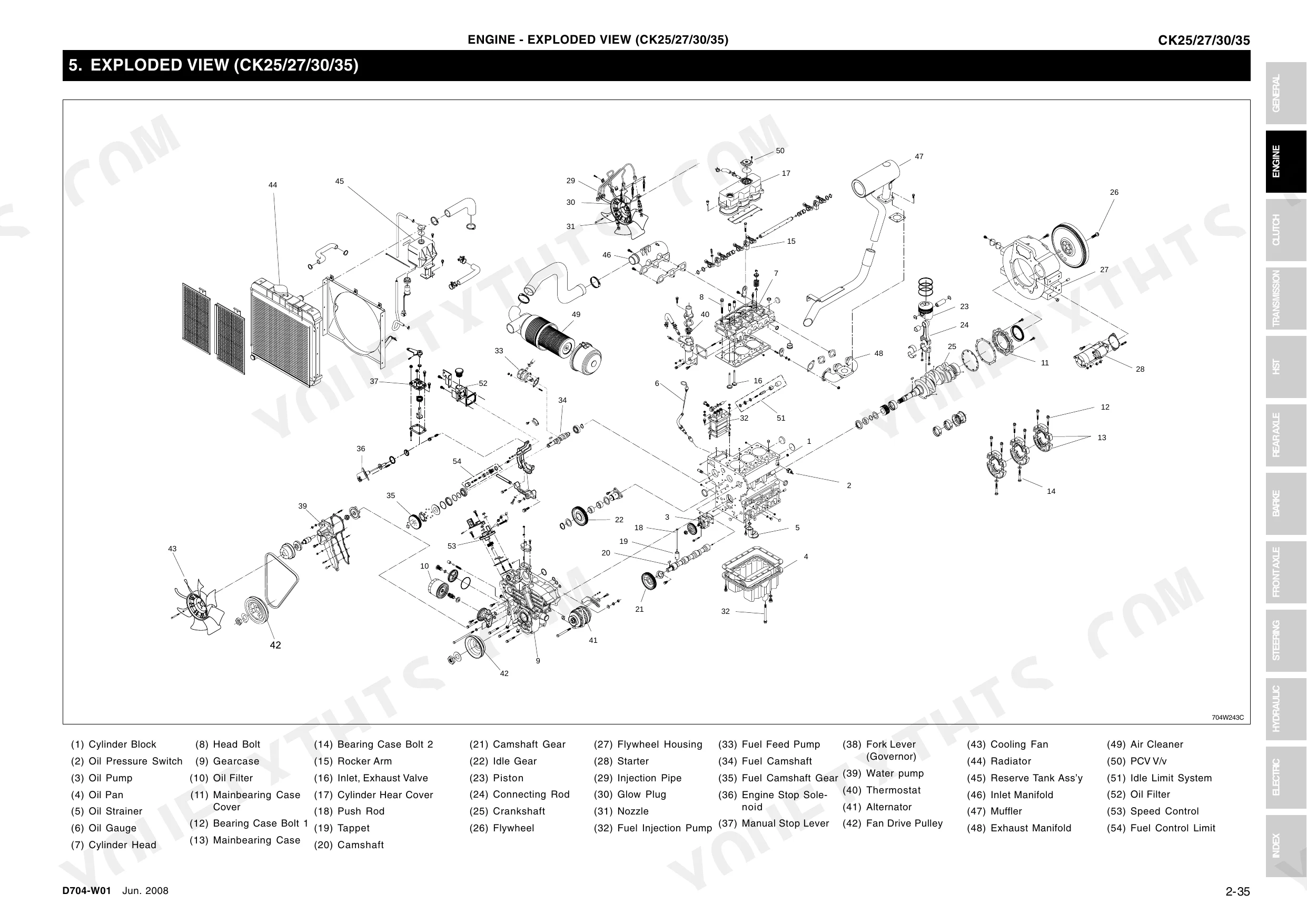

| System | Pages | Key Topics |
|---|---|---|
| Safety First | 7-16 | - |
| General | 17-52 | Tractor Identification, Dimensions, Lubricants, Fuel and Coolant, General Use Screws, Bolts and Nuts, Stud Bolts, American Standard Screws |
| Engine | 53-130 | 2장1-42.pdf, 2장145-.pdf |
| Clutch | 131-144 | Operating Principle, First Stage (Clutch Pedal Play Adjustment), Third Stage (Adjustment of Safety Switch), Bonnet, Hydraulic Pipe and Electric Wiring, Propeller Shaft, Separating Engine & Clutch Housing, Disassembling the Clutch |
| Transmission | 145-198 | Operating Principle, Power Train Diagram, Power Train, Main Gear Shift Section, Synchro Operation, Reverse Shift Section, Range Shift Section (Manual), Range Shift Section (HST) |
| HST | 199-232 | Operating Principle, Power Train Diagram, Function of Each Component, Hydraulic Pump, Hydraulic Motor, Charge Pump, High-Pressure Relief Valve, Neutral Valve |
| Rear Axle | 233-244 | Operating Principle, Power Train, Principle of Differential System, Differential Lock System, Draining the Transmission Fluid, ROPS / Rear Axle, Disassembling the Rear Axle Case |
| Brake | 245-258 | Operating Principle, Check and Adjustment, Clearance Adjustment of Brake Pedal, Gap Adjustment of Stop Switch, Clearance Adjustment of Hand Brake (Eu Only), Checking of Brake Lever, Draining the Transmission Fluid, ROPS / Rear Axle |
| Front Axle | 259-282 | Operating Principle, Front Axle Structure, Wheel Alignment, Measurement and Adjustment, Toe-In, Toe-In Adjustment, Rocking Force of Front Axle, Axial Sway of Front Wheel |
| Steering System | 283-310 | Operating Principle, Hydraulic Schematic, Hydraulic Circuit Diagram, Operation, In Neutral, Turning to the Right, Turning to the Left, Manual Steering |
| Hydraulic System | 311-362 | Lift Control (Mls) Valve, Operating Principle, Hydraulic Scheme, Hydraulic Circuit Diagram, Oil Filter, Structure of Oil Filter, Function and Operation, 3-Point Hydraulic System |
| Electric System | 363-394 | Circuit and Component Location, Circuit Diagram, Electric Component Location, Legend for Circuit Diagram, Symbols for Electric Components, Wiring Color Identification, Operating Principle, Preheating |

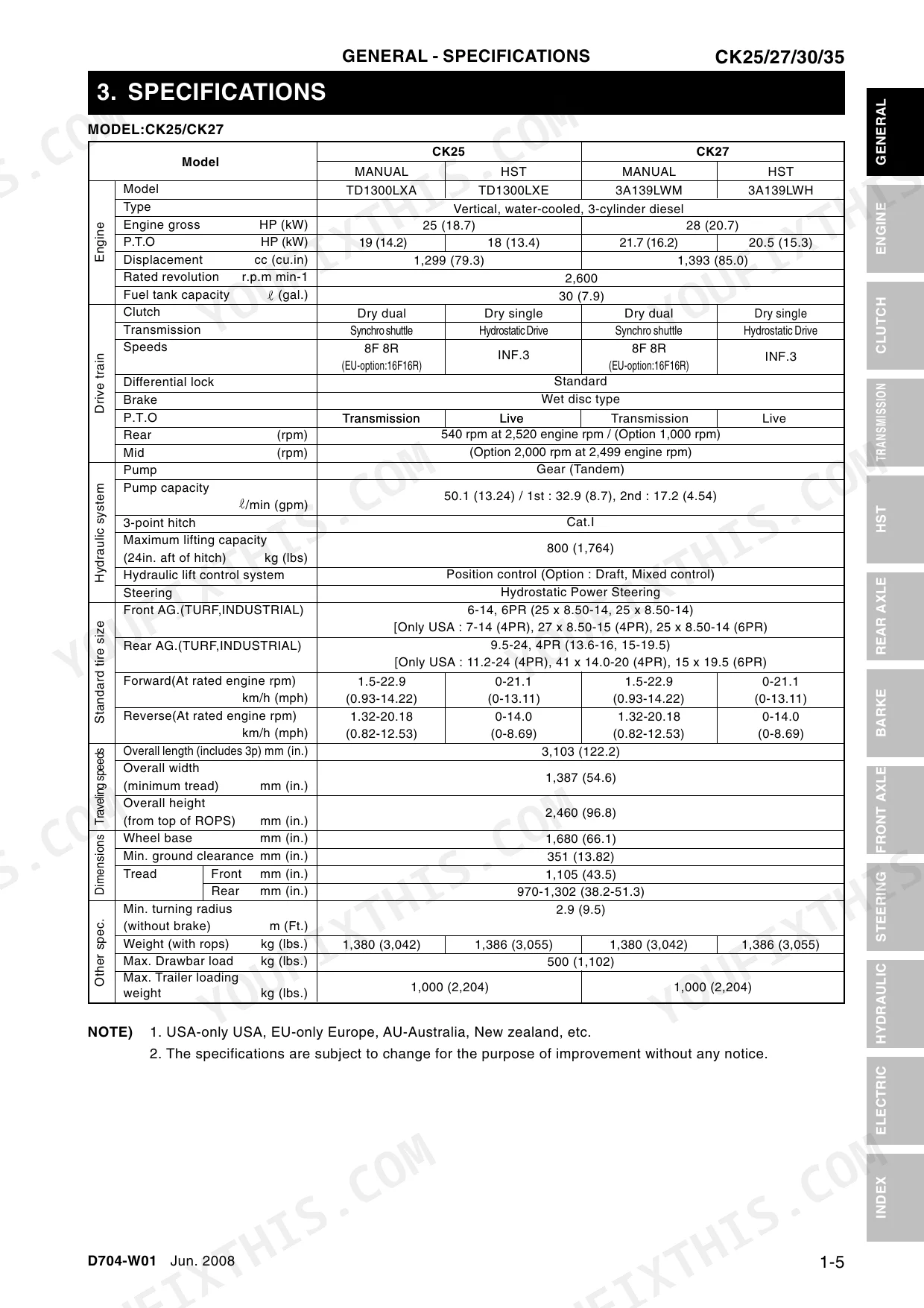

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head screws tightening torque | 103.0 ~ 107.9 Nm (10.5 ~ 11.0 kgf-m, 75.9 ~ 79.6 lb-ft) | p. 60 |
| Cleaning fuel filter interval | Every 100 hours | p. 27 |

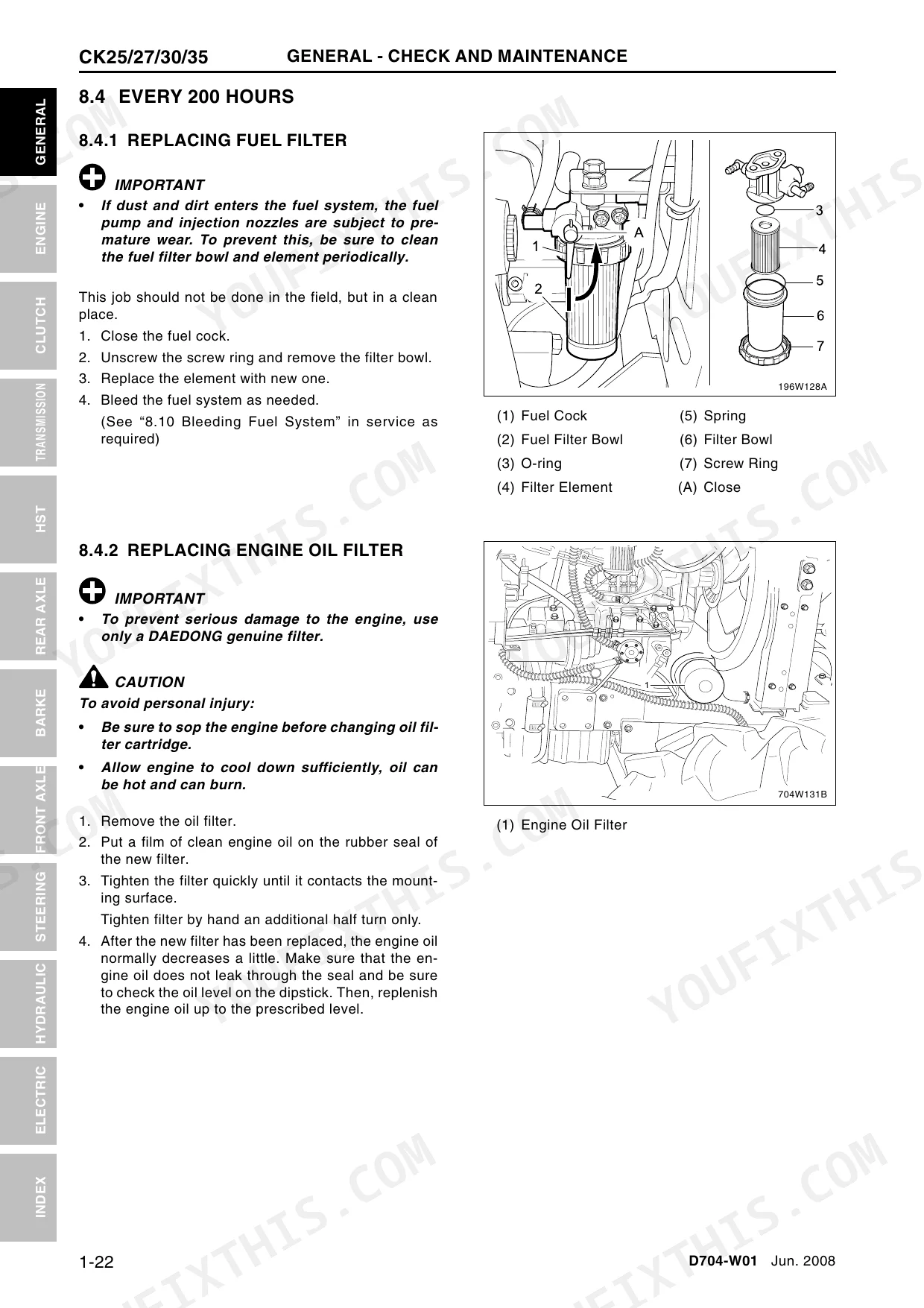

| Replacing fuel filter element interval | Every 200 hours | p. 27 |
| Transmission oil filter (includes hydraulic oil filter for HST type) replacement interval | Every 200 hours | p. 27 |
| HST oil filter replacement interval | Every 200 hours | p. 27 |
| Clean air cleaner primary element interval | Every 100 hours | p. 27 |
| Replace air cleaner element interval | Every 1 year | p. 27 |
| Adjust fan belt interval | Every 100 hours | p. 27 |
| Fan belt tension (deflection at 78 N (8 kgf, 18 lbs) of force) | 7 ~ 9 mm (0.28 ~ 0.35 in.) | p. 59 |
| Check radiator hose and clamp interval | Every 200 hours | p. 27 |
| Radiator hose and clamp replacement interval | every 2 years or earlier if checked and found that hoses are swollen, hardened or cracked | p. 40 |
| Check battery condition interval | Every 100 hours | p. 27 |
Kioti CK25/27/30/35, CK25H/27H/30H/35H Common Problems This Manual Covers

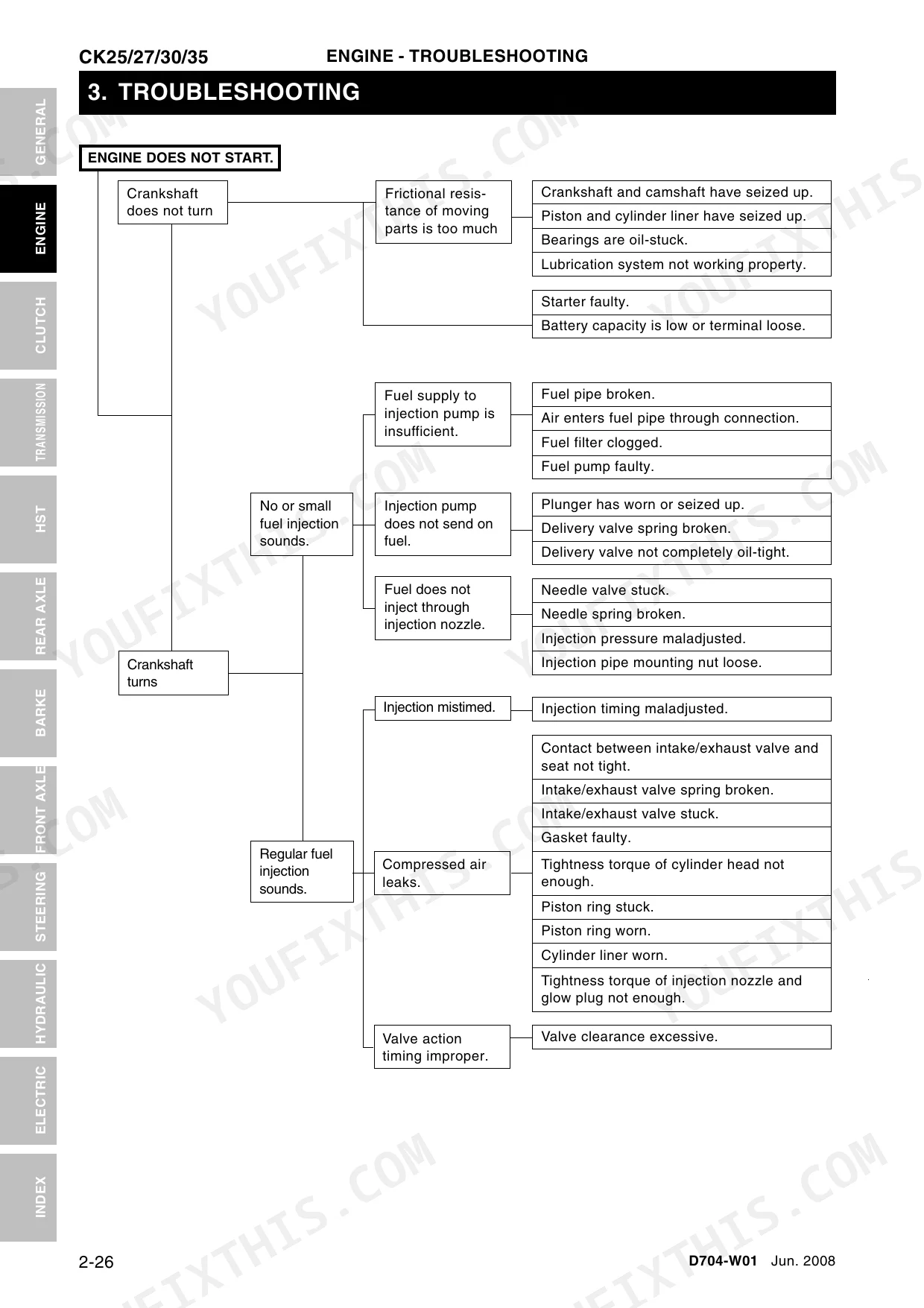

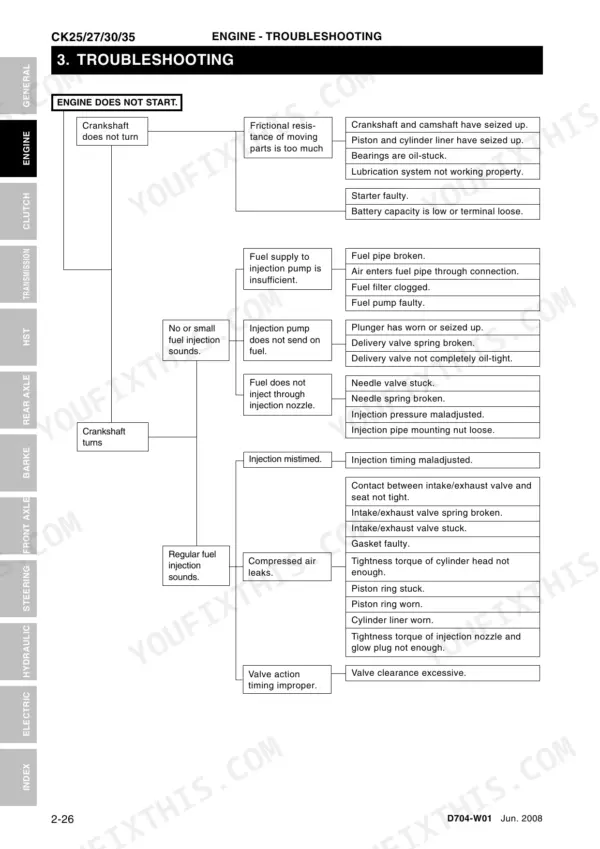

Engine cranks but won't fire, or catches and dies intermittently p. 78
Confirm battery voltage reads above 12 Volts per page 383. Replace the fuel filter element if it's past the 200 hours service interval. Check the lines for air ingress and bleed the system fully before you crank again.
Manual Section: Engine TroubleshootingHydraulic lift or three-point hitch operates slowly, weakly, or not at all under heavy loads p. 338
Inspect the main hydraulic filter on page 313 and confirm it meets the 150 mesh micron rating. Drain the fluid, looking for heavy contamination. Swap the suction and return filtration parts if they're clogged, then run the system to rule out internal leakage.
Manual Section: Hydraulic System TroubleshootingSevere overheating under load, or coolant dropping fast during long field runs p. 79
Gauge the fan belt tension by the procedure on page 59: apply 78 N (18 lbs) of force and check that deflection falls between 7 and 9 mm (0.28 to 0.35 in.). Look over the radiator hoses for swelling or cracks, and replace any that have gone hard.
Manual Section: Engine TroubleshootingTransmission forward or reverse drive loss, slipping, or abnormal clutch engagement during gear shifts p. 135
Set the linkage so clutch pedal free travel sits at 20 to 30 mm (0.8 ~ 1.2 in.), per page 34. Inspect the geartrain for internal wear. Top the transmission fluid back to its rated capacity if the level is low.
Manual Section: Clutch TroubleshootingFrequently Asked Questions
What are the torque specs for CK25/27/30/35 head bolts, wheel bolts, and loader hardware?

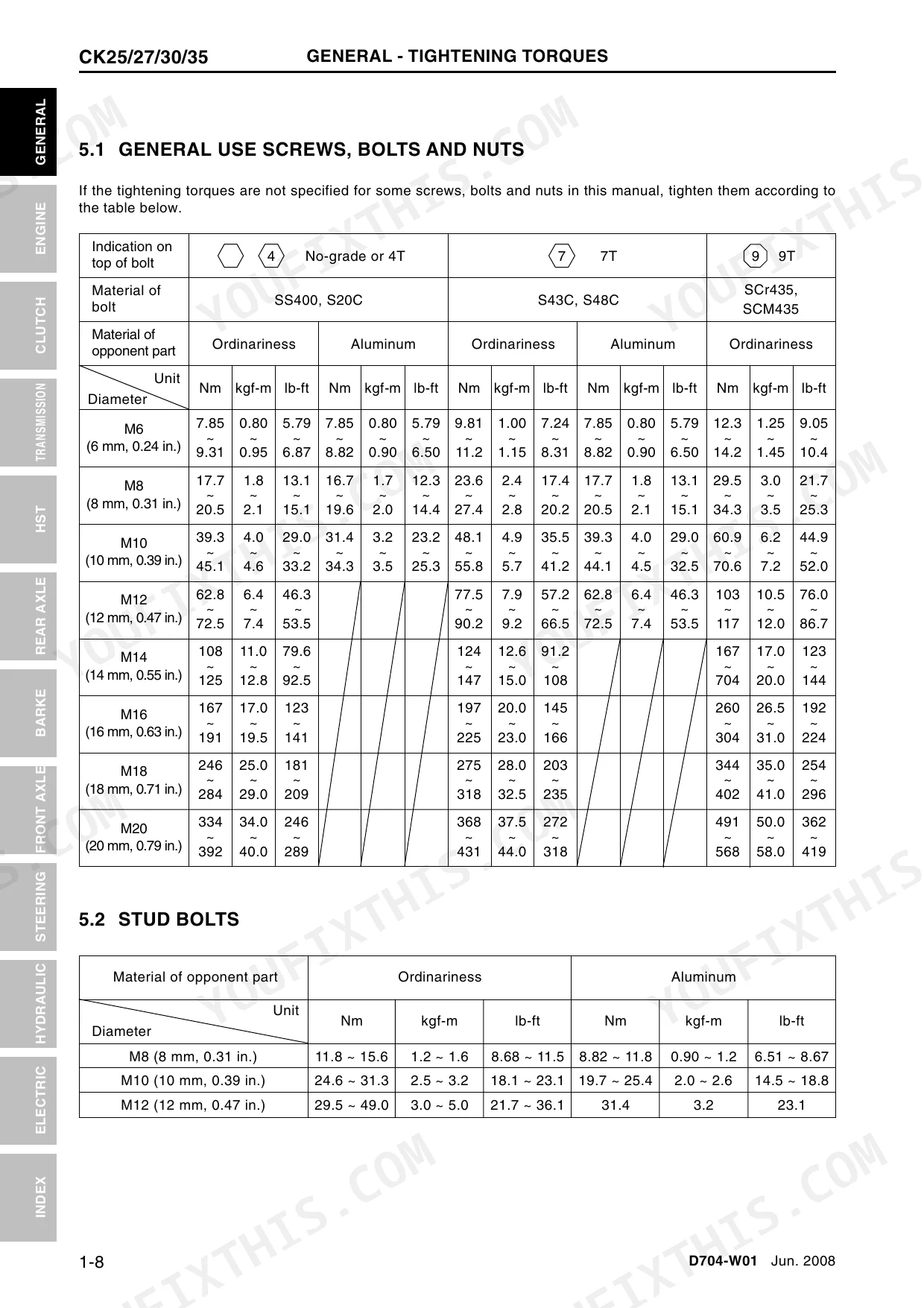

For cylinder head screws, the tightening torque is 103.0 ~ 107.9 Nm (10.5 ~ 11.0 kgf-m, 75.9 ~ 79.6 lb-ft). Front wheel bolts should be tightened to 68.6 Nm (7 kgf-m, 50.6 lb-ft), and rear wheel bolts to 284 Nm (29 kgf-m, 209.7 lb-ft). For hydraulic cylinder mounting bolts and nuts (which may be part of loader hardware), the torque is 48.1 ~ 55.8 Nm (4.9 ~ 5.7 kgf-m, 35.5 ~ 41.2 lb-ft), and for joint bolts, it is 29.4 ~ 34.3 Nm (3.0 ~ 3.5 kgf-m, 21.7 ~ 25.3 lb-ft).
How to find torque specs for CK25/CK30 cylinder head bolts
The tightening torque for cylinder head screws on CK25/CK30 models is 103.0 ~ 107.9 Nm (10.5 ~ 11.0 kgf-m, 75.9 ~ 79.6 lb-ft). This specification is consistent across different engine models mentioned in the manual.
What are the replacement specifications for fuel filters?
Fuel filter elements should be replaced every 200 hours or every 400 hours, as indicated in the maintenance schedule. The manual provides a procedure for replacing the fuel filter, which involves removing the drain plug, reinstalling it after draining, and then filling with new fuel.
What are the replacement specifications for hydraulic filters?
The transmission oil filter and HST oil filter should be replaced every 50 hours or every 200 hours. The main hydraulic filter has a micron rating of 150 (mesh), while the HST hydraulic filter for CK25H/27H/30H models has a micron rating of 62 ± 6 (max.) or 44 ± 4 (min.). The suction filter requires a filtering degree of 20 ~ 25 µm.
How will I receive this Kioti CK25/27/30/35, CK25H/27H/30H/35H manual?
Right after checkout you download a 402-page searchable PDF. Open it on a laptop, tablet, or phone, and take it straight to the shop floor.
Am I able to print pages from this Kioti CK25/27/30/35, CK25H/27H/30H/35H?
Yes, every page. There's no DRM or copy protection here, so print the entire manual or just the pages you need on any home or office printer.

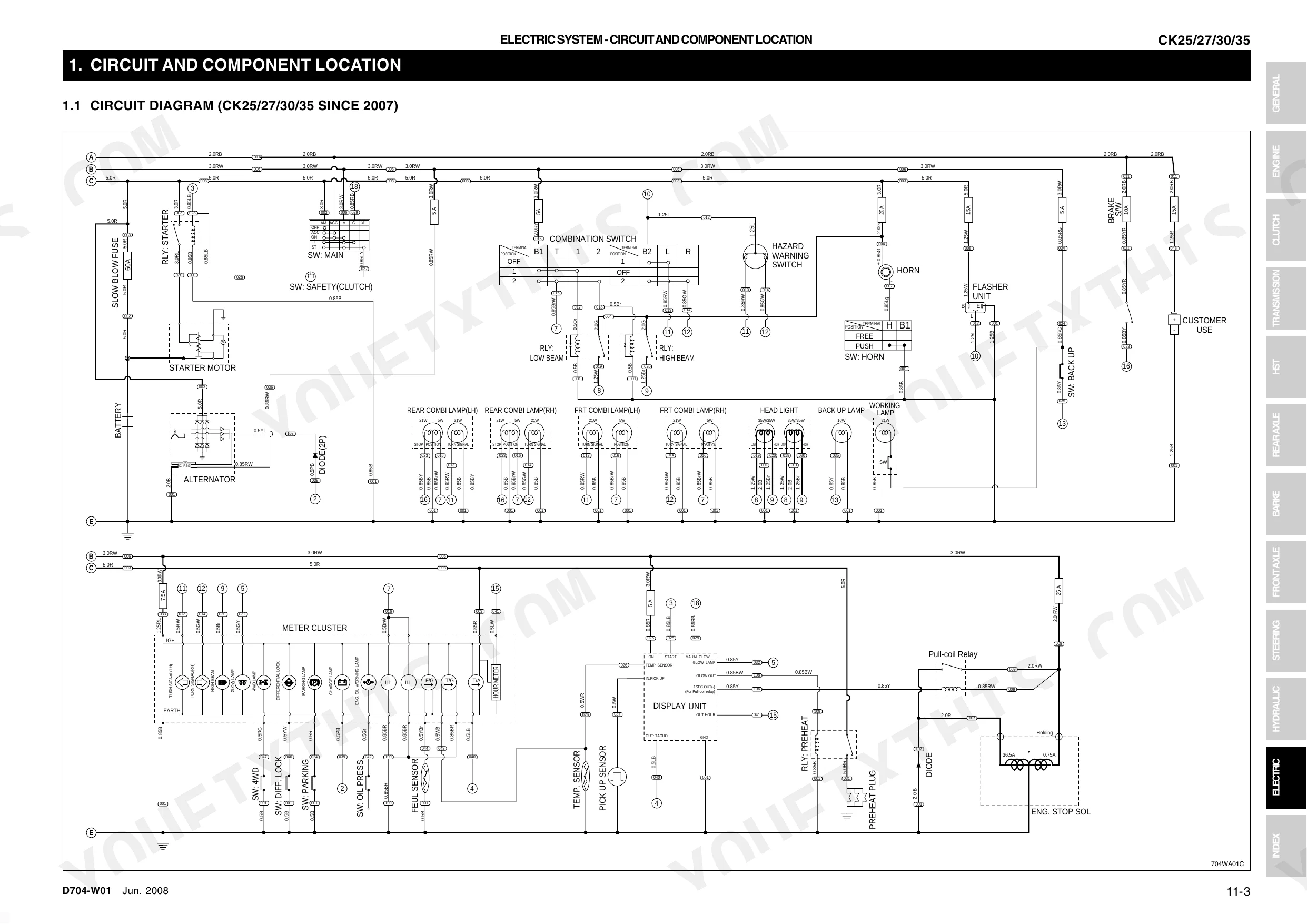

Are electrical wiring diagrams included in this Kioti CK25/27/30/35?
Yes, they're in here. This workshop manual includes the full wiring harness diagrams, electrical circuits, and connector pinouts.
Document Quality
This document is a scanned PDF with an accurate OCR layer, allowing you to search and copy the full text. The text throughout is crisp and consistently easy to read, with no blurriness or fading. All diagrams and illustrations are clear raster images, and their labels are readable at various zoom levels. Pages are clean with no noticeable scan artifacts, stains, marks, or skewed content. There are a few blank pages marked "MEMO" which serve as filler.
