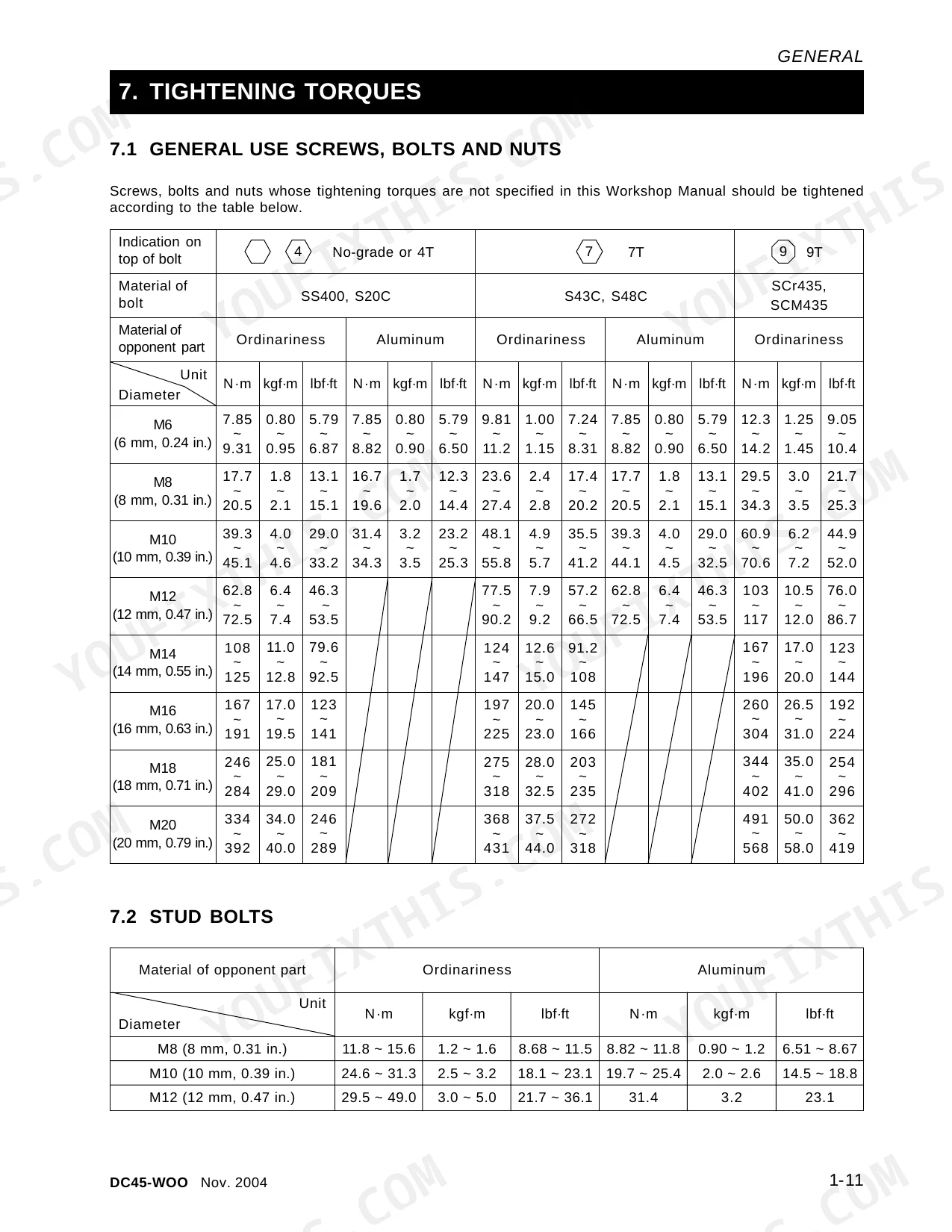

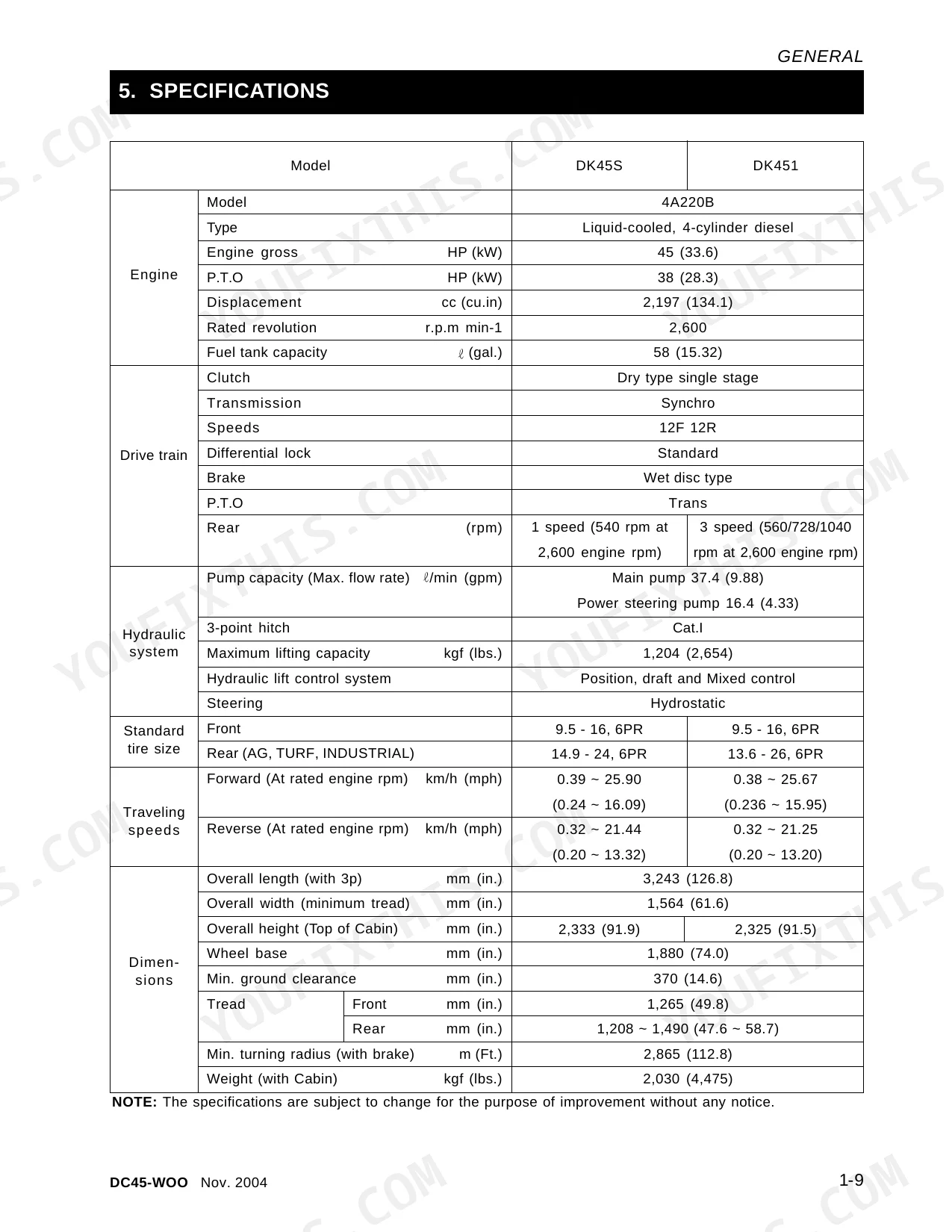

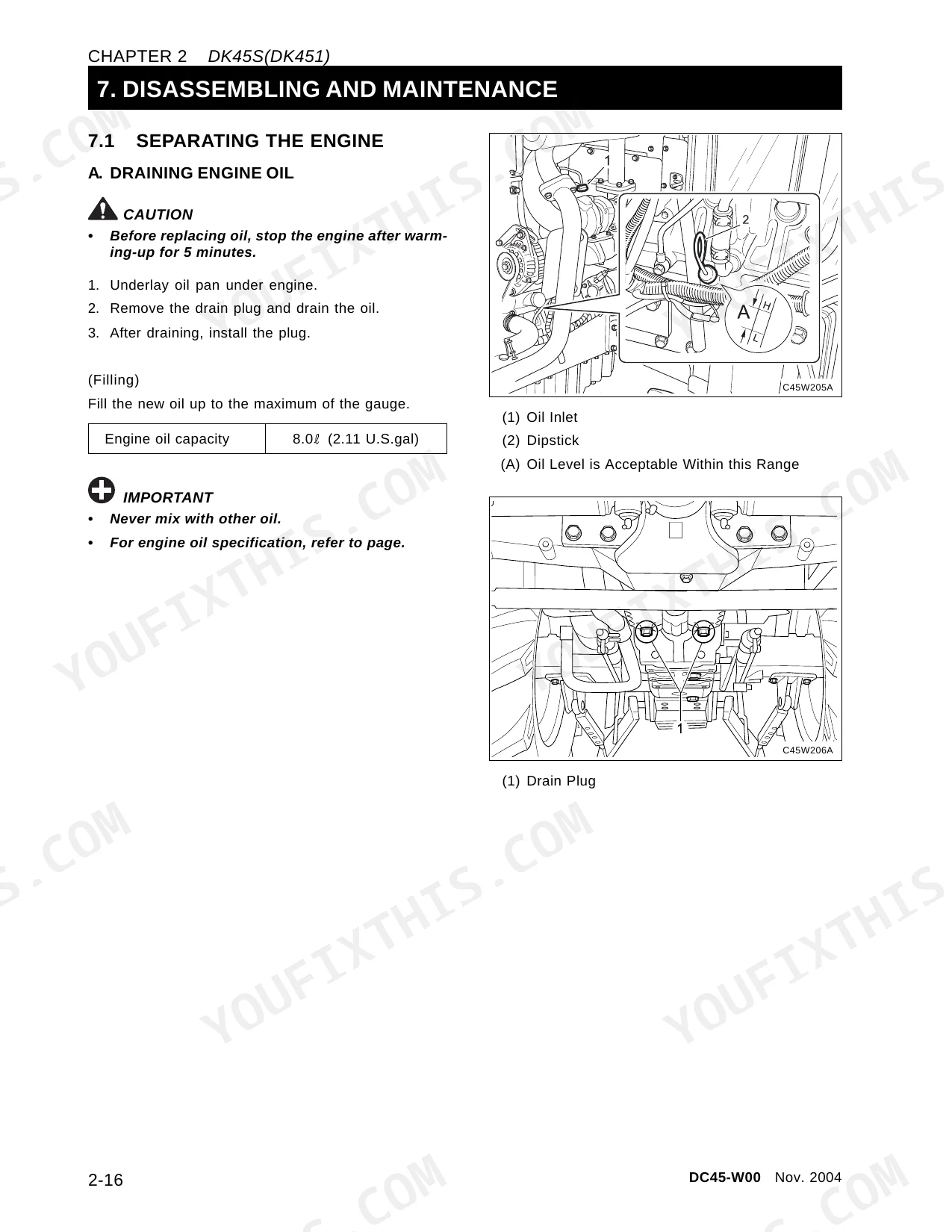

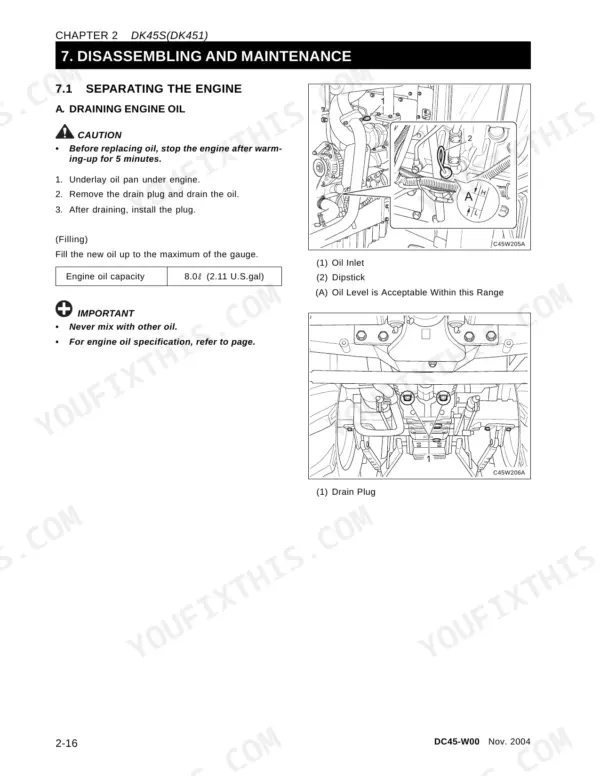

Factory service data for the DK45S and DK451 fills 379 pages in this Workshop Manual (OEM #DC45-WOO), running from the engine block through the cabin HVAC. Wiring schematics trace the starting, charging, glow plug, PTO, and A/C circuits, while hydraulic oil-flow diagrams follow the pump, power steering circuit, PTO clutch valve, and lift system. The opening chapter sets out general specs, fluid capacities, tightening torques, and a maintenance schedule that runs from the 50-hour interval out to the two-year mark. When it's time to button things back up, torque the cylinder head screws to 103.0~107.9 N·m and confirm clutch pedal free play sits at 20~30 mm. Specs stay in one place instead of scattered across forum threads. Everything is bookmarked and keyword-searchable, so you can pull a number up on your phone right at the machine and get it right the first time.
What's Inside This Kioti DK45S, DK451 Manual
| System | Pages | Key Topics |
|---|---|---|

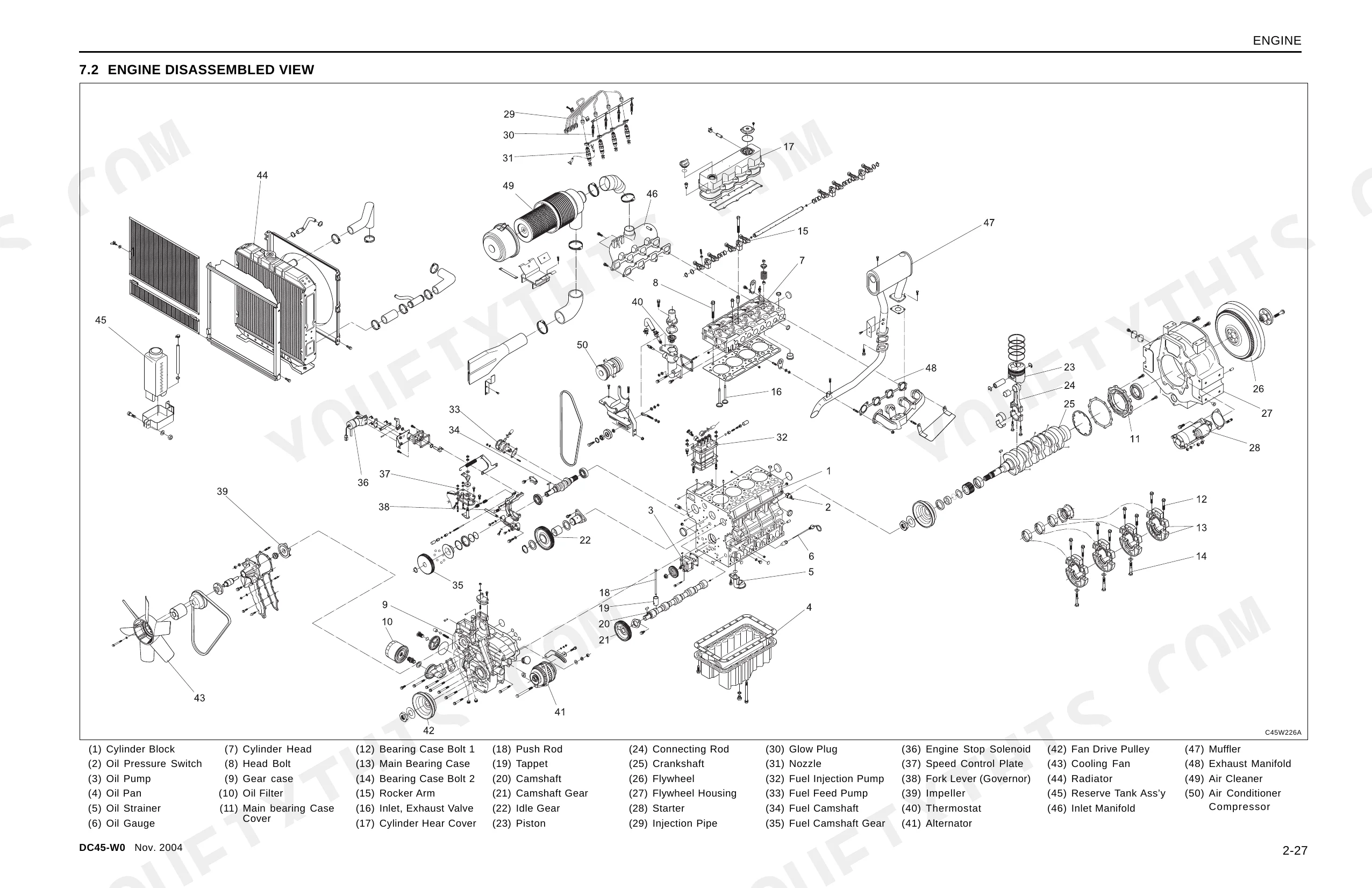

| Engine | 58-115 | Lubricating System, Cooling System, Fuel System, Engine Body, Tightening Torque, Engine Disassembled View |
| Clutch | 116-130 | Specifications, Tightening Torques, Special Tools, Adjustment of Pedal, Disassembling and Assembly of Clutch, Inspection and Repair |
| Transmission System | 131-192 | Power Train Diagram, Power Train, Transmission Shift Linkage Structure, Shuttle Shift, Specifications, Tightening Torques |
| Rear Axle | 193-202 | Structure, Troubleshooting, Tightening Torque, Disassembling Rear Axle, Maintenance |
| Brake | 203-214 | Chapter 6 Brake, Check, Disassemblying And Maintenance |
| Front Axle | 215-240 | Chapter 7 Front Axle, Check, Disassemblying And Maintenance |
| Steering System | 241-264 | Chapter 8 Steering Sysytem (Structure, Troubleshooting, Specification, Disassembling and Maintenace) |

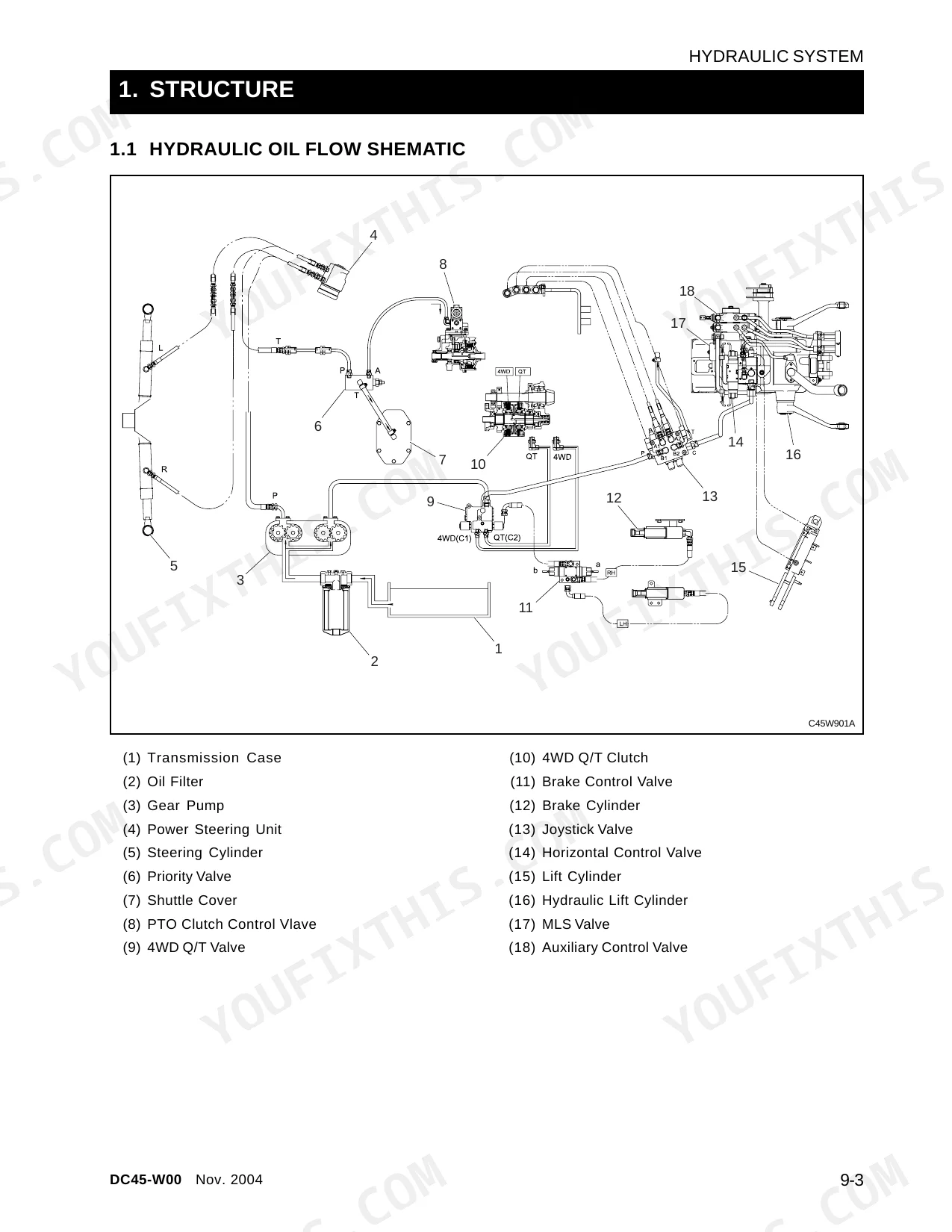

| Hydraulic System | 265-312 | Hydraulic Oil Flow Shematic, Hydraulic Pump, Power Steering System, PTO Clutch Valve System, Joystick Valve, Hydraulic Lift System |
| Cabin System | 313-333 | Heater, Air-Conditioner, Troubleshooting, Inspection and Adjustments |
| Electric System | 334-379 | Starting System, Charging System, Engine Glow Plug System, PTO System, Air Conditioning System, Heater System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Cylinder head screws torque | 103.0 ~ 107.9 N·m (10.5 ~ 11.0 kgf·m, 75.9 ~ 79.6 lbf·ft) | p. 72 |
| Wheel lug nut (1) torque | 17 ~ 19 kgf·m (167~186 N·m, 123~137 lbf·ft) | p. 36 |
| Wheel lug nut (2) torque | 28 ~ 32.5 kgf·m (275 ~ 319 N·m, 203 ~ 235 lbf·ft) | p. 36 |
| Clutch pedal Free Play | 20 ~ 30 mm (0.79 ~ 1.18 in.) | p. 120 |
| Clutch disc spline boss to shuttle shaft Backlash (Allowable Limit) | 2.0 mm (0.079 in.) | p. 120 |
| Clearance in joint between safe starting switch and clutch pedal (B) | 2 ~ 5 mm (0.079 ~ 0.197 in.) | p. 121 |
| Air cleaner element replacement interval | Once yearly or after every sixth cleaning, whichever comes first | p. 38 |
| Engine oil filter tightening instruction | Tighten filter by hand an additional half turn only | p. 42 |
| Fan belt tension (deflection) | 8 mm (0.32 in.) | p. 40 |
| DK45S | ||
| Battery TYPE | 1231PMF | p. 41 |
| DK451 | ||
| Battery TYPE | DF80D | p. 41 |
| Cabin model | ||
| Air conditioner belt tension (deflection) | 10~12mm (0.39~0.47 in.) | p. 45 |
Kioti DK45S, DK451 Common Problems This Manual Covers

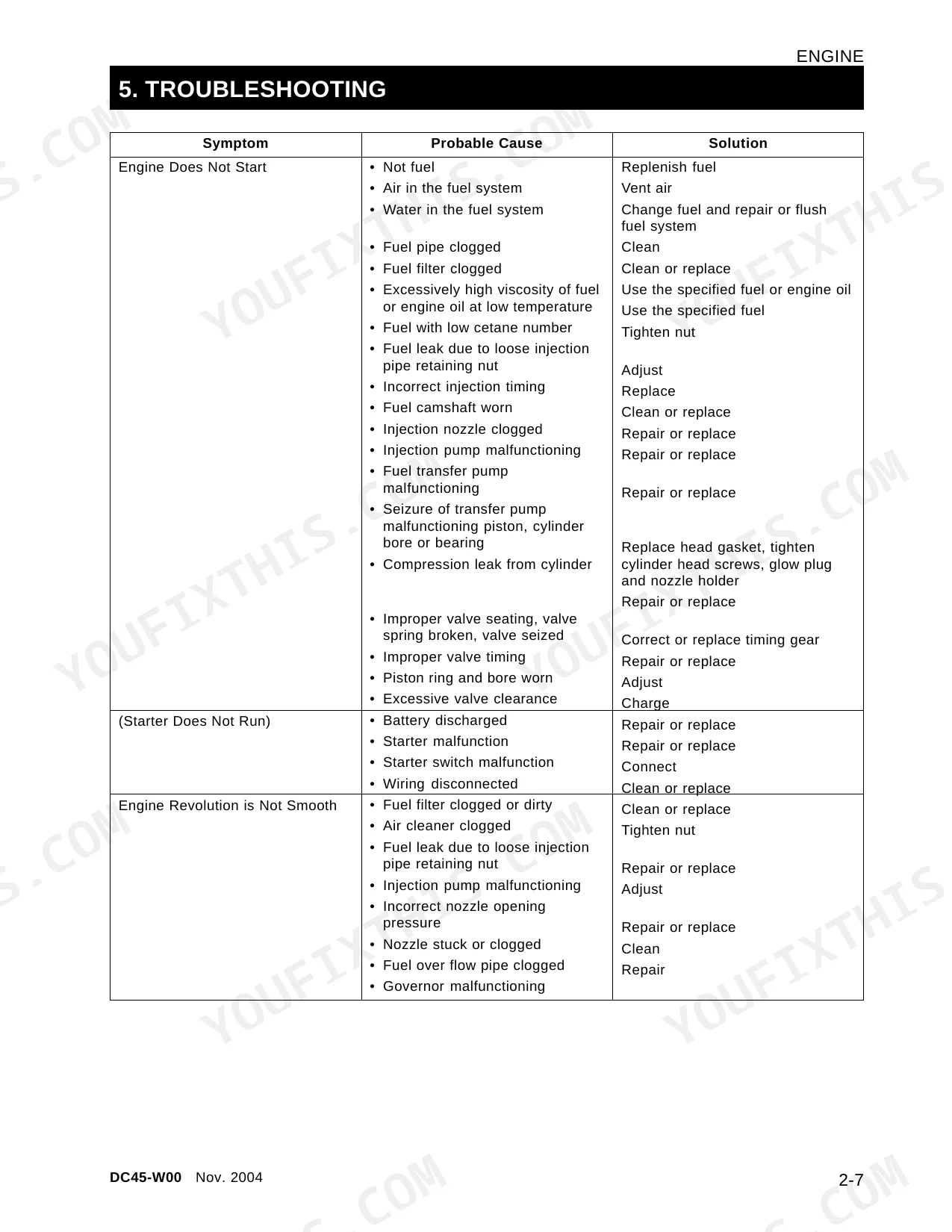

DK45S engine cranks but won't fire, or turns over slowly in the cold p. 64
Verify the safety start switch clearance at the clutch pedal joint; spec is 2 ~ 5 mm (0.079 ~ 0.197 in.) per page 121, and a gap outside that range defeats the interlock. Confirm the neutral lever is fully seated before cranking. If cranking is normal but nothing fires, work through the no-start diagnosis to isolate a fuel or compression fault.
Manual Section: Engine TroubleshootingClutch slips under load or pedal engages too close to the floor p. 119
Measure clutch pedal free travel at the pedal pad; spec is 20 ~ 30 mm (0.79 ~ 1.18 in.) per page 120, and the pushrod adjusts it back into range. If travel is correct but slip persists, pull the cover and check disc surface depth to rivet: the allowable limit is 0.3 mm (0.012 in.). Replace any disc worn past that point.
Manual Section: Clutch TroubleshootingTransmission grinds or won't engage a gear, shuttle shift feels notchy and stiff p. 145
Start with transmission oil level and condition; low or contaminated fluid chews up gears and shift forks quickly. Then inspect the shift fork-to-shifter groove clearance on page 184, where factory spec is 0.1 ~ 0.3 mm (0.004 ~ 0.012 in.), and the spiral bevel gear-to-pinion backlash on page 187, spec 0.15 ~ 0.25 mm (0.006 ~ 0.009 in.). Anything beyond limits gets replaced before reassembly.
Manual Section: Transmission System TroubleshootingRear axle growls or howls under load, oil leaking from axle housing p. 196
Confirm rear axle oil level before any teardown; running it dry wears gears and bearings in a hurry. During disassembly, measure planetary gear-to-shaft clearance at 0.009 ~ 0.050 mm (0.00035 ~ 0.00197 in.) per page 202. On reassembly, torque the rear wheel nuts (M16 9T) to 260.0 ~ 304.1 N·m per page 197.
Manual Section: Rear Axle TroubleshootingEngine overheats at operating temp, coolant boils over or temperature gauge climbs high p. 66
Begin with coolant level; the system holds 8.6 L (2.3 U.S. gal.) per page 49. Check fan belt deflection against the 8 mm (0.32 in.) spec on page 40, since a slack belt starves radiator airflow. Test the thermostat: it should crack open at 69.5 ~ 72.5 °C (157.1 ~ 162.5 °F) and reach full open by 85 °C (185 °F). From there, run the full overheating diagnosis.
Manual Section: Engine TroubleshootingFrequently Asked Questions
What is the torque spec for the head bolts on a DK45S/DK451?
Cylinder head screws tighten to 103.0 ~ 107.9 N·m (10.5 ~ 11.0 kgf·m, 75.9 ~ 79.6 lbf·ft). Before tightening, apply engine oil to their threads and seats so the readings hold true.
What are the replacement specifications for clutch components?
On the clutch disc, the allowable depth from surface to rivet is 0.3 mm (0.0118 in.); for pressure plate flatness it is 0.5 mm (0.0196 in.). Exceed either and the disc or cover assembly needs replacing. Release bearings, forks, and hubs that are worn, rusted, or noisy should be swapped out too.
What are the replacement specifications for safety start switch?
Rated at DC 12V with an 18A contact capacity, the safety start switch should read 0Ω on a continuity test when pressed to the ON-stroke. Replace it if it fails that test, or if one terminal shows no DC 12V when power feeds the other.
How will I receive this Kioti DK45S, DK451 Workshop Manual?
Right after checkout, download the 379-page searchable PDF and open it on a laptop, tablet, or phone, then bring it straight to the shop floor.
Is this Kioti DK45S, DK451 Workshop Manual printable?
Yes. The PDF carries no DRM, so you can print any page or section your shop needs on any standard printer.

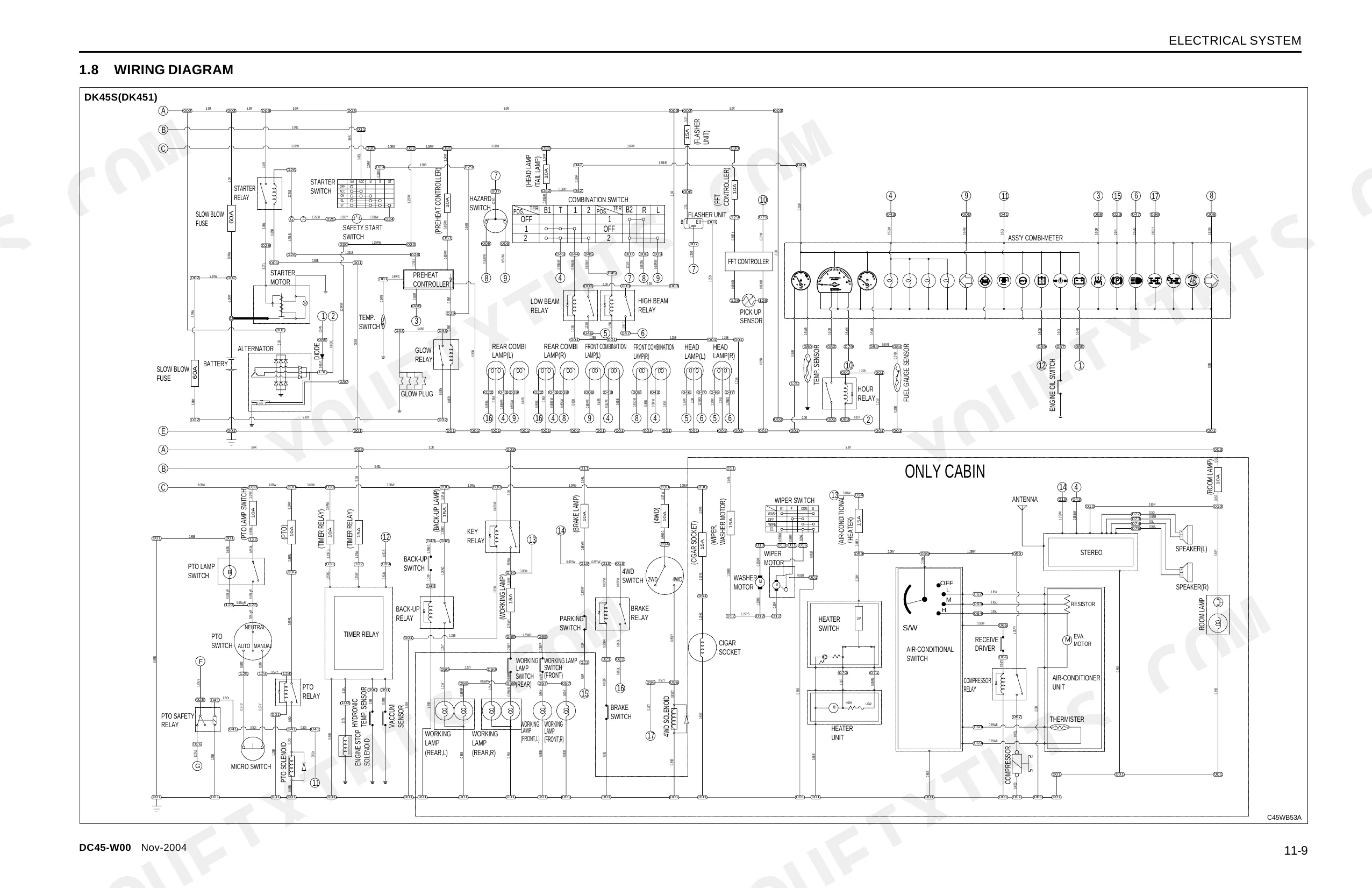

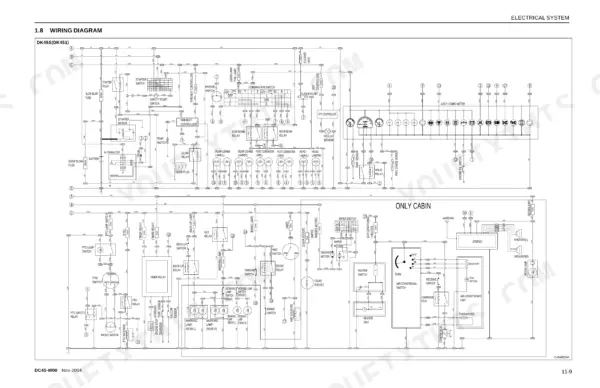

Can I find wiring schematics in this Kioti DK45S, DK451 manual?
Yes, they're in here: full wiring harness diagrams, electrical circuits, and connector pinouts.
Document Quality
This document is a native digital PDF, allowing you to easily search and copy the full text, which is consistently crisp and clear throughout. Most technical diagrams and illustrations are vector-based, ensuring they remain sharp and all labels are perfectly readable even when zoomed in. Earlier pages include some clear raster images for general views and safety decals. All pages are clean, free of scan artifacts, stains, or skewed content, though you will find several blank pages used as chapter dividers.
