All 1,400 pages of this Case IH D35 repair manual PDF (OEM #87622995) cover one tractor family: the D35, DX35, D40, DX40, and D45 compact tractors. Inside, you get complete hydraulic schematics tracing fluid through the hydrostatic transmission, HPL control valve, and remote valve circuits, plus full wiring diagrams for both D and DX series harnesses. Every system section pairs a troubleshooting chart with step-by-step overhaul procedures: engine, clutch, 12 x 12 and HST transmissions, PTO, steering, brakes, climate control, and platform. Set fuel injector injection pressure to 147 bar (2150 psi); torque your hydraulic pump retainers to 22-28 N·m (16-20 ft. lbs.). Your machine is down and the dealer quote just landed. Jump to any system with bookmarks, open it on your tablet at the tractor, and get back to work.
What's Inside This Case IH D35–DX45 Repair Manual

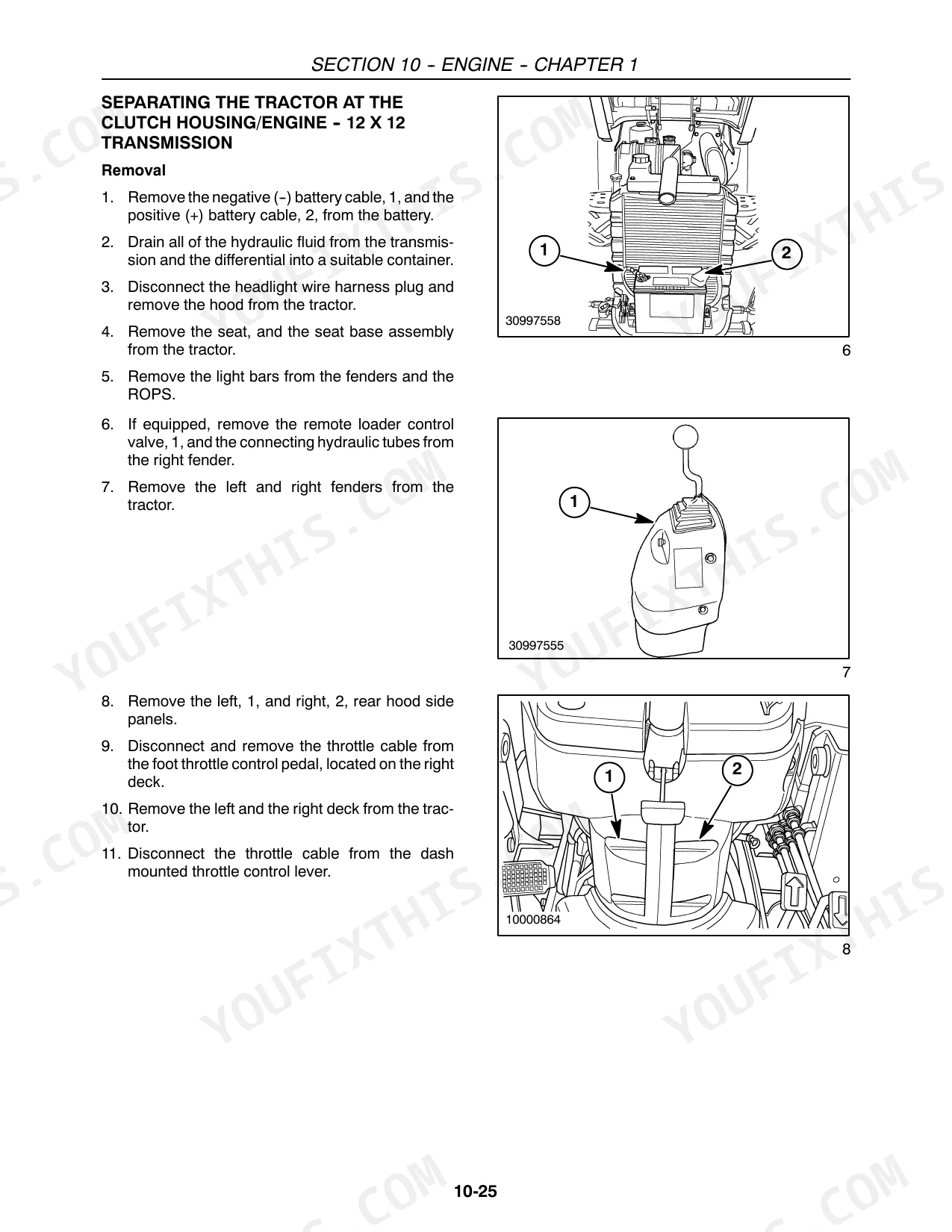

| System | Pages | Key Topics |
|---|---|---|
| General Information | 55-100 | Introduction, Safety, Technical Information, Safety Precautions, Safety Decals -- D35, D40, D45, Instruction Decals -- D35 |
| Engine | 101-254 | Compression Test and Tools, Cylinder Head and Valve Train Components, Cylinder Block Assembly, Separating the Tractor at the Clutch Housing/Engine -- 12 X 12 Transmission (Removal) |
| Clutch | 255-284 | Bolt Torques, Clutch (Removal, Inspection, Assembly, Attaching the 12 X 12 Transmission to the Engine) |
| Transmission | 285-358 | Cross Section -- 12 X 12 Transmission, Powerflow, Separating the Tractor at the Clutch Housing/Engine (Removal), Clutch Housing (Disassembly), Main Transmission |

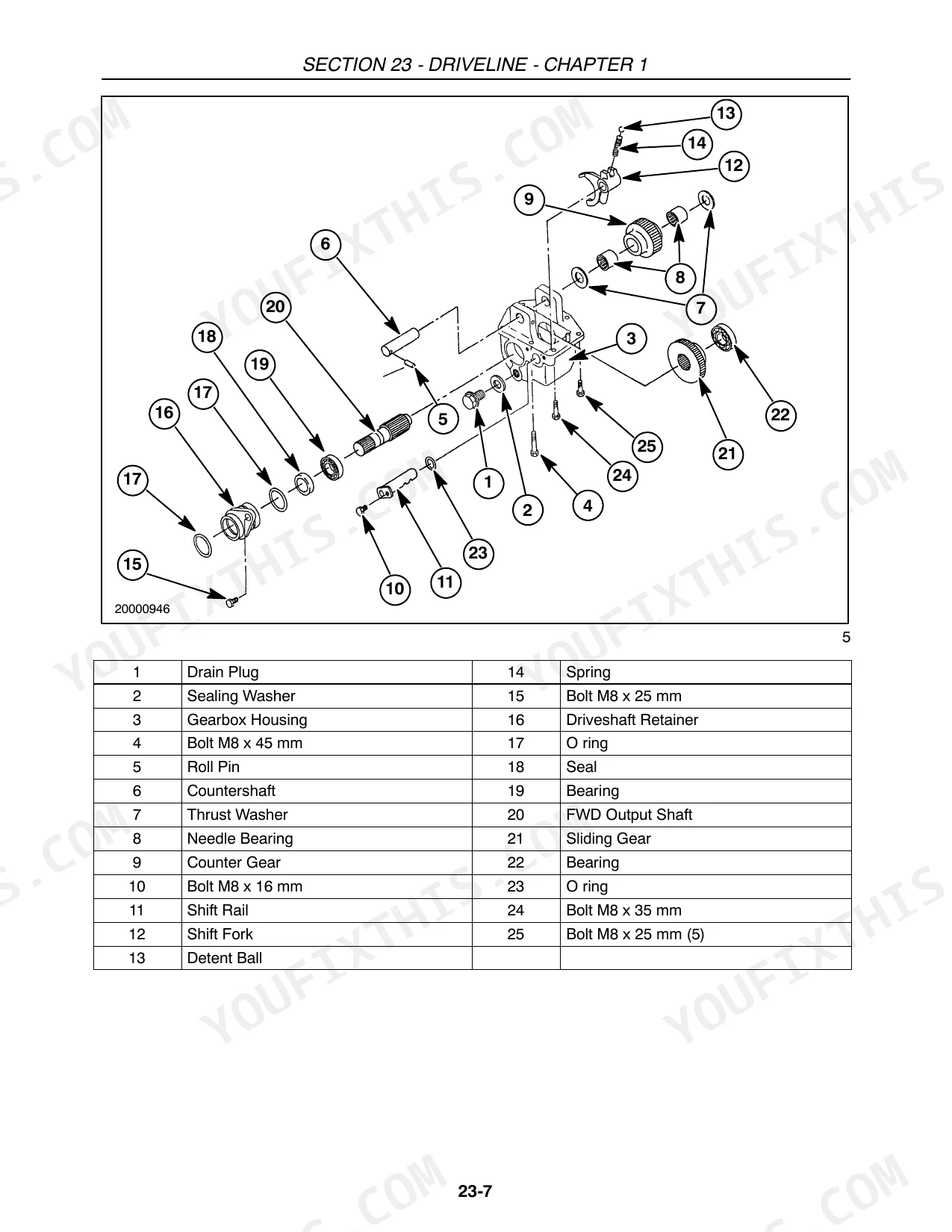

| Driveline | 359-368 | Front Wheel Drive Take Off Gearbox, Lubrication, Bolt Torque Specifications, Troubleshooting, Special Tools, Overhaul (Front Wheel Drive Take Off Gearbox) |
| FWD Front Axle | 369-394 | Front to Rear Axle Ratio, Lubricate Every 50 Hours -- Standard FWD, Gear Reduction Drop Box (Disassembly) |
| Differential, Rear Axle | 395-426 | Differential, Differential Lock, Rear Axle, Final Pinion (Removal, Disassembly, Inspection, Assembly, Installation), Bolt Torque Specifications, Specifications, Special Tools |
| Hydrostatic Transmission | 427-510 | Oil Flow (Neutral Position, Forward Position, Reverse Position), Variable Displacement Pump, Two Position Displacement Motor, Hi/Lo Speed Control/Control Pod, Foot Control Pedals |
| Power Take-Off (PTO) Systems | 511-590 | PTO Hydraulic System, PTO Clutch, Rear PTO (Power Flow: 12 X 12 Synchronized Shuttle Shift Transmission, Hydrostatic Transmission) |
| Brakes | 591-602 | Parking Brake, Bolt Torque Specifications, Specifications, Overhaul (Brakes) |

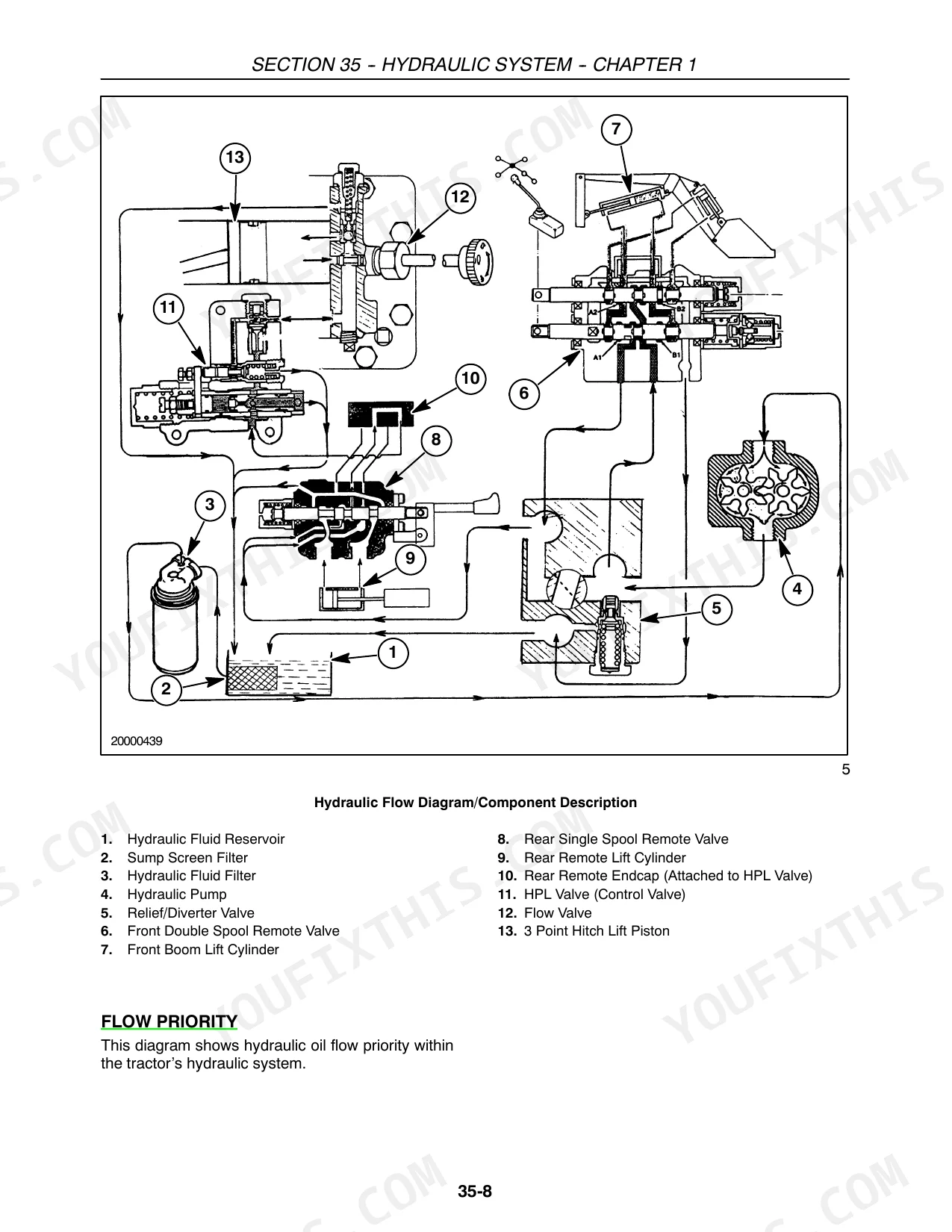

| Hydraulic System | 603-680 | Combination System Relief -- Diverter Valve Manifold Assembly, Control Valve Assembly, Fluid Flow (Neutral Position, Raising Position, Lowering Position) |
| Steering | 681-726 | Steering Cylinders, 2WD and FWD, Power Steering Operation -- 2WD and FWD (Fluid Flow -- Neutral Position), Fluid Flow -- Left Turn, Fluid Flow -- Right Turn |
| Wd Front Axle | 727-740 | Bolt Torque Specifications, Troubleshooting, Specifications, Overhaul (Front Axle: Removal, Disassembly, Inspection, Assembly, Installation) |
| Climate Control | 741-816 | Description and Operation (Compressor, Condenser, Evaporator, Expansion Valve, Receiver/Drier, Heater, Heater System, HVAC Control Panel, Cab Air Filter, Compressor Protection Switches, Component Location, Cab Roof) |

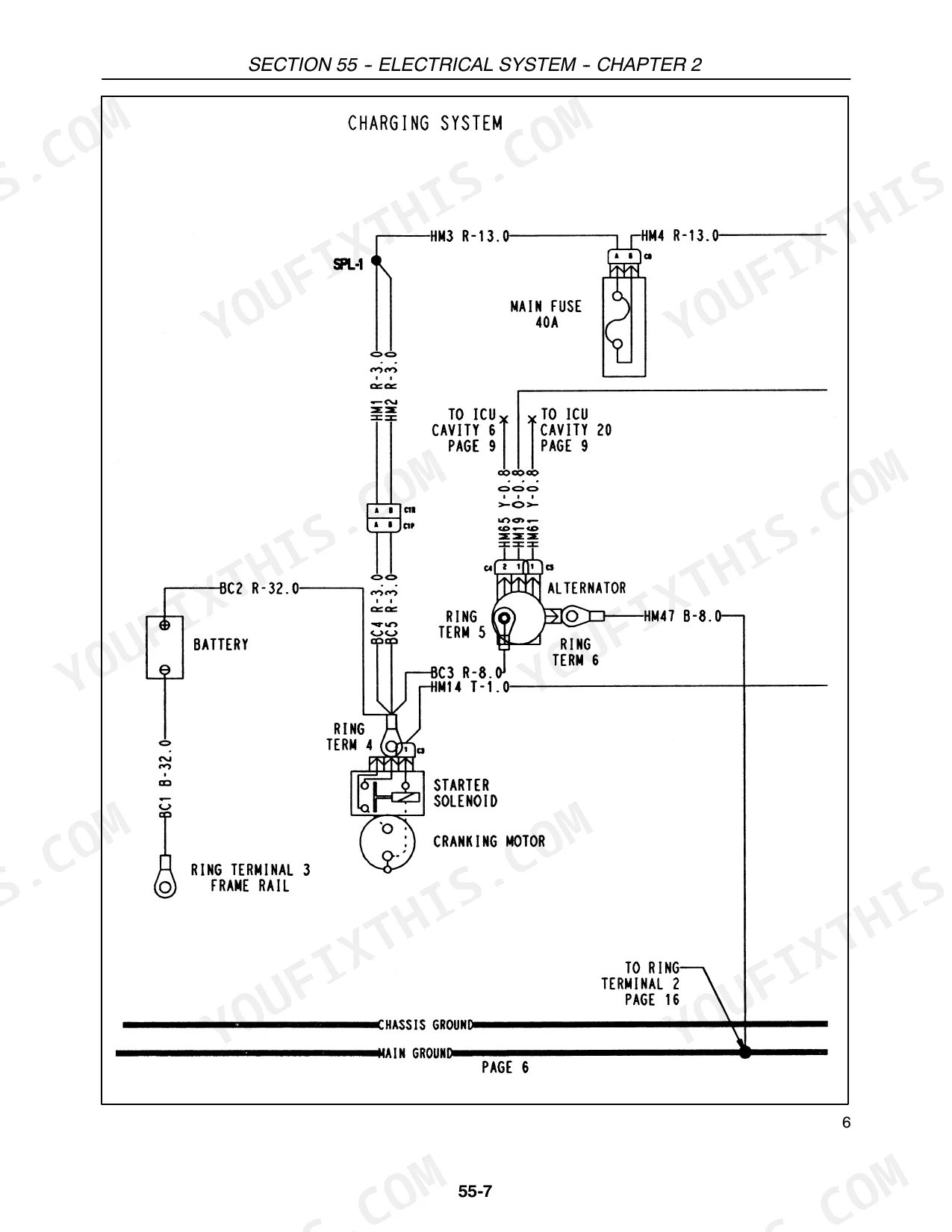

| Electrical System | 817-1294 | Wiring Harnesses (Grounds), Electrical System Components (Battery, Checking the Electrolyte Level, Battery Removal, Battery Installation), Main Fuse (Replacement), Fuse Block |
| Platform | 1295-1400 | Hood (Removal, Installation), Rear Hood Side Panels (Removal, Dash Console (Removal |
Every system also includes operation.

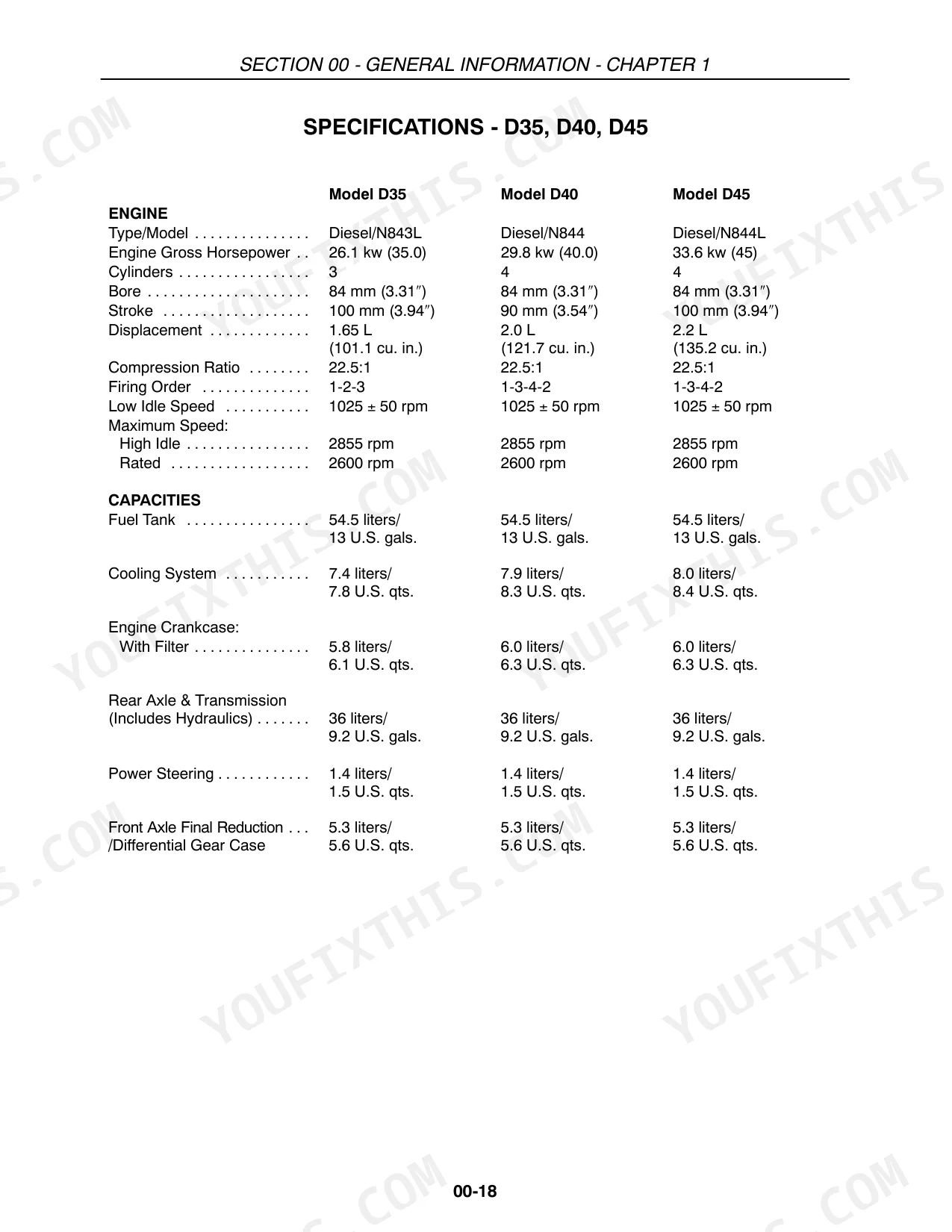

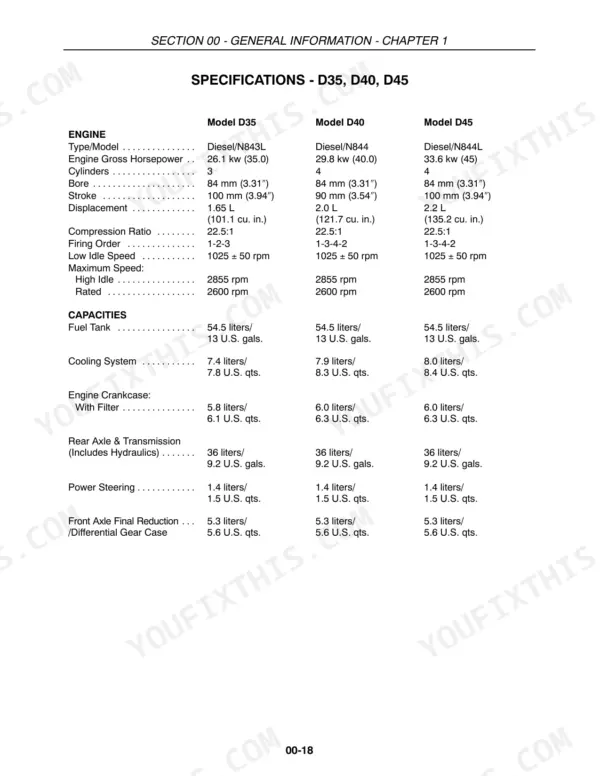

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic Pump Capacity | 37.1 lpm (9.8 gpm) | p. 606 |
| Hydraulic Pump Retainers Torque | 22 - 28 N⋅m (16 - 20 ft. lbs.) | p. 607 |
| Fuel Injector Injection Pressure | 147 bar (2150 psi) | p. 219 |
| Fuel Injector Nozzle Type | Throttle | p. 219 |
| Air Filter Replacement | Inspect and replace air cleaner if necessary | p. 119 |
| Hydraulic Power Loss Symptom | Implement fails to lift when lever is in raised position | p. 623 |
| Fuel Tank Capacity | 54.5 liters (13 U.S. gals.) | p. 72 |
| Radiator Cap Pressure | 0.9 bar (13 psi) | p. 73 |
| Rear Axle & Transmission (Includes Hydraulics) Capacity | 36 liters (9.2 U.S. gals.) | p. 72 |
| D35/D40 | ||
| Clutch Plates Outside Diameter | 240 mm (9.4 in.) | p. 257 |
| D45 | ||
| Clutch Plates Outside Diameter | 260 mm (10.24 in.) | p. 257 |
| D35, DX35 | ||
| Engine Gross Horsepower | 26.1 kw (35.0) | p. 72 |
Case IH D35–DX45 Common Problems This Manual Covers
Case IH D35 hydraulic system loses pressure after hot operation and implement fails to lift. p. 623
Inspect the hydraulic schematic to trace the pressure lines. Verify pump capacity reaches 37.1 lpm (9.8 gpm). If output drops below specification, replace the faulty pump and torque the new retainers to 22 to 28 Nm (16 to 20 ft. lbs.) using the guide on page 607.
Manual Section: Hydraulic System TroubleshootingEngine stalls under heavy load on steep slopes and produces excessive black exhaust smoke. p. 119
Check the fuel injectors using the procedures on page 119. Test the injection pressure and verify it reaches 147 bar (2150 psi) as detailed on page 219. If pressure is low, adjust the setting to 146 bar (2150 psi) or replace the injector assembly to restore clean combustion.
Manual Section: Engine TroubleshootingTractor loses forward momentum during gear changes and transmission fails to engage gears smoothly. p. 261
Measure the clutch pedal free-travel and confirm it measures between 19 mm and 30 mm as shown on page 257. If adjustment fails to fix the slip, replace the complete single clutch assembly and tighten the mounting bolts to 22 to 28 Nm (16 to 21 ft. lb.).
Manual Section: Clutch TroubleshootingEngine fails to crank in freezing weather and starter motor emits a rapid clicking noise. p. 119
Test the battery voltage and inspect the wiring diagram for loose ground connections. Remove the starter and bench test it to ensure the motor reaches a no load speed of 4000 RPM as specified on page 1011. Clean all terminals before reinstalling the unit.
Manual Section: Engine TroubleshootingFrequently Asked Questions

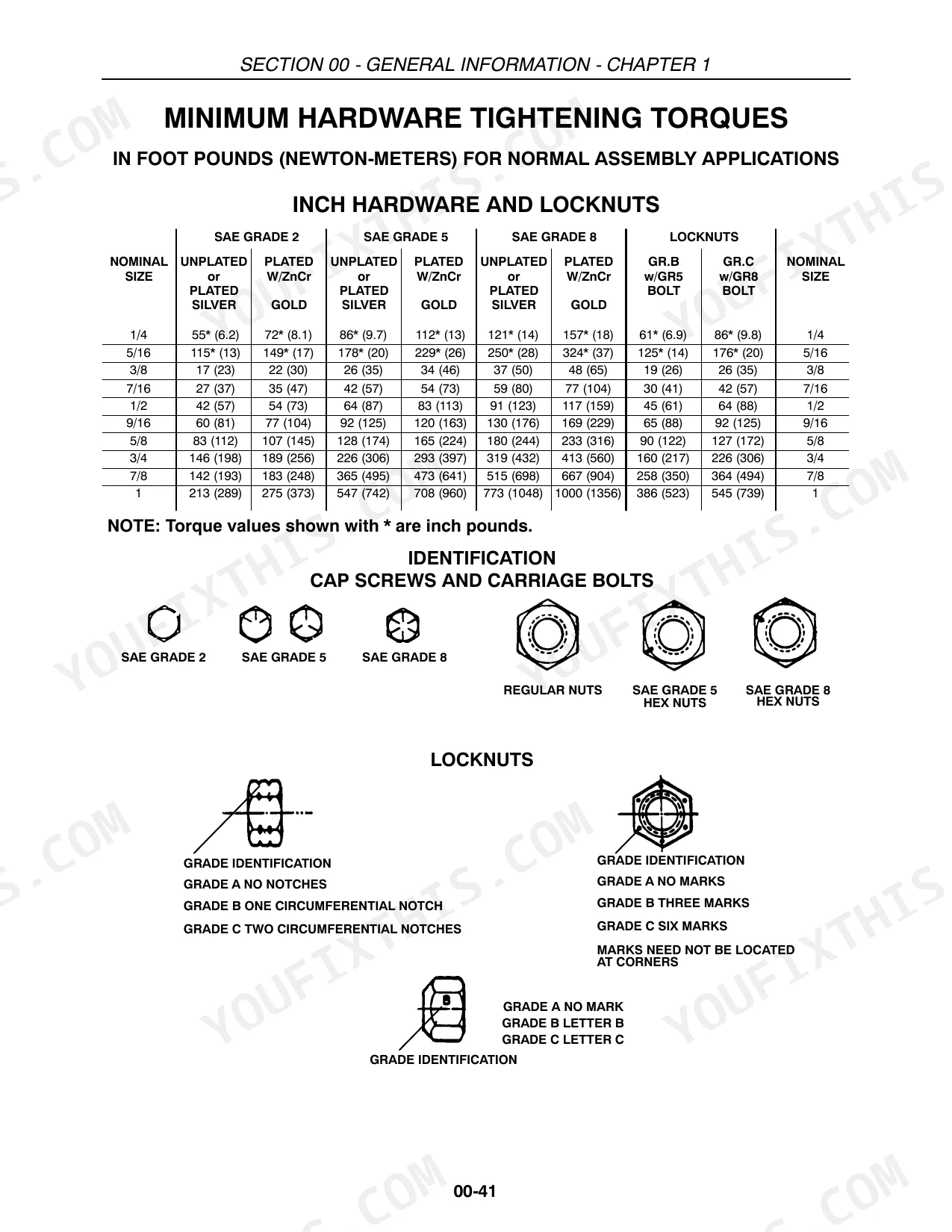

Torque specs for engine bolts on Case IH D35
For the Case IH D35, connecting rod cap bolts should be torqued to 49-54 N⋅m (36-40 lbs. ft.). Main bearing retaining bolts also require a torque of 49-54 N⋅m (36-40 lbs. ft.). Cylinder head bolts should be tightened to 98-103 N⋅m (72.3-76 lbs. ft.).
How to reset hydraulic pressure on Case IH D45
To adjust the hydraulic pressure on a Case IH D45, you need to adjust the relief pressure setting by adding or removing shims from the relief valve. The specified pressure reading for D45 models should be 172 bar (2500 psi). Each 0.3 mm (0.012 in.) shim change will adjust the pressure by approximately 10 bar (150 psi).
What are the replacement specifications for Hydraulic pump?
The hydraulic pump is a gear type pump. If troubleshooting indicates a faulty pump, it should be replaced with a new assembly, as only the shaft seal and internal O-rings are serviceable parts. The pump capacity is 37.1 lpm (9.8 gpm) at an engine speed of 2800 rpm.
What are the replacement specifications for Clutch plate assembly?
The clutch plate assembly is serviced as a complete unit, with overhaul limited to resurfacing the flywheel and replacing the entire clutch assembly if damaged. The clutch disc lining should be replaced if worn to less than 6.9 mm (.27 in.) on D35 and D40 models, or 7.2 mm (.28 in.) on D45 models, from the top of the rivet head.
How quickly can I access this manual after buying?
You get a 1400-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are hydraulic system diagrams in this Case IH D35 & variants Repair Manual?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Case IH D35 & variants.
