Need factory-level repair coverage for your Case IH SBX520–SBX550 series square balers? All 512 pages of this repair manual (OEM #87012154) dig into six systems across all four SBX variants: implement driveline, hydraulic tension, product feeding, pressing, and tying. You get the hydraulic schematic with full tension circuit routing, torque tables for both hardware and hydraulic fittings, and exploded views across every major assembly. The Tying section walks through knotter adjustments for Standard and Heavy Duty knotters alike, including the knotter trip system and bale formation sequence. Set needle-to-plunger timing at 6–19 mm and needle penetration clearance at 6–10 mm between the yoke and frame: both are factory-verified dimensions. Your baler is down and baling season won't wait. Bookmarked and keyword-searchable, this PDF opens on any device; grab your tablet, walk to the machine, and get back to work.
What's Inside This Case IH SBX520–SBX550 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 13-46 | Standard vs. Heavy Duty Knotters, Bale and Knot Formation, Knotter Trip System Operation |

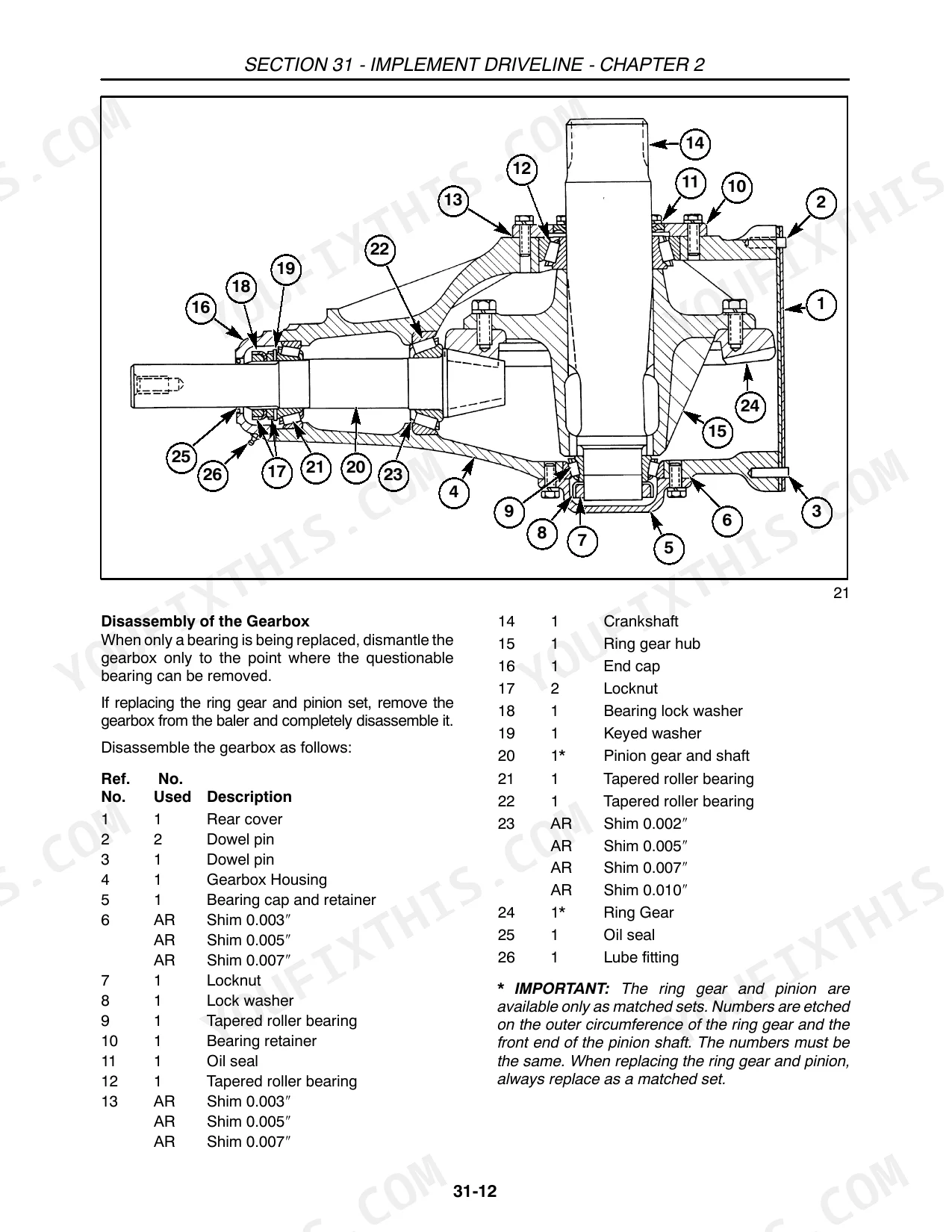

| Implement Driveline | 47-128 | Universal Joint and Power Pivot (Description and Operation), Telescoping Shaft and Tube |

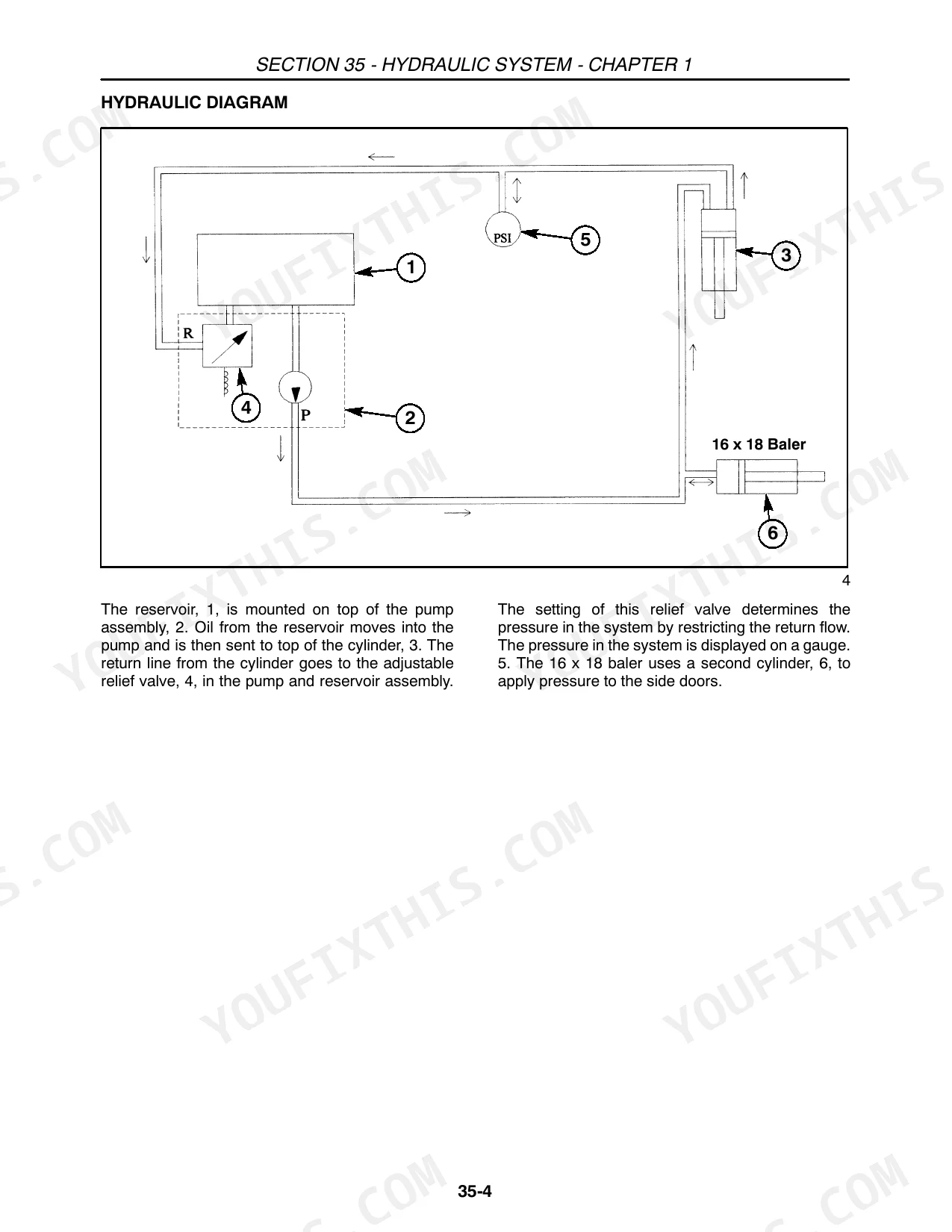

| Hydraulic System | 129-154 | Hydraulic Tension System Description and Operation, Hydraulic Diagram, Hydraulic Pump, Tension System Cylinder, Door Cylinder - Model 16 X 18 Baler Only, Pickup Lift Cylinder |
| Product Feeding | 155-208 | Pickup Assembly, Pickup Fingers, Cam Follower Bearing, Tooth Bar, Tine Bar Pivot Shaft, Cam Track, Finger Discs, Bearings and Shaft Preparation |
| Pressing | 209-234 | Plunger Operation, Plunger and Knife Adjustment Specifications, Plunger and Stationary Knives, Adjustment and Replacement, Plunger and Bearing |
| Tying | 235-512 | Knotter Adjustments (Standard and Heavy Duty Knotters) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

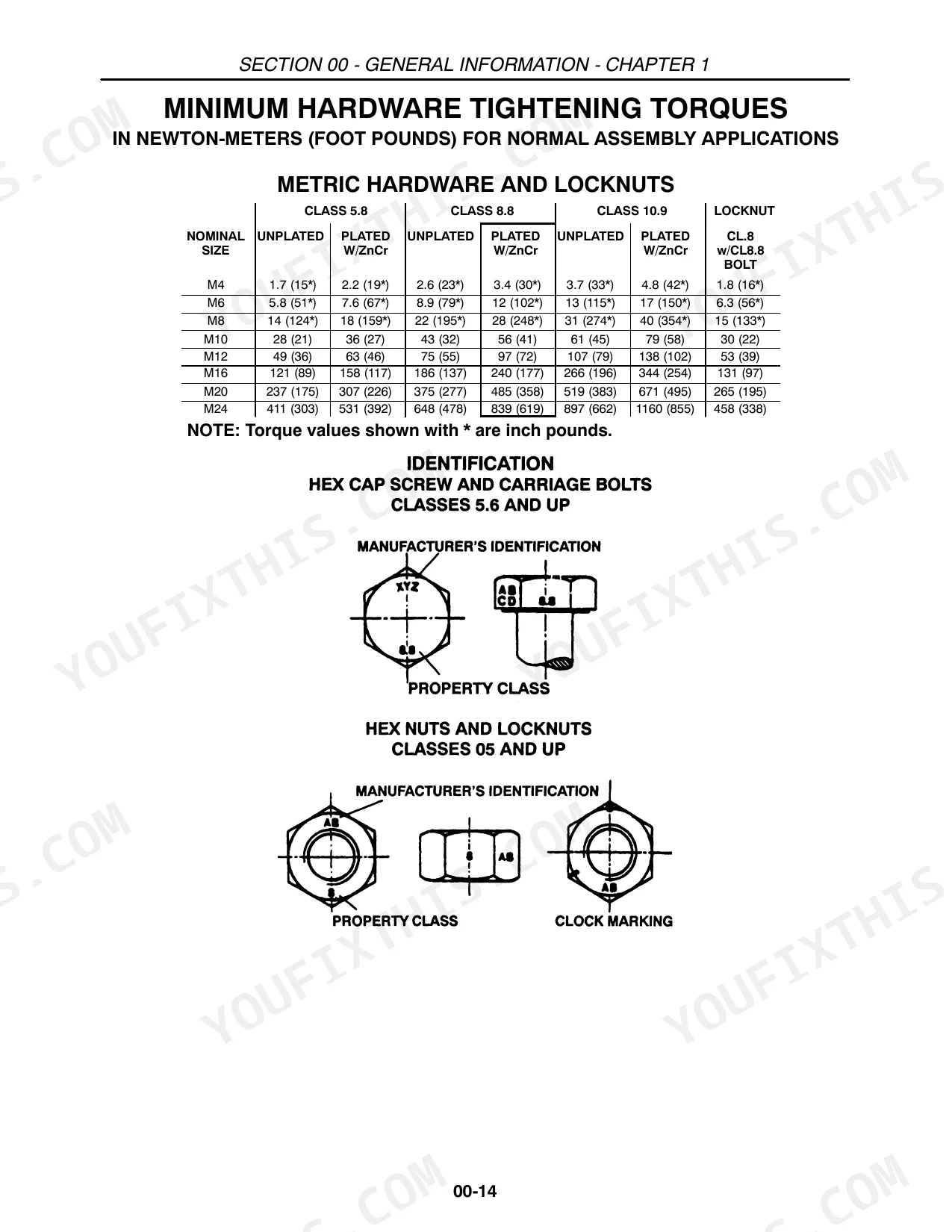

| Wheel bolt torque | 122 - 136 N⋅m (90 - 100 ft Ibs) | p. 43 |
| Pickup Drive Belt replacement | 1.50 Hours | p. 180 |
| Pickup Drive Belt torque transmission | 265 N⋅m (2350 in. lbs) | p. 170 |
| Needle To Plunger Timing clearance | 6 - 19 mm (1/4 - 3/4″) | p. 266 |
| Needle Penetration clearance (between needle yoke and frame) | 6 - 10 mm (1/4 - 3/8″) | p. 266 |
| Pickup Drive Belt idler spring length | 284 mm (11-3/16″) | p. 170 |

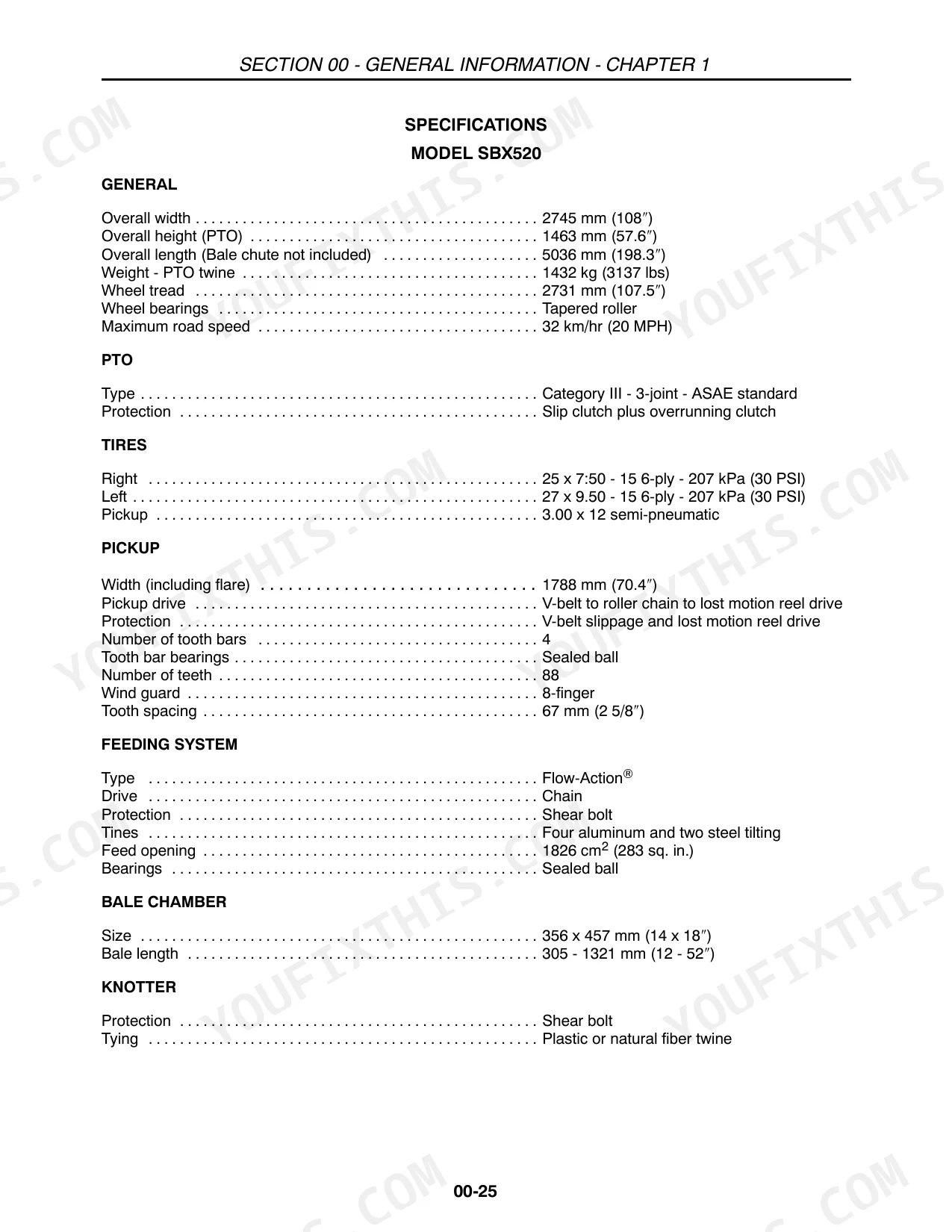

| Maximum Road Speed | 32 km/hr | p. 37 |
| SBX520 | ||
| SBX520 Overall Width | 2745 mm | p. 37 |
| SBX520 Plunger Speed | 79 strokes/minute @ 540 RPM | p. 38 |
| SBX530 | ||
| SBX530 Overall Width | 2794 mm | p. 39 |
| SBX540 | ||
| SBX540 Overall Width | 3048 mm | p. 39 |
| SBX550 | ||
| SBX550 Overall Width | 3024 mm | p. 41 |
Case IH SBX520–SBX550 Common Problems This Manual Covers
Case IH SBX square baler knotters not tying, loose knots or bare bale ends

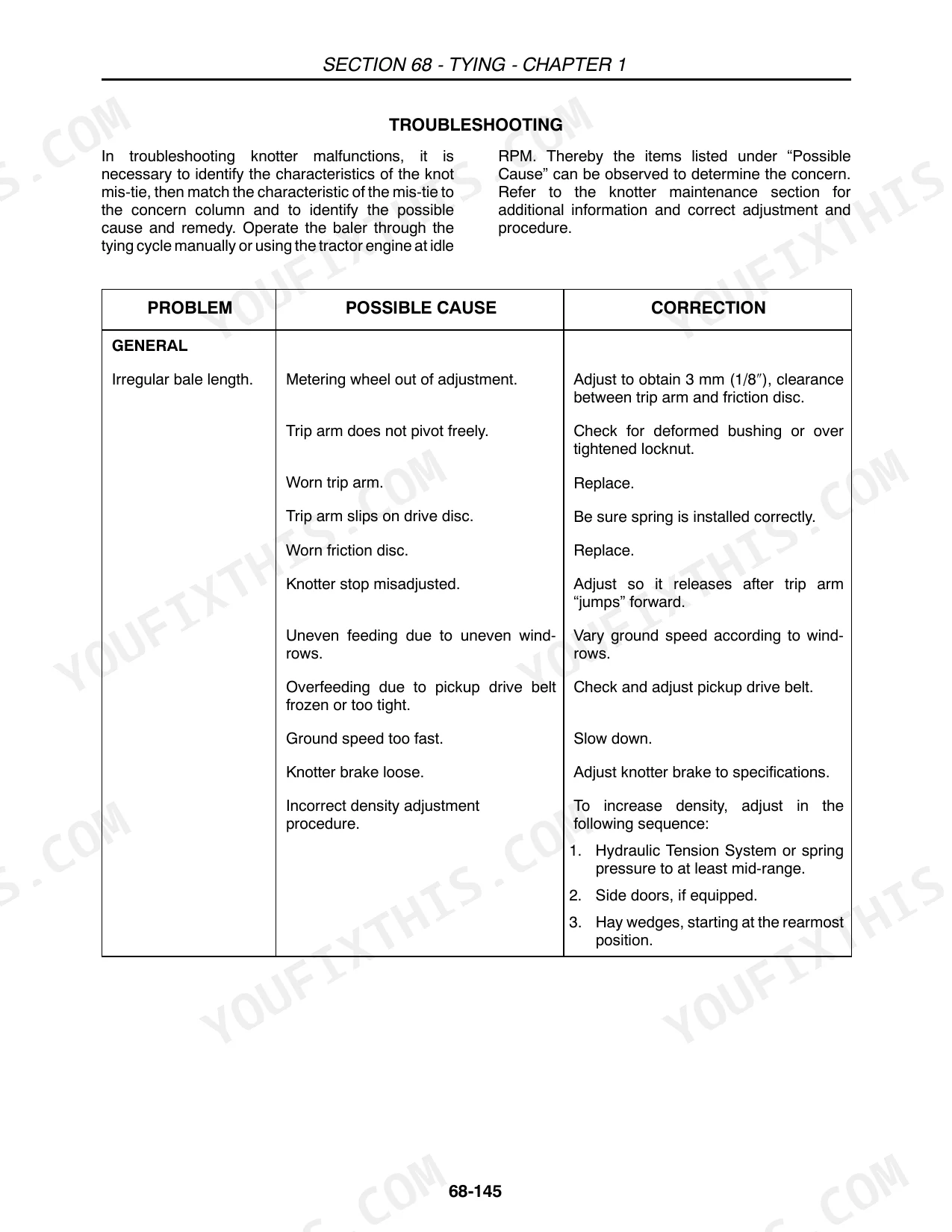

Clean all knotter components thoroughly. Gum, crop juice, and chaff buildup are the most common cause of failed ties. Check needle-to-plunger timing: clearance must be 6-19 mm (1/4-3/4 in.) at the timing position per page 266. Verify needle side pressure at 0.5-2.7 kg (1-6 lbs). Full symptom-to-cause charts begin.
Manual Section: TyingPickup tines snapping or shearing clean off after contact with rocks or fence posts
Walk the pickup bar-by-bar and pull each tine socket by hand. Any that rock or spin need immediate replacement. After installing new tines, check pickup drive belt tension: idler spring free length should be 284 mm (11-3/16 in.) per page 170. Excessive PTO speed or slack belt shifts impact stress directly onto the tine bars.
Manual Section: Product FeedingPTO slip clutch slipping under normal baling load or disengaging at full power
Verify PTO speed is set to exactly 540 RPM before diagnosing a slip condition. Remove the slip clutch cover and inspect friction discs and spring stacks per the service procedures starting. Worn friction discs lose clamp force at full baling load. Replace the disc stack as a set, not individually.
Manual Section: Implement DrivelinePickup drive belt tracking off rollers mid-field or shredding on inner frame surfaces p. 170
Shut down and roll the belt by hand, checking for flat-spotted or seized tensioner rollers. Verify idler spring free length against the 284 mm (11-3/16 in.) target at page 170. The pickup drive belt is rated to handle 265 N.m (2350 in. lbs) before slipping. If it tracks off at lower loads, align rollers before adjusting spring tension.
Manual Section: Product FeedingKnotter needle misaligned or bent, twine breaks at the base of the knot p. 266
Remove the needle and sight down the full arc for any twist or bend. Reinstall and check needle-to-plunger timing: clearance must be 6-19 mm (1/4-3/4 in.) per page 266. Set needle penetration so the yoke-to-frame gap is 6-10 mm (1/4-3/8 in.). Needle side pressure must read 0.5-2.7 kg (1-6 lbs) to hold consistent twine tension.
Manual Section: TyingFrequently Asked Questions
Torque specs for the axle wheel on Case IH SBX520 baler?
For the Case IH SBX520 baler, the axle wheel bolt torque for all wheels should be between 122 - 136 N⋅m (90 - 100 ft lbs). This specification is part of the preseason and predelivery checklist to ensure proper operation.
What are the replacement specifications for Endless belt (assembly)?
The Pickup Drive Belt should be adjusted to transmit 265 N⋅m (2350 in. lbs) of torque. The idler spring eyebolt should be adjusted to obtain a spring length of 284 mm (11-3/16″) to achieve the correct belt slip torque of 302 - 311 N (68 - 70 lbs).
What are the replacement specifications for Knocker needles?
Needles should be timed with the plunger so that the triangular extensions on the plunger face pass the tips of the needles by 6 - 19 mm (1/4 - 3/4″). The clearance between the needle yoke and the frame at the closest point should be 6 - 10 mm (1/4 - 3/8″), and the needle to twine disc clearance should be 3 - 5 mm (1/8 - 3/16″). Needles with hardfacing material in the eye are available from the parts system for installation on the 14 x 18 baler.
How do you fix case IH SBX square baler knotters not tying, loose knots or bare bale ends?
Clean all knotter components thoroughly. Gum, crop juice, and chaff buildup are the most common cause of failed ties. Check needle-to-plunger timing: clearance must be 6-19 mm (1/4-3/4 in.) at the timing position per page 266. Verify needle side pressure at 0.5-2.7 kg (1-6 lbs). Full symptom-to-cause charts begin.
How quickly can I access this manual after buying?
Immediate download of the complete 512-page searchable Repair Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Case IH SBX520–SBX550 Series Repair Manual cover the hydraulic system?
Yes, this Case IH SBX520–SBX550 Series Repair Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
