Looking for the Case IH 895 operator manual in PDF form? This 226-page factory original (OEM #9-19760) covers both the 895 and 995 Tractors: instruments and controls, operating procedures, tire and ballast setup, and a full maintenance section. Inside: a safety chapter with ROPS rollover rules and decal locations, step-by-step instructions for every major system your tractor runs, and a lubrication chapter that lays out fluid specs and service intervals. The specifications section closes with engine data, transmission details, and travel speeds for both models. Top off the engine with 9.8 litres of oil at each filter change, fill your 2WD transmission and hydraulic system to 34 litres, and at 20 hours, torque the manifold bolts to 25-29 lb ft. No more hunting through a dog-eared paper copy. Bookmarked by section and searchable by keyword; open it on your phone before you climb in the cab.
What's Inside This Case IH 895, 995, 895 Tractors, 995 Tractors Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety/ Decals | 8-16 | Safety Rules |

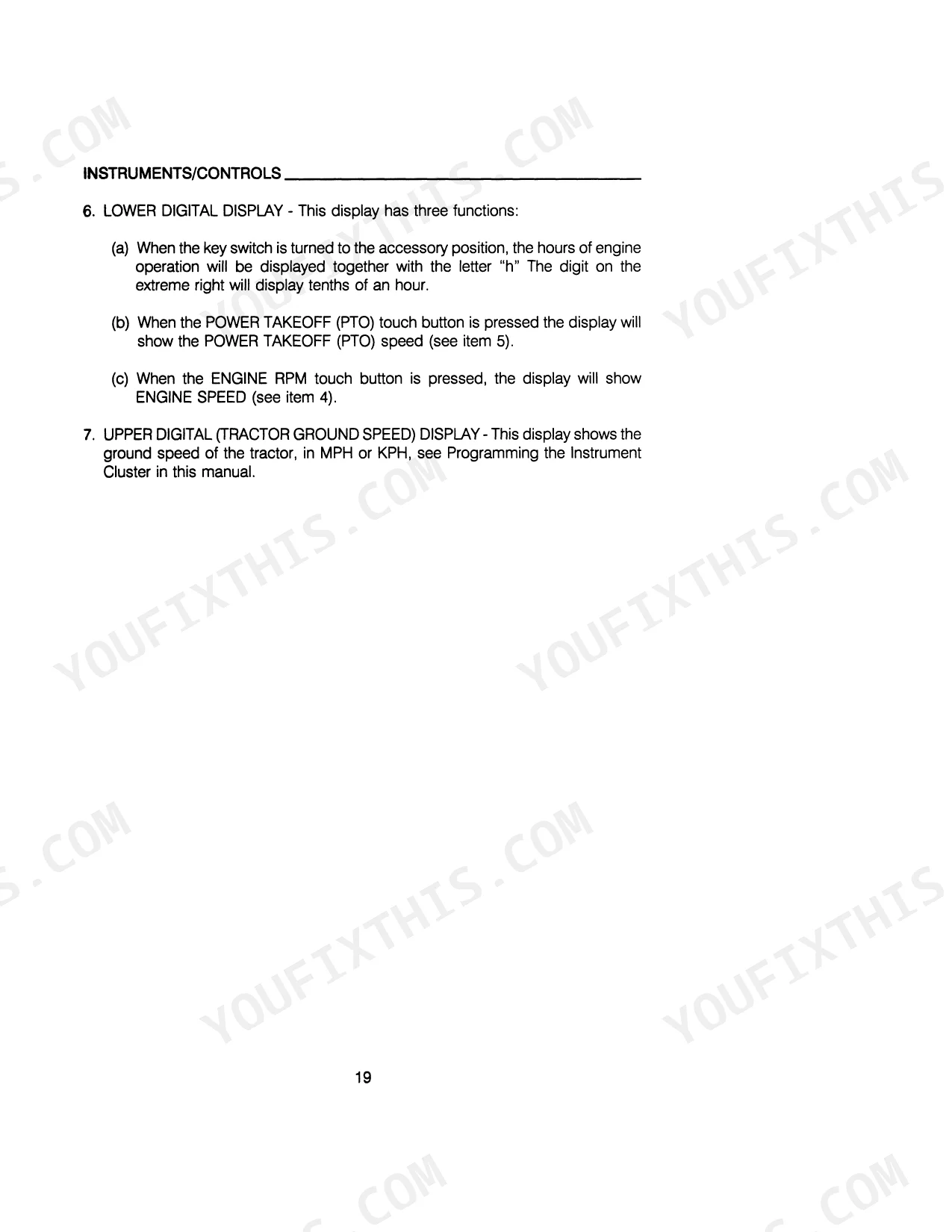

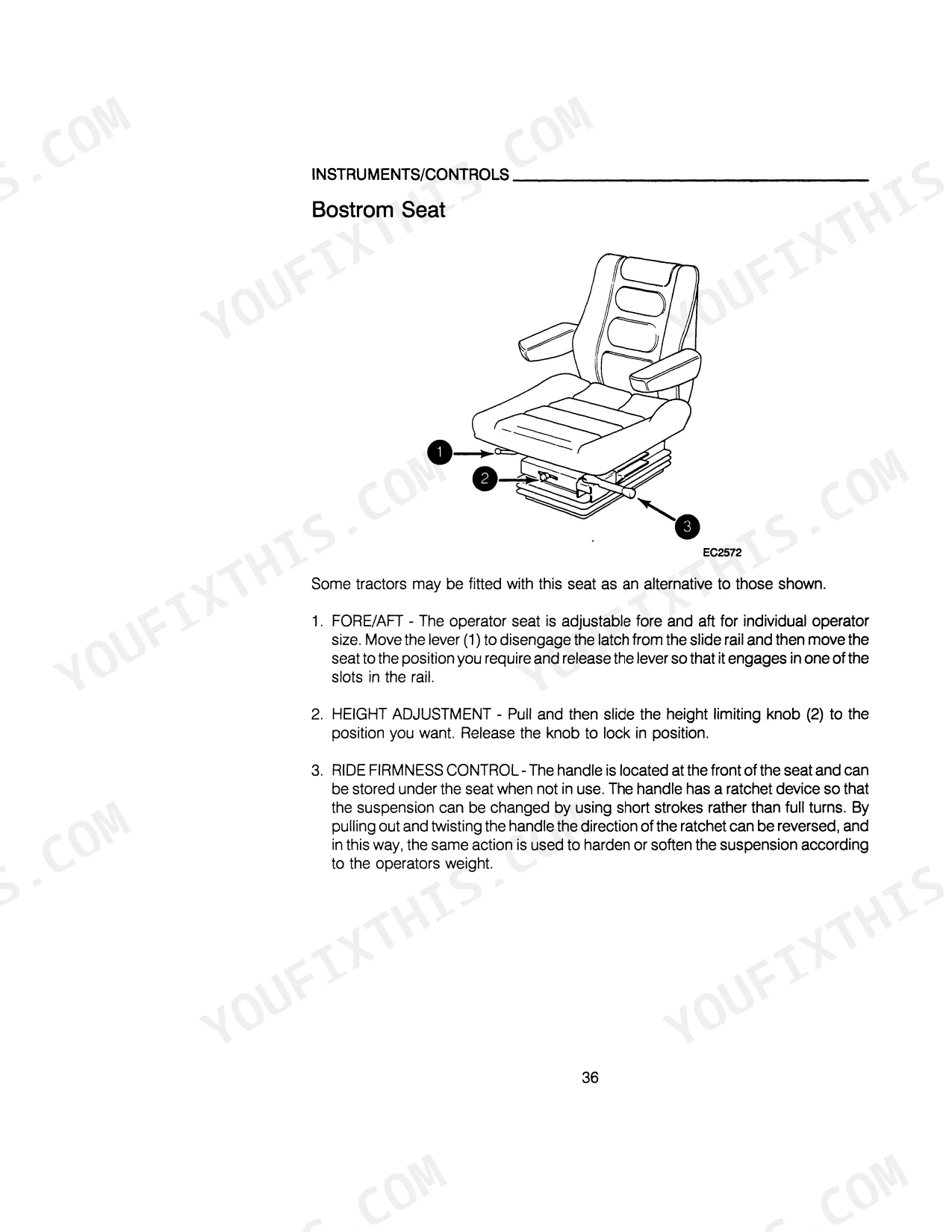

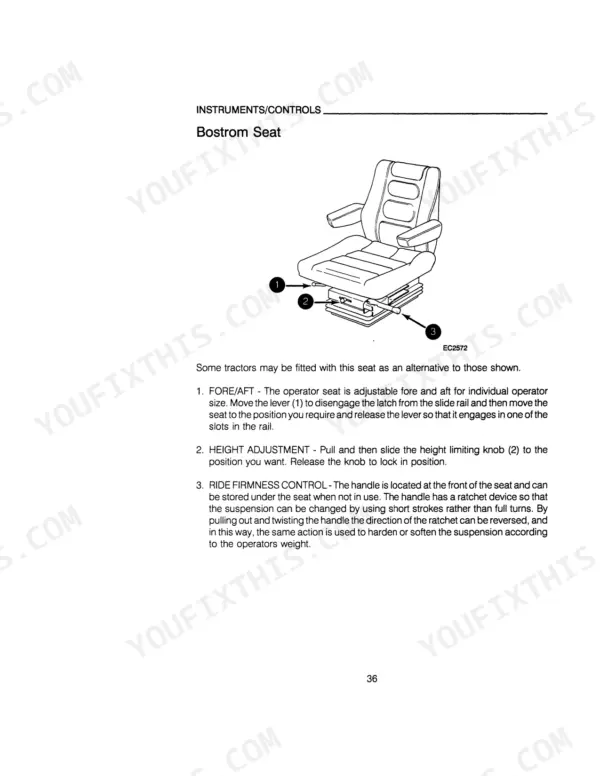

| Instruments/Controls | 17-38 | Bostrom Seat, Instrument Clusters, Instrument Panel and Pedals, RH Side Console, LH Side Controls, Cab Headliner Controls, Operators Seat |
| Operating Instructions | 39-76 | Air Conditioner, Power Takeoff, Cab Air Flow, Differential Lock, Drawbar, Transmission, Clutch Pedal, Booster Batteries |
| Field Operation | 77-99 | Auxiliary Power Connections, Digital Instrument Cluster, Drawbar, Remote Hydraulics, ROPS, Rear Hitch, Check Chains, Upper (Turnbuckle) Link |

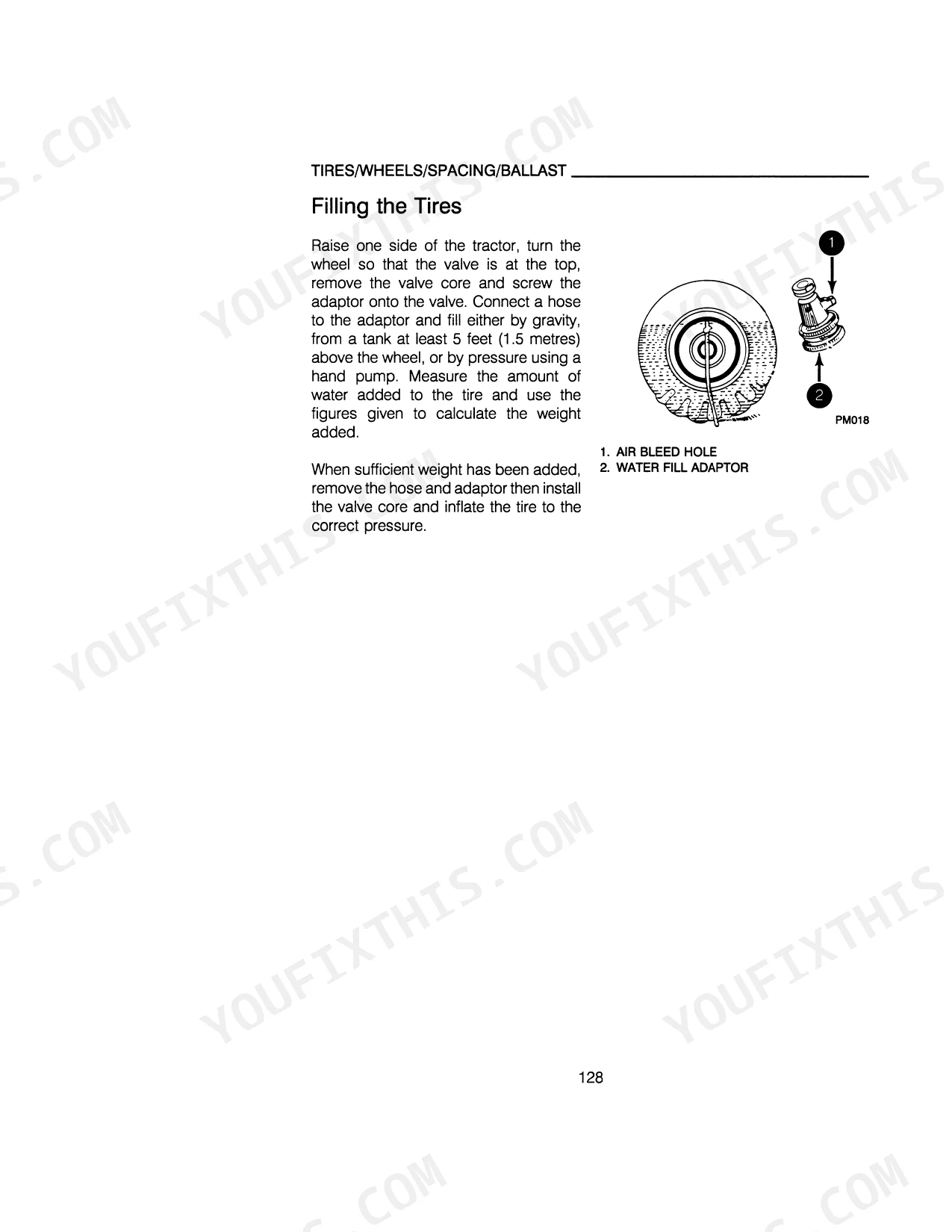

| Tires/ Wheels/ Spacing/ Ballast | 100-130 | Fender Mounting Positions, Front to Rear Tire Combinations, Front Wheel Mounting Torques, Front Wheel Tread Positions, MFD Oscillation Stops, MFD Steering Stop Adjustment, Rear Wheel Tread Positions, Steering Angle and Oscillation Charts |
| Lubrication/ Filters/ Fluids | 131-163 | Air Induction System, Fuel System, Cooling System, Engine Lubrication, Transmission Lubrication, Front Wheel Bearings, Cab Air Filters, MFD Axle Lubrication |
| Maintenance/ Adjustments | 164-180 | Brake Pedal, Hood and Side Covers, Compressor Belt, Cooling System, Grille Screens, Radiator Area, Engine Clutch, Operators Cab |
| Electrical System | 181-194 | Alternator Charging System, Batteries, Bulb and Lamp Replacement, Fuses and Relays, Accessory Connectors, Headlamps, Flood and Work Lamps, Warning Lamps Cab and ROPS Canopy |

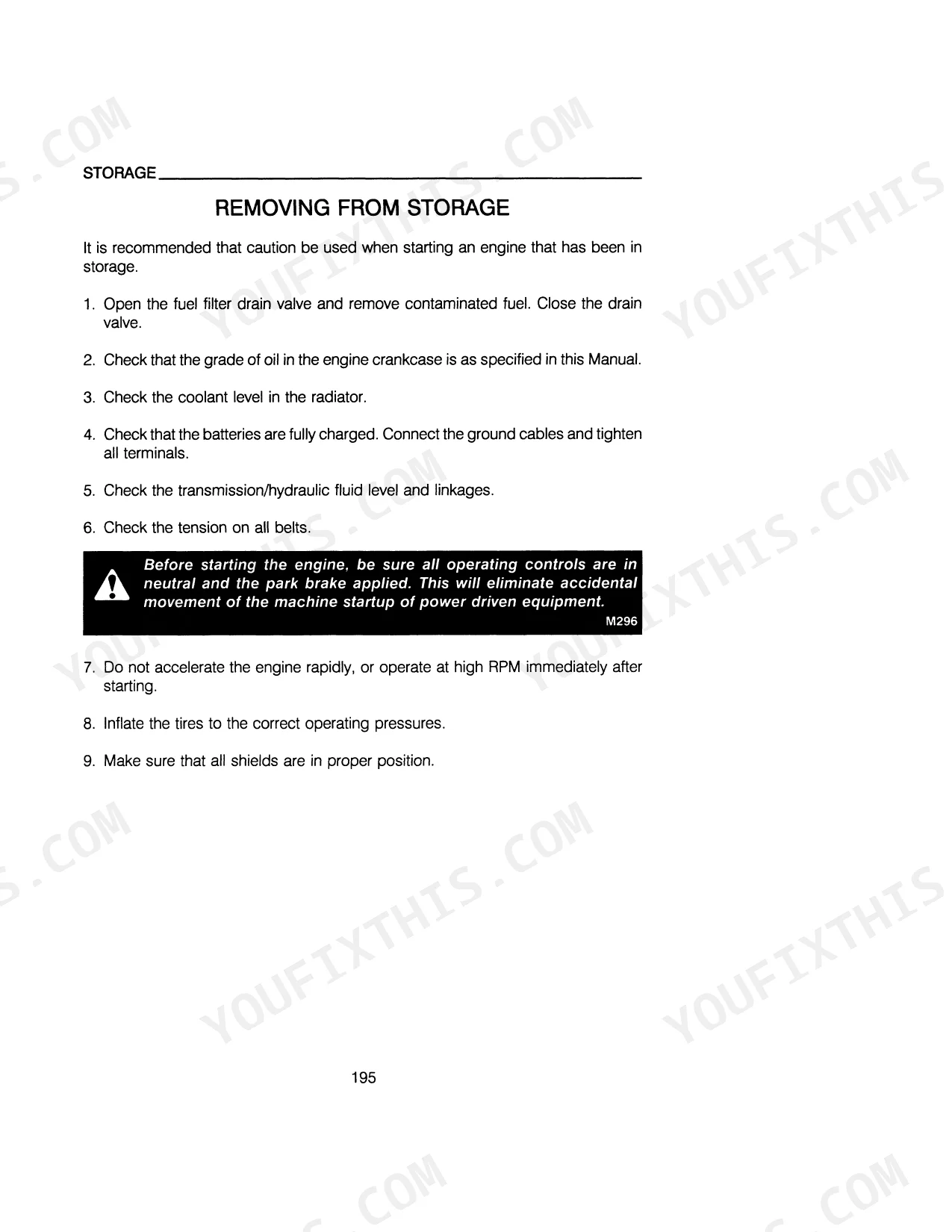

| Storage | 195-197 | Fuel Filter, Fuel Tank, Air Cleaner Filter, Cooling System, Batteries, Tires, Cylinder Rods, Belts |
| Specifications | 198-218 | Approximate Overall Measurements and Weights, Maximum Recommended Operating Weights, Engine, General Machine, Transmissions, Travel Speeds |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

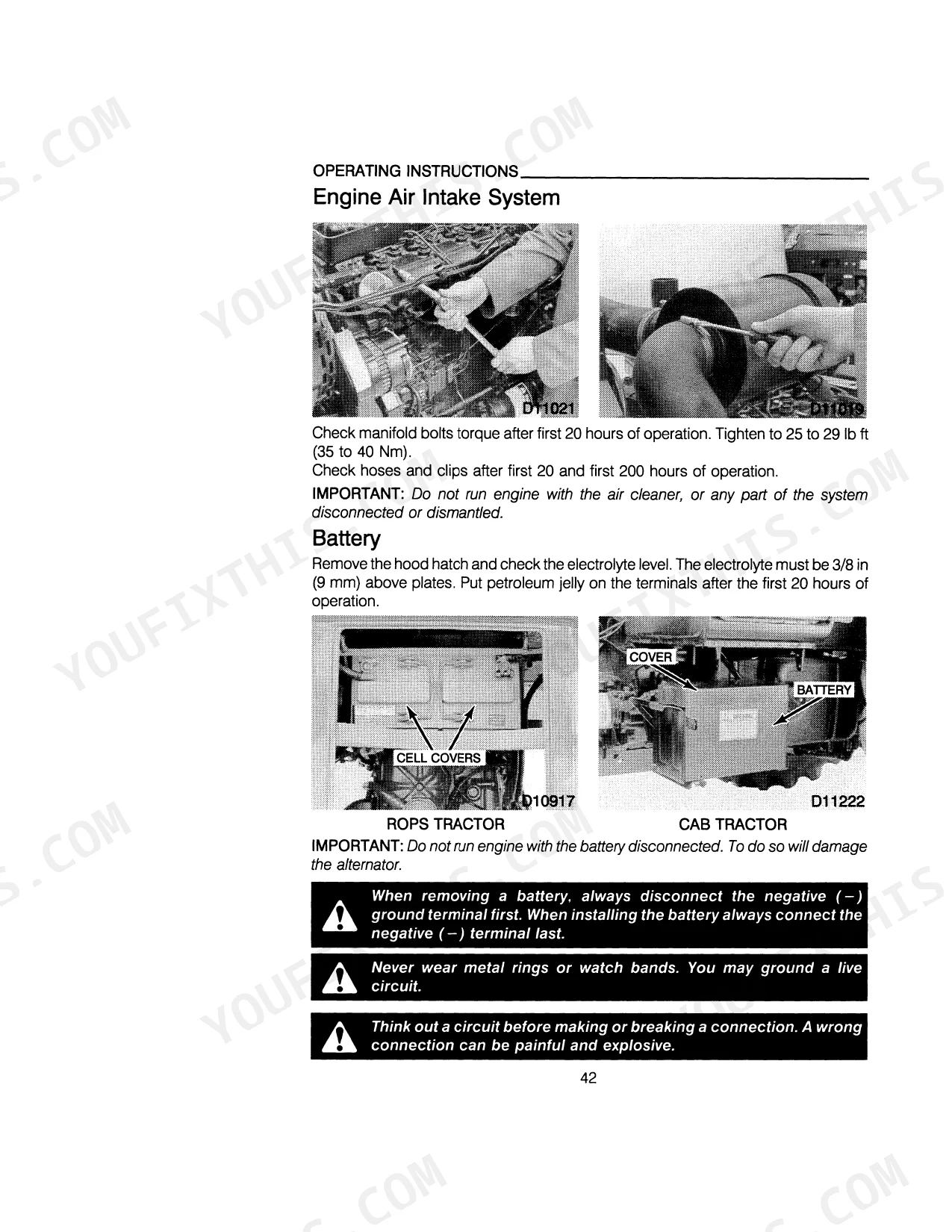

| Manifold bolts torque | 25 to 29 lb ft (35 to 40 Nm) | p. 42 |
| Engine Oil Capacity (with filter change) | 2.59 US Gallons (9.8 Litres) | p. 134 |
| Cooling System Capacity | 14.5 US Quarts (13.7 Litres) | p. 134 |
| Radiator Cap Pressure | 9 to 12 PSI (0.62 to 0.82 bar) | p. 147 |
| Rocker Arm to Valve Clearance (Engine Hot) | 0.012 inch (0.305 mm) | p. 197 |
| Engine Oil Pressure (Rated Speed) | 40 to 60 PSI (275 to 414 kPa) | p. 198 |
| PTO Speed | 540/1000 RPM | p. 199 |
| PTO 540 RPM Shaft Splines | 6 | p. 199 |
| 2WD models | ||
| Transmission/Hydraulic System Capacity (2WD) | 36 US Quarts (34 Litres) | p. 134 |
| MFD models | ||
| Transmission/Hydraulic System Capacity (MFD) | 38.6 US Quarts (36.5 Litres) | p. 134 |
| ROPS Tractor | ||
| Fuel Tank Capacity (ROPS Tractor) | 20 US Gallons (76 Litres) | p. 134 |
| Cab Tractor | ||
| Fuel Tank Capacity (Cab Tractor) | 29.6 US Gallons (112 Litres) | p. 134 |
Case IH 895, 995, 895 Tractors, 995 Tractors Common Problems This Manual Covers
Case IH 895 steering wheel completely frozen or extremely hard to turn despite revving the engine.
Verify the transmission fluid level is correct. Two-wheel drive models require 36 US Quarts (34 Litres) of fluid. Locate the steering spindle pivot pin grease zerks and apply fresh grease. If the fittings refuse to take grease, replace them immediately to restore proper steering control.
Manual Section: Maintenance/ AdjustmentsLoud ticking noise from the exhaust area during acceleration or heavy load field operation. p. 42
Inspect the exhaust manifold for soot trails or loose hardware. Check the manifold bolts torque as described on page 42. Tighten all fasteners to 25 to 29 lb ft (35 to 40 Nm) after the first 20 hours of operation. Replace leaking gaskets if the noise persists.
Manual Section: Operating InstructionsEngine temperature gauge climbs into the red zone during continuous field operation. p. 147
Check the coolant level in the radiator and verify the system holds 14.5 US Quarts (13.7 Litres). Inspect the radiator cap on page 147 to confirm it holds 9 to 12 PSI (0.62 to 0.82 bar) of pressure. Clean all chaff and debris from the radiator fins.
Manual Section: Lubrication/ Filters/ FluidsDashboard oil warning light flickers continuously when operating at rated operating speed. p. 198
Stop the engine immediately. Ensure the crankcase holds 2.59 US Gallons (9.8 Litres) of oil with a filter change. Verify engine oil pressure reaches 40 to 60 PSI (275 to 414 kPa) at rated speed as noted on page 198. Inspect the pressure sender for loose wiring.
Manual Section: SpecificationsFrequently Asked Questions
What is the torque specification for Case IH 895 front axle mounting bolts?
For Two Wheel Drive Tractors, the front wheel mounting bolt should be tightened to a torque of 80 to 100 lb ft (108 to 136 Nm). For Mechanical Front Drive Tractors, the disc to rim bolts are 184 lb ft (250 Nm) and the disc to front axle hub nuts are 221 to 258 lb ft (300 to 350 Nm).
How do you fix case IH 895 steering wheel completely frozen or extremely hard to turn despite revving the engine?
Verify the transmission fluid level is correct. Two-wheel drive models require 36 US Quarts (34 Litres) of fluid. Locate the steering spindle pivot pin grease zerks and apply fresh grease. If the fittings refuse to take grease, replace them immediately to restore proper steering control.
How do you fix loud ticking noise from the exhaust area during acceleration or heavy load field operation?
Inspect the exhaust manifold for soot trails or loose hardware. Check the manifold bolts torque as described on page 42. Tighten all fasteners to 25 to 29 lb ft (35 to 40 Nm) after the first 20 hours of operation. Replace leaking gaskets if the noise persists.
How do you fix engine temperature gauge climbs into the red zone during continuous field operation?
Check the coolant level in the radiator and verify the system holds 14.5 US Quarts (13.7 Litres). Inspect the radiator cap on page 147 to confirm it holds 9 to 12 PSI (0.62 to 0.82 bar) of pressure. Clean all chaff and debris from the radiator fins.
What format is this manual in?
Immediate download of the complete 226-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
