This is the full JCB factory service manual (publication 9803-3760) for the Side Engine Loadall range: 526-56, 531-70, 533-105, 535-95, 536-60, 536-70 and 541-70, including the T (Tier) engine variants. Across 2,660 pages it is the dealer-level workshop manual for these agricultural and construction telehandlers, built around the JCB Dieselmax Tier 3 diesel and the PS750 powershift transmission. It carries the diagnostics, removal and refit procedures, capacities and torque figures, and the full hydraulic and electrical schematic circuits for every section: general information, routine maintenance, the boom and body, electrics, the load-sensing hydraulics, transmission, axles, brakes, steering, engine, and the CANbus electronic data systems.
What's Inside This JCB 531-70 to 541-70 Manual
| System | Pages | Key Topics |
|---|---|---|

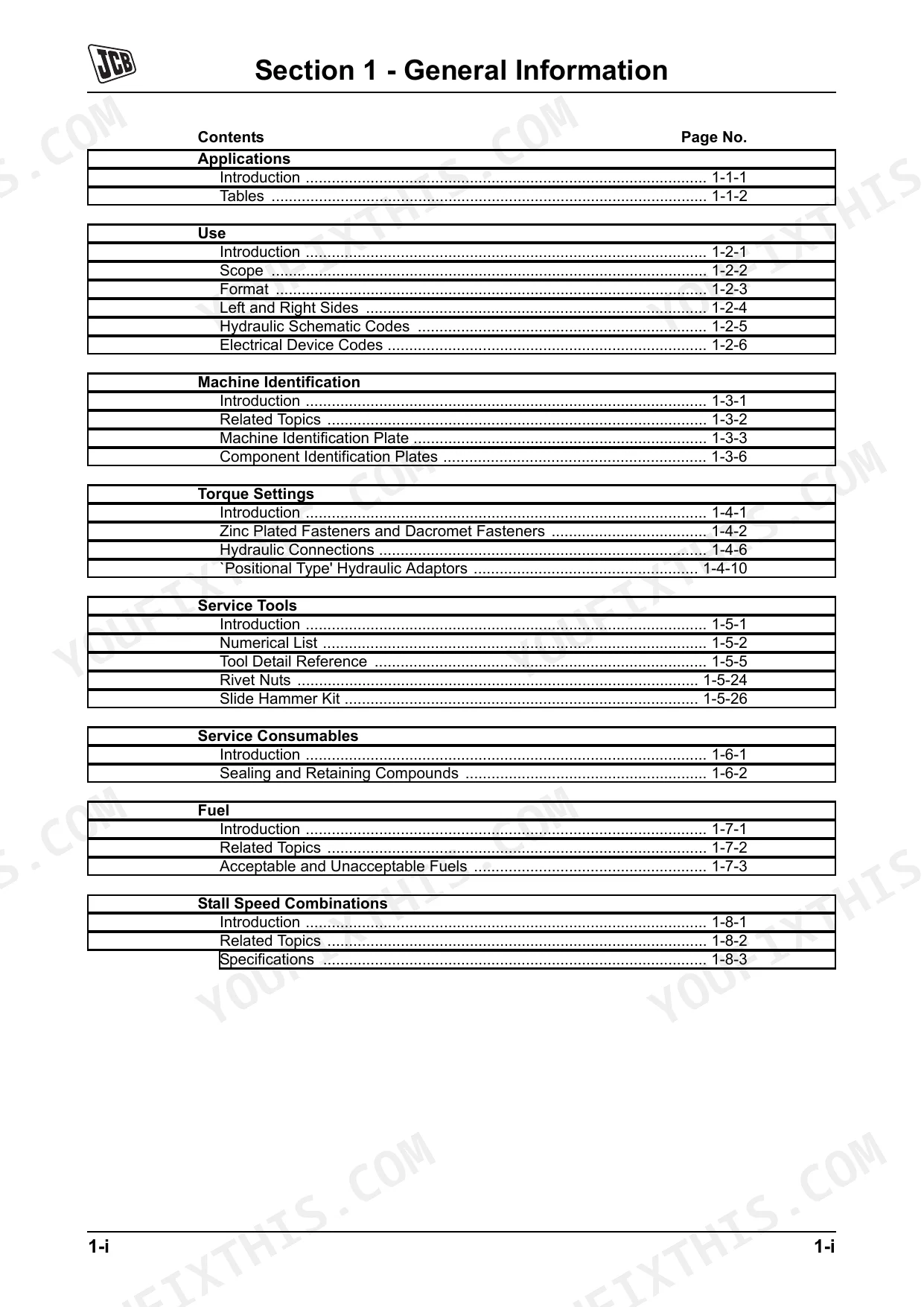

| General Information | Applications, Use, Machine Identification, Torque Settings, Service Tools, Service Consumables | |
| Care and Safety | Safety Notices, General Procedures | |
| Routine Maintenance | Service Schedules - Machines with Sd and Sf Engines, Fluids, Lubricants and Capacities, Inspection, Greasing, Electrical System, Engine Air Filter | |

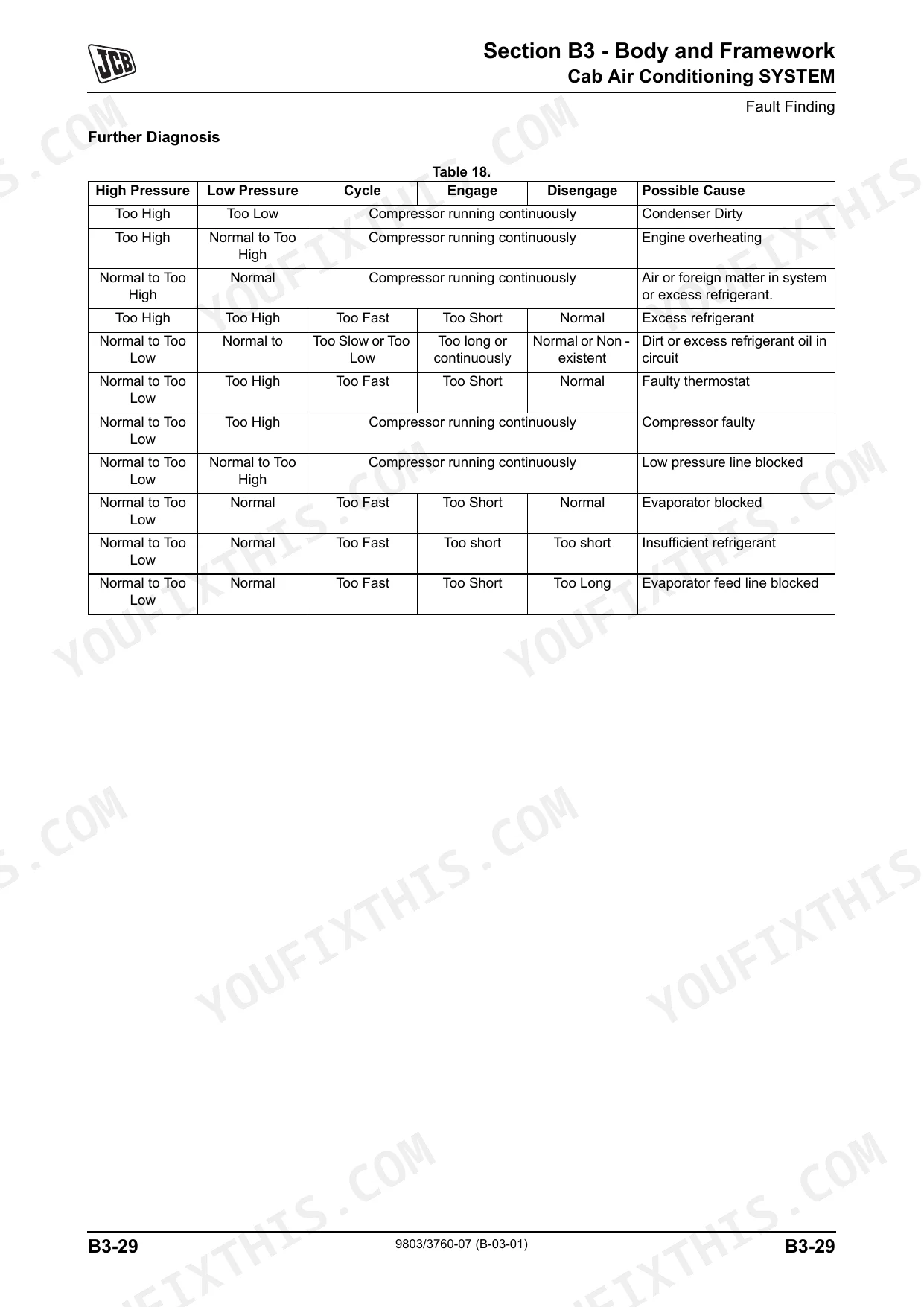

| Body and Framework | Fork Carriage, Cab Heating and Ventilation System, Load Moment Indicator (Lmi) System, Fuel Tank, Boom, Stabilisers | |
| Electrics | Fuses and Relays, Schematics, Battery Charging System, Alternator, Machine Control ECU (S1), Machine Control ECU (S2) | |
| Hydraulics | Systems and Schematics, Lsp Gearpump Hydraulic System, Smooth Ride System (SRS) Lsp, Main Pump - Variflow, Cooling Fan Motor, Lift Rams | |
| Transmission | Configuration, Wheels and Tyres, PS750 Gearbox System, Lock Up Torque Converter System, Dual Control System (S1), Torque Converter | |
| Brakes | Single Axle Service Brakes System, External Park Brake System, Park Brake Caliper, Park Brake Disc, Master Cylinder, Fluid Reservoir | |
| Steering | Steering System, Manual Steer Mode System, Auto Steer Mode System, Hydraulic Steering Unit, Power Track Rod, Steering Column | |
| Engine | Stop and Start System (Mechanical F.I. Engines), Cold Start Heater System, Starter Motor, Cooling Pack - Non Intercooled, Coolant Expansion Tank, JCB Dieselmax Engine (Mechanical F.I.) | |
| Electronic Data Systems | CANbus System, Loadall Monitoring System, Fault Code System, Servicemaster System, Electronic Control Unit Theory, Pulse Width Modulation Theory |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Models covered | 526-56, 531-70, 531-T70, 533-105, 535-95, 535-T95, 536-60, 536-70, 536-T60, 536-T70, 541-70, 541-T70 | |
| Engine | JCB Dieselmax turbo-diesel, Tier 3 | |
| Rated power | 85 kW (114 hp) on the turbo variant | |
| Transmission | PS750 3-speed powershift | |
| Fuel tank capacity | 148 L (32.5 UK gal) | |
| Engine oil capacity | 12.5-15 L | |
| Coolant capacity | 22 L (4.4 UK gal) | |
| Transmission oil capacity | 17 L wet / 19 L dry fill | |
| Hydraulic tank capacity | 115 L (25.3 UK gal) | |
| Front axle housing oil | 17.7 L (4.7 UK gal) | |
| Manual pages | 2660 |
JCB 531-70 to 541-70 Common Problems This Manual Covers
Machine loses lift or extend function, or boom movement becomes weak
Start at the load-sensing hydraulics: check oil level and condition, renew a clogged filter, then flow- and pressure-test the gear pump and the LSP/regulator settings against spec. Weak or lost boom lift and extend is usually a pump, relief or load-sense fault rather than the rams.
Manual Section: HydraulicsTransmission will not drive, shifts harshly, or the machine is stuck in one gear
Confirm the PS750 transmission oil is the correct grade and at level, then read the transmission pressures and the gear-selection solenoid signals. A harsh or no-drive condition is usually low or wrong oil, a charge-pressure loss, or a selector solenoid fault before it is internal clutch wear.
Manual Section: TransmissionA boom or safety interlock prevents operation, or the machine starts but will not work
Read the fault codes and check the interlock and seat/transmission-neutral switches with the electrical schematic. On these load-handling machines an interlock or safety-switch fault will lock out boom and drive functions even though the engine runs normally.
Manual Section: ElectricsHydraulic functions become erratic after warm-up or under load
Check fluid level and for aeration, warm the oil and re-test, and look for a suction-side restriction causing cavitation. Erratic warm or loaded behaviour that was fine cold usually points to a worn pump or a relief valve drifting off its setting.
Manual Section: HydraulicsEngine cranks but will not start, or stalls unexpectedly
Work the Dieselmax fuel system in order: bleed air, renew blocked filters and check the water separator, then test delivery pressure before condemning the injection pump. Read the engine fault codes for a sensor or stop-solenoid cause behind an unexpected stall.
Manual Section: EngineFrequently Asked Questions
Which JCB Loadall models does this manual cover?
The Side Engine Loadall range 526-56, 531-70, 533-105, 535-95, 536-60, 536-70 and 541-70, including the Tier engine (T) variants, in publication 9803-3760.
How do I reset a service light or read a fault code on a 531-70 or 536-70?
The Electrics and Electronic Data Systems sections cover the CANbus diagnostics, dashboard warnings and fault-code read and reset procedures for the range, so you can clear a service reminder or read a stored code yourself.
What transmission do these Loadalls use, and does the manual cover it?
They use the PS750 3-speed powershift transmission, and the Transmission section covers its configuration, pressures, oil capacities and the full overhaul and fault-finding procedure.
Does it include wiring and hydraulic circuit diagrams?
Yes. The Electrics section carries the wiring schematics and the Hydraulics section carries the systems and schematic circuits, with component locations and fault-finding for both.
What are the key fluid capacities?
The manual lists them in full: a 148-litre fuel tank, 12.5-15 litres of engine oil, 22 litres of coolant, 17-19 litres of transmission oil and a 115-litre hydraulic tank, plus the axle capacities.
My boom will not lift or extend. Where does the manual point me?
To the load-sensing hydraulic diagnostics: checking oil and filter, then flow- and pressure-testing the gear pump and the load-sense/regulator settings that govern boom lift and extend.
