Make sure you know exactly how to run your Loadall 530-70, 532-120, 533-105, 535-60, 535-95, 535-125, 535-140, 537-135, 540-70, 540-140, and 540-170. This 254-page JCB Loadall operator manual PDF (OEM #9801/8980) covers safe operation, daily upkeep, and dashboard diagnostics. Load charts, instrument panel warning indicators, and step-by-step maintenance schedules are all here. The fluid capacities section shows exactly what your machine needs before the shift starts. Torque the axle oil fill plug to 79 Nm, and confirm your 125-liter fuel tank is topped off before hitting the site. A warning light on the dash shouldn't stop your day. Download this bookmarked file, pull it up on your phone in the cab, and keep the job moving.
What's Inside This JCB 530–540 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 9-20 | Machine Model and Serial Number, Handbook Usage, Safety Notices, JCB Immobiliser Option |

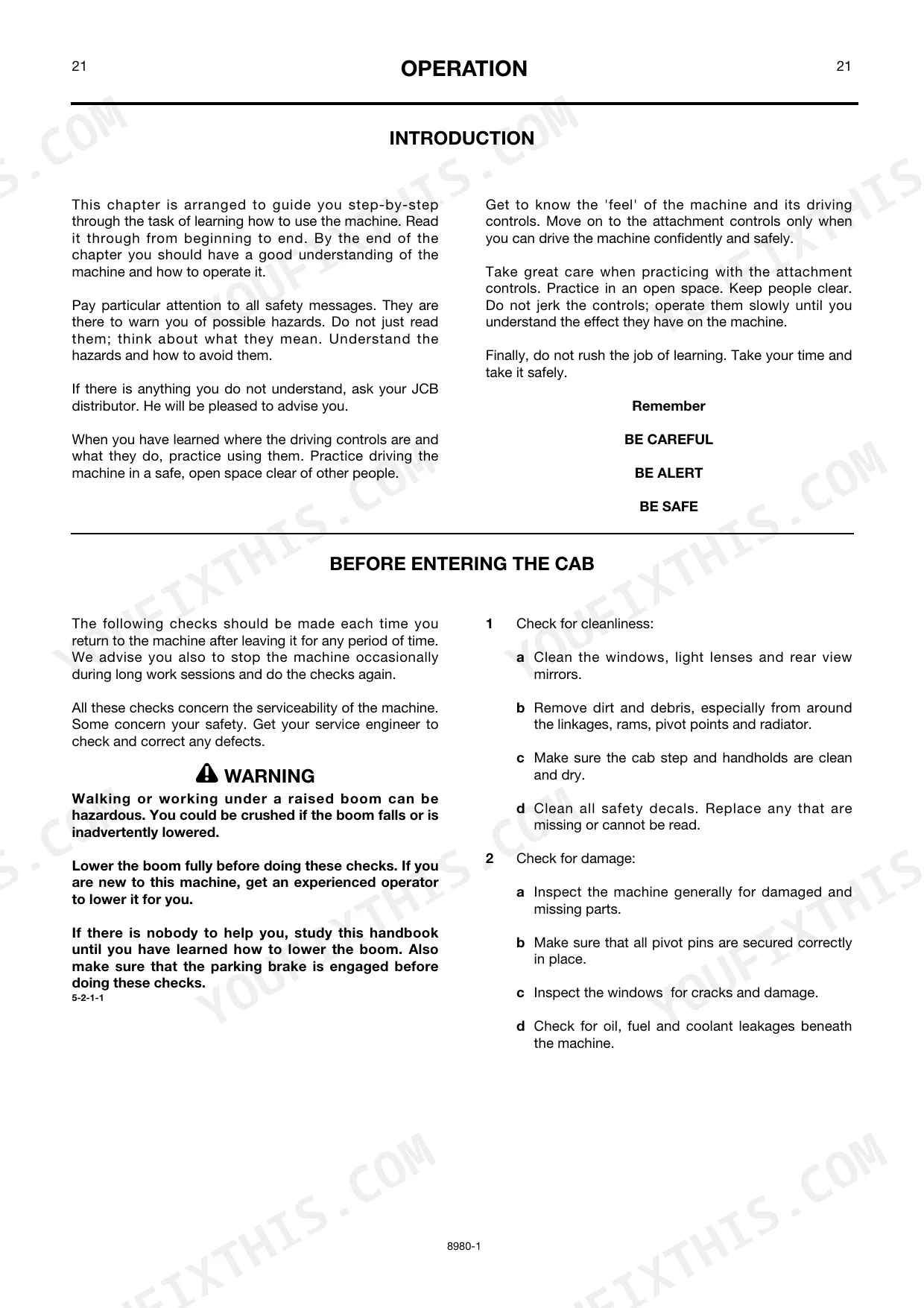

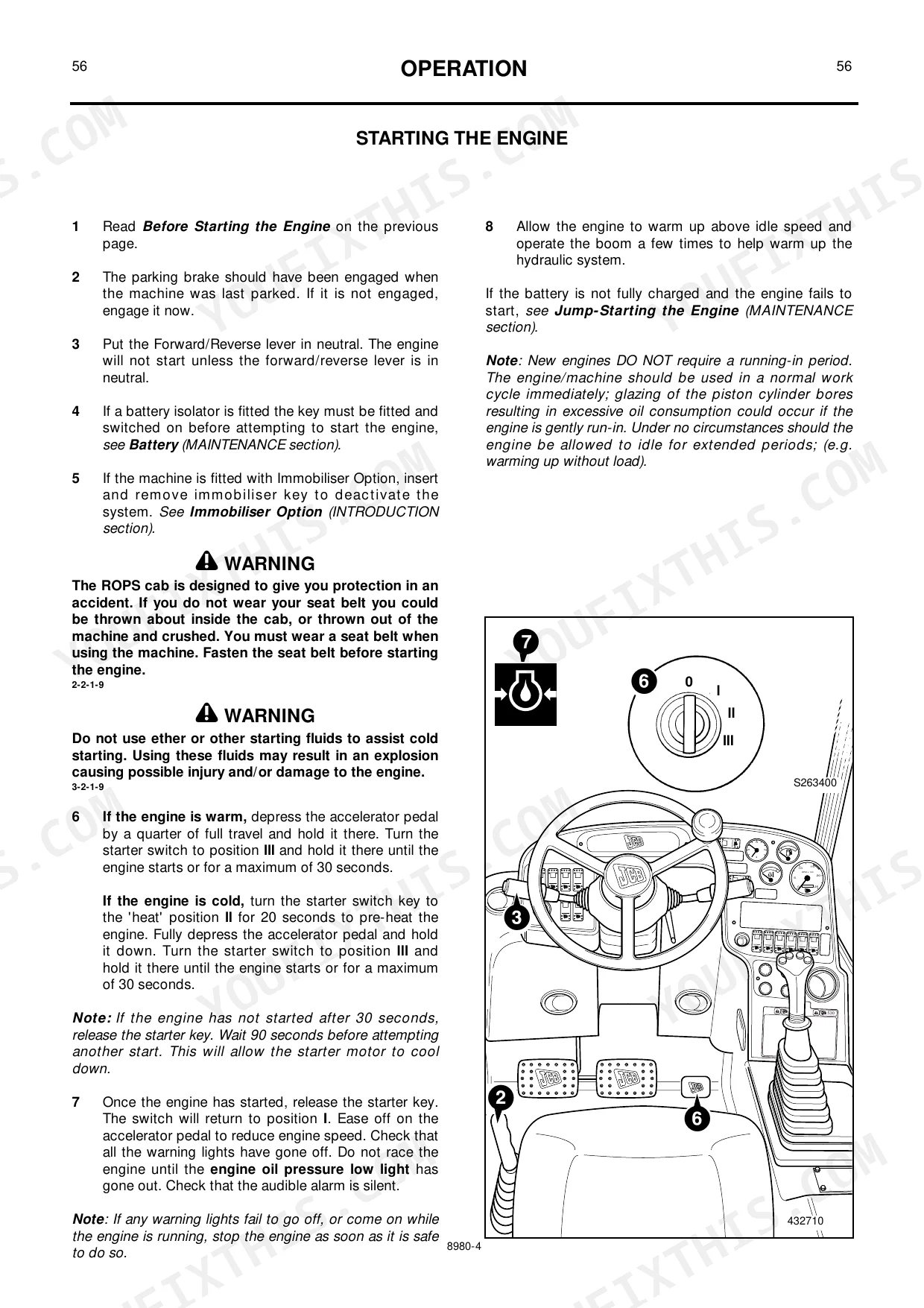

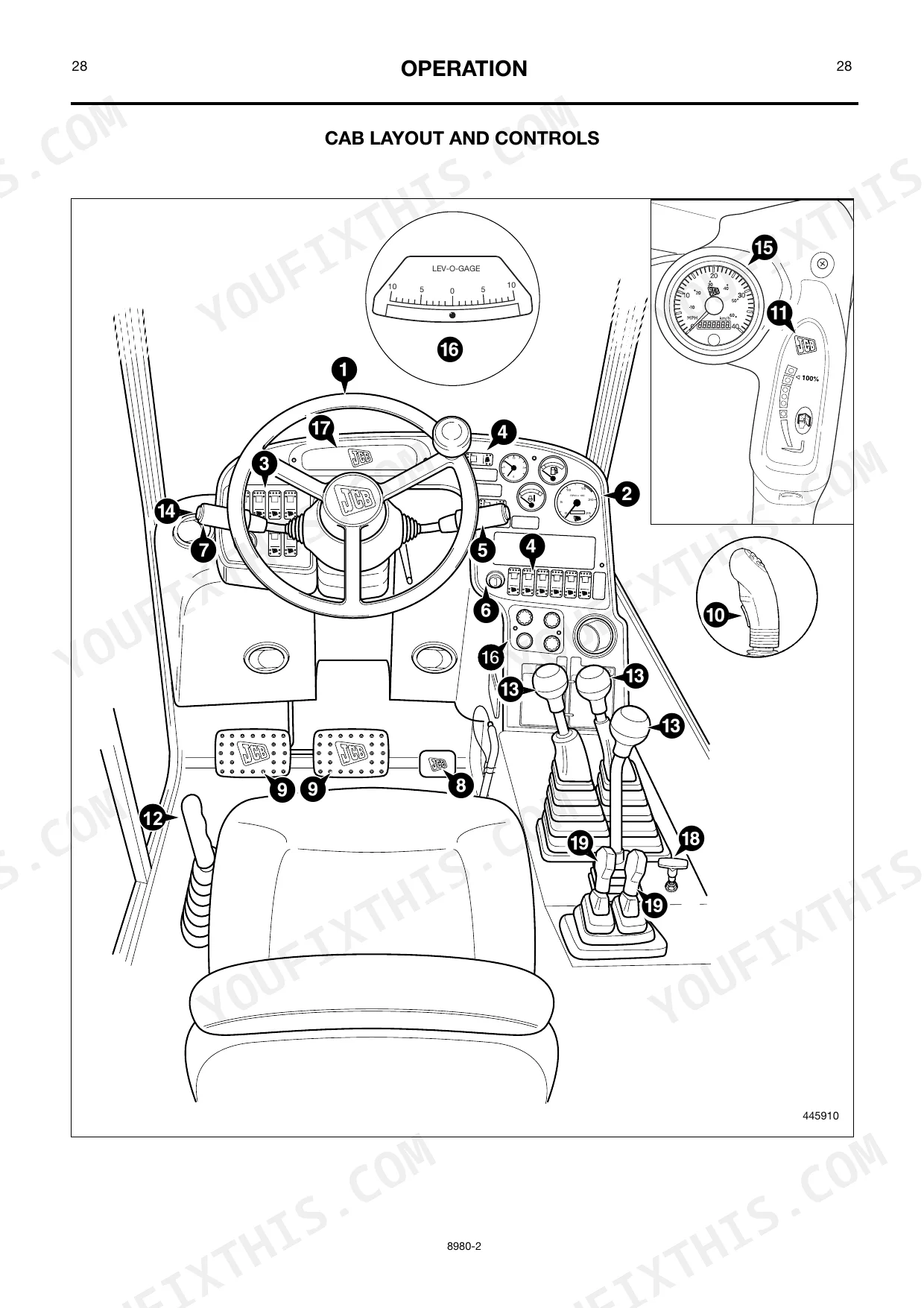

| Operation | 21-68 | Before Entering the Cab, Entering & Leaving the Cab |

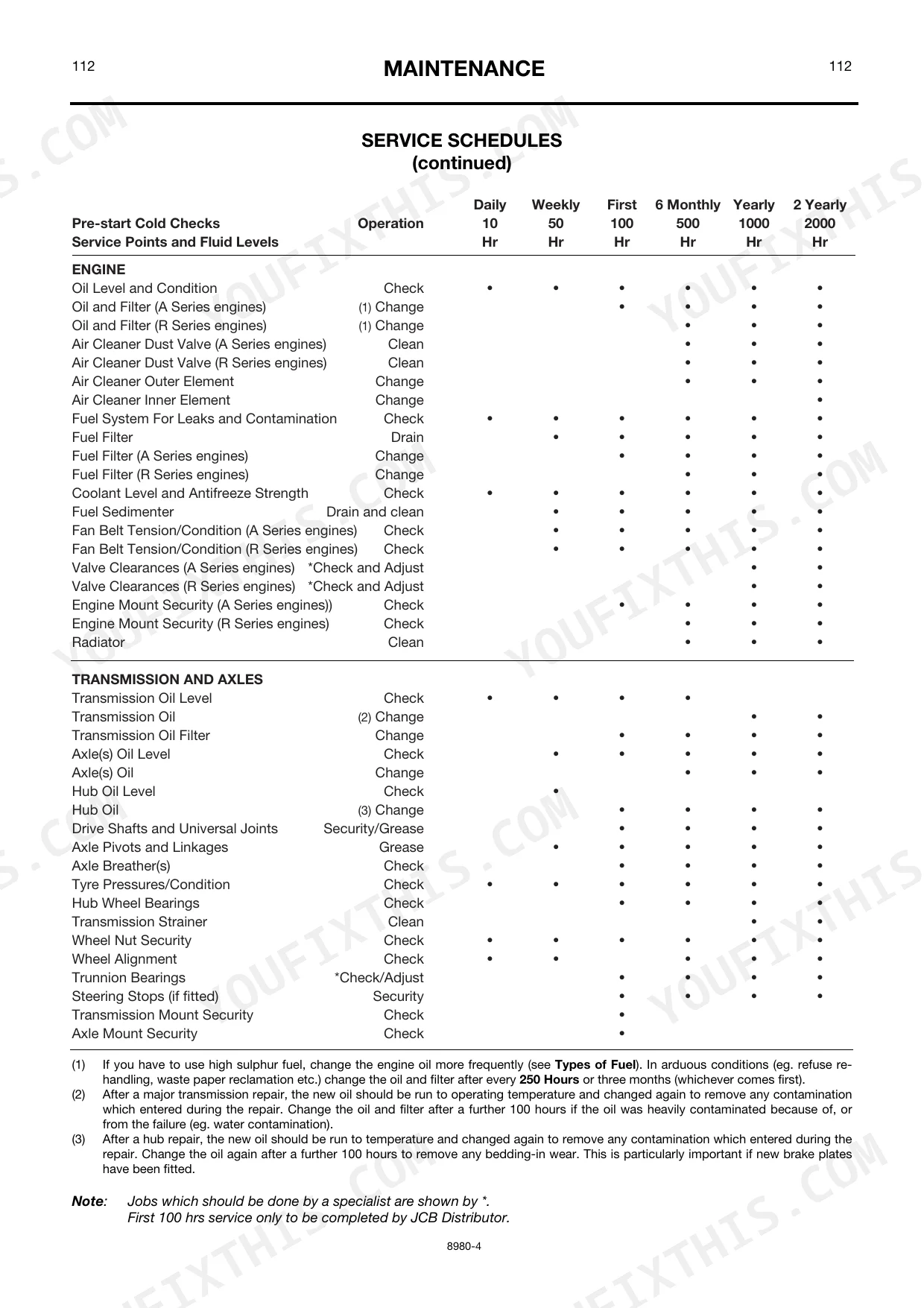

| Maintenance | 112-159 | Lubricants Health and Safety, Service Schedules, Engine Oil and Filter, Hydraulic System, Battery, Boom Safety Strut |
| Optional Attachments | 165-189 | Attachment Safety, Quick Release Couplings, Q-Fit Attachments, Hydraulic Pin Locking, Extension Jib, Fork Mounted Hook, Sideshift Carriage |

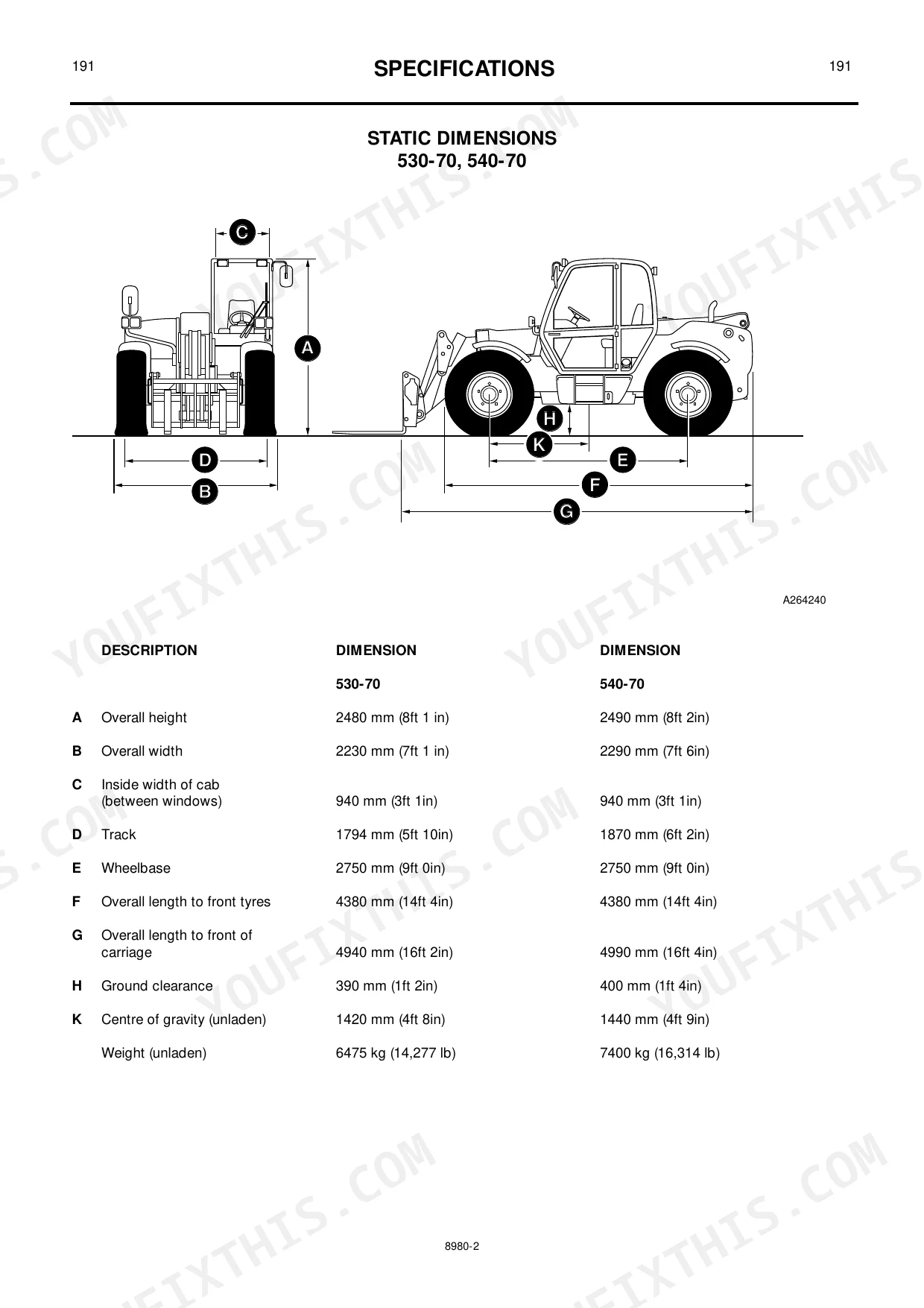

| Specifications | 191-250 | Static Dimensions, Performance Dimensions, Axle Weight Distribution, Engine Emissions, Tyres and Pressures, Load Charts |
| Service Record Sheet | 251-252 | Maintenance Log, Service Intervals, Hour Readings, Annual Insurance Inspection |
| Registration Information | 253-254 | Machine Identification, Dealer Details, Customer Information, Security System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine oil drain plug torque | 34 Nm (25 lbf ft) | p. 131 |
| Axle oil fill/level plug torque | 79 Nm (60 lbf ft) | p. 144 |
| Hub oil plugs torque | 79 Nm (60 lbf ft) | p. 144 |
| Fuel Tank Capacity | 125 Litres (27.5 Gal) | p. 160 |
| Front Axle Housing Capacity | 19 Litres (4.2 Gal) | p. 160 |
| Front Axle Hubs Capacity | 2 Litres (0.4 Gal) (x2) | p. 160 |
| Machines with Type RE engines | ||
| Fuel injection pump union nuts torque | 30 Nm (22 lbf ft) | p. 137 |
| A series | ||
| Engine Oil Capacity (A series) | 10 Litres (2.2 Gal) | p. 160 |
| Engine Coolant Capacity (A series) | 23 Litres (5.0 Gal) | p. 160 |
| R series | ||
| Engine Oil Capacity (R series) | 10 Litres (2.2 Gal) | p. 160 |
| 530-70, 540-70 | ||
| Hydraulic Tank Capacity (530-70, 540-70) | 115 Litres (25.3 Gal) | p. 160 |
| 540-170 | ||
| Hydraulic Tank Capacity (540-170) | 180 Litres (39 Gal) | p. 161 |
JCB 530–540 Common Problems This Manual Covers
JCB 530-70 Loadall engine air filter warning light illuminated and loss of power p. 131
Inspect the engine air filter housing for heavy dust buildup or blockages. Change the filter elements as outlined in the service schedule. When replacing the engine oil during this service, torque the drain plug to 34 Nm (25 lbf ft) as detailed on page 131.
Manual Section: MaintenanceEngine misfires, fails to start, or runs rough after running completely out of fuel p. 137
Prime the fuel system to bleed trapped air from the lines. Loosen and bleed the fuel injection pump union nuts, then torque them to 30 Nm (22 lbf ft) as shown on page 137. Fill the tank to its 125 Litres (27.5 Gal) capacity found on page 160.
Manual Section: MaintenanceFront and rear road wheels feel loose or vibrate heavily during high speed transit p. 129
Inspect all wheel nuts for signs of backing off or thread damage. Verify roadwheel tightness on page 129. Torque the front and rear wheel nuts to exactly 680 Nm (500 lbf ft) using a calibrated wrench. Check tyre pressures daily before operating.
Manual Section: MaintenanceBoom wear pads making loud grinding noise during boom extension or retraction p. 162
Check the boom wear pad clearance specifications on page 162. Measure the gap at point A with the boom fully retracted. If operating a 540-170, verify the clearance is exactly 22 mm (0.87 in) as shown on page 163. Adjust or replace the pads if worn.
Manual Section: MaintenanceAxle oil level low or frequent topping up required after heavy operation p. 144
Clean the area around the axle hubs and inspect the casing for leaks. Remove the axle oil fill plug and top up the fluid. Reinstall the plug and torque it to 79 Nm (60 lbf ft) as specified on page 144 to prevent further seepage.
Manual Section: MaintenanceFrequently Asked Questions
How do I clear error codes on a JCB 532-120 telehandler?
To clear error codes on a JCB 532-120 telehandler, if any fault codes are displayed, switch the starter key off and on again. If the fault does not clear after this procedure, contact your JCB distributor for further assistance. This applies to both LC1 and LC2 Load Control Systems.
What does the error code mean on a JCB 535-95?
For a JCB 535-95, if the Load Moment Indicator (LMI) system detects a fault, various combinations of lights on the display will indicate a fault code for approximately 10 seconds. For example, Error Code 1 indicates a 'Transducer signal fault' (transducer disconnected or wiring damaged), and Error Code 2 signifies 'Calibration out of range' (system is incorrectly calibrated). If fault codes persist after switching the starter key off and on, contact your JCB distributor.
How do I perform a basic reset after battery disconnect on a JCB 540-170?
After disconnecting the battery on a JCB 540-170, a basic reset involves noting that the clock will need to be reset. Additionally, the radio/cassette player may lose its preset memories. No further specific reset procedure is detailed in the manual for general machine functions after battery isolation.
What are the torque specs for wheel nuts on a JCB 533-105?
For a JCB 533-105, the wheel nut torque specifications are 680 Nm (500 lbf ft) for both front and rear wheels. These torques should be checked every two hours on new machines or whenever a wheel has been removed, until they remain correct. Daily checks are recommended before starting work.
how to reset fault codes on JCB 533-105
To reset fault codes on a JCB 533-105, if any fault codes are displayed, switch the starter key off and on again. If the fault does not clear after this action, contact your JCB distributor for further investigation and repair. The system is designed to return to normal operation once the fault clears.
How quickly can I access this manual after buying?
You get a 254-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned PDF, with an OCR layer applied, so you can search the full text and copy content. The text quality is generally good and readable, though some pages may exhibit slight pixelation typical of scanned documents. Diagrams and illustrations are raster images, but they are clear, and all labels are legible. The pages are clean, without noticeable scan artifacts, stains, or skewed content.
