Looking for the factory procedures for your JCB Loadall? This 539-page JCB 530-70, 530-110 service manual pdf (OEM #9813/3850-2) breaks down every system on your machine so you can keep it lifting. Open it up to find complete hydraulic schematics, detailed wiring diagrams, and step-by-step diagnostic charts to trace down those stubborn faults. You get massive torque tables for every fastener, routine maintenance schedules, and full tear-down procedures for major components. Lock down the front wheel nuts to exactly 680 N·m as shown in Table 41, or verify your 1/4-inch BSP hydraulic adaptors are tightened to the specified torque before firing up the pump. Stop hunting through sketchy forum posts for critical numbers. Download this bookmarked file right to your tablet, jump straight to the fix, and get your equipment back on the job site.
What's Inside This JCB 530-70, 530-110 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 6-7 | - |
| Safety | 8-9 | - |
| Use | 10-13 | Introduction, Scope, Personnel, Newest Data, Format, Left Side, Right Side, Hydraulic Schematic Codes |
| Routine Maintenance | 14-15 | Maintenance Schedules |
| Service Tools | 16-41 | Numerical List, Section B, Section C, Section E, Section F, Section H, Section K |
| Service Aids | 42-43 | Sealing and Retaining Compounds |

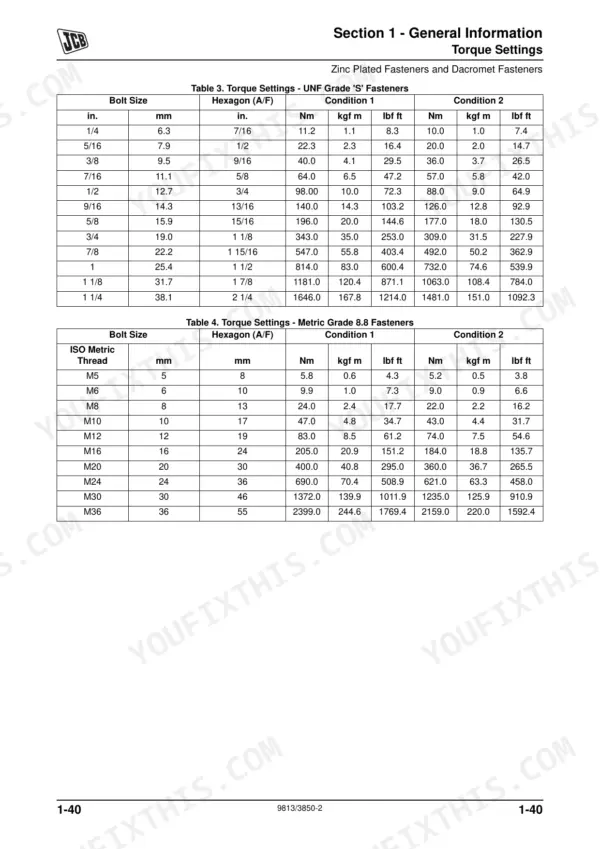

| Torque Settings | 44-53 | Zinc Plated Fasteners and Dacromet Fasteners (Introduction, Bolts and Screws, Hydraulic Connections, 'o' Ring Face Seal System, 'Torque Stop' Hose System, 'Quick-Connect' Pilot Hoses, Disconnecting, Connecting) |
| General Procedures | 54-539 | Introduction, Parking the Machine and Making It Safe, Venting the Hydraulic Pressure, Connecting/Disconnecting Hydraulic Hoses, Battery Disconnection/Connection |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Nut Torque | 680 N·m | p. 264 |
| Rear Wheel Nut Torque | 680 N·m | p. 264 |
| BSP Adaptors (1/4 in.) | 18.0 Nm | p. 48 |
| BSP Adaptors (3/8 in.) | 31.0 Nm | p. 48 |
| LLMI Audible Warning Activation | The red LED will illuminate and an audible warning will activate if the load exceeds the maximum working limit. | p. 142 |
| LLMI Fault Code Indication | If a system fault is detected, a combination of LED will indicate a fault code for approximately 10 seconds, then flash continuously. Audible alarm sounds. | p. 308 |
| Hydraulic hose replacement | Replace a damaged hose before you use the machine again. The replacement hoses must be of the same size, standard and pressure rating. | p. 239 |
| Hydraulic hose clamping for length changes | Do not clamp at the bend. The curve absorbs the change. | p. 168 |
| Engine oil filter replacement interval | Replace at 500 hours (or 250 hours under arduous conditions) | p. 194 |
| Hydraulic oil filter replacement interval | Replace at 500 hours | p. 195 |
| Drive belt tension adjustment | The belt is automatically kept in tension so will not need to be adjusted. | p. 217 |
| Drive belt inspection | Inspect the belt for cracks A, fraying B or for missing pieces C. If necessary contact your JCB dealer for service requirements. | p. 217 |
JCB 530-70, 530-110 Common Problems This Manual Covers
JCB 530-70 hydraulic pump grinding noise and slow operation when trying to lift a heavy load p. 416
Check the hydraulic oil level and top up if low. Inspect the pump inlet hoses for air leaks. Test the system pressure and verify the main relief valve pressure is within specification. Replace the pump if pressure is insufficient.
Manual Section: Hydraulics - Fault FindingEngine coolant temperature warning alarm sounds constantly and the radiator loses fluid during normal operation p. 226
Inspect the radiator and system hoses for leaks as outlined on page 226. Verify the cooling fan motor speed is within specification. Drain the engine oil and check for cross-contamination. Refill with fresh oil to the specified capacity.
Manual Section: Routine MaintenanceRed LED illuminates, audible warning activates continuously, and boom extension functions stop working completely p. 308
Turn the ignition key switch to OFF and then ON again to reset the system. Count the flashing LED combinations to identify the fault code on page 308. Inspect the axle transducer and torque the mounting bolts to the specified value shown in the manual.
Manual Section: Body and Framework - Longitudinal Load Moment System - Fault FindingSteering wheel feels extremely difficult to turn and machine wanders randomly on flat surfaces p. 521
Check the front axle fluid levels. Inspect the steering priority valve for sticking spools. Torque the front wheel nuts to exactly 680 N·m as specified on page 264 (Table 41). Bleed all trapped air from the steering cylinders.
Manual Section: Steering - Fault FindingFrequently Asked Questions
How to reset a JCB 530-70 fault code?
To reset LLMI fault codes, turn the Ignition key switch to OFF and then ON again. If the fault does not clear, refer to the fault finding tables for further diagnosis. This procedure is applicable for both 530-70 and 530-110 models.
What do JCB 530-70 error codes mean?
For the Longitudinal Load Moment Indicator (LLMI) system, fault codes indicate specific issues. Calibration faults include 'Transducer signal error' (code 1), 'Calibration required error' (code 2), and 'Display unit error' (code 3). External faults include 'Axle transducer out of range' (code 1), 'Battery voltage at unit low' (code 2), and 'Battery voltage at unit high' (code 3). LLMI unit internal faults are indicated by codes 1-6.
What is the torque spec for JCB 530-70 wheel nuts?
The torque specification for both front and rear wheel nuts on the JCB 530-70 is 680 N·m. This information is provided in Table 41 of the Technical Data section.
How do I replace a hydraulic hose on the JCB 530-70?
Replace any damaged hydraulic hose before using the machine. The replacement must match the original in size, standard, and pressure rating. Do not clamp a hose at a bend — the curve absorbs length changes. Refer to page 239 for full replacement procedures.
What do I get after purchasing this JCB 530-70, 530-110 manual?
You get a 539-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are hydraulic system diagrams in this JCB 530-70, 530-110 Service Manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
Document Quality
This document is a scanned PDF service manual with an OCR layer, allowing you to search and copy text throughout. The text quality is generally crisp and easy to read, with minimal blurriness. Diagrams and illustrations, including machine schematics and photos, are raster images; while they are clear enough for identification, some details may appear pixelated when zoomed in, but labels remain readable. Pages are clean with no notable scan artifacts, stains, or skewed content, though several pages are intentionally left blank as filler.
