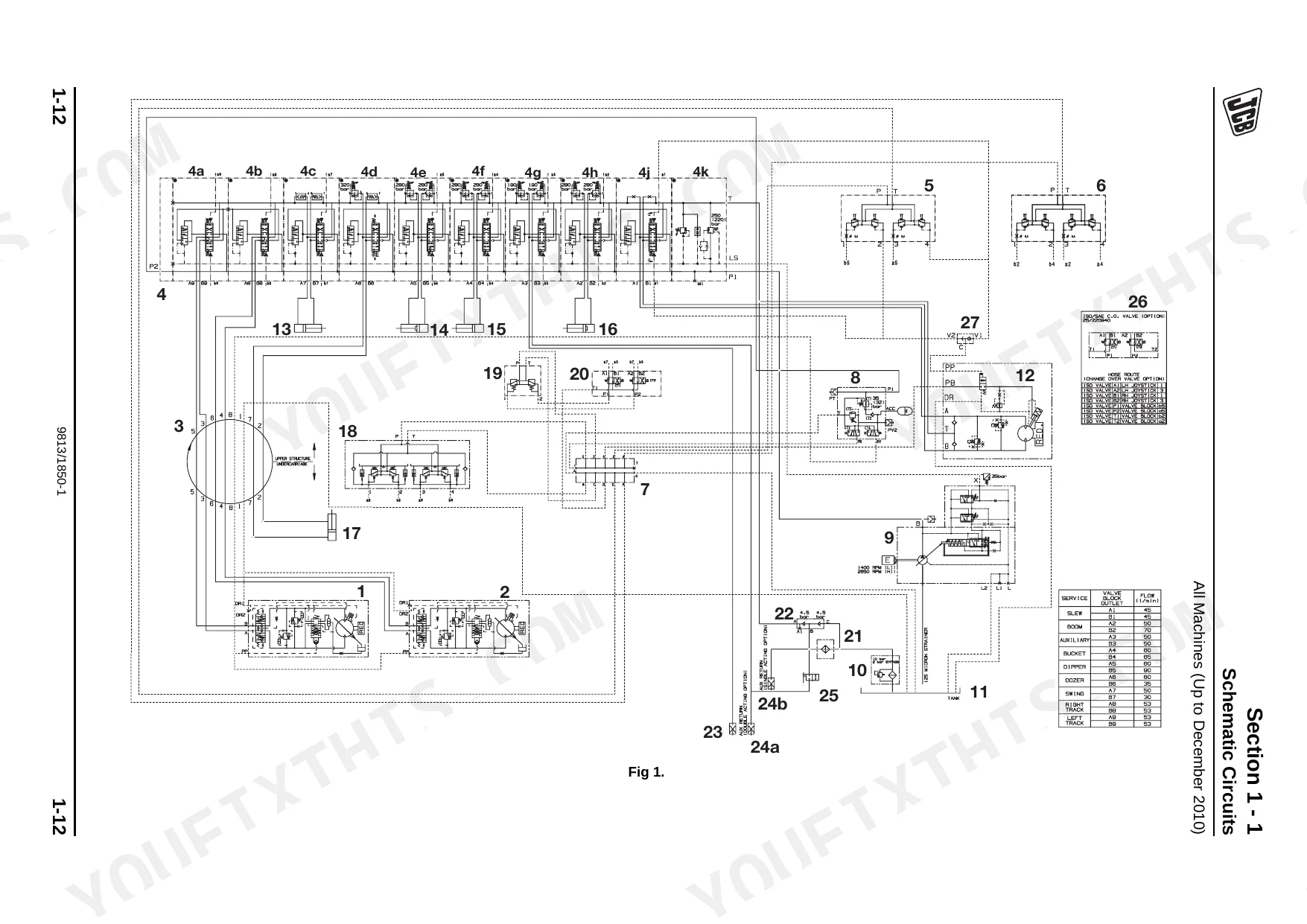

Looking for the factory teardown procedures for your JCB mini excavator? This 457-page JCB 8055 service manual pdf (OEM #9813/1850-1) covers the complete machine, alongside the 8040, 8045, 8050, and Tier 2/Tier 3 engine variants. You get detailed hydraulic schematics mapping out the main services and slew circuits, plus full wire-by-wire electrical diagrams for every mainframe harness. Open the track and running gear section to find step-by-step rebuild procedures for your track motors, gearboxes, and rotary couplings. Lock down the bottom roller to the undercarriage at exactly 244 Nm and make sure you swap the fuel sedimenter element right at the 500-hour mark. Stop tearing down complex valve blocks without a roadmap. Grab this bookmarked download, open it on your shop tablet, and get the iron moving again.
What's Inside This JCB 8040 & variants Manual
| System | Pages | Key Topics |
|---|---|---|

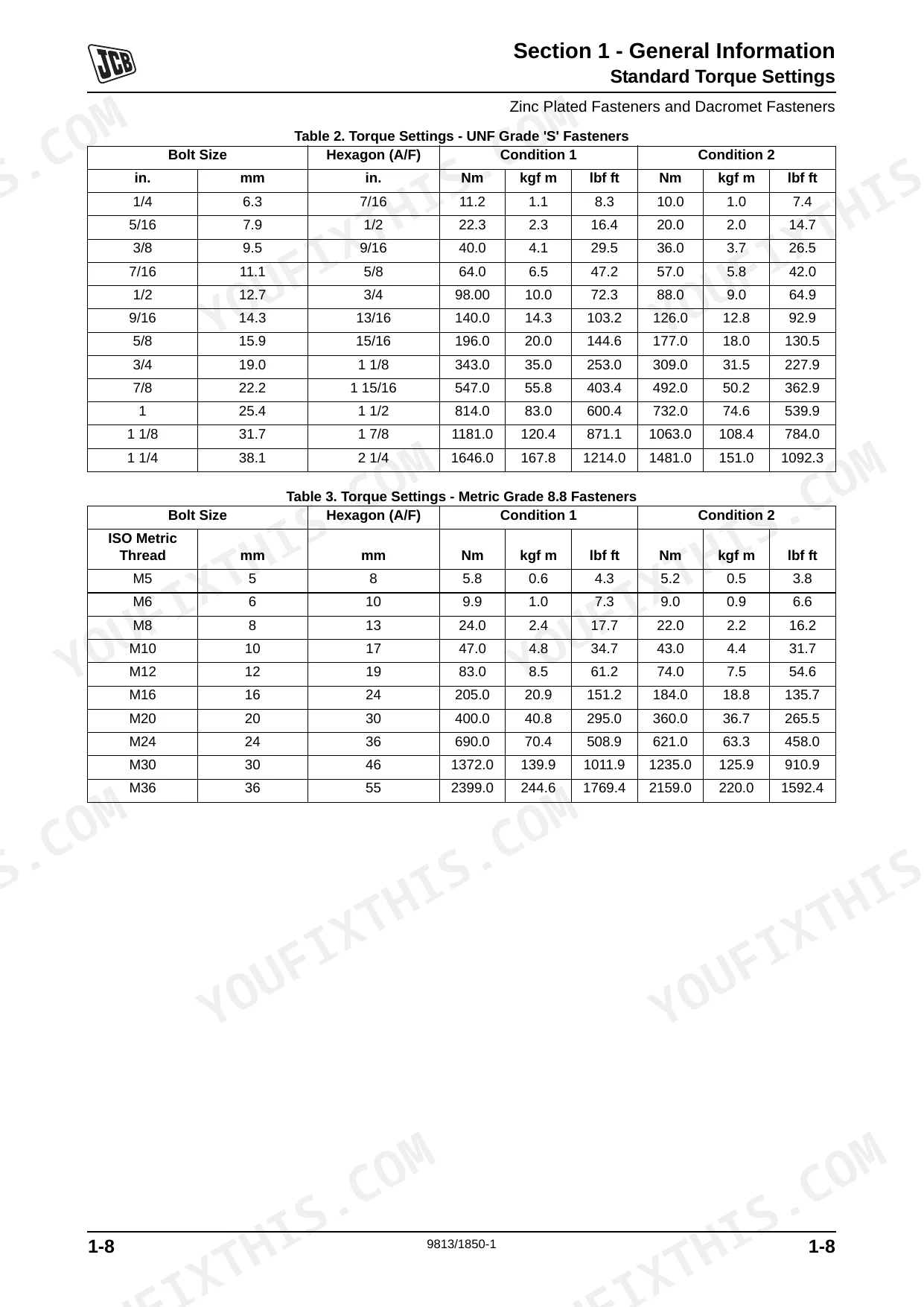

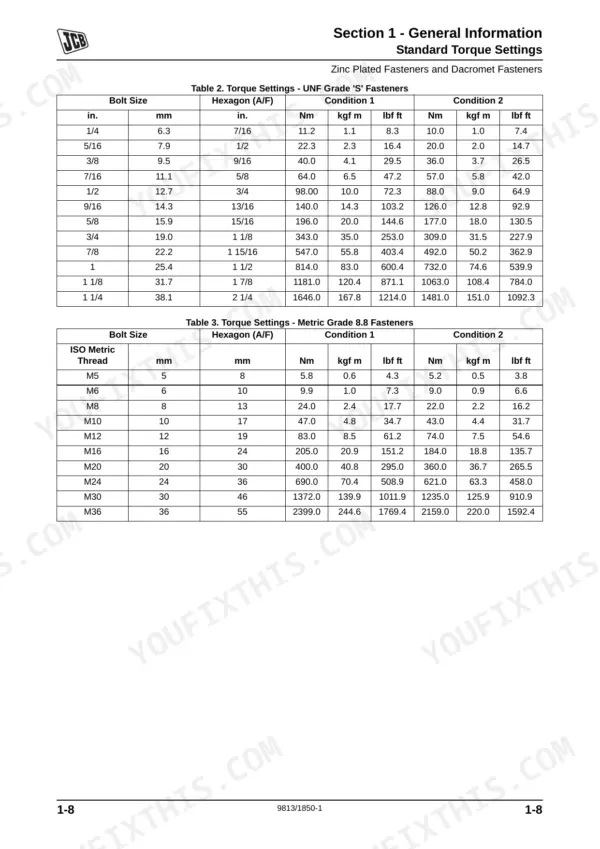

| General Information | 1-37 | Introduction, Identifying Your Machine, Standard Torque Settings, Service Tools, Service Consumables, Terms and Definitions |
| Care and Safety | 38-57 | Safety Notices (Important Information, Operator Manual, Safety Warnings), Safety Check List (Safety - Yours and Others, Operating Safety, Maintenance Safety) |

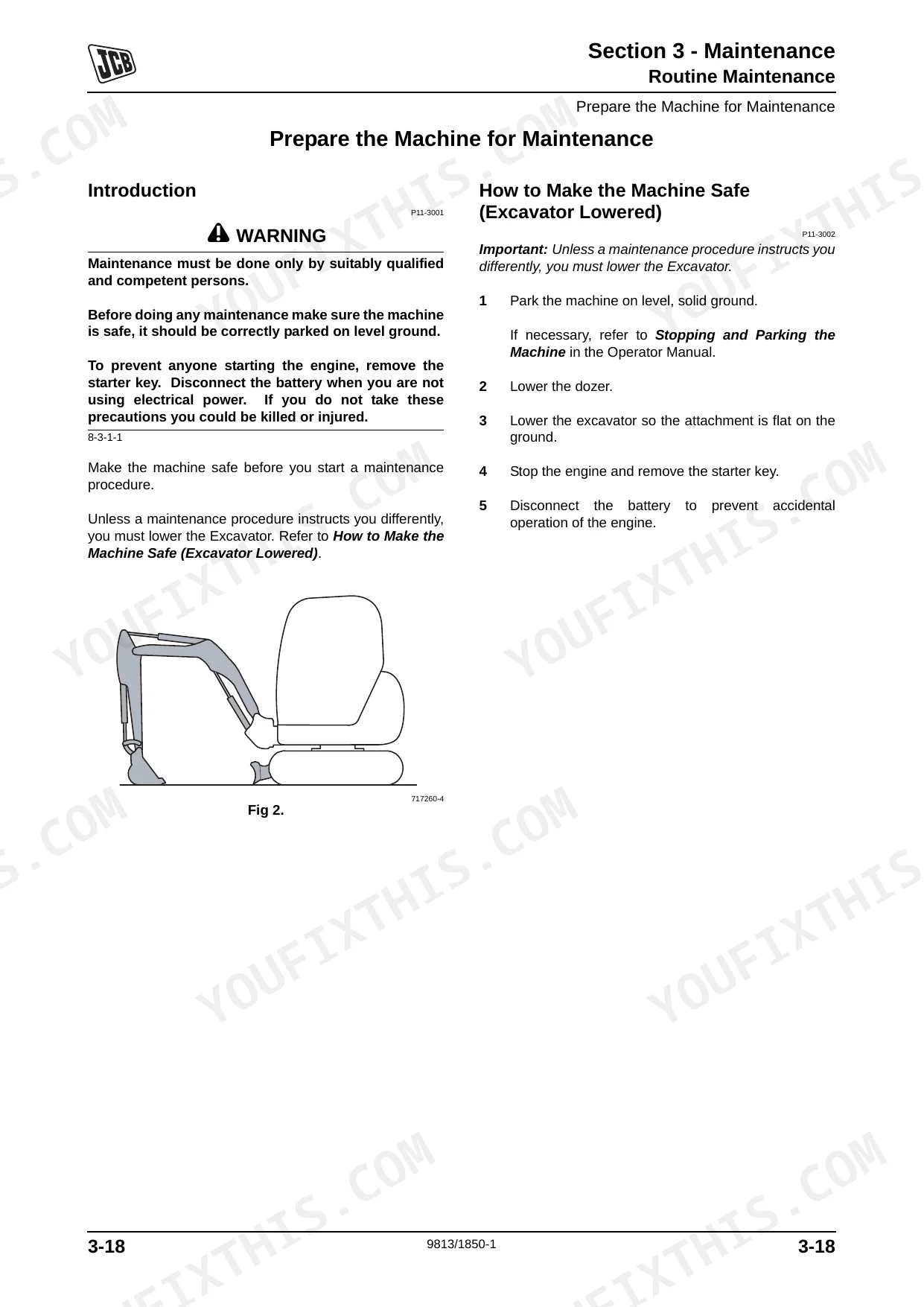

| Maintenance | 58-115 | Routine Maintenance (Service Requirements, Introduction, Owner/Operator Support, Service/Maintenance Agreements, Fit for Purpose Tests for Lifting Equipment, Obtaining Replacement Parts, Health and Safety, Lubricants, Battery, Service Schedules, How to Use the Service Schedules, Calendar Equivalents, Pre-Start Cold Checks, Service Points and Fluid Levels, Functional Test and Final Inspection, Fluids, Lubricants and Capacities, Coolant Mixtures, Fuels, Tools, Toolbox, Carrying Tools Onto the Machine, Prepare the Machine for Maintenance, How to Make the Machine Safe, Cleaning the Machine, Preparing the Machine for Cleaning, Cleaning the Tracks, Checking for Damage, Check the Machine Body and Structure, Check the Seat and Seat Belt, Check the Hydraulic Hoses and Fittings, Check the Electrical Circuits, Checking the ROPS/FOPS Structure, Checking the Ram Piston Rods, Greasing, Pivot Pins, Slew Ring Bearings, Slew Ring Gear Teeth, Access Panels, Engine Cover, Hydraulic Bay Cover, Electrical System, Fuses, Engine, Oil and Filter, Cooling System, Fan Belt, Air Filter) |
| Attachments | 116-137 | Introduction, Attachments for Your Machine, Impact Protection, Connecting/Disconnecting Hydraulic Hoses (Introduction, Quick Release Couplings) |
| Body and Framework | 138-165 | Service Procedures (Rivet Nuts, Fitting Procedure, Glazing, Direct Glazing), Kingpost (Removal and Replacement, Removal, Replacement) |
| Electrics | 166-239 | Technical Data |

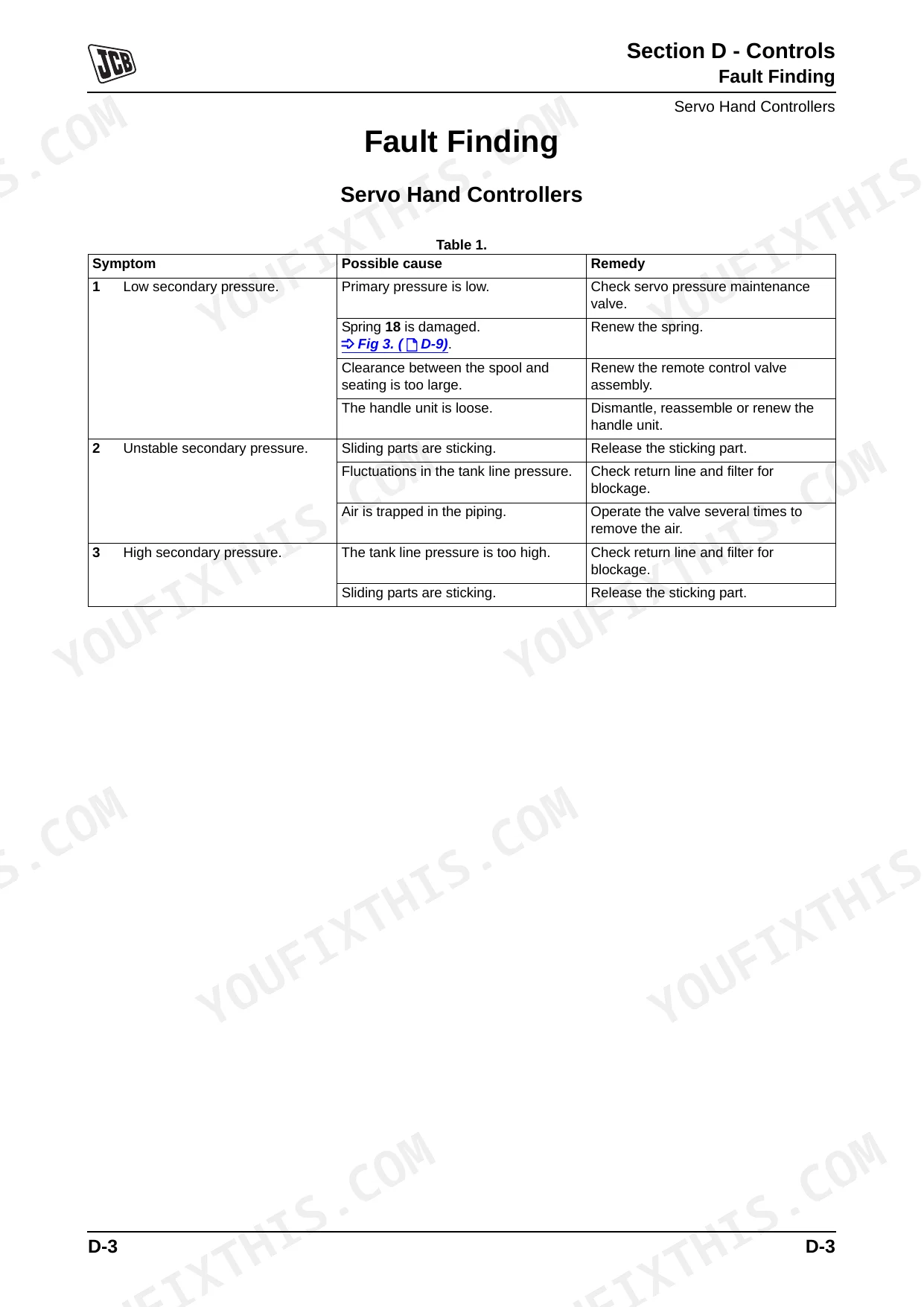

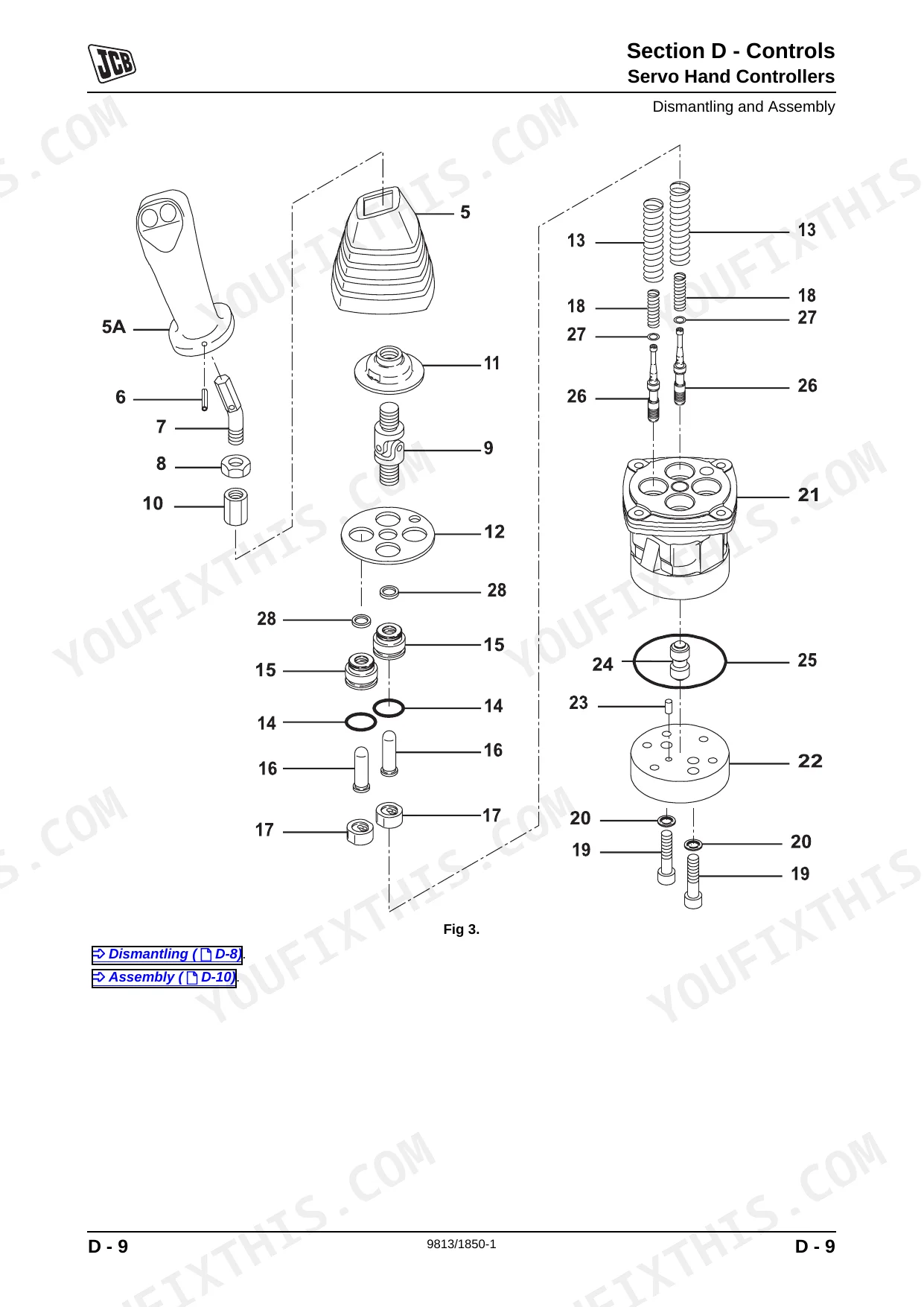

| Controls | 240-269 | Controls Identification, Fault Finding, Servo Hand Controllers, Track Levers, Dozer Lever, Engine Throttle, Auxiliary Controls (If Fitted) |

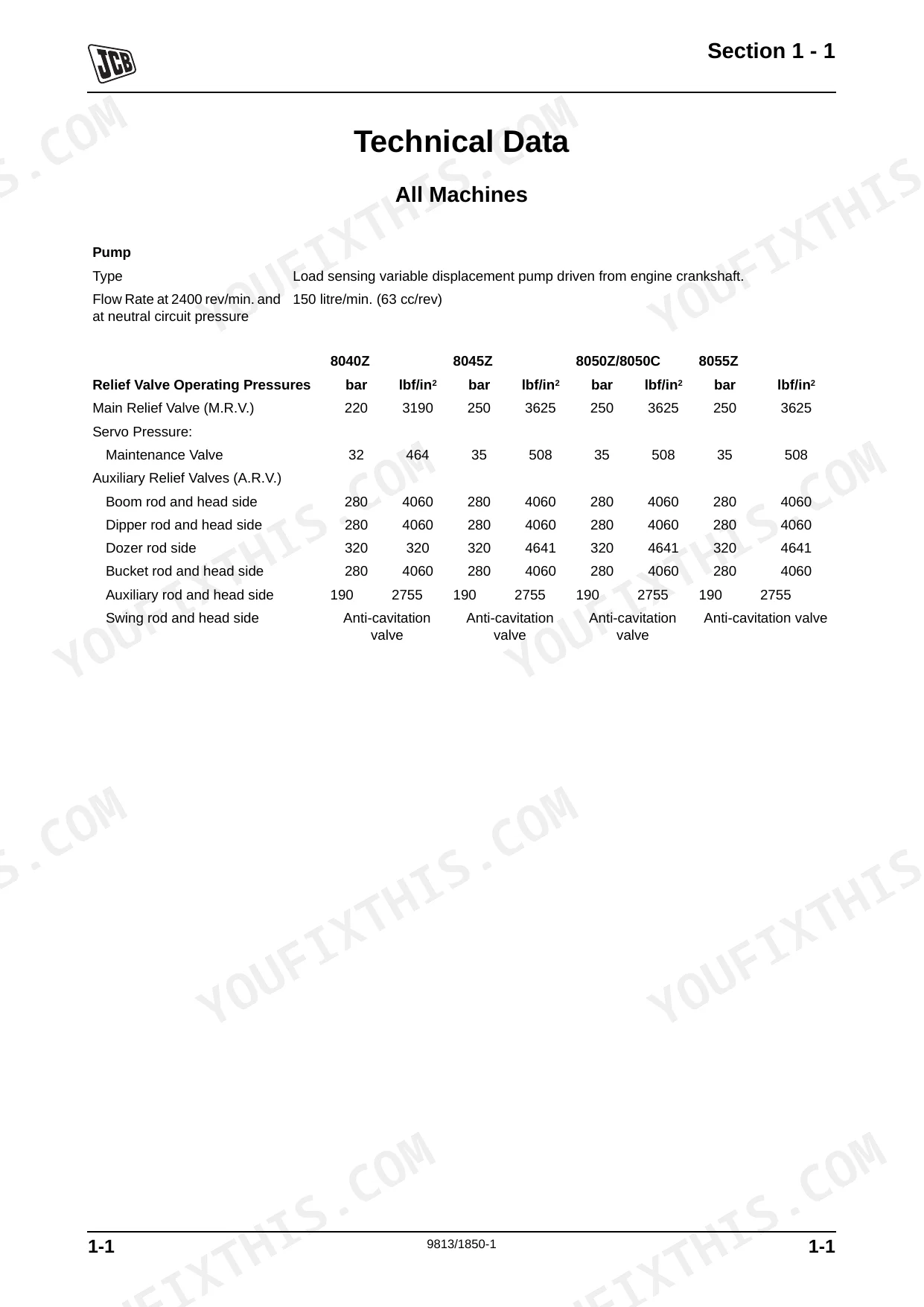

| Hydraulics | 270-419 | Technical Data (All Machines), Basic System Operation (Introduction to Hydraulic Schematic Symbols, Control Valves, Example of Schematic Circuit) |
| Gearboxes | 420-425 | Notes, Technical Data |
| Track and Running Gear | 426-451 | Tracks and Running Gear (Technical Data, Major Component Torque Settings), Steel Track (Removal and Replacement), Rubber Track (Removal and Replacement) |
| Engine | 452-457 | Notes, General, Technical Data |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Bottom roller to undercarriage torque | 244 Nm, 24.9 kgf m, 180 lbf ft | p. 431 |
| Top roller to undercarriage torque | 350 Nm, 35.7 kgf m, 258 lbf ft | p. 431 |
| Fuel Filter/Sedimenter Element replacement interval | Change every 500 hours | p. 70 |
| Primary Fuel Filter check interval | Check every 10 hours | p. 70 |
| Fuel Sedimenter maintenance interval | Drain and Clean every 50 hours | p. 70 |
| Fan Belt Tension/Condition check interval | Check and Adjust every 50 hours | p. 70 |
| Fan Belt deflection | 7mm (0.28 in) approx. for 49 Nm (11 lbf, 5 kgf) approx. finger force | p. 102 |
| Track Gearbox Oil change interval | Change every 1000 hours | p. 70 |
| Track Gearbox Oil capacity (each) | 0.8 Litres (0.2 Gal) | p. 73 |
| Hydraulic Oil level check interval | Check every 10 hours | p. 70 |
| Hydraulic System capacity | 105 Litres (23.0 Gal) | p. 73 |
| Engine Oil level check interval | Check every 10 hours | p. 70 |
JCB 8040 & variants Common Problems This Manual Covers
JCB 8040 engine will not start after prolonged shutdown or turns over slowly without firing p. 73
Drain the fuel sedimenter and replace the filter elements before attempting to crank again. Bleed all air from the system completely. Fill the tank to its full 103 Litres (22.7 Gal) capacity as detailed on page 73. Crank the engine and verify it fires evenly without sputtering or stalling.
Manual Section: MaintenanceTemperature gauge spikes into the red zone and coolant boils over during heavy operation p. 102
Inspect the radiator matrix for debris and verify the fan belt deflection is exactly 7mm (0.28 in) using 49 Nm finger force, as specified on page 102. Adjust the tension if it slips. Top off the radiator and ensure your 50% coolant mix provides protection down to -40 °C (-39 °F).
Manual Section: MaintenanceSluggish implement response and weak track drive power when operating multiple hydraulic functions simultaneously p. 277
Check the hydraulic oil level daily and inspect all lines for leaks. If the reservoir is low, fill the system to its 95 Litres (21 gal) capacity, referencing page 277 for fluid details. Torque any loose 1/4 in BSP adaptors to 18.0 Nm to prevent pressure loss and fluid weeping.
Manual Section: HydraulicsGrinding noise from the undercarriage and poor travel performance when turning or climbing inclines p. 426
Remove the fill plug and verify the track gearbox oil is level with the hole, as shown on page 112. Drain contaminated fluid and refill with fresh engine oil. Inspect the undercarriage and torque the bottom roller bolts to 244 Nm to ensure the track frame remains securely aligned.
Manual Section: Track and Running GearFrequently Asked Questions
What does error code mean on a JCB 8040/8045/8050/8055?
The manual provides a 'Flash Error Codes' table for the Electronic Throttle System. For example, Flash Code 1 indicates 'APECS unit not calibrated', requiring calibration of the APECS unit. Flash Code 14 signifies 'Actuator disconnected or open circuit', which requires checking the actuator wiring and resistance, ensuring it is less than 10 ohms.
What are the torque specs for JCB 8040/8045/8050/8055 track frame, slew, or engine fasteners?
Torque specifications vary by component. For track and running gear, the top roller to undercarriage requires 350 Nm (258 lbf ft), bottom roller to undercarriage requires 244 Nm (180 lbf ft), and sprockets to track motors require 167 Nm (123 lbf ft). For the Main Relief Valve, screw it into the valve block and torque tighten to 50 Nm (37 lbf ft). For the Slew Motor/Gearbox, Item 1 fasteners require 26-32 Nm (19-23 lbf ft).
How do you fix JCB 8040 engine will not start after prolonged shutdown or turns over slowly without firing?
Drain the fuel sedimenter and replace the filter elements before attempting to crank again. Bleed all air from the system completely. Fill the tank to its full 103 Litres (22.7 Gal) capacity as detailed on page 73. Crank the engine and verify it fires evenly without sputtering or stalling.
How do you fix temperature gauge spikes into the red zone and coolant boils over during heavy operation?
Inspect the radiator matrix for debris and verify the fan belt deflection is exactly 7mm (0.28 in) using 49 Nm finger force, as specified on page 102. Adjust the tension if it slips. Top off the radiator and ensure your 50% coolant mix provides protection down to -40 °C (-39 °F).
What do I get after purchasing this JCB 8040 & variants manual?
You get a 457-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Service Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.

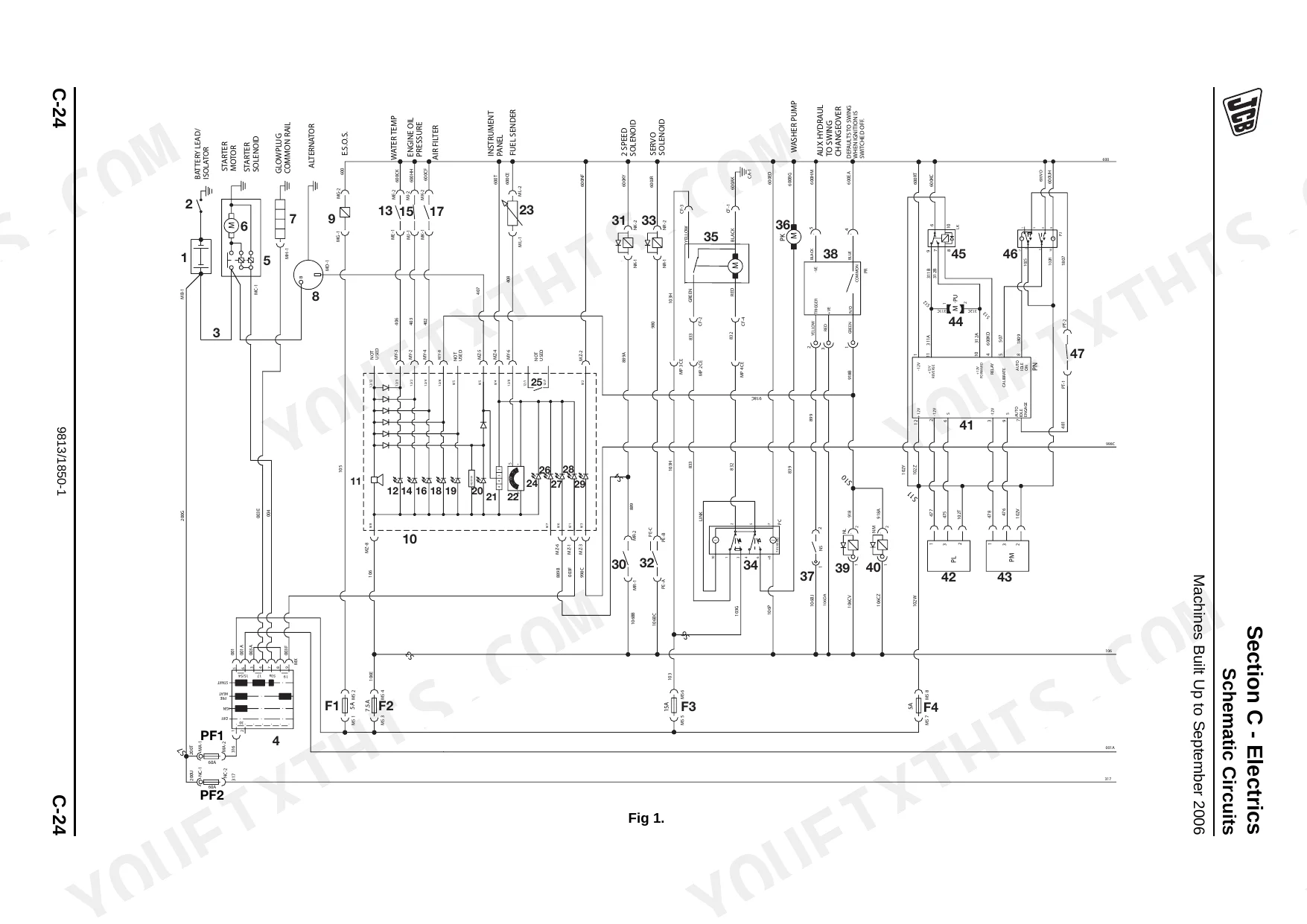

Are there wiring harness diagrams in this JCB 8040 & variants manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This is a high-quality native digital PDF, allowing you to search and copy all text. The text is consistently crisp and easy to read, and most diagrams, including complex wiring schematics, are vector-based for clarity at any zoom. Some illustrations are clear raster images, with all labels remaining perfectly readable. Pages are clean and free from scan artifacts, though there are several intentionally blank pages noted throughout.
