Looking for the exact factory procedures to fix your articulated hauler? This 306-page JCB 712, 716 service manual pdf (OEM #9803/5000) breaks down the complete engine, transmission, and hydraulic systems for the 700 Series machines. Inside, you get detailed wiring diagrams, full hydraulic schematics covering the lift rams and control valves, and step-by-step teardowns for the 18000 and 24000 Series transmissions. Open to any chapter to find exploded views of the ZF axle hubs paired with complete maintenance schedules to keep your heavy equipment working hard. Make sure you top off the engine oil to exactly 14.8 liters and keep the maximum brake pressure differential strictly at 30 bar. Stop wasting shop hours tearing into unfamiliar axles blind. Grab this bookmarked digital download, pull it up on your shop laptop, and start turning wrenches.
What's Inside This JCB 712, 716 Manual
| System | Pages | Key Topics |
|---|---|---|

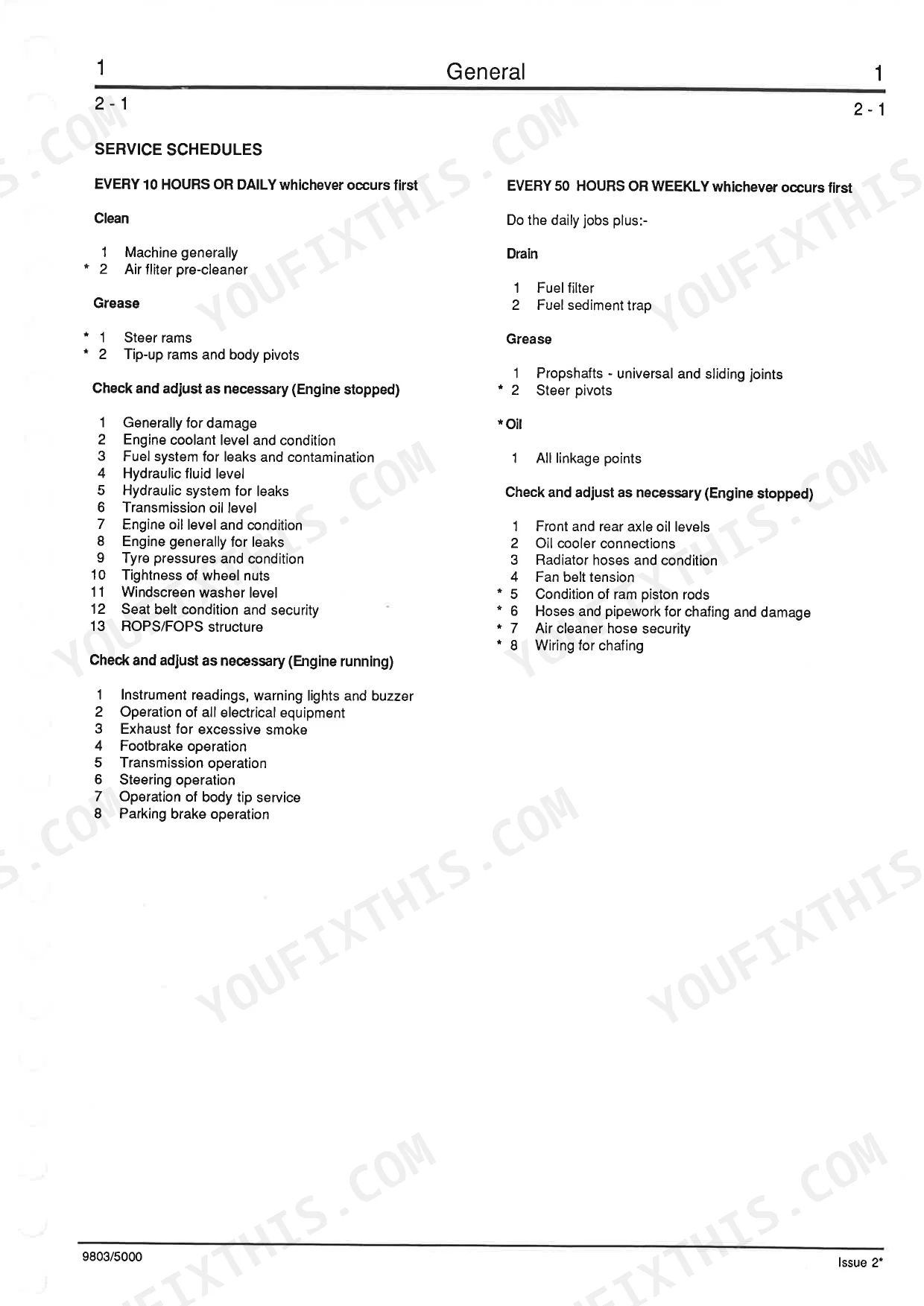

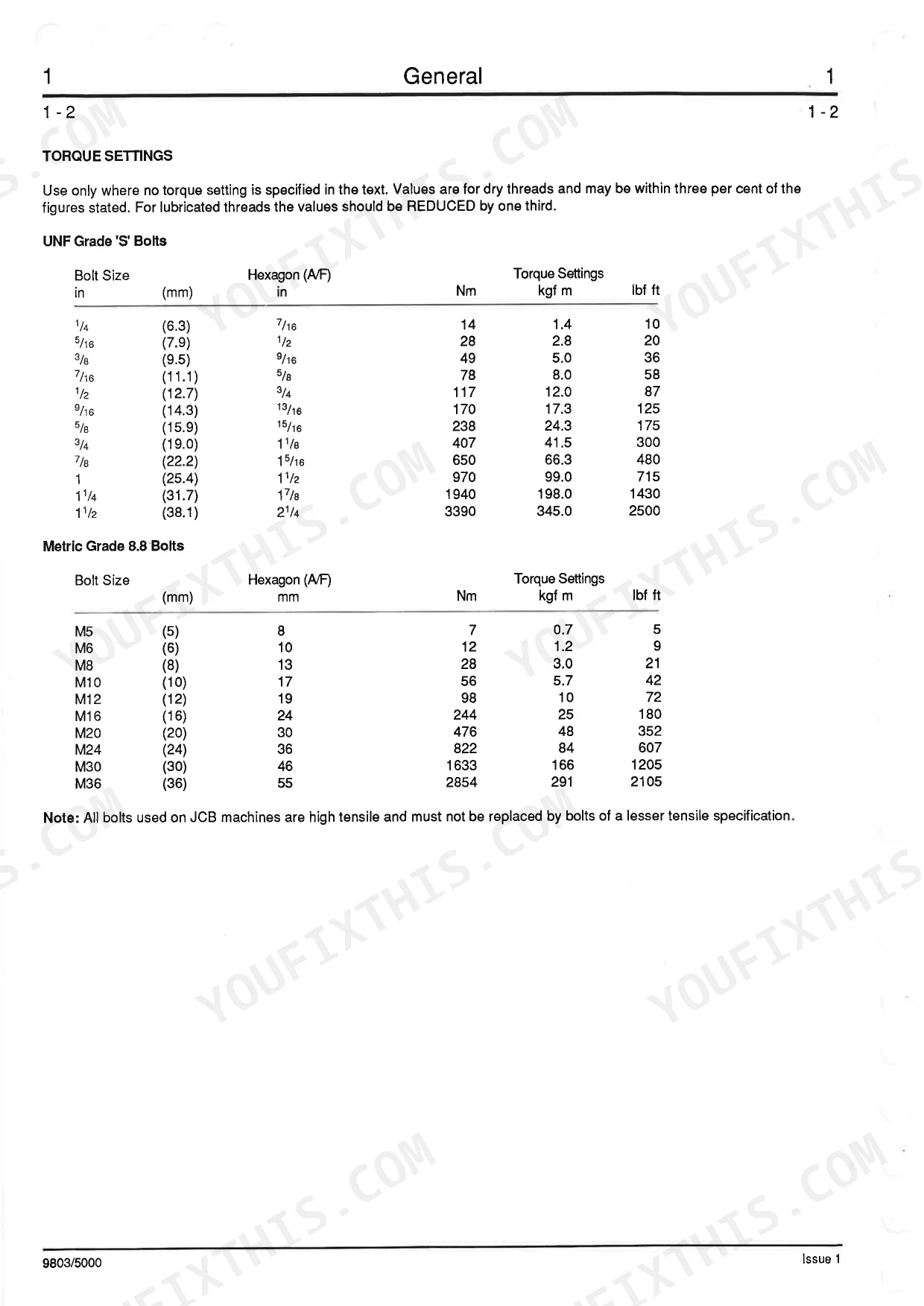

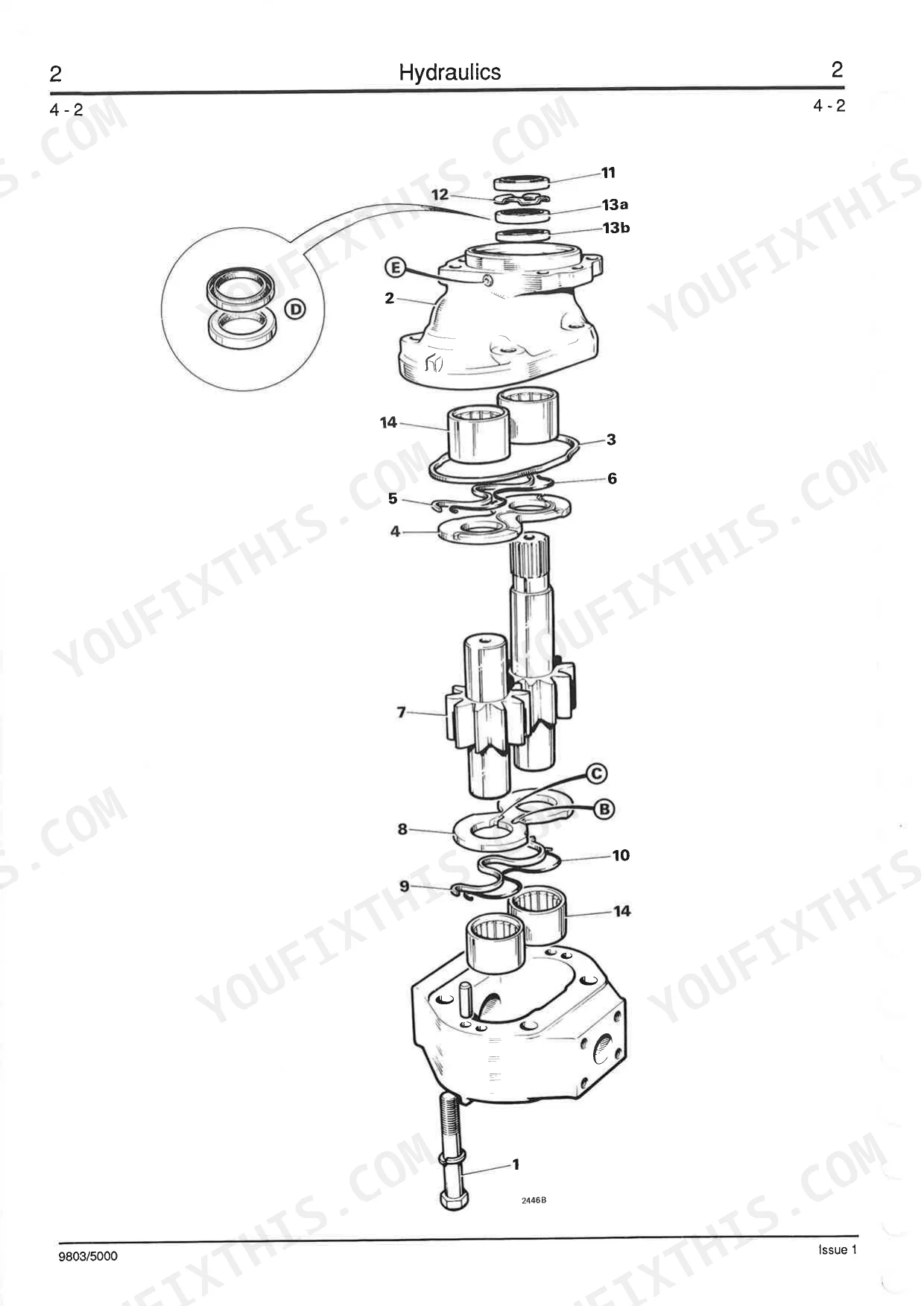

| General | 4-15 | Service Schedules |
| Hydraulics | 16-55 | Control Valve From Machine No. 612250, Lift Ram |
| Body and Frame | 56-63 | - |
| Engine | 64-77 | Alternator, Engine Oil & Filter, Fuel Filter, Fuel Lift Pump, Fuel Sediment Bowl, Cooling System |
| Transmission | 78-171 | 18000 Series Transmission - Dismantling, 18000 Series Transmission - Assembly, 24000 Series Transmission - Dismantling, Typical Clutch - Dismantling, Typical Clutch - Assembly |
| Axles | 172-211 | Metal Face Seals, Zf Axle Hub Dismantling and Assembly |
| Brakes | 212-255 | Technical Data, Pump - Sundstrand Removal and Replacement |
| Hydraulic Steering | 256-279 | Hydraulic Steering Unit Dismantling and Assembly |
| Electrics | 280-299 | Starter Motor - Cav CA45F Maintenance |
| Service Tools | 300-303 | Adapters and Connectors, Bearing Service Tools, Testing and Measuring Equipment, Sealing Tools and Materials, Spanners, Blanking Plugs and Caps |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| B.S.P. Adapter torque (lower value) | 20 Nm (15 Ibf ft) | p. 272 |
| B.S.P. Adapter torque (higher value) | 102 Nm (75 Ibf ft) | p. 272 |
| Maximum clutch leakage rate | 4.5 litres (1 UK gal; 1.2 US gal) per min | p. 169 |
| Maximum brake pressure differential | 30 bar (435 lbf/in2) | p. 251 |

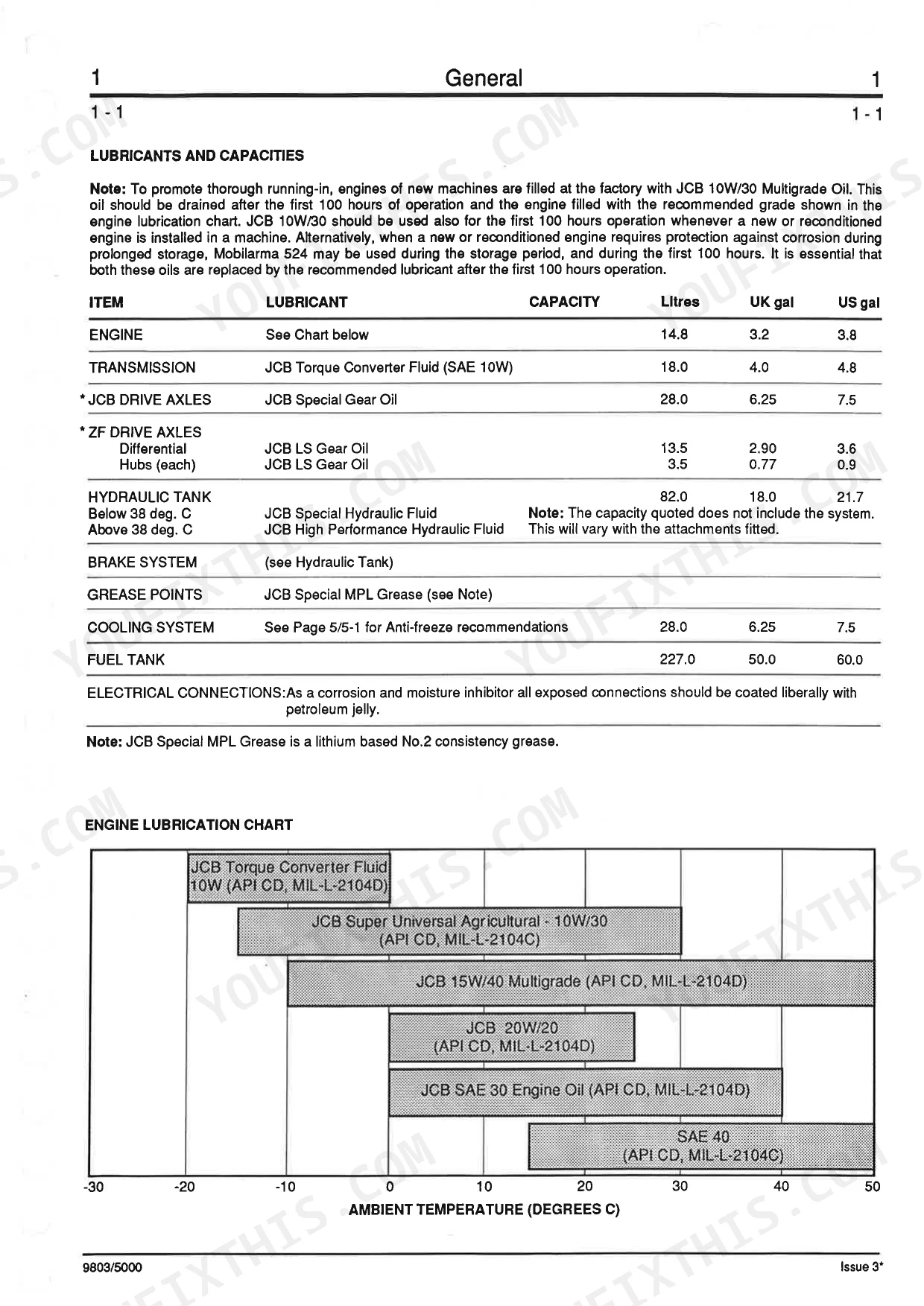

| Engine Oil Capacity | 14.8 Litres | p. 6 |
| Transmission Oil Capacity | 18.0 Litres | p. 6 |
| Hydraulic Tank Capacity | 82.0 Litres | p. 6 |
| Fuel Tank Capacity | 227.0 Litres | p. 6 |
| Engine Compression Pressure | 20 to 34 bar | p. 64 |
| 712 | ||
| Engine Oil Pressure (hot) at max speed | 2.1 bar minimum | p. 65 |
| Tyre Pressure Front Axle | 2.0 bar | p. 172 |
| 716 | ||
| Hydraulic Main Relief Operating Pressure | 207 bar | p. 16 |
JCB 712, 716 Common Problems This Manual Covers
JCB 712 articulated hauler severe leak and unsafe high-pressure spray at quick-release couplings. p. 272
Inspect the sealing faces and B.S.P adapters. Torque the adapters to either 20 Nm (15 lbf ft) or 102 Nm (75 lbf ft) as specified on page 272. Replace damaged O-rings immediately. Refill the tank to its 82.0 Litres capacity before testing the tipping circuit.
Manual Section: HydraulicsArticulated hauler transmission slipping under heavy load and high torque converter stall speed. p. 169
Test the pump flow and measure clutch pressure. Verify the maximum clutch leakage rate does not exceed 4.5 litres (1 UK gal; 1.2 US gal) per min as outlined on page 169. Replace worn converter seals if leakage is excessive. Drain and refill the 18.0 Litres transmission oil.
Manual Section: Transmission FaultfindingSoft brake pedal feel and machine pulling to one side during hard braking. p. 251
Adjust the foot pedal linkage and test the flow regulator. Check the brake system adjustment on page 251 to ensure the maximum brake pressure differential stays below 30 bar (435 lbf/in2). Bleed the lines to remove trapped air and retest parking brake holding pressure.
Manual Section: Brake System AdjustmentEngine turns over slowly or refuses to crank during cold weather start attempts. p. 297

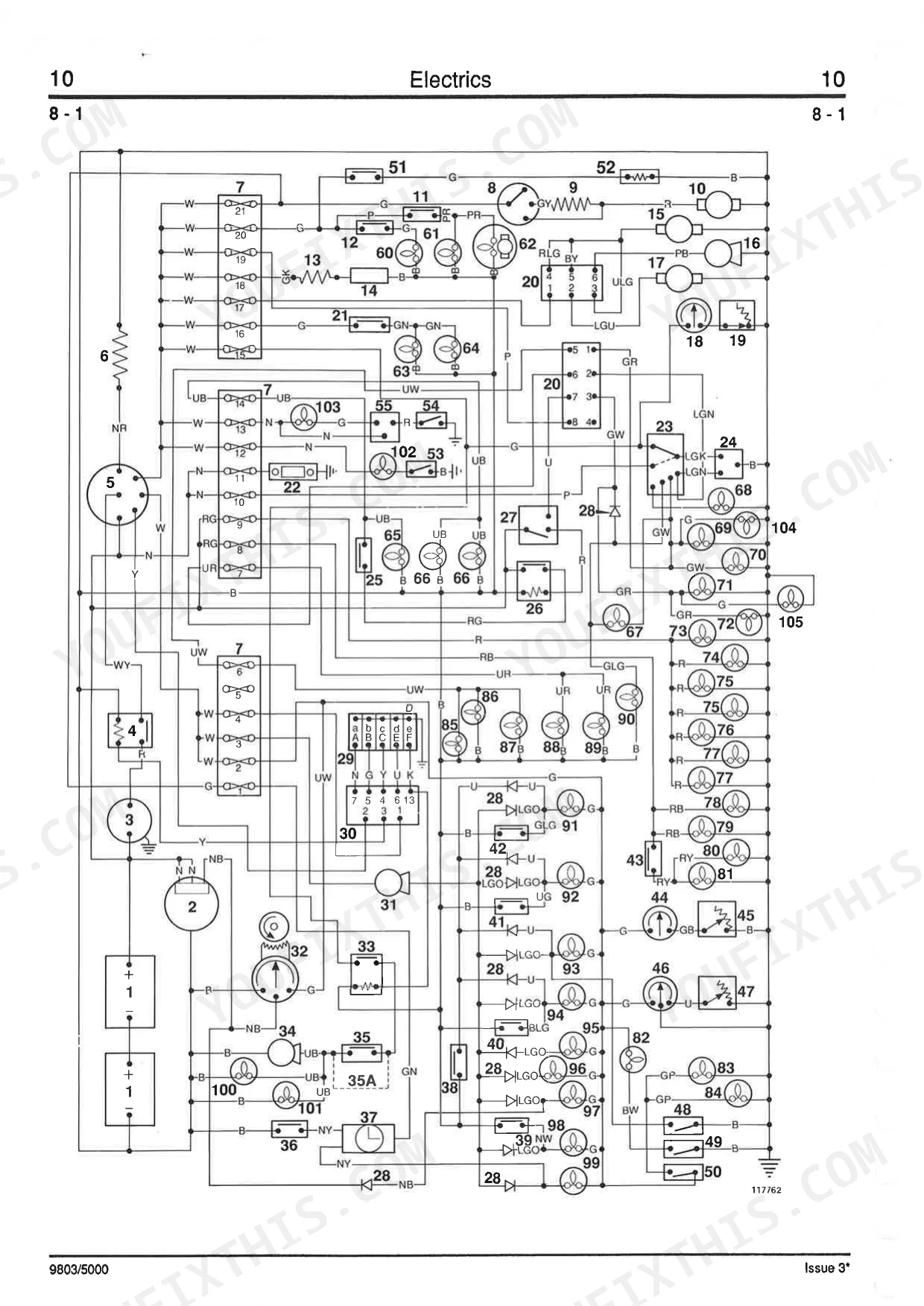

Trace the starter relay circuit using the wiring diagram on page 297. Test the battery to confirm it delivers the required 410 cold crank amps listed on page 280. Inspect the armature windings for continuity and check the solenoid unit for burnt contacts or open circuits.
Manual Section: Starting Circuit TestFrequently Asked Questions
Where can I find the service manual for JCB 712 and 716?
This document is the Service Manual for JCB 700 Series machines, specifically covering the 712 from machine no. 612001, 712 from machine no. 612250 (HR build), and 716 from machine no. 614001. The publication number for this manual is 9803/5000.
How do you fix JCB 712 articulated hauler severe leak and unsafe high-pressure spray at quick-release couplings?
Inspect the sealing faces and B.S.P adapters. Torque the adapters to either 20 Nm (15 lbf ft) or 102 Nm (75 lbf ft) as specified on page 272. Replace damaged O-rings immediately. Refill the tank to its 82.0 Litres capacity before testing the tipping circuit.
How do you fix articulated hauler transmission slipping under heavy load and high torque converter stall speed?
Test the pump flow and measure clutch pressure. Verify the maximum clutch leakage rate does not exceed 4.5 litres (1 UK gal; 1.2 US gal) per min as outlined on page 169. Replace worn converter seals if leakage is excessive. Drain and refill the 18.0 Litres transmission oil.
How do you fix soft brake pedal feel and machine pulling to one side during hard braking?
Adjust the foot pedal linkage and test the flow regulator. Check the brake system adjustment on page 251 to ensure the maximum brake pressure differential stays below 30 bar (435 lbf/in2). Bleed the lines to remove trapped air and retest parking brake holding pressure.
What do I get after purchasing this JCB 712, 716, 700 Series manual?
You get a 306-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this JCB 712, 716, 700 Series Service Manual cover the hydraulic system?

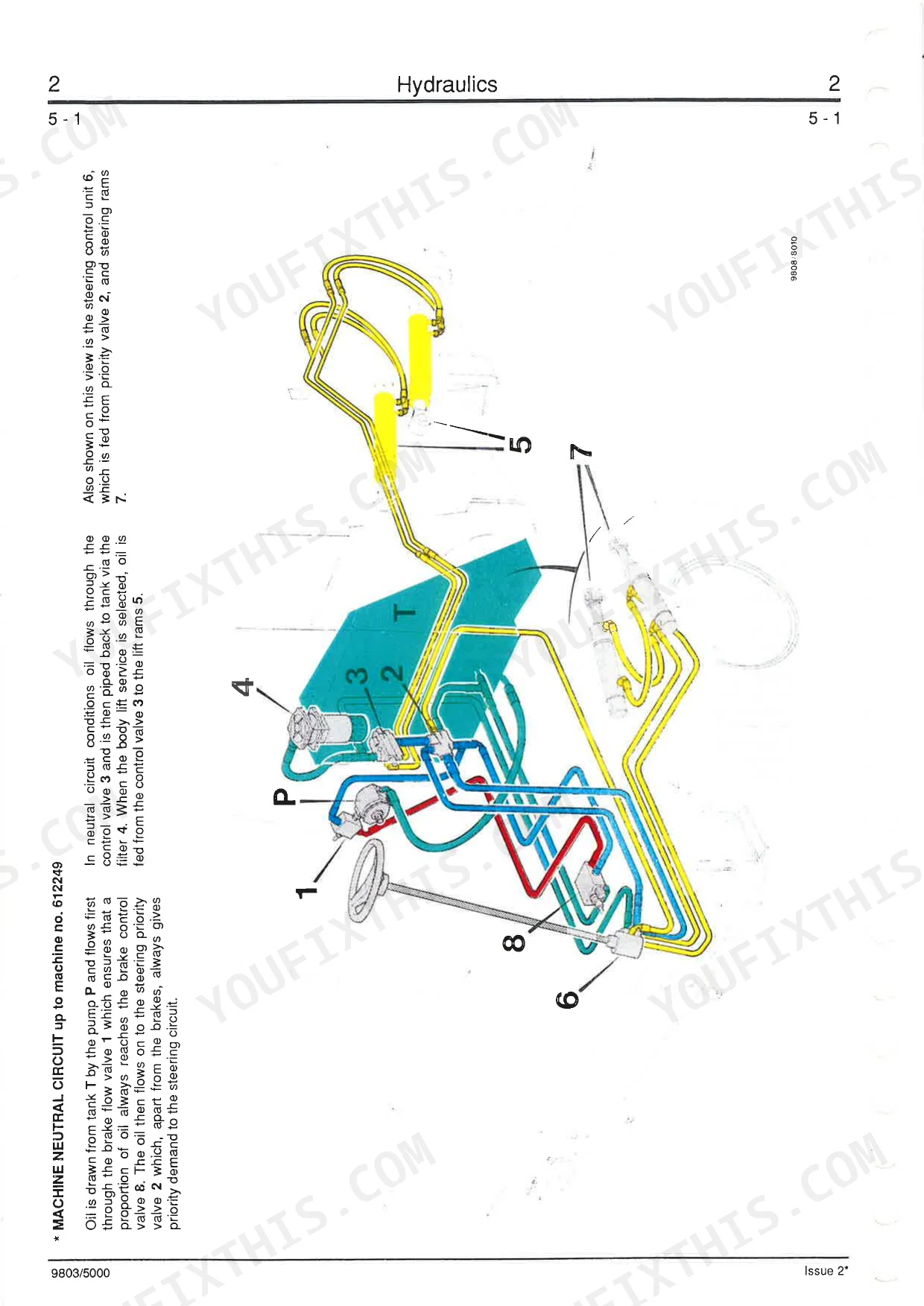

Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy text throughout. The text quality is generally clear and readable, though some original scanned pages exhibit slight blurriness or fading. Diagrams and illustrations are primarily raster images or photos, with most labels being readable, but some older images lack sharpness upon closer inspection. Page condition is fair, showing occasional scan artifacts, minor skewing, and faint background smudges from the original paper. There are several blank pages, such as pages 3, 38, 42, 47, 52, 55, 67, 74, and 80, which serve as filler or section breaks.
