Before you put your Loadall to work, grab this 203-page JCB 525-58 Operator Manual PDF (OEM #9801/7950) covering the full 525-67, 527-58, 527-67, 530-67, 530-95, 530-110, 530-120, 535-67, 537-120, and 537-130 lineup. It holds clear dashboard indicator guides, complete fluid capacity tables, and a full section of daily maintenance schedules. Open it up for step-by-step instructions on attaching Q-Fit implements, operating boom controls, and executing basic servicing without calling the dealer. Top off the 152-liter hydraulic tank with ISO VG46 fluid, and verify your roadwheel nuts are locked down at 680 Nm before hitting the site. Don't risk machine damage over skipped maintenance intervals. Download this bookmarked file straight to your phone, jump to the daily checklist, and keep your site moving.
What's Inside This JCB 525–537 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 3-8 | ROPS/FOPS Structure, Hydraulic Hoses, Battery Gases, Lifting Equipment, Seat Belt, Fluoroelastomeric Materials |

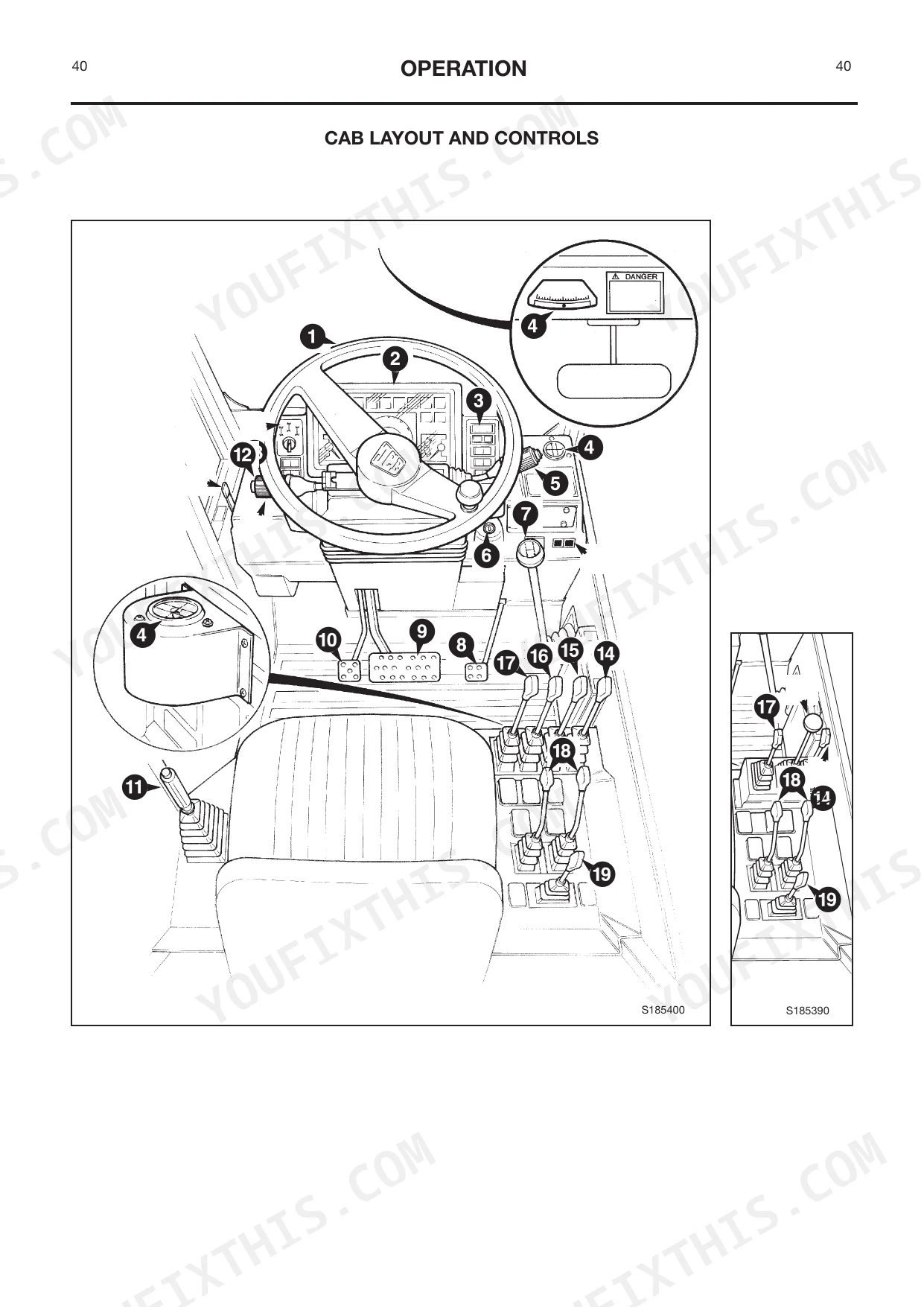

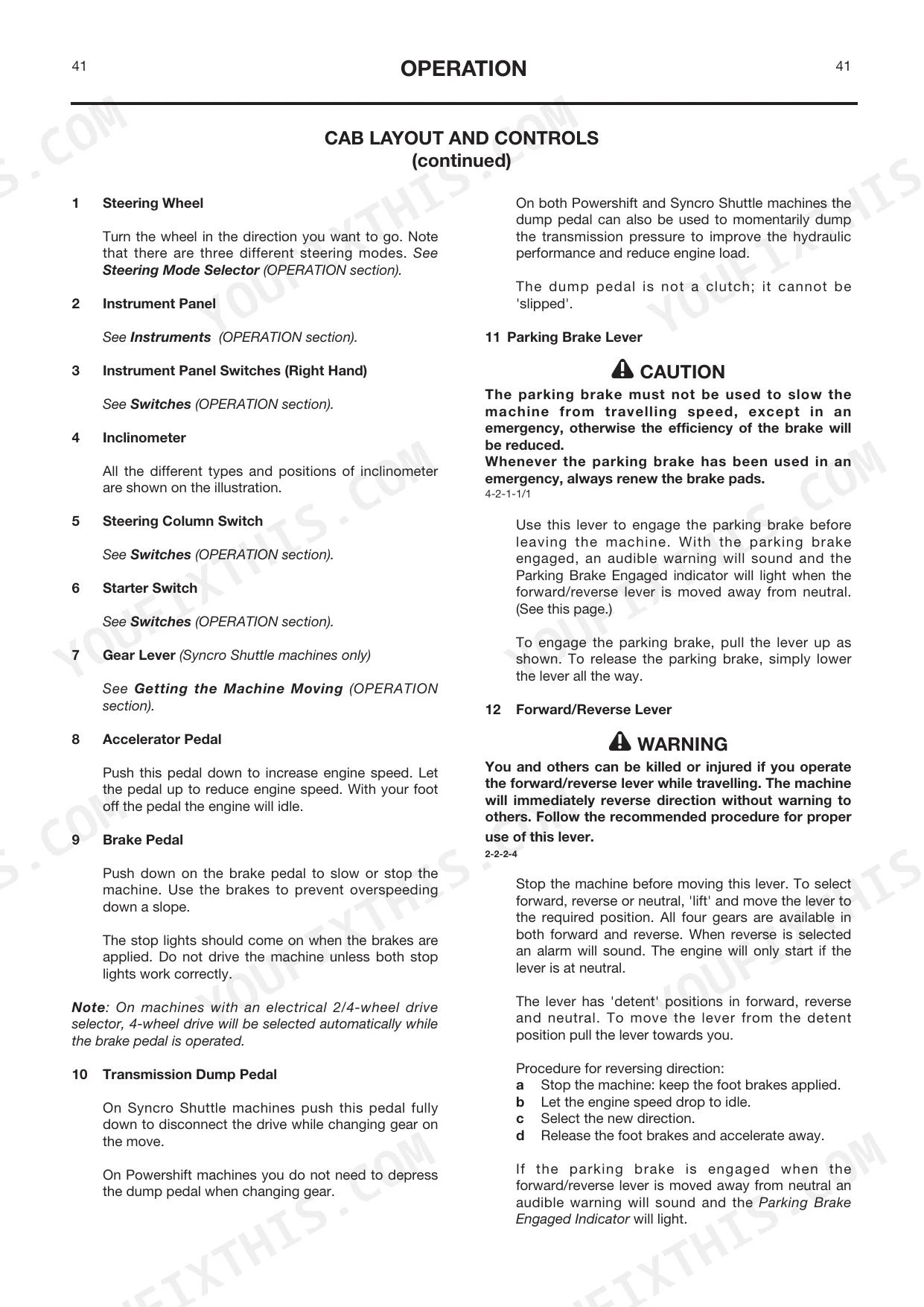

| Operation | 25-76 | Before Entering the Cab, Entering Leaving the Cab, Doors and Windows, Seat Controls, Seat Belt, Cab Layout and Controls, Fire Extinguisher, Cab Switches and Instruments |

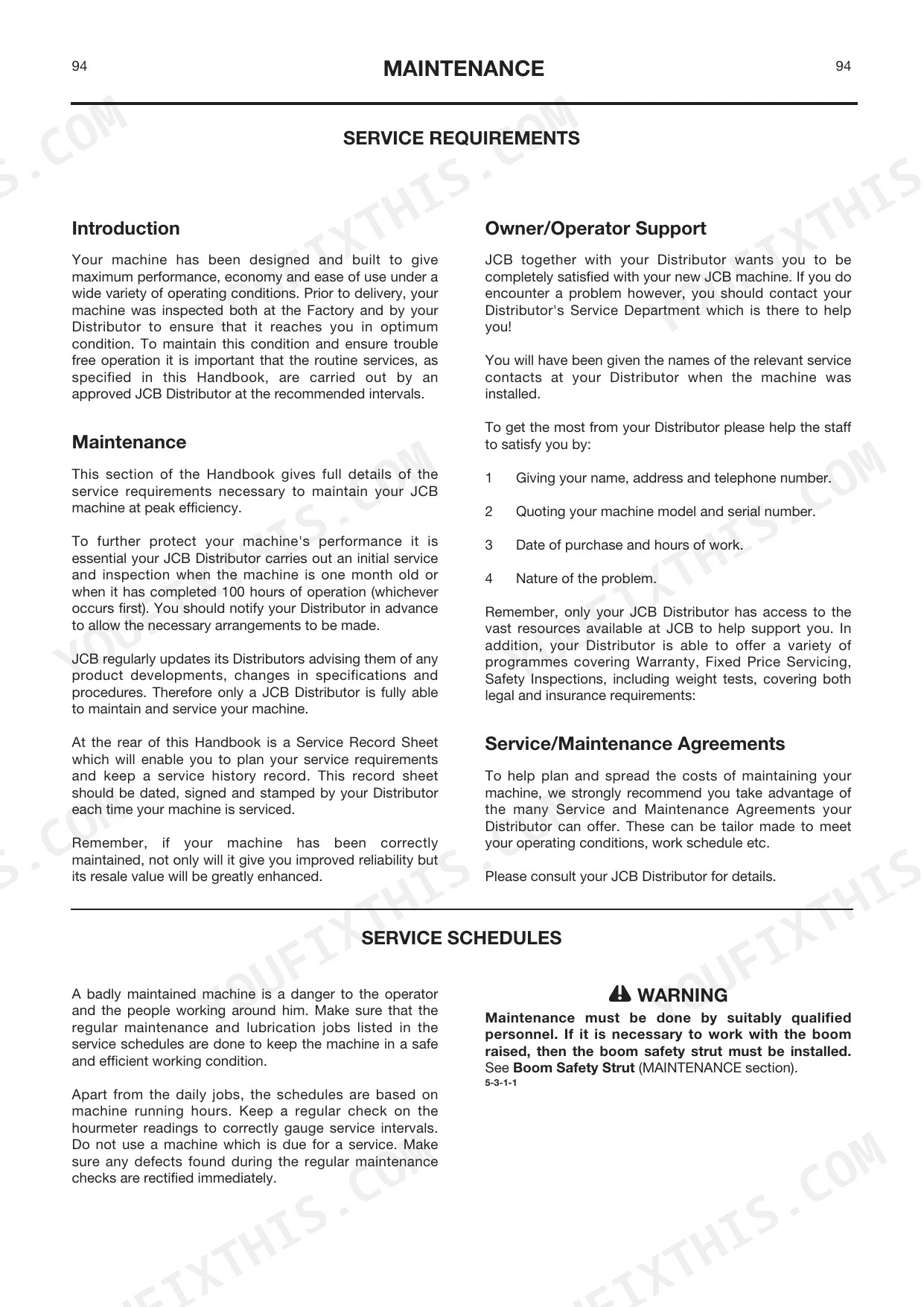

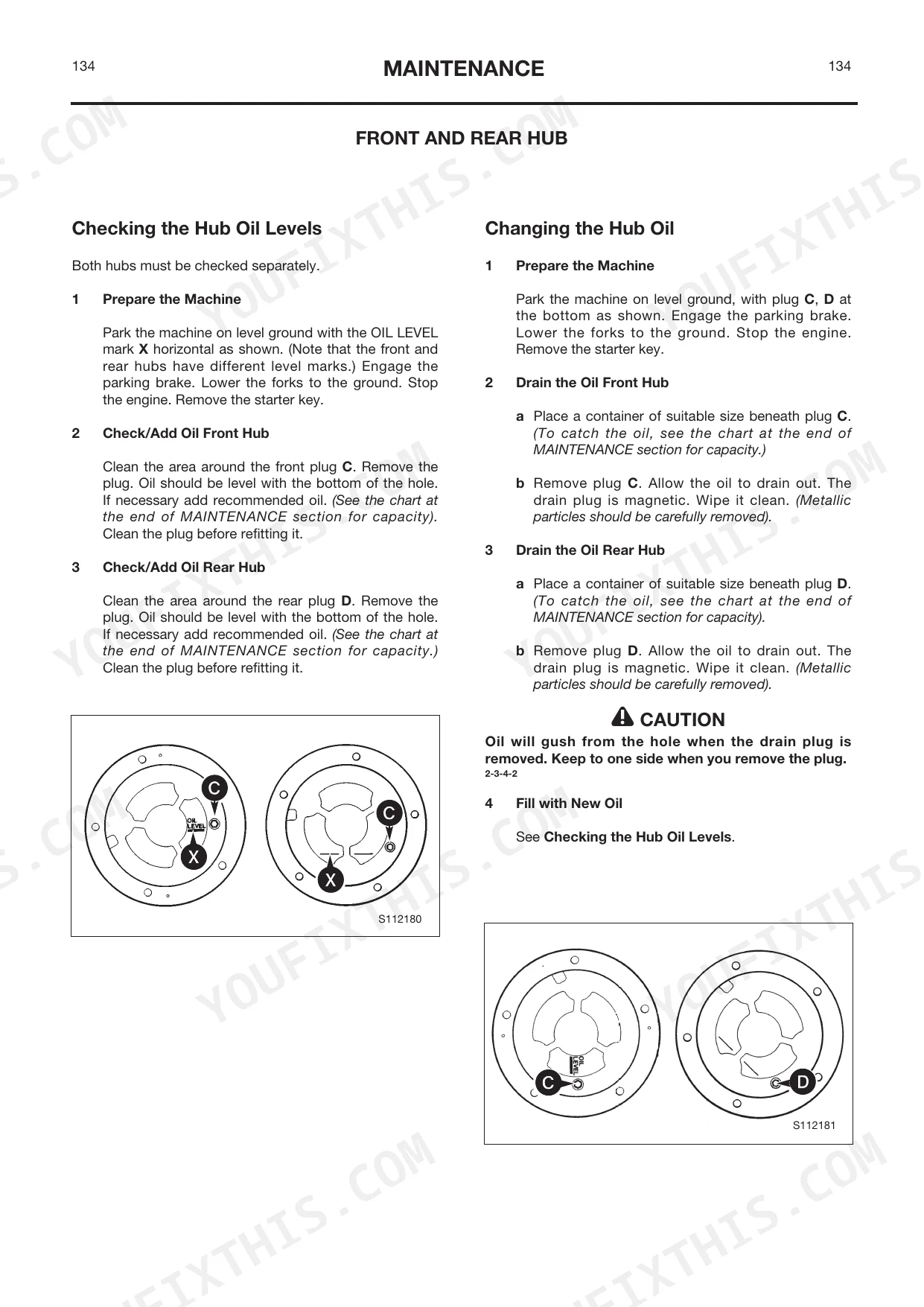

| Maintenance | 77-132 | Lubricants Health and Safety, Service Requirements, Boom Safety Strut, Engine Bonnet and Cover, Radiator Grille, ROPS Fops Structure, Checking for Damage, Greasing |
| Optional Attachments | 133-156 | Introduction, Installing and Removing Q-Fit Attachments, Platform, Shovel, Concrete Skip, Multipurpose Shovel, Industrial Fork Frames, Standard Forks |

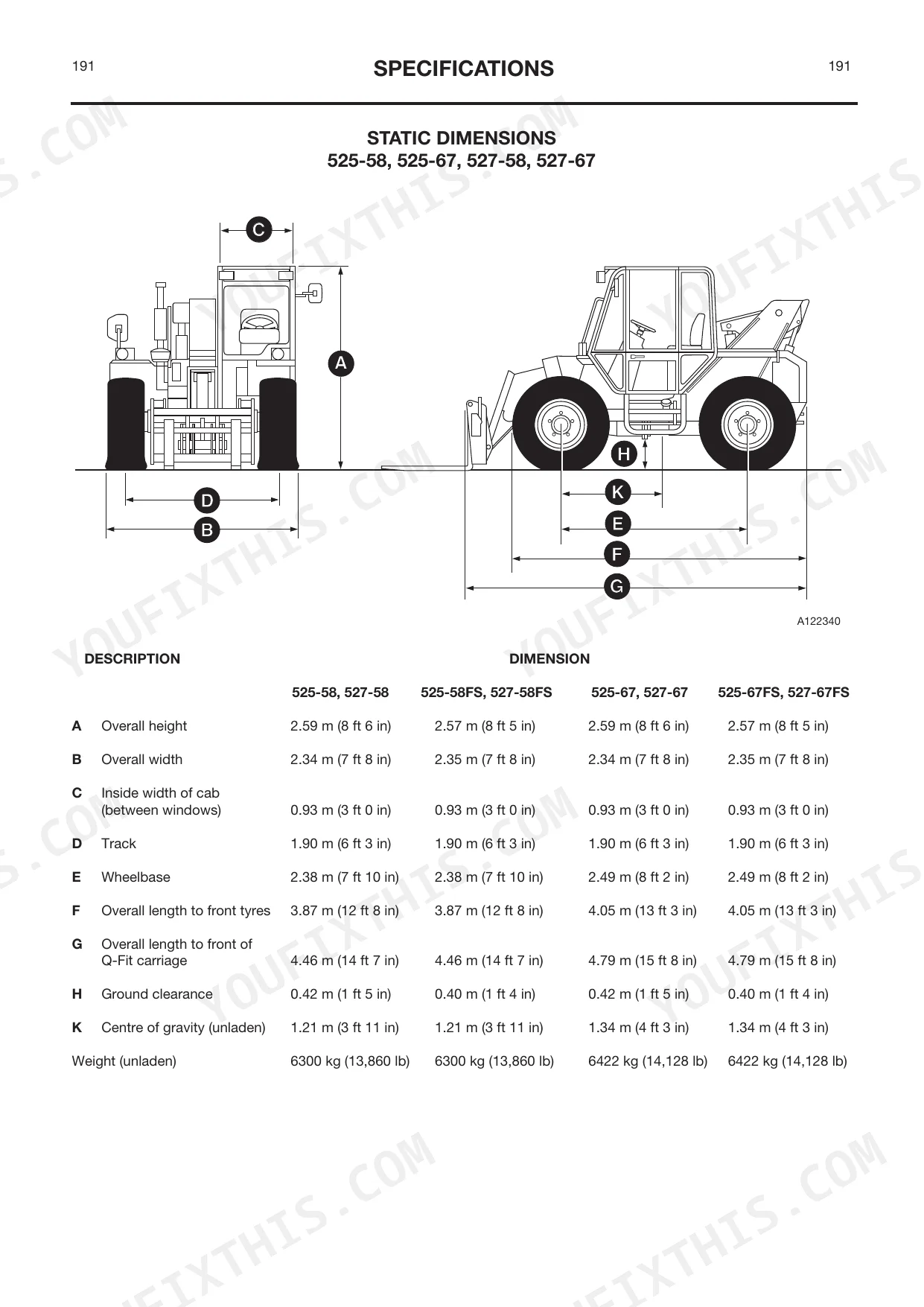

| Specifications | 157-170 | Static Dimensions, Performance Dimensions, Tyres and Pressures, Noise and Vibration Data |
| Service Record Sheet | 171-172 | Engine Oil and Filter, Wear Pads, Boom Chains, Machine Service Schedule, Applications Requirements |
| Warranty and Procedure | 173-174 | Registration Information, Installation, Registration, Fixed Price Servicing |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 525-58, 525-67, 527-58, 527-67, 530-67, 530-95, 530-110, 530-120, 535-67, 537-120, 537-130 | ||
| Hydraulic warning reset procedure | Stop the engine as soon as it is safe to do so and rectify the fault. | p. 42 |
| Roadwheel Tightness Torque | 680 Nm (500 lbf ft) | p. 101 |
| Engine Oil Type (-10 °C to 50 °C (14 °F to 122 °F)) | JCB 15W/40 Multigrade SAE15W/40, MIL-L-46152B, API CD/SE, MIL-L-2104 | p. 129 |
| Engine Oil Type (-15 °C to 30 °C (5 °F to 86 °F)) | JCB Super Universal Agricultural SAE10W/30, MIL-L-2105, MIL-L-2104C | p. 129 |
| Grease Type | JCB Special MPL Grease Lithium based, No. 2 consistency | p. 129 |
| Greasing Frequency | Daily / every 10 operating hours | p. 88 |
| Coolant Type | JCB Universal Antifreeze/water ASTM D3306-74 | p. 129 |
| Syncro Shuttle Transmission Fluid Type | JCB Special Transmission Fluid ESP-M2C 33G | p. 129 |
| Powershift Transmission Fluid Type | JCB Special Transmission Fluid ESP-M2C 33G | p. 129 |
| 525-58, 525-67, 527-58, 527-67, 530-95 | ||
| Hydraulic Fluid Type (Above 38 °C, 100 °F) | JCB High Performance Hydraulic Oil ISO VG46 | p. 129 |
| Hydraulic Fluid Type (Below 38 °C, 100 °F) | JCB Special Hydraulic Fluid ISO VG32 | p. 129 |
| Engine Coolant Capacity | 17 (3.7) Litres (Gal) | p. 129 |
JCB 525–537 Common Problems This Manual Covers
JCB Loadall 525-58 hydraulic warning light activates and machine will not lift or extend normally after startup p. 42
Stop the engine immediately as directed on page 42 to reset the warning and rectify the fault. Check the hydraulic tank level and inspect the filter. When replacing the filter, remember installation torque is hand-tight only according to page 120.
Manual Section: OperationStiff boom operation and premature wear at the carriage lock pins during heavy material handling p. 88
Clean all grease fittings before applying lubrication. Pump two strokes of lithium-based grease into each pin bush daily or every 10 operating hours as specified on page 88. Inspect the carriage tilt ram and sway ram for leaks during this routine.
Manual Section: MaintenanceHigh engine oil consumption and poor performance after long periods of cold weather morning warmups p. 55
Put the machine into a normal work cycle immediately after startup. Do not allow the engine to idle for extended periods, as warned on page 55, because gentle running causes piston bore glazing. Torque the engine oil drain plug to 34 Nm (25 lbf ft) during your next fluid change.
Manual Section: OperationEngine temperature gauge climbs into the red zone during continuous heavy load transport operations p. 108
Inspect the expansion bottle when the engine is completely cold. Verify the coolant level is exactly 1/3 full as shown on page 108. Top up with a 55 percent antifreeze mixture and check the radiator grille for dirt or debris blocking airflow to the core.
Manual Section: MaintenanceFrequently Asked Questions
What are the torque specs for wheel nuts on a JCB 527-67?
For the JCB 527-67, the wheel nuts should be tightened to a torque of 680 Nm (500 lbf ft) for both the front and rear wheels. It is recommended to check the wheel nut torques every two hours on new machines or whenever a wheel has been removed, until they remain correct.
What are the replacement specifications for Hydraulic fluid and filters?
The hydraulic tank capacity varies by model: 152 litres (33.5 gal) for 525-58, 67, 527-58, 67, 530-95; 157 litres (34.5 gal) for 525-58 Farm Special Plus, 530-67, 535-67; 190 litres (41.8 gal) for 530-110; and 292 litres (64.3 gal) for 530-120, 537-120 & 537-130. The recommended fluid is JCB High Performance Hydraulic Oil (ISO VG46) for temperatures above 38 °C (100 °F) or JCB Special Hydraulic Fluid (ISO VG32) for temperatures below 38 °C (100 °F). Procedures for changing the filter element are detailed on pages 120 and 121.
What are the replacement specifications for Engine oil and filters?
The engine oil capacity for all listed models is 10 litres (2.2 gal). Recommended engine oils include JCB 15W/40 Multigrade for temperatures between -10 °C and 50 °C (14 °F to 122 °F), or JCB Super Universal Agricultural for temperatures between -15 °C and 30 °C (5 °F to 86 °F). Detailed procedures for checking the oil level and changing the oil and filter can be found in the 'ENGINE OIL AND FILTER' section on page 107.
How do you fix JCB Loadall 525-58 hydraulic warning light activates and machine will not lift or extend normally after startup?
Stop the engine immediately as directed on page 42 to reset the warning and rectify the fault. Check the hydraulic tank level and inspect the filter. When replacing the filter, remember installation torque is hand-tight only according to page 120.
How quickly can I access this manual after buying?
Immediate download of the complete 203-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an OCR text layer, enabling you to search and copy the full text. The text quality is crisp and consistently readable across all pages. Diagrams and illustrations are raster images, but their labels are clear and legible. Pages are clean, showing no scan artifacts, stains, or skewed content. You will find a blank page 8, a dedicated "Notes" page, and a mostly blank "Service Record Sheet" for your input.
