All 113 pages of this Troy-Bilt/Bolens Suburban Tractor Repair Manual (OEM #1765963) focus on one thing: keeping your 1984-1993 garden tractor running, whether you own a 3010G, 3011H, 3012G, 3114H, 3118G, 3211G, 3216H, or any of the 13011 through 13066 machines. Inside you get a full electrical section with wiring diagrams and switch-by-switch test procedures, troubleshooting charts for engine, fuel, and drive train, plus teardown steps for Eaton hydrostatic and Peerless gear transmissions. Attachment service is here too: mower decks, tiller, and both snowthrowers. Set the mower spindle center bolt at 15 to 19 ft-lbs (20 to 26 Nm), then service the drive belt every 50 hours and the 12V, 45 amp hour battery every 100. Forty-year-old tractors don't come with support lines. This PDF does, on laptop, tablet, or phone; bring it right to the shop floor.
What's Inside This Troy-bilt/bolens Suburban Series Repair Manual
| System | Pages | Key Topics |
|---|---|---|

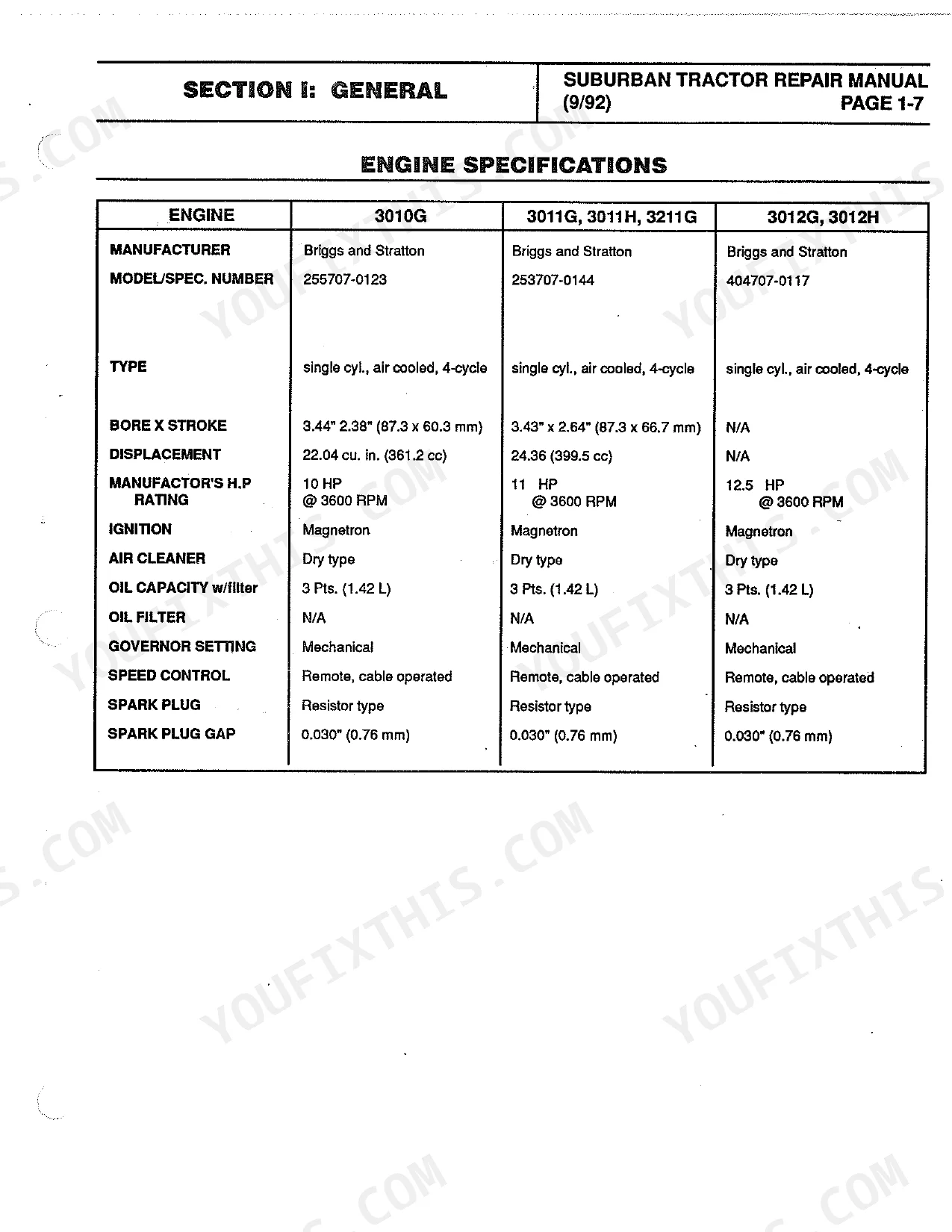

| General Information | 3-17 | Model / Serial Number Range, Torque Values for Cap Screws, Engine Specifications, Maintenance, Lubrication Chart, Chassis Specifications |

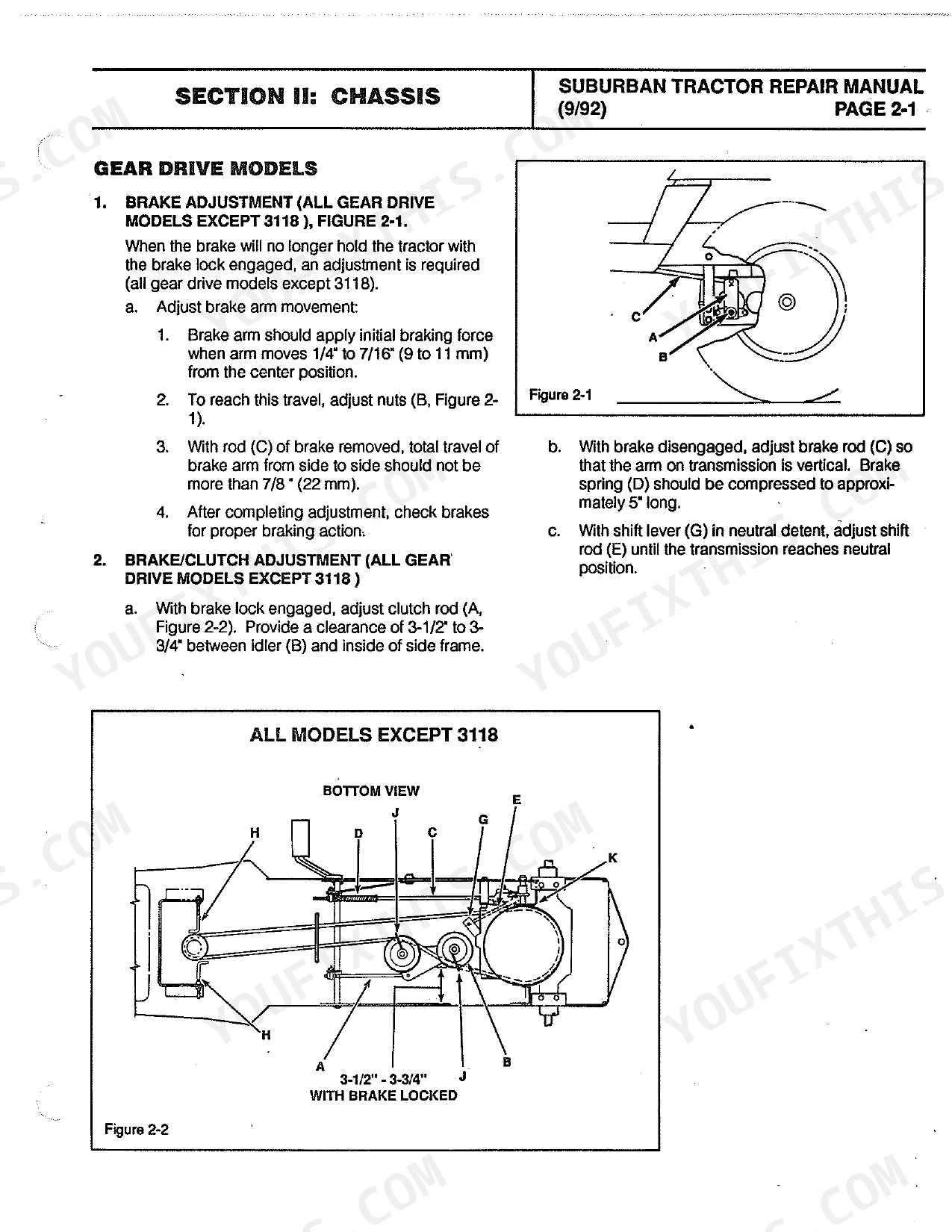

| Chassis | 18-27 | Gear Drive Models, Hydrostatic Models, Lift Systems, Steering Assembly |

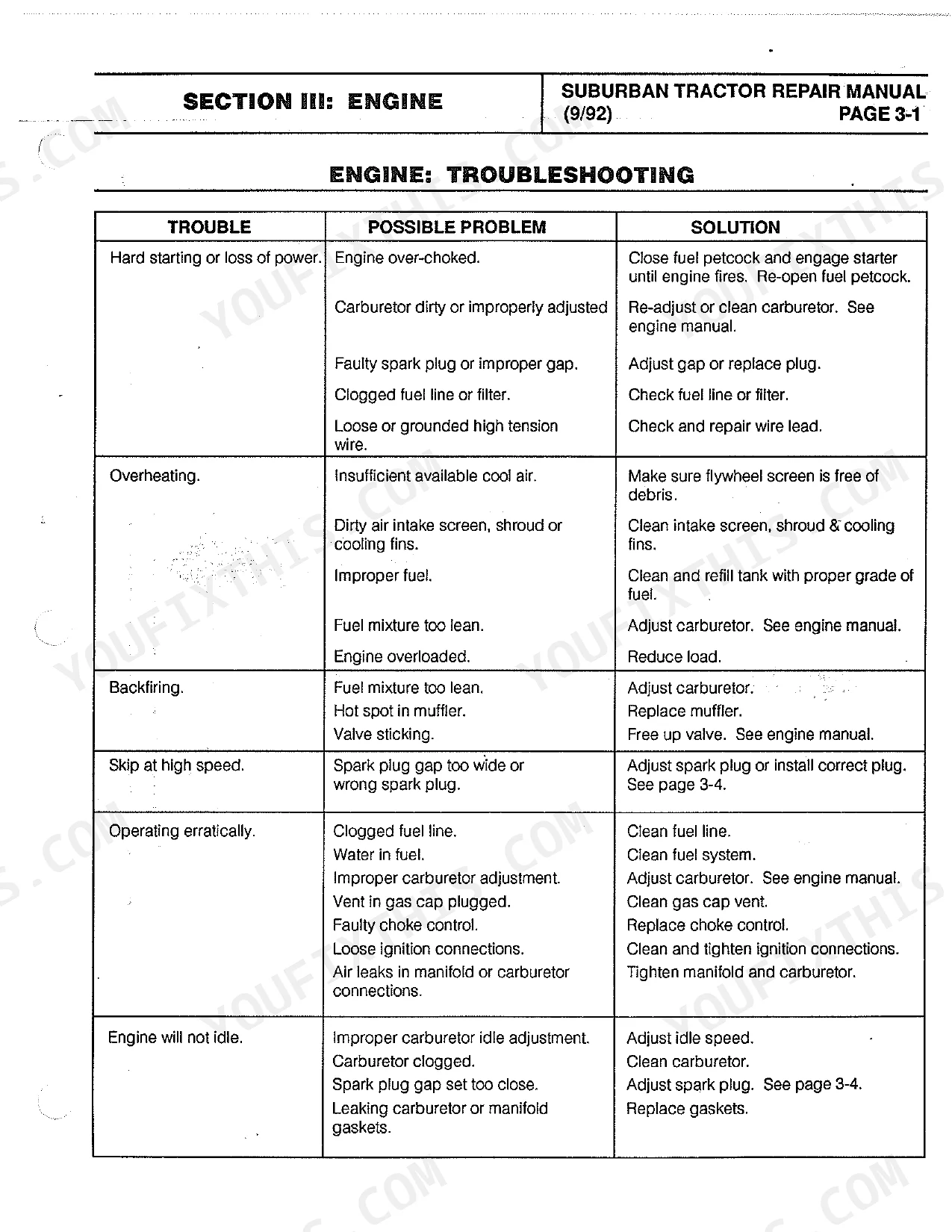

| Engine | 28-31 | Troubleshooting, Engine Oil Recommendations, Engine Maintenance (Engine Oil, Spark Plugs, Clean Cylinder Head Deposits, Clean Cooling System) |
| Fuel System | 32-37 | Troubleshooting, Fuel Recommendations, Service Air Cleaner, Service Carburetor (Basic Function of a Carburetor) |
| Drive Train | 38-39 | Suburban Tractor Transmissions, Drive Train Troubleshooting |
| Hydrostatic Drive | 40-47 | Introduction, Removal/Installation (Eaton Model: 750/751) |
| Gear Drive | 48-54 | Introduction, Removal (Peerless 801, 920 and 930, 1327C, Re-Installation) |

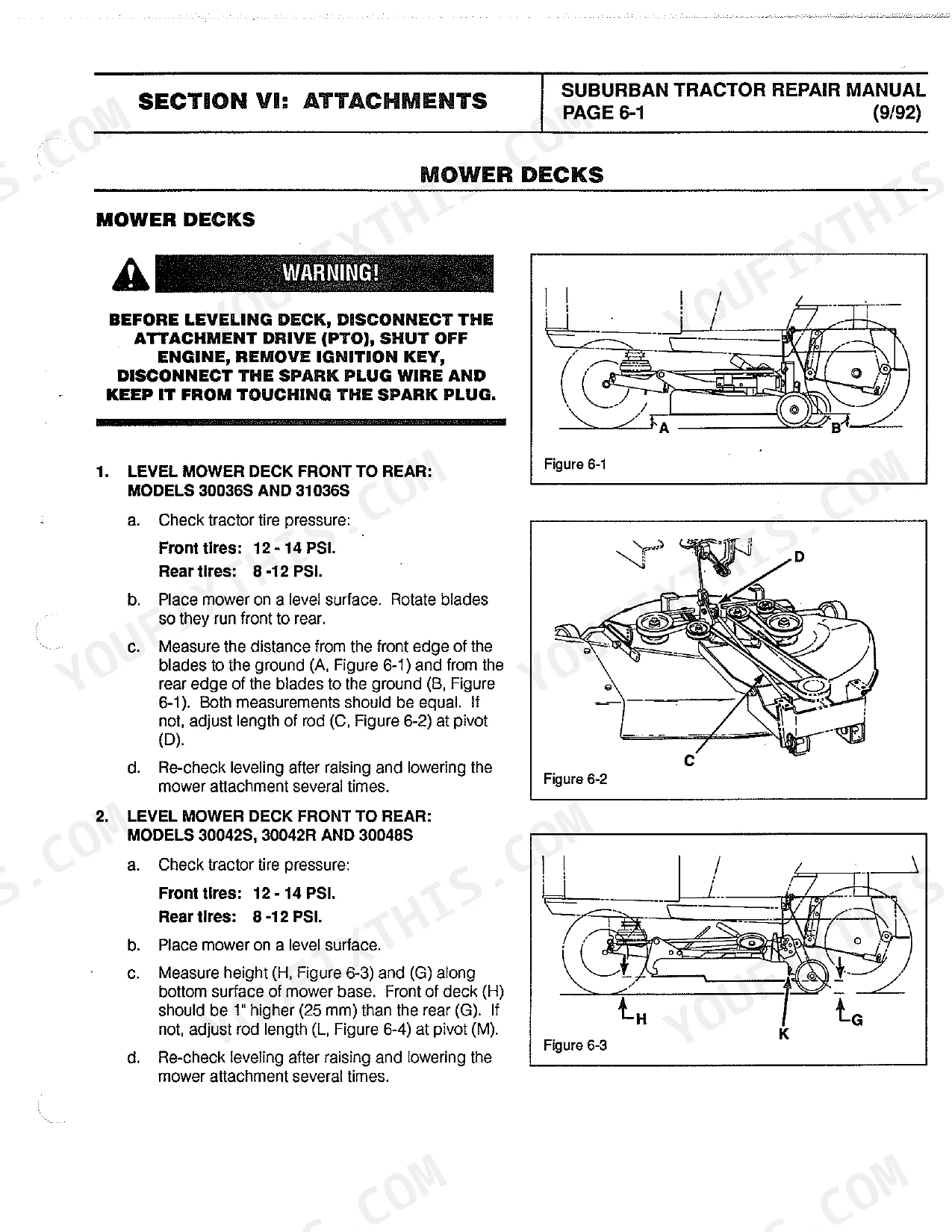

| Attachments | 55-77 | Mower Decks, Tiller, Stage Snowthrower, Single Stage Snowthrower, Power Packer Plus, Grass Reduction System |
| Electrical | 78-113 | Key to Diagrams, Diagrams, Test Battery, Test Ignition Switch, Test Attachment Drive Switch, Test 2-Position Light Switch, Test 3-Position Light Switch, Test Electric Lift Switch |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter maintenance interval | 100 hours | p. 13 |
| Battery maintenance interval | 100 hours | p. 13 |
| Battery rating | 45 amp hour, 12 V | p. 17 |
| Drive belt maintenance interval | 50 hours | p. 13 |
| mower decks 30036S, 31036S, 14003, 14004 | ||
| Torque center bolt (A) for spindle assembly | 15 - 19 ft-lbs. (20 - 26 Nm) | p. 59 |
| Torque top and bottom spindle bolts | 50 to 70 ft-lbs. (68-95 Nm) | p. 59 |
| mower decks 14054, 14055, 14056 | ||
| Torque top and bottom spindle bolts | 35 ft-lbs. | p. 61 |
| 3010G, 3011G, 3011H, 3211G, 3012G, 3012H | ||
| Engine Oil Capacity (w/filter) | 3 Pts. (1.42 L) | p. 7 |
| 3014H, 3114G, 3114H, 3016G, 3016H, 3112G, 3212G, 3212H | ||
| Engine Oil Capacity (w/filter) | 3 Pts. (1.42 L) | p. 8 |
| 3018H, 3118G | ||
| Engine Oil Capacity (w/filter) | 3.0 Pts. (1.4 L) | p. 9 |
| 13011, 13013, 13014, 3214 | ||
| Engine Oil Capacity (w/filter) | 3.5 Pts. (1.6 L) | p. 9 |
| 13023, 13024, 13025 | ||
| Engine Oil Capacity (w/filter) | 4 Pts. (1.9 L) | p. 11 |
Troy-bilt/bolens Suburban Series Common Problems This Manual Covers
Troy-Bilt Suburban tractor engine cranks slowly and won't start after sitting over winter
Test battery voltage at the terminals before anything else; a healthy battery reads 11.5 to 12.5 volts and must hold at least 9 volts through a 15 second crank, per the test on page 105. If it passes, clean the cable connections, then check the ignition switch using the diagrams starting on page 78.
Manual Section: Electrical p. 105Engine surges, hunts, or stalls under load after running on old fuel
Drain stale fuel from the tank and refill with fresh gasoline. Replace the fuel filter; it is due every 100 hours per the maintenance chart on page 13. Pull the fuel line and blow it clear, then work through the fuel system troubleshooting chart starting on page 32 before touching the carburetor.
Manual Section: Fuel System p. 32Engine overheats and smells hot during mowing, shrouds packed with grass clippings
Shut the engine down and let it cool, then clean packed grass and chaff from the cooling fins, blower housing, and shrouds. Check the oil level while you are there; on 3018H and 3118G models the engine holds 3.0 pints (1.4 L) with a filter change, per page 9. Run the overheating checks on page 28.
Manual Section: Engine p. 28No forward or reverse, drive belt slipping or unit loses power on hills
Inspect the drive belt for glazing, cracks, and stretch; the maintenance chart on page 13 calls for checking it every 50 hours. Replace a worn belt rather than trying to tension around it. If drive is still gone in both directions, follow the drive train troubleshooting starting on page 38 to isolate the transmission.
Manual Section: Drive Train p. 38Mower deck vibrates hard and blade bolts keep coming loose after hitting debris
Remove the blades and check each spindle assembly for a bent shaft and rough bearings. Reinstall and torque the blade bolts to 25 ft-lbs (34 Nm) per page 60. Spindle bolt torque depends on which deck you have: 50 to 70 ft-lbs (68-95 Nm) on decks 30036S, 31036S, 14003 and 14004 (page 59), but only 35 ft-lbs on decks 14054, 14055 and 14056 (page 61). Spin each blade by hand to confirm free rotation.
Manual Section: Attachments p. 59Tiller tines turn slow and gear case leaks oil around the tine shaft
Remove the tiller and drain the gear case. Replace the tine shaft seals, checking the shaft for grooves where the old seals rode. Refill the case with 34 ounces (0.98 liters) of gear lube as specified on page 64, then rotate the tines by hand before remounting to verify smooth engagement.
Manual Section: Tiller Maintenance p. 64Frequently Asked Questions
How do I adjust or replace the drive belt on a Troy-Bilt/Bolens 13025 or similar ST-series tractor?
For gear drive models, remove the electric clutch locating rod, loosen the engine sheave belt guides, idler pulley belt guides, and transmission sheave belt guides to remove the old belt. When installing, ensure the engine sheave guides are secured to provide a 1/16" to 1/8" gap between the belt and the guide. p. 19
What is the torque spec for Troy-Bilt/Bolens mower blade bolts?
For models 30036S, 31036S, 14003, and 14004, the center bolt should be torqued to 15-19 ft-lbs (20-26 Nm). For models 14054-01, 14055-01, and 14056-01, the top and bottom spindle bolts must be torqued to 35 ft-lbs. p. 59
What are the replacement specifications for spark plugs?
The spark plug should be serviced or replaced every 100 hours. The gap should be set to 0.030 inch (0.76 mm) for most engines listed in the specifications. p. 13
What is the oil capacity for the engine crankcase?
The engine crankcase oil capacity is 3 pints (1.4 L) for most models. Oil should be changed after the first 5 hours of operation and every 25 hours thereafter. p. 14
How do I adjust the hydrostatic neutral on an Eaton Model 750 or 751 transmission?
If the tractor creeps in neutral, block up the rear wheels so they clear the ground. Loosen the jam-nut (I) and adjust screw (H) located just above the free wheeling lever (J) until the wheels do not rotate in either direction, then tighten the jam-nut. p. 22
How is this Troy-bilt/bolens 3010G Repair Manual delivered?
A 113-page Repair Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print a copy of this Troy-bilt/bolens 3010G Repair Manual for the shop?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
