All 523 pages of this Yanmar 6N18(A)L-V operation manual PDF focus on one machine: the 6N18(A)L-V marine auxiliary engine, from cold startup through full load operation at sea. Inside, you get hydraulic schematics with complete fluid routing, component-level electrical diagrams for specific parts like the starting switch or electromagnetic pickup, and a full troubleshooting section for fault identification and corrective action. Packed with torque tables, clearance specs, and a maintenance chapter that walks through every inspection interval, this is the reference Yanmar hands its own engineers. Tighten the cylinder head nuts to 58.8 ± 0.5 MPa; torque the fuel injection nozzle sleeve to 157~167 N-m on MDO or 245~265 N-m on HFO. No more guessing at limits in the engine room. Bookmarked by section and keyword-searchable: grab your tablet, open the manual, get the right number before you touch a wrench.
What's Inside This Yanmar 6N18AL-V Manual
| System | Pages |
|---|---|
| 1 | 1 |
| 2 | 2 |
| 3 | 3-6 |
| 4 | 7 |
| 5 | 8-21 |
| 6 | 22 |
| 7 | 23-28 |
| 8 | 29 |
| 9 | 30-35 |
| 10 | 36 |
| 11 | 37-38 |
| 12 | 39 |
| 13 | 40-53 |
| 14 | 54 |
| 15 | 55-66 |
| 16 | 67 |
| 17 | 68-107 |
| 18 | 108 |
| 19 | 109-168 |
| 20 | 169 |
| 21 | 170-171 |
| 22 | 172 |
| 23 | 173-176 |
| 24 | 177 |
| 25 | 178-181 |
| 26 | 182 |
| 27 | 183-491 |
| 31 | 492 |
| 32 | 493-523 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head tightening nut | 58.8 ± 0.5 MPa (600 ± 5 kgf/cm²) | p. 173 |
| Connection rod bolt | 49(5) N-m (kgf-m) 120+3 -0 (deg.) | p. 173 |
| Fuel injection valve nozzle sleeve torque (MDO) | 157 ~ 167 N-m (16 ~ 17 kgf-m) | p. 174 |
| Fuel injection valve nozzle sleeve torque (HFO) | 245 ~ 265 N-m (25 ~ 26 kgf-m) | p. 174 |
| Exhaust manifold clamping bolt torque | 59 ~ 69 N-m (6 ~ 7 kgf-m) | p. 503 |
| Exhaust expansion joint clamping bolt torque | 59 ~ 69 N-m (6 ~ 7 kgf-m) | p. 503 |
| Suction valve seat interference | 0.045 ~ 0.095 mm | p. 125 |
| Exhaust valve seat interference (59 Φ part) | 0.039 ~ 0.072 mm | p. 125 |
| Starting air pressure alarm setting value | 0.65(6.6) MPa(kgf/cm²) | p. 38 |
| Total cylinder displacement | 42.75 L | p. 23 |
| Engine mass (singly) | 6,500 kg | p. 23 |
| Fuel injection pressure | 34.0 ± 0.5 MPa | p. 37 |
Yanmar 6N18AL-V Common Problems This Manual Covers
Yanmar 6N18(A)L-V fails to start or flywheel turns but engine does not fire
Verify starting air pressure reaches at least 0.65 MPa (6.6 kgf/cm²) before cranking; low pressure is the most common no-start cause on this engine. Bleed air from the fuel system completely, then inspect the fuel injection pump and each injection valve for sticking or wear. Confirm suction and exhaust valve airtightness by checking for compression loss.
Manual Section: Starting Failure (Flywheel turned, but ignition not taken place)Rotational speed drops spontaneously under generator load without throttle change or operator input
Check the fuel oil filter for partial clogging; this is the leading cause of speed droop on this engine. Bleed any air from the fuel supply line and drain the day tank to test for moisture. If speed still fluctuates, test each injection valve at 34.0 ± 0.5 MPa and work through the governor checks.
Manual Section: Rotational Speed Dropped SpontaneouslyCombustion knock audible and cylinder output is uneven during normal engine operation
Bleed all fuel lines of air, then pressure-test each injection valve at 34.0 ± 0.5 MPa; a valve that opens early or dribbles is the most likely culprit. Check injection pipe connections for looseness or cracks. Inspect suction and exhaust valves for sticking, and work through the output uniformity steps.
Manual Section: Output of Each Cylinder not in UniformityExhaust gas turns black or blue and visible smoke increases at normal engine loads
Inspect the turbocharger for defects and clean the boost air cooler if fouled; restricted charge air is the most common driver of black smoke. Verify injection pressure at 34.0 ± 0.5 MPa and check injection timing adjustment. Confirm the engine is not overloaded, then run through the exhaust-color checks.
Manual Section: Bad Color of Exhaust GasCooling water temperature climbs and the high-temperature alarm activates during normal generator operation
Check cooling water flow immediately; the alarm fires at 95°C (368 K) per the fluid specifications on page 38, and operating above that threshold risks head damage. Inspect the thermostatic valve for sticking or failure. Verify the jacket water system holds 75 L and clean any fouled sea-water strainers.
Manual Section: Cooling Water Temperature Too HighLubricating oil pressure falls below the specified limit during normal operation without visible leaks
Inspect the lube oil strainer for clogging; a blocked strainer is the fastest path to pressure loss on this engine. Verify the oil level and confirm the system holds the correct 35 L. Check the pressure regulating valve and safety valve for sticking. If bearings are suspect, measure crankshaft clearances against the values on page 178.
Manual Section: Lub. Oil Pressure Dropped below the Specified PressureFrequently Asked Questions
How to find torque specs for YANMAR 6N18(A)L-V cylinder head bolts

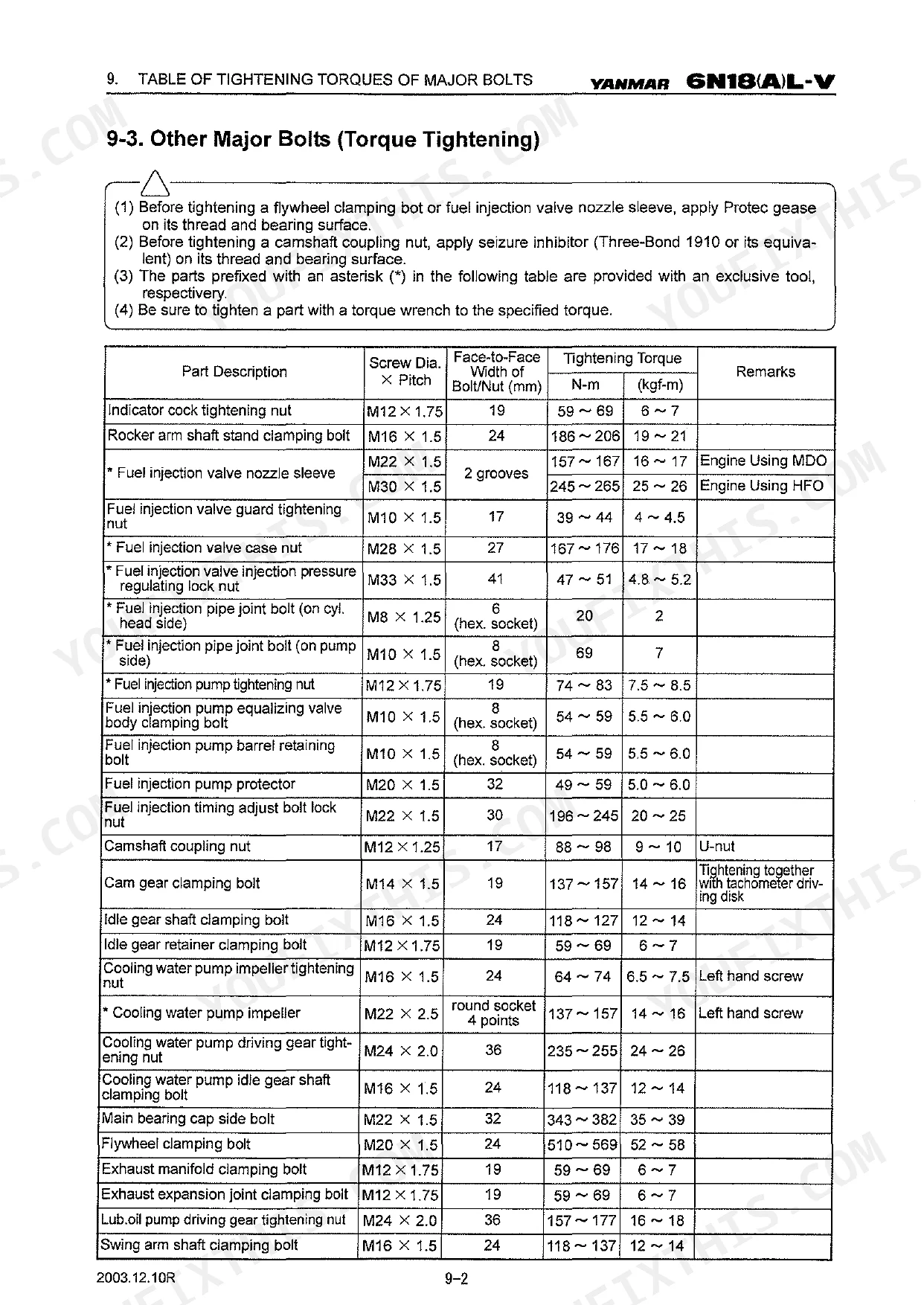

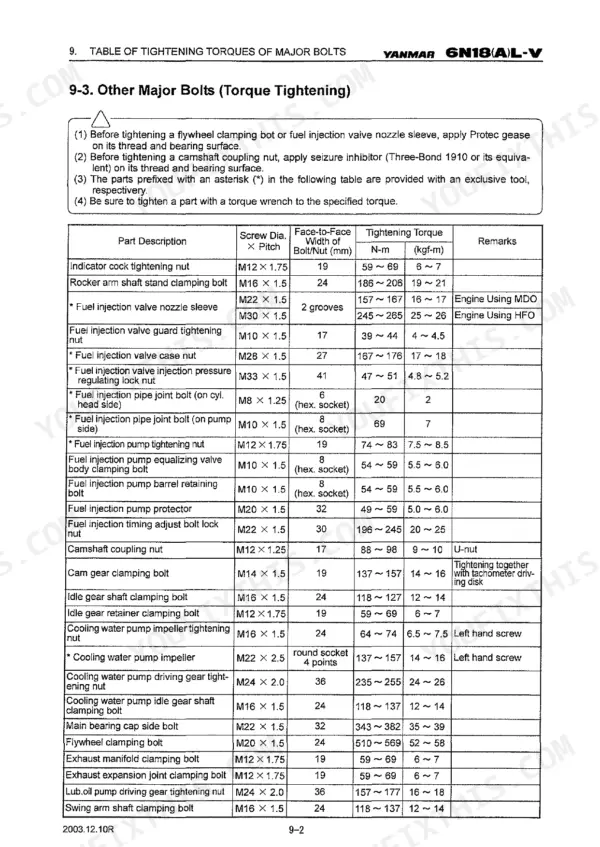

For cylinder head tightening nuts, the specified hydraulic pressure is 58.8 ± 0.5 MPa (600 ± 5 kgf/cm²). For other major bolts, refer to the Table of Tightening Torques of Major Bolts and ensure tightening to the specified torque, specified angle, or specified hydraulic pressure.
How do you fix yanmar 6N18(A)L-V fails to start or flywheel turns but engine does not fire?
Verify starting air pressure reaches at least 0.65 MPa (6.6 kgf/cm²) before cranking; low pressure is the most common no-start cause on this engine. Bleed air from the fuel system completely, then inspect the fuel injection pump and each injection valve for sticking or wear. Confirm suction and exhaust valve airtightness by checking for compression loss.
How do you fix rotational speed drops spontaneously under generator load without throttle change or operator input?
Check the fuel oil filter for partial clogging; this is the leading cause of speed droop on this engine. Bleed any air from the fuel supply line and drain the day tank to test for moisture. If speed still fluctuates, test each injection valve at 34.0 ± 0.5 MPa and work through the governor checks.
How do you fix combustion knock audible and cylinder output is uneven during normal engine operation?
Bleed all fuel lines of air, then pressure-test each injection valve at 34.0 ± 0.5 MPa; a valve that opens early or dribbles is the most likely culprit. Check injection pipe connections for looseness or cracks. Inspect suction and exhaust valves for sticking, and work through the output uniformity steps.
What do I get after purchasing this Yanmar 6N18(A)L-V manual?
A 523-page Operation Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Print as much as you like. The PDF is DRM-free, so you can print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Can I find hydraulic circuit diagrams in this Yanmar 6N18(A)L-V manual?

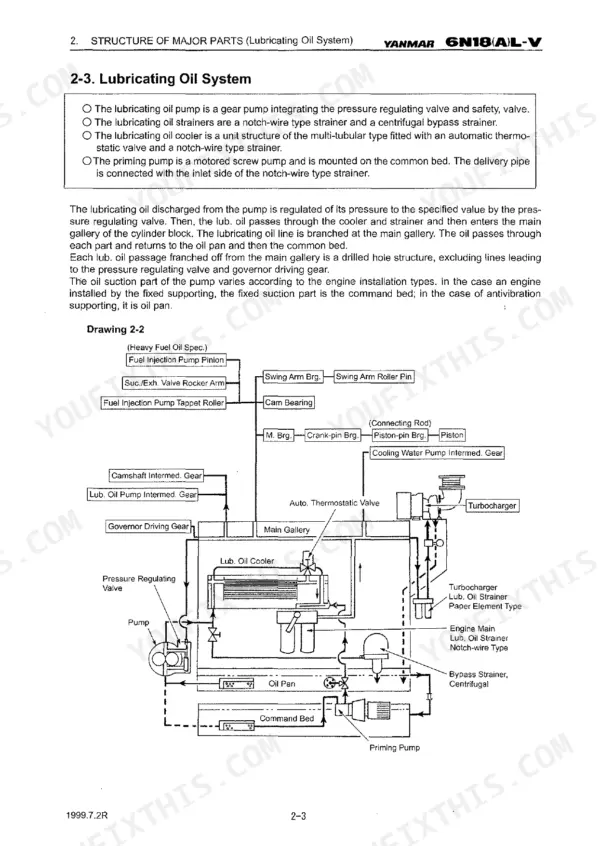

Yes. The manual includes a hydraulic system diagram covering the main circuits.
