All 239 pages of this Yanmar EF494T Technical Manual (pub. 0B040-G02300) zero in on one machine: your diesel tractor, from front axle alignment to hydraulic lift unit reassembly. Inside, you get full hydraulic circuit diagrams with complete fluid routing, electrical wiring schematics covering the start, charging, alarm, and safety circuits, plus a dense torque section with values across every major fastener. Adjustment specs are baked into each system chapter: clutch pressure plate torque runs 23-29 N-m (16.6-21.7 lb-ft), and wheel bolts go to 177-196 N-m (130-145 lb-ft). Replace your fuel filter every 300 hours or 6 months.
What's Inside This Yanmar EF494T Manual
| System | Pages | Key Topics |
|---|---|---|
| Technical Manual | 1 | - |
| Safety | 2-8 | Safety-Alert Symbol, Signal Words, Precautions for the Safe Services, Handling Hazardous Materials, High Temperature and Pressure Systems, Tire and Rim Safety |
| Introduction | 9-29 | To the Owner, Maintenance, Supply Period for Maintenance Parts, Improvements, Symbol Indication, After Sales Service |
| Periodical Inspection | 30-48 | Check Intervals, Oil and Grease, Replacing Oil, Replacing Filter Elements, Replacing Cooling Water, Removing Water From Water Separator, Cleaning and Replacing Air Cleaner Element |

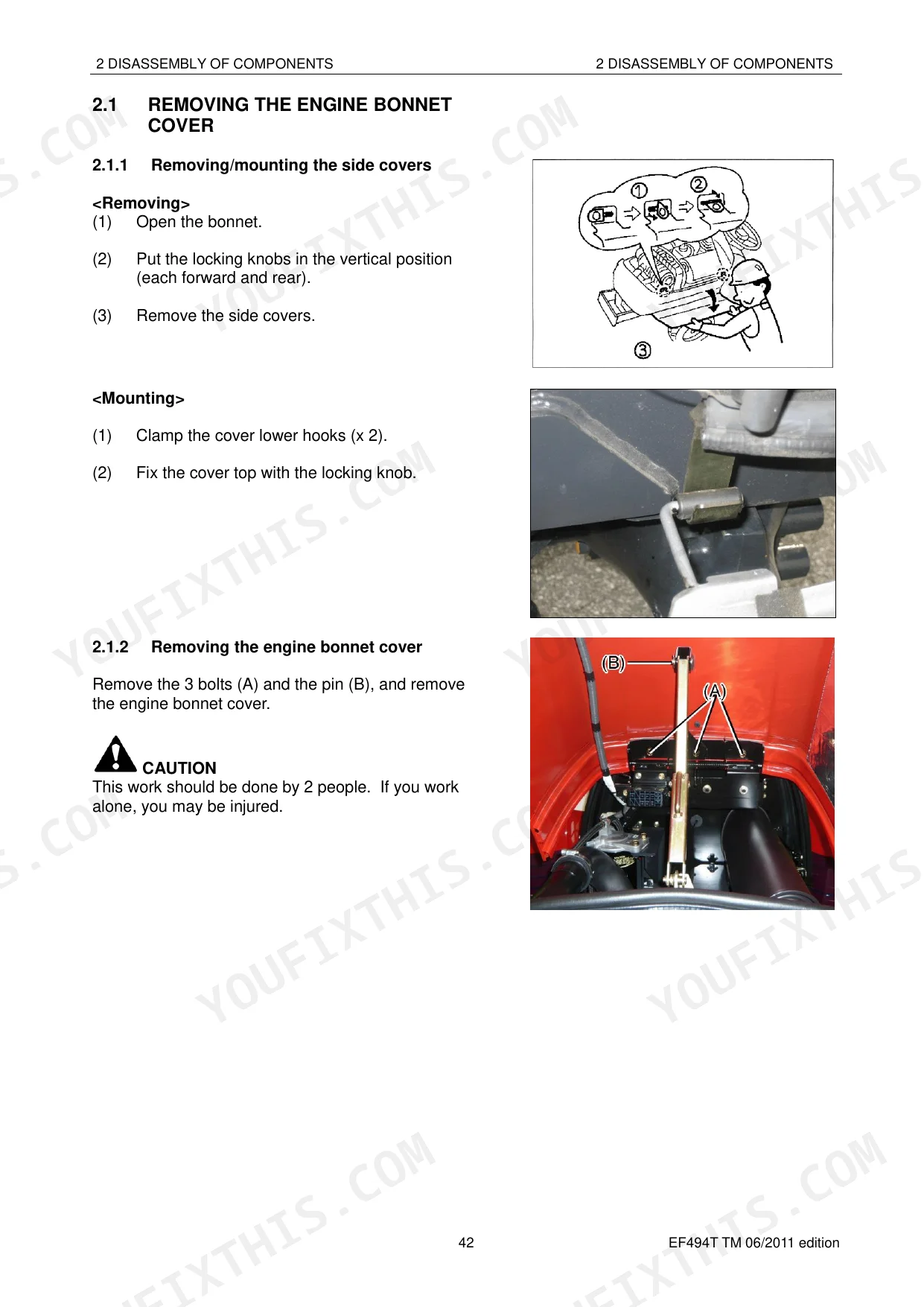

| Disassembly of Components | 49-71 | Removing the Engine Bonnet Cover, Removing the Fender, Removing the Seat Stay, Clutch Housing, Front Axle Unit |
| Engine | 72-125 | Fuel System, Combustion System, Lubricating Oil System, Cooling Water System, Adjustment Specifications |
| Clutch | 126-132 | Structure and Functions, Disassembly and Assembly |
| Transmission | 133-157 | Power Transmitting Diagram, Transmission System Cross-Section, Transmission System |
| Rear Axle and Brake | 158-166 | Rear Axle Housing, Differential Lock, Axle Shaft Assembly, Brake Adjustment, Brake Disassembly and Assembly |
| Front Axle | 167-175 | Structure and Functions, Cross-Section View, Front Wheel Alignment, Disassembling the Front Bearing Case, Disassembling and Assembling the Front Differential Section |
| Power Steering | 176-186 | Structure and Functions, Power Steering Valve |

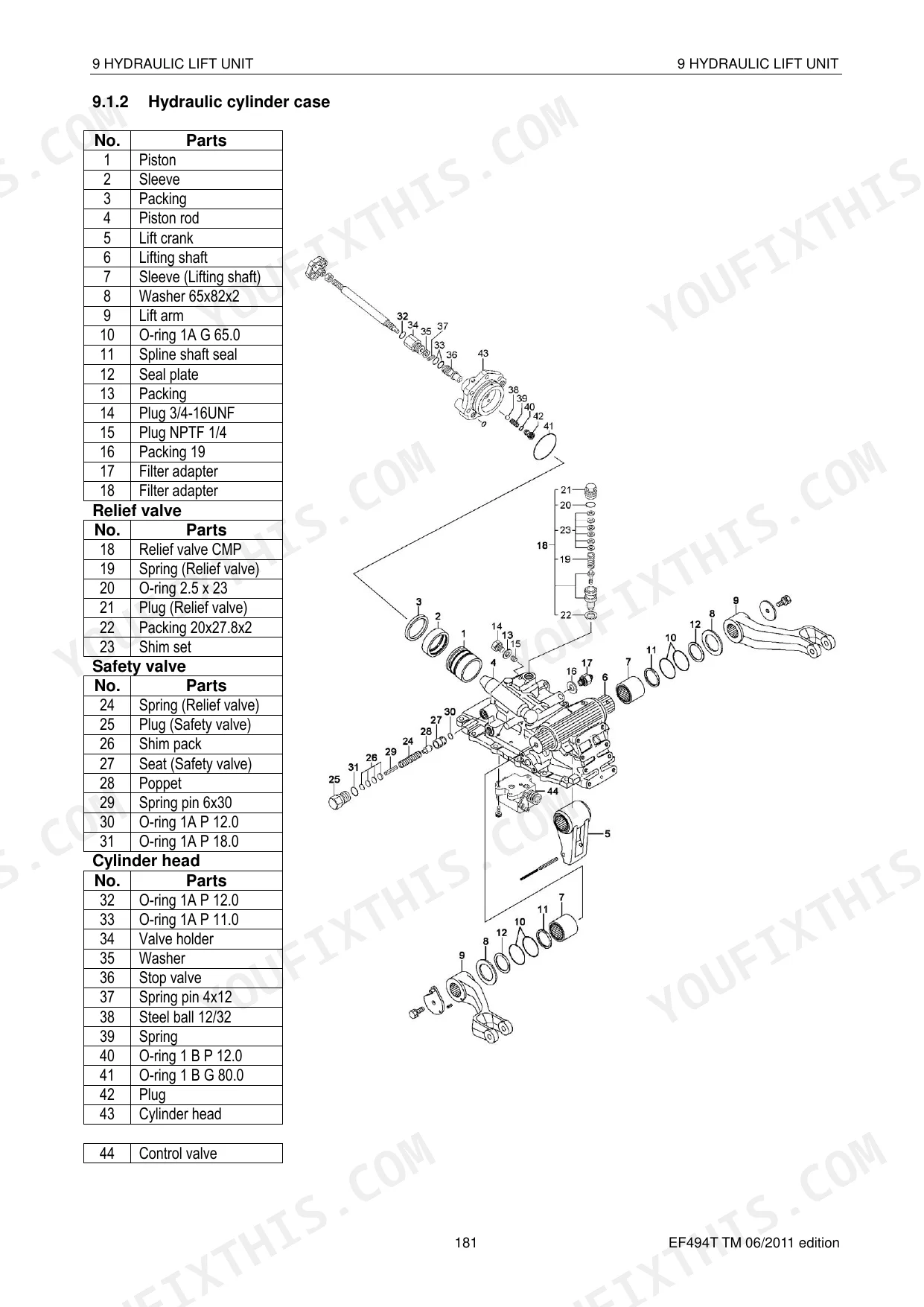

| Hydraulic Lift Unit | 187-209 | Structure and Functions, Assembly and Check, Hydraulic Power Take Off |
| Electric Equipment | 210-233 | Engine Start Circuit, Charging Circuit, Alarm Circuit, Safety Circuit |

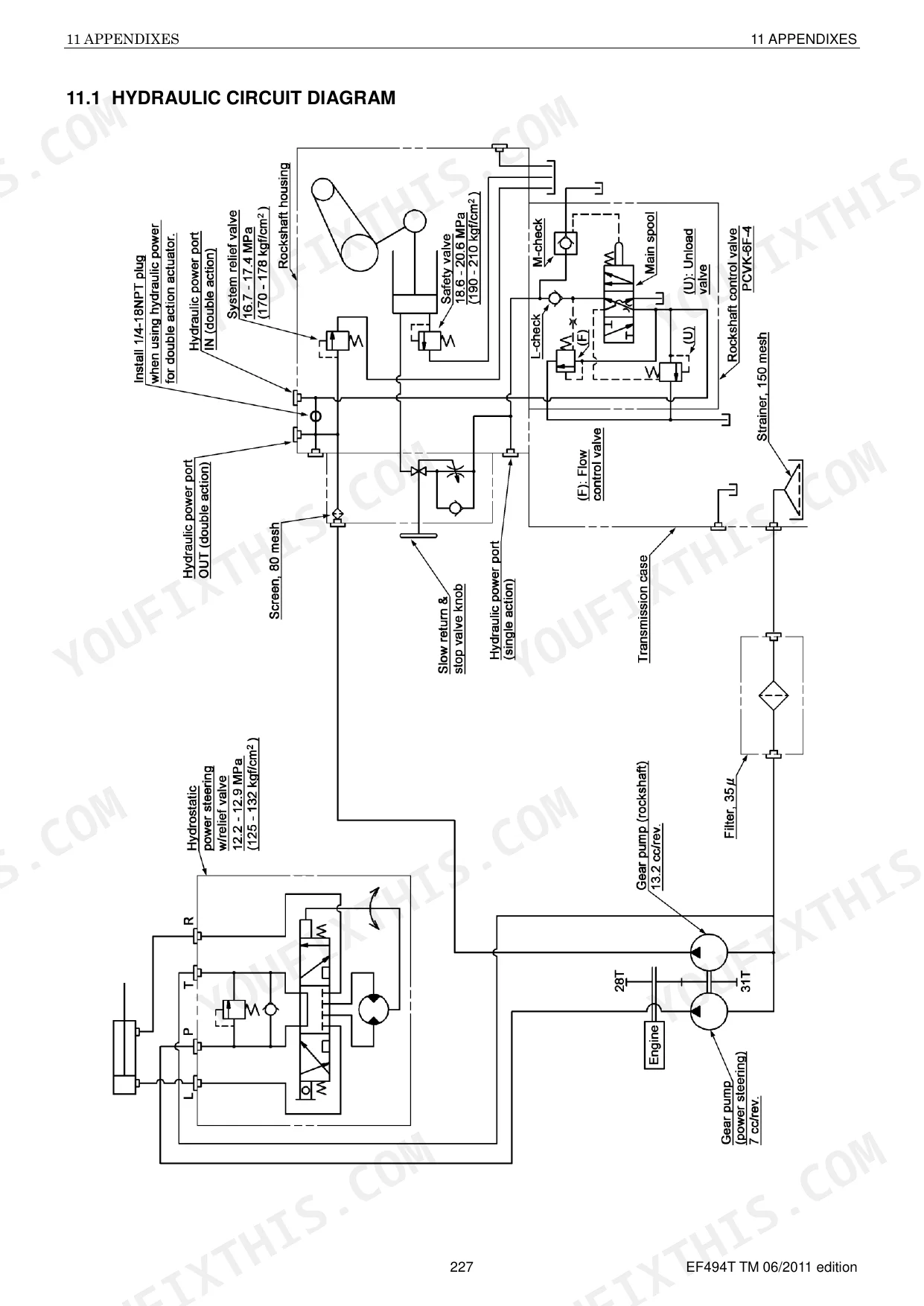

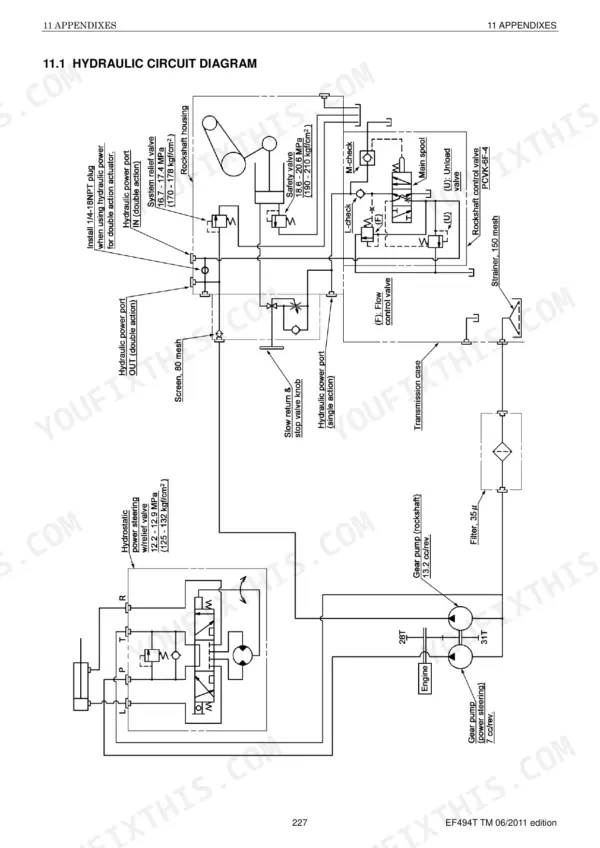

| Appendixes | 234-239 | Hydraulic Circuit Diagram, Electrical Diagram and Parts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

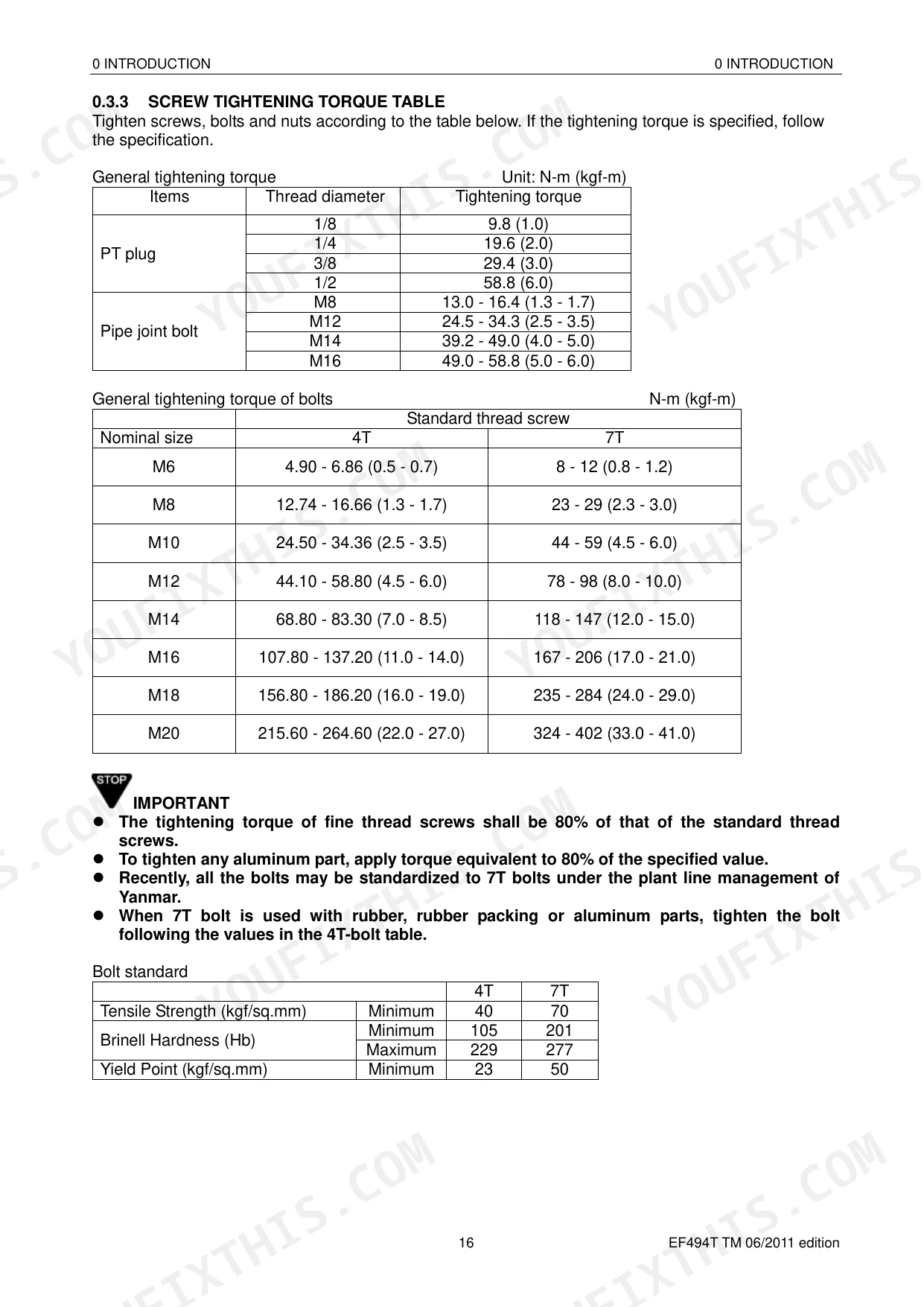

| Clutch pressure plate tightening torque | 23-29 N-m, 2.3-3.0 kgf-m, 16.6-21.7 lb-ft | p. 131 |
| Wheel bolt torque | 177-196 N-m (18.0-20.0 kgf-m, 130-145 lb-ft) | p. 71 |
| Battery type | 75D26R | p. 40 |
| Battery capacity (5HR) | 52AH | p. 40 |
| Fuel filter replacement interval | every 300 hours or 6 months, whichever is earlier | p. 90 |
| Engine oil element replacement interval | first 50 hours, then every 300 hours or every 2-3 times of replacing the engine oil | p. 35 |
| Air cleaner element replacement interval (dusty environment) | every 300 hours | p. 38 |
| Air cleaner element replacement interval (normal condition) | every 1000 hours | p. 38 |
| Thermostat valve opening temperature | 85°C | p. 101 |
| Thermostat valve fully open temperature | 95°C | p. 101 |
| Radiator cap normal pressure | 0.9 ±0.15 kgf/cm2 (12.8±2.1 lb/sq.in) | p. 103 |
| Starter motor part number | 129407-77010 | p. 215 |
Yanmar EF494T Common Problems This Manual Covers
Yanmar EF-494T won't start or turns over slowly after sitting idle several weeks p. 215

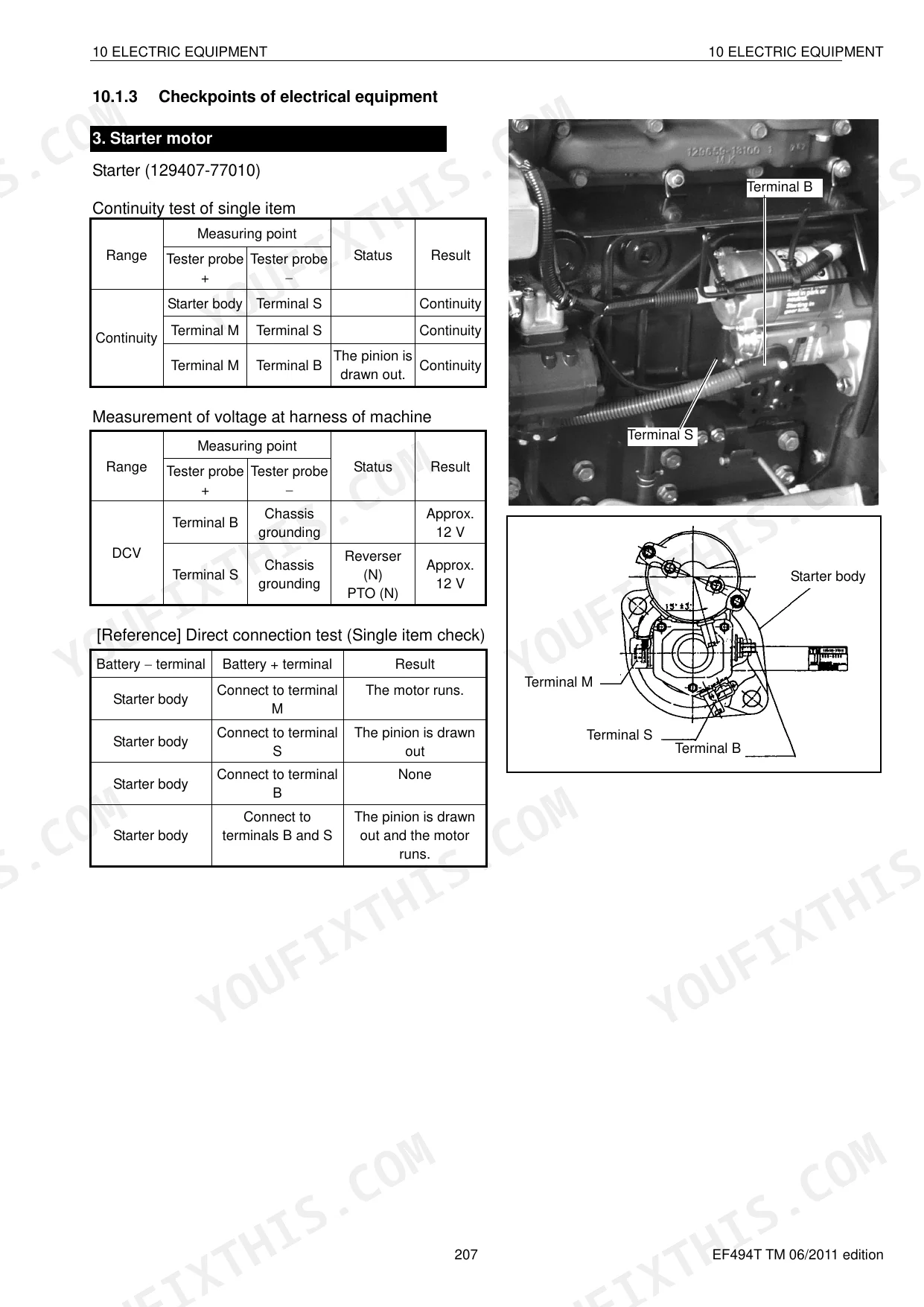

Check the battery: spec is 12V, 52AH (type 75D26R, page 40). If voltage is low, charge at 11 amperes. Next, test the fuel shut-off solenoid resistance between terminals (2) and (1); it should read approx. 12.4 ohms (page 216). Work through the engine start circuit checkpoints on page 215 if the solenoid passes.
Manual Section: Electric EquipmentEngine overheats at normal operating load, temperature gauge climbs into red zone p. 101
Inspect the radiator screen and clean any debris blocking airflow. Check coolant level, then verify the radiator cap holds 0.9 ±0.15 kgf/cm2 (page 103). Test the thermostat: it should begin opening at 85°C and reach full lift of 8mm minimum at 95°C (page 101). Also check fan belt deflection, which should measure 10-15 mm (page 46).
Manual Section: EngineHydraulic lift responds slowly, three-point hitch won't hold position or raise implements p. 202
Check the hydraulic line filter; replace it at the first 50 hours then every 300 hours after (page 36). Verify transmission oil is filled to the correct level: total capacity is 27 liters (page 34). If flow stays weak, measure the main relief pressure using the adjustment procedure on page 202 and compare against spec.
Manual Section: Hydraulic Lift UnitClutch slips under load or pedal goes to floor without fully disengaging p. 45
Adjust clutch pedal free play to 15-25 mm using the procedure on page 45. If pedal travel is already correct and the clutch still slips, remove the clutch housing per page 49 and inspect the pressure plate. Tighten pressure plate bolts to 23-29 N-m (2.3-3.0 kgf-m) if found loose (page 131).
Manual Section: ClutchEngine loses power under load, black or gray exhaust smoke persists at operating temperature p. 117
Inspect exhaust color to narrow the cause: black smoke points to restricted air or excess fuel delivery. Replace the air cleaner element every 300 hours in dusty conditions or annually (page 38). Change the fuel filter every 300 hours or 6 months, whichever is earlier (page 90). If power loss continues, measure compression pressure; spec is 30-35 kg/cm2 (page 117).
Manual Section: EngineFrequently Asked Questions
What are the torque specs for YANMAR EF-494T wheel lug nuts and engine bolts?

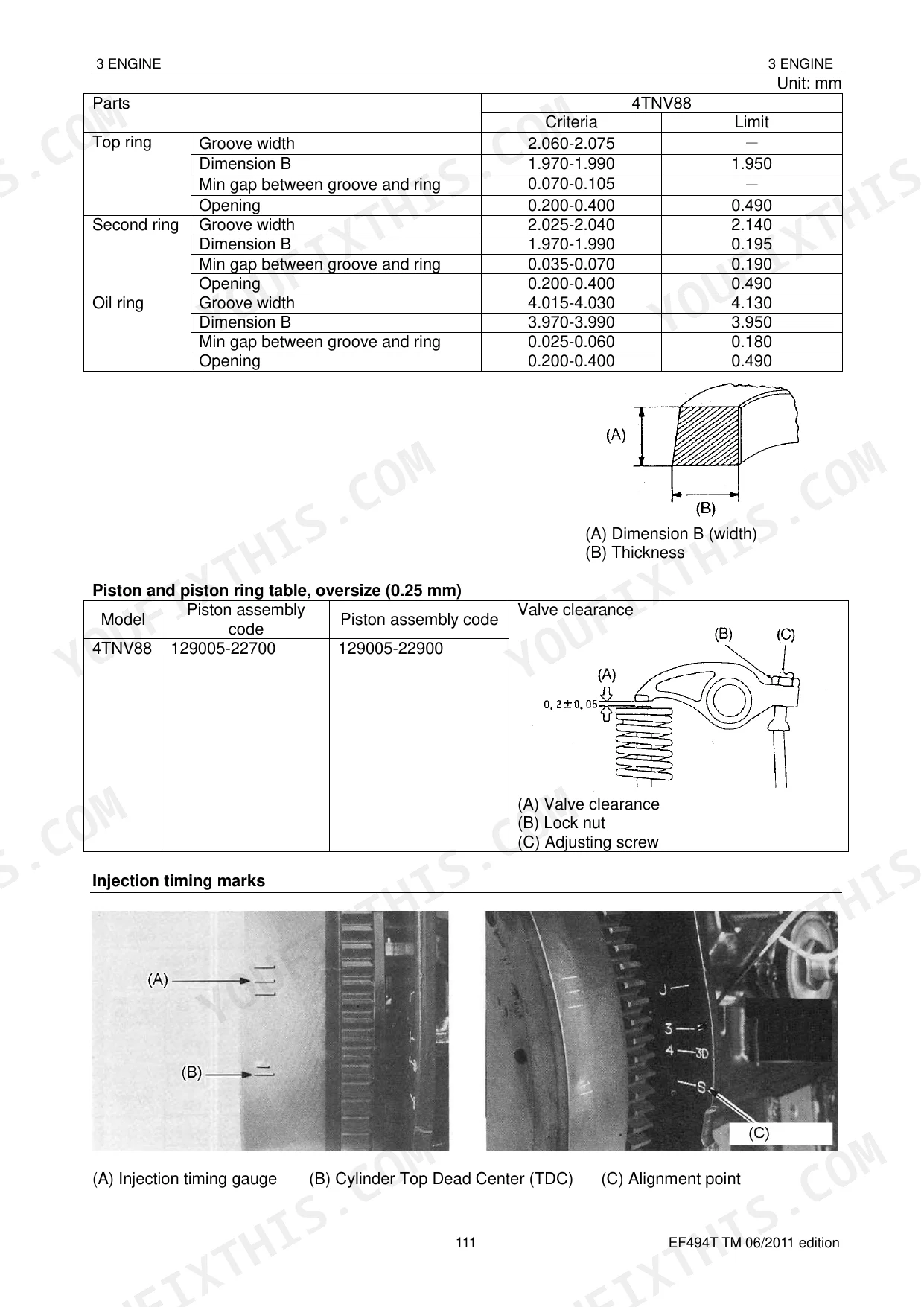

The fastening torque for wheel and axle shaft fixing bolts is 186 N-m (19 kgf-m, 137 lb-ft) (page 48). For engine bolts, specific torques are provided, such as Cylinder head bolt at 85.3 to 91.1 N-m (8.7 to 9.3 kgf-m) and Connecting rod bolt at 44.1 to 49.0 N-m (4.5 to 5.0 kgf-m) (page 118).
What is the correct maintenance procedure after a YANMAR EF-494T fault or shutdown?
After servicing the machine, ensure all removed fasteners, bolts, and nuts are retightened to specified torque. Reinstall all safety shields and devices, refill radiator coolant, hydraulic oil, and engine oil. Start the engine to check for leaks and proper functioning of all controls and implements. Finally, shut down the engine, recheck the work performed, and verify all fluid levels again.
What are the replacement specifications for battery?
The specified battery for the YANMAR EF-494T is type 75D26R with parts code 1A7781-51510. It has a voltage of 12 Volts, a capacity of 52 AH (5HR), and a charging rate of 11 Amperes. When replacing, use a genuine or equivalent battery specified in the table.
What are the replacement specifications for fuel filter?
The fuel filter element should be replaced every 300 operating hours or every 6 months, whichever comes earlier. It is important to use a genuine element, as failure to do so could cause trouble for the Fuel Injection Pump (FIE) and premature wearing of the plunger.
How will I receive this Yanmar EF494T Technical Manual?
Immediate download of the complete 239-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this Yanmar EF494T Technical Manual printable?
Yes. The PDF is DRM-free, so you can print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

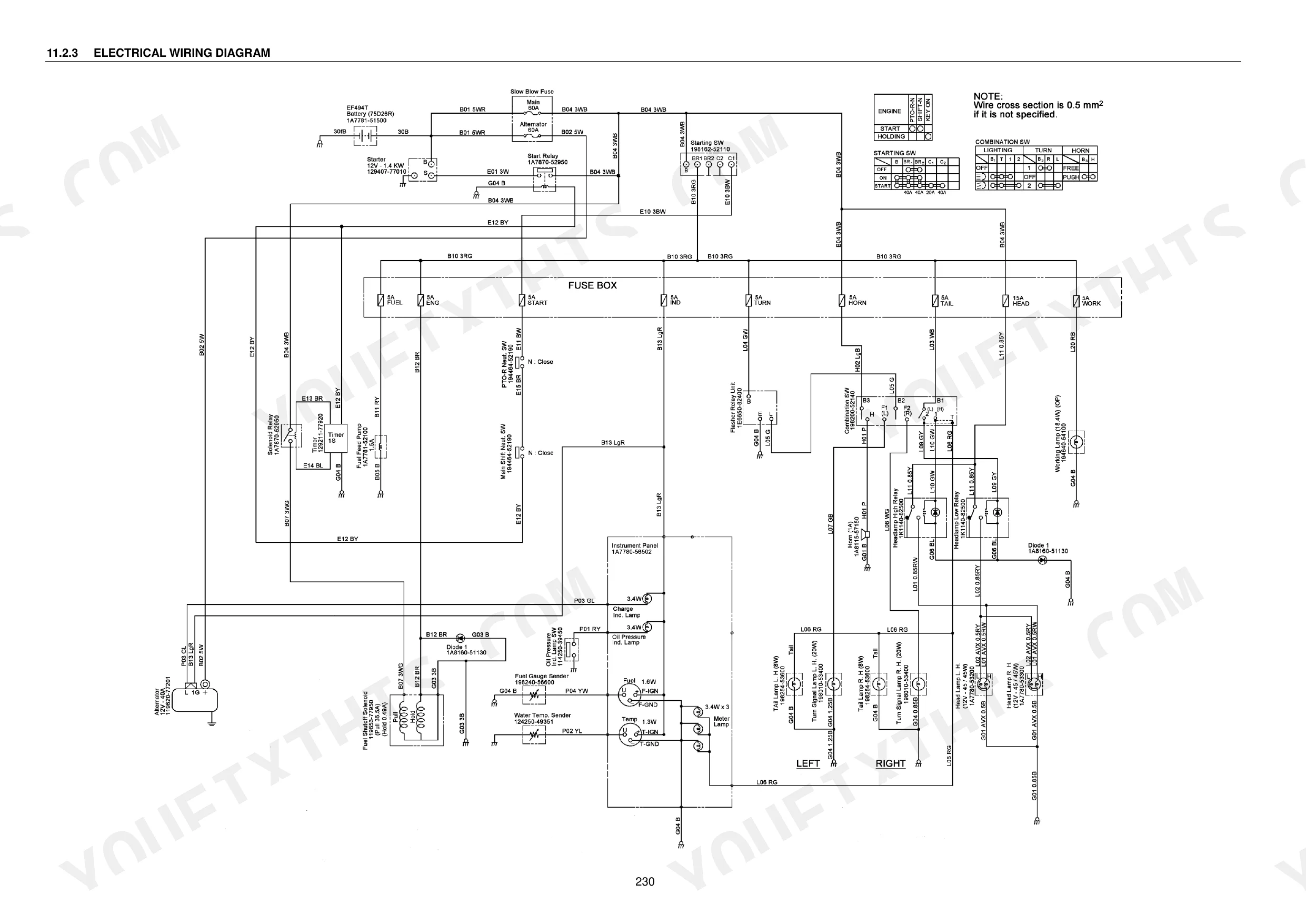

Does this Yanmar EF494T Technical Manual have electrical diagrams?
A wiring diagram for the Yanmar EF494T electrical system is included.
