Need the daily operation and service requirements for your diesel tractor? This 81-page Yanmar EF494T operator manual PDF breaks down the complete control functions, safe operating limits, and maintenance schedules to keep the machine out of the shop. You get a full breakdown of the dashboard indicators, PTO shift lever operations, and 3-point link adjustments to maintain maximum pulling power. Inside, the guide is packed with step-by-step periodic inspection procedures, implement capacities, and load charts so you never push your equipment past its factory ratings. Lock down the wheel and axle shaft fixing bolts to exactly 186 N-m (19 kgf-m) and swap out both the hydraulic and engine oil filters every 300 hours. A poorly maintained tractor is a ticking clock for expensive downtime. Grab this bookmarked download, open it right on your phone in the cab, and get back to work.
What's Inside This Yanmar EF494T Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 6-19 | Protect Operator Safely, Before Operating, Starting, During Operation, Avoid Tipping Over, Transporting, Maintenance and Service, Storage |
| After Sales Service and Warranty | 20-23 | After Sales Service, Availability of Spare Parts |
| Part Names | 24-25 | Bonnet, Headlights, Front Axle Bracket, Steering Wheel, Rear Wheel, PTO Shift Lever |
| Safety Label Location | 26 | Label, Brake Coupling, Caution, Fire Caution, Danger Rotate Shaft |

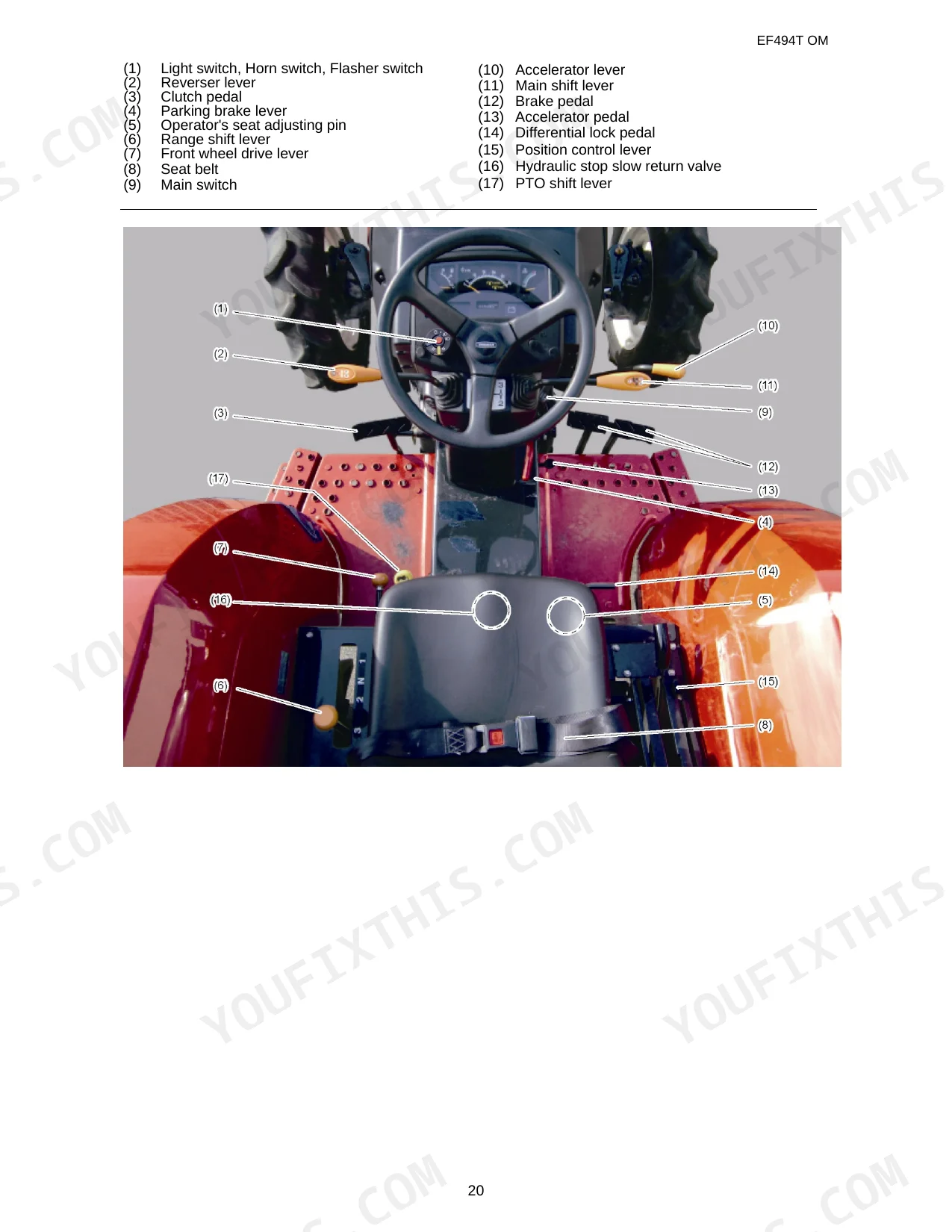

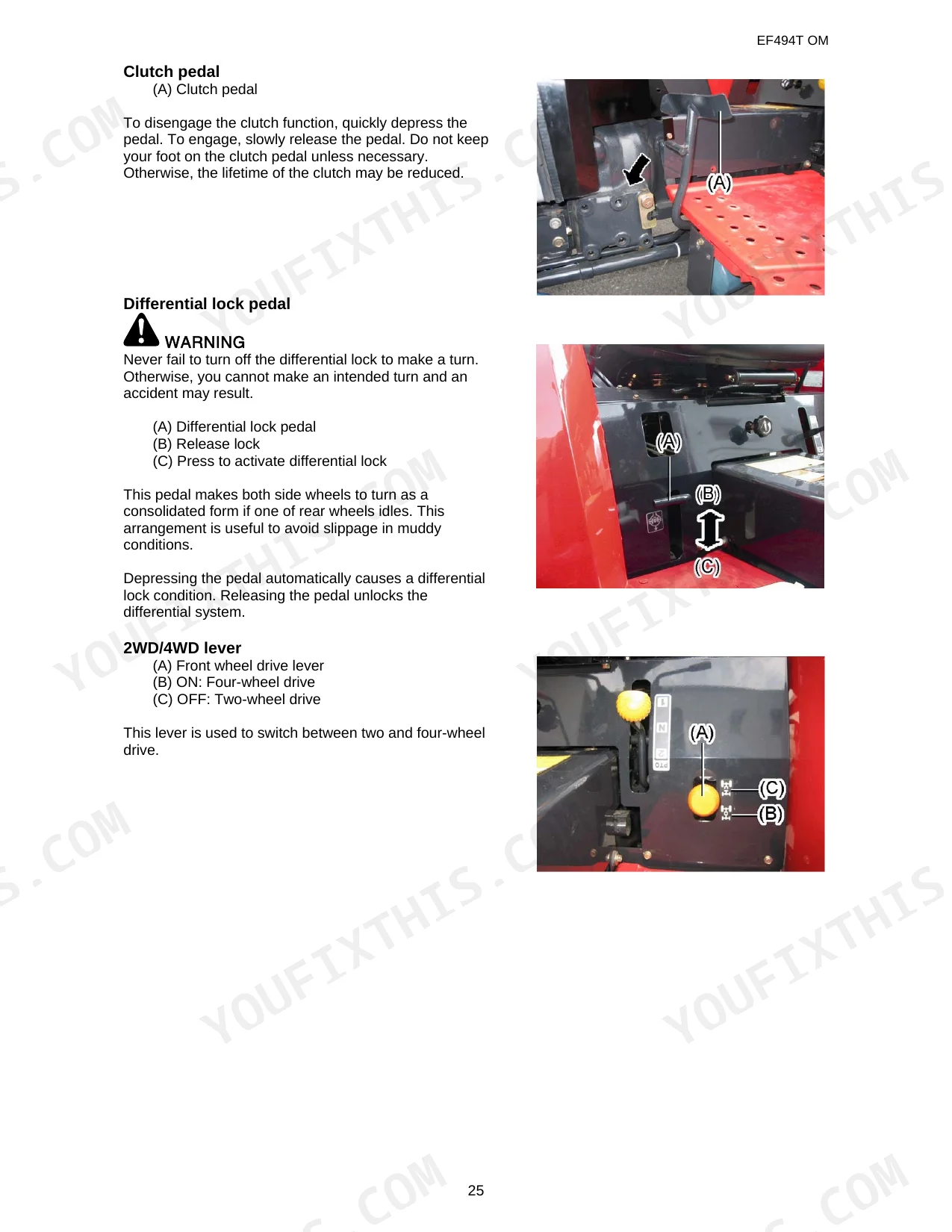

| Function of Each Control | 27-34 | Engine, Traveling, PTO Related Functions, Hydraulic System, Others |
| Pre-Operation Checks | 35-55 | Tractor Movement, Hitch and PTO Operation |
| After Operation | 56-58 | Opening the Bonnet and Side Covers, Checking and Supplying Fuel, Care for Long Period of Storage |

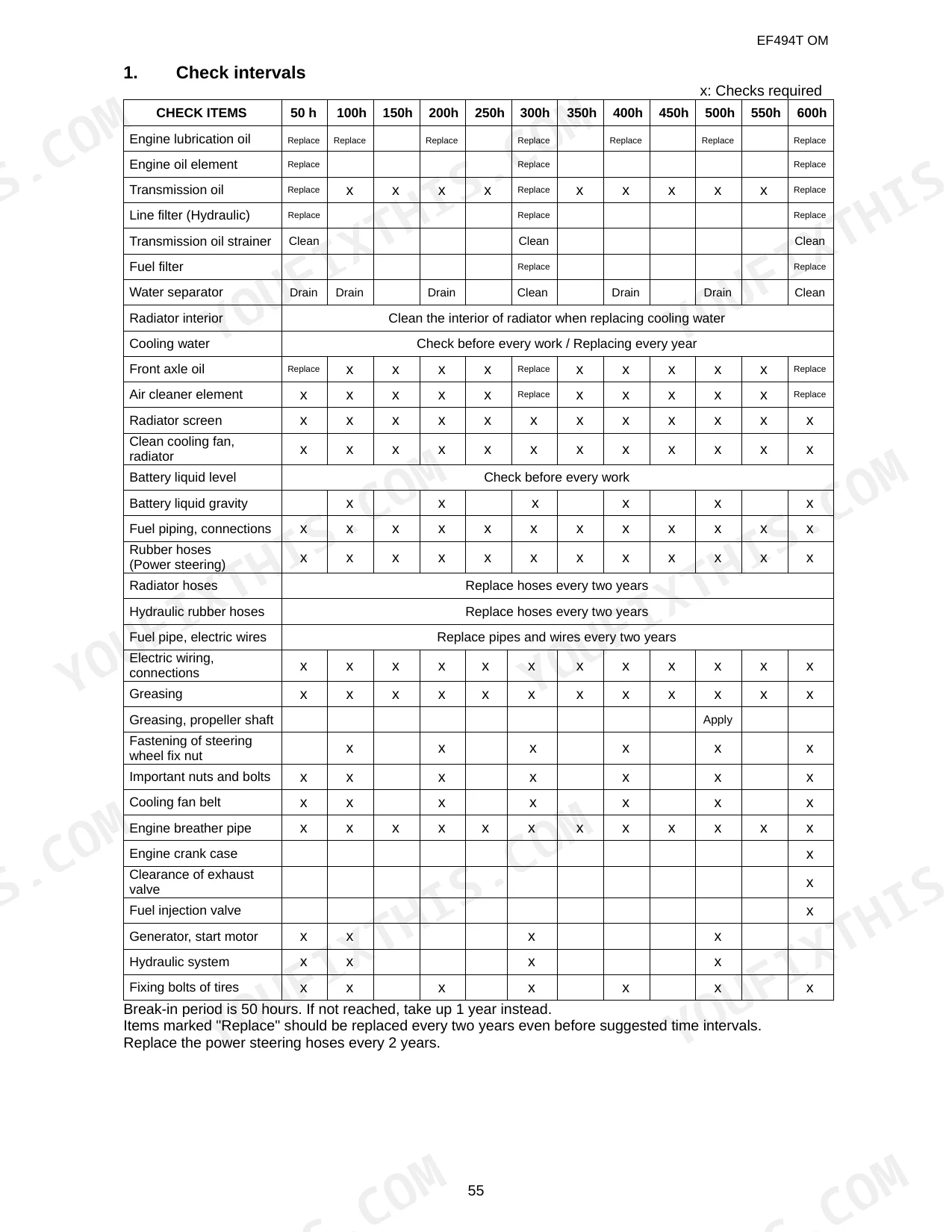

| Periodic Inspection and Adjustment | 59-76 | Check Intervals, Oil and Grease, Oil and Water Volume, Replacing Oil, Replacing Oil Filter Elements, Engine Coolant, Fuel Line, Replacing Radiator Screen and Air Cleaner Elements |

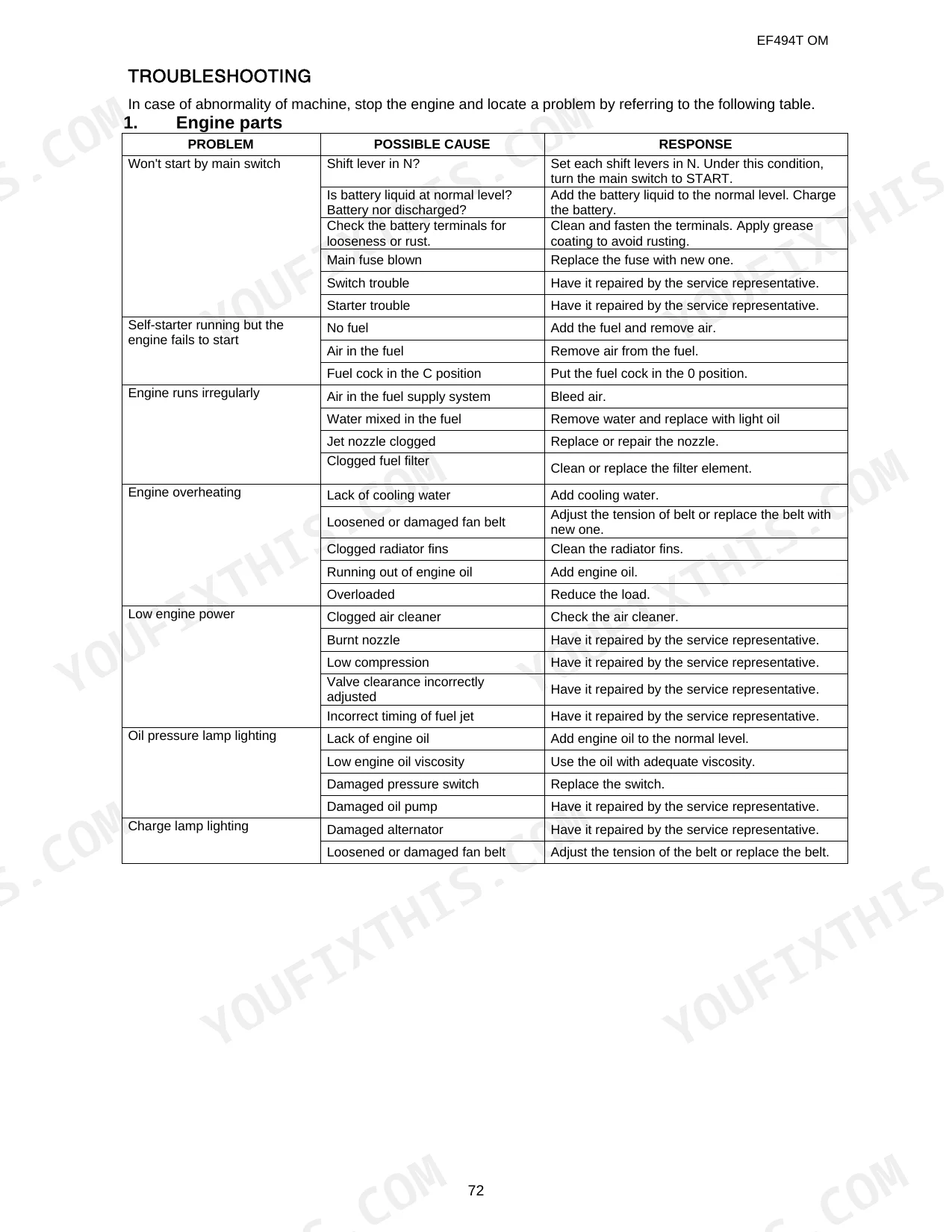

| Troubleshooting | 77-78 | Engine Parts, Clutch, Brake and Related Parts, Hydraulic System, Electric System |

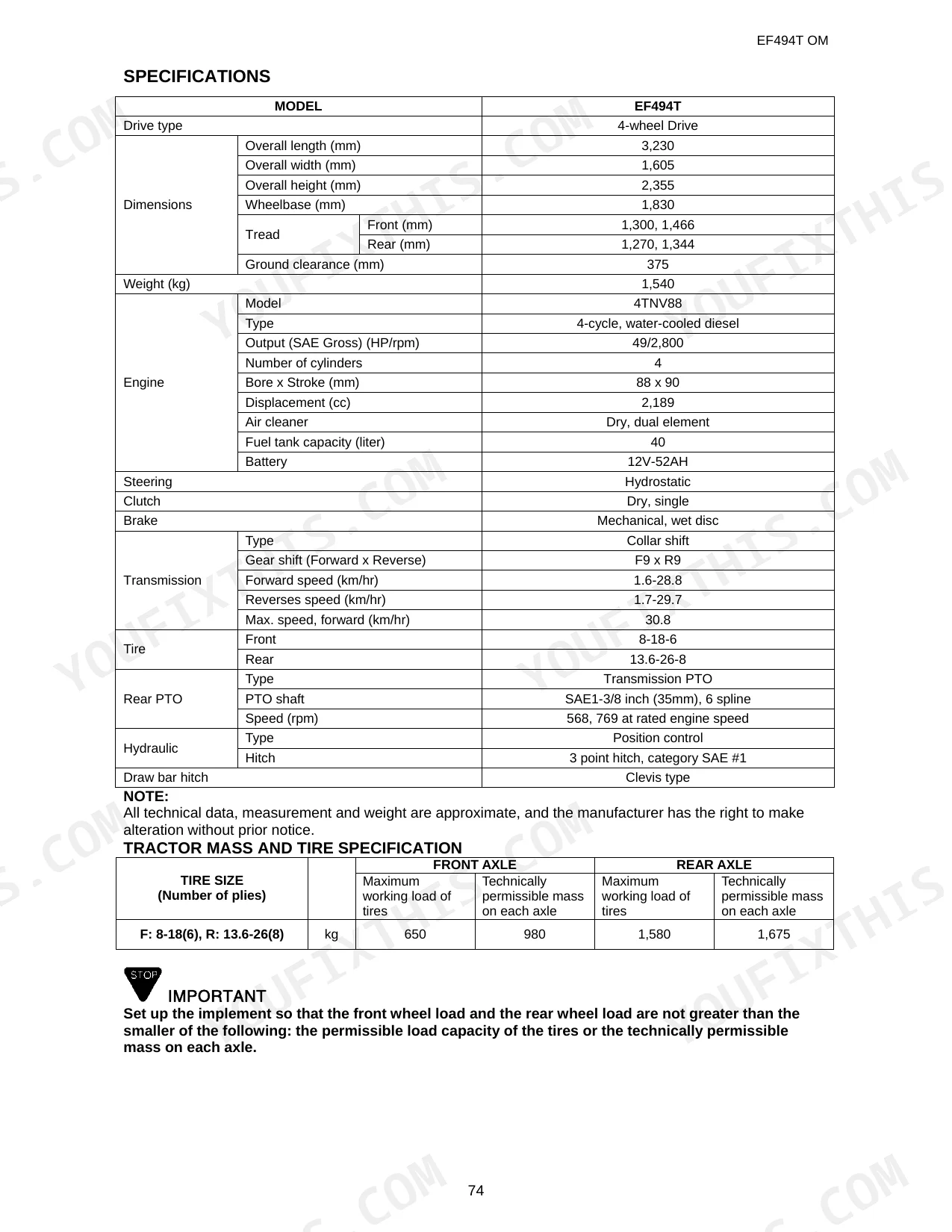

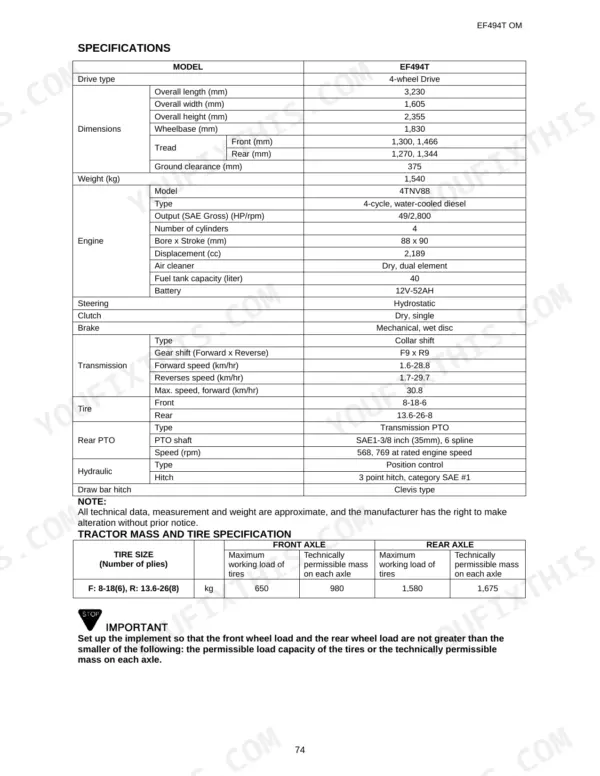

| Specifications | 79 | Drive Type, Engine, Transmission, Tire, Hydraulic, Draw Bar Hitch |
| Implement Capacities | 80-81 | Lower Link End Maximum Lifting Capacity, Implement Weight and Size, Maximum Drawbar Load, Trailer Loading Weight Maximum Capacity, Implement Capacity List |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel filter replacement interval | every 300 hours | p. 65 |
| Air cleaner element replacement interval | every 300 hours | p. 66 |
| Hydraulic oil filter replacement interval | every 300 hours | p. 63 |
| Engine oil filter replacement interval | every 300 hours | p. 63 |
| Fixing bolts for wheel and axle shaft torque | 186 N-m (19 kgf-m) | p. 48 |
| Cooling water volume | Radiator: 4 liters, Sub-tank: 0.45 liters | p. 61 |
| Engine Output (SAE Gross) | 49 HP/2,800 rpm | p. 79 |
| Fuel Tank Capacity | 40 liters | p. 61 |
| Wheel and Axle Shaft Fixing Bolts Torque | 186 N-m (19 kgf-m) | p. 48 |
| ROPS Bolt Tightening Torque | 167-206 N-m (17-21 kgf-m) | p. 55 |
| Brake Pedal Play | 30-40 mm | p. 37 |
| Clutch Pedal Play | 15-25 mm | p. 38 |
Yanmar EF494T Common Problems This Manual Covers
Yanmar EF494T engine turns over slowly or will not start in cold weather p. 65
Inspect the fuel line and filter bowl for water or contamination. Replace the fuel filter element every 300 hours as shown on page 65. Drain the system and refill the tank with fresh diesel up to the 40 liters capacity.
Manual Section: Periodic Inspection and AdjustmentTemperature gauge reads high or coolant boils over during heavy brush clearing work p. 61
Stop the tractor immediately and check the cooling water volume on page 61. Fill the radiator to exactly 4 liters and the sub-tank to 0.45 liters if levels drop. Inspect the radiator screen for trapped debris and clear the front grille thoroughly to restore proper engine airflow.
Manual Section: Periodic Inspection and AdjustmentRear wheel wobbles and makes a clunking noise when moving forward or reversing p. 48
Torque the fixing bolts for the wheel and axle shaft to 186 N-m (19 kgf-m) as detailed on page 48. Check the hardware daily before operation to prevent rim damage. Verify all tire pressures match the tire specifications before resuming field work.
Manual Section: Pre-Operation ChecksTractor pulls to one side when stopping or brake pedal feels excessively spongy p. 37
Measure the brake pedal play using a tape measure. Adjust the linkage on page 37 until the pedal play is exactly 30-40 mm. Test both pedals independently to confirm even braking force. Inspect the brake coupling label on page 26 to ensure proper latch operation.
Manual Section: Pre-Operation ChecksFrequently Asked Questions
What is the torque spec for YANMAR EF494T wheel bolts?
The fastening torque for the fixing bolts of the wheel and axle shaft on the YANMAR EF494T tractor is 186 N-m (19 kgf-m). It is recommended to check the tightness of these bolts after the first 10 hours and again after the first 50 hours, and then every 100 hours of operation.
What are the replacement specifications for Fuel filter?
The fuel filter should be replaced every 300 hours. When replacing, ensure to use a genuine element to prevent issues with the Fuel Injection Pump (FIE) and premature wearing of the plunger, which could lead to hard starting of the engine.
What are the replacement specifications for Air cleaner element?
For operation in a dusty environment, the air cleaner element should be cleaned every 50 hours and replaced every 300 hours. In normal conditions, clean it every 100 hours and replace it every 1000 hours, or at least once a year. The inner element (B) cannot be cleaned and must be replaced if dirty.
How do you fix yanmar EF494T engine turns over slowly or will not start in cold weather?
Inspect the fuel line and filter bowl for water or contamination. Replace the fuel filter element every 300 hours as shown on page 65. Drain the system and refill the tank with fresh diesel up to the 40 liters capacity.
What format is this manual in?
You get a 81-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
