Six PDS265 variants share this 52-page parts catalog: PDS265S, PDS265SC, and PDS265SD, each built on either the trailer-mount 4B2 frame or the box-type 5B2 frame. Exploded drawings cover every assembly, from air-end compression and valve groups through mounting, intake, receiver, separator, and service header to the oil line and cooling circuit. Engine coverage runs deep too: cylinder block, crankshaft, turbo, fuel injection pump, governor, starter, and generator, with each diagram keyed to reference numbers, part numbers, and interchangeability flags. A serial-number change table tracks which parts shifted between production runs, so a PDS265S-4B2 owner can confirm rated pressure (0.69 MPa standard, up to 1.37 MPa on Code G builds) before ordering. Whether you run a PDS265SD-5B2 or another frame, the system bookmarks drop you straight into the section you need.
What's Inside This Airman PDS265 Series Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Parts Catalog | 1 | Air End, Mounting & Intake, Receiver, Separator & Service Header, Air Line, Engine, Exhaust, Fuel Line & Electric |
| For Model | 2 | PDS265S-4B2 (Trailer Type), PDS265SC-4B2 (TRAILER/AFTERCOOLER Type), PDS265SD-4B2 (TRAILER/DRY Air Type), PDS265S-5B2 (Box Type), PDS265SC-5B2 (BOX/AFTERCOOLER Type) |
| Notice (Japanese) | 3-4 | パーツカタログの見方, 見出番号, 部品番号, 互換性, 部品名称, 数量 |
| Notice (English) | 5-6 | How to Read Parts Catalog, Ref. No., Interchangeability, Part Name |
| List of Machine Serial Numbers & Changed Part Numbers | 7 | M4, M5, M5-1, M5-2, M5-3, M6 |
| 21-00 | 9-11 | Compression Group, Valve Group, Coupling Group, Cylinder, Rotor, Bearing |
| 31-00 | 12-13 | Mounting Group, Intake Group, Bracket, Vibration Isolator, Air Filter Ass'y, Element |
| 33-00 | 14-16 | Receiver Group, Separator Group, Service Header Group, Cooling Group, Receiver Tank, Separator |
| 35-00 | 17-19 | Service Header (with Aftercooler & Dry Air), Cooling Group, Aftercooler, Hose, Nipple Elbow, Nipple, Union, Separator Ass'y |
| 36-00 | 20-22 | Air Line, Control Group |
| 36-01 | 23 | Regulator Ass'y, Body, Cap, Socket Bolt, Spring Washer, Shaft, Piston, Bushing |
| 37-00 | 24-26 | Oil Line Group, Cooling Group |

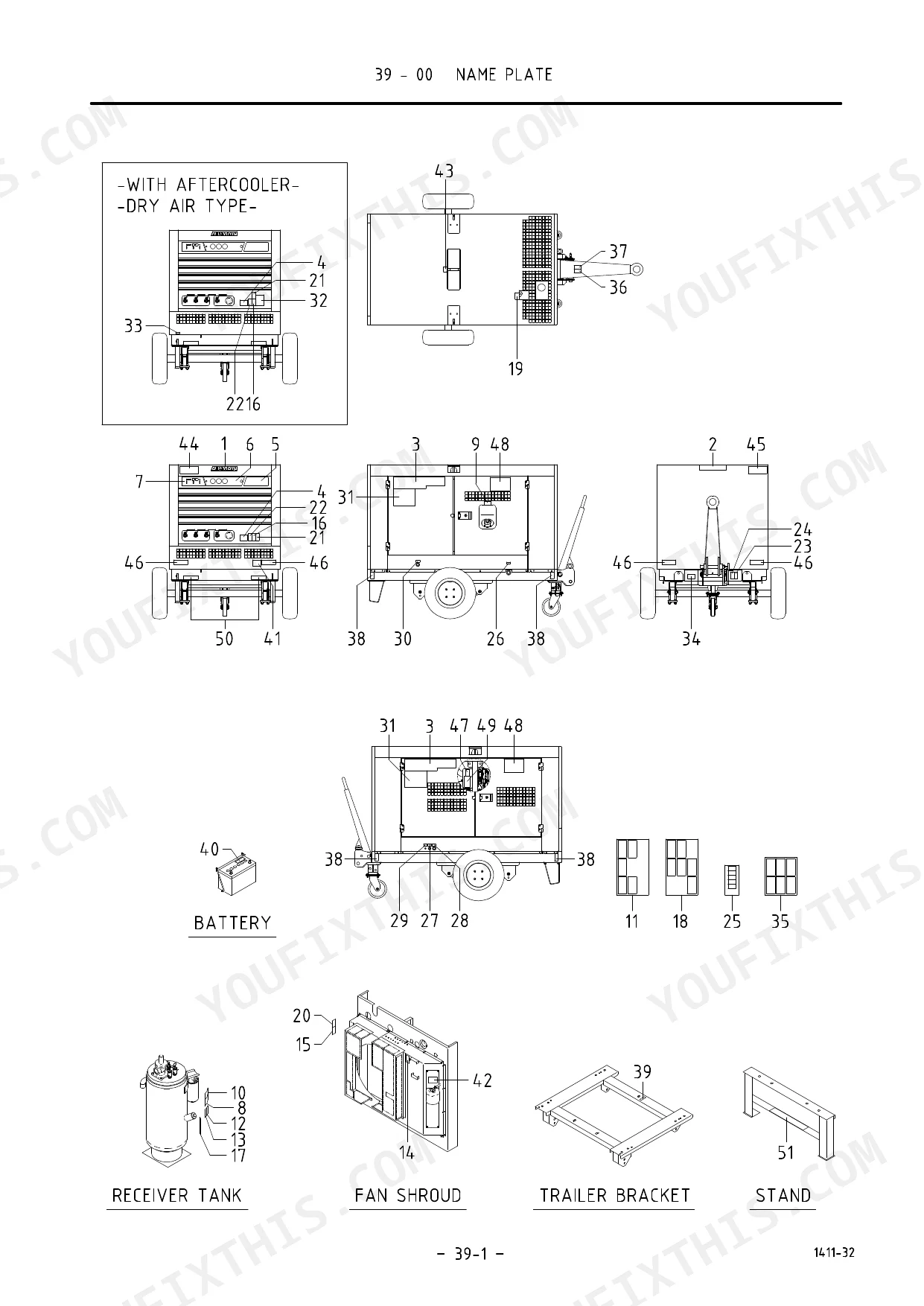

| 39-00 | 27-30 | Name Plate, Accessory Group, Receiver Tank, Fan Shroud, Trailer Bracket, Stand, Battery |

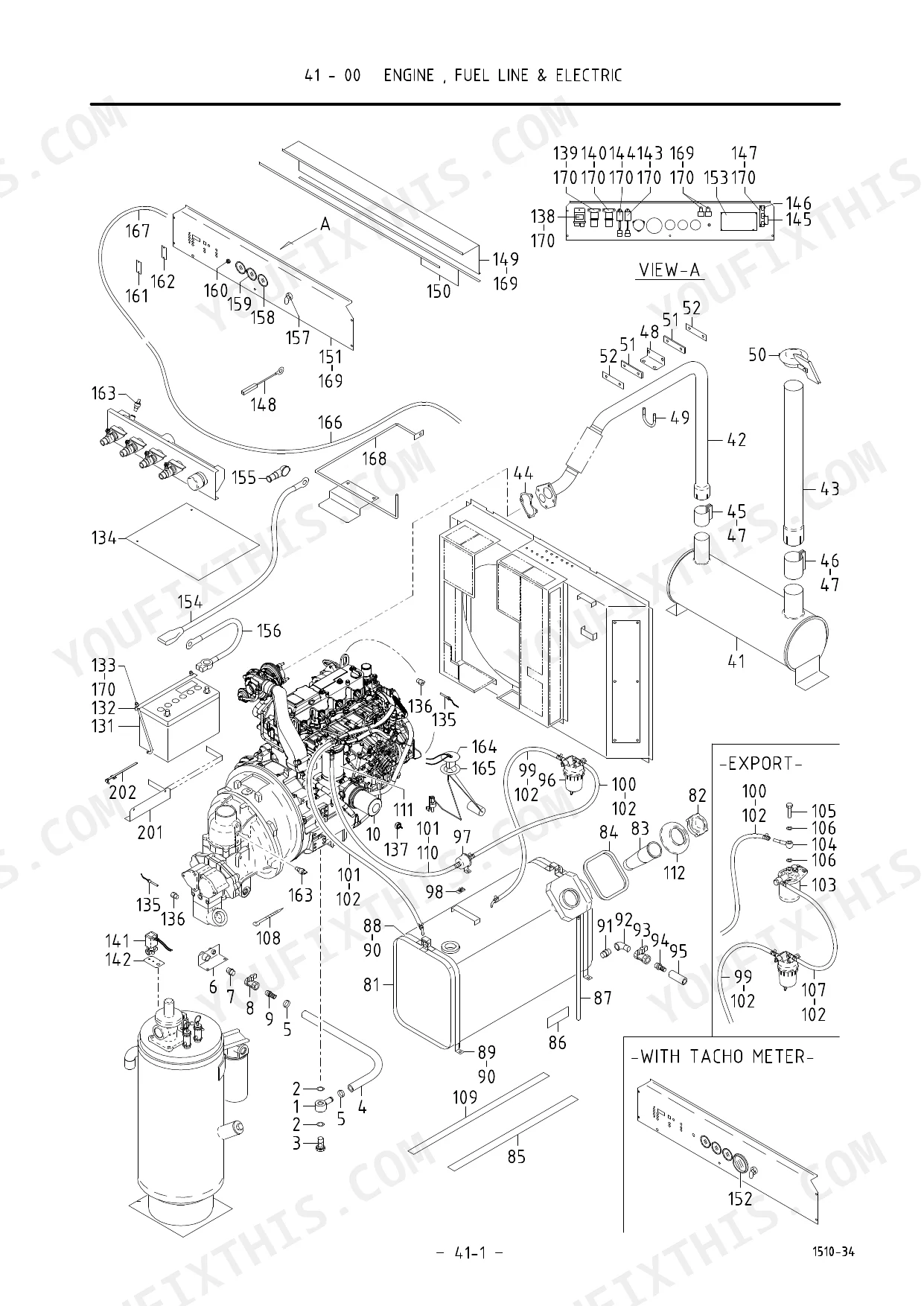

| 41-00 | 31-35 | Engine Group, Exhaust Group, Fuel Group, Electric Group, Cooling Group |

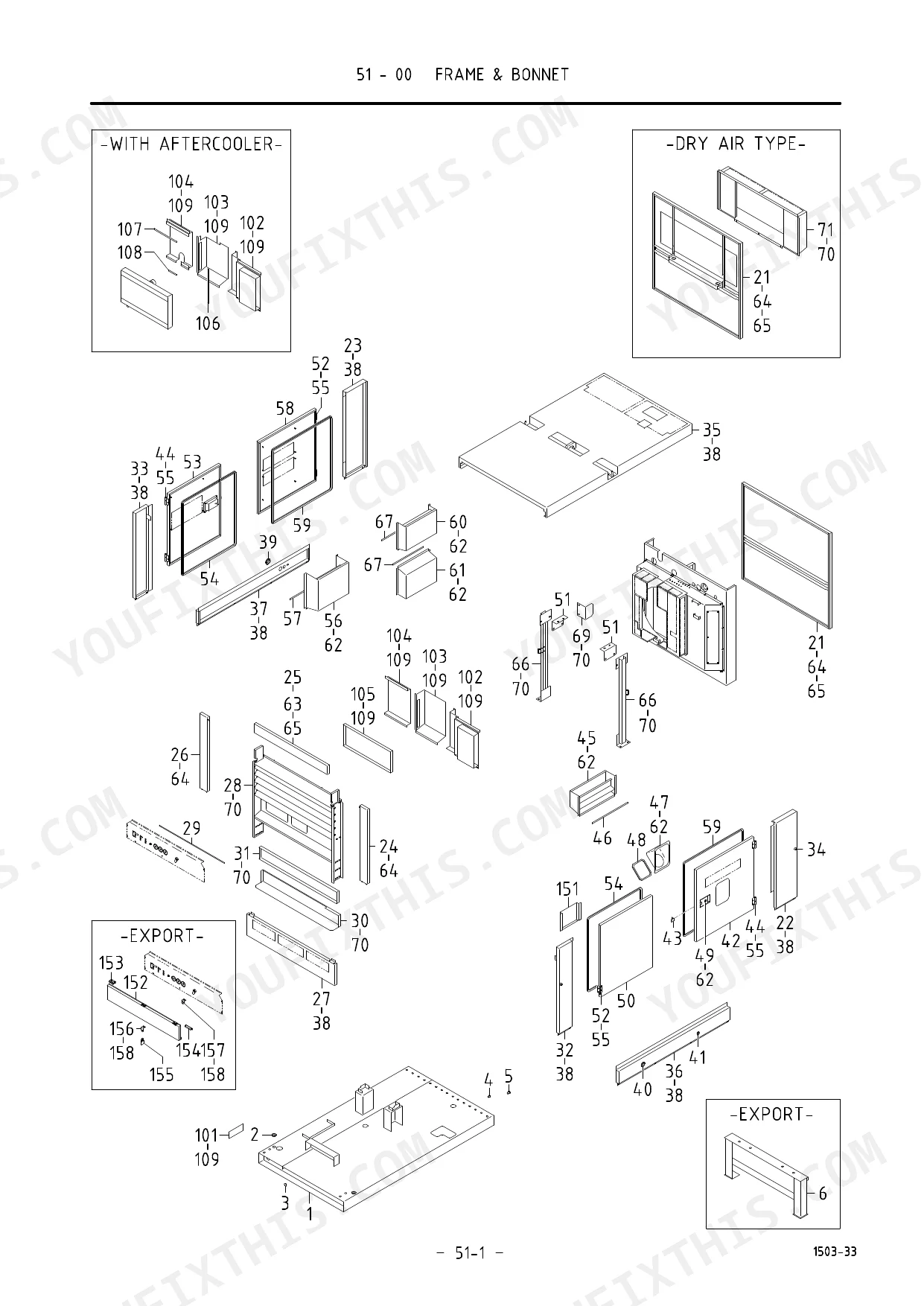

| 51-00 | 36-39 | Frame & Bonnet, Frame Group, Bonnet Group, Cooling Group, Accessory Group |

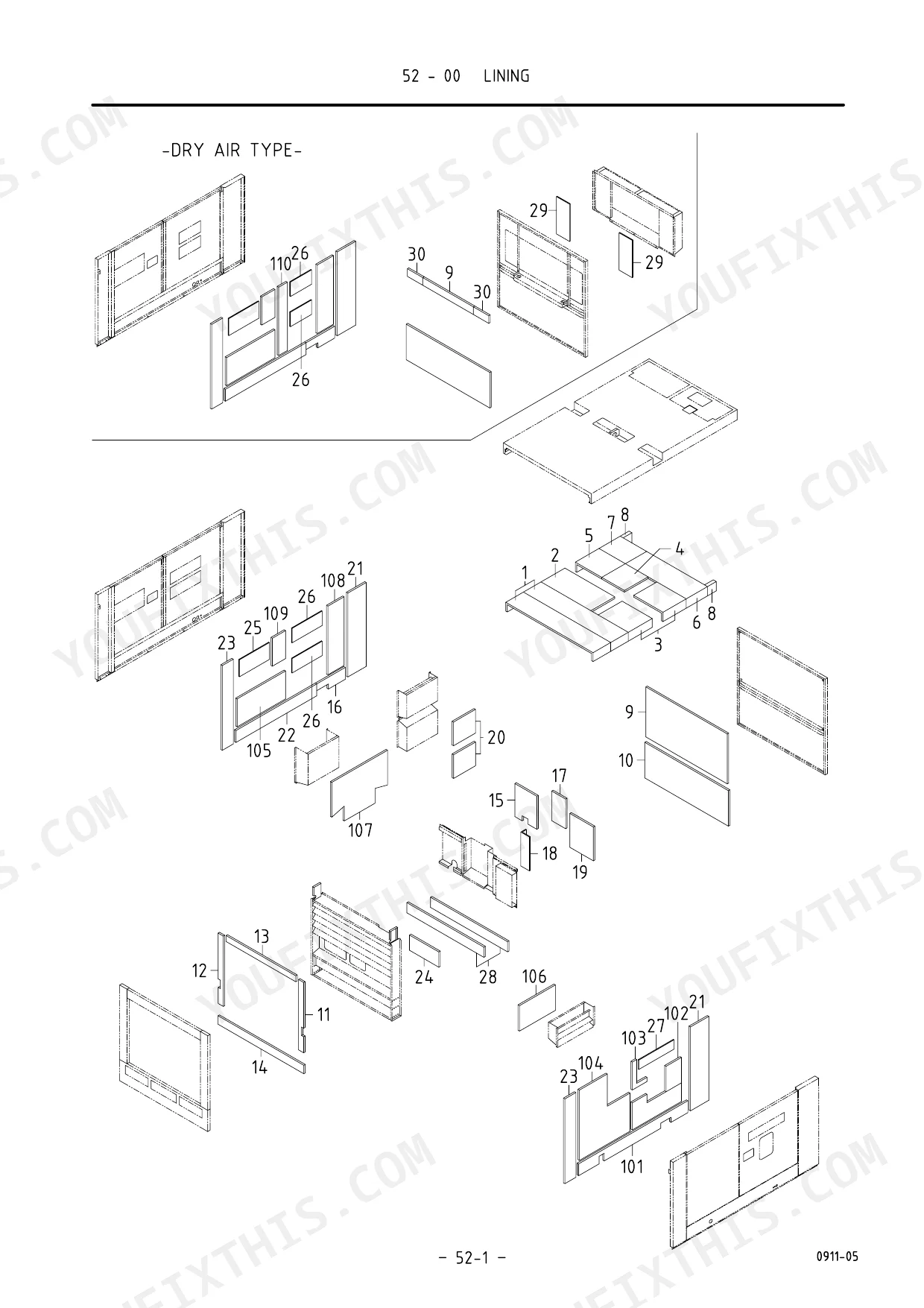

| 52-00 | 40-42 | Lining, Urethane Foam Kit |
| 54-00 | 43-45 | Running Group, Bracket, Leaf Spring Ass'y, Pin, Bushing, Grease Nipple, Axle, Hub |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| SDD, SDSG models | ||
| Engine Output | 75 kW | p. 4 |
| general (model code dependent) | ||
| Pressure (Standard) | 0.69 MPa | p. 4 |
| Pressure (Code E) | 0.86 MPa | p. 4 |
| Pressure (Code F) | 1.03 MPa | p. 4 |
| Pressure (Code G) | 1.18-1.37 MPa | p. 6 |
| Pressure (Code H) | 1.72 MPa | p. 4 |
| Pressure (Code J) | 2.07 MPa | p. 4 |
| Pressure (Code K) | 2.41-2.45 MPa | p. 6 |
Airman PDS265 Series Common Problems This Manual Covers

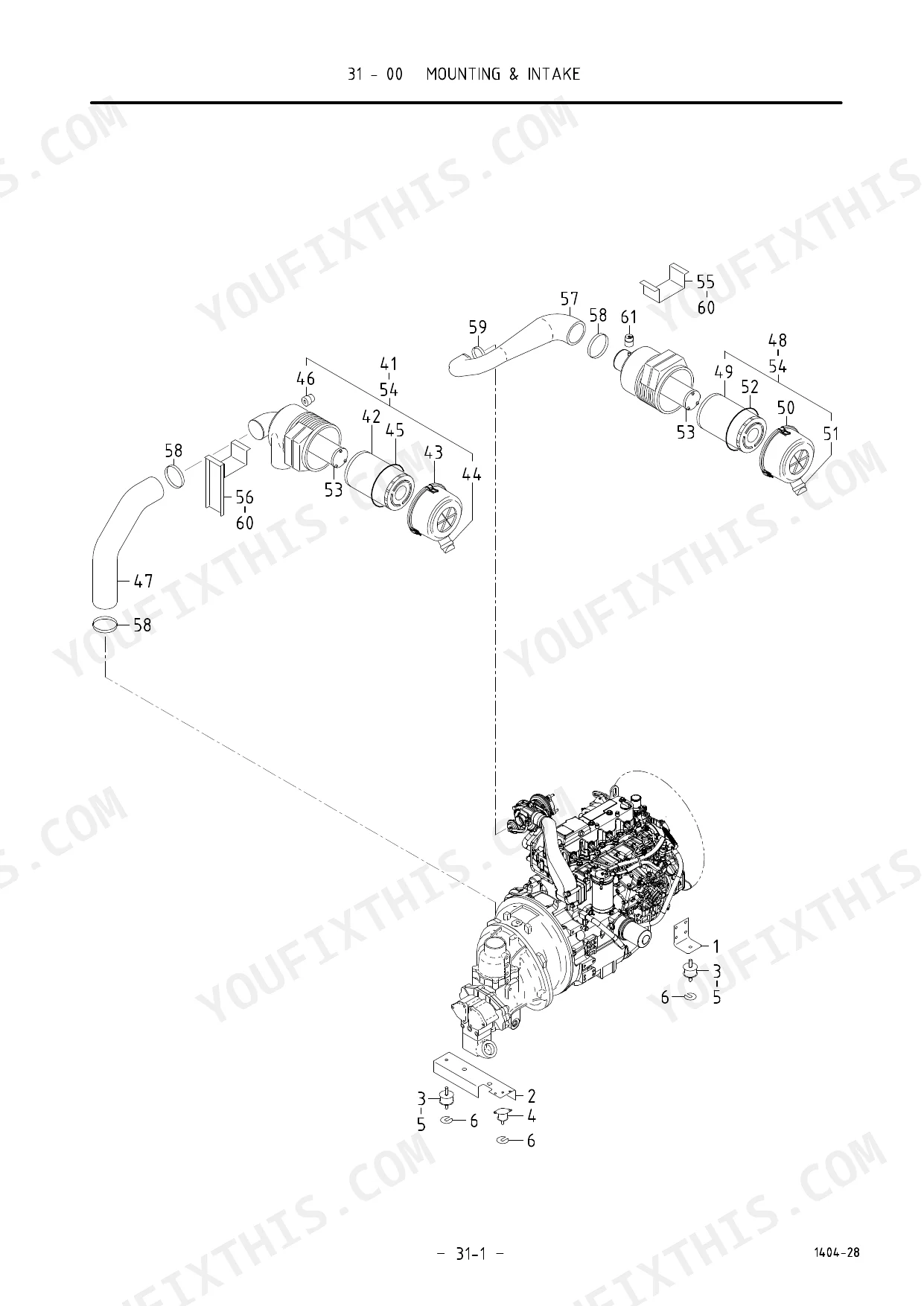

Airman PDS265S-4B2 air filter element is completely clogged and needs an exact replacement part number p. 12
Open the intake group exploded view on page 12, then trace the air filter assembly to its element part number for your serial number. For SDD builds at 75 kW engine output, confirm the listed quantity before ordering.
Manual Section: 31-00Cannot locate the correct separator element part number for the receiver tank after oil contamination p. 14
Pull up the receiver group diagram on page 14 and find the separator element, matching its reference number to the parts list. Confirm your standard pressure rating, 0.69 MPa or 0.70 MPa per page 4, before you place the separator order.

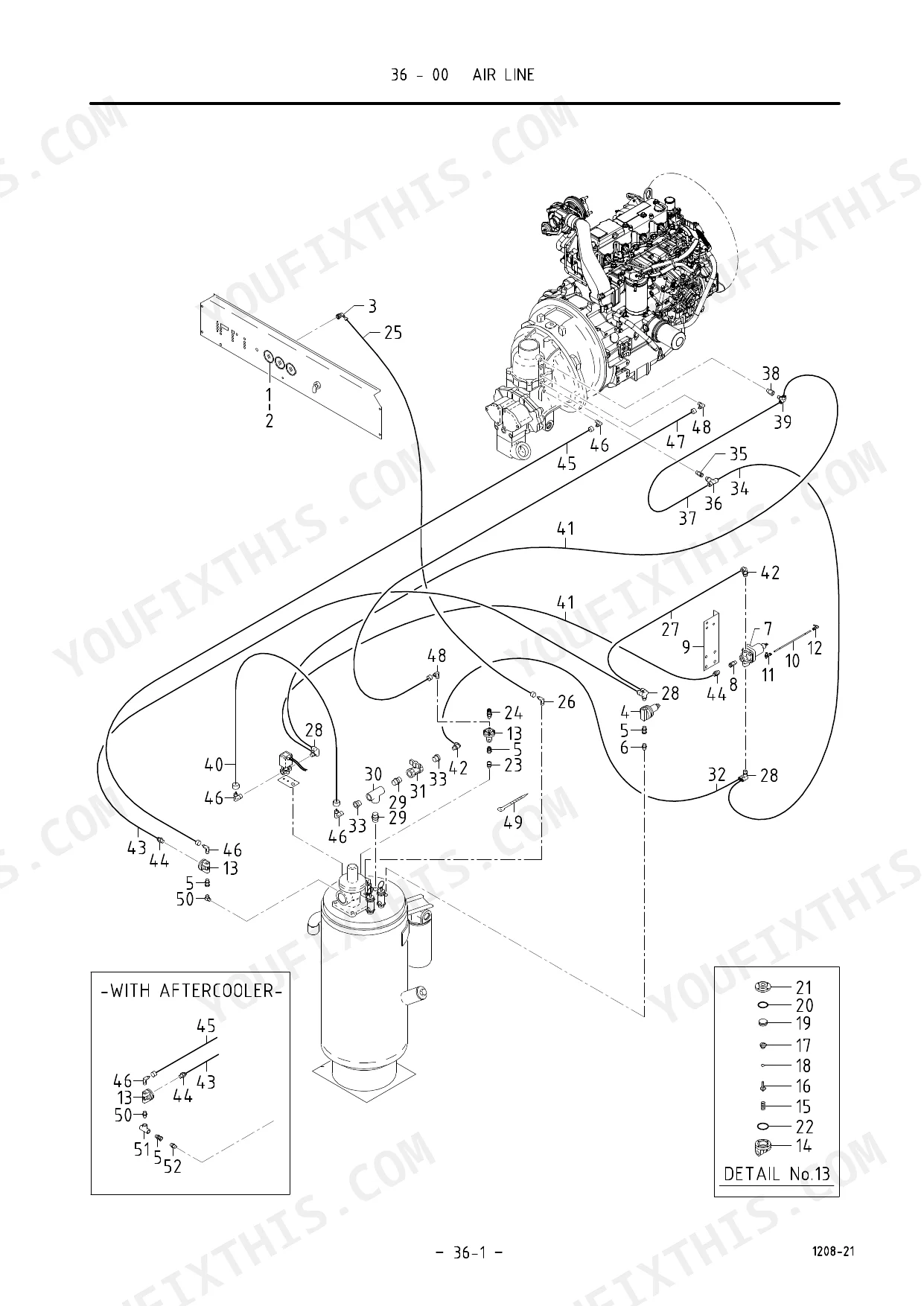

Manual Section: 33-00Need to identify replacement hoses and pressure fittings for a leaking air line p. 20
Scan the air line parts diagram on page 20 to pick out hoses and valves for your configuration, whether that is a PDS265SD-5B2 or another frame. On Code G machines rated 1.18-1.37 MPa, cross-reference the changed part numbers on page 7 for the updated fittings.

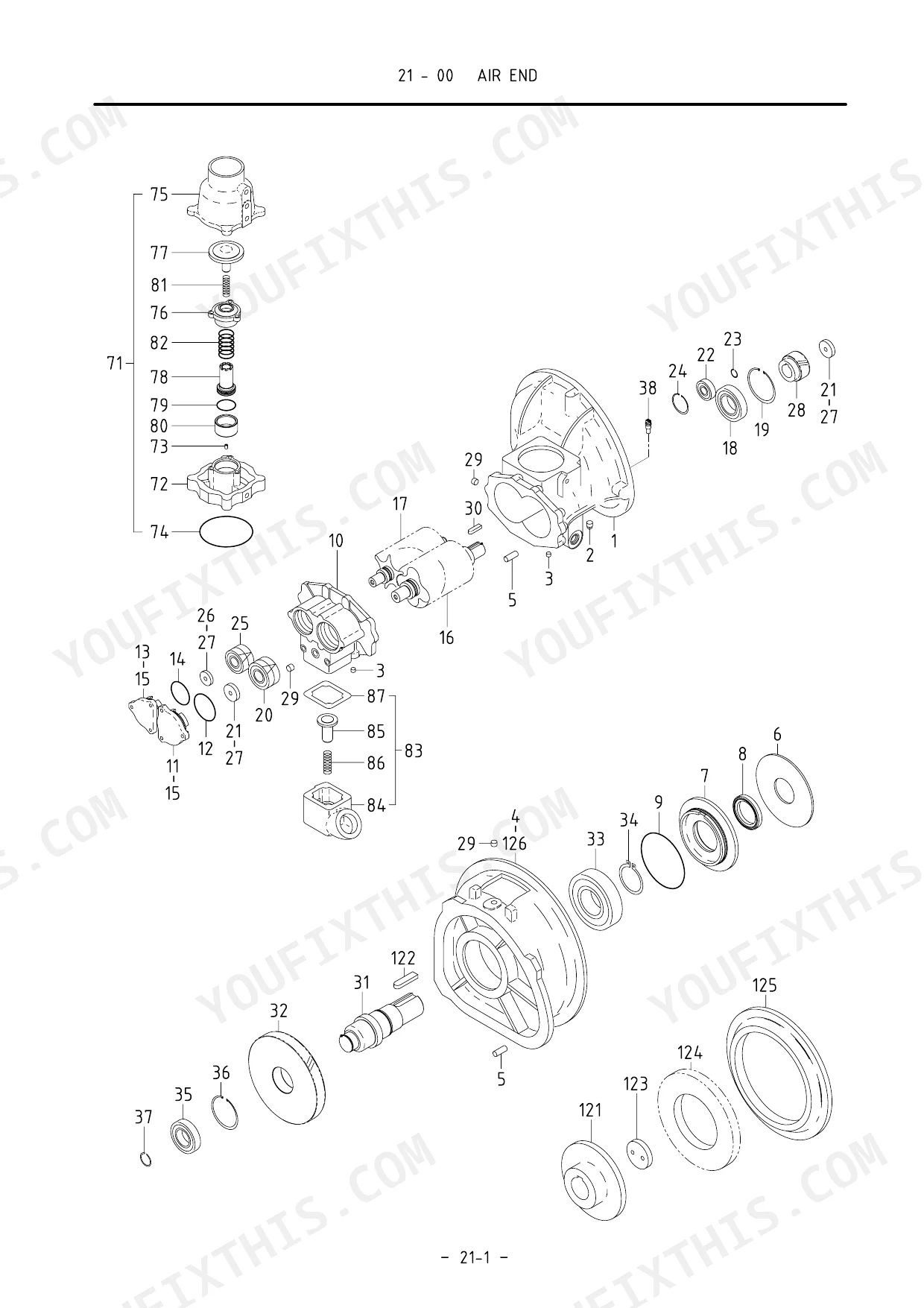

Manual Section: 36-00Looking for exact replacement bearing part numbers for the main compression air end p. 9
Examine the compression group breakdown on page 9. Locate the specific rotor and bearing components needed for your rebuild. Verify the interchangeability notes on page 5 to ensure the new bearings handle the standard 0.69 MPa operating pressure. Order the exact quantities listed in the right column.
Manual Section: 21-00Frequently Asked Questions
How do you fix airman PDS265S-4B2 air filter element is completely clogged and needs an exact replacement part number?
The intake group on page 12 shows the air filter assembly for the PDS265S-4B2. Read off the element part number tied to your serial number, confirm it suits SDD models at 75 kW engine output, and order the listed quantity.
How do you fix cannot locate the correct separator element part number for the receiver tank after oil contamination?
Page 14 carries the receiver group diagram with the separator element. Tie its reference number to the parts list, then verify your standard pressure is 0.69 MPa or 0.70 MPa (page 4) before the separator order goes through.
How do you fix need to identify replacement hoses and pressure fittings for a leaking air line?
The air line diagram on page 20 lists the hoses and valves per model configuration. For a Code G machine at 1.18-1.37 MPa, check the changed part numbers on page 7 so you get the updated fittings.
How do you fix looking for exact replacement bearing part numbers for the main compression air end?
Page 9 breaks out the compression group. Pin down the rotor and bearing parts for your rebuild, confirm the interchangeability notes on page 5 for the 0.69 MPa standard pressure, and order the quantities in the right column.
How quickly can I access this manual after buying?
Your download is ready right after purchase: the full 52-page searchable Parts Catalog, open on a desk laptop or a phone out in the field.
Is this Airman PDS265 Series Parts Catalog printable?
No limits here. The PDF ships DRM-free, so print whatever sections you want to carry into the shop on standard letter or A4 paper.
