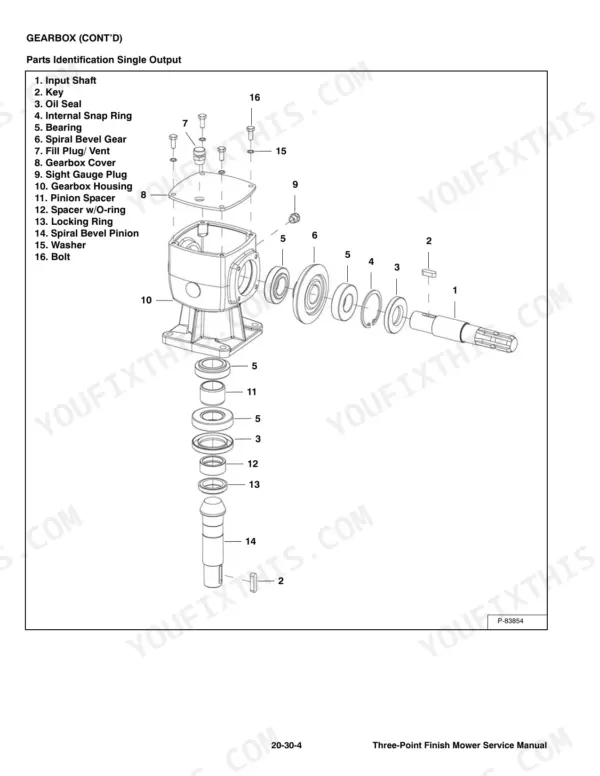

Your 2009 Bobcat 3FM84 finish mower weighs 860 lb. and spins three blades at 2030 RPM. When something goes wrong at those speeds, you need exact specs, not guesswork. This 74-page service manual (OEM #6987245) dedicates 33 pages to main frame repairs alone: caster wheel alignment, PTO driveline overhauls, gearbox rebuilds with exploded views, and blade spindle teardowns. Troubleshooting charts help you isolate vibration sources fast. Torque blade mounting hardware to 60 ft-lbs (85 N-m), set belt deflection to a max of 0.4 inches (10 mm), and shim gearbox backlash to 0.006 - 0.014 in. (0,15 - 0,36 mm). Hydraulic connection specs and fitting torques are included starting on page 65. Download this searchable, bookmarked PDF to your phone or tablet and work from it in the field.
What's Inside This Bobcat 3FM84 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Maintenance Safety | 3-4 | - |
| Safety and Maintenance | 11-30 | Troubleshooting, Service Schedule, Inspection, Removal and Installation of Cutting Blades |
| Main Frame | 31-64 | Caster Wheel, PTO Driveline, Gearbox, Blade Spindle |
| Specifications and Schematics | 65-74 | (3Fm84) Three-Point Finish Mower Specifications, Torque Specifications for Bolts, Hydraulic Connection Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Torque for 0.500 inch SAE Grade 5 bolts | 65-70 ft-lb (88-95 N•m) | p. 69 |
| Service interval | Every 10 hours of operation | p. 15 |
| Blade mounting hardware torque | 60 ft-lbs (85 N-m) | p. 15 |
| Gearbox oil change interval | 50 hours | p. 15 |
| Belt tension (max deflection) | 0.4 in. (10 mm) | p. 22 |
| Gearbox pulley bolt torque | 125 - 140 ft.-lb. (170 - 190 N•m) | p. 42 |
| Gearbox shaft backlash | 0.006 - 0.014 in. (0,15 - 0,36 mm) | p. 45 |
| Mower Width (A) | 88.40 in. (2245,4 mm) | p. 67 |
| Mower Weight | 860 lb. (391 kg) | p. 67 |
| Number of Blades | 3 | p. 67 |
| Blade Speed | 2030 RPM | p. 67 |
| Cutting Height Range | 1.5 in. (38 mm) - 4.5 in. (114 mm) | p. 67 |
Bobcat 3FM84 Common Problems This Manual Covers
Bobcat 3FM84 deck vibrating violently at full RPM, loose blade mounting hardware p. 13
Inspect the cutting deck for material buildup and bent spindles first. Refer to the troubleshooting chart on page 13 to narrow down the source. Torque blade mounting bolts to 60 ft-lbs (85 N-m) per page 15, and replace any cracked or significantly unbalanced blades.
Manual Section: Three-Point Finish Mower TroubleshootingFinish mower leaving uncut streaks in grass, drive belt slipping or loose p. 22
Clear the belt path of debris and examine pulleys for wear. Adjust tension until maximum deflection reads 0.4 in. (10 mm) as shown on page 22. If slippage persists, confirm blade speed is reaching 2030 RPM and check the tensioner spring for fatigue.
Manual Section: Safety and MaintenanceGearbox loud clunking noise when engaging PTO, excessive backlash in drive gears p. 45

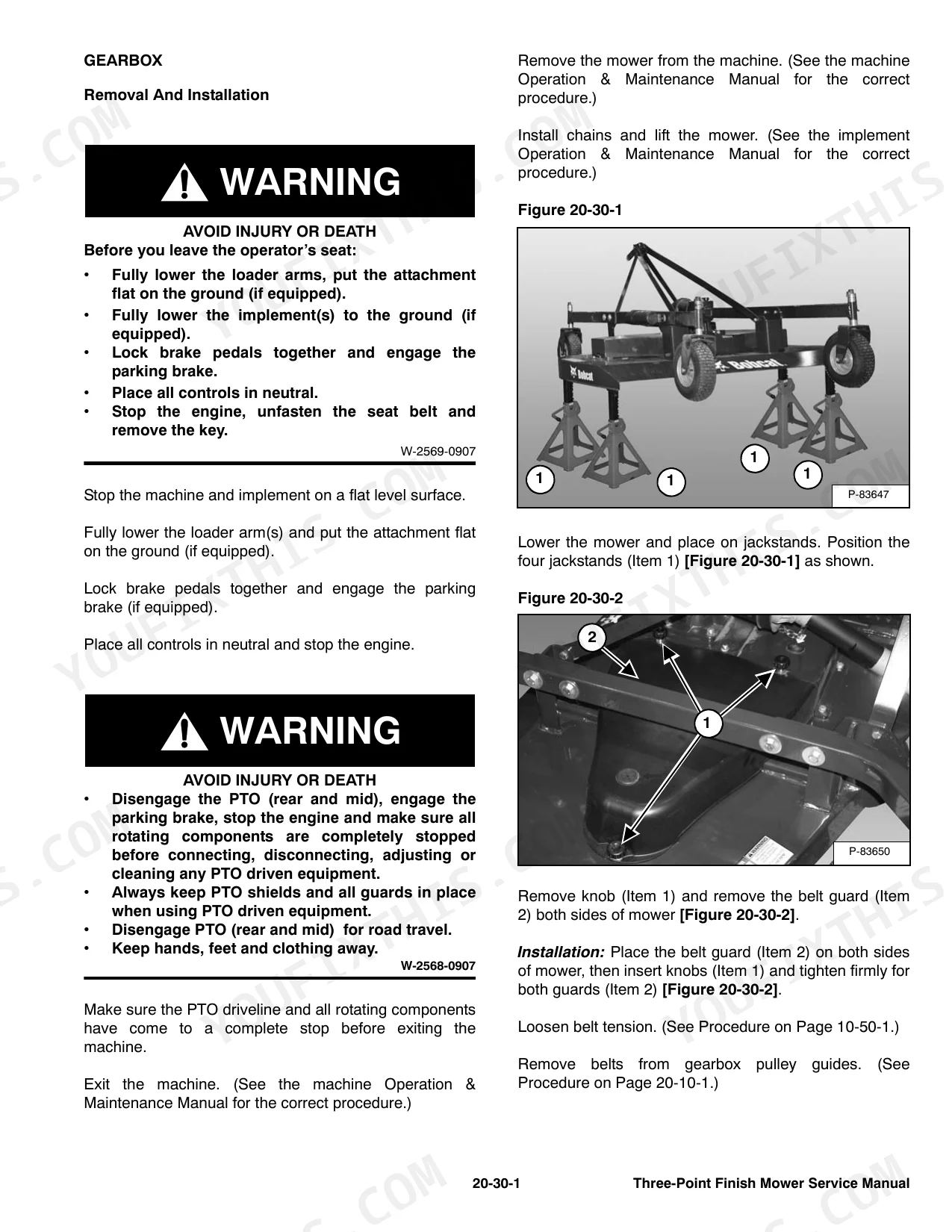

Pull the inspection cover and measure gear play directly. Shim to achieve 0.006 - 0.014 in. (0,15 - 0,36 mm) backlash per page 45. Torque the pulley bolt to 125 - 140 ft.-lb. (170 - 190 N•m) as specified on page 42 for solid power transfer.
Manual Section: Main FrameFrequently Asked Questions
What are the recommended service intervals?
Every 10 hours: inspect blades and mounting plates, verify hardware torque at 60 ft-lbs (85 N-m), check guards/shields/decals, grease all 14 points, confirm gearbox oil level (SAE 80W90), clean debris, and check belt tension. Every 50 hours: change the gearbox oil (SAE 80W90).
What fluids and capacities does this machine require?
SAE 80W90 gear lube is the only fluid specified. Check the gearbox level every 10 hours and change the oil every 50 hours. When filling, add through the top hole until lube is visible in the sight glass.
What are the hydraulic system specifications?
Tightening torques are provided for O-ring Face Seal, Flare, and Port Seal/O-ring Boss fittings. Examples: a 1/4" (9/16"-18) O-ring Face Seal fitting calls for 13 ft-lb (18 N·m); a 1/2" (3/4"-16) Flare fitting calls for 40 ft-lb (54 N·m). System pressure and flow rates are not specified in this manual.
What torque specifications are listed?

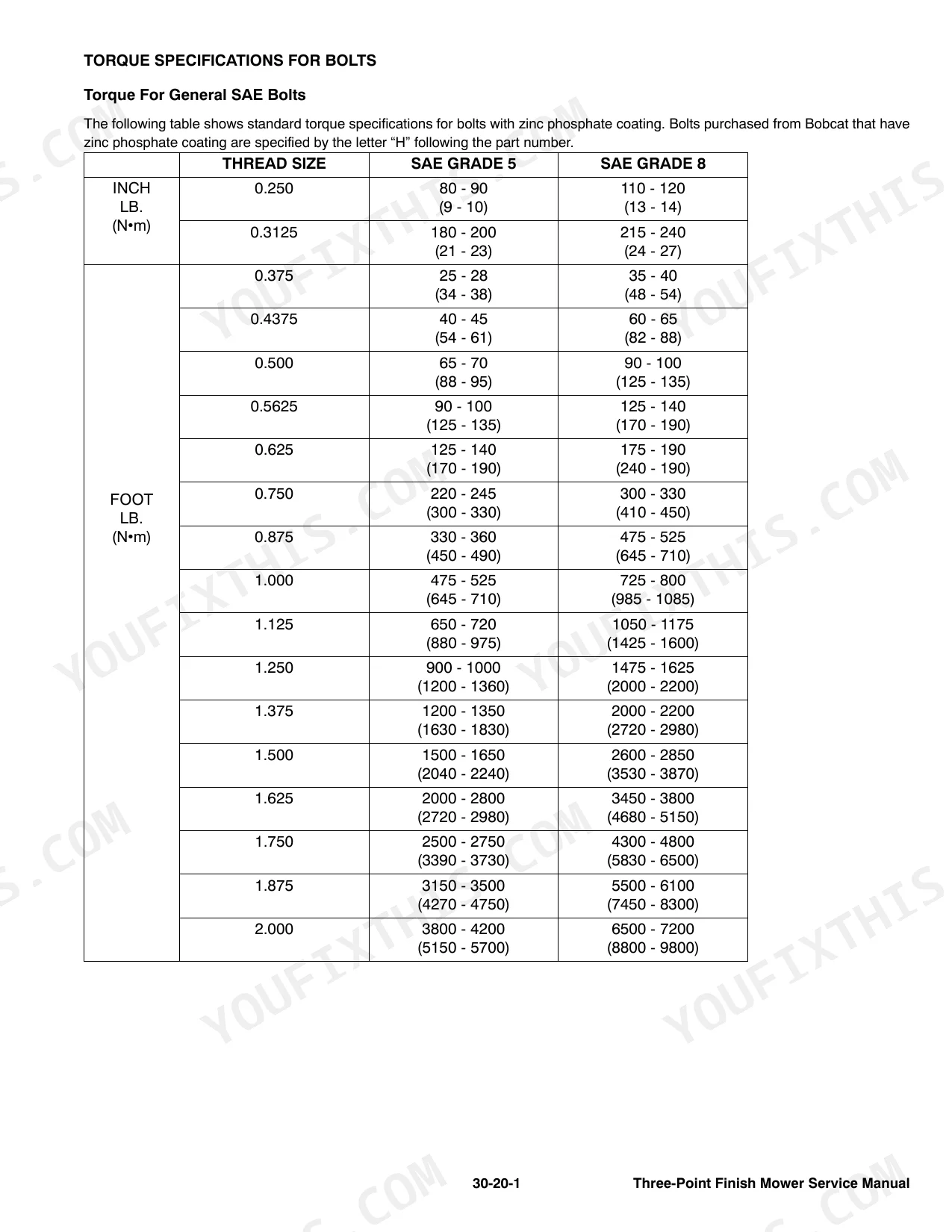

General SAE bolts: 0.250-inch (Grade 5) at 80-90 ft-lb (9-10 N·m); 0.500-inch (Grade 8) at 90-100 ft-lb (125-135 N·m). General Metric bolts: M4 (8.8) at 2.0-2.5 ft-lb (2,5-3,5 N·m); M10 (10.9) at 42.0-46.5 ft-lb (57-63 N·m). Blade mounting hardware: 60 ft-lbs (85 N-m). Gearbox pulley bolt: 125-140 ft-lb (170-190 N·m).
What format is this Bobcat 3FM84 manual in?
It's a 74-page searchable PDF, ready for immediate download. Pull it up on your phone, tablet, or laptop. No shipping, no waiting.
Am I able to print pages from this Bobcat 3FM84 manual?
Yes. The PDF has no DRM restrictions. Print any page or section you need for the shop. Works with any standard printer.
Can I find hydraulic circuit diagrams in this Bobcat 3FM84 manual?
The manual includes hydraulic connection specifications and fitting torque values with diagrams. It does not contain full hydraulic circuit diagrams, valve locations, or hydraulic component specs beyond the fittings themselves.
