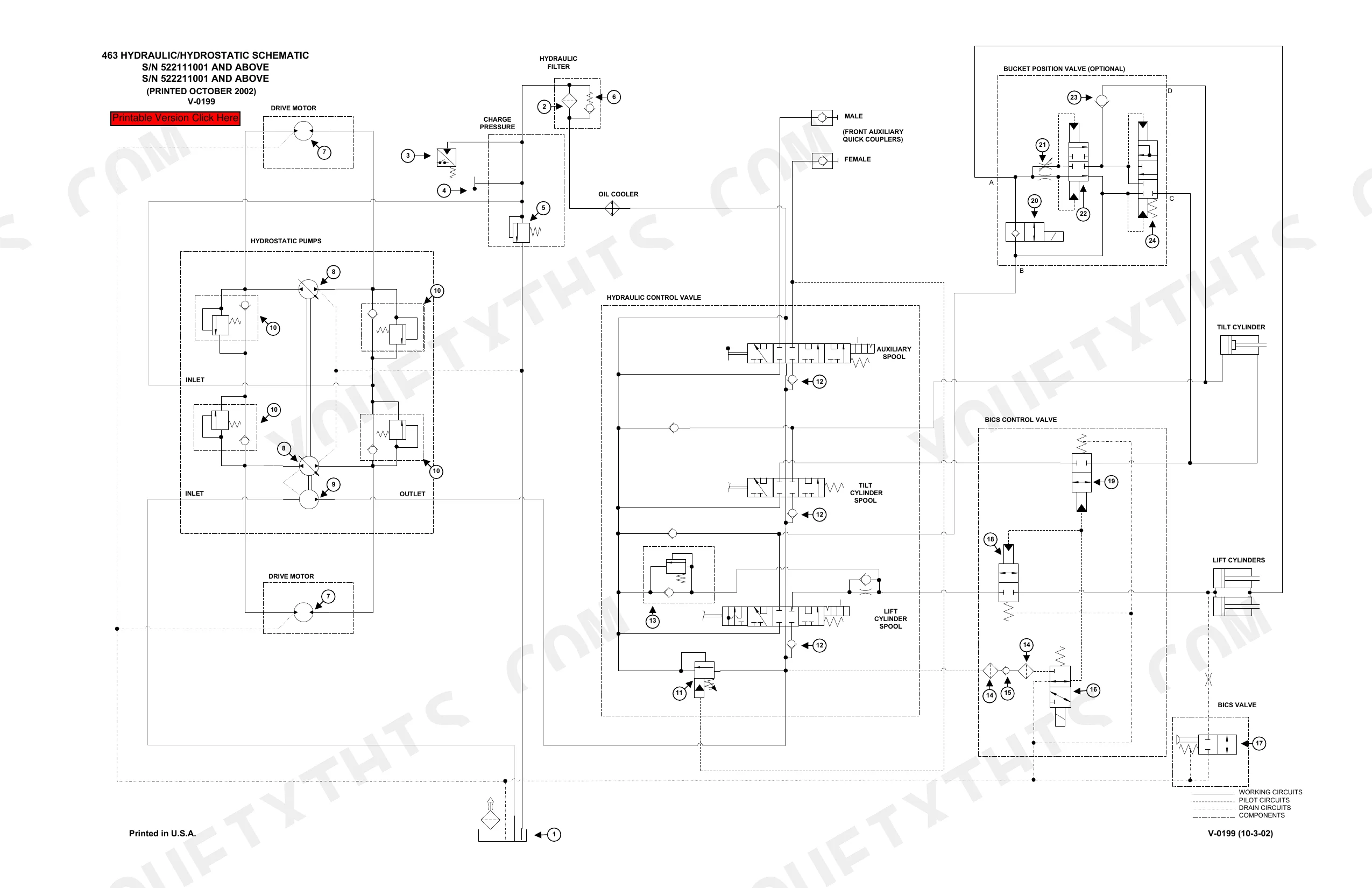

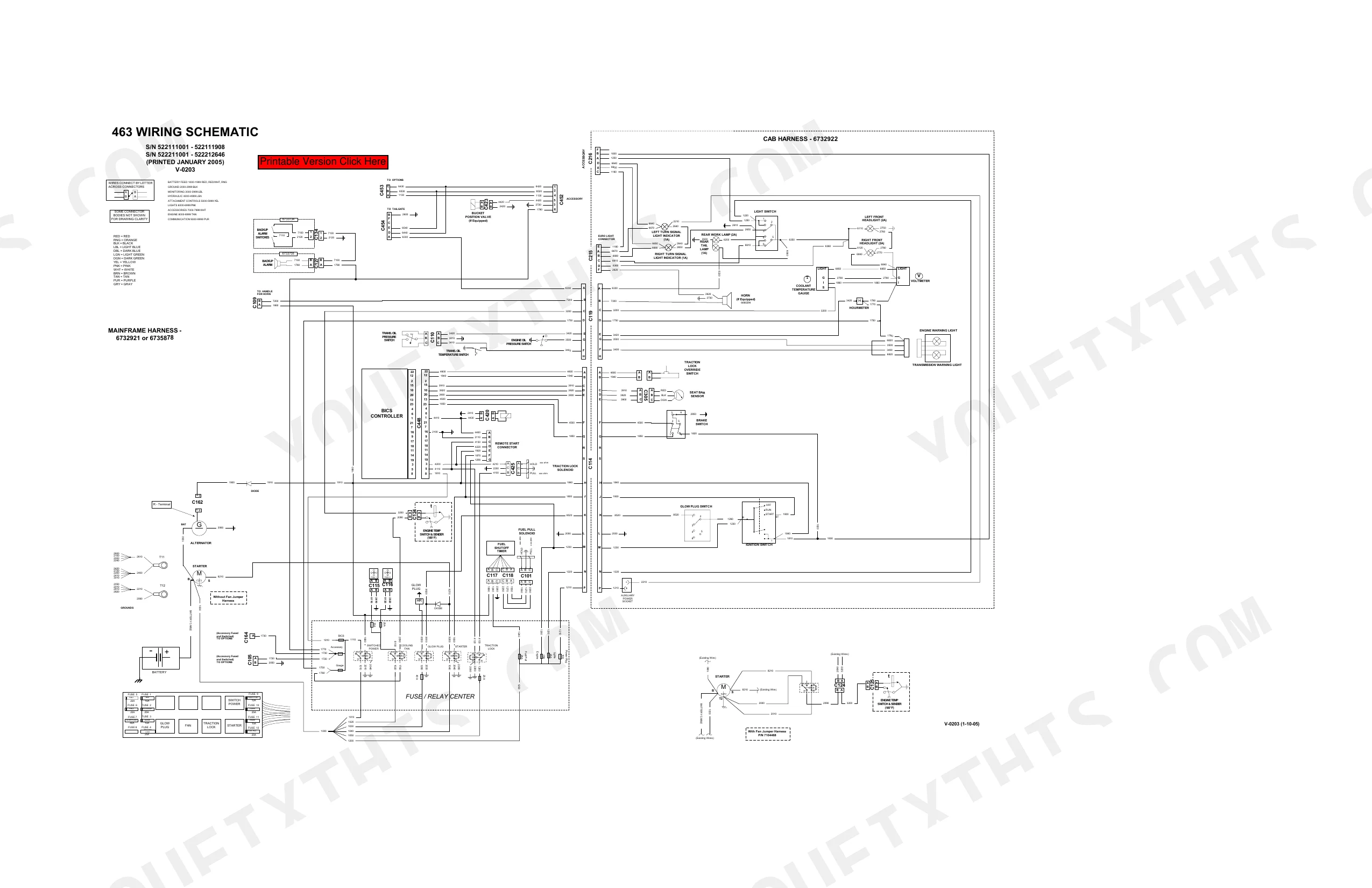

Rebuilding a 463 from the ground up? This service manual PDF (OEM #6901812) runs 378 pages and follows the machine from hydraulic pump teardown through full engine reconditioning. The hydraulic schematics map complete fluid routing; wiring diagrams trace the BICS™ controller along with the alternator and starter circuits. Troubleshooting charts cover the hydraulic, hydrostatic, and electrical systems. Step-by-step procedures walk through lift and tilt cylinder rebuilds, hydrostatic motor assembly, chaincase disassembly, parking brake service, and engine work down to the crankshaft and cylinder head. Torque the 1/2-inch flare fittings to 17 ft.-lb. (23 N·m), and confirm the thermostat starts opening at 157-163°F before you close up the cooling system. Bookmarked and fully searchable: pull it up on any device, find the spec, get the machine running.
What's Inside This Bobcat 463 Manual

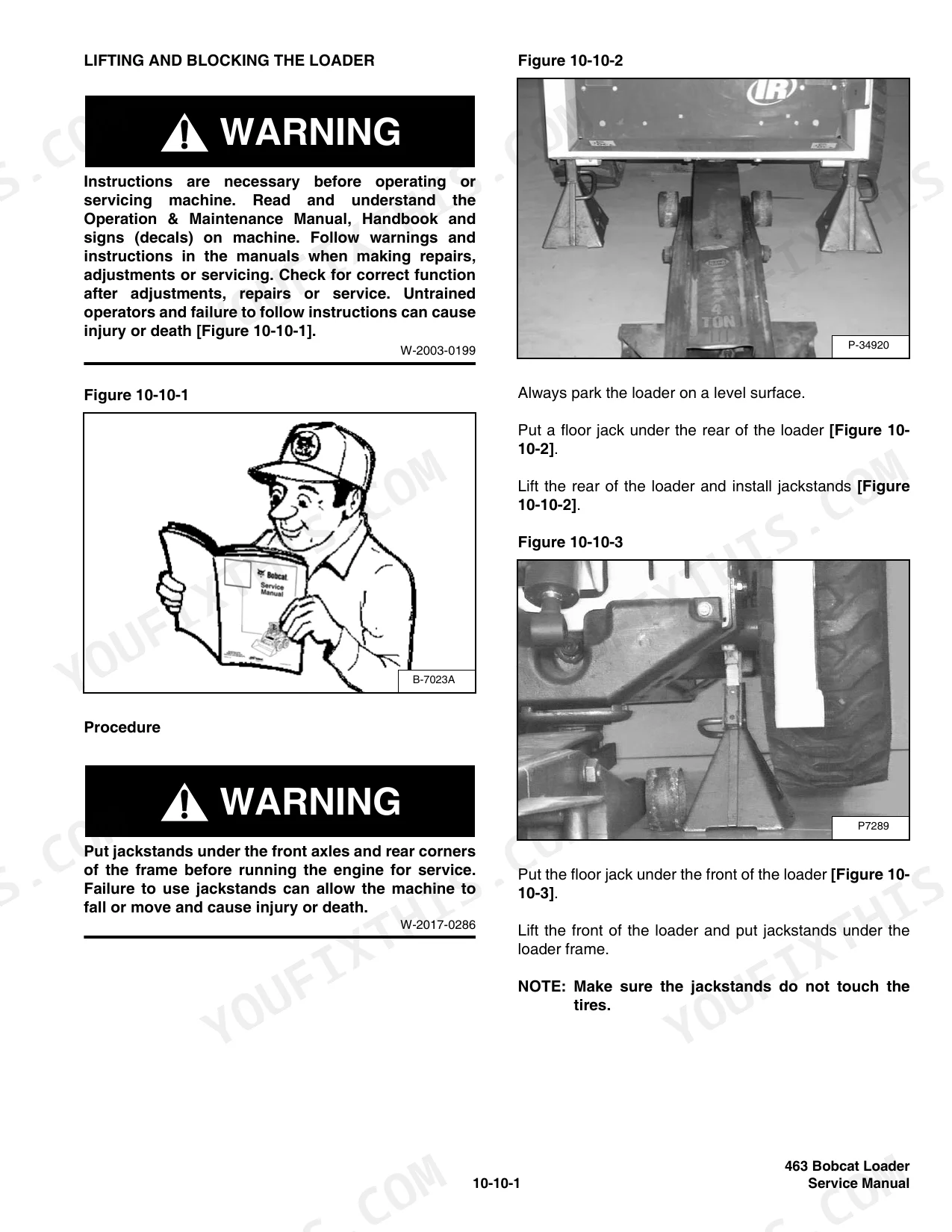

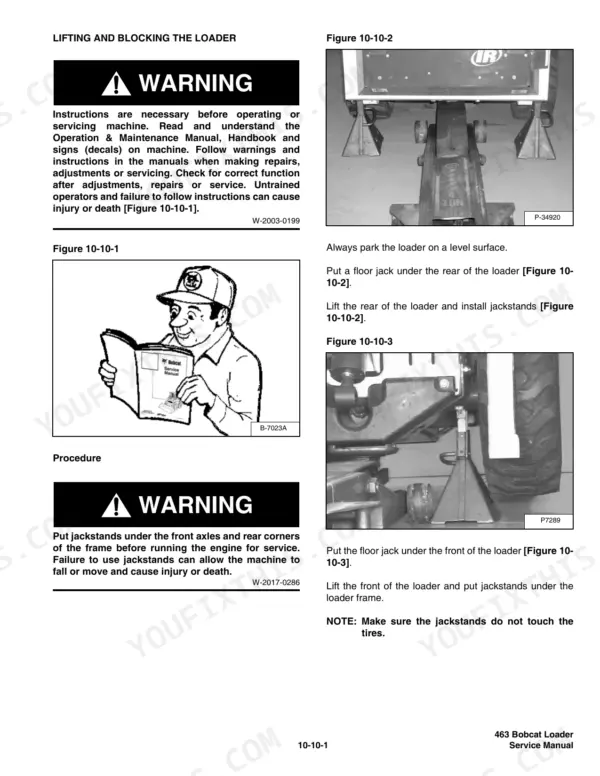

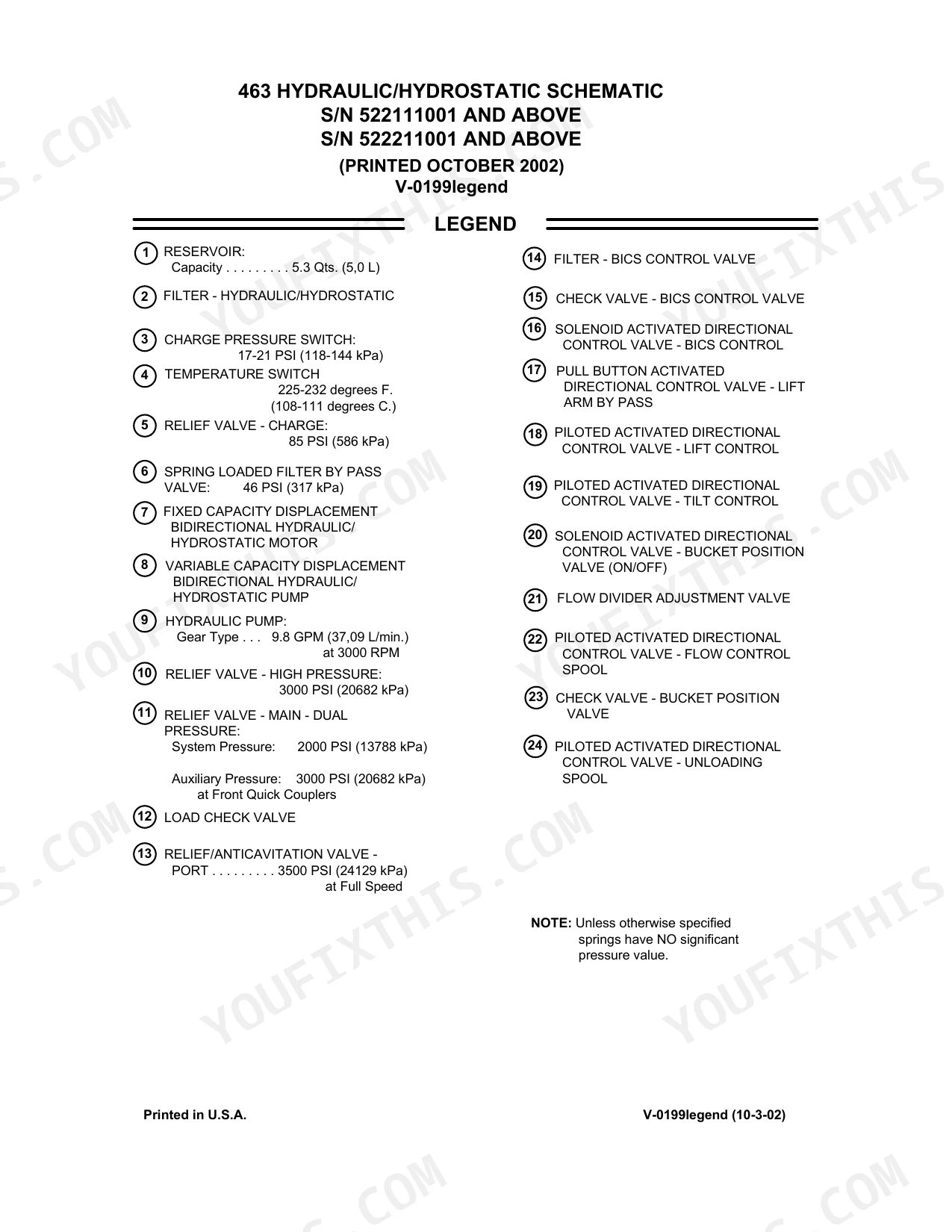

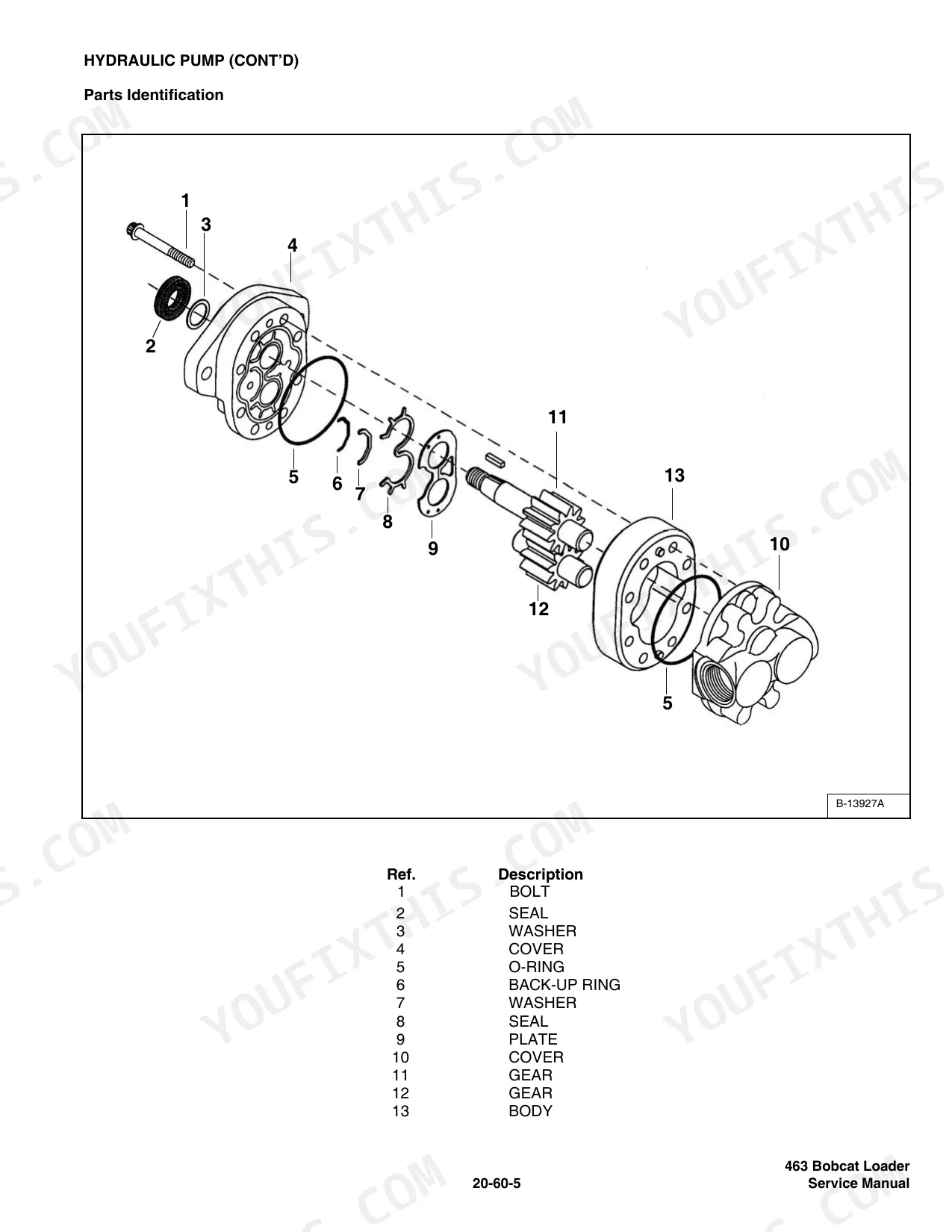

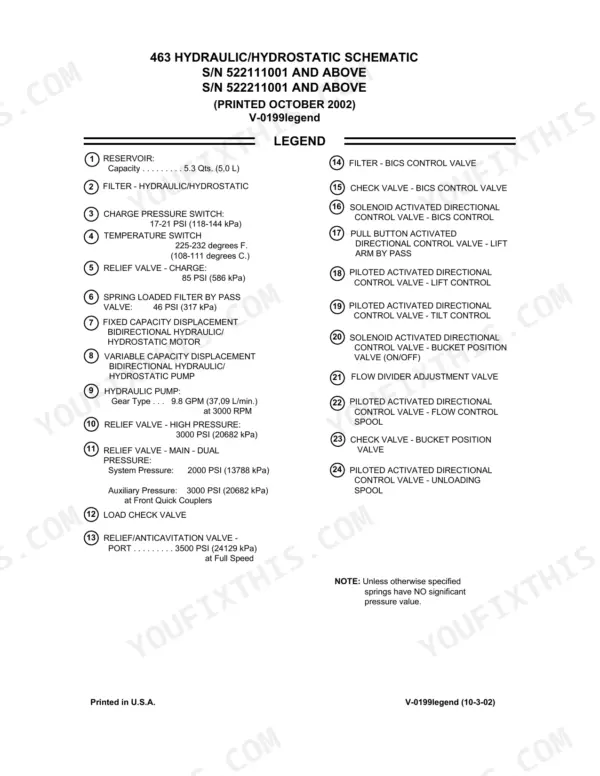

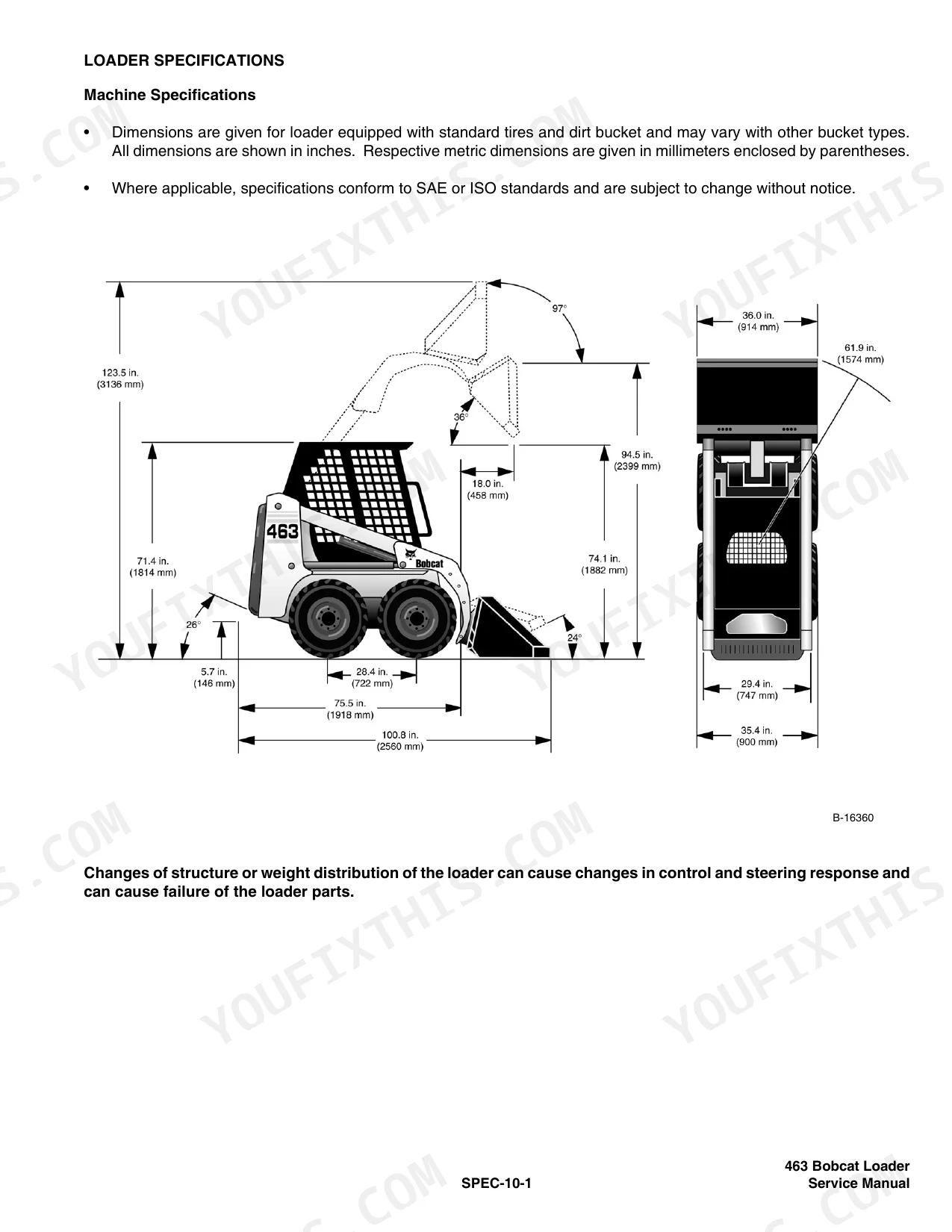

| System | Pages | Key Topics |
|---|---|---|
| Maintenance Safety | 3-4 | Safety Alert Symbol, Never Service the Bobcat Skid Steer Loader Without Instructions, Use the Correct Procedure to Lift or Lower Operator Cab |
| Safety and Maintenance | 17-62 | Air Cleaner Service (Replacing Filter Element), Auxiliary Control Lockbolt (Procedure), Bob-Tach (Maintenance) |
| Hydraulic System | 63-134 | Lift Arm By-Pass Valve (Disassembly and Assembly, Removal and Installation) |
| Hydrostatic System | 135-178 | Charge Pressure (Checking), Control Panel (Control Shield and Steering Lever Panels Removal and Installation) |
| Drive System | 179-192 | Chaincase (Cover Assembly and Disassembly, Cover Removal and Installation, Removing Oil From the Chaincase) |
| Main Frame | 193-218 | Bob-Tach (Installation, Lever and Wedge Removal, Removal, Seal Removal and Installation), Fuel Tank (Removal and Installation), Lift Arms (Removal and Installation) |
| Electrical System & Analysis | 219-274 | Alternator (Belt, Belt Removal and Installation, Output Test, Removal and Installation), Battery (Removal and Installation, Servicing, Using a Booster Battery) |
| Engine Service | 275-350 | Air Cleaner (Removal and Installation), Engine (Removal and Installation) |
| Specifications | 351-374 | Conversions (Decimal and Millimeter Equivalents, U.S. to Metric Conversion) |
| Smr | 375-378 | Service Manual Revision, Take Out, Put in, Revision Decription |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic filter change reset procedure | Start the engine and operate the loader through the hydraulic and hydrostatic functions. Stop the engine. Check the fluid level and add fluid the the reservoir as needed. | p. 46 |
| Flare Fitting Torque (1/2"-20 thread size) | 17 ft.-lb. (23 N•m) | p. 366 |
| O-RING FLARE FITTING TIGHTENING TORQUE (1/2"-20 thread size) | 17 ft.-lb. (23 N•m) | p. 367 |
| Thermostat Opening Temperature (Starting) | 157-163°F (70-73°C) | p. 360 |
| Thermostat Opening Temperature (Fully Open) | 185°F (85°C) | p. 360 |
| Hydraulic filter type | 10 micron replaceable cartridge in the hydrostatic pump charge line | p. 355 |
| Fuel filter replacement instruction | Install the new filter element and hand tight. | p. 41 |
| Air cleaner type | Dry replaceable paper cartridge | p. 354 |
| Seat bar linkage bolts and nuts torque | 25-28 ft.-lb. (34-38 N•m) | p. 61 |
| Seat bar sensor pivot bushing mounting bolt torque | 25-28 ft.-lb. (34-38 N•m) | p. 267 |
| Engine Oil Capacity (with filter) | 5.0 qts. (4,7 L) | p. 354 |
| Hydraulic/Hydrostatic Reservoir Capacity | 5.3 qts. (5,0 L) | p. 354 |
Bobcat 463 Common Problems This Manual Covers
Bobcat 463 won't move or stops dead under load, no drive in either direction p. 135
Drain the hydraulic tank and inspect the pickup screen for debris before anything else. Refill to the 5.3 qt. (5,0 L) reservoir capacity, then swap the 10-micron hydraulic filter. Cycle through all drive and loader functions, shut down, and top off as needed. The full repair sequence starts at page 135.
Manual Section: Hydrostatic SystemEngine stalls under load or mid-drive, restarts fine then cuts out again p. 275
Replace the fuel filter element hand-tight, then trace the tank pickup tube for cracks or kinks. If the machine restarts but stalls again, suspect air ingestion at the fuel line fittings. Torque injection tubeline fittings to 18-25 ft.-lb. (25-34 N•m) after disturbing any fuel line. Engine troubleshooting procedures begin at page 275.
Manual Section: Engine ServiceHydraulic lift and bucket functions sluggish, won't reach full speed or height p. 73

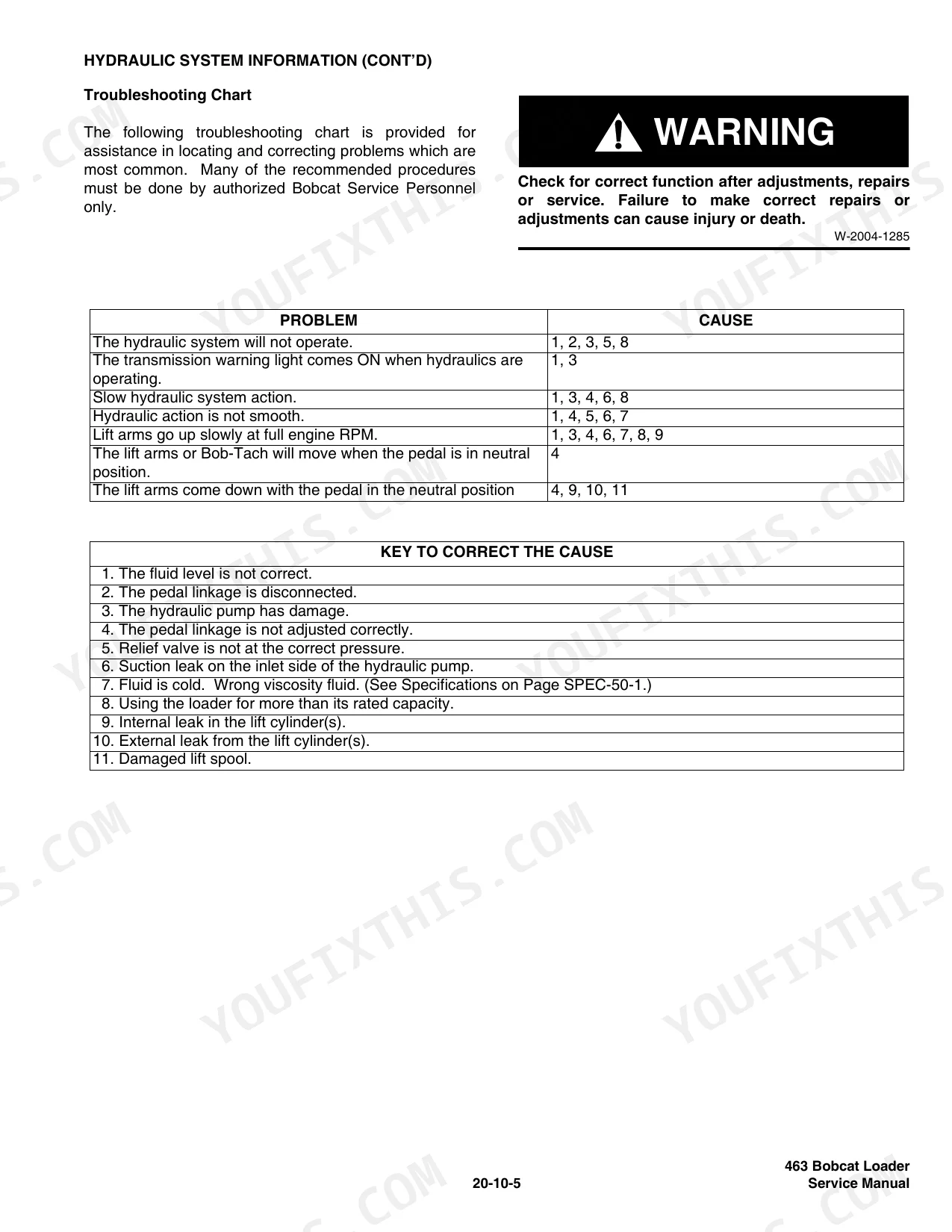

Verify fluid level first; the reservoir holds 5.3 qts. (5,0 L) total. Then pull up the troubleshooting chart to split slow-lift faults from no-operation faults. If flow is low across all circuits, replace the 10-micron hydraulic filter and check all hose fittings for seepage under load.
Manual Section: Hydraulic SystemEngine runs hot, heater blows cold, temperature gauge climbs to red zone p. 360
Swap in a fresh thermostat; the spec calls for full open at 185°F (85°C) per page 360. Torque the housing bolts to 87-100 in.-lb. (9,8-11,3 N•m) per page 309 after seating the new unit. Drain and refill coolant, then run the engine and confirm temperature stabilizes within normal range before putting the machine back under load.
Manual Section: Engine ServiceSteering or loader controls stop responding, indicator lights flash on BICS panel p. 219
Lower the seat bar fully and confirm BICS is armed before chasing wiring. Check the seat bar sensor connections; mounting bolts torque to 25-28 ft.-lb. (34-38 N•m) per page 267. If indicator lights still flash after seating the operator correctly, trace the circuit wiring from page 219 and inspect for corrosion or broken pins.
Manual Section: Electrical System & AnalysisOil or hydraulic fluid seeping near the filter block after recent service p. 366
Inspect every fitting around the filter block for weeping; torque flare fittings (1/2"-20 thread) to 17 ft.-lb. (23 N•m) per page 366 and O-ring boss fittings (9/16"-18 thread) to 22 ft.-lb. (30 N•m) per page 369. Confirm the correct fluid type is in the system; wrong viscosity causes seal weeping that looks exactly like a hardware leak.
Manual Section: Hydraulic SystemFrequently Asked Questions
How do I reset the Bobcat 463 interlock control system?
To activate the Bobcat Interlock Control System (BICS™), sit in the operator's seat, turn the key ON, lower the seat bar, and disengage the parking brake pedal. Then press the green PRESS TO OPERATE Button; all five BICS controller lights (Items 1, 2, 3, 4 & 5) should illuminate. The manual does not describe a specific 'reset' procedure for the BICS system, only activation and the troubleshooting steps to follow if it fails to operate correctly.
How do I reset a Bobcat 463 hydraulic/drive fault?
Troubleshooting charts for the hydraulic and hydrostatic systems help you trace common problems to their causes: fluid leaks, defective valves, or incorrect adjustments. There is no specific 'reset' procedure for hydraulic or drive faults, and many of the listed procedures are meant for authorized Bobcat Service Personnel only.
What do Bobcat 463 error codes mean?
Flashing indicator lights on the BICS™ system map to specific faults through a troubleshooting chart. Two flashes of the 'System Activated' light point to that circuit shorted to battery voltage; three flashes mean the same circuit is shorted to ground.
How do I reset the Bobcat 463 instrument panel alarm?
Instrument panel warning lights cover Engine Oil Pressure & Temperature and Hyd. Oil Temp. & Pressure. The manual troubleshoots the electrical faults behind these warnings but describes no dedicated 'reset' for a panel alarm; clearing the underlying fault is what resolves it.
What do I get after purchasing this Bobcat 463 manual?
Immediate download of the complete 378-page searchable Service Manual. Access it on any device: laptop at your desk or phone out in the field.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this Bobcat 463 manual?
Yes, this Bobcat 463 Service Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This is a scanned service manual for the Bobcat 463 loader. An OCR layer is present, allowing you to search and copy most of the text. The text is generally crisp and readable, though some smaller fonts and diagram labels show minor pixelation. All diagrams and illustrations are raster images, but they are clear and their labels are legible. The pages are clean with no significant scan artifacts, stains, or skewed content. Please note that there are numerous blank pages throughout the document, typically featuring only the Bobcat logo.
