An hour from now you could be reading the factory number for a worn track runner straight out of this Bomag 3313 parts catalog PDF, the 58-page spare parts book (OEM ID 0852762) for the 3313 self-propelled paver. Exploded views break the tractor down assembly by assembly: track drive and chain, bumper rollers, bed lift cylinder, wings, augers with their chain box, asphalt gates, both dash panels, the hood. Screed hardware gets the same treatment, wear plates through crown invert, extension tubes and ratcheting adjustment, while hydraulic hose routings fill the back half of the book, mapping oil supply and return for the vibrator, wing control, bed lift and track circuits. When a hose lets go mid-pull, you match it by its routing and order it by its number. One missing part number can park the whole paving train. This bookmarked PDF rides in the cab on any phone or laptop, right where the 3313 sits.
What's Inside This Bomag 3313 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Tractor | 2-15 | Track Drive, Track Chain, Track Runner, Bumper Roller, Bed Lift Cylinder, Wings Assembly, Auger Assembly, Auger Chain Box |
| Screed Section | 16-33 | Wear Plates, Burner Holder, Upper Screed Blade Mounting Bolt, Crown Invert Assembly, Step Assembly, Screed Extensions, Extension Tubes, Ratcheting Adjustment |
| Cylinder System | 35-38 | Hydraulic Hose, Stack Valve |
| Screed Extensions and Vibrator | 39-42 | Track Drive |
| Tractor Augers | 43-44 | Hydraulic Hose Routings, Auger System, Motor |
| Vibrator Hoses | 45-46 | Hydraulic Hose Routings, Hose, Ftg Hyd EL90 |
| Wing Control | 47-49 | Hydraulic Hose, Hydraulic Valve Assembly |
| Bed Lift | 50-52 | Hydraulic Hose, Ftg Hyd EL90, Ftg Hyd Tee, Ftg Hyd Union |
| Oil Supply and Return | 53-54 | Hydraulic Hose, Oil Cooler, Hydraulic Tank, Filter Head, Filter Element, Manifold Assembly |
| Propane System | 55-58 | Hydraulic Hose Routings |
Bomag 3313 Common Problems This Manual Covers
Bomag 3313 paver track drive chain worn, need correct track chain and runner part numbers
Check the chassis parts diagram on page 3 to identify the track chain, track runner, and bumper roller assemblies, then match each callout against the parts number list on page 10. Measure remaining runner tread thickness in millimeters with a caliper and order runners in matched sets so track tension stays even side to side.
Manual Section: Tractor p. 3Blown hydraulic hose on the screed extension circuit, no tag left to identify the hose
Check the hydraulic schematic on page 35 to identify which circuit the failed line feeds, then follow the hose routing diagrams beginning on page 34 to its exact callout. Measure the dead hose end to end in inches, note both fitting sizes, and order by that callout so the replacement clears the extension slides.
Manual Section: Hydraulic Hose Routings p. 35Screed wear plates worn through, can't tell which plate goes on which extension
Inspect the screed section exploded views starting on page 16, where wear plates, extension tubes, and upper screed blade mounting bolts are broken out by position. Measure each worn plate's length and bolt-hole spacing in inches before ordering, and verify every part number against your machine serial number range so the mat edge stays clean.
Manual Section: Screed Section p. 16Bed lift cylinder leaking, need the seal kit or complete cylinder part number
Check the tractor hydraulic parts diagram on page 7 for the bed lift cylinder breakdown and note whether seals list separately or only as a complete cylinder. Measure the rod diameter in inches with a caliper, record your serial number, and verify the callout against the parts number list on page 10 before ordering.

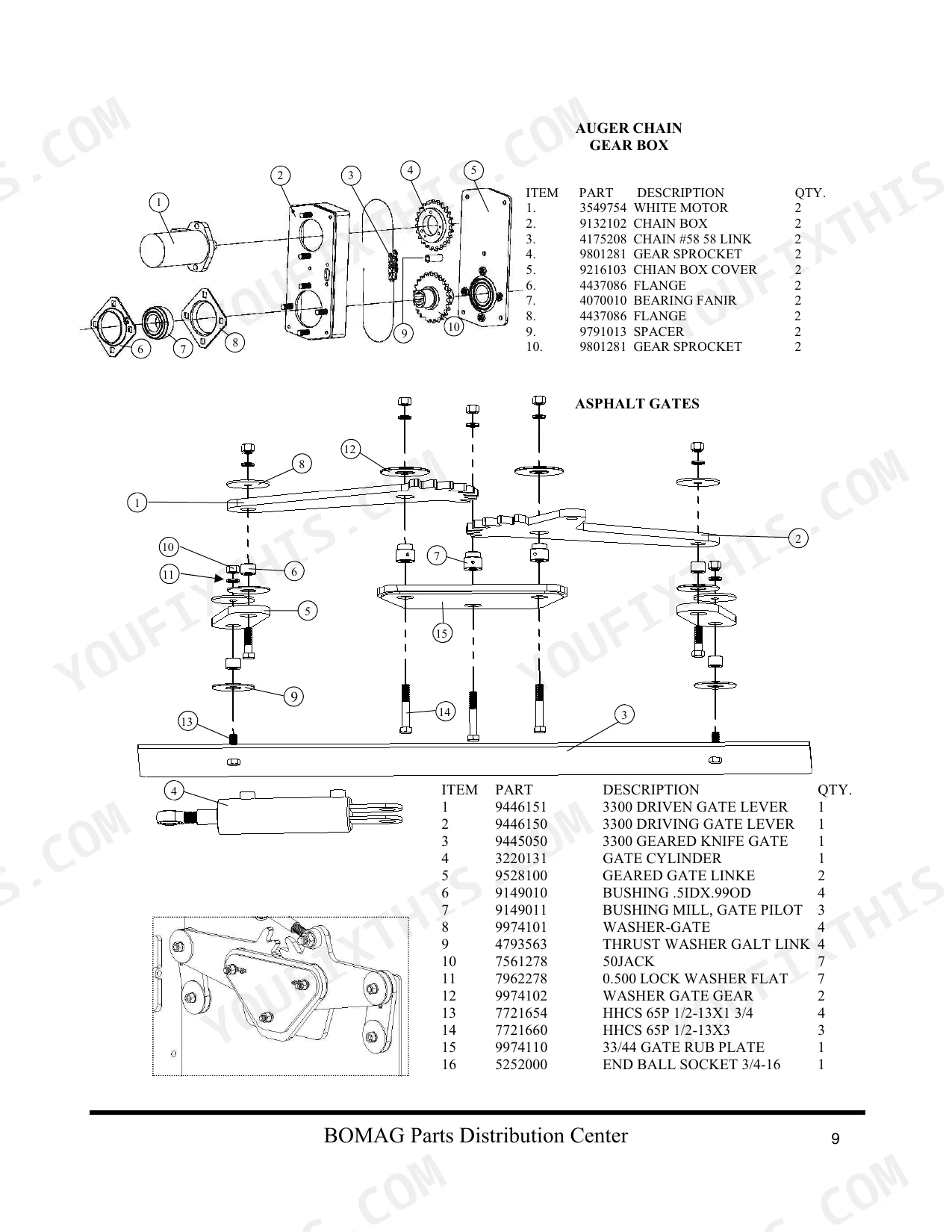

Manual Section: Tractor p. 7Auger assembly flights and chain box parts, unsure which components come separately
Verify the auger assembly and auger chain box breakdowns on the chassis parts diagram on page 3, then cross the item numbers to the parts number list on page 10. Measure flight outside diameter in inches on the worn auger and confirm left-hand versus right-hand sections against the diagram so material still feeds both wings.
Manual Section: Tractor p. 10Frequently Asked Questions

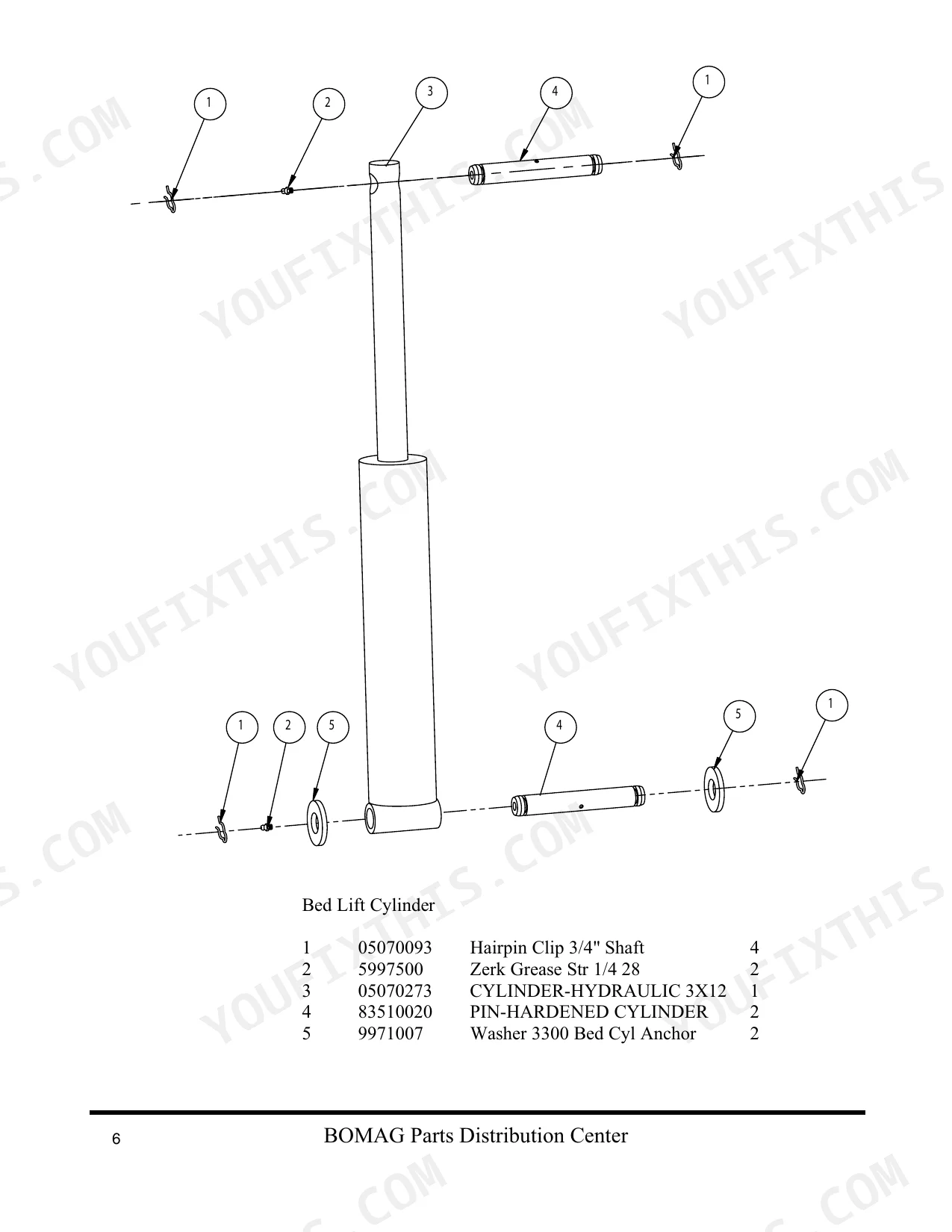

What is the part number for the hydraulic cylinder used in the bed lift system?
The hydraulic cylinder for the bed lift system is part number 05070273, which is a 3x12 hydraulic cylinder. p. 7
What is the specification for the track drive wheel used on the 33/44 series?
The drive wheel for the 33/44 series track drive assembly is part number 9982006C. p. 3
What is the correct part number for the propane tank used in the screed heating system?
The propane tank for the screed heating system is part number 5872813, specified as a 20# LP tank. p. 30
What is the part number for the track chain link used in the track chain assembly?
The track chain link for the series 2 track chain assembly is part number 4527101. p. 3
What is the part number for the hour meter used on the right hand dash?
The hour meter for the right hand dash switches is part number 6547813. p. 13
Is this Bomag 3313 manual a download or a disc?
A single searchable PDF file of 58 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Is printing allowed for this Bomag 3313 Parts Catalog?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
