Drive off procedure, screed heaters, crown and valley control, auger functions, vibratory screed: this Bomag 3313 operator manual PDF takes the operator through each of those controls across its 26 pages, factory document 0852742 for the self propelled paver. It is the running-the-machine book, so expect operation, adjustment and lubrication rather than teardown or component repair. The control panels get the most ink; every lever, toggle and indicator on both operator consoles is called out for you by figure, from the direction-speed levers to the low oil pressure and glow plug lights. A full lubrication schedule closes the book, pairing each grease zerk and filter with its service interval. Set the propane regulator to 8 to 10 psi before lighting the screed burners, and swap the pressure and return filters every 200 hours after the first 50. A paver idle at the plant is a whole crew watching the mat cool. Bookmarked and carrying a text layer, this PDF rides along on whatever screen is in the cab with you.
What's Inside This Bomag 3313 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

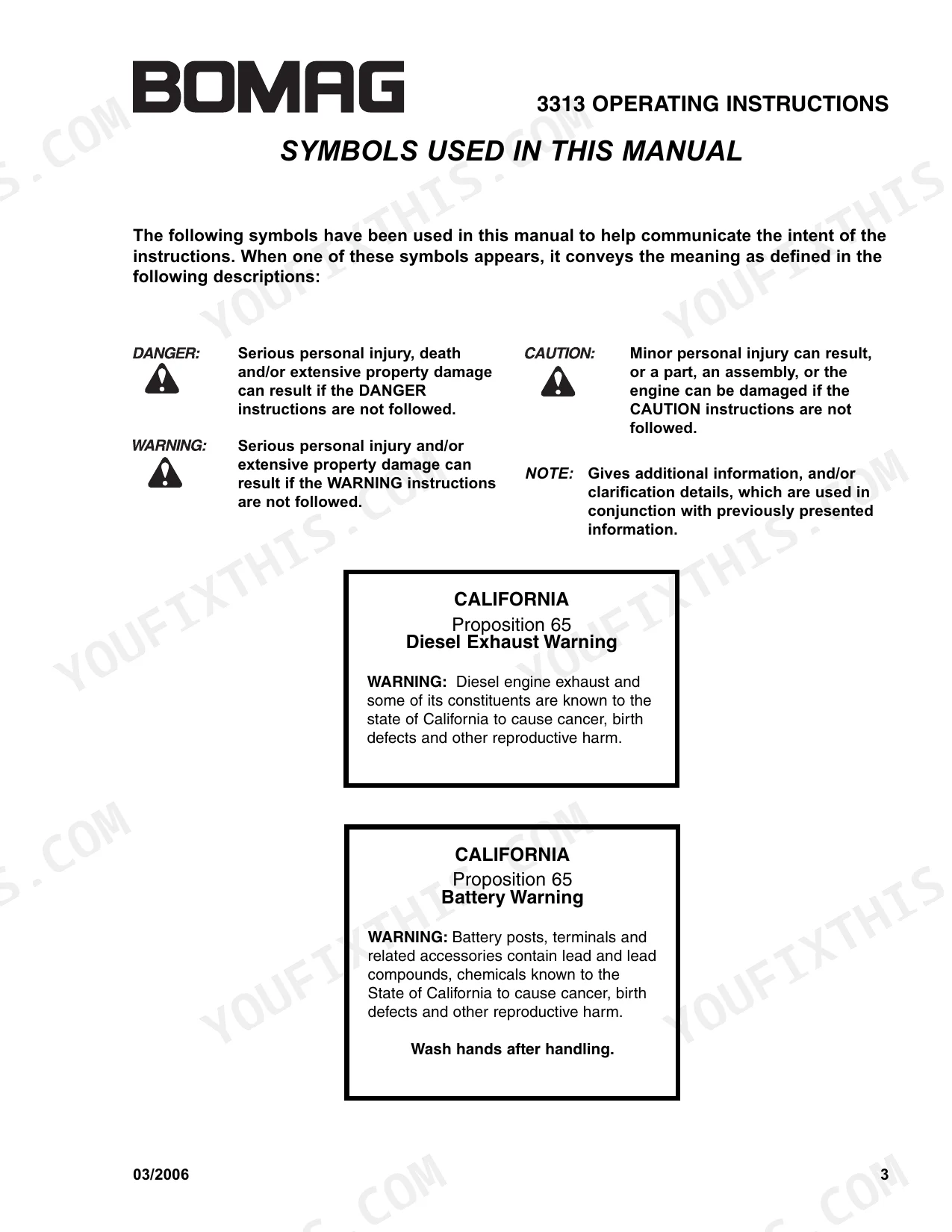

| Operating Instructions | 3-9 | Symbols Used in This Manual, General Safety Instructions, Safety for Persons Working in the Area |

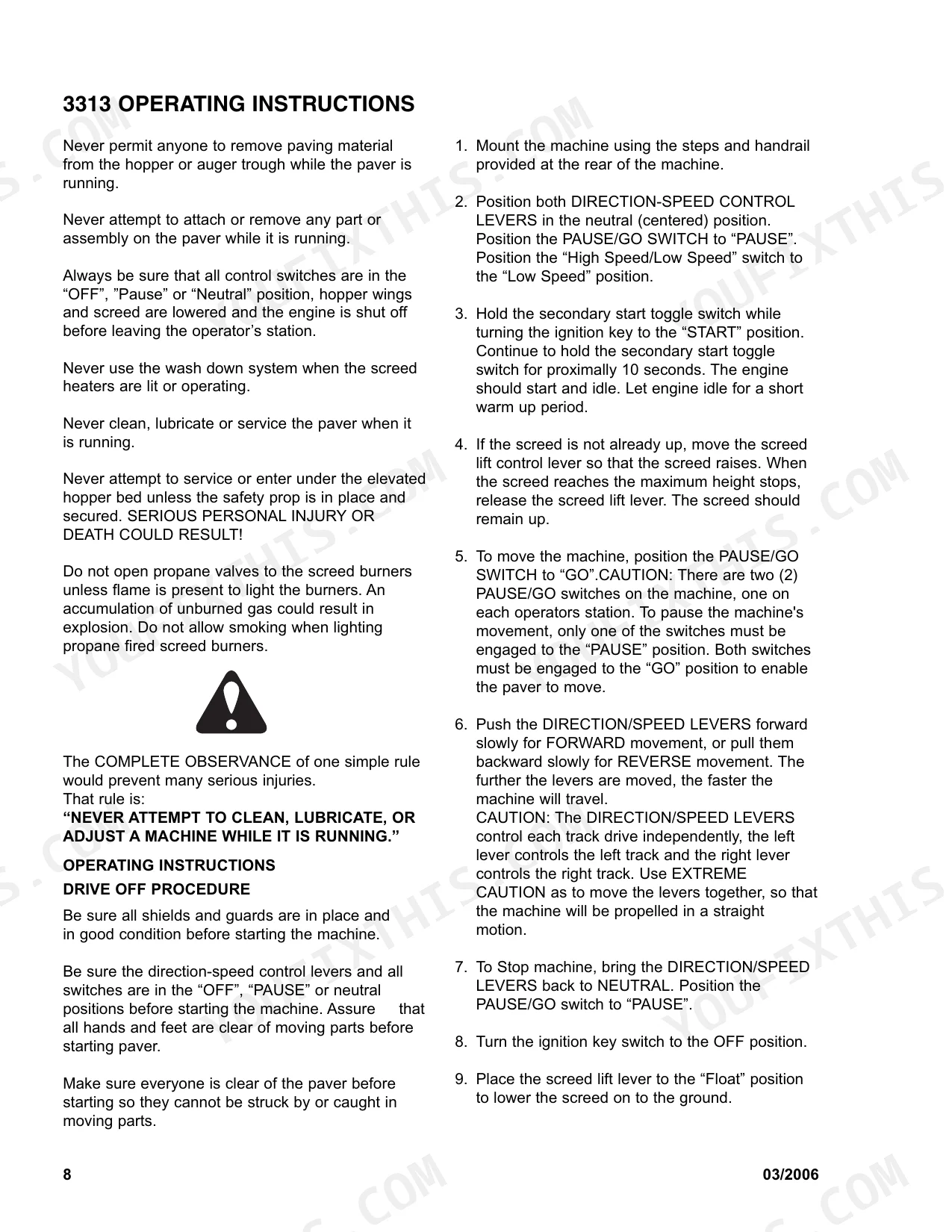

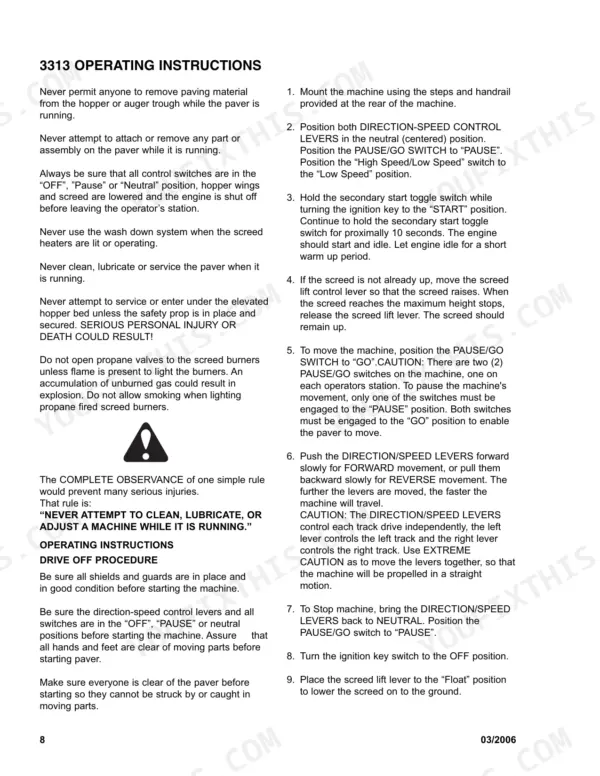

| Drive Off Procedure | 10 | |
| Starting the Paver | 11 | Throttle Control Knob, Ignition Key |

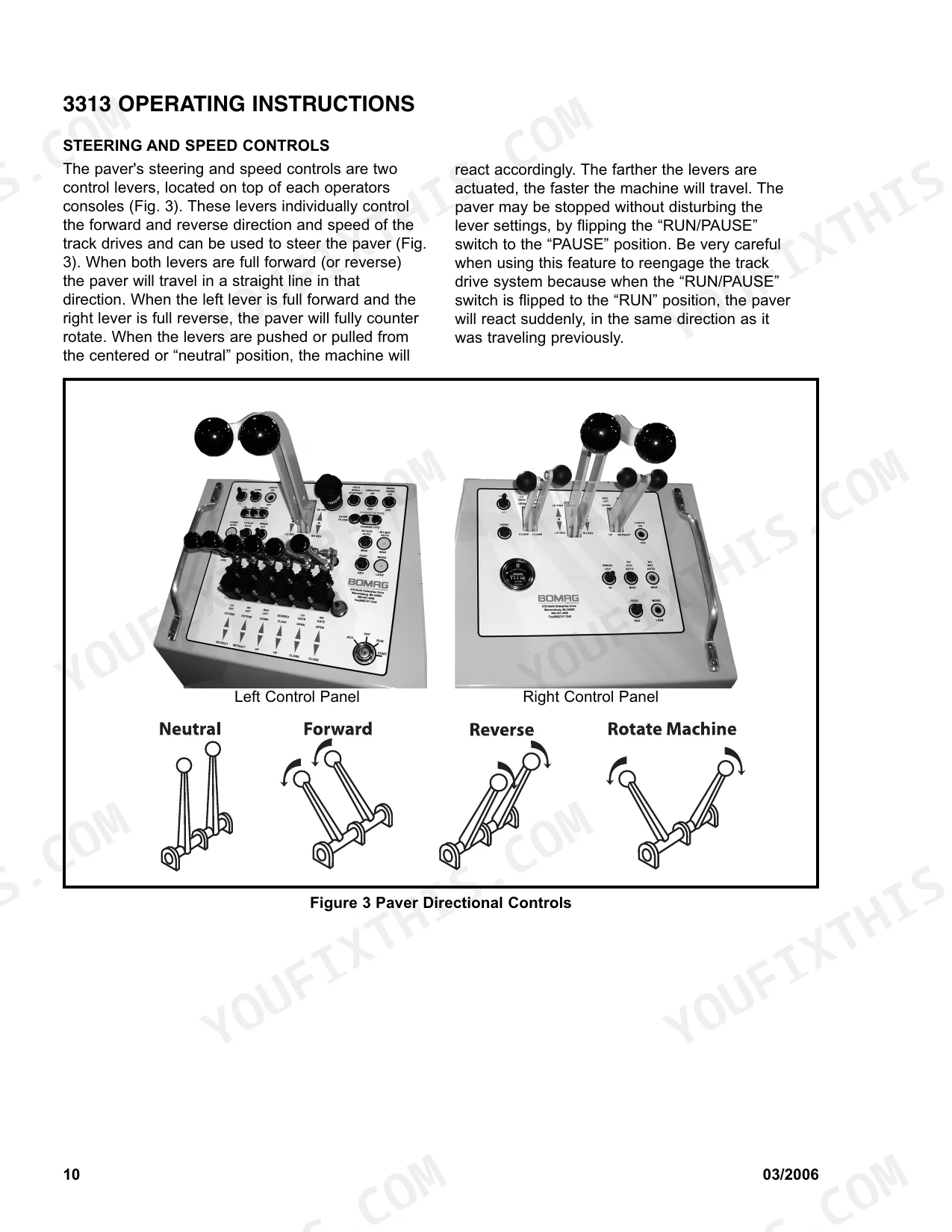

| Steering and Speed Controls | 12 | Control Levers, Operator Consoles |
| Hydraulic Cylinder Controls | 13 | |
| Auger Function Controls | 14 | Auger Drives, Limit Switches |
| Indicators and Instrumentation | 15 | Low Oil Pressure Indicator, Glow Plug Indicator, Low Charging Alternator Indicator, High Water Temperature Indicator |
| Paving Depth and Width | 16 | Screed Depth Cranks |
| Crown and Valley Control | 17 | Ratchet Jack |
| Screed Heaters | 18 | Pressure Valve |
| Screed Strike Off Shoes | 19 | Screed Extensions, Lever Adjustments, Screed Wear Plate |
| Vibratory Screed Control | 20 | Flow Control |

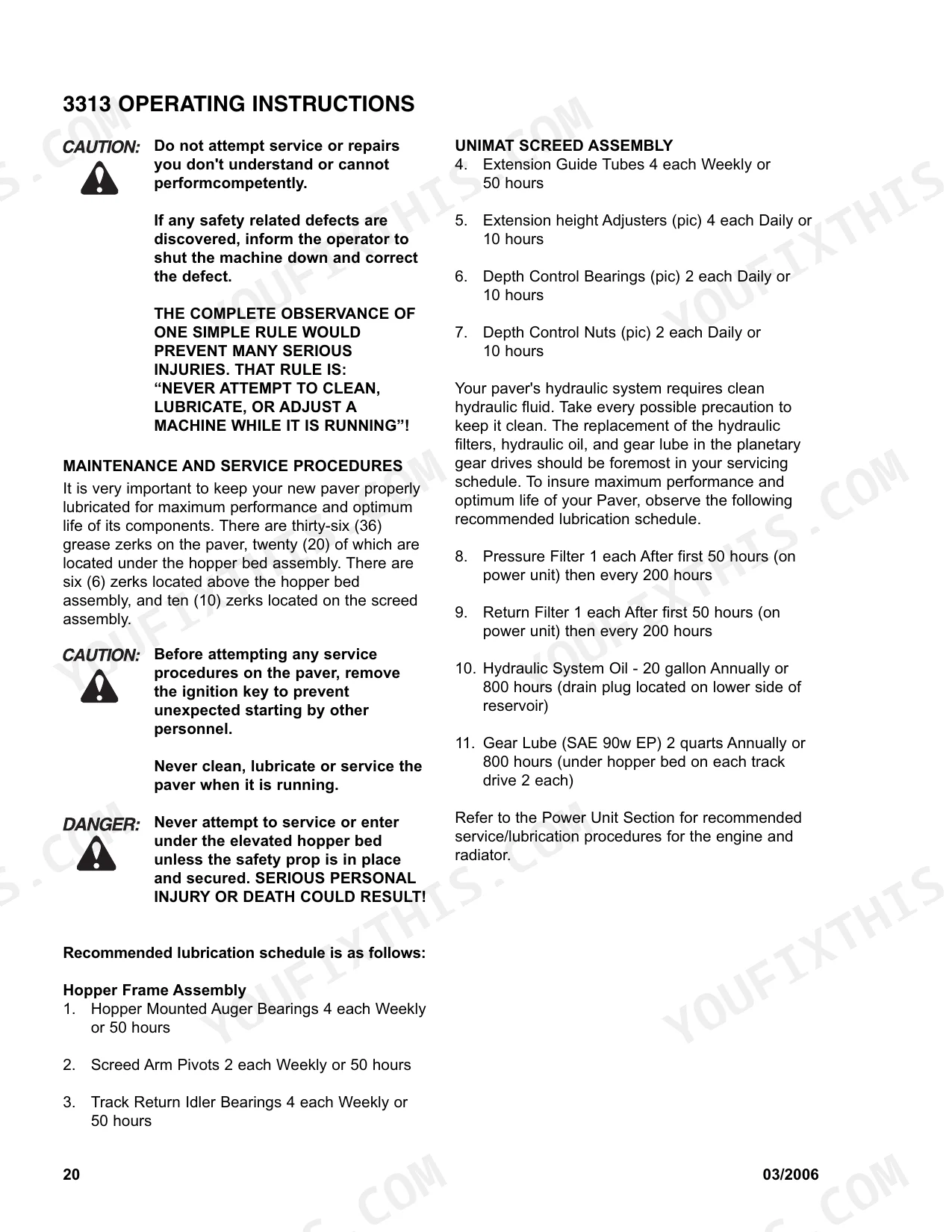

| Maintenance and Service Procedures | 21-22 | Hydraulic Lines, Radiator Cap, Safety Prop, Grease Zerks, Hydraulic Filters, Gear Lube |
| General Maintenance | 23-26 | Fasteners, Fluids, Filters, Asphalt Residue, Paint Chips, Decals |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Propane pressure for screed heaters | 8-10 psi | p. 18 |
| Hydraulic System Oil capacity | 20 gallon | p. 22 |
| Gear Lube (SAE 90w EP) capacity | 2 quarts | p. 22 |
| Pressure Filter service interval | 200 hours | p. 22 |
| Return Filter service interval | 200 hours | p. 22 |
| Hydraulic System Oil service interval | 800 hours | p. 22 |
| Gear Lube service interval | 800 hours | p. 22 |
| Hopper Mounted Auger Bearings lubrication interval | 50 hours | p. 22 |
| Screed Arm Pivots lubrication interval | 50 hours | p. 22 |
| Track Return Idler Bearings lubrication interval | 50 hours | p. 22 |
Bomag 3313 Common Problems This Manual Covers
Bomag 3313 paver screed heater burners won't light or screed running cold at start of mat
Check the propane tank valve and burner valve positions before lighting, then adjust the pressure valve until the gauge reads between 8 and 10 psi, following the preheating procedure on page 18. The same page covers the burner nozzles and the separate screed extension burner, and it allows 15 minutes for a cold screed to come up to heat at the start of the day.
Manual Section: Screed Heaters p. 18Screed lift and hopper bed cylinders slow, jerky, or drifting down under load
Start with the hydraulic oil level; the system holds 20 gallons. Then walk the spool valve functions on page 13, which name screed lift, hopper bed lift, the shut off gates and the wings in/out toggle, so you can rule out a control left in the wrong position. The schedule on page 22 changes that oil annually or every 800 hours.
Manual Section: Hydraulic Cylinder Controls p. 13Paver losing travel speed, tracks sluggish or uneven response between control levers
Verify the high speed/low speed switch and the run/pause switch positions described on page 12 before blaming the drive system; that page also covers how the control levers feed the two track drives. Then check when the hydraulic filters were last changed, since the schedule on page 22 replaces both the pressure and the return filter after the first 50 hours and every 200 hours after that.
Manual Section: Steering and Speed Controls p. 12Augers squealing or not feeding material evenly across the hopper in automatic mode
Grease the four hopper mounted auger bearings; the schedule on page 22 calls for it weekly or every 50 hours. Then check the auger toggle switches and the automatic auger limit switch covered on page 14, and confirm the system is set to the correct automatic or manual mode.
Manual Section: Auger Function Controls p. 14Screed extensions binding or hard to crank out, extension height hard to adjust
Grease the extension height adjusters every 10 hours and the extension guide tubes every 50 hours per the schedule on page 22, and keep hardened asphalt residue off the tubes. Then check the extension setup and the screed depth cranks against the paving depth and width procedure on page 16.
Manual Section: Paving Depth and Width p. 16Frequently Asked Questions
What control positions does the BOMAG 3313 need before it will crank?
The paver is equipped with a 'NEUTRAL SAFETY START' feature, meaning the engine will not crank unless the speed control levers are in the 'NEUTRAL' position. Additionally, ensure all hydraulic controls are in the 'OFF', 'NEUTRAL', or 'PAUSE' positions before attempting to start. p. 11
What are the replacement specifications for the hydraulic oil?
The hydraulic system requires 20 gallons of oil, which should be changed annually or every 800 hours. The drain plug for this procedure is located on the lower side of the reservoir. p. 22
What is the recommended service interval for the pressure and return filters?
Both the pressure filter and the return filter should be replaced after the first 50 hours of operation, and then every 200 hours thereafter. p. 22
How do I adjust the screed heaters for proper operation?
Turn the valve on top of the propane tank and adjust the pressure valve until the gauge reads between 8 and 10 psi. Allow 15 minutes for the cold screed to heat up at the beginning of the day. p. 18
What is the required gear lube capacity and interval?
The gear lube (SAE 90w EP) capacity is 2 quarts, which should be changed annually or every 800 hours. This is located under the hopper bed on each track drive. p. 22
Is this Bomag 3313 manual a download or a disc?
This is a 26-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print a copy of this Bomag 3313 Operator Manual for the shop?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
