When a screed heater element burns out or a track drive motor starts leaking hydraulic fluid mid-mat, this 116-page Bomag 4413 Parts Catalog for your self-propelled paver provides the exact component breakdowns to order replacements fast. Exploded views detail the entire screed assembly, material flow system, and auger drives so you can identify every shim, bearing, and hydraulic hose correctly. A dedicated section maps out the electrical circuits and hydraulic schematics, showing the precise routing from the travel pump to the monoblock control valve. You also get system baseline figures directly from the factory, like the 313 PSI charge pressure and the 5000 PSI maximum travel pressure. Being alone on a night pave with a dead machine and no one to ask costs serious money, but buying this indexed, text-searchable PDF once means you own the data to get the paver back in the pass before the mat cools.
What's Inside This Bomag 4413 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Filter List | 4 | Primary Air Filter, Secondary Air Filter, Oil Filter, Fuel Filter, Return Filter, Charge Filter, Fan Belt |

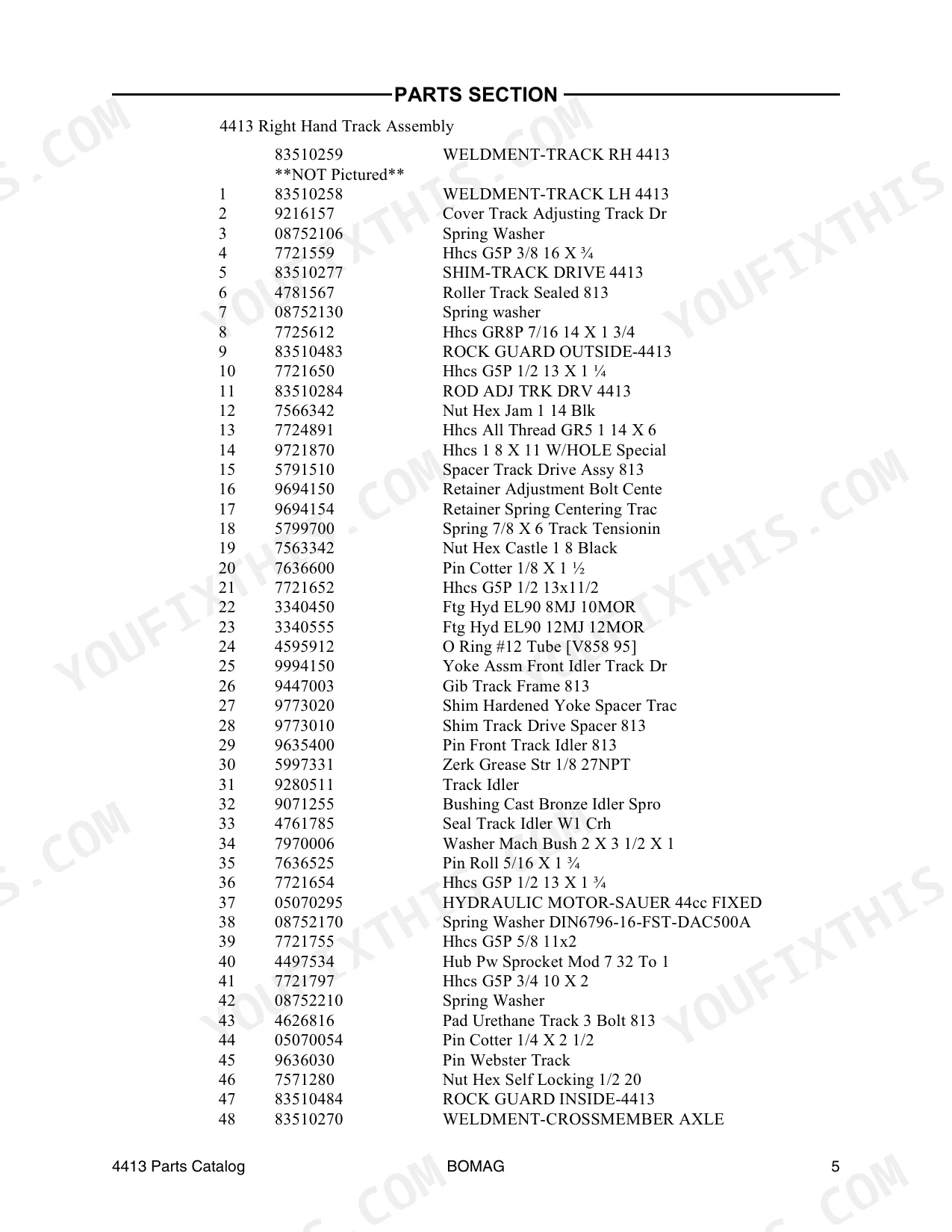

| Right Hand Track Assembly | 5-6 | Weldment Track, Track Adjusting Cover, Track Drive Shim, Sealed Track Roller, Track Drive Rod, Track Idler, Hydraulic Motor, Hub Pw Sprocket |
| Conveyor Assembly | 7-8 | Conveyor Idler Tube, Spherical Bearing Housing, Conveyor Idler Shaft, Conveyor Idler Sprocket, Conveyor Drive Shaft, Conveyor Drive Sprocket, Conveyor Motor |
| Left Hand Control Panel Switches | 9-10 | Sealed Toggle Switch, Pilot Light, Panel Mount |
| Left Hand Dash Control Panel and Levers | 11-12 | Control Panel, Nylon Washer, Hydro Lever, Flanged Bronze Bearing, Spring Washer, Key Switch |
| Right Hand Dash Switches | 13 | Sealed Toggle Switch, Pilot Light, Hourmeter, Water Temperature Gauge |
| Right Hand Dash Actuation | 14 | Knob, Spring Washer, Operator Panel Bushing, Flanged Bronze Bearing, Valve Cable Lever, Control Panel |
| Right Hand Dash Steering | 15-16 | Operator Panel Bushing, Flanged Bronze Bearing, Hydro Lever, Nylon Washer, Spring Washer, Control Panel |
| Tailgate, Hood and Seat | 17-18 | Nut Hex Self Locking, Washer Flat, Hood Strap Link, Bushing, Weldment, Fiberglass Hood, Hinge Rod, Seat |
| Gates | 19-20 | Thrust Washer Gate Link, Link Geared Gate, Zerk Grease, Washer Gate, Washer Gate Gear, Bushing, Driving Gate Lever, End Rod |
| Crown Jack Assembly | 21-22 | Seal, Brace, Zerk Grease, Ratchet Weldment, Scale Screed Crown Adjustment, Nut Hex, Strap, Spring Washer |
| Screed Steps | 23-24 | Hex Head Cap Screw, Spring Washer, Weldment Upper Step, Step Upper Mid, Mount Step Vibration, Trough Rear Hose, Pin Lower Step Hinge, Step Lower |
| Screed | 25-26 | Hex Head Cap Screw, Weldment Main Blade, Pin Center Step Hinge, Washer Flat, Pin Cotter, Nose Main Screed, Plate Main Wear Assembly, Nut Hex Jam |
| Burner Plates | 27-28 | Hex Head Cap Screw, Spring Washer, Cover Burner Long, Cover Burner Medium, Cover Burner Short |
| Screed Arms and Depth Adjustments | 29-30 | Crank Depth Adjustment, Coupling Spud Extension, Coupling Screed Adjustment Screw, Pin Roll, Nut Spherical Adjusting, Screed Screw Weldment, Weldment Screw Auto |
| Augers | 31 | Bracket Auger Bearing, Bearing, Auger Weldment |
| LH Screed Extension Assembly | 32 | Collar, Cover, Filler, Bracket, Scraper, Nose, Shield, Tube Link |
| RH Screed Extension Assembly | 33-34 | Collar, Cover, Scraper, Nose, Shield, Tube Link, Adjusting Screw Anchor, Bearing |
| Screed Heating | 35-38 | Gauge, Regulator, Propane Fitting, Tank, Adapter, Tee, Elbow, Propane Hose |
| LH Dash Switches | 39 | Sealed Toggle Switch, Pilot Light |
| RH Dash Switches | 40 | Sealed Toggle Switch, Hourmeter, Water Temperature Gauge |
| LH Dash Power Panel | 41-42 | Circuit Breaker, Fuse, Master Circuit Breaker, Glow Plug Timer, Relay, Bridge Diode, Plug, Bride Diode |
| Electrical Schematics | 43-48 | Starter Switch, Glow Plug Indicator, Charge Indicator, Oil Press Sender, Engine Heat Warning, Hydraulic Filter Warning, Charge Filter Warning, Pause Run Switch |
| Hydraulic Schematic | 49 | Engine, Travel Pump, Material Flow Pump, Cylinder Function Pump, Material Flow Valve, Cylinder Function Valve, Travel Motor, Pause Run Valve |
| Hose Routing | 50-58 | Filter Cart, Filter Head, Pause/Run Valve, Hydraulic Tee, Hydraulic Hose |
| Material Flow and Power Depth Hydraulics | 59-73 | Stack Valve Assembly, Conveyor Motor, Hydraulic Hose, Hydraulic Tee, Vibrator Speed Control |
| Cylinder Functions | 74-83 | Monoblock Control Valve, Hydraulic Hose, Hydraulic Tee |
| Hydraulic Hoses | 84-92 | Hose, Filter Head, Filter Element |

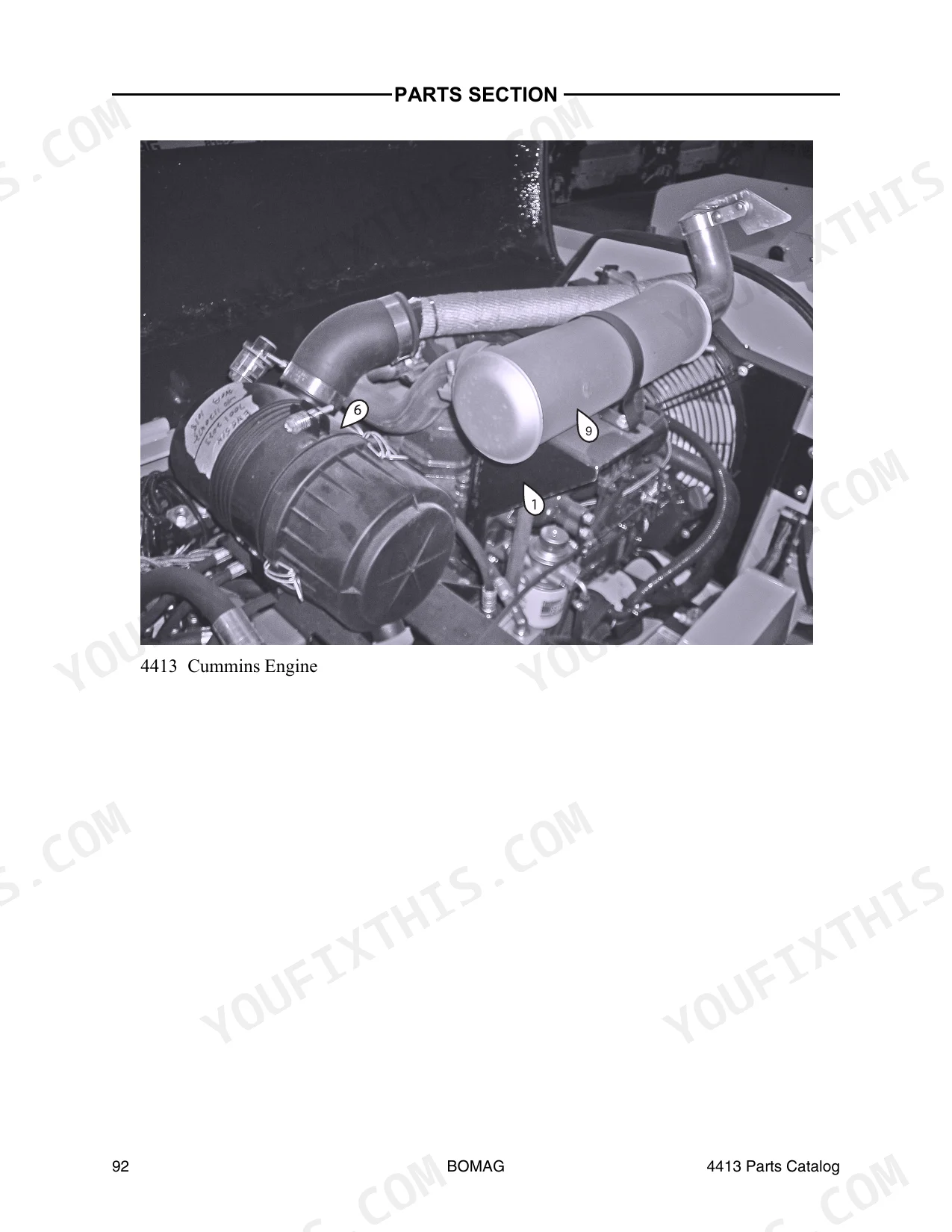

| Cummins Engine | 93-102 | Engine Sub-Assembly, Tandem Pump, Hydraulic Pump, Cooling System, Air Cleaner, Oil Filter, Fuel Filter, Muffler |
| Screed Hydraulic Hoses | 103-116 | Screed Hose Assemblies FC310-04 and FC310-06, Hose Lengths 19 to 116 in |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil | CHAMPION ALL FLEET T 15W 40 | p. 4 |
| Track and Power Wheel | CHAMPION HD 80W-90 | p. 4 |
| Charge pressure | 313 PSI +/- 50 PSI | p. 49 |
| Travel pressure (Max) | 5000 PSI +/- 150 PSI | p. 49 |
| Radiator Cap | 7LB | p. 93 |
| Cummins A2300 Alternator | 50 AMP | p. 93 |
| Engine Oil Type | CHAMPION ALL FLEET T 15W 40 | p. 4 |
| Track and Power Wheel Lubricant | CHAMPION HD 80W-90 | p. 4 |
| Material Flow Standby Pressure | 300 PSI +/- 50 PSI | p. 49 |
| Material Flow Maximum Pressure | 2400 PSI +/- 100 PSI | p. 49 |
| Cylinder Functions Max Pressure | 2000 PSI +/- 100 PSI | p. 49 |
| Engine High Idle Speed | 2800 RPM | p. 49 |
Bomag 4413 Common Problems This Manual Covers
Bomag 4413 track drive motor smokes and loses power during heavy paving passes
Inspect the chassis parts diagram on page 5 to identify replacement track drive components. Cross-reference the hydraulic motor and hub sprocket part numbers for your serial range. Verify the replacement motor handles the max travel pressure of 5000 PSI +/- 150 PSI.
Manual Section: Right Hand Track Assembly p. 5Conveyor and auger stall out because material flow pump cannot maintain standby pressure
Review the hydraulic parts diagram on page 49 to locate the material flow pump and stack valve assembly. Match your serial number to find the exact pump replacement. Ensure the new pump and valve can sustain a material flow standby pressure of 300 PSI +/- 50 PSI.
Manual Section: Hydraulic Schematic p. 49Cummins A2300 engine overheats and boils over coolant during long summer paving shifts
Check the engine parts diagram on page 93 for cooling system components. Find the exact part number for the replacement 7LB radiator cap and cooling fan belt. Order the correct parts using the list to get the machine back to making passes.
Manual Section: Cummins Engine p. 93Charge pressure drops below minimum threshold and triggers warning lights on the dash
Pull the filter list on page 4 to find the correct charge filter and return filter part numbers. Order the exact replacements for your paver. While servicing, refill the engine with CHAMPION ALL FLEET T 15W 40 oil to keep the prime mover running smoothly.
Manual Section: Filter List p. 4Frequently Asked Questions
What are the replacement filter part numbers for the BOMAG 4413?
The primary air filter is part number 05070506, the secondary air filter is 05070507, the oil filter is 05070508, and the fuel filter/separator is 05070509. Additionally, the return filter is 3284080 and the charge filter is 3285306. p. 4
What is the recommended engine oil for the BOMAG 4413?
The recommended engine oil for the BOMAG 4413 is Champion All Fleet T 15W 40. p. 4
What is the correct hydraulic fluid for the BOMAG 4413?
The hydraulic system requires Champion Quantum 4600 fluid. p. 4
What is the part number for the Cummins A2300 fan belt?
The part number for the Cummins A2300 fan belt is 05070330. p. 4
What is the part number for the Cummins A2300 starter?
The part number for the Cummins A2300 starter is 05070663. p. 94
How quickly can I access this Bomag 4413 manual after buying?
You get a 116-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I free to print this Bomag 4413 Parts Catalog?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
