Covering the complete breakdown of every system from the undercarriage to the main screed, this 778-page Bomag BF 300 C S340 TV parts catalog pdf (OEM 00824191) is the factory documentation for your paver. Detailed exploded views map out the entire machine, showing the precise relationship between the material hopper, conveyor chains, and hydraulic drive components. The document provides clear cross-references for every assembly, allowing you to quickly identify replacement numbers for wear plates, auger flights, and tamper bars before calling the dealer. Factory assembly notes sit right alongside the diagrams, giving you the chain coupling torque rated at 23 Nm and the required tension force of 452-485 N for specific drive components. When you are alone on a cold mat with a busted conveyor and no one to ask, the digital bookmarks in this file drop you straight into the exact section you need to get the right part on order.
What's Inside This Bomag BF 300 C S340 TV Parts Manual
| System | Pages | Key Topics |
|---|---|---|

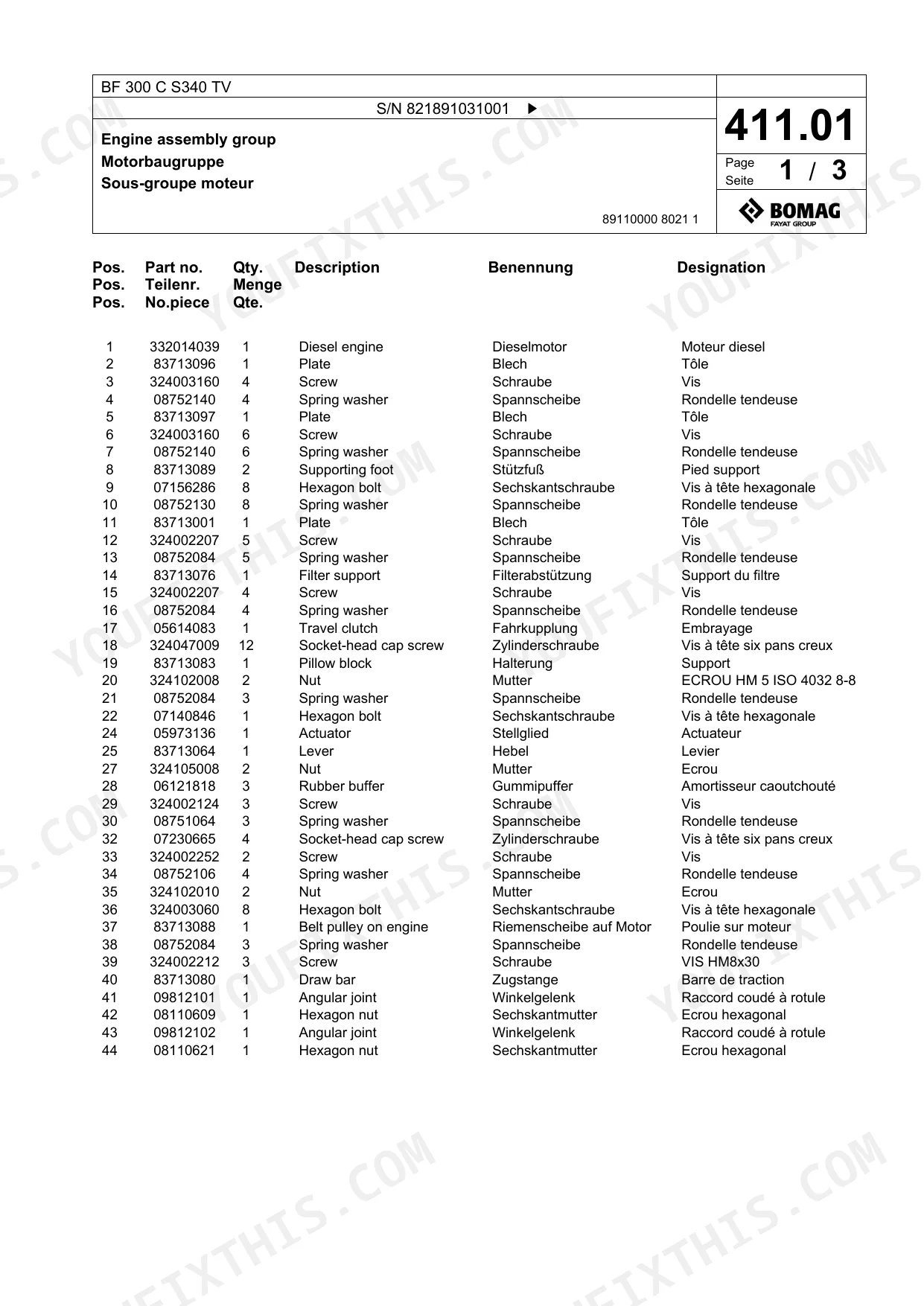

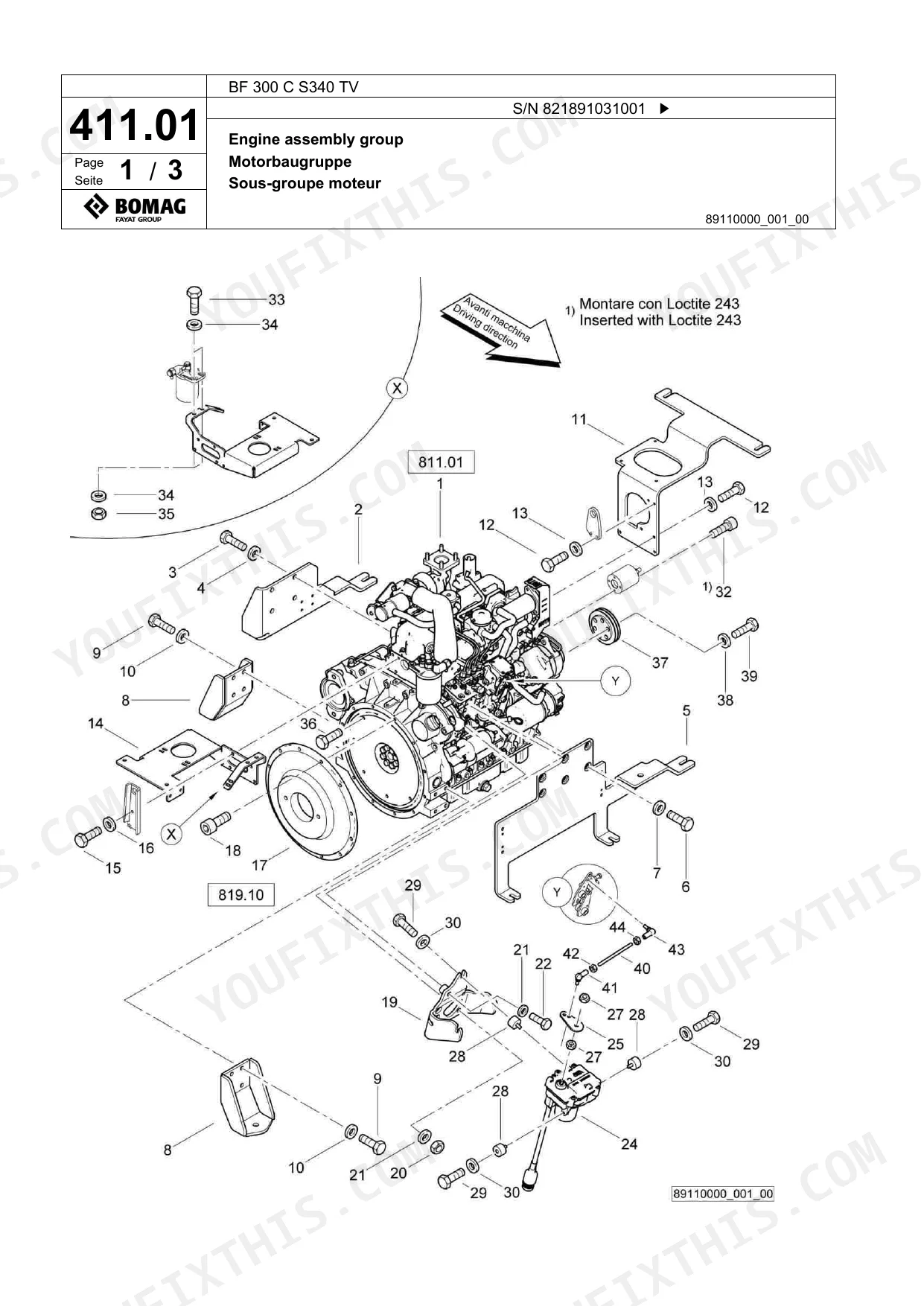

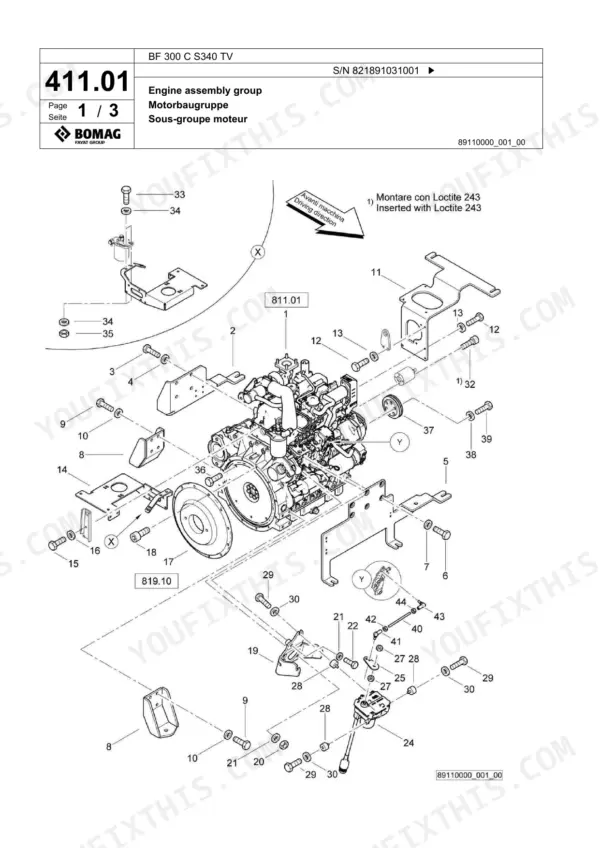

| Engine Assembly Group | 9-36 | Engine Assembly, Fuel System, Exhaust System |
| Conveyor System | 37-66 | Wear Plates Conveyor Belt, Driving Shaft Conveyor, Conveyor Chain, Auger |
| Undercarriage | 67-80 | Travel Motor, Scrapers for Tracks |

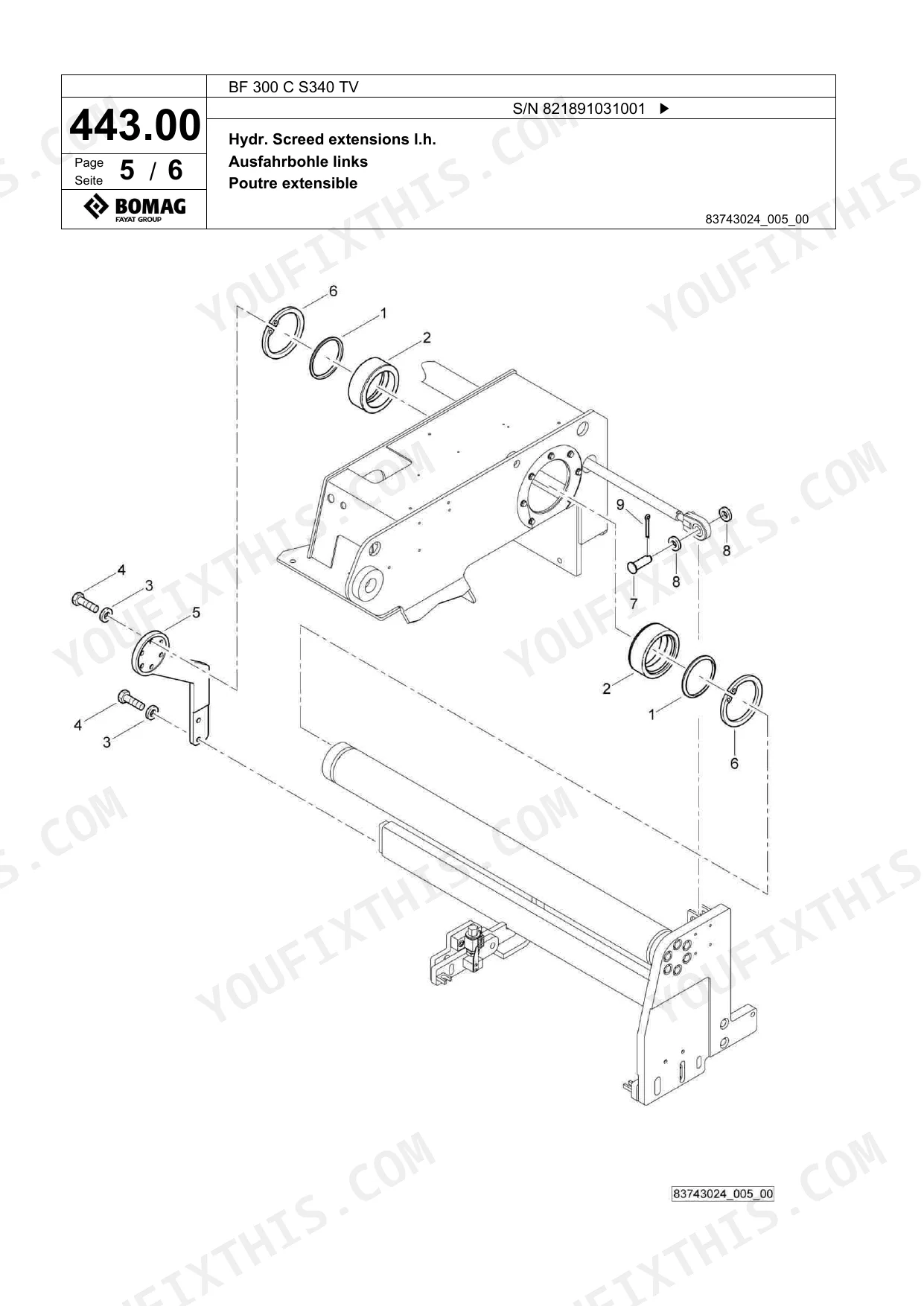

| Screed | 81-204 | Main Screed, Discharge Chute, Hoods, Hydr. Screed Extensions, Tamper |
| Frame and Operator's Stand | 205-324 | Frame Accessories, Material Hopper, Pressure Rollers, Operator's Platform, Platform Rear, Operator's Seat, Seat Support |
| Electric System | 325-414 | Control Panel, Central Electric, Electrical Equipment |
| Hydraulic System | 415-476 | Hydraulics Emergency Brake, Hydraulic Conveyor System, Hydraulic Conveyor Worms, Hydraulics Drive, Supply Vibration Tamper, Hydraulic Auxiliary System, Hydraulic Lifting |
| Options | 477-616 | Longitudinal Levelling |
| Components | 617-778 | Crankcase, Cylinder Head, Injection Pump, Governor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Assembly must have strenght tension | 452-485 N (91,4 - 94,6 Hz) | p. 28 |
| Valve block screw (part 324002250) tightening torque | 10 Nm | p. 140 |
| Assembly torque for chain coupling | 23 Nm | p. 188 |
| Hydraulic oil tank capacity (part 00993002, HY2-Bio) | 130 l | p. 615 |
| Transmission screw (part 05902338) tightening torque | 20-30 Nm | p. 718 |
Bomag BF 300 C S340 TV Common Problems This Manual Covers
Need replacement drive belt part numbers for Bomag BF 300 C S340 TV accessories after frequent slipping
Check the Engine Assembly Group exploded view on page 28 for correct drive belt part numbers. Verify your replacement belt meets the required assembly tension of 452-485 N (91.4 - 94.6 Hz). Match the hardware to the parts list to ensure the pulleys hold tight.
Manual Section: Engine Assembly Group p. 28Cannot identify the correct chain coupling parts for the vibratory screed drive when the mat lays uneven
Inspect the Drag chain parts breakdown on page 118 to locate the exact chain coupling assembly number. Review the listed hardware and note the required assembly torque for the chain coupling is 23 Nm. Order the matching bolts and lock washers shown in the index.
Manual Section: Drag chain p. 118Finding the hydraulic pump drive coupling and filter part numbers after a total drive function loss
Review the Hydraulic System components on page 429 to identify the correct drive coupling and hydraulic filter part numbers. Match the pump fittings in the index. If replacing the adjacent screed chain coupling during this teardown, verify you have hardware rated for 23 Nm.
Manual Section: Hydraulic System p. 429Identifying track chain, sprocket, and tension cylinder part numbers when the machine loses traction on grade
Search the Undercarriage exploded diagrams on page 67 for the specific track shoes and drive sprockets. Match the tension cylinder part number to your exact build. When reassembling related engine accessory belts, tension them to 452-485 N (91.4 - 94.6 Hz) as specified.
Manual Section: Undercarriage p. 67Frequently Asked Questions
What is the torque specification for the generator belt assembly on the Bomag BF 300 C S340 TV?
The assembly for the generator belt must have a strength tension of 452-485 N (91.4 - 94.6 Hz). This is specified on page 28 of the manual. p. 28
What is the required torque for the screw on the valve block on the Bomag BF 300 C S340 TV paver?
The screw on the valve block (part number 324002250) should be tightened to 10 Nm. This is specified on page 140 of the manual. p. 140
What is the required torque for the screw on the transmission of the Bomag BF 300 C S340 TV?
The screw on the transmission (part number 05902338) should be tightened to 20-30 Nm. This is specified on page 718 of the manual. p. 718
What is the hydraulic oil tank filling capacity on the Bomag BF 300 C S340 TV paver?
The hydraulic oil tank has a capacity of 130 liters. This is specified on page 615 of the manual. p. 615
How quickly can I access this Bomag BF 300 C S340 TV manual after buying?
A single searchable PDF file of 778 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print specific sections of this Bomag BF 300 C S340 TV Parts Catalog?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
