When the screed stops laying mat and the paving train is parked, this 454-page Bomag BF 700 C S600 service manual pdf (OEM 008 400 06EN) gives you the factory procedures to trace the paver's fault. Detailed wiring diagrams and hydraulic schematics map out every circuit from the travel pumps to the auger drives. The troubleshooting section breaks down fault codes for the MTU engine and material transport systems, guiding your diagnostics straight from a dash error to the failed component. You will find precise mechanical adjustments to keep the asphalt flowing evenly, like setting the scraper belt chain distance exactly 30 mm from the sliding guide and verifying chain sag stays between 5 and 8 mm. When you are alone on a night pour with no one to ask, this bookmarked, text-searchable manual helps you verify the specs, order the right part the first time, and get the machine back in the pass.
What's Inside This Bomag BF 700 C S600 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 7-26 | Introduction Service Manual, Concerning Your Safety (Handling Fuels and Lubricants, Parking the Machine in Secured Condition) |
| Technical Data | 27-32 | Dimensions, Weights, Travel Characteristics, Drive, Crawler Track, Hopper, Scraper Belt, Conveyor Auger |
| Total Overview of Machine | 33-52 | Component Overview Electrics, Component Overview Wiring Looms, Component Overview Hydraulics |

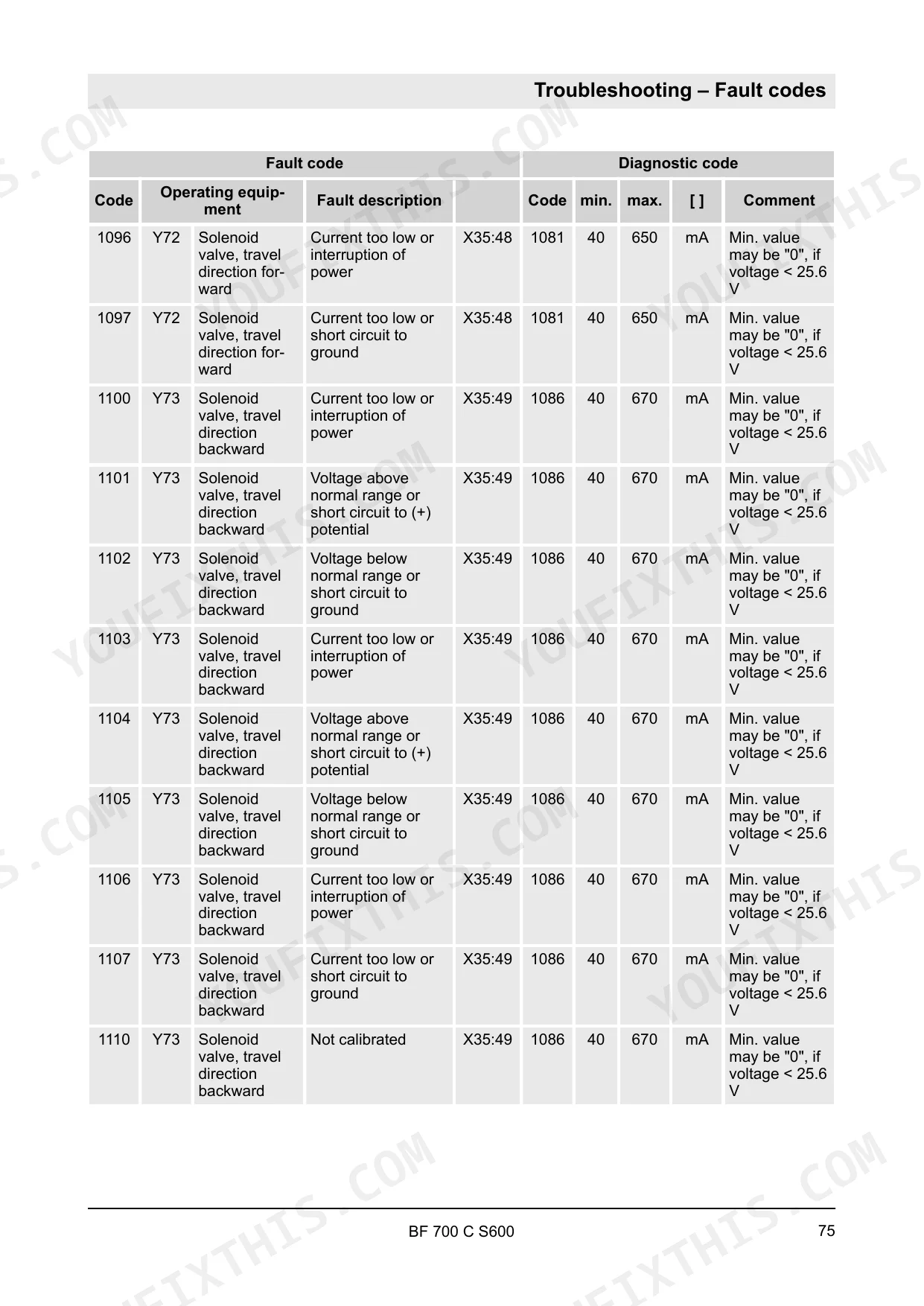

| Troubleshooting | 53-110 | Overviews (Overview -: Travel System, Material Transport, Screed Functions), Codes - General Information, Fault Codes (Foreword, Fault Code List, Fault Rectification) |

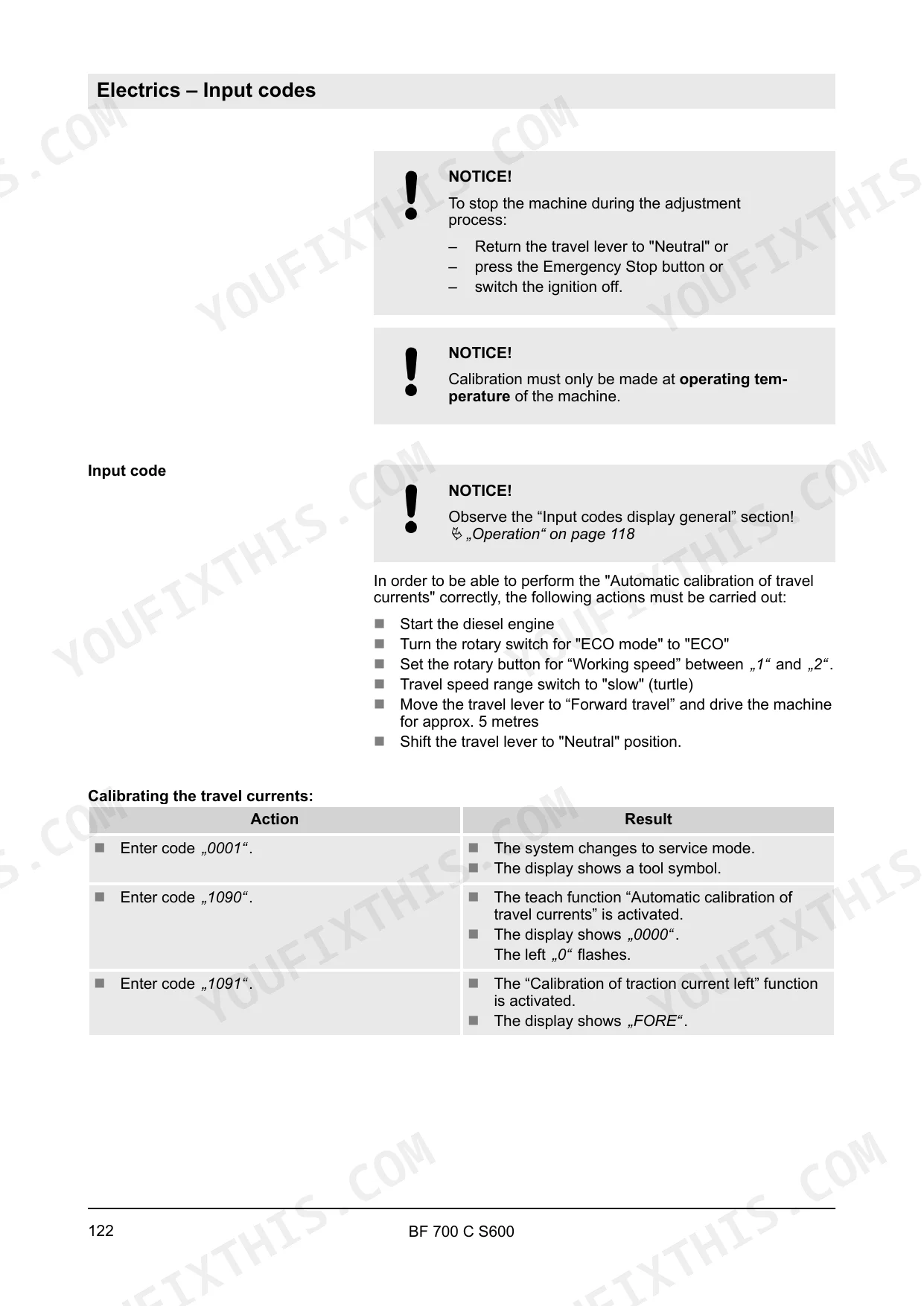

| Electrics | 111-166 | Control Units (Software Updating), Display (LC-Display Unit) |
| Engine Mtu 4R 1000 4final | 167-188 | Diesel Engine - Description, Oil Circuit, Cooling Circuit, Fuel System, Exhaust Gas Cleaning (Exhaust Gas Recirculation, SCR), Engine Electrics (Control Unit Mtu) |
| Hydraulic System | 189-200 | Hydraulics - Fundamentals, Routing of Hydraulic Hoses (Travel Functions, Radiator, Scraper Belt, Auger, Tamper & Vibration) |
| Assembly Groups | 201-276 | Tractor (General, Travel System, Driver's Stand), Material Transport (Hopper, Scraper Belt, Augers, Tunnel, Side Plates, Maintenance Work) |
| Appendix | 277-454 | Wiring Diagram 251, Wiring Diagram Screed S600, Hydraulic Diagram BF700C |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil capacity | 17.5 l | p. 23 |
| Engine oil type | SAE 5W-30 | p. 23 |
| Chain sag | 5 - 8 mm (0.2 - 0.3 in) | p. 216 |
| Scraper belt chain distance from sliding guide | 30 mm (1.2 in) | p. 213 |
| Screws (1) tightening torque | 70 Nm | p. 232 |
| Engine Oil Filling Quantity | 17.5L | p. 23 |
| Fuel Tank Capacity | 285L | p. 23 |
| AdBlue/DEF Tank Capacity | 40L | p. 23 |
| Coolant Filling Quantity | 36L | p. 23 |
| Hydraulic System Oil Capacity | 160L | p. 23 |
| Operating Weight | 20200kg | p. 28 |
| Travel Speed | 0-4 km/h | p. 28 |
Bomag BF 700 C S600 Common Problems This Manual Covers
Bomag BF 700 C S600 paver material feed stalling, auger bogs down and turns too slowly.
Verify the auger reaches its nominal speed of 141 rpm using the display diagnostics on page 149. Check the hydraulic tank fluid level to ensure it meets the 160L capacity. Inspect the auger drive lines for binding or blockages before resuming the pass.
Manual Section: Electrics p. 149Material transport erratic in the hopper, scraper belt slipping or jumping teeth on the drive sprockets.
Inspect the scraper belt tension and verify the chain sag is exactly 5 to 8 mm (0.2 to 0.3 in) as shown on page 216. Adjust the tensioners evenly on both sides. Also confirm the scraper belt chain distance from the sliding guide measures exactly 30 mm (1.2 in), per page 213.
Manual Section: Assembly Groups p. 216Screed leaving a poor mat finish behind the tractor, tamper bar knocks loudly during operation.
Check the tamper drive hydraulics and verify the tamper frequency operates smoothly between 0 and 30 Hz as specified on page 30. Inspect the tamper bar for heavy wear and verify Measurement A meets its 0.5 mm nominal value per page 231.
Manual Section: Assembly Groups p. 256Diesel engine running hot during long paving shifts, low oil pressure warning flashes on the display.
Drain the engine oil pan and refill with SAE 5W-30 oil to the required 17.5L filling quantity listed on page 23. Inspect the cooling circuit and verify the coolant level meets the 36L capacity. Clean out any asphalt dust blocking the radiator fins before restarting.
Manual Section: Engine Mtu 4R 1000 4final p. 23Screed plates shifting out of alignment, mobile section gaps widening and laying uneven asphalt mats.
Align the mobile screed sections and torque screws (1) to exactly 70 Nm as instructed on page 232. Verify the base plate sits flush across the joint. Inspect the electric screed heating elements for damage before returning the machine to the paving train.
Manual Section: Assembly Groups p. 232Frequently Asked Questions
How do I clear the fault log on the BOMAG BF 700 C S600?
To delete all logged fault codes, enter code '0710' and switch the ignition off and on again. All logged fault codes are cleared. p. 162
What is the torque specification for the screws on the mobile section of the screed on the Bomag BF 700 C S600?
When aligning the mobile screed sections, retighten screws (1) to 70 Nm, per page 232. p. 232
What is the correct scraper belt chain distance from the sliding guide on the Bomag BF 700 C S600?
The scraper belt chain tension is correct when it sits about 30 mm (1.2 in) from the sliding guide, per page 213. p. 213
What is the engine oil capacity for the BF 700 C S600?
The engine oil filling quantity for the MTU 4R 1000 engine is 17.5 liters (4.6 gal us). p. 23
What is the nominal value for the tamper height measurement 'A' on the Bomag BF 700 C S600?
The nominal value for tamper height measurement 'A' is 0.5 mm, per page 231. p. 231
How quickly can I access this Bomag BF 700 C S600 manual after buying?
Straight to your device: 454 pages of searchable Service Manual, downloadable the moment payment goes through.
Can I print just the pages I need from this Bomag BF 700 C S600 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
