Covering the RS950 and RS950B series reclaimer/stabilizers, this 314-page Bomag RS950 Parts Catalog PDF provides the factory diagrams needed to identify every component on your machine. Exploded illustrations break down the entire unit, from the cutter drive and planetary final drives to the hydraulic pumps. Cross-references map the transmission assembly and confirm the correct hardware configuration for your specific stabilizer. Component breakdowns list factory hardware constraints, like the 125 PSI pop-off valve and the 5 PSI relief fittings, so you know exactly what is going into the circuits. Guessing at an assembly number usually means eating the cost of a second teardown when the wrong bearing shows up, so download this bookmarked reference and get the machine back on the job.
What's Inside This Bomag RS950, RS950 Tier 2, RS950 Reclaimer/Stabilizer, RS950B Reclaimer/Stabilizer Parts Manual

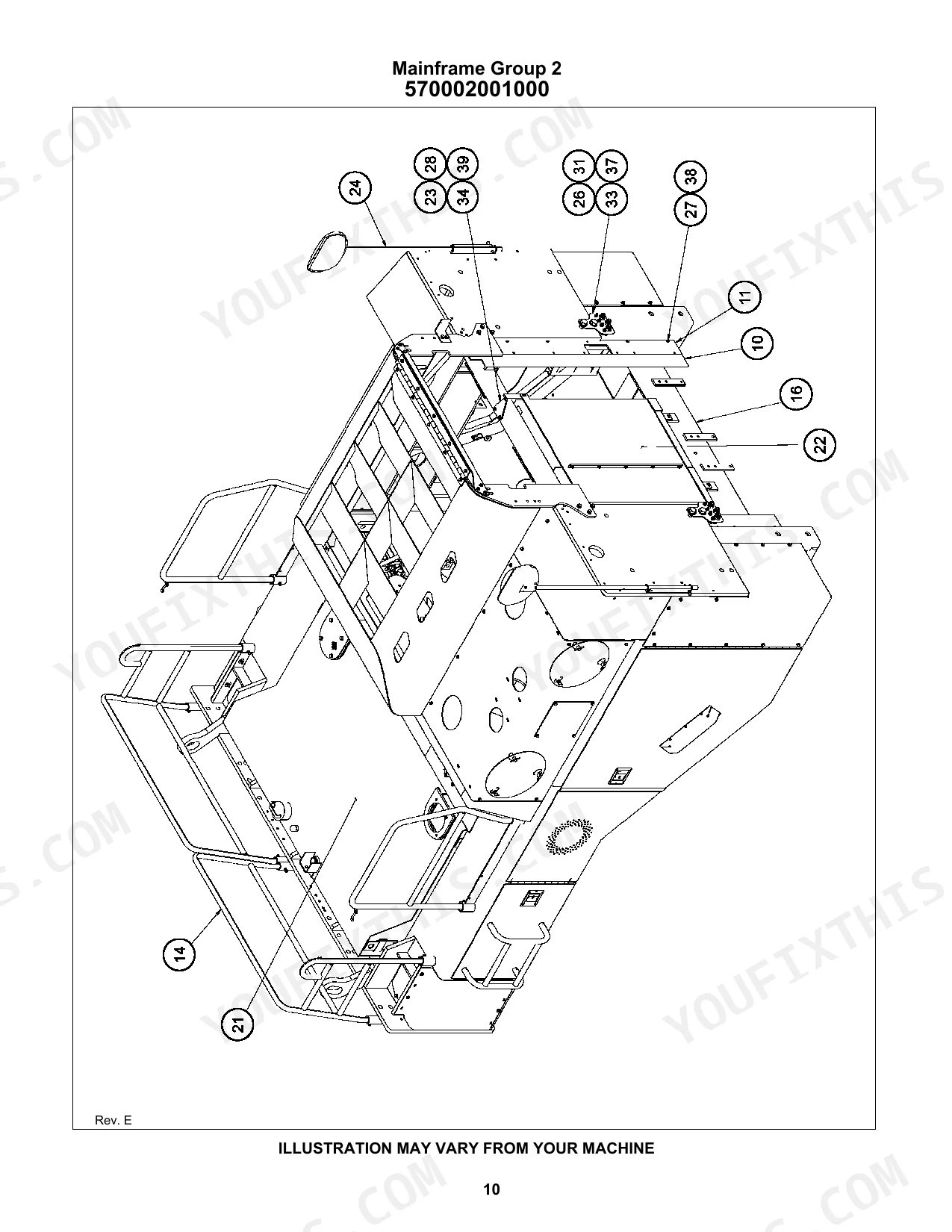

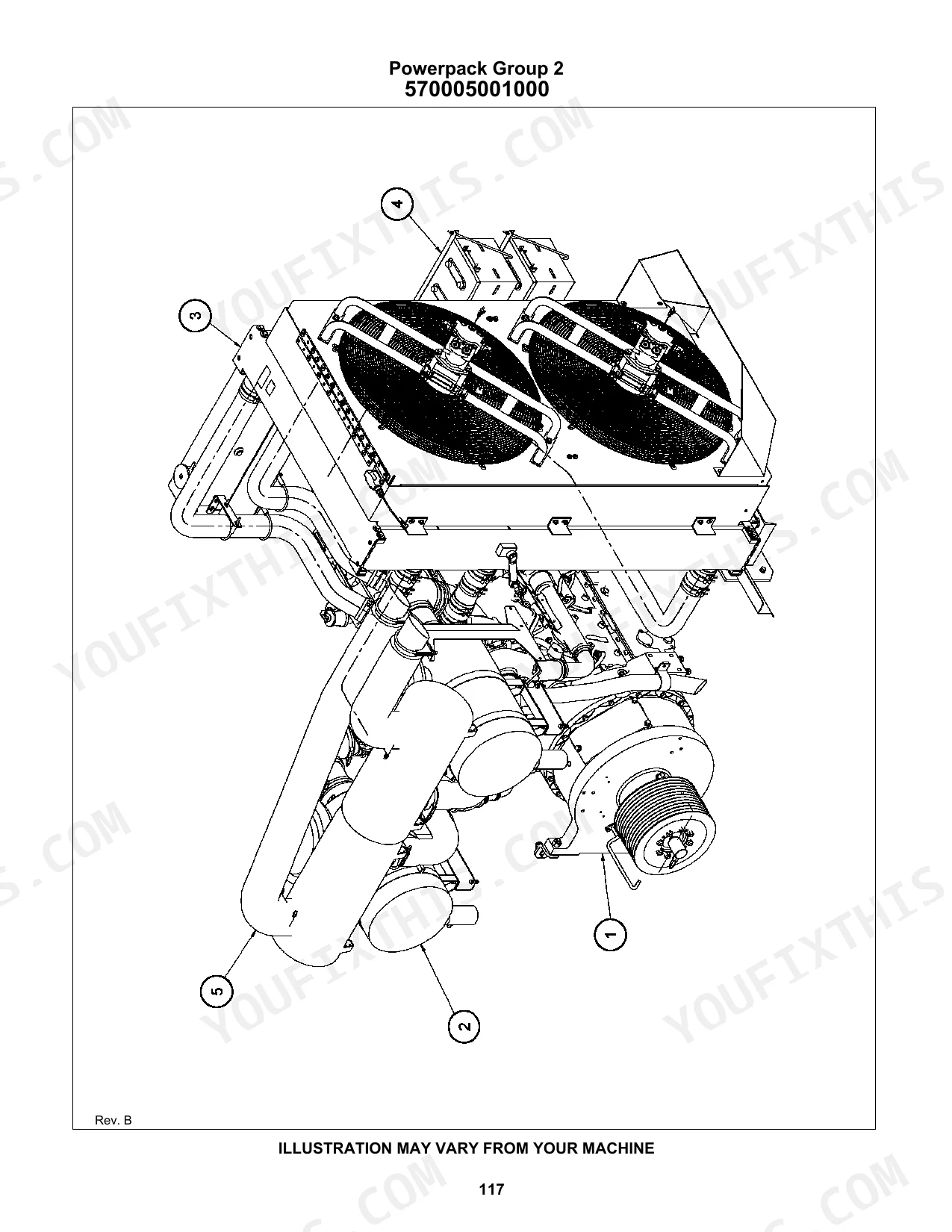

| System | Pages | Key Topics |
|---|---|---|
| RS950 Reclaimer/Stabilizer | 2-3 | Mainframe Group, Cutter Drive, Transmission Assembly, Doors and Covers Group, Handrail Assembly |
| RS950B Reclaimer/Stabilizer | 4-5 | Mainframe Group, Leg and Arm Group, Powerpack Group, Hydraulics Group, Electrical Group, Wheel and Tire Assembly |
| RS950B Reclaimer/Stabilizer | 6-7 | Mainframe Group, Leg and Arm Group, Powerpack Group, Hydraulics Group, Electrical Group, Wheel and Tire Assembly |
| Tpem Canada | 272-314 | Decal, Indication |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve, Pop-Off | 125 PSI | p. 16 |
| Relief, Fitting | 5 PSI | p. 26 |
| Relief, Fitting | 5 PSI | p. 192 |
Bomag RS950, RS950 Tier 2, RS950 Reclaimer/Stabilizer, RS950B Reclaimer/Stabilizer Common Problems This Manual Covers

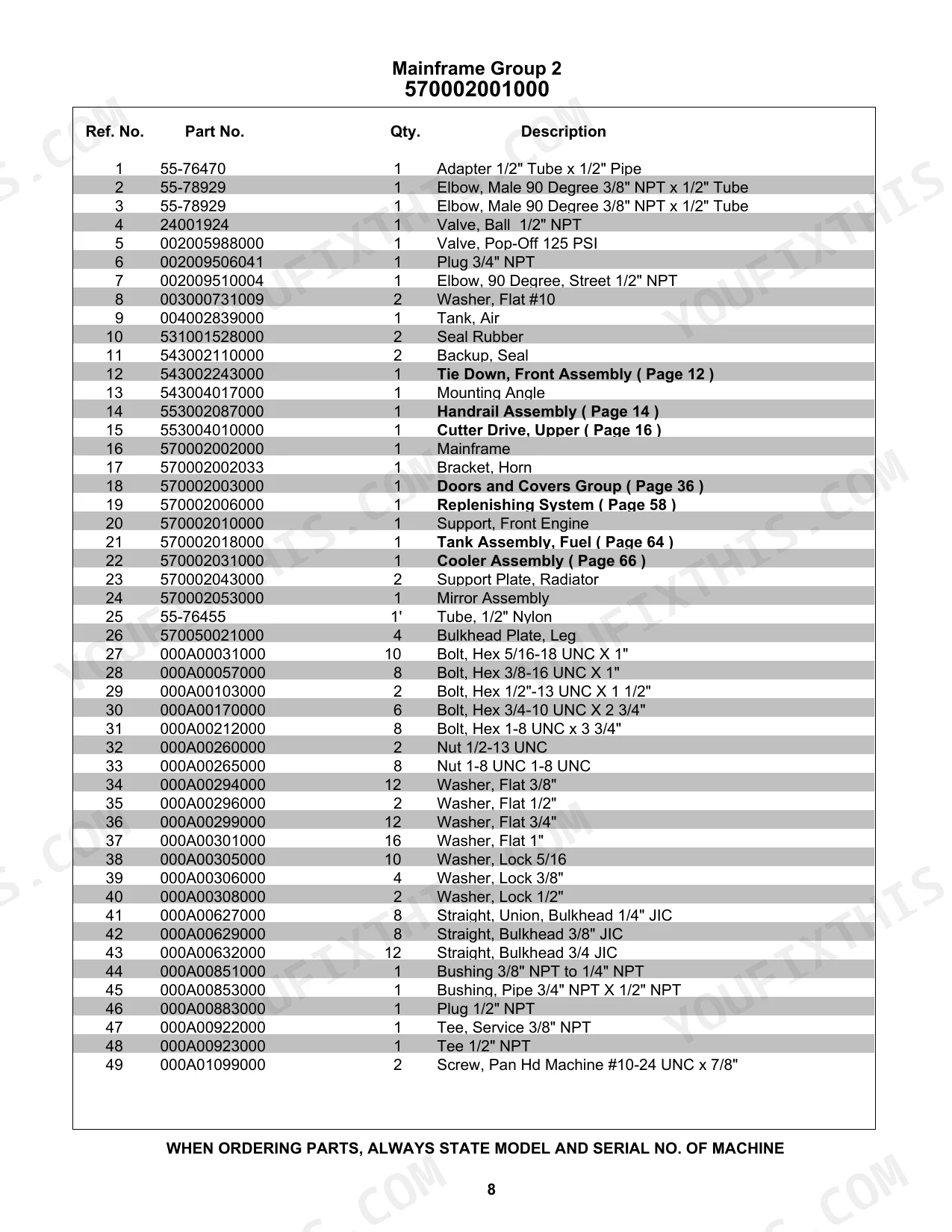

Bomag RS950 auxiliary system blowing lines and need the correct pop-off valve part number

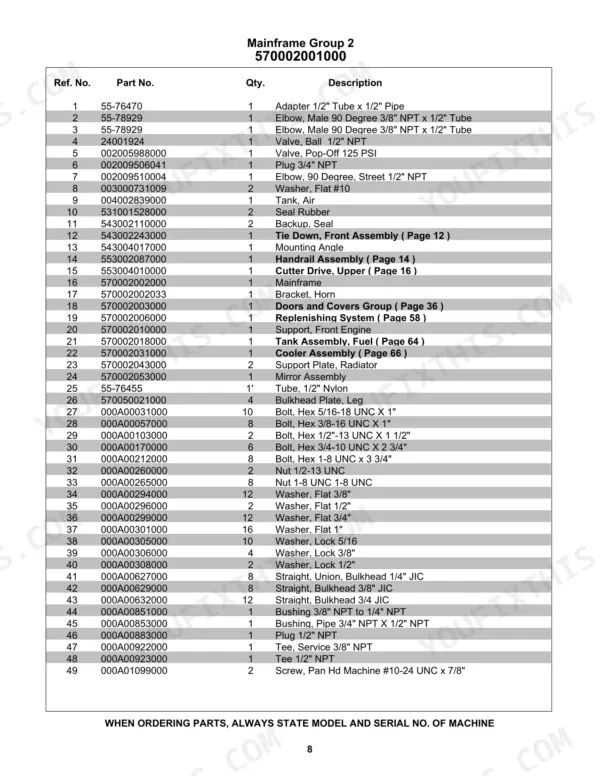

Inspect the Parts Number List on page 16 to find the exact pop-off valve rated at 125 PSI. Match the listed part number against your machine's serial break. Order the new valve and required O-rings to rebuild the auxiliary circuit block.

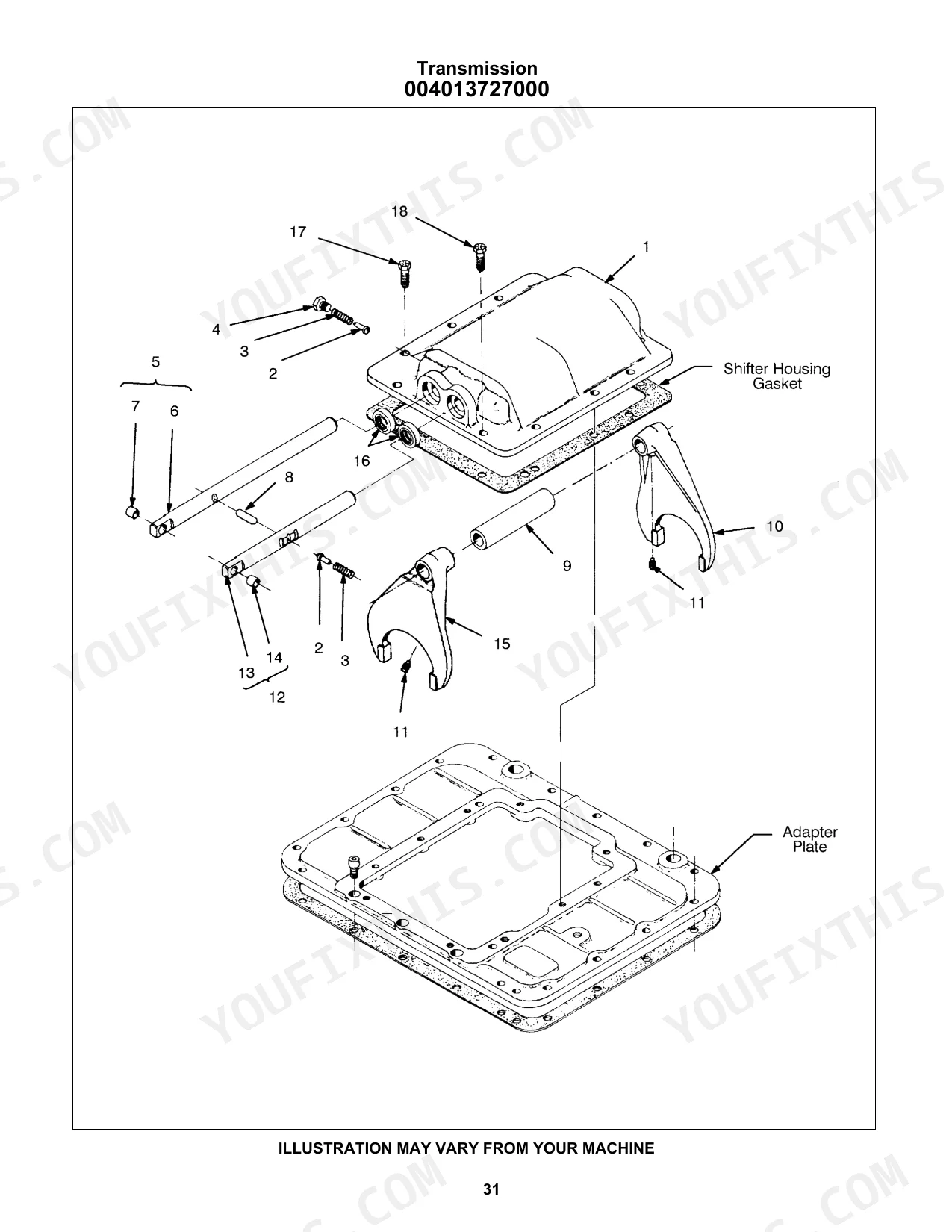

Manual Section: RS950 Reclaimer/Stabilizer p. 16Transmission leaking fluid near the breather and cannot locate the correct relief fitting part number

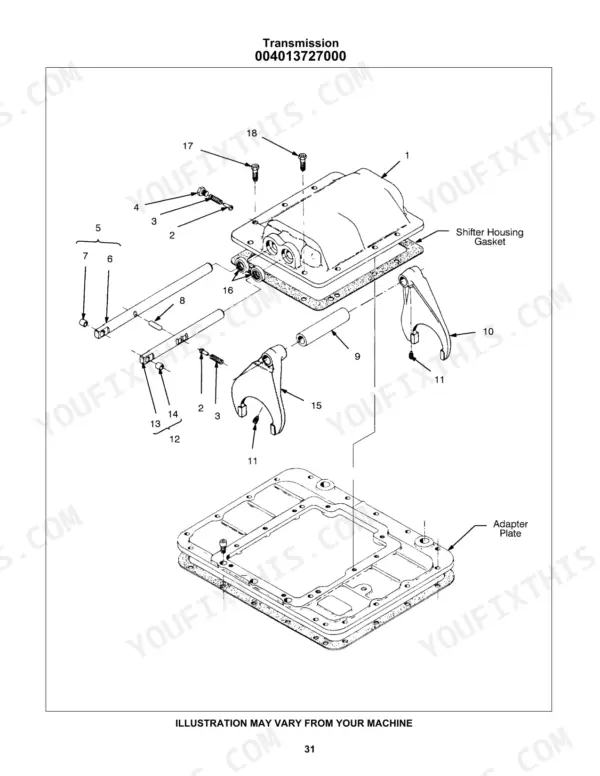

Check the drivetrain parts diagram to locate the transmission housing vent components. Identify the required 5 PSI relief fitting listed on page 26 for your specific model generation. Order this exact fitting along with the corresponding sealing ring from the index to stop the fluid leak.
Manual Section: TransmissionHydraulic reservoir pressurizing and need the correct part number for the tank breather relief fitting
Locate the hydraulic tank assembly in the parts manual. Identify the correct 5 PSI relief fitting on page 192. Cross-reference this specific fitting with your machine's serial number range to ensure you order the exact replacement part for your reclaimer.
Manual Section: RS950B Reclaimer/Stabilizer p. 192Frequently Asked Questions
What are the air filter replacement specifications for the Bomag RS950/RS950B Reclaimer/Stabilizer?
The air cleaner assembly for the RS950 uses a primary air cleaner element, part number 004002792003, and an air cleaner element, part number 004002792004. These components are detailed in the Air Cleaner section on page 136. p. 136
What is the air tank pop-off valve pressure rating on the Bomag RS950/RS950B Reclaimer/Stabilizer?
The air tank, part number 004002839000, is equipped with a pop-off valve, part number 002005988000, which is rated for 125 PSI. p. 16
Bomag RS950, RS950 Tier 2, RS950 Reclaimer/Stabilizer, RS950B Reclaimer/Stabilizer cooling system hydraulic filter spec?
The cooling system uses a hydraulic filter, part number 002008571000, as specified in the Cooling System parts list on page 74. p. 74
What is the torque specification for the planetary wheel nuts on the Bomag RS950 RS950B Reclaimer/Stabilizer?
The planetary assembly, part number 004013689000, uses 20 wheel nuts, part number 004013757019. While the manual lists the part, it does not provide a specific torque value for these nuts. p. 94
What is the part number for the hydraulic motor used in the leg assembly?
The hydraulic motor used in the leg assembly (LF, RR, RF, LR) is part number 002015514000. p. 92
How will I receive this Bomag RS950 Series Parts Catalog?
You download the Parts Catalog yourself: 314 pages, searchable PDF, available immediately. Keep a copy on every device you use.
