This 224-page Case 1494 Tractor Operators Manual (OEM #9-9812) puts the complete factory operating and maintenance reference for your 1494 diesel tractor in a single searchable document, from MFD axle setup through ROPS cab installation. You get a complete controls section laid out for both open-station and cab configurations. Also inside: exploded views for all major assemblies, a lubrication chart with grease fitting locations, fluid capacities for every system, maintenance interval schedules, and a full torque section. Set the rear wheel nuts to 270-325 Nm, plan the hydraulic oil filter swap at 400 hours, and keep the engine topped to exactly 7.4 litres. No more chasing specs across forum threads. Bookmarked throughout; tap a chapter, pull it up on your tablet at the machine, and get to work.
Complete the set for your 1494
- Repair Manual: Case 1490 1494 1594 1690 Service Manual — Wiring Diagrams
What's Inside This Case 1494 Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 5-6 | |
| Safety | 7-21 | |
| Hand Signals | 22-23 | Start the Engine, Stop the Engine, Move Out, Raise Equipment, Decrease Speed, Stop |
| Decals | 24-28 | PTO Shaft, PTO Clutch Lever, Tractor Engine, Rotating Machine Parts, Battery, Electrical Components, Clutch & Brake Fluid Reservoirs |

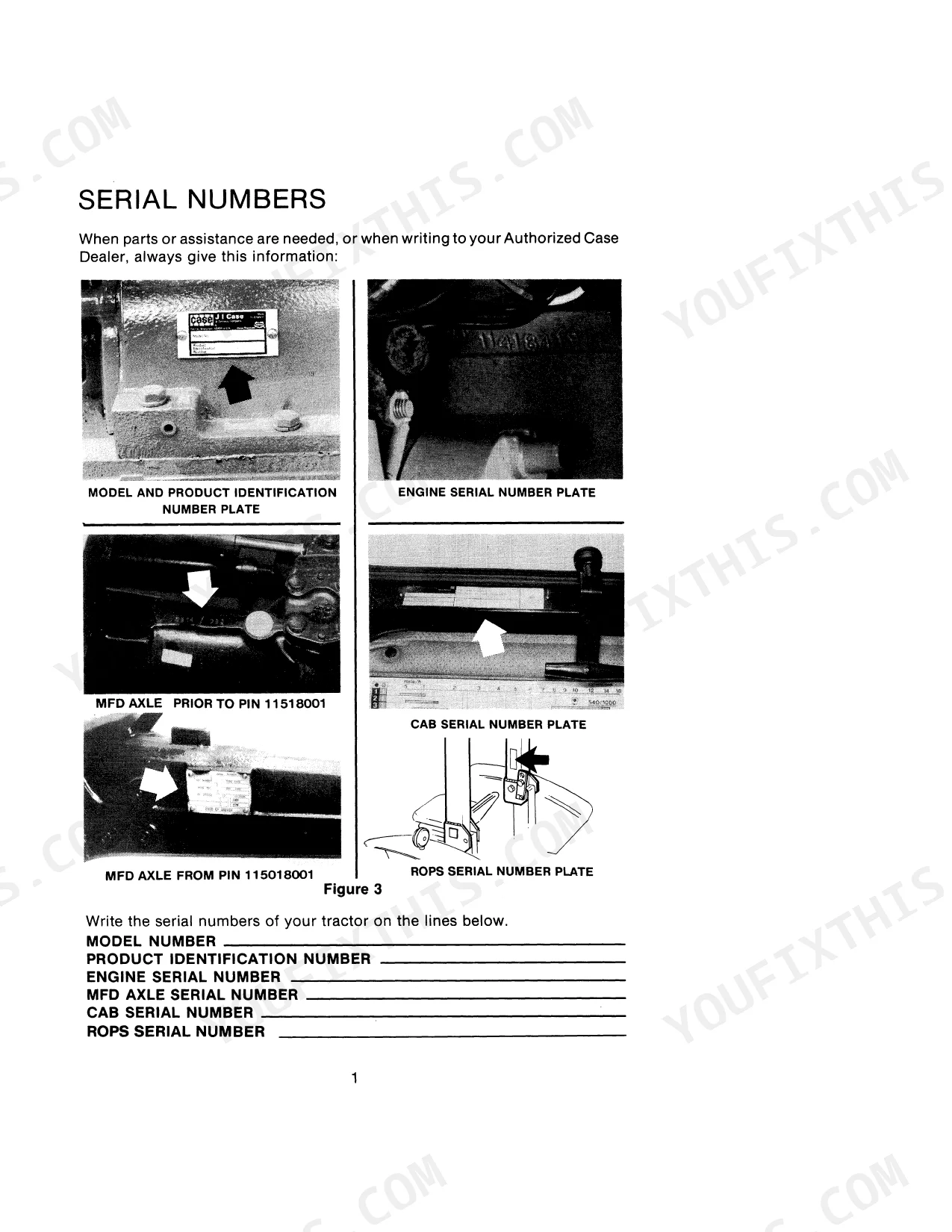

| Serial Numbers | 29 | Model and Product Identification Number Plate, Engine Serial Number Plate, MFD Axle Prior to Pin 11518001, Cab Serial Number Plate, MFD Axle From Pin 115018001 |
| Diesel Engine Specifications | 30-31 | General, Piston and Rod, Main Bearings, Cooling System, Engine Lubrication System, Fuel System |
| General Specifications | 32-34 | Hydraulic System, Transmission, Clutch, Differential Lock, Final Drives, Mechanical Front Drive (MFD) |
| Approximate Tractor Speeds | 35-38 | Transmission, Final Drive Ratio, Rear Tire Size, Rolling Radius, Gear, Lever Position |

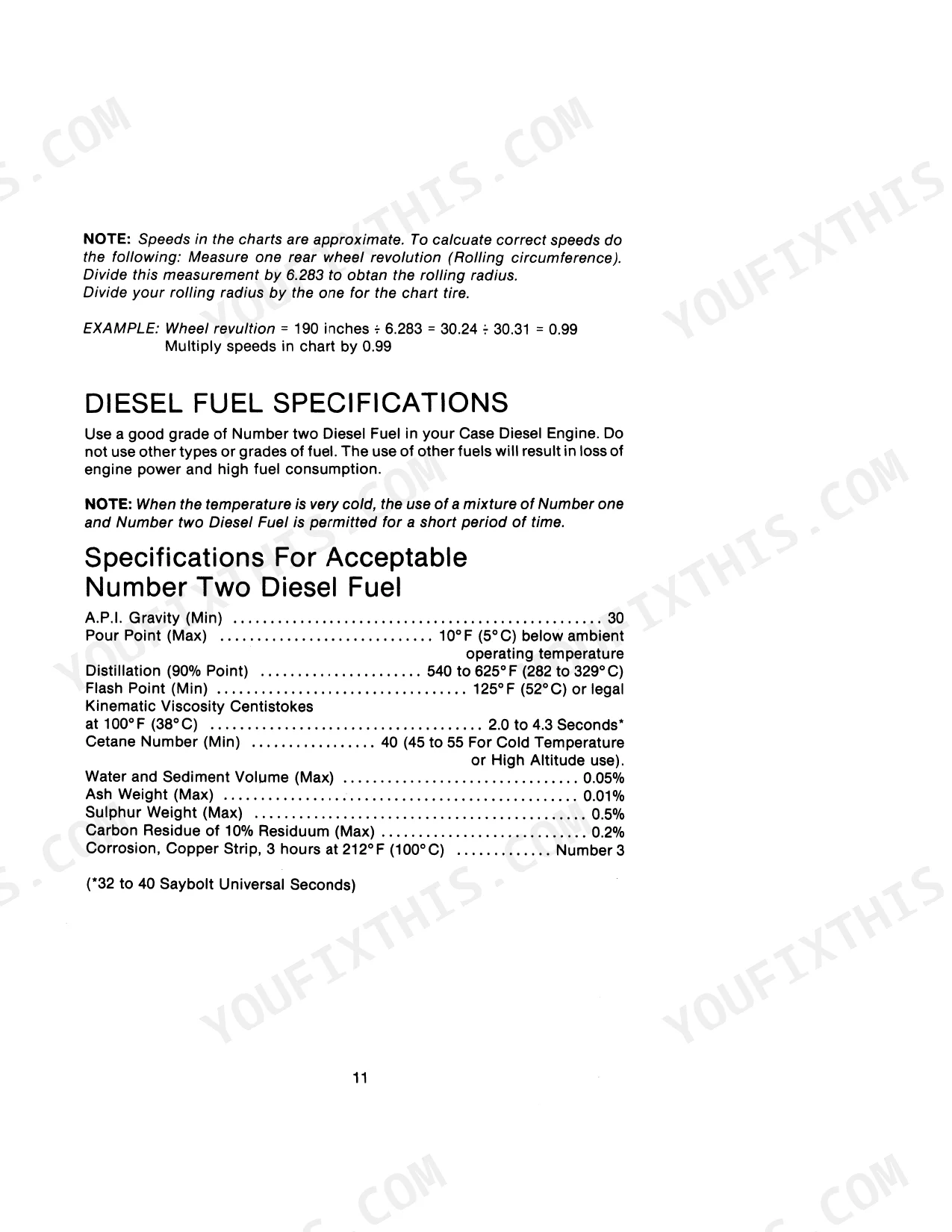

| Fuel Specifications | 39 | A.P.I. Gravity, Pour Point, Distillation, Flash Point, Kinematic Viscosity Centistokes, Cetane Number |
| Approximate Measurements | 40-42 | 2WD Tractor with 2 or 4 Post ROPS, MFD Tractor with 2 or 4 Post ROPS, 2WD Tractor with Cab, Operators Cab |
| Approximate Transport Weights | 43 | MFD Tractor with Cab, MFD Engaged Axle, Power Shift Transmission |

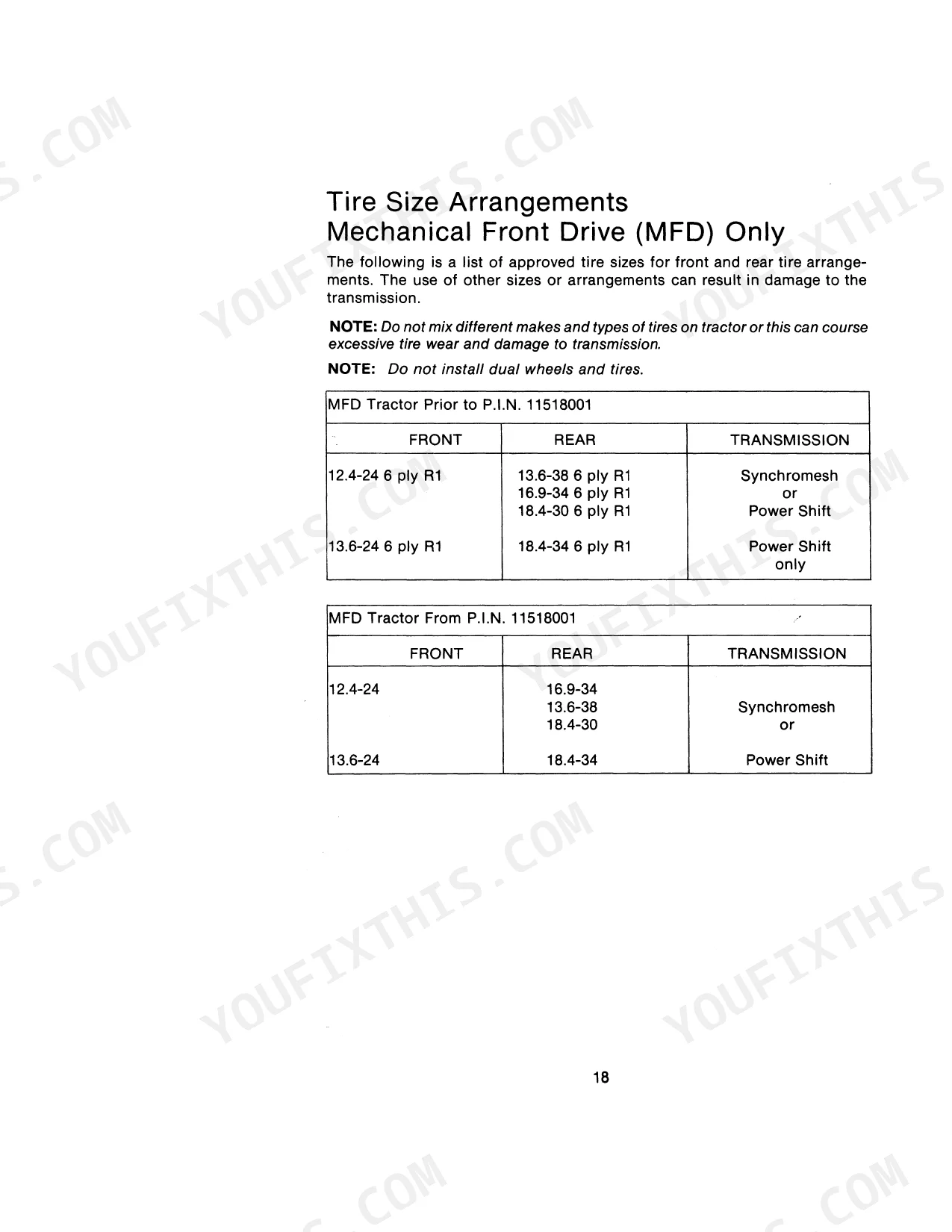

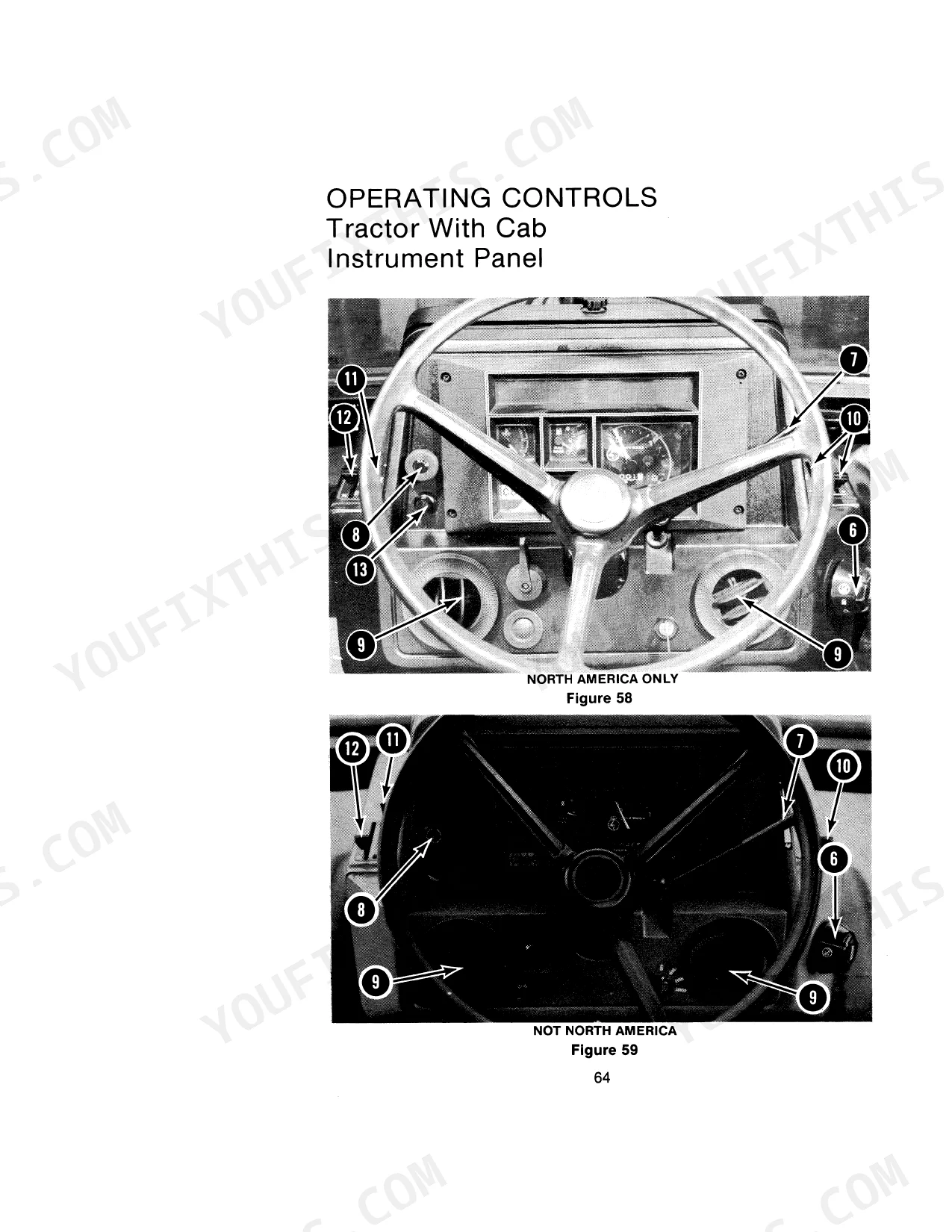

| Tire and Wheel Equipment | 44-45 | Tire Sizes, Maximum Loads, Pressures, Rear Tire Mounting |
| Tire Arrangements - MFD | 46 | Tire Size Arrangements, Mechanical Front Drive, MFD Tractor, Dual Wheels, Tires, Transmission |
| Front Wheel Tread Positions - 2WD | 47 | Front Wheel Tread, Front Axle |
| Front Wheel Tread Positions - MFD | 48-49 | Front Wheel Tread Positions, Mechanical Front Drive (MFD) Tractor, MFD Tractors |
| Rear Wheel Tread Positions | 50 | Rear Wheel, Rim, Wheel Center Nuts, Hub Nuts |
| Power Adjust Rear Wheeltread Positions | 51 | Rear Wheel Tread Positions, Power Adjusted, Center of Tractor |
| Lubrication | 52-66 | Engine Hourmeter, Diesel Engine Oil, Lubrication Chart, Capacities and Approved Lubricants, Lubrication - MFD, Grease Fittings, Engine Oil Change, Engine Oil Filter Change |

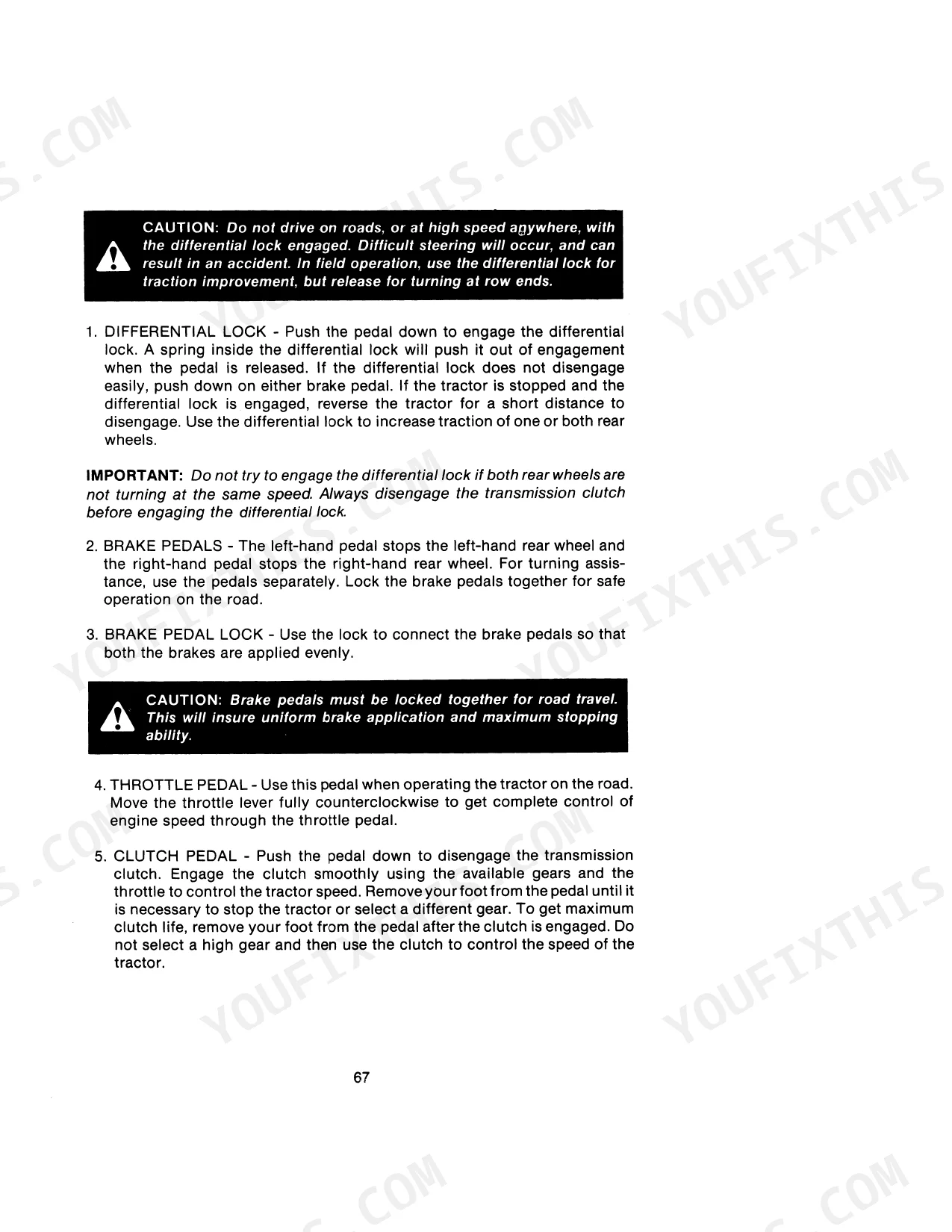

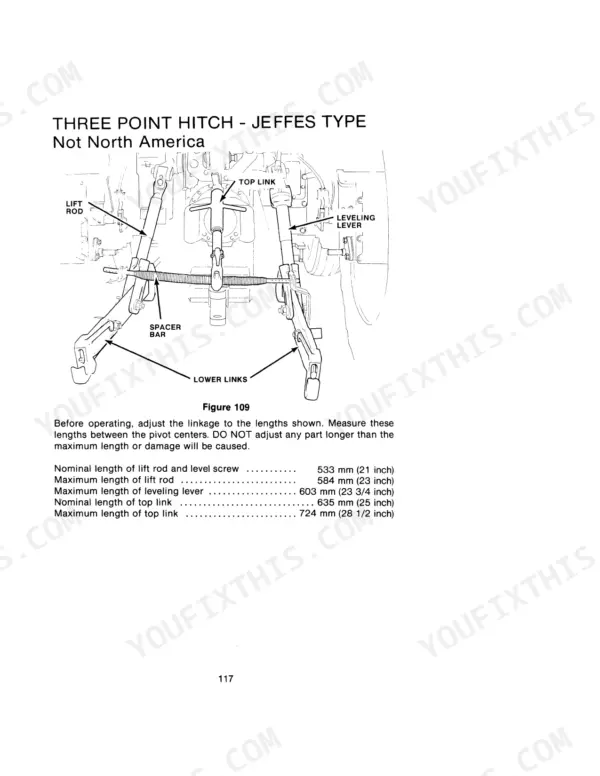

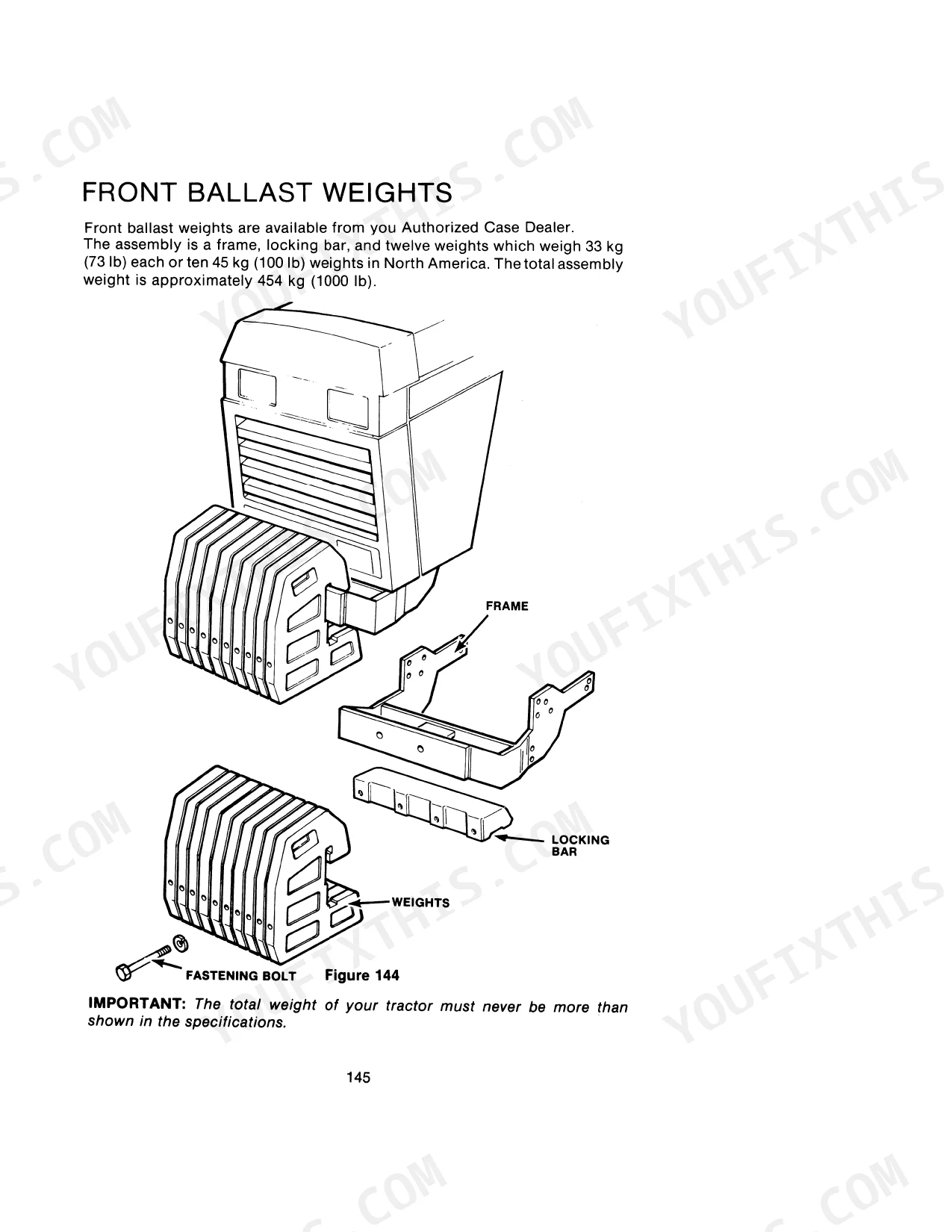

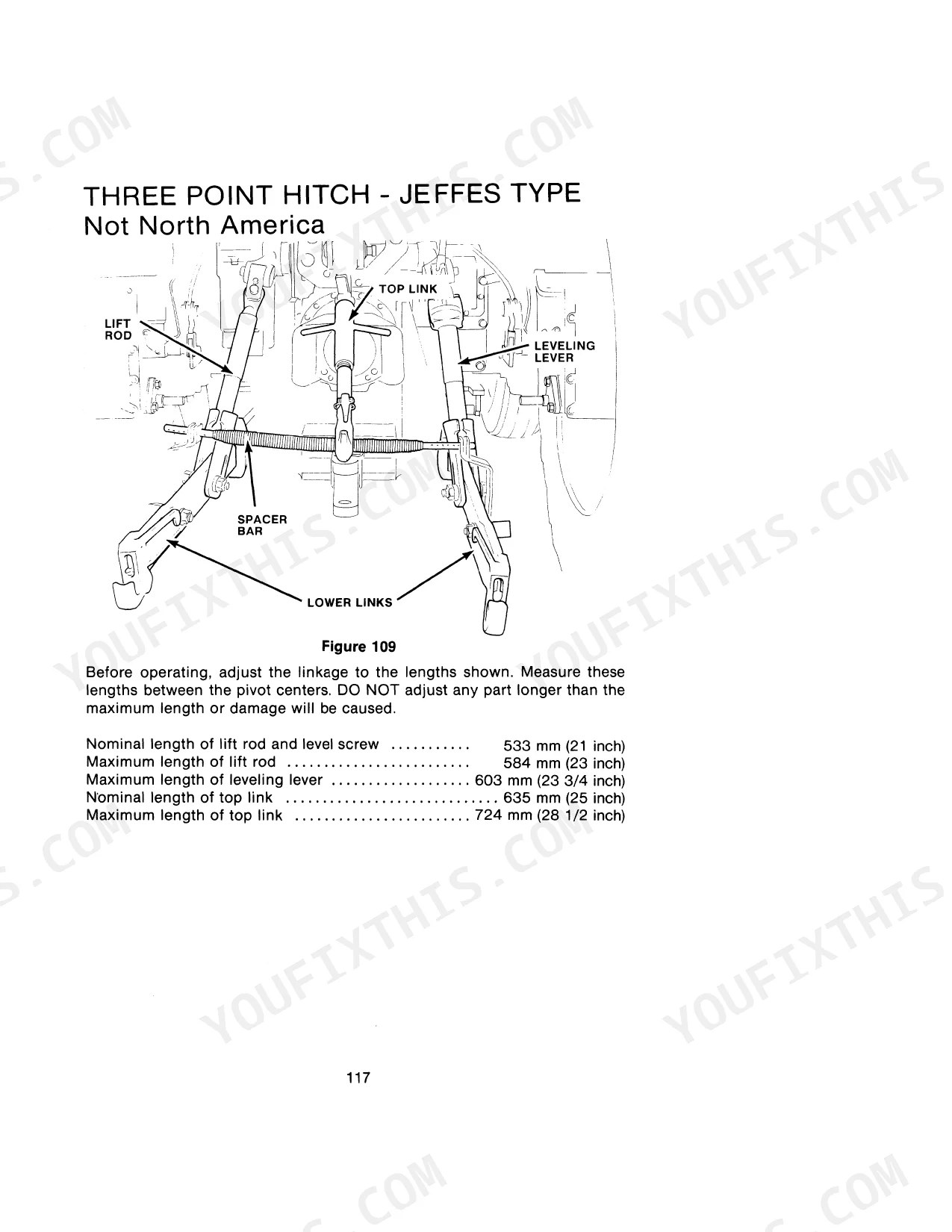

| Operating Instructions | 67-176 | Run-In Procedure, Before Operating the Tractor, Towing, How to Transport the Tractor, Operating Instruments, Operating Lamps |
| Rollover Protective Stucture | 177-224 | ROPS Cab, Foldable ROPS Frame, Seat Belts, Locking Bolt, Pivot Bolt, Stop Plate Bolt |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clutch Plate Diameter | 305 mm (12 inch) | p. 33 |
| Engine Oil Capacity | 7.4 litres | p. 58 |
| Transmission Oil Change Interval | 800 hours | p. 4 |
| Hydraulic Oil Filter Change Interval | 400 hours | p. 4 |
| Rear Wheel Nut Torque | 270 to 325 Nm | p. 170 |
| Front Wheel Nut Torque (MFD) | 300 Nm | p. 166 |
| Compressor Belt Tension | 90 to 122 N | p. 193 |
| ROPS Foldable Pivot Bolt Torque | 271 Nm | p. 201 |
| Front Hub Bearing Special Nut Torque | 95 Nm | p. 204 |
