This 598-page Case 1816 Service Manual (OEM #8-41040) covers the full Uni-Loader lineup: 1816, 1816B, and 1816C. You get complete wiring diagrams for the electrical system, hydraulic schematics covering the equipment pump, control valves, and cylinders, plus a full troubleshooting section for hydrostatic drive on machines running Vickers or Sundstrand piston pumps. Inside you'll also find torque specs, lubrication intervals, and engine procedures for Tecumseh and Onan power plants. Check the hydraulic reservoir capacity at 15 quarts (14.2 litres) with filter change, and confirm piston pin diameter runs .687 to .688 inch before you reassemble anything. No more guessing whether that wiring fault is a bad ground or a blown fuse. Bookmarked by section so you can jump straight from engine teardown to loader linkage, open it on your phone in the shop and chase the fault to its source.
What's Inside This Case 1816 / 1816B / 1616C Manual
| System | Pages | Key Topics |
|---|---|---|

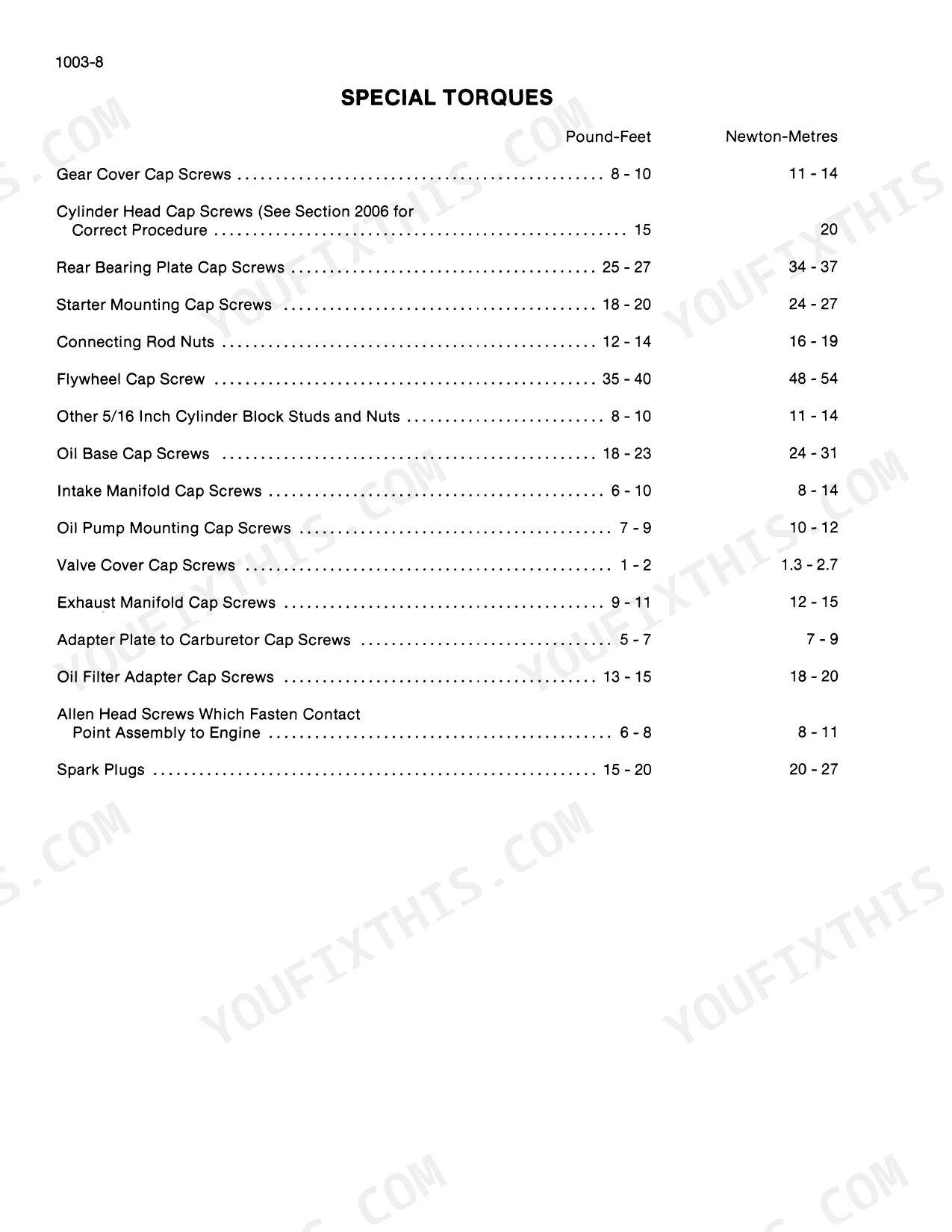

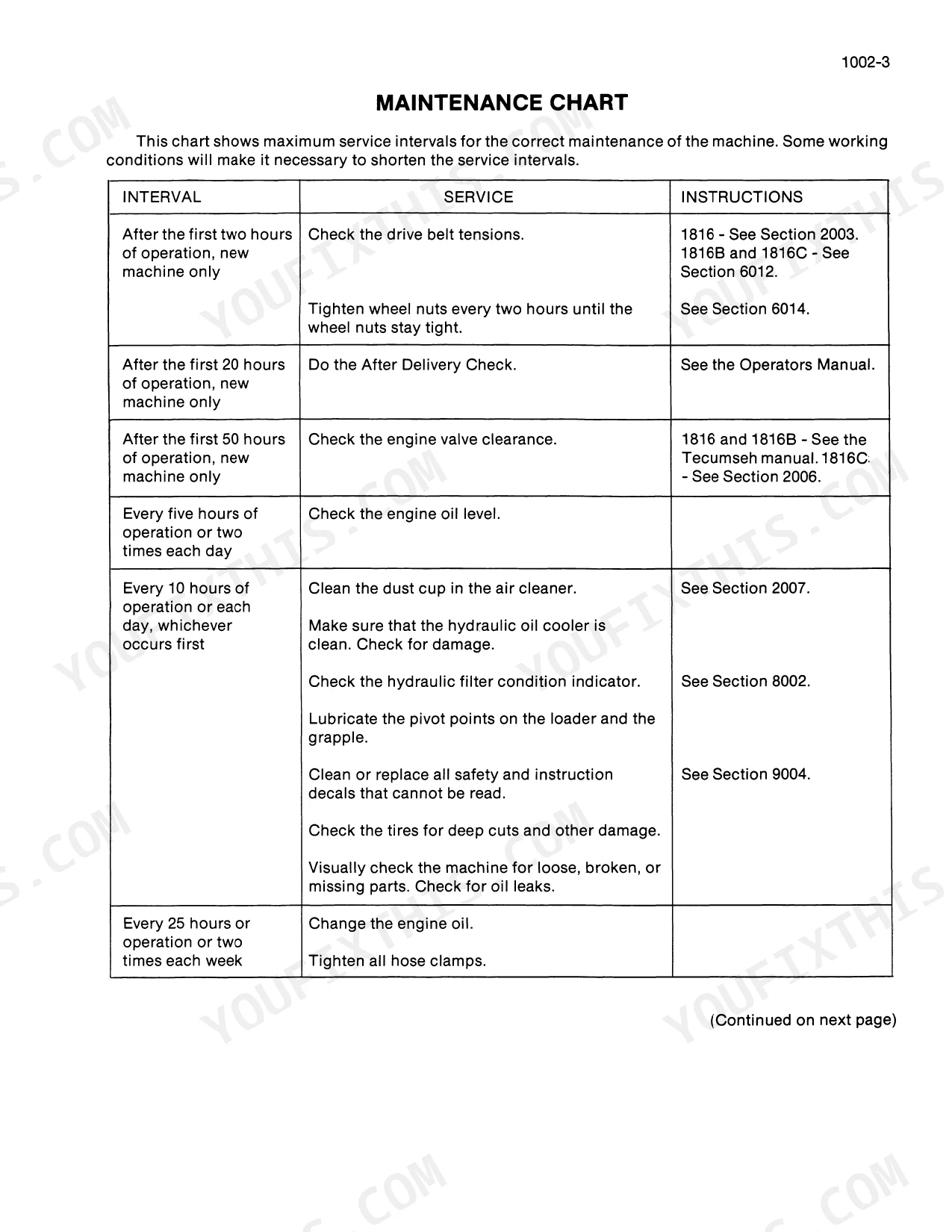

| General | 3-24 | Safety Rules, Service Manual Introduction, And Torque Specifications, Maintenance and Lubrication, Engine Specifications - 1816C |

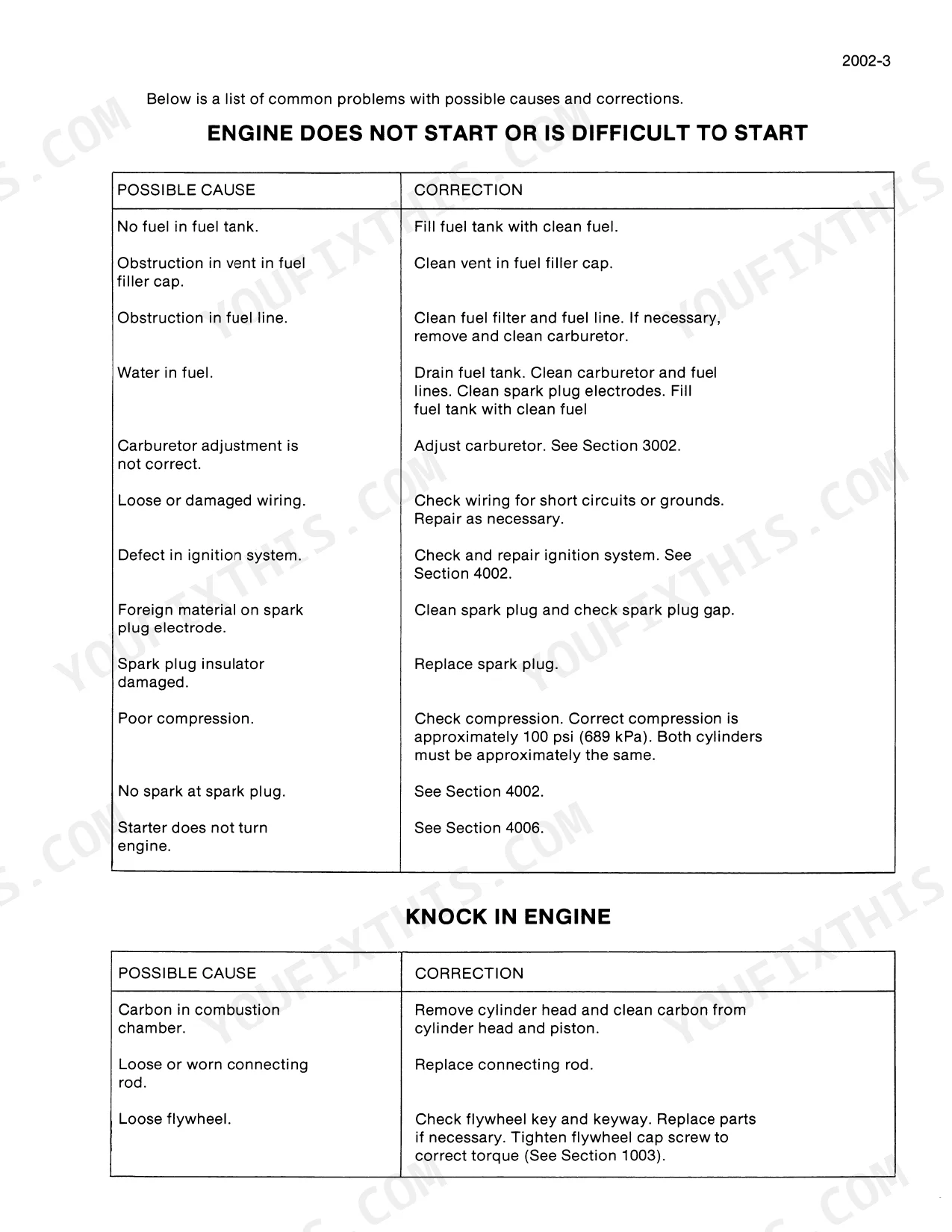

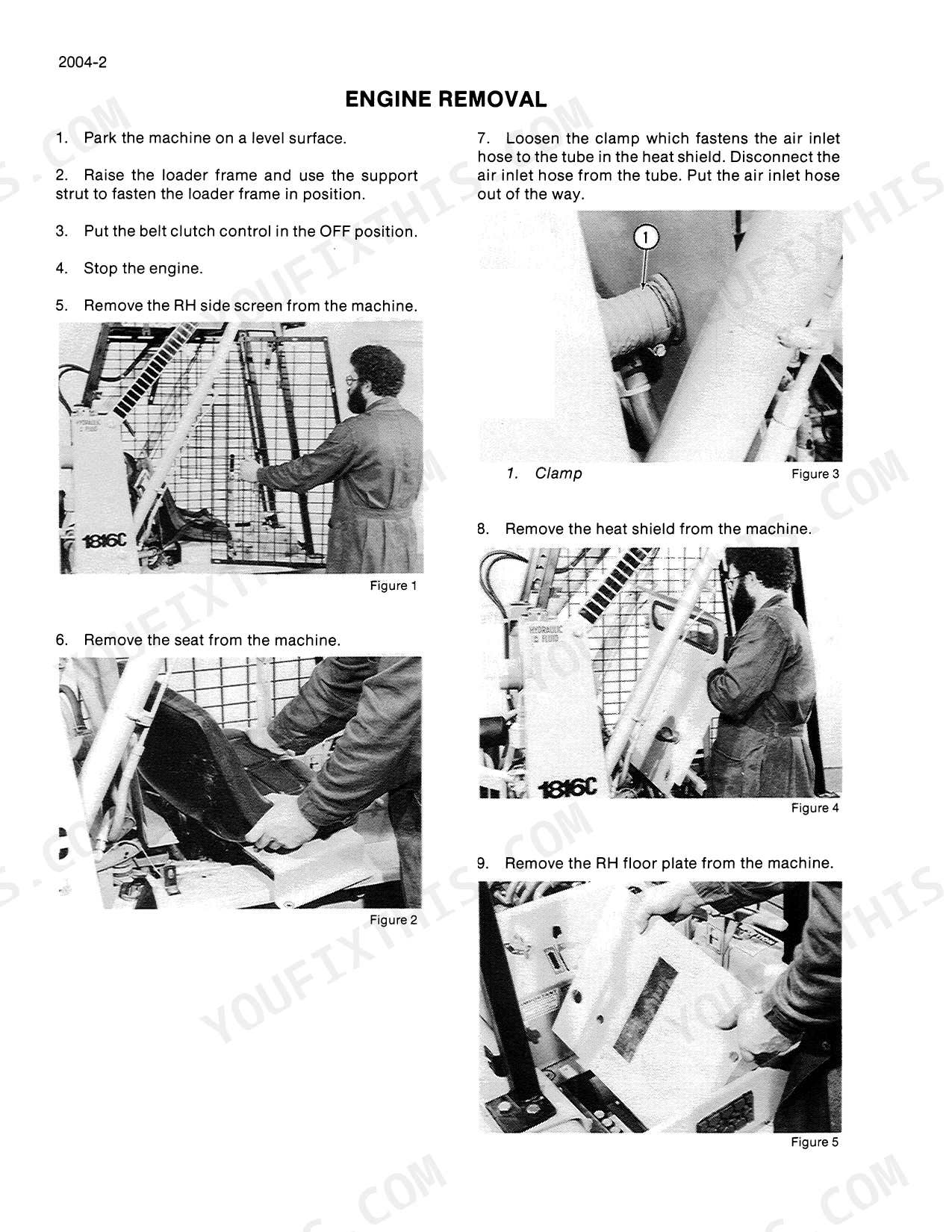

| Engines | 25-208 | Troubleshooting a Hard Starting Engine and D61880 Starter - 1816 and 1816B, Engine Troubleshooting, Engine Removal and Installation - 1816 and 1816B and Drive Belts - 1816 |
| Fuel System | 209-238 | Engine Controls, Fuel Lines, Fuel Filter, Electric Fuel Pump, Carburetor - 1816C |

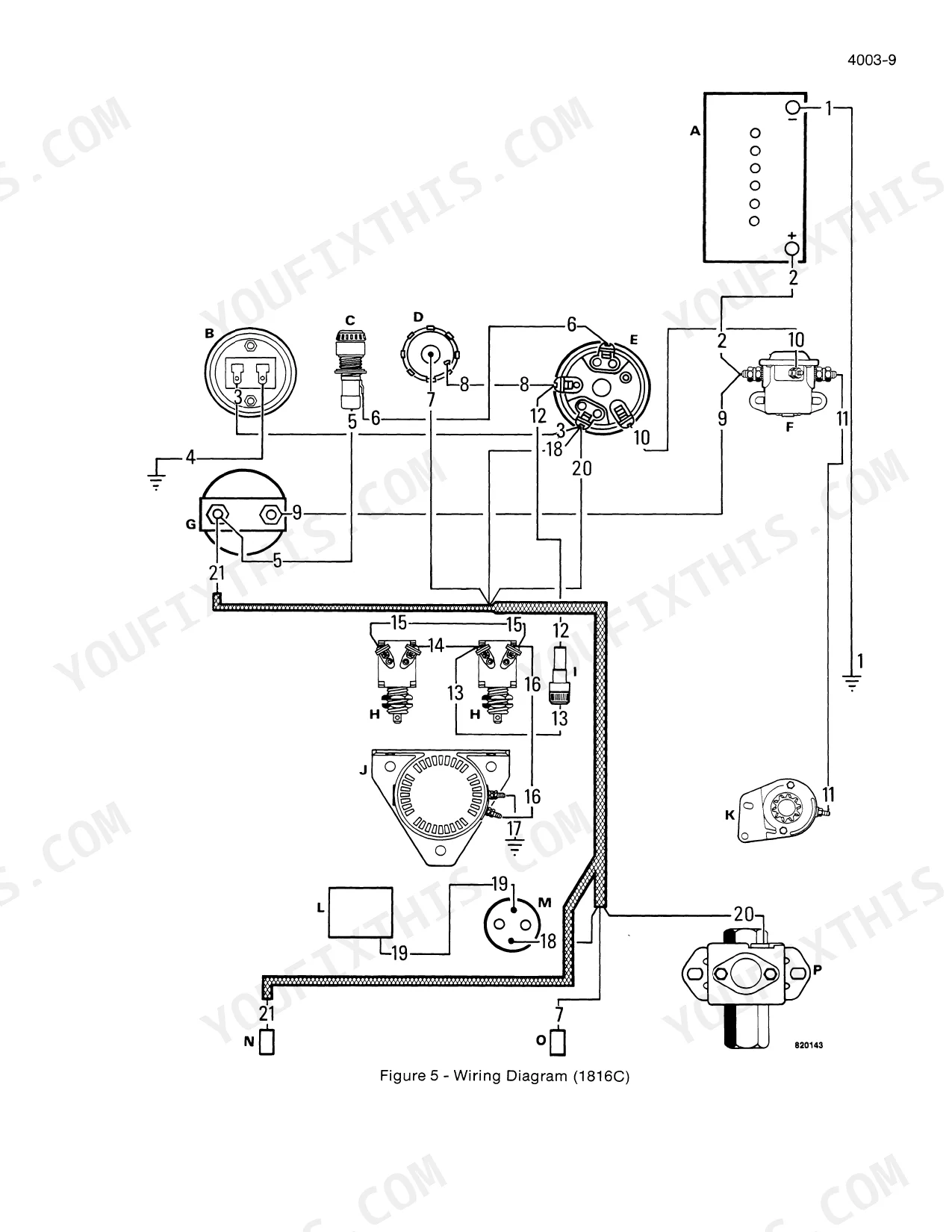

| Electrical | 239-306 | Electrical System Troubleshooting, Wiring Diagrams, Gauges, Battery, Starter |

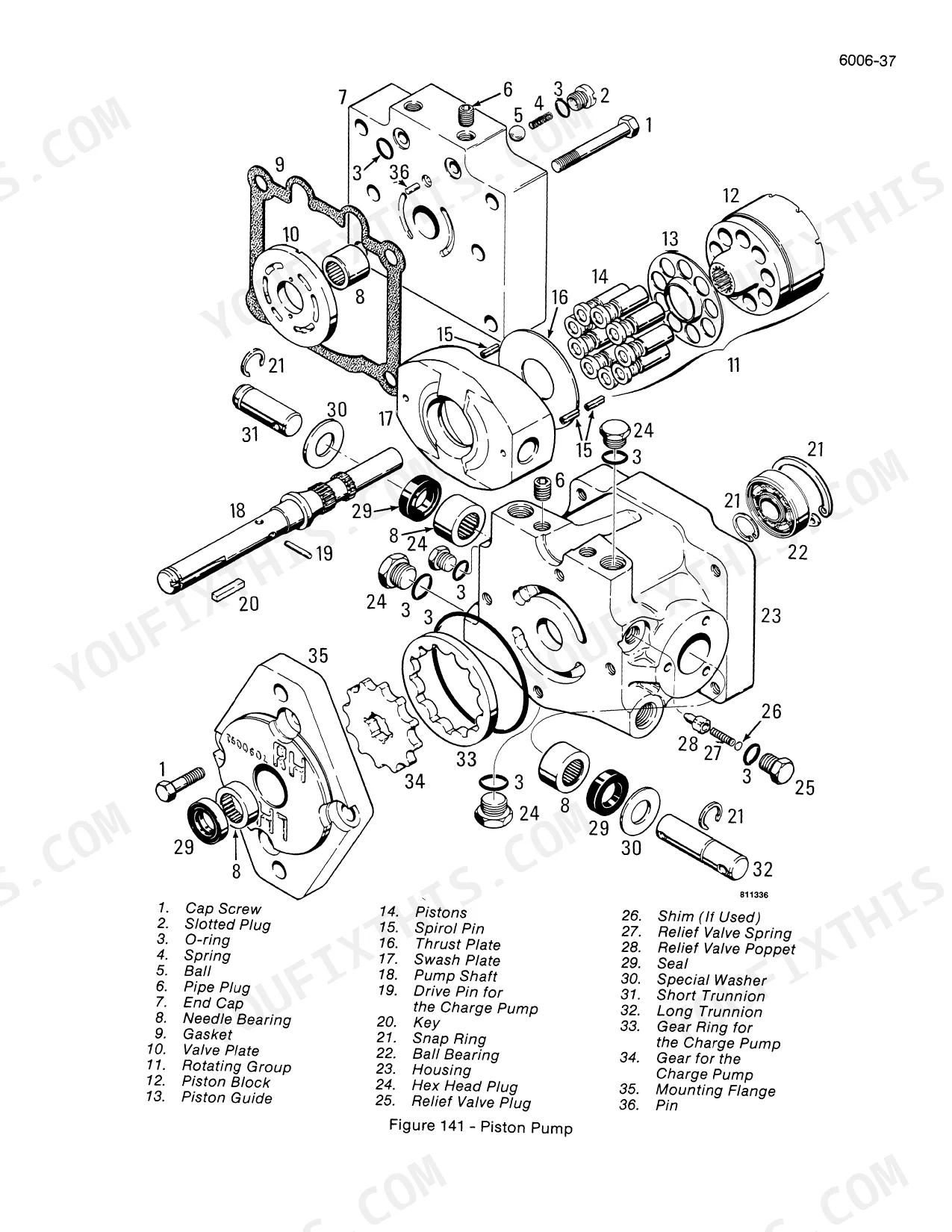

| Power Train | 307-464 | Hydrostatic Troubleshooting, Testing, And Adjustment for Machines with Vickers Piston Pumps |
| Brakes | 465-468 | Parking Brake |

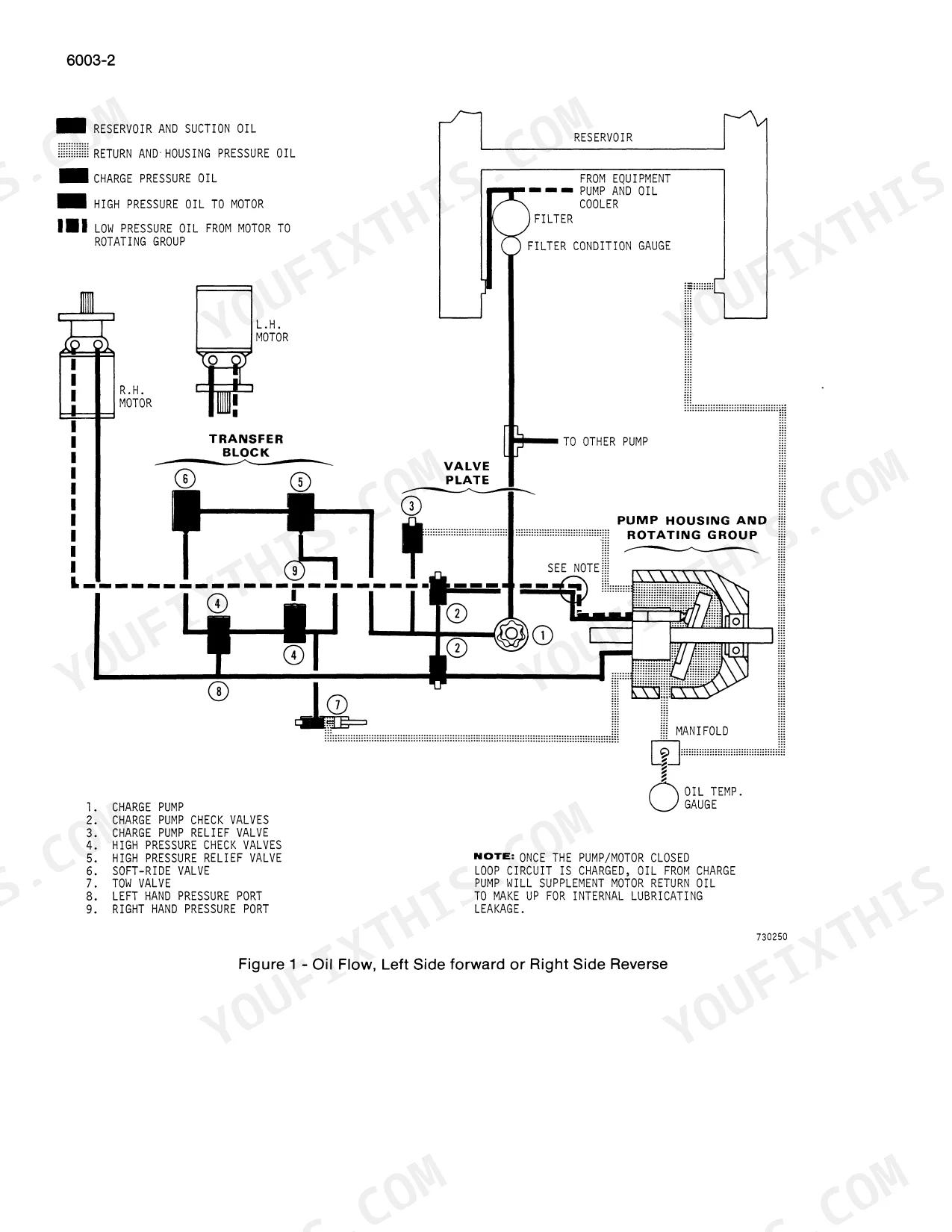

| Hydraulics | 469-552 | Hydraulic Diagrams, Maintenance, And Troubleshooting, Cleaning the Hydraulic System, Equipment Pump, Equipment Control Valve, Auxiliary Control Valve, Cylinders |
| Mounted Equipment/ Chassis | 553-598 | Loader, Pallet Fork, Manure Fork and Grapple, ROPS, Decals and Painting, Noise Control |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 1816C | ||
| Piston Pin Diameter | .687 - .688 inch (17.45 - 17.48 mm) | p. 19 |
| Spark Plug Gap | .025 inch (0.64 mm) | p. 23 |
| Spark Plug Torque | 15-20 pound-feet (20-27 N m) | p. 23 |
| HH80, HH100, HH120 | ||
| Piston Pin Diameter | .6873 - .6875 | p. 125 |
| All Models | ||
| Engine Oil Capacity (with filter change) | 2.3 quarts (2.2 litres) | p. 12 |
| Fuel Tank Capacity | 8.5 gallons (32.2 litres) | p. 12 |
| Hydraulic Reservoir Capacity (with filter change) | 15 quarts (14.2 litres) | p. 12 |
| Wheel Nut Torque | 45-50 pound-feet (61-68 N m) | p. 464 |
Case 1816 / 1816B / 1616C Common Problems This Manual Covers
Case 1816C engine cranks but won't start after sitting all winter, no fuel reaching carburetor
Check the engine troubleshooting chart. Verify the fuel tank is filled (capacity is 8.5 gallons / 32.2 litres) and the line isn't gummed up from old fuel. Drain stale fuel, clean or replace the inline filter, and prime the carburetor. Test for spark with plug gap set to .025 inch (0.64 mm) before condemning the carb.
Manual Section: Engine Troubleshooting - 1816CHydrostatic drive makes loud whining noise and overheats during light loader work
Reference the Hydrostatic Troubleshooting procedure for Vickers piston pump units. Shut down and check the hydraulic reservoir level; it holds 15 quarts (14.2 litres) with a filter change. Inspect the charge pump inlet screen for restriction and verify case drain flow isn't blocked, since both cause cavitation noise and rapid heat buildup under light load.
Manual Section: Hydrostatic Troubleshooting (Vickers Piston Pumps)Battery keeps going dead overnight even with the machine parked and switched off
Pull the battery and run the visual inspection and specific gravity test outlined. Check terminals for corrosion and verify case voltage holds under the load test. If the battery passes, move to the electrical troubleshooting chart and check the alternator output circuit for a parasitic draw or a shorted diode causing slow drain.
Manual Section: Electrical System Troubleshooting - 1816CStarter spins freely but engine doesn't turn over, clicking noise from starter housing
Disassemble the starter per the procedure. Inspect the drive pinion for worn or chipped teeth and check that it engages the flywheel ring gear cleanly. Check armature and commutator end cap bearings for wear, clean the commutator face, and verify brush spring tension before reassembly.
Manual Section: Starter Disassembly and InspectionLoader arms move slowly and bucket lacks lift power under full load
Work through the hydraulic system troubleshooting steps. Check equipment pump output flow first, since a worn pump won't build pressure under load. Inspect the loader control valve for internal bypass and check cylinder seals for leakage past the piston. Torque the wheel nuts to 45-50 pound-feet (61-68 N m) if the machine was recently serviced and ruled out as a drag source.
Manual Section: Hydraulic System TroubleshootingCentrifugal clutch slips and loader arms respond sluggishly to control inputs
Check the centrifugal clutch troubleshooting steps. Inspect the clutch shoes and drum for glazing or oil contamination, which causes slippage and delayed engagement. Verify belt tension is correct and clean any oil residue off the friction surfaces before testing engagement speed again.
Manual Section: Centrifugal Clutch - 1816 TroubleshootingFrequently Asked Questions
Why does my Case 1816C engine crank but won’t start after winter storage?
Work through the Engine Troubleshooting chart. Verify the fuel tank is filled (capacity 8.5 gal / 32.2 L, p. 12) and old fuel hasn’t gummed the inline filter or carburetor. Drain stale fuel, clean or replace the filter, prime the carb, and test for spark with plug gap set to .025 in. (0.64 mm, p. 23) before condemning the carburetor.
What causes a Case 1816 hydrostatic drive to whine and overheat under light loader work?
Reference the Hydrostatic Troubleshooting procedure for Vickers piston pump units. Check the hydraulic reservoir level first — capacity is 15 qt (14.2 L) with a filter change (p. 12). Inspect the charge pump inlet screen for restriction and verify the case drain is not blocked; both conditions cause cavitation noise and rapid heat buildup even under light loads.
How do I diagnose a Case 1816B battery that goes dead overnight with the machine switched off?
Follow the Electrical System Troubleshooting procedure (pp. 239–306). Run a visual inspection and specific gravity test on the battery; check terminals for corrosion and verify voltage holds under a load test. If the battery passes, trace the alternator output circuit using the wiring diagrams for a parasitic draw or shorted diode.
Why does the Case 1816 starter spin freely without turning the engine over?
Disassemble the D61880 starter per the Starter Disassembly and Inspection procedure. Inspect the drive pinion for worn or chipped teeth and confirm it engages the flywheel ring gear cleanly. Check armature and commutator end-cap bearings for wear, clean the commutator face, and verify brush spring tension before reassembly.
What causes slow loader arm movement and weak bucket lift on a Case 1816 Uni-Loader?
Work through the Hydraulic System Troubleshooting steps (pp. 469–552). Check equipment pump output flow first; a worn pump will not build pressure under load. Inspect the loader control valve for internal bypass and check cylinder seals for piston leakage. Confirm wheel nut torque is 45–50 lb-ft (61–68 N·m, p. 464) if the machine was recently serviced.
How do I fix a slipping centrifugal clutch causing sluggish Case 1816 loader response?
Follow the Centrifugal Clutch troubleshooting steps for the 1816. Inspect clutch shoes and drum for glazing or oil contamination, which causes slippage and delayed engagement. Verify belt tension is correct and clean any oil residue from friction surfaces before re-testing engagement speed.
