This 256-page Case tractor operator manual covers the complete factory operating procedure: cold-start sequences, power shift control, three-point hitch setup, and digital instrument cluster programming. You get a dedicated section on service monitor indicators and tire code number programming, plus cab controls broken down one by one: brake pedals, throttle hand lever, remote hydraulic valves, and seat adjustment. The preventive maintenance program runs from cooling and fuel systems through air induction and electrical, with lubrication specs and service intervals for every major component. Fill the cooling system to 38 U.S. quarts (36 litres) and keep your hydraulic system at 2,250 PSI (15,503 kPa). Both numbers are right here, with full context. Your machine is down and the dealer is closed. Bookmarked by section, opens on any device; grab your tablet and get the right answer before you touch a wrench.
What's Inside This Case IH Tractor Operator Manual

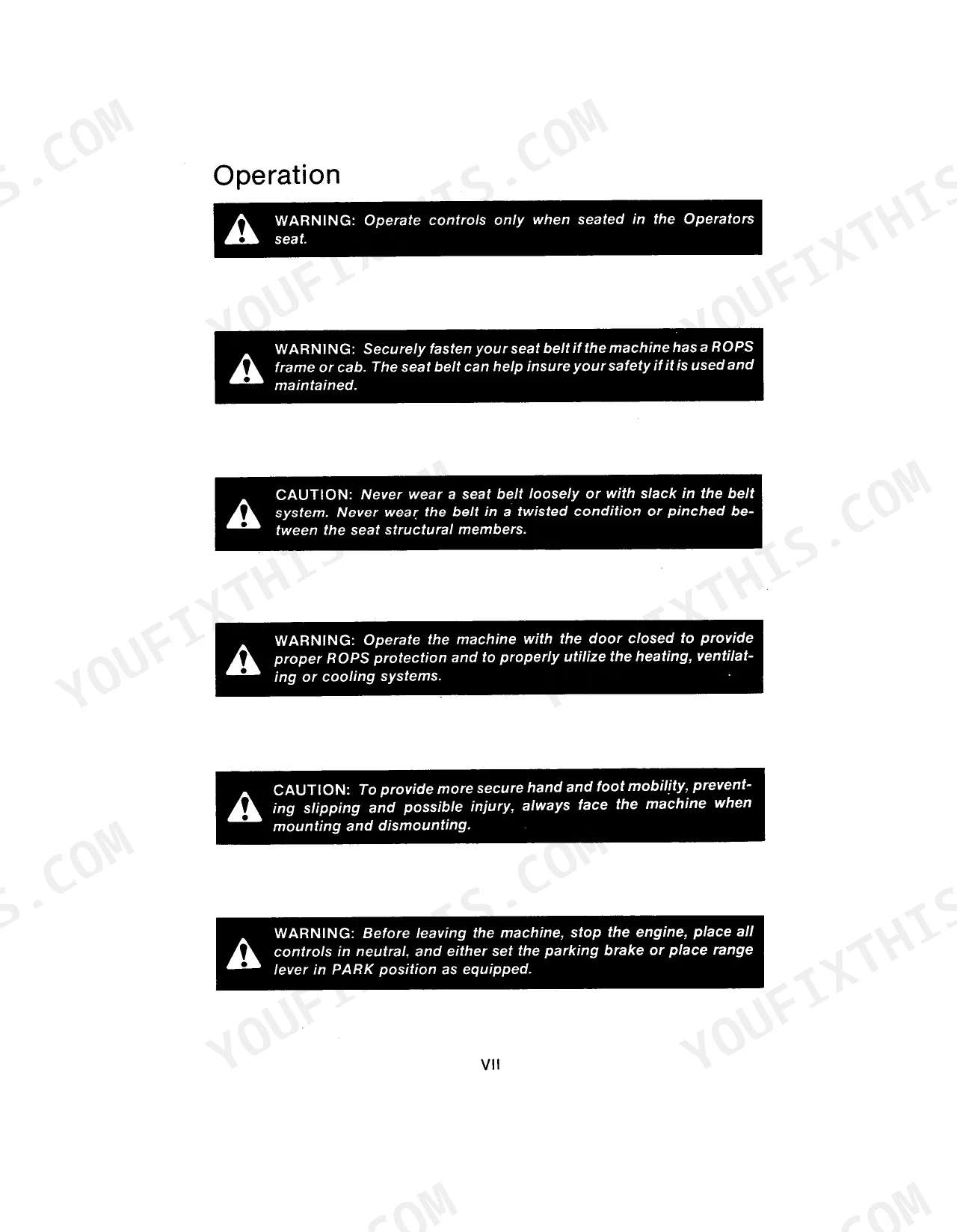

| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 1 | - |
| Serial Numbers | 2 | Tractor Model Number, Product Identification Number, Engine Serial Number, Transmission Serial Number, Cab Serial Number, MFD Axle Serial Number |
| Safety | 5-15 | - |
| Hand Signals | 16-17 | Start the Engine, Stop the Engine, Move Toward Me, This Far to Go, Raise Equipment, Decrease Speed |
| Decals | 18-22 | - |
| Diesel Engine Specifications | 23-24 | General, Piston and Rod, Main Bearings, Firing Order, Piston Displacement, Rocker Arm-to-Valve Clearance |
| General Specifications | 25-29 | Air Intake System, Cooling System, Electrical System, Type of System, Capacity, Pressure Cap |
| Travel Speeds | 30 | Transmission Gear, Power Shift, Reverse, Rear Tire Size |

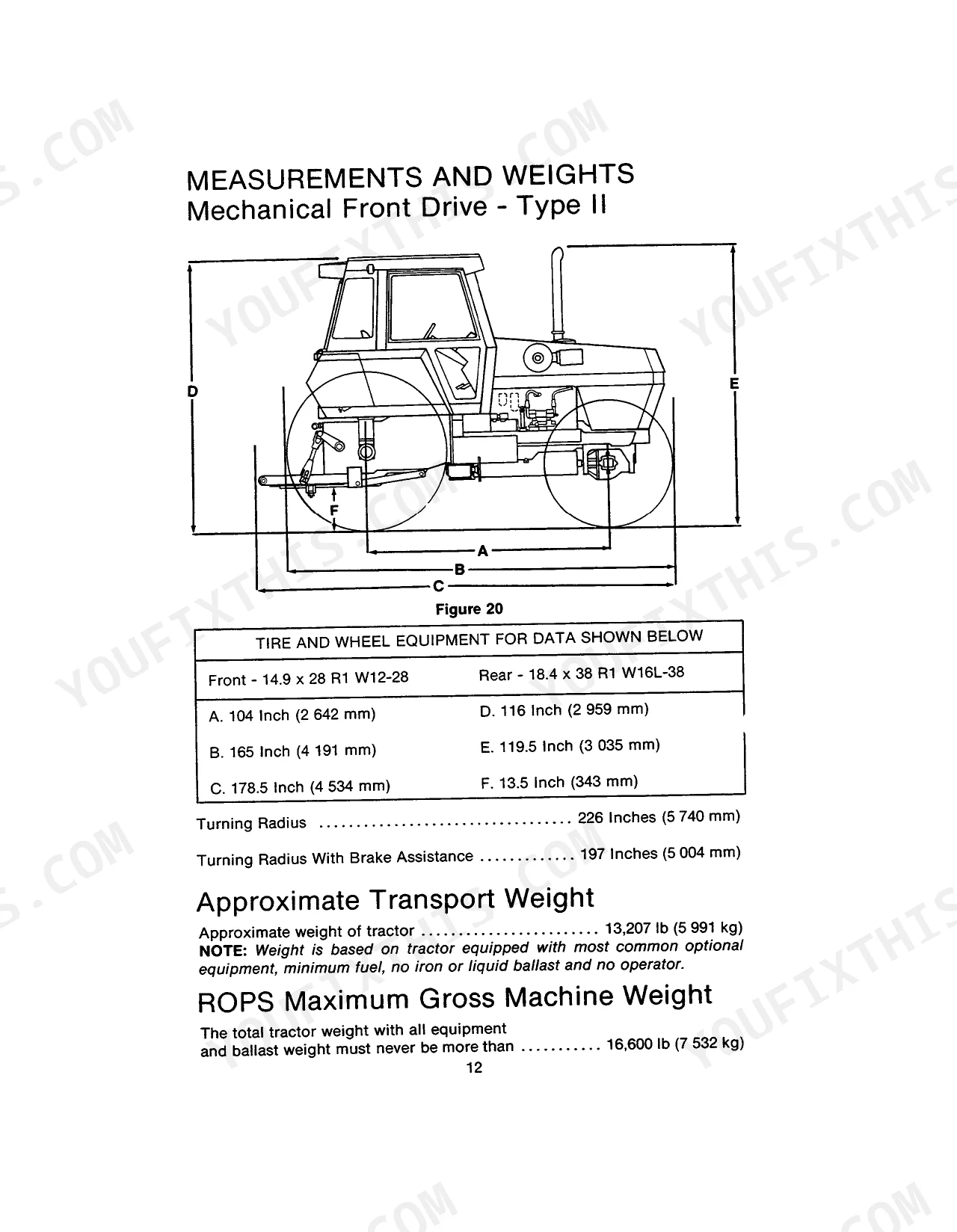

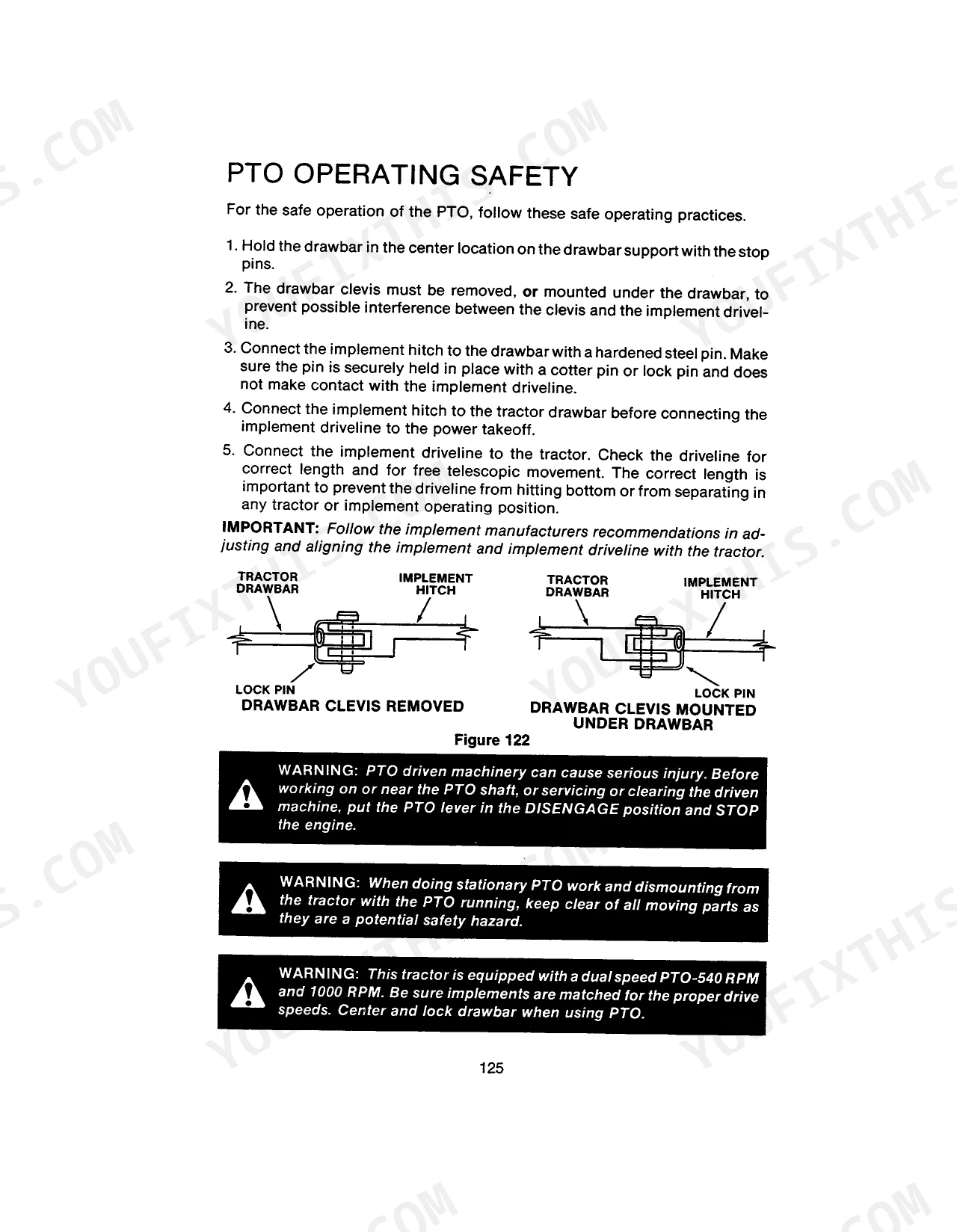

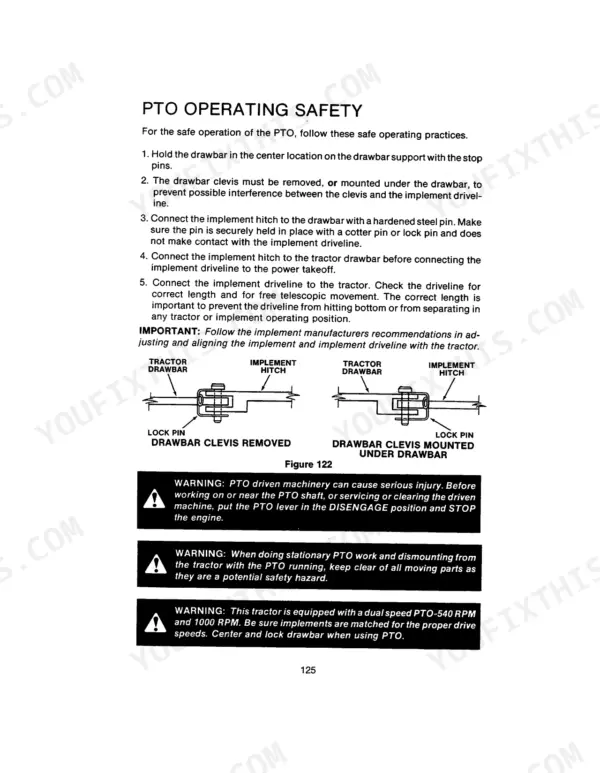

| Measurements and Weights, and ROPS Machine Weight | 31-34 | Tire and Wheel Equipment, Turning Radius, Approximate Transport Weight, ROPS Maximum Gross Machine Weight, Front, Rear |
| Tire and Wheel Specifications | 35-38 | Front - Adjustable Axle, Front - MFD Type I, Front - MFD Type Ii, Rear |
| Tire Size Combinations | 39-40 | MFD Type I Front, MFD Type I Rear, MFD Type Ii Front, MFD Type Ii Rear |
| Front Wheel Tread Positions | 41-45 | Concave Side of Wheel Toward Tractor, MFD Type I, Wheel Discs Turned in, Wheel Discs Turned Out, MFD Type Ii |
| Rear Wheel Tread Positions | 46-49 | 96 Inch Rear Axle, 120 Inch Rear Axle, Rim Turned in, Rim Turned Out, Dual Rear Wheel Tread Positions, Dual Rear Wheel Tread Positions with Spacer |
| Diesel Fuel Specifications | 50 | Acceptable Number Two Diesel Fuel, A.P.I. Gravity, Flash Point, Cloud Point, Pour Point, Fuel Conditioner |
| Lubrication | 51-69 | Engine Hourmeter, Engine Lubrication Service Specifications, Transmission Lubrication Service Specifications, MFD Type I Axle Lubrication, MFD Type Ii Axle Lubrication |
| Digital Instrument Cluster | 70-95 | English/Metric Mode Selection, Engine Hourmeter, Service Monitor Indicators, Function Buttons, Programming Tire Code Number, True Ground Speed Sensor |
| Operating Controls | 96-126 | Ether Button, Brake Pedals, Throttle Hand Lever, Power Shift Control Lever, Cab Air Flow Control, Operators Seat |
| Operating Instructions | 127-197 | Drawbar, Three Point Hitch System, Hitch Operation, Remote Hydraulic Control, Front Wheel Fenders, Rear Wheel Adjustment |
| Preventive Maintenance | 198-256 | Cooling System, Fuel System, Air Induction System, Electrical System, Batteries, Roll Over Protective Structure (ROPS) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Bore | 4.625 Inch (117.5 mm) | p. 23 |
| Rocker Arm-to-Valve Clearance (Intake) | 0.015 Inch (0.381 mm) | p. 23 |
| Cooling System Capacity | 38 U.S. Quarts (36 litres) | p. 26 |
| Radiator Cap Pressure | 10 PSI (69 kPa) | p. 26 |
| Maximum Hydraulic System Pressure | 2250 PSI (15 503 kPa) | p. 28 |
| MFD Type I Differential Oil Capacity | 9 Quarts (8.5 Litres) | p. 29 |
Case IH Tractor Common Problems This Manual Covers
Case tractor hydraulic system losing pressure or responding slowly under load p. 198
Check hydraulic fluid level on the sight glass before each shift. Verify fluid is clean and not milky or foamy; contaminated fluid drops system pressure fast. Inspect the hydraulic filter and replace it per the schedule on page 198. Maximum rated system pressure is 2250 PSI (15 503 kPa) on page 28 — if you suspect a pressure issue, have a dealer test at that spec before assuming pump failure.
Manual Section: Preventive MaintenanceEngine temperature gauge climbing into red zone, coolant reservoir low or steaming
Shut down immediately and let the engine cool before touching the radiator cap — it holds 10 PSI (69 kPa) and will scald you. Follow the cooling system cleaning procedure to drain, flush, and refill. Refill to exactly 38 U.S. Quarts (36 litres) with the correct antifreeze mix per page 26. Inspect all coolant hoses for swelling or cracks before restarting.

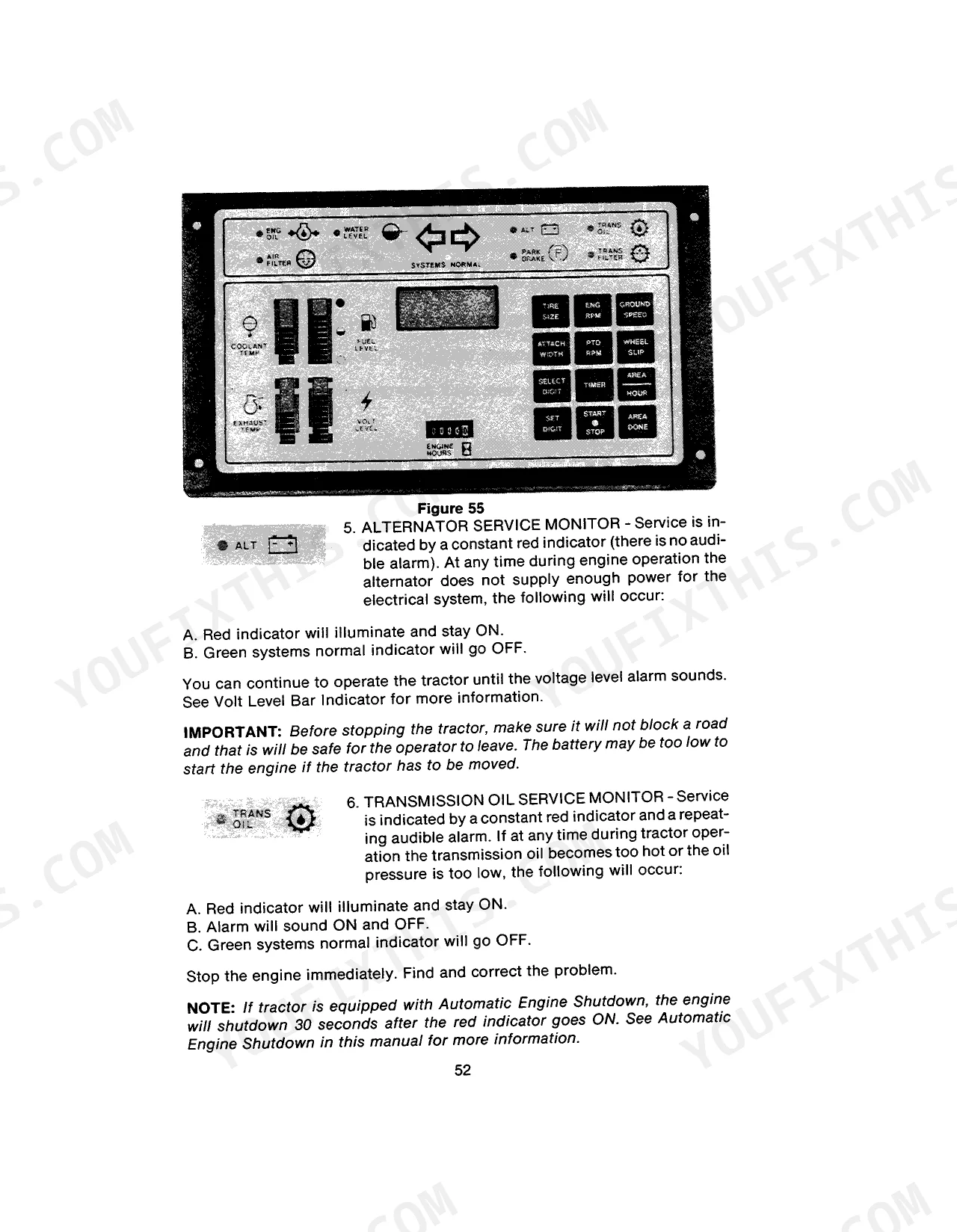

Manual Section: Preventive MaintenanceWarning light or service monitor indicator lit on the digital instrument cluster at startup p. 70
Identify the indicator first using the service monitor guide starting on page 70 — do not assume the cause. Check the corresponding fluid level or system immediately: hydraulic oil, engine oil, coolant, and battery voltage are the four most common triggers. For battery-related warnings, inspect the battery terminals and follow the removal and installation steps to check connections and condition.
Manual Section: Digital Instrument ClusterEngine cranks slowly or won't start in cold weather, glow plug indicator not cycling off
Verify battery charge before anything else; cold weather kills a weak battery fast. Follow battery access procedures. Allow the glow plug indicator on the instrument panel (page 70) to cycle fully before cranking — rushing it in sub-zero temps is the number one cold-start mistake. If the engine still won't fire, replace the primary and secondary fuel filters per , as gelled diesel in the filter is the second most common cause.
Manual Section: Digital Instrument ClusterHydraulics freeze or stop responding, electrical fault suspected after short field use p. 7
Park on level ground, set the park brake, and shut down. Check the instrument cluster on page 70 for any active fault indicators. Inspect all visible wiring harness connectors near the hydraulic control module for corrosion, loose pins, or chafing. Review the safety checklist on page 7 before restarting. If the fault returns within hours of field use, document the indicator codes and contact a dealer — do not continue operating with frozen hydraulic controls.
Manual Section: Operating ControlsTransmission hesitates or grinds when shifting, especially after extended hours p. 51
Check transmission fluid level and condition immediately — milky or dark fluid is a sign of contamination and breaks down synchro lubrication fast. Refer to the transmission lubrication service specifications on page 51 for correct fluid type and service interval. Replace the transmission oil filter following the procedure on page 38. If shifting difficulty started after 2500+ hours with unknown fluid history, have a dealer assess the synchro condition before damage progresses.
Manual Section: LubricationFrequently Asked Questions
How do you operate the Power Shift transmission on a Case IH 2294 tractor?
The Case IH 2294 uses a Power Shift transmission controlled by the Power Shift Control Lever in the cab (pp. 96-126). Move the lever through the shift positions for smooth directional and speed changes. The Brake Pedals can be used together for straight-line stops or independently for tight turns. Throttle Hand Lever controls engine speed for implement or field operation. Cab Air Flow Control and Operators Seat adjustments are also covered in this section.
How do you set up and operate the three-point hitch on a Case IH 2294 tractor?

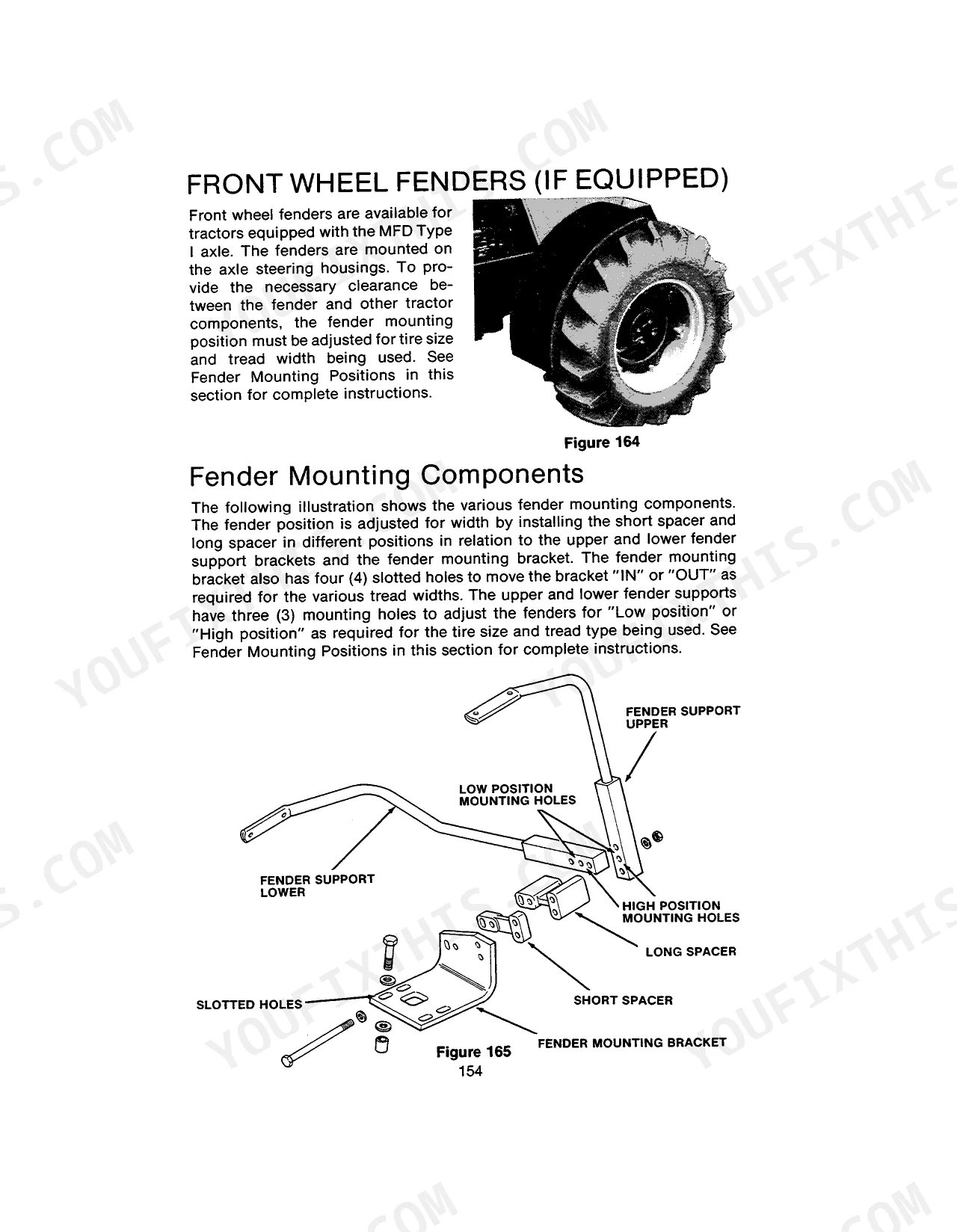

The three-point hitch system on the Case IH 2294 is covered in the Operating Instructions (pp. 127-197). Use the Remote Hydraulic Control for external cylinders. Adjust Drawbar position and Front Wheel Fenders for implement compatibility. Rear Wheel Adjustment procedures cover tread width settings. The manual details Hitch Operation including depth control and draft sensing for consistent tillage.
How do you program and read the digital instrument cluster on a Case IH 2294 tractor?
The Digital Instrument Cluster (pp. 70-95) provides engine hourmeter, service monitor indicators, and function buttons for programming. Set English or Metric mode via the mode selection buttons. Program the Tire Code Number for accurate True Ground Speed Sensor readings. Service Monitor Indicators alert you to maintenance intervals; consult the indicator guide in this section to interpret each warning before resetting.
How do you service the engine oil and transmission lubrication on a Case IH 2294 tractor?
Follow the Engine Hourmeter-based service schedule in the Lubrication section (pp. 51-69). Service Engine Lubrication at the specified hour intervals using the correct oil viscosity for ambient temperature. Check and service the MFD Type I and Type II Axle Lubrication separately — they have different fill points and intervals. The Transmission Lubrication Service Specifications detail fluid type, capacity, and drain/fill procedures for the Power Shift unit.
