All 238 pages of this Case IH JX80U, JX90U, JX100U operator manual PDF (OEM Mod 6-61391) focus on one thing: keeping your JX series tractor running the way Case IH intended. Inside, you get a full controls walkthrough from seat adjustment and instrument panel through the digital display, cab ventilation, and Power-Shuttle fault codes. The maintenance calendar steps you through every service interval from 10-hour daily checks to 1,200-hour yearly procedures, with complete fluid capacities and a troubleshooting section that maps engine, electrical, hydraulic, and brake faults straight to causes. Confirm your hydraulic lift relief valve is set to 190 bar and your standard pump flows 60 lpm before attaching a heavy implement. No more forum hunting for a dashboard warning you've never seen before. Bookmarked and keyword-searchable, pull it up on your tablet at the machine and go.

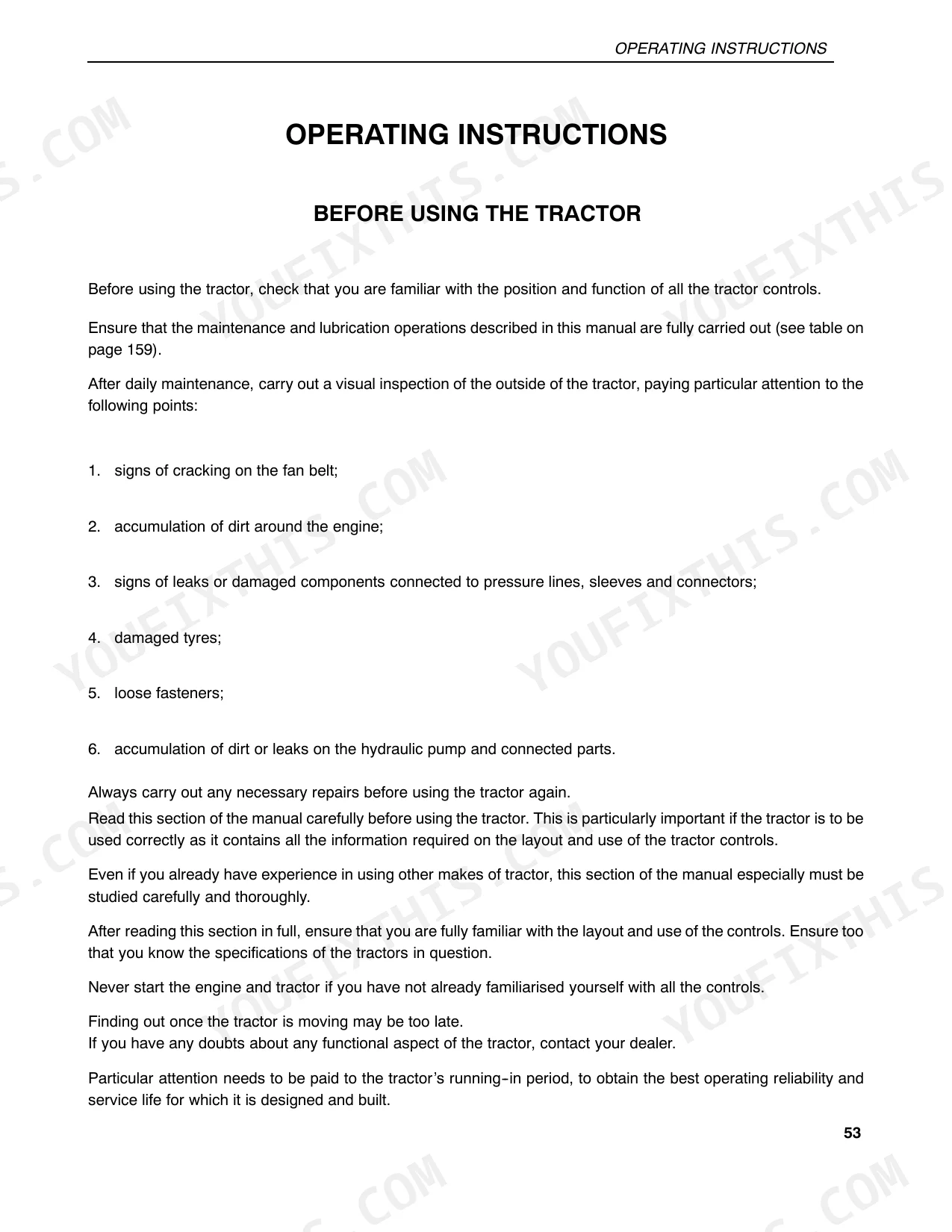

What's Inside This Case IH JX80U, JX90U, JX100U Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the User | 11-15 | Introduction, Using This Manual, Communication for the User, Important Ecological Considerations |
| Tractor Identification Data | 16-18 | Tractor Identification, Frame Number Identification, Roll Bar Number, Cab Identification Number, Engine Series Number, Number Plate |
| Safety Regulations | 19-37 | Working Safely, Guards and Safety Covers, Safety Decals, Important Warnings, Air-Conditioner |

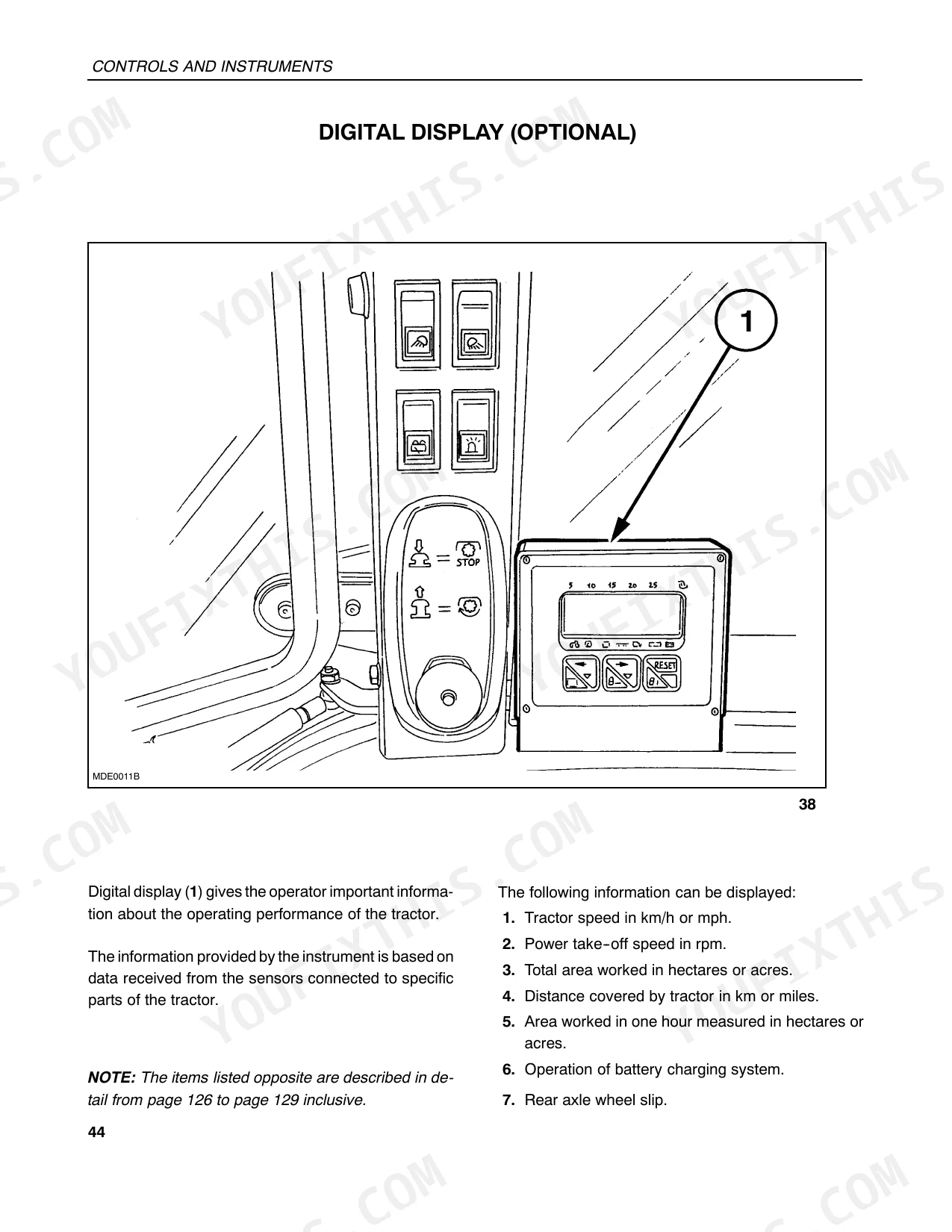

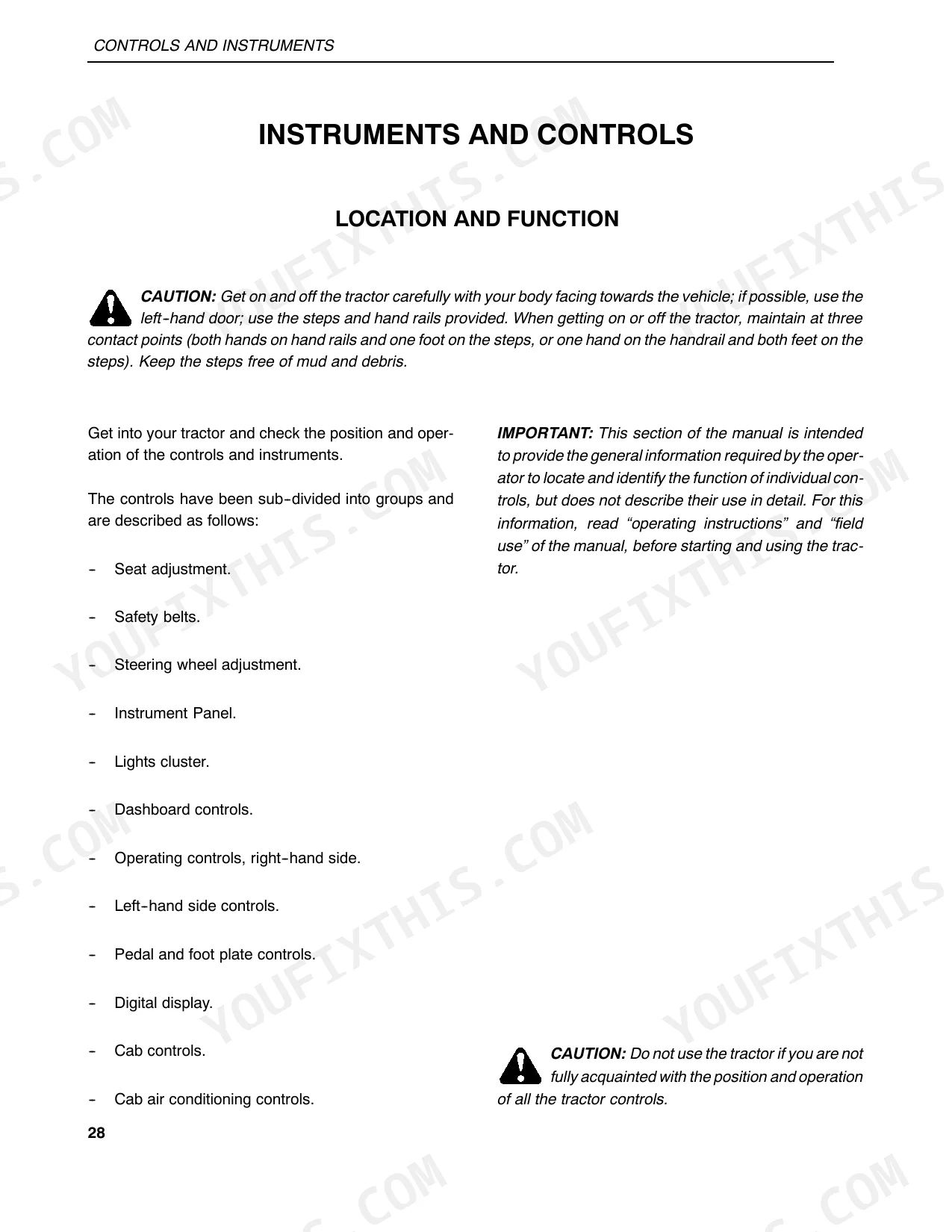

| Controls and Instruments | 38-62 | Seat Adjustment, Instrument Panel, Instrument Panel Controls, Operating Controls, Right-Hand Side, Left-Hand Side, Digital Display |
| Operating Instructions | 63-103 | Before Using the Tractor, Electro-Hydraulically Controlled Four-Wheel Drive, Rear Differential Lock, Front and Rear Differential Lock |
| Field Use | 104-140 | Power Take-Off, Hydraulic Lift, Electronically Controlled Hydraulic Lift, Three-Point Linkage, Towing Equipment, Fold-Down Roll Bar, Implement Connection Points |
| Tyres/Wheels/Wheel Tracks/Ballast | 141-161 | Tyres, Inflation Pressures, Tyre Combinations, Track Adjustment, Steering Angle Adjustment, Ballast |
| Lubrication and Maintenance | 162-199 | Products and Quantities for Refuelling, Lubrication and Maintenance Table, Flexible Maintenance, Every 10 Hours of Work, Every 50 Hours of Work, General Maintenance |

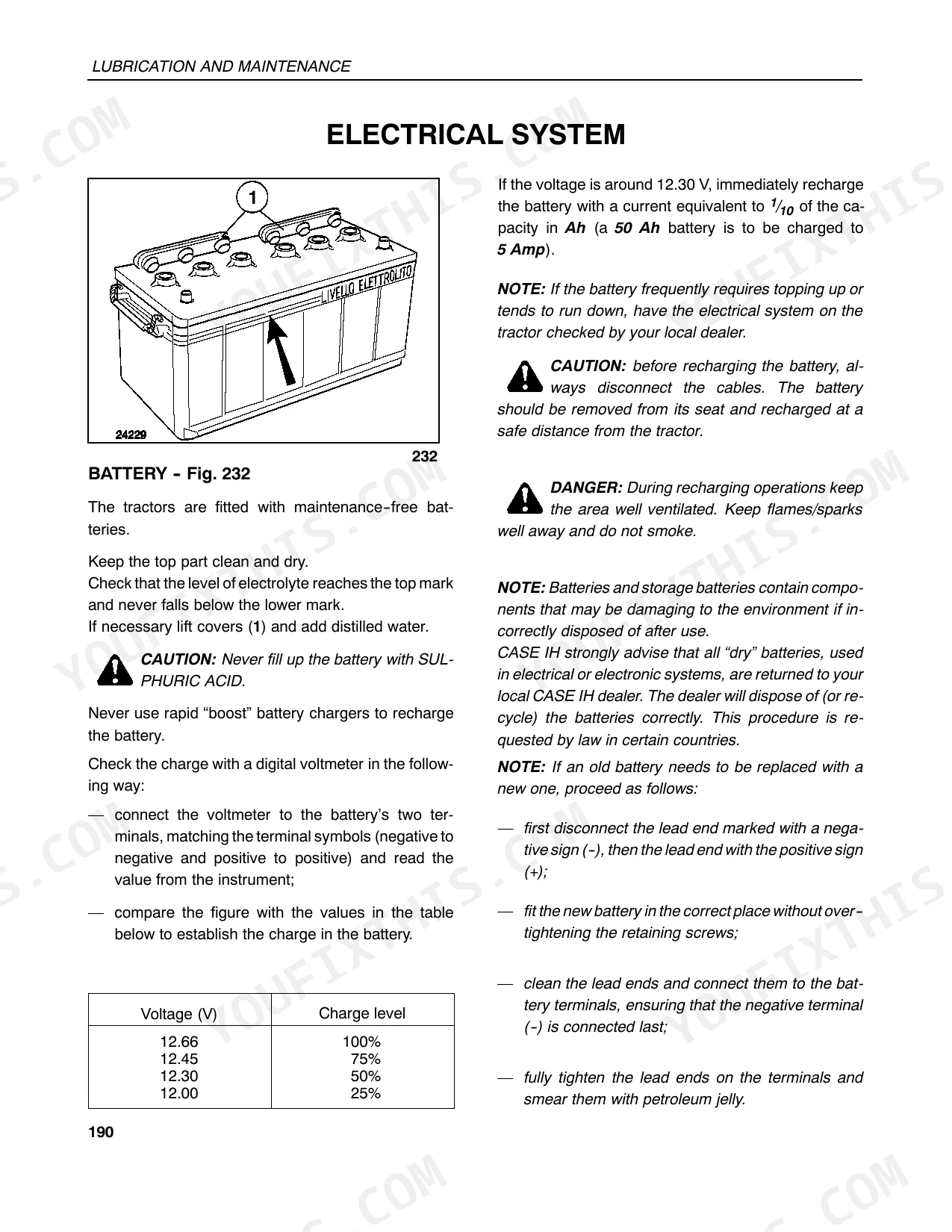

| Electrical System | 200-208 | Battery, Advice on Starting the Engine, Fuse and Relay Box, Location of Relays, Fuses, Lamp Bulb Replacement |

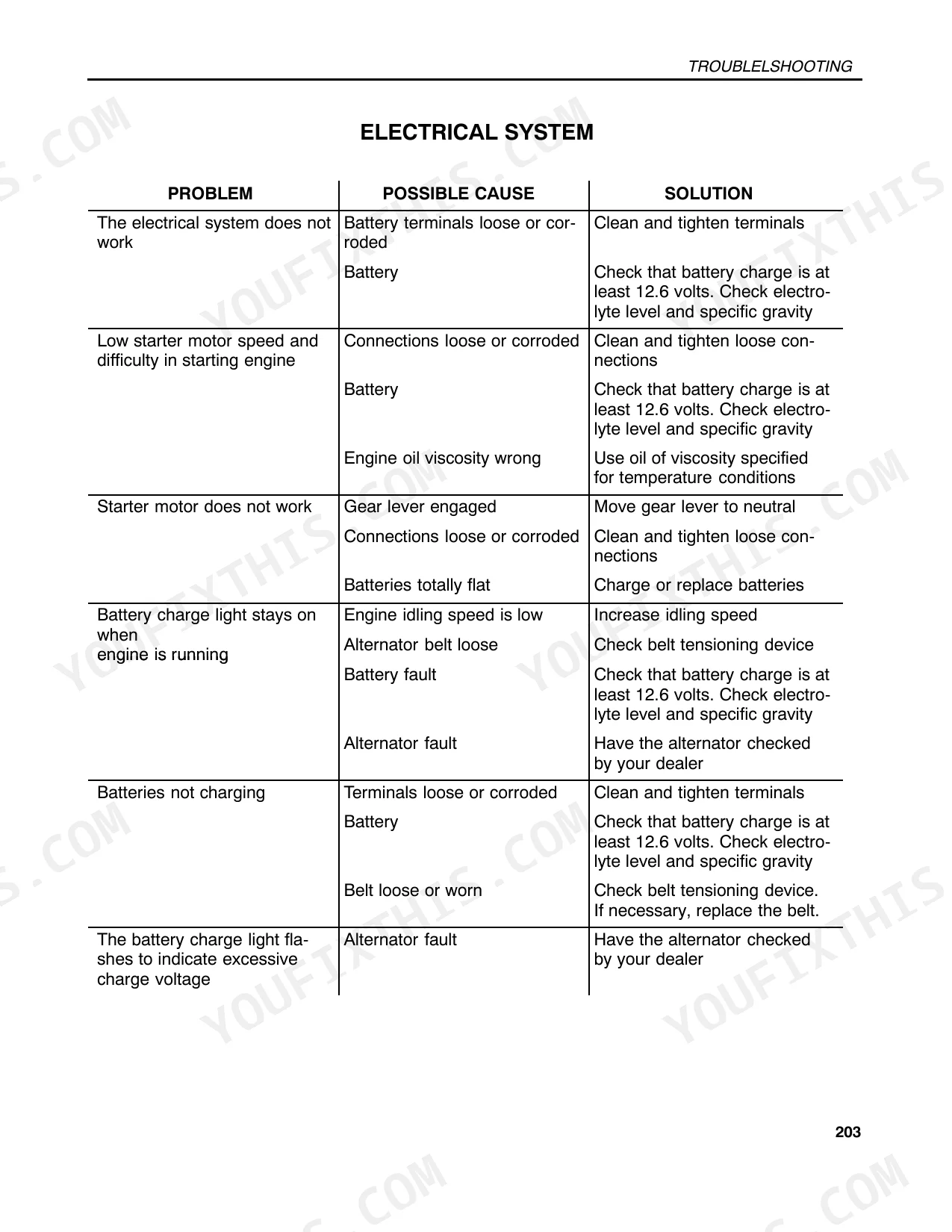

| Troubleshooting | 209-217 | Locating and Identifying Problems, Engine, Electrical System, Hydraulic System, Brakes, Cab |
| Specifications and Data | 218-234 | Dimensions, Radius Under Load, Engine, Transmission, Hydraulic Lift, Weights |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic lift pump speed at maximum engine power | 2328 Rpm | p. 226 |
| Hydraulic lift standard pump capacity | 60 Ipm | p. 226 |
| Alternator maximum power with engine running at 2500 rpm | 540 W | p. 231 |
| Troubleshooting - Hydraulic system not working properly (Oil level low) | Top up system | p. 214 |
| Troubleshooting - Hydraulic system not working properly (Hydraulic filter clogged) | Replace hydraulic filter | p. 214 |
| Troubleshooting - Engine overheating (Radiator core clogged) | Clean | p. 211 |
| Troubleshooting - Engine overheating (Engine overload) | Change to lower gear or reduce load | p. 211 |
| Cooling system capacity (with cab) | 16 L | p. 167 |
| models without cab | ||
| Alternator current output (Less cab) | 45A | p. 231 |
| JX80U | ||
| Radiator core construction, JX80U | 3 lines of vertical copper pipes | p. 225 |
| JX90U, JX100U | ||
| Radiator core construction (JX90U, JX100U) | 4 lines of vertical copper pipes | p. 225 |
| Fuel tank capacity | 127 L | p. 167 |
