All 133 pages of this Case Farmall 60B Operator Manual (OEM #52112706) are built around one goal: keeping your tractor running safely and on schedule. You get a hydraulic system diagram with full circuit routing, a cover-to-cover controls walkthrough spanning every lever, pedal, and dashboard indicator from the shuttle to the PTO switch, and a maintenance chapter packed with service intervals, fluid capacities, and daily inspection steps for every major system. Fill the 60-liter fuel tank, top the crankcase with 7.0 L of engine oil, and confirm transmission fluid sits at the 47-liter mark before any heavy work. No more digging through forums for the right interval. Open this PDF on your phone, jump to any chapter via bookmark, and get the factory answer before you touch a wrench.
What's Inside This Case IH FARMALL 60B Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Notices for Safety | 7-29 | Before Using the Tractor |
| Instruction for Safe Operation | 30-37 | Name of Each Part, Boarding and Exiting the Tractor (Seat Adjustment, Tilting Steering Wheel, Seat Belt, Ventilation) |

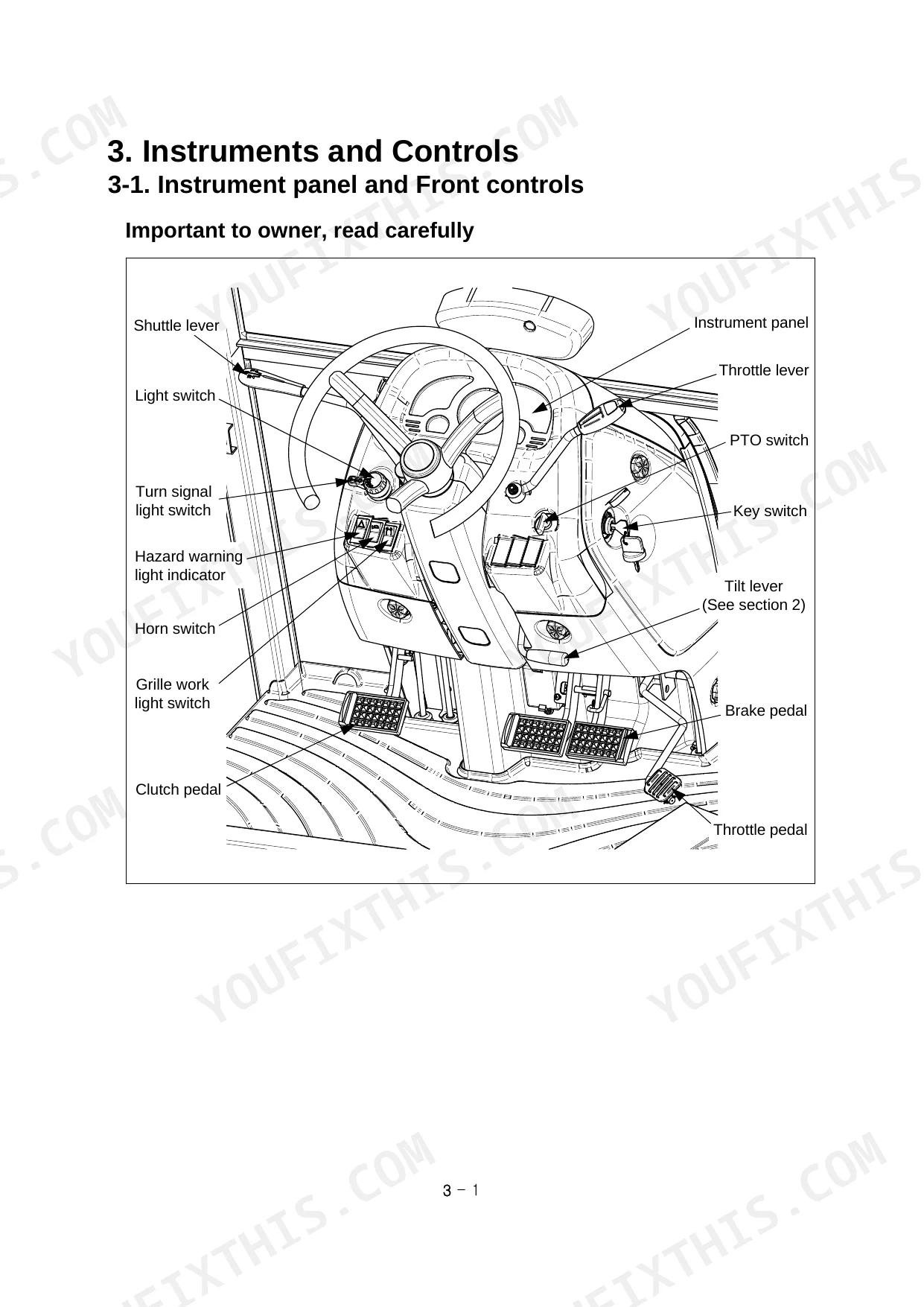

| Instruments and Controls | 38-60 | Instrument Panel and Front Controls (Key Switch, Turn Signal Light Switch, Light Switch, Horn Switch, Hazard Warning Light Switch, Grille Work Light Switch, PTO Switch, Shuttle Lever, Throttle Lever, Throttle Pedal, Clutch Pedal, Brake Pedals) |

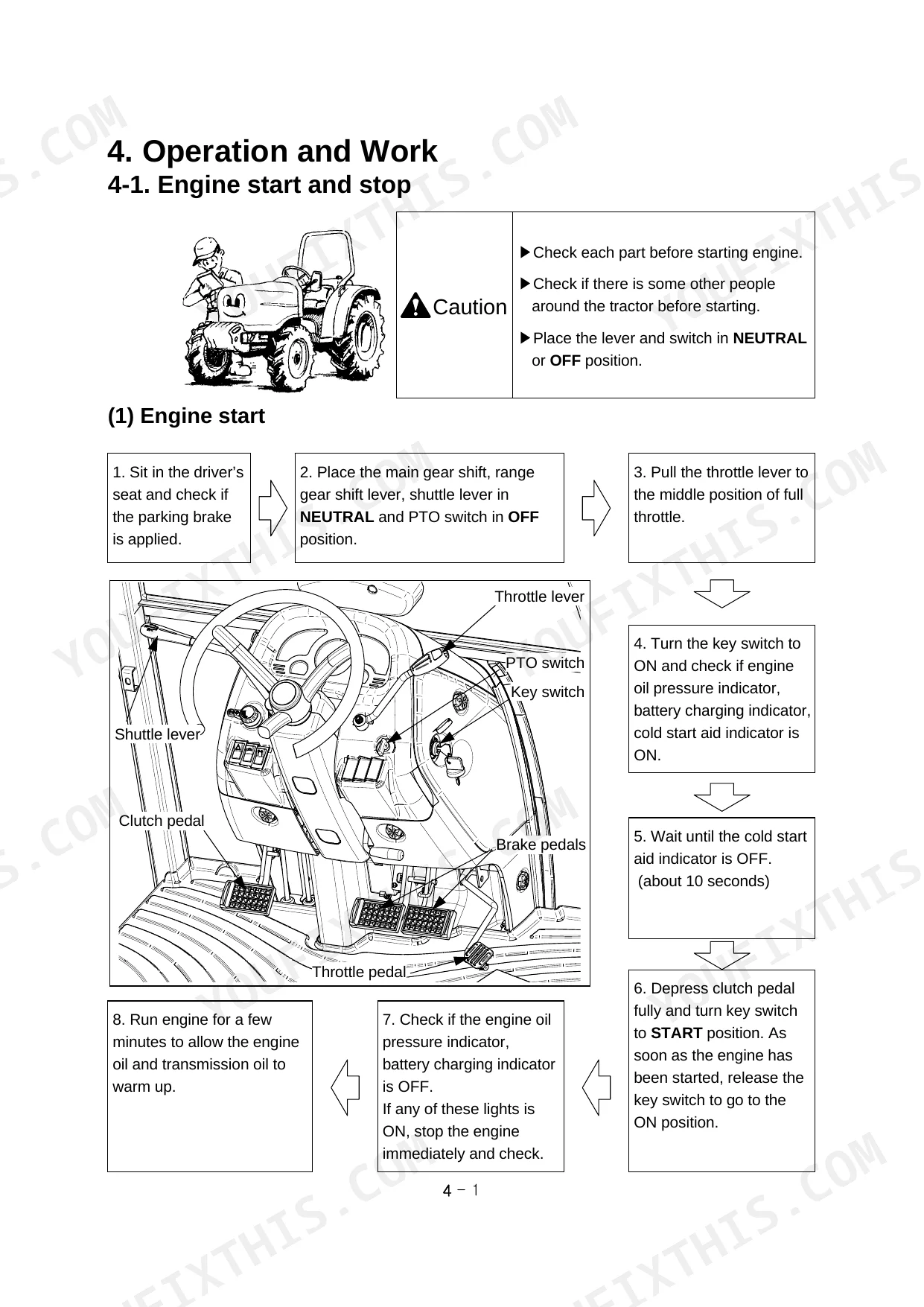

| Operation and Work | 61-85 | Engine Start and Stop |

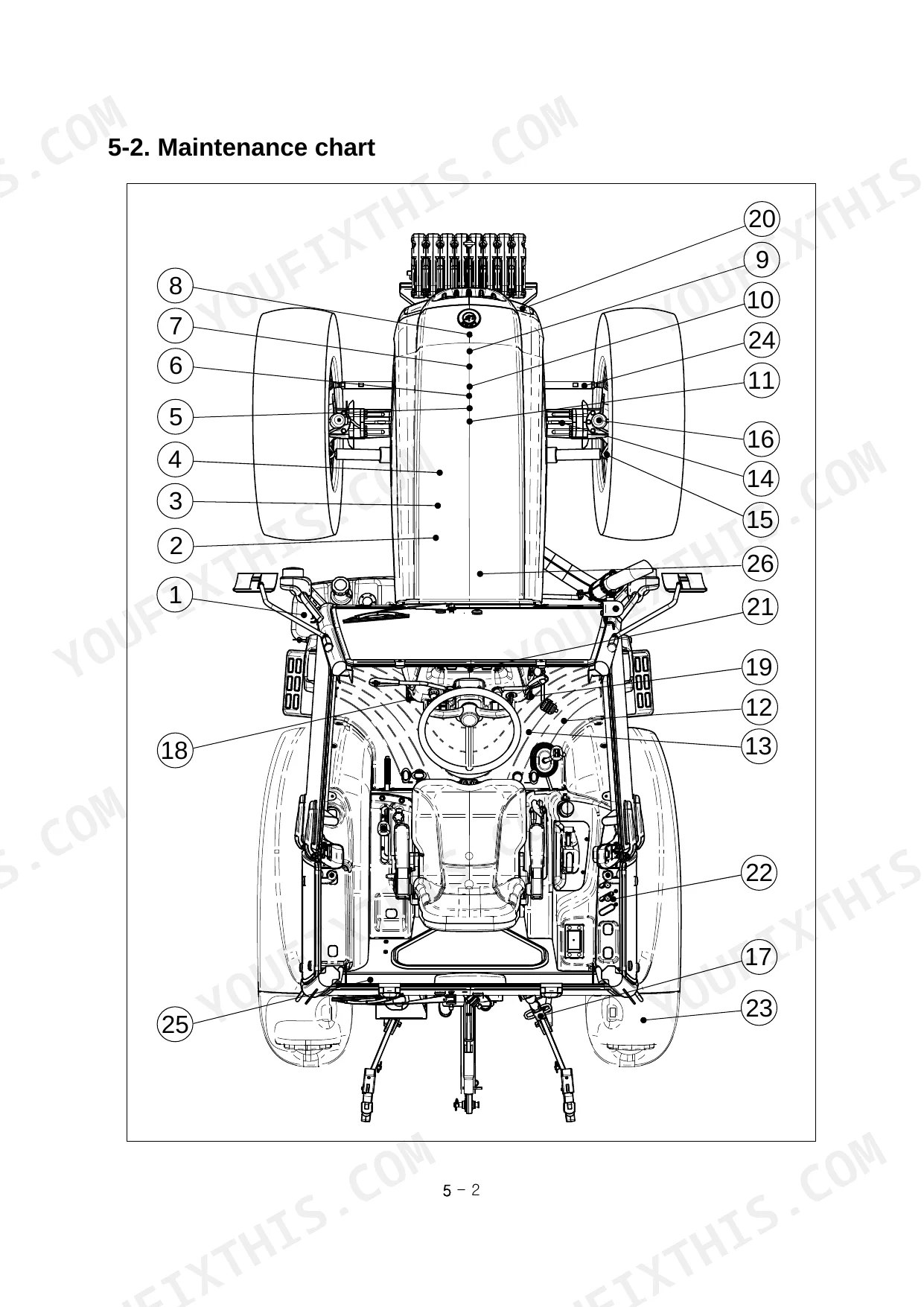

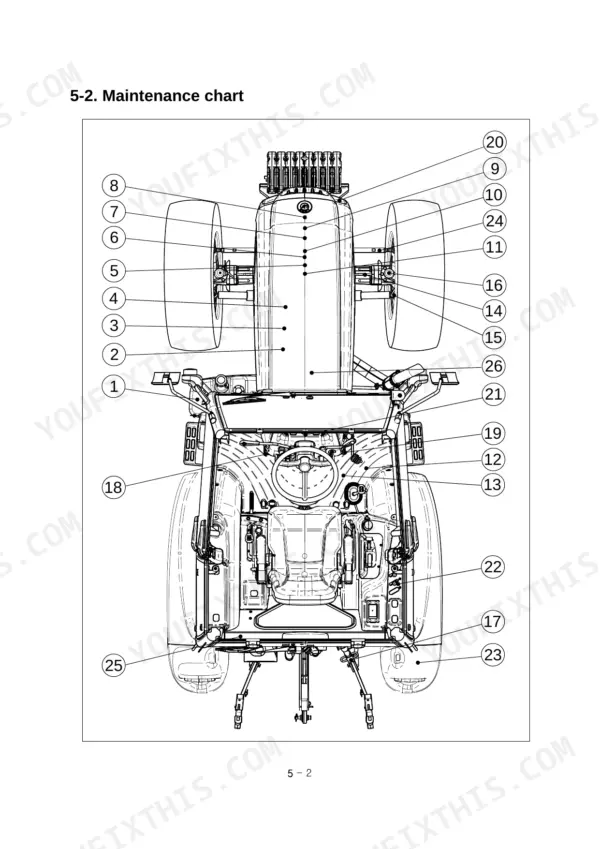

| Lubrication and Maintenance | 86-119 | Lubricants and Capacity, Engine Oil and Filter, Fuel System Maintenance, Hydraulic System Maintenance, Air Filtration Components, Electrical System Components |

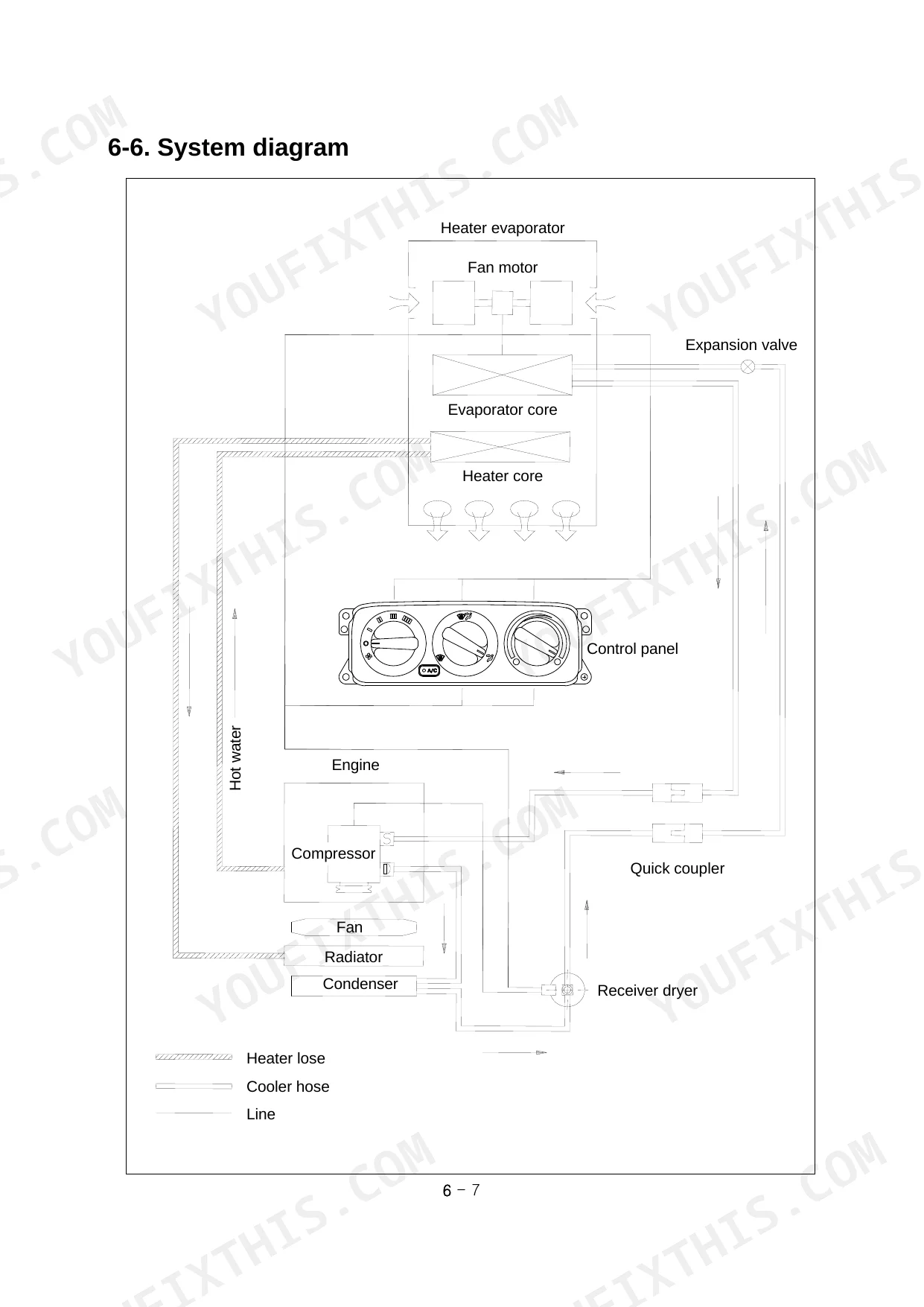

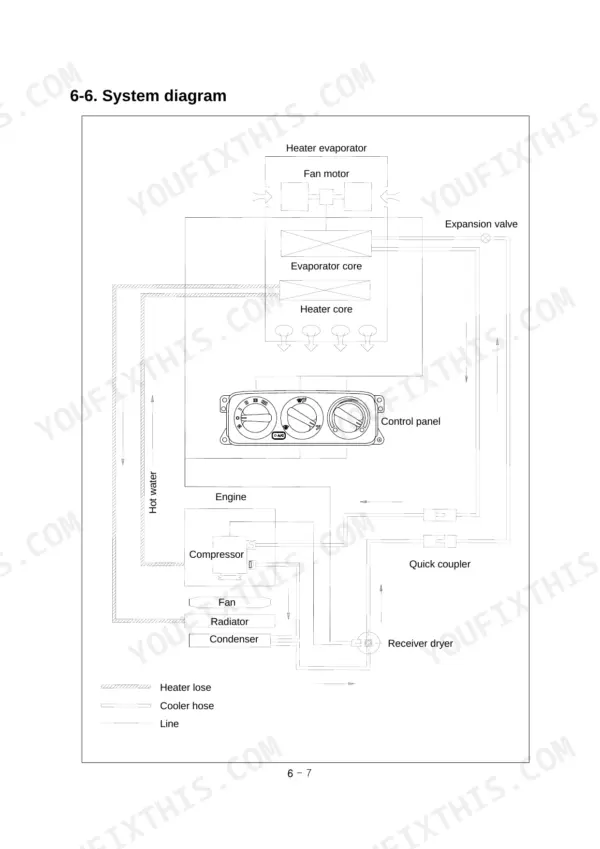

| Air Conditioning System | 120-126 | Cooling and Heating System Parts, Refrigerant Amount, Condenser and Radiator Screen, Belt Tension Adjustment, Compressor, Troubleshooting |
| Dimension and Specification | 127-133 | Dimensions, Weight, Engine Specifications, Driveline Specifications, Hydraulic System Specifications, Electrical System and Lighting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel filter replacement interval | 600 hr | p. 88 |
| Engine Coolant Capacity (Radiator) | 9.0 L | p. 107 |
| Fuel Tank Capacity | 60 L | p. 94 |
| Engine Oil Capacity (Crankcase) | 7.0 L | p. 89 |
| Transmission Oil Capacity | 47 L | p. 89 |
| Front Axle Oil Capacity | 10 L | p. 89 |
| Front Tire Air Pressure (11.2-20 8PR) | 235 KPa | p. 96 |
| Rear Tire Air Pressure (14.9-28 8PR) | 177 KPa | p. 96 |
| Clutch Pedal Play | 20-30 mm | p. 97 |
| Brake Pedal Play | 40-50 mm | p. 97 |
| Engine Oil Drain Plug Tightening Torque | 40±5 N.m | p. 101 |
| Engine Valve Clearance | 0.25 mm | p. 105 |
Case IH FARMALL 60B Common Problems This Manual Covers
Case Farmall 60B tractor fails to start, no fuel priming after sitting several weeks unused p. 88
Manually prime the fuel system by pressing the priming pump bulb on top of the fuel filter until you feel firm resistance, then crank the engine. Inspect the fuel filter diaphragm for cracks or softening; replacement is due at 600 hours (page 88). If the filter is near or past this interval, replace it before attempting further starts.
Manual Section: Engine TroubleshootingThree-point linkage stopped working in up position, implement stays down and won't raise p. 115
Inspect all linkage rod ends and clevis pins at the lift arm pivot points before operating further. A detached pin or broken rod end is a common cause of total lift failure. Verify hydraulic fluid level on page 89; total system capacity is 47 L. Then check the Hydraulic System Troubleshooting chart on page 115.
Manual Section: Hydraulic System TroubleshootingPower steering feels stiff or drifts to one side, hose shows wear at chassis contact point p. 118
Inspect the right-side power steering hose where it contacts the chassis rail; look for cuts, abrasion marks, or pinching against the frame. Check hydraulic fluid level on page 89; total capacity is 47 L. If fluid is correct and the symptom persists, review the Steering System Troubleshooting chart on page 118 for pressure and cylinder checks.
Manual Section: Steering System TroubleshootingEngine temperature gauge climbing into red zone, coolant reservoir shows low level during operation p. 116
Check coolant level in the overflow reservoir with the engine cold; total radiator capacity is 9.0 L (page 107). Never open the radiator cap on a hot engine. Clean the radiator screen of chaff or debris and verify the fan belt is intact. For persistent overheating, refer to the Engine Troubleshooting chart on page 116.
Manual Section: Engine TroubleshootingBrakes pulling to one side or pedal sinking to floor without stopping tractor properly p. 97
Verify brake pedal free play is 40-50 mm (page 97); adjust if outside this range before the next road trip. Confirm both pedal locks are latched together for field transport. If one side still drags or pulls during stops, inspect the brake linkage rods for bends or disconnected pins; refer to page 117.
Manual Section: Brake System TroubleshootingFrequently Asked Questions
How to reset fuel filter on Case IH Farmall 60B?
To reset the fuel filter, you need to bleed the air from the fuel system. First, loosen the air bleed plug of the fuel filter flange. Then, apply a rag to the air bleed plug and press the manual feed pump several times until no bubbles come out. Finally, tighten the air bleed plug. This process is used to drain water (approx. 150cc or 9.1 in³) and bleed air.
How to reset hydraulic pressure on Farmall 60B
To reset or relieve hydraulic pressure on the Farmall 60B, you must first lower any attached implements to the ground. Then, turn off the engine. This action ensures that the pressure in the hydraulic lines is released before disconnecting any hydraulic components or performing maintenance.
What are the replacement specifications for Fuel filter with priming pump?
The fuel filter is a replaceable cartridge type. When replacing, drain approximately 150cc (9.1 in³) of water from the filter, disconnect the electric wire of the fuel filter sensor, remove the old element, and assemble the sensor to the new element. After attaching the new element and connecting the wire, tighten the drain plug and bleed air from the fuel filter as described on page 5-23.
How do you fix case Farmall 60B tractor fails to start, no fuel priming after sitting several weeks unused?
Manually prime the fuel system by pressing the priming pump bulb on top of the fuel filter until you feel firm resistance, then crank the engine. Inspect the fuel filter diaphragm for cracks or softening; replacement is due at 600 hours (page 88). If the filter is near or past this interval, replace it before attempting further starts.
How quickly can I access this Case Farmall 60B manual after buying?
Immediate download of the complete 133-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Case Farmall 60B manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

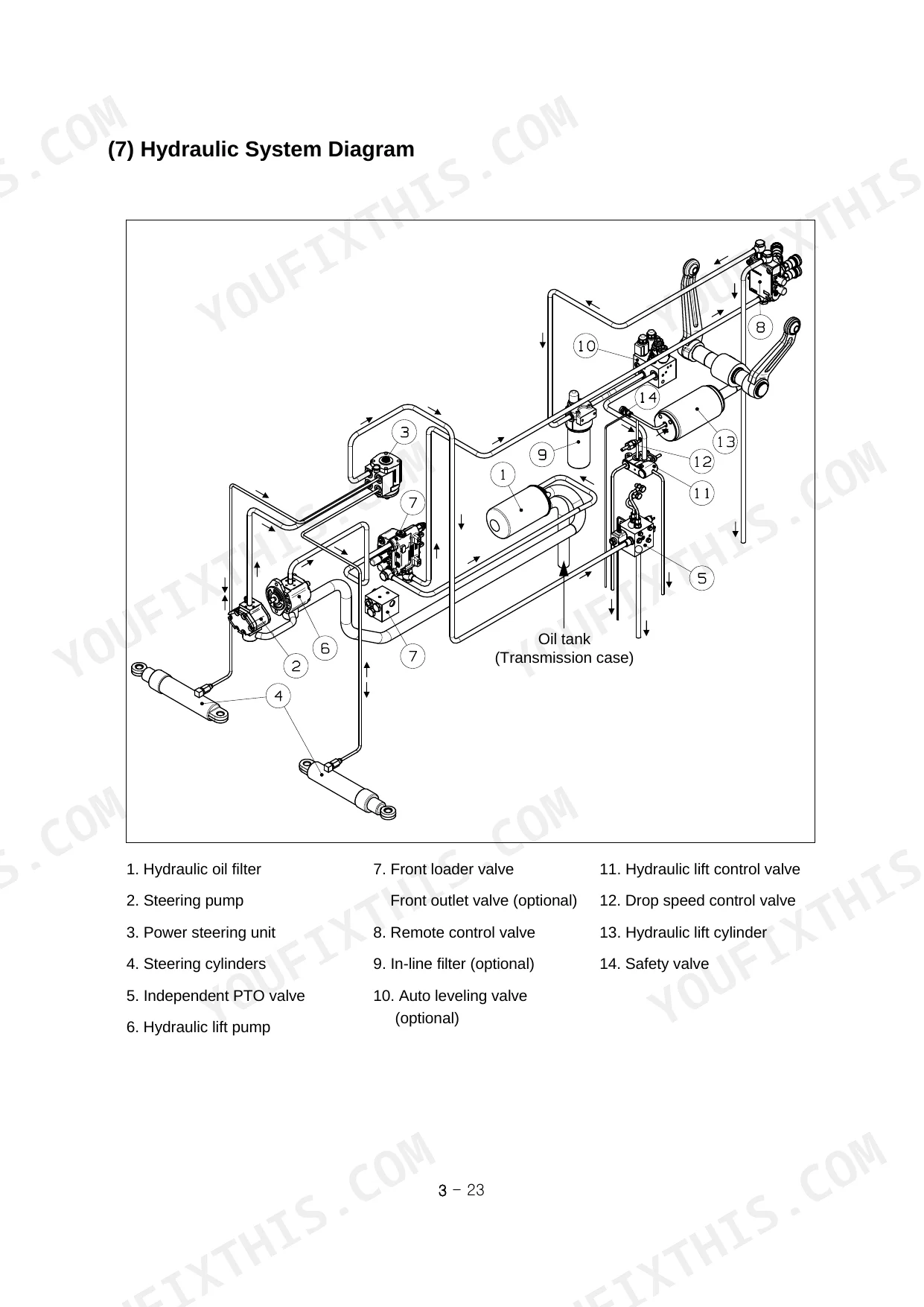

Are there hydraulic schematics in this Case Farmall 60B manual?
Yes, this Case Farmall 60B Operator Manual includes a hydraulic system diagram.
