Before you put your sub-compact tractor to work, this 131-page Cub Cadet Yanmar SC2400 operator manual PDF delivers the exact factory instructions for running and maintaining your machine. Inside, you get complete daily maintenance schedules, dashboard indicator breakdowns, and step-by-step operating procedures for the 3-point hitch and PTO. Open up to clear load charts, fluid capacity tables, and safety warnings that keep your equipment running smoothly shift after shift. Adjust your fan belt deflection to exactly 0.4 to 0.6 inches and verify the 2.5 US qt engine oil capacity is topped off before starting up. Don't risk damaging your tractor with guesswork. Download this bookmarked file directly to your phone, jump to the maintenance schedule, and get back to the dirt.
What's Inside This Cub Cadet Yanmar SC2400 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 9-24 | Safety-Alert Symbols, Precautions Before Operating Your Tractor, Safe Practices for Operating Your Tractor, Operating Your Tractor on Slopes, Traveling on a Road |
| Servicing the Tractor | 25 | - |
| Specifications | 26-27 | Specifications Table, Traveling Speeds |
| Implement Capacities | 28 | Lifting Capacity, Implement Weight, Hitch Load, Towing Capacity, Front - End Loader, Mower |
| Names and Functions of Components | 29-32 | Appearance, Operator Station Controls, Instrument Panel, Switches and Hand Controls |
| Pre-Operation Check | 33 | Precautions Before the Operation, Routine Check, Prevent Damage to the Plastic Surfaces and Painted Surfaces |

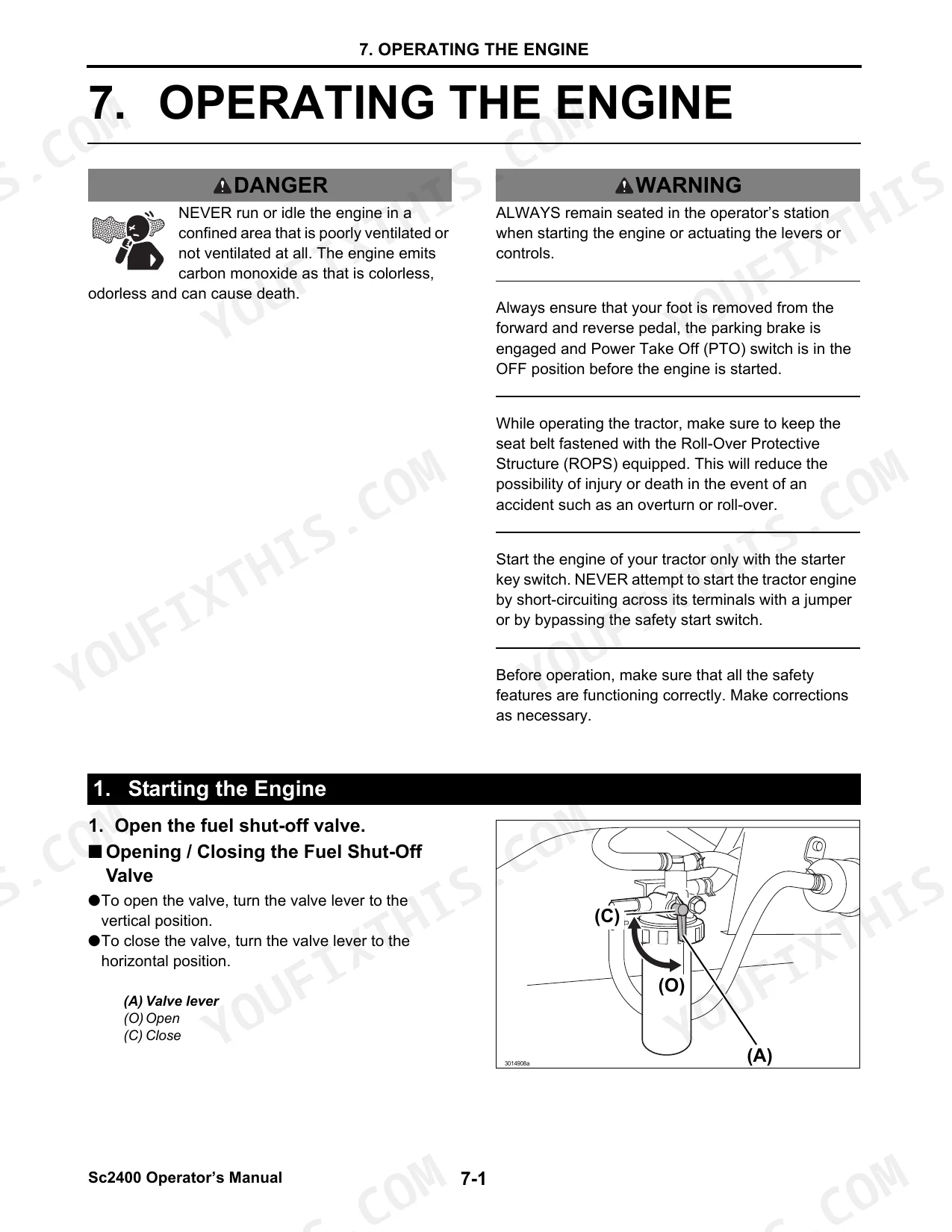

| Operating the Engine | 34-42 | Starting the Engine (Opening / Closing the Fuel Shut-Off Valve, Operator's Seat, Fastening the Retractable Seat Belt, Engaging the Parking Brake, Checking the Lights on the Instrument Panel, Warming Up the Engine in Cold Weather) |
| Operating the Tractor | 43-59 | Operating a New Tractor |
| Power Take Off (PTO) | 60-64 | Operating the Power Take Off (Rear- Power Take Off, Mid- Power Take Off, Engaging the Power Take Off, Disengaging the Power Take Off) |
| Point Hitch | 65-66 | 3-Point Hitch (Right Lift Link, Top Link, Sway Link) |
| Hydraulic System | 67-71 | 3-Point Hitch Control System (Operating the 3-Point Hitch Control / Cutting Height Adjustment Lever to Raise or Lower the 3-Point Hitch, Hydraulic Flow Control / Stop Knob) |
| Tires, Wheels and Ballast | 72-131 | Tires (Inflation Pressure, Wheel Bolt Tightening Torque), Ballast (Front Ballast) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Compressed air pressure for cleaning air cleaner element | 42 to 71 psi (0.29 to 0.49 MPa, 3.0 to 5.0 kgf/cm2) | p. 104 |
| Fan belt deflection | 0.4 to 0.6 in. (10 to 15 mm) | p. 98 |
| Time for lowering implement from highest to lowest position (controlled by hydraulic flow control / stop knob) | 2 seconds or longer | p. 68 |

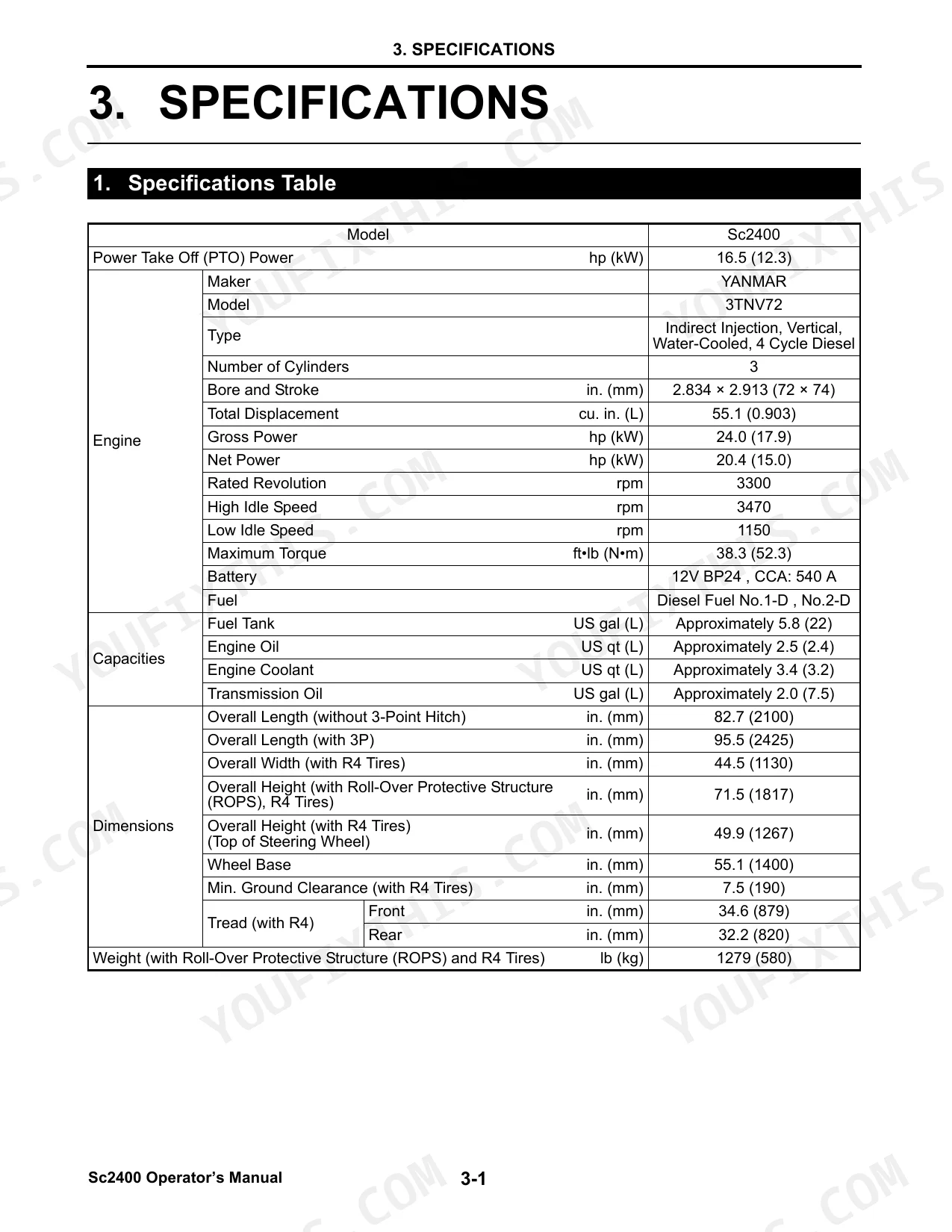

| Engine Oil Capacity | 2.5 US qt | p. 26 |
| Engine Coolant Capacity | 3.4 US qt | p. 26 |
| Fuel Tank Capacity | 5.8 US gal | p. 26 |
| Transmission Oil Capacity | 2.0 US gal | p. 26 |
| Max. Lift Force (24 in. Behind Lift Point) | 661 lb | p. 27 |
| Hydraulic System Pressure | 1813 psi | p. 27 |

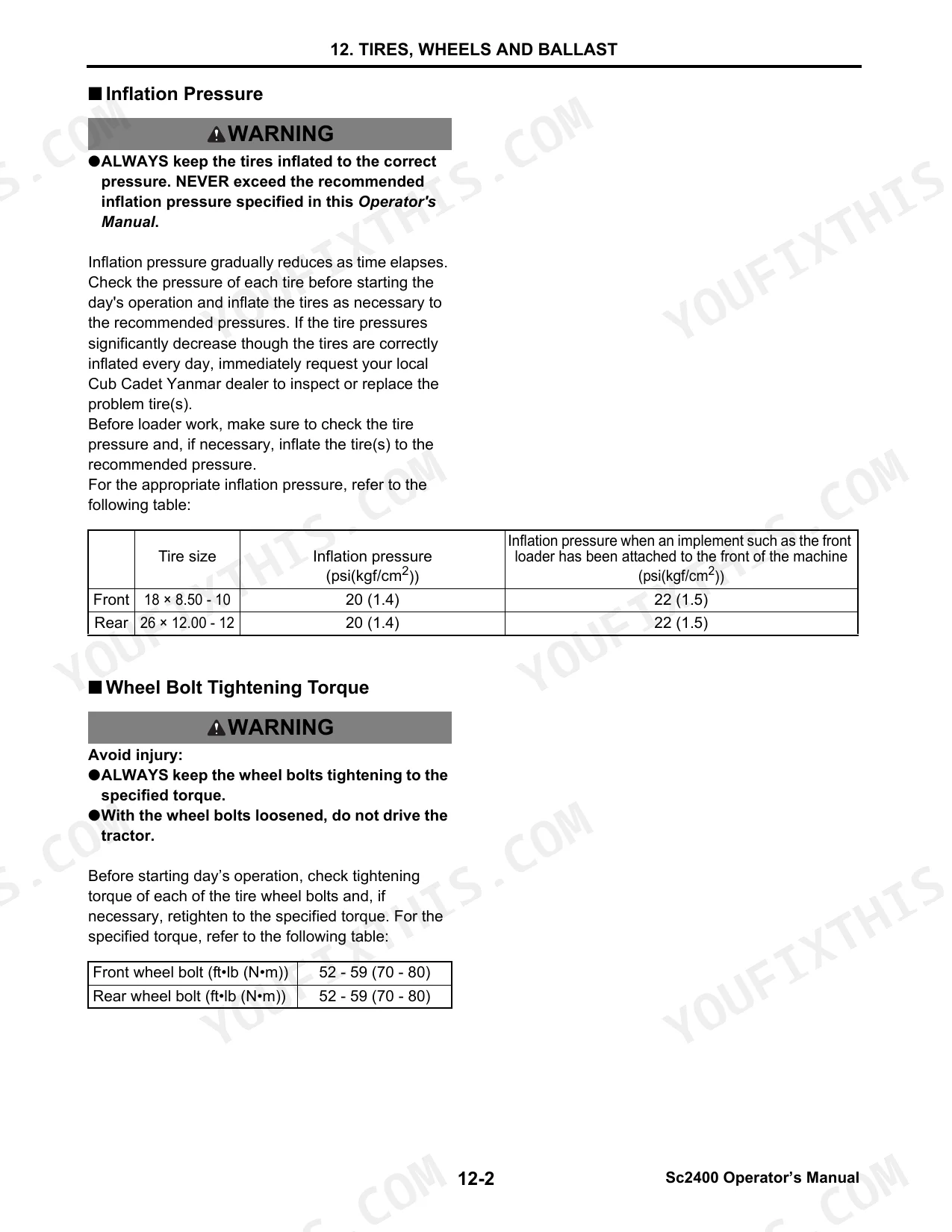

| Front Wheel Bolt Tightening Torque | 52 - 59 ft•lb | p. 73 |
| Rear Wheel Bolt Tightening Torque | 52 - 59 ft•lb | p. 73 |

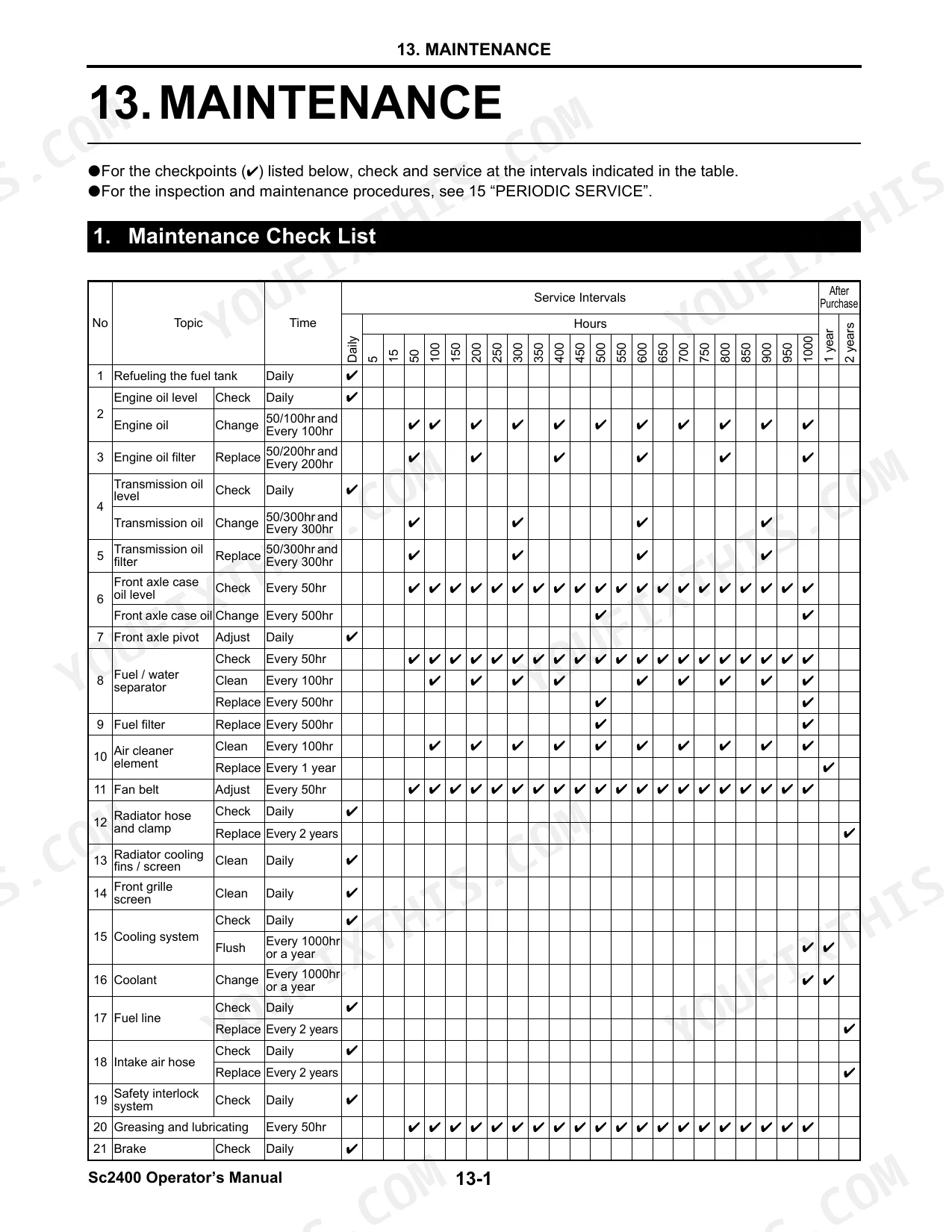

| Engine Oil Change Interval | Every 100 hours | p. 76 |
Cub Cadet Yanmar SC2400 Common Problems This Manual Covers
Cub Cadet Yanmar Sc2400 engine fails to run smoothly under load and blows blackish exhaust.
Inspect the air cleaner element as shown. Clean the element using compressed air regulated to 42 to 71 psi. Replace the element entirely if it has been in service for 1 year, following the maintenance schedule on page 76.
Manual Section: Engine fails to run smoothly or is not powerfulHydraulic implement drops suddenly to the ground or will not stay raised during operation. p. 67
Adjust the hydraulic flow control stop knob detailed on page 67. Turn the knob clockwise to restrict flow until the time for lowering the implement from highest to lowest position is exactly 2 seconds or longer. Verify system pressure reaches 1813 psi if the issue persists.
Manual Section: Hydraulic SystemEngine overheats quickly during heavy mowing and the coolant temperature gauge pegs into the red zone.
Check the fan belt tension before assuming the radiator is blocked. Press the center of the belt and verify fan belt deflection measures 0.4 to 0.6 in. (10 to 15 mm) as specified on page 98. Adjust the alternator bracket to correct the tension immediately.
Manual Section: Engine overheatsEngine has successfully started but the machine fails to operate or move smoothly from a stop.
Verify the parking brake is fully disengaged. Check the transmission oil dipstick and ensure the fluid level is correct. If low, fill the reservoir to the 2.0 US gal capacity listed on page 26. Allow the oil to warm up completely in cold weather before driving.
Manual Section: Engine has successfully started, but the machine fails to operateFrequently Asked Questions

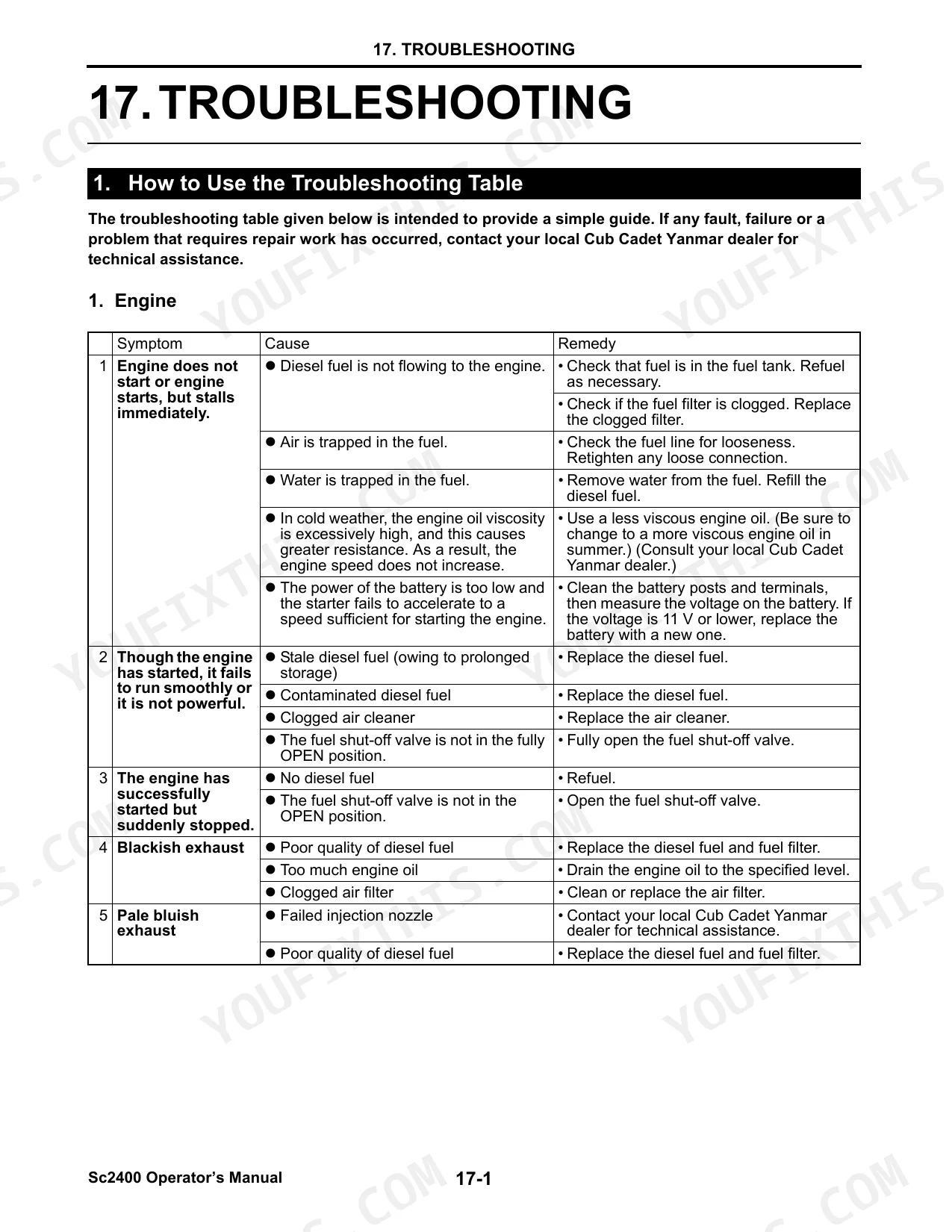

Why does my Cub Cadet SC2400 crank but not start?
If your Cub Cadet SC2400 cranks but does not start, or starts and immediately stalls, potential causes include diesel fuel not flowing to the engine, air trapped in the fuel system, or water in the fuel. In cold weather, high engine oil viscosity can also cause this issue. Additionally, low battery power (below 11 V) can prevent the starter from accelerating the engine sufficiently.
How do you fix cub Cadet Yanmar Sc2400 engine fails to run smoothly under load and blows blackish exhaust?
Inspect the air cleaner element as shown. Clean the element using compressed air regulated to 42 to 71 psi. Replace the element entirely if it has been in service for 1 year, following the maintenance schedule on page 76.
How do you fix hydraulic implement drops suddenly to the ground or will not stay raised during operation?
Adjust the hydraulic flow control stop knob detailed on page 67. Turn the knob clockwise to restrict flow until the time for lowering the implement from highest to lowest position is exactly 2 seconds or longer. Verify system pressure reaches 1813 psi if the issue persists.
How do you fix engine overheats quickly during heavy mowing and the coolant temperature gauge pegs into the red zone?
Check the fan belt tension before assuming the radiator is blocked. Press the center of the belt and verify fan belt deflection measures 0.4 to 0.6 in. (10 to 15 mm) as specified on page 98. Adjust the alternator bracket to correct the tension immediately.
How quickly can I access this manual after buying?
This is a 131-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you’re under the hood. No shipping, no waiting.
Can I print specific sections of this Cub Cadet Yanmar Sc2400 Operator Manual?
There are no print restrictions. The PDF is DRM-free — print whatever sections you need for the shop. Standard letter or A4 paper works.
