Chasing factory data for your Fiat Kobelco E20.2SR, E22.2SR, or E27.2SR? This 764-page workshop manual PDF (OEM #604.13.358) holds the factory procedures for all three short-radius hydraulic excavators, from attachment pins to travel motors. Inside: full hydraulic circuit diagrams, electric circuit diagrams with harness connection guides, and step-by-step disassembly and assembly for the pump, control valve, slewing motor, and the entire undercarriage. You also get a troubleshooting section that traces hydraulic, electrical, and engine faults from symptom to root cause. Set valve clearance at 0.2 mm on intake and exhaust (cold), and fill the engine with 5.5 liters of oil before startup. Torque tables run from M6 capscrews (4.4 N-m dry, 3.7 N-m lubricated) on up through hose fittings. Your machine is down and the dealer wants a week. Get answers tonight: bookmarked, keyword-searchable, and it opens on your phone right at the excavator.
What's Inside This Fiat Kobelco E20.2SR, E22.2SR, E27.2SR Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 5-12 | General Safety Information |
| Outline | 13-22 | General Precautions for Repairs, International Unit Conversion System (Based on Marks’ Standard Handbook for Mechanical Engineers), Table 1-1, Table 1-2, Table 1-3, Table 1-4 |

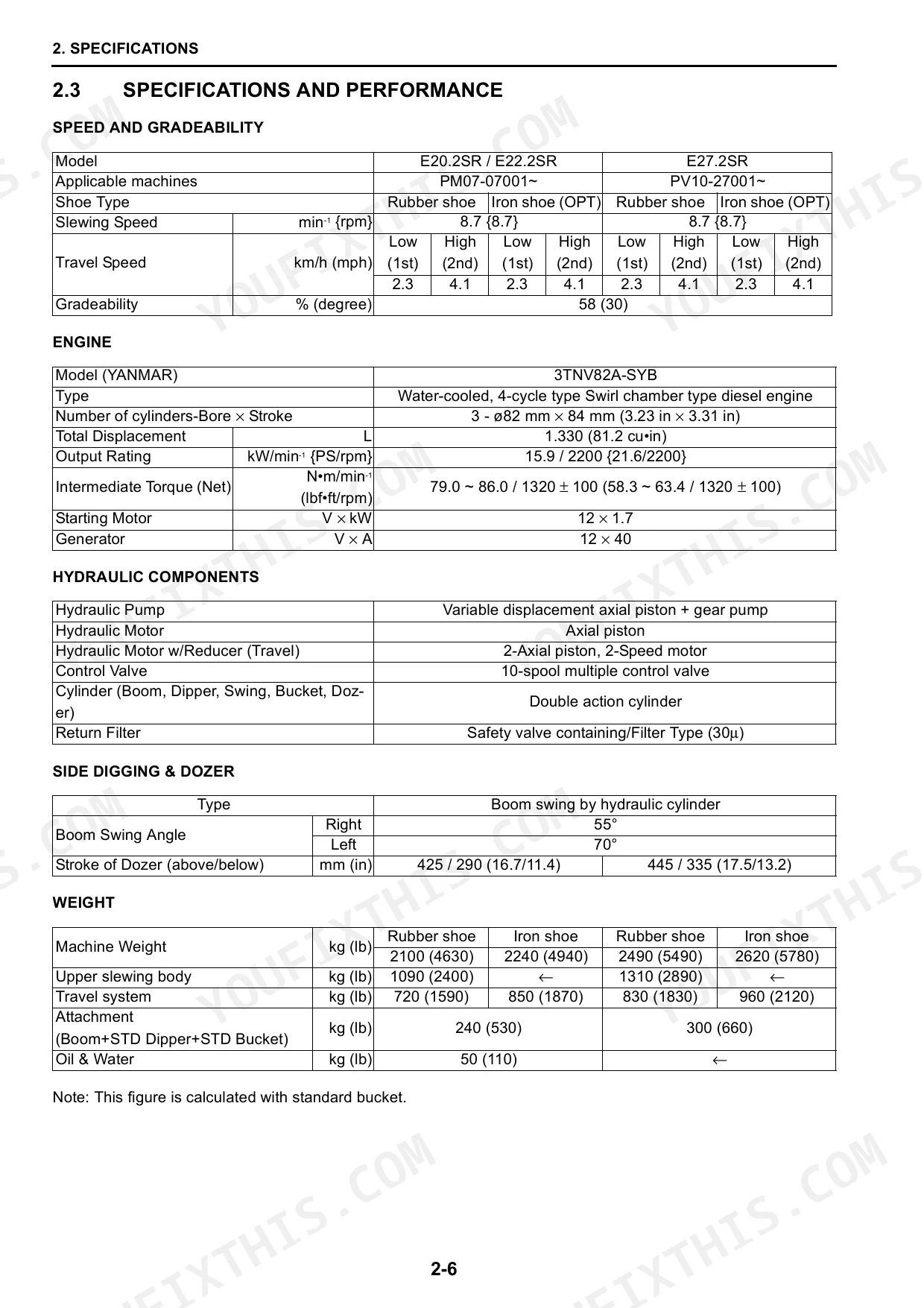

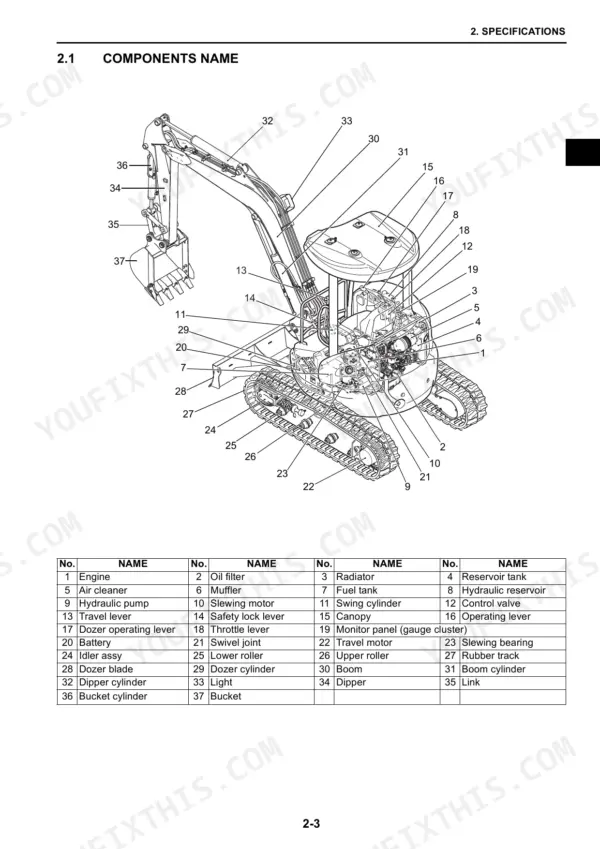

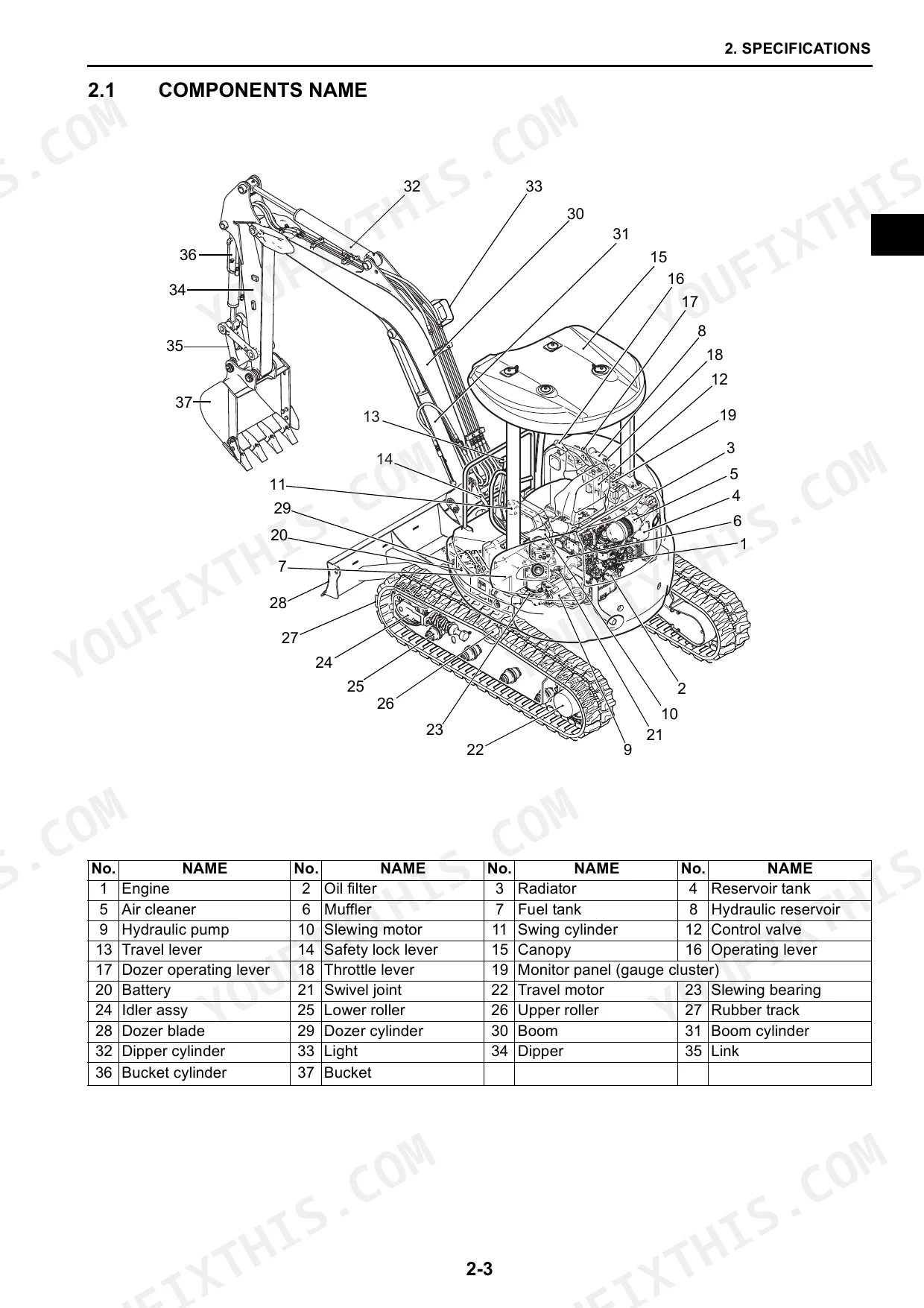

| Specifications | 23-38 | Components Name, Machine Dimensions, Specifications and Performance, Machine & Components Weight (Dry), Transportation, Type of Crawler Shoes, Type of Bucket, Engine Specifications |
| Attachment Dimensions | 39-66 | Boom, Fig. 3-1 Boom Dimensional Drawings, Table 3-1, Fig. 3-2 Clearance of Pin and Bushing on Boom Section, Table 3-2, Table 3-3 |

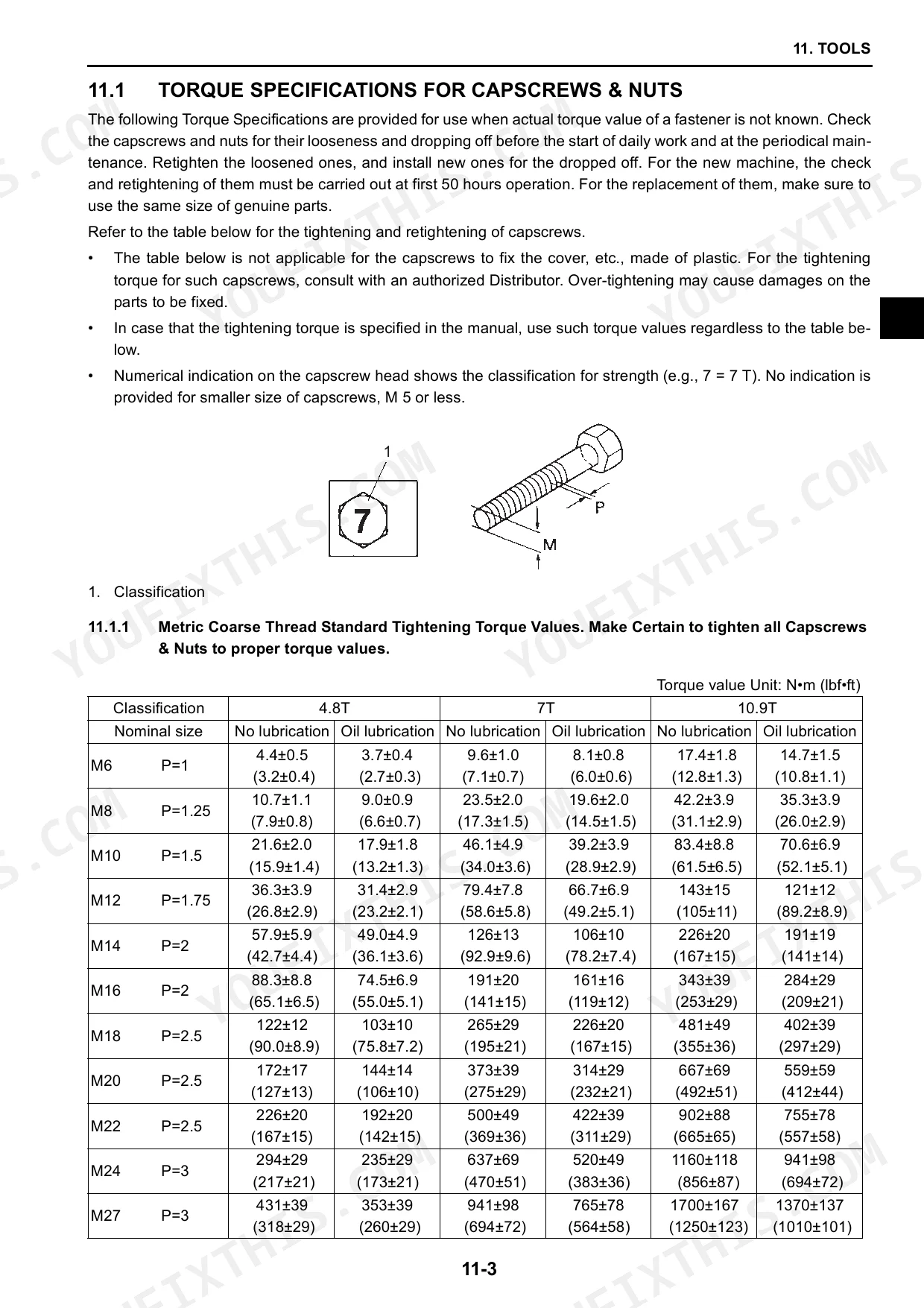

| Tools | 67-76 | Torque Specifications for Capscrews & Nuts, Screw and Tool Sizes, Torque Specifications for Joints and Hoses, Torque Specifications for Sleeve Type Tube Fittings |
| Standard Maintenance Time Table | 77-88 | Preface, Standard Working Time Table for the Maintenance of Excavator |
| Maintenance Standards and Test Procedures | 89-110 | How to Use Maintenance Standards and Precautions, Performance Inspection Standard Table, Measuring Engine Speed, Fig. 13-1 Engine Speed Measurement (the Above Figure Shows Concept) |
| Hydraulic System | 111-124 | Summary, Hydraulic Circuits and Component Models, Hydraulic Circuit Operation |

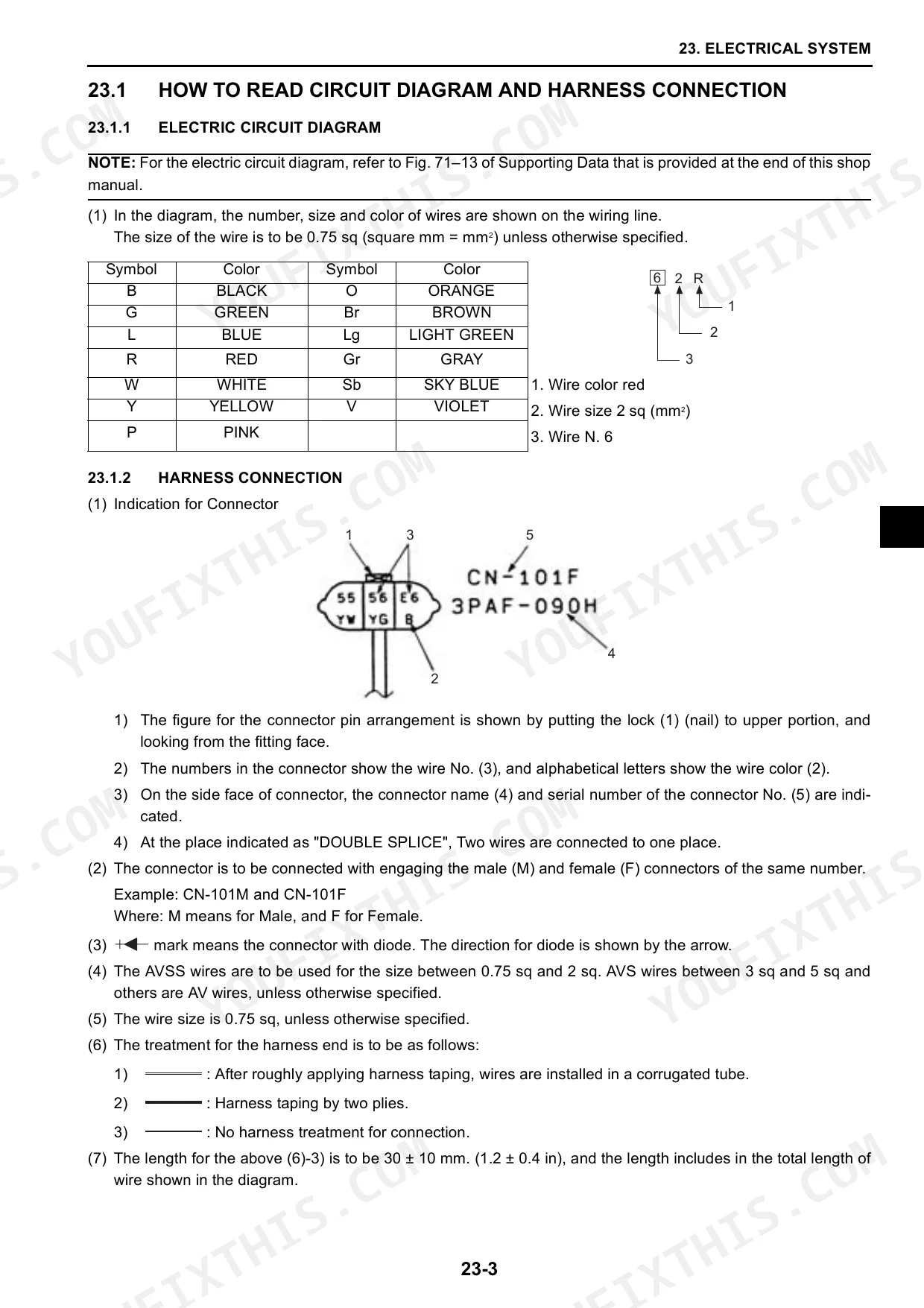

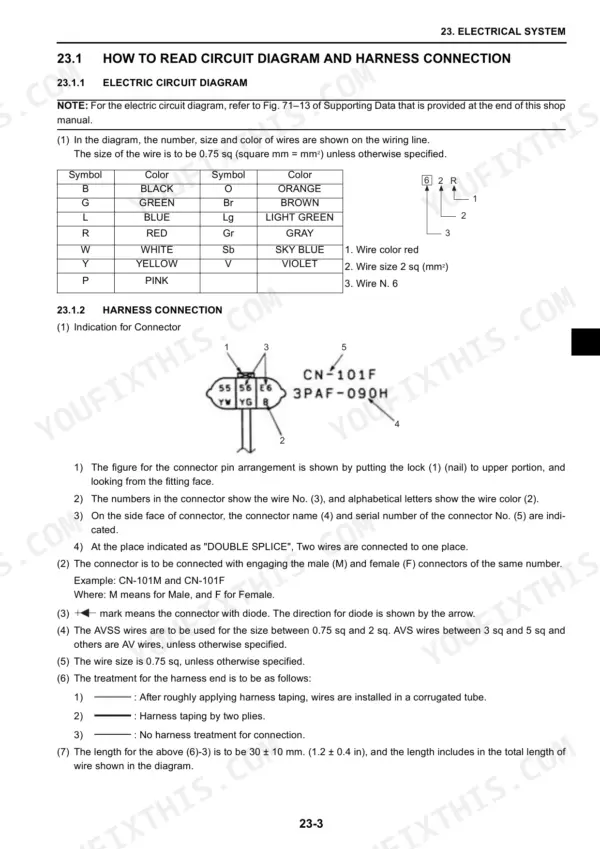

| Electrical System | 125-150 | How to Read Circuit Diagram and Harness Connection, Electrical Equipment & Harness, Fig. 23-1 Upper Frame Portion, Fig. 23-2 Upper Frame Portion |
| Components System | 151-152 | Hydraulic Pump, Pilot Valve, Control Valve, Slewing Motor, Travel Motor, Cylinder |
| Hydraulic Components | 153-228 | Hydraulic Pump, Operation, Swash Plate (Hanger), Rotary Group, Control Spring, Cover, Gear Pump |
| Electrical Equipment List & Specifications | 229-252 | Electrical Equipment List, Harness & Cable List, Arrangement Drawings, Battery Terminal Torque, Fuel Sensor Connection, Switch Specifications |
| General Disassembly and Assembly | 253-258 | Attachment Disassembly, Upper Slewing Structure Disassembly, Travel System Disassembly, Tightening Torque Specifications |

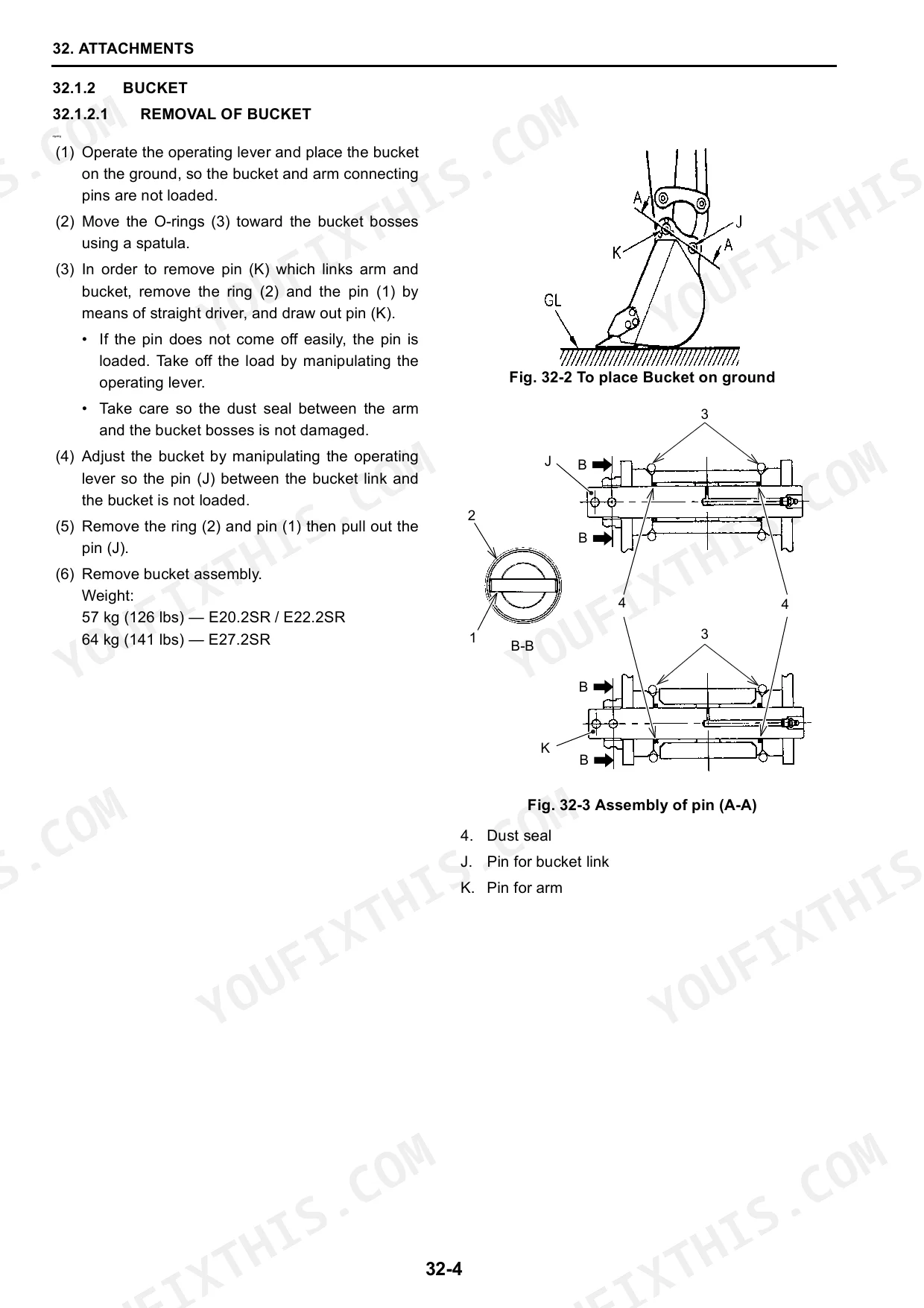

| Attachments Disassembly and Assembly | 259-292 | Bucket removal/installation, Arm removal/installation, Boom removal/installation, Dozer removal/installation, Cylinder disassembly/assembly, Maintenance Standards |
| Upper Slewing Structure Disassembly and Assembly | 293-418 | Canopy/Cab Removal, Counterweight Installation, Pump removal/installation, Control Valve removal/installation, Pilot Valve Disassembly, Slewing Motor Assembly |

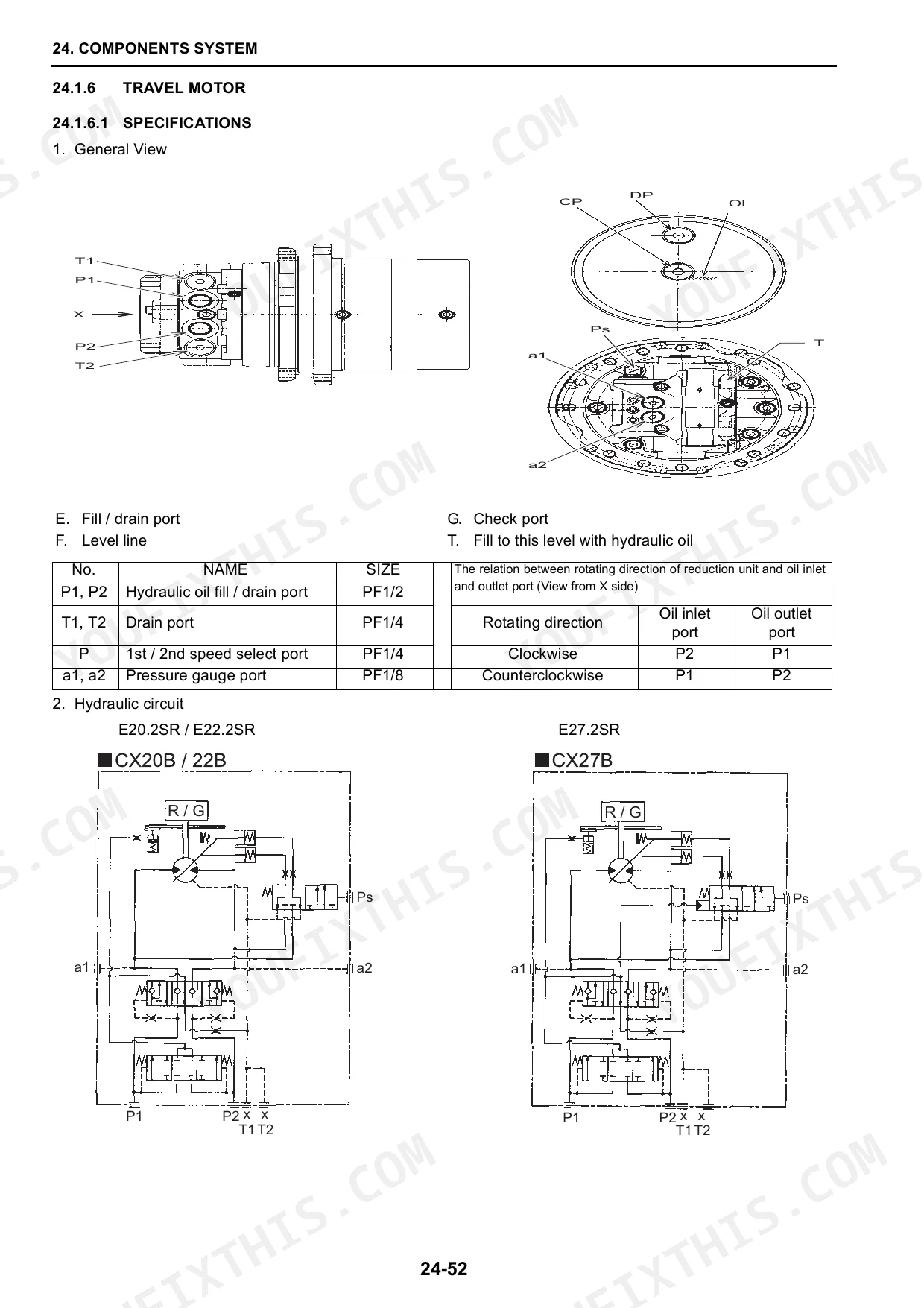

| Travel System Disassembly and Assembly | 419-486 | Crawler removal/installation, Slide Plate removal/installation, Lower Roller Assembly, Front Idler Disassembly, Sprocket Installation, Travel Motor Assembly |

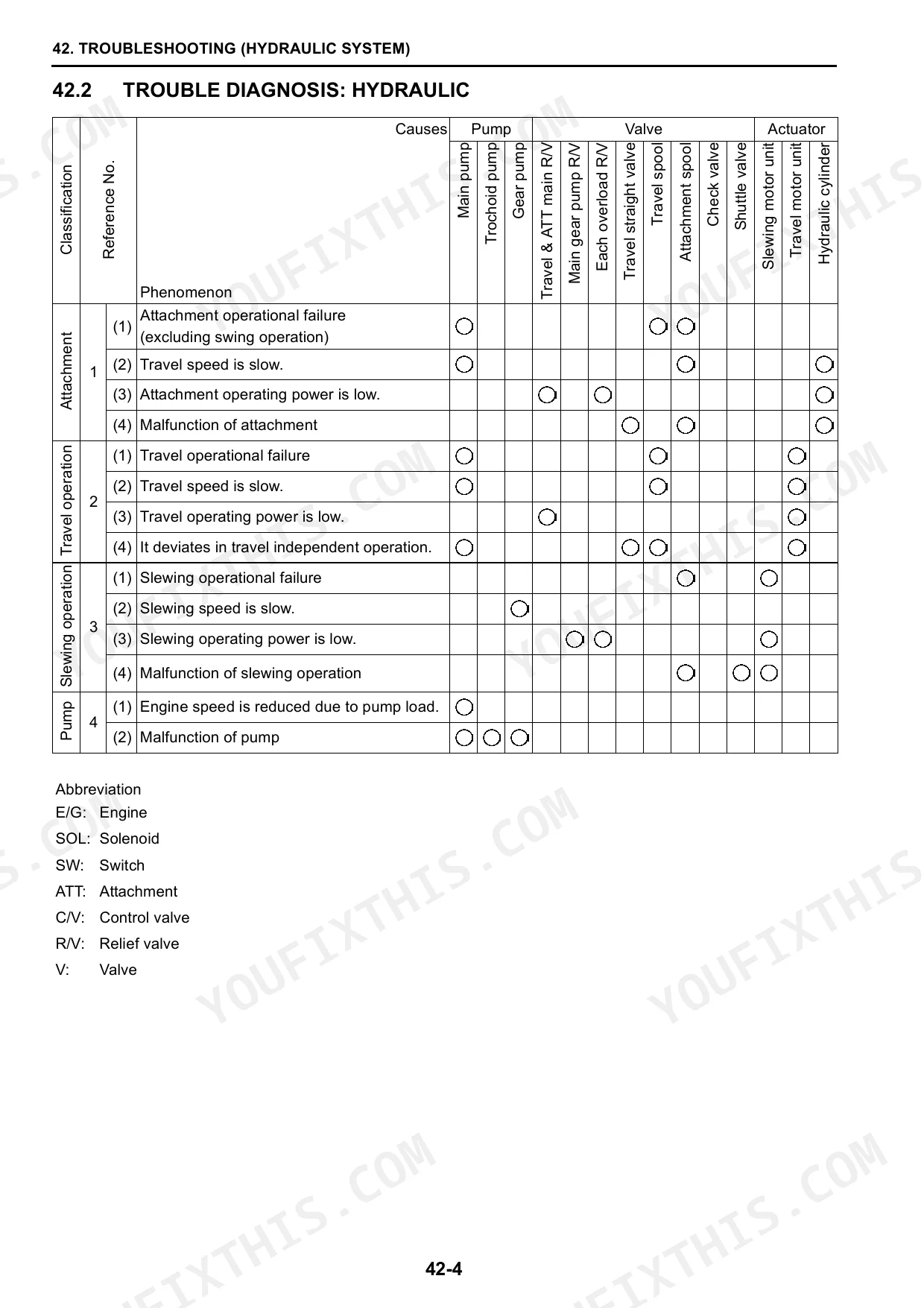

| Troubleshooting (Hydraulic System) | 487-500 | General Precautions, Confirm Troubled Conditions, Trouble Diagnosis, Attachment Operational Failure, Travel Operation Troubleshooting, Pump Malfunction |
| Troubleshooting (Electrical System) | 501-512 | Engine Starting Trouble, Horn Not Sounding, Working Light Issues, Hourmeter Malfunction, Fuel Gauge Issues, Deceleration Problems |
| Troubleshooting (Engine) | 513-550 | Engine Trouble Diagnosis, Starting Trouble, Low Power, Overheating, Abnormal Noise, Exhaust Smoke, Oil Pressure Faults |
| Engine - Full Repair Section (Bundled Engine Manual) | 551-764 | Engine Specifications and Capacities, Cylinder Head and Valves, Piston, Pin and Connecting Rod Reassembly, Crankshaft and Bearings, Lubrication and Cooling Systems, Fuel Injection Pump and Nozzles, Electrical Equipment (Starter, Alternator, Glow Plugs), Wear Limits and Torque Values, Engine Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil volume: Max / Effective | 5.5 / 1.9 liter (1.45 / 0.50 gal) | p. 35 |
| Valve clearance Intake valve | 0.2 mm (0.008 in) in cold condition | p. 35 |
| Valve clearance Exhaust valve | 0.2 mm (0.008 in) in cold condition | p. 35 |
| Metric Coarse Thread Standard Tightening Torque Values (M6, P=1, No lubrication) | 4.4±0.5 N•m (3.2±0.4 lbf·ft) | p. 69 |
| Metric Coarse Thread Standard Tightening Torque Values (M6, P=1, Oil lubrication) | 3.7±0.4 N•m (2.7±0.3 lbf·ft) | p. 69 |
| JOINT FOR PIPING (O-RING SEALING TYPE) (1/8 PF) | 17±2 N•m (12±1 lbf·ft) | p. 71 |
| JOINT FOR PIPING (O-RING SEALING TYPE) (1/4 PF) | 36±2 N•m (27±1 lbf·ft) | p. 71 |
| Applicable lubricant | SUPER GOLD 15W-40, SUPER GOLD 10W-30 | p. 541 |
| Engine Rated Output | 15.9 kW (21.6 PS) at 2200 rpm | p. 35 |
| Total Engine Displacement | 1.330 liter (81 cu•in) | p. 35 |
| Main Relief Valve Pressure | 23.0 MPa (3340 psi) | p. 93 |
| Pilot Relief Valve Pressure | 3.5 ± 0.4 MPa (508 ± 58 psi) | p. 93 |
Fiat Kobelco E20.2SR, E22.2SR, E27.2SR Common Problems This Manual Covers
Fiat Kobelco E20.2SR bucket and arm slow, weak digging power, hydraulics groan under load
Check hydraulic oil temperature first; run pressure tests only at 50~60 °C (122~140 °F). Test main relief pressure against the 23.0 MPa (3340 psi) spec on page 93. If the reading is low, adjust or replace the relief valve, then follow the trouble diagnosis table on page 492 to isolate pump or pilot circuit faults.
Manual Section: Troubleshooting (Hydraulic System) p. 492Engine cranks but won't start, or starter barely turns over in cold weather
Check battery voltage and terminal condition, then follow the engine-does-not-start chart on page 501. Verify starter wiring and the magnetic switch contacts. In cold weather, confirm oil viscosity matches the 10W-30 or 15W-40 spec on page 554; heavy oil drags the starter. Test alternator V belt tension while the covers are off.
Manual Section: Troubleshooting (Electrical System) p. 501Machine travels crooked, one track runs slower than the other on flat ground
Measure crawler sag on both sides; rubber shoe tension should be 60~70 mm (2.4~2.8 in) per page 425. Adjust the idler grease cylinder to equalize both tracks. If deviation persists, swap the travel hoses side to side to separate a weak travel motor from a control valve fault, then continue with the procedures on page 492.
Manual Section: Travel System Disassembly and Assembly p. 425Slew motion sluggish, upper structure hesitates at start or won't rotate smoothly
Verify pilot relief pressure at 3.5 ± 0.4 MPa (508 ± 58 psi) per page 93; low pilot pressure starves the slew spool. Time a full rotation and compare against the 8.7 rpm slewing speed listed on page 28. If both check out, inspect the slewing motor brake valve and reduction gear using the disassembly procedures on page 293.
Manual Section: Slewing Operation Hydraulic TroubleshootingEngine down on power under load, black exhaust smoke, burns more fuel than normal
Clean or replace the air filter element first; a restricted intake is the usual cause. Check valve clearance and set intake and exhaust to 0.2 mm (0.008 in) cold, per page 35. Verify output against the rated 15.9 kW (21.6 PS) at 2200 rpm, then work the output-drops-down diagnosis starting on page 513.
Manual Section: Troubleshooting (Engine) & Supporting Data p. 513Frequently Asked Questions
What are the torque specifications for the main pump capscrews on the FIAT KOBELCO E27.2SR?
The capscrew (C4) used to fix the main pump requires a tightening torque of 85.3 N•m. This is a specific instruction for pump installation. p. 306
What is the total and effective engine oil capacity for the FIAT KOBELCO E20.2SR, which uses the 3TNV82A engine?
For the 3TNV82A engine, the total lubricant capacity (oil pan) is 3.6 liters, and the effective capacity is 1.2 liters. p. 541
What is the coolant water capacity for the FIAT KOBELCO E20.2SR engine only?
The coolant water capacity for the 3TNV82A engine only is 1.8 liters. p. 541
What is the V-belt tension (deflection) for a new V-belt on the engine?
For a new V-belt, the deflection should be 8~12 mm at position A, 5~8 mm at position B, and 7~11 mm at position C. p. 564
What is the standard main relief valve pressure for the FIAT KOBELCO E20.2SR?
The standard main relief valve pressure for the Boom, Bucket, and Travel (LH) P1 circuit on the E20.2SR is 23.0 MPa (3340 psi). p. 93
What do I get after purchasing this Fiat Kobelco E20.2SR, E22.2SR, E27.2SR?
Immediate download of the complete 764-page searchable Workshop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this Fiat Kobelco E20.2SR, E22.2SR?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
