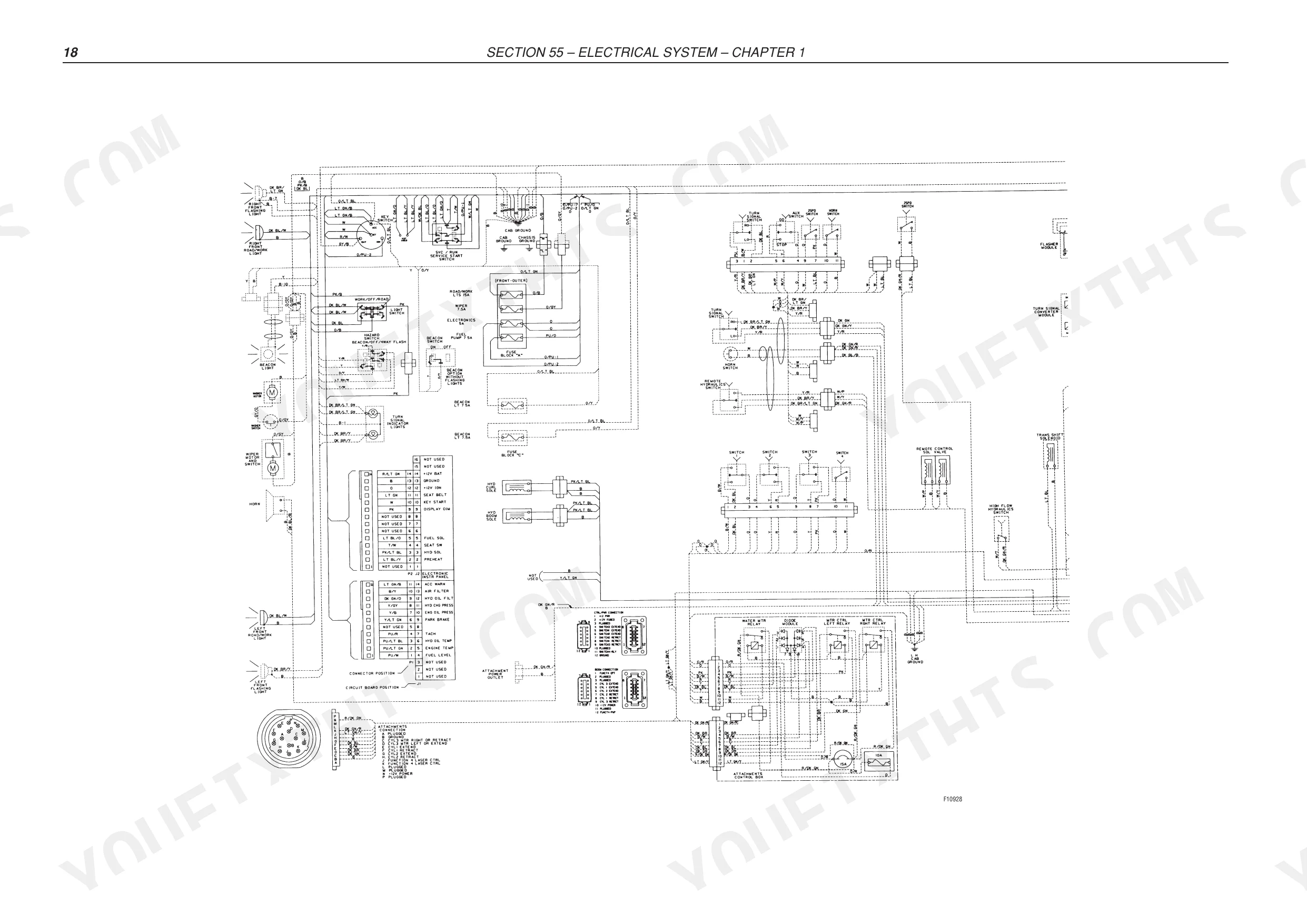

Every one of the 780 pages in this Fiat Kobelco SL65B Workshop Manual PDF (OEM #604.06.948.01) is dedicated to one machine: your SL65B compact loader, from engine to boom pins. You get full wiring diagrams for the electronic instrument cluster and Advanced Warning System, hydraulic schematics with complete hydrostatic transmission service, and exploded views that show exactly how the final drive and gearboxes come apart. Inside: a full troubleshooting section, error code listings, torque tables, and fluid capacity charts. Before you pull the boom pivot pins, rig chains rated for its roughly 450 kg (1000 lb) weight, and relieve hydraulic pressure before cracking a single fitting; the factory procedures walk you through both. No more chasing electrical gremlins with forum guesses. Bookmarked with a live text layer: search any spec by keyword, jump straight to the section, and get wrenching.
What's Inside This Fiat Kobelco SL65B Manual

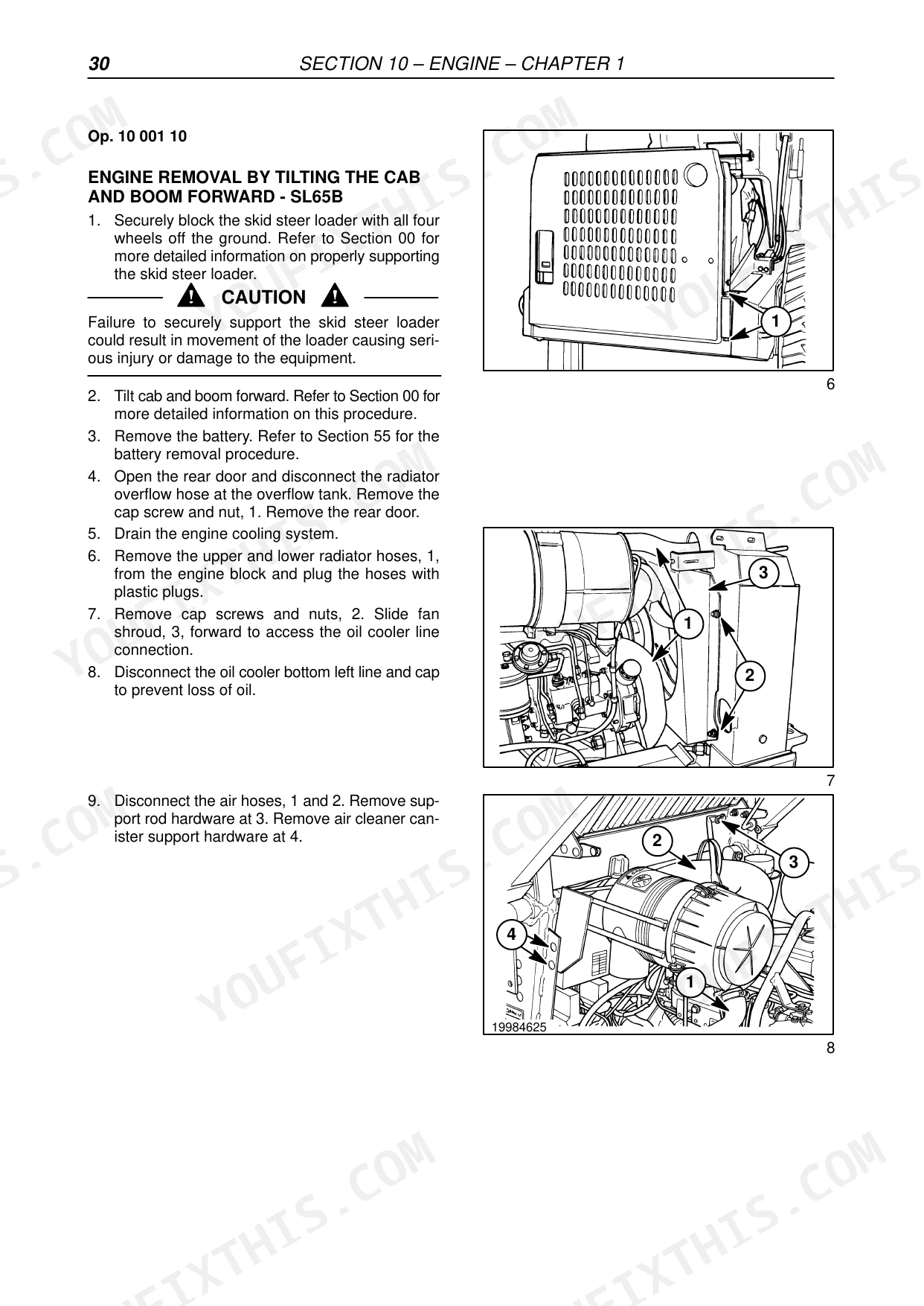

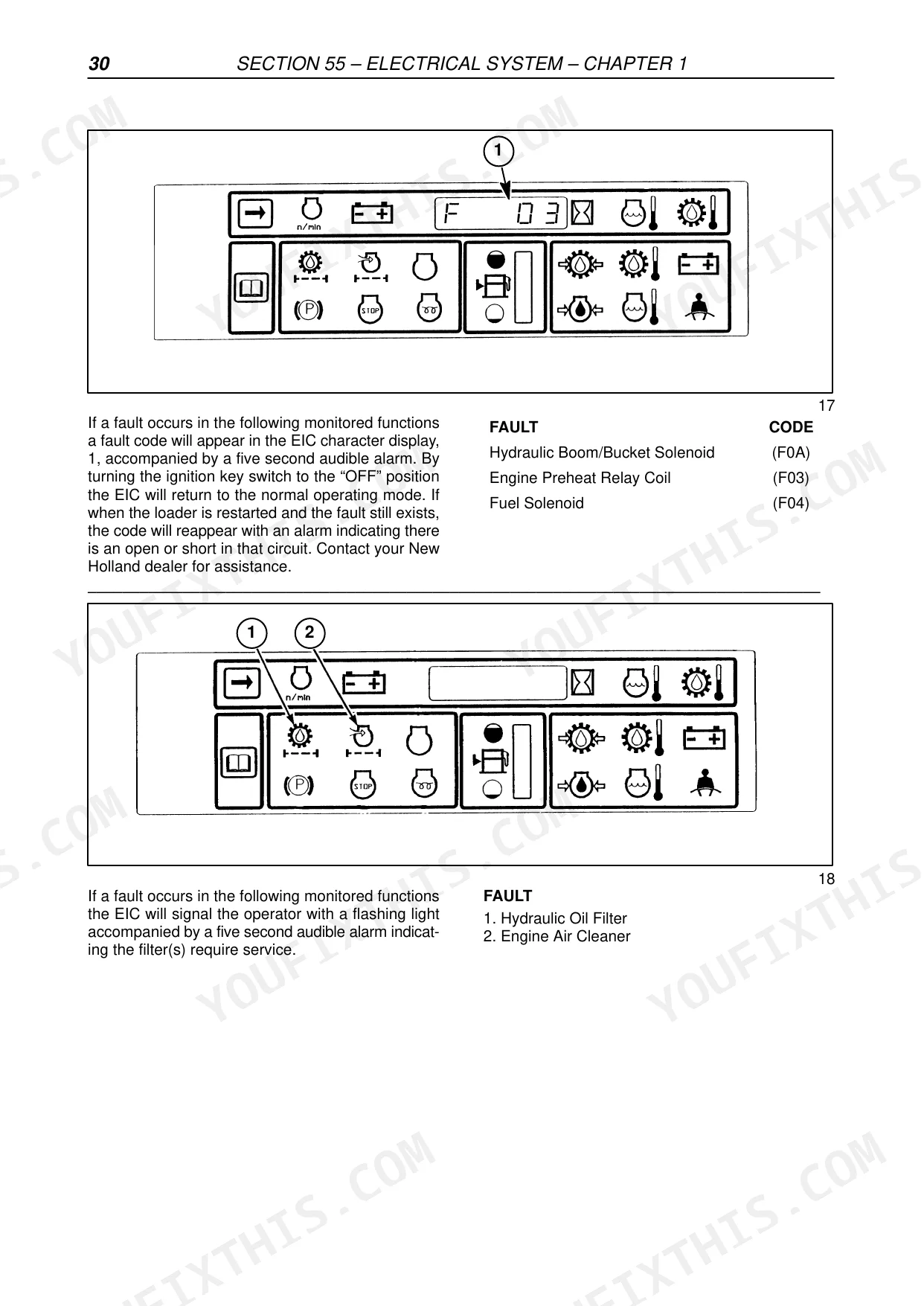

| System | Pages | Key Topics |
|---|---|---|
| Safety and General Precautions | 2-24 | Safety Rules, Boom Lock Pins, Personal Protective Equipment, Hydraulic Pressure Relief, Lifting and Support, Reference Manual List |
| General Information | 25-58 | Introduction, Company Policy, Parts and Accessories, Model Codes, Precautionary Statements, Safety Precaution Information |
| Engine | 59-178 | Engine Description, Cylinder Head and Valves, Pistons and Connecting Rods, Crankshaft and Main Bearings, Fuel System, Turbocharger |
| Rear Drive Axle (Gearboxes) | 179-212 | General Information, Specifications, Troubleshooting, Gearboxes |
| Hydrostatic Transmission | 213-368 | - |
| Brakes and Controls | 369-382 | - |
| Hydraulic System | 383-484 | - |
| Towing Hooks and Ballasting | 485-486 | Rear Counterweights, Rear Counterweight Support Removal |
| Frames | 487-498 | ROPS, ROPS Removal, ROPS Reinstallation |
| Axles and Wheels | 499-522 | Axles, Axle Housing Assembly Removal, Axle Disassembly, Final Drive, Drive Chain and Sprocket Removal, Tyres/Wheels |
| Cab Climate Control | 523-530 | Heater/Defroster (Cab), Switch Wiring, Heater Core Replacement, Heater Shutoff Valve Replacement, Heater Fan Assembly Replacement |
| Electrical System | 531-676 | Electronic Instrument Cluster (Eic), Advanced Warning System (Aws), Starter Motor, Alternator, Electrical Circuits, Fuel System Components |
| Front Loader (Boom and Mounting Plate) | 677-718 | Buckets, Boom Lock Pins and Linkage, Attachment Mounting Plate, Boom and Cylinder Pivot Pins, Boom, Upper and Lower Link |
| Accessories | 719-756 | Adapting Attachments Requiring 12V Electrical Power, Back-Up Alarm, Block Heater (Engine), High Flow Hydraulics, Horn, Warning Light (Rotary Beacon) |
| Platform, Cab, Bodywork, and Decals | 757-780 | Seat and Seat Pan Support, Cab Inner Shell, Seat Removal, Cab Inner Shell Removal, Safety Decals |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Chains or straps capable of handling the weight of the boom | about 450 kg (1000 lbs.) | p. 39 |
| Lifting chains or cables minimum length | 12' (3.66 m) | p. 50 |
| Maximum weight of attachments on loader boom mounting plate for lifting | 600 lbs. (272 kg) | p. 49 |
| Boom Lower Link Pivot Torque | 250 ft. lbs. (338 N·m) | p. 680 |
| Boom Upper Link Pivot Torque | 250 ft. lbs. (338 N·m) | p. 680 |
| Torque the pivot bolts | 80 ft. lbs. (108 N·m) | p. 48 |
| Engine Horsepower (SAE NET) | 60 @ 2200 RPM | p. 53 |
Fiat Kobelco SL65B Common Problems This Manual Covers
Fiat Kobelco SL65B hydraulic lines hold pressure after shutdown, fittings spray oil when loosened
Relieve pressure in every circuit before loosening any hydraulic connection, per the warning on page 29. Lower the boom onto the lock pins and remove any attachment before working under it, page 679. The hydrostatic relief valves hold up to 345 bar (5000 PSI), so cycle all controls with the engine off to bleed trapped pressure.
Manual Section: General Information p. 29Engine won't start or cranks slowly in cold weather, no fire on first attempt
Check battery condition and cable connections first, then work the no-start chart. In cold weather confirm the oil is correct winter viscosity; the engine holds 5.7 L (6 US qt.) including the filter, page 66. Test glow plug circuit operation and inspect the fuel filter for gelled fuel before condemning the starter.
Manual Section: EngineMachine won't move, or one side drives while the other side sits dead

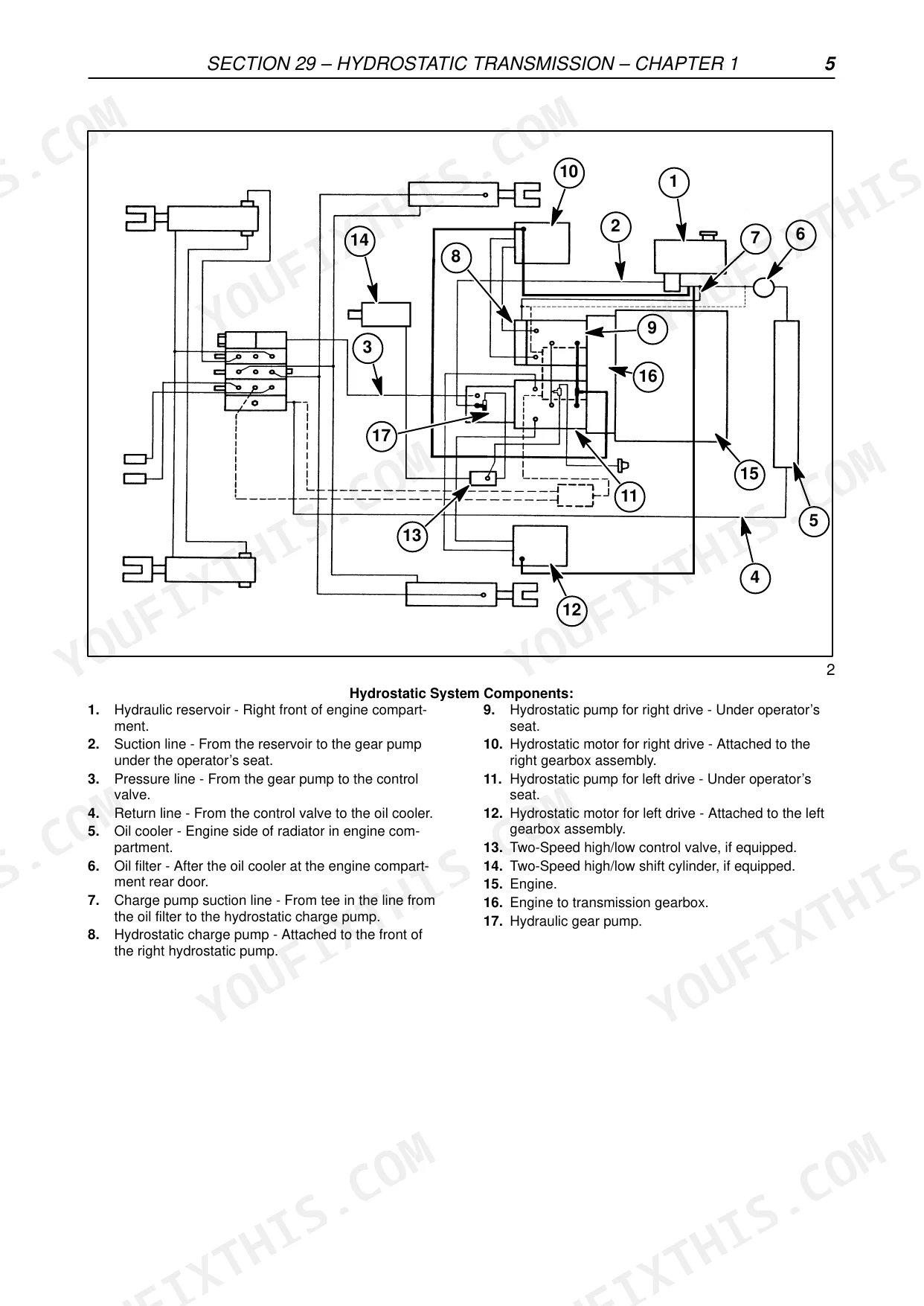

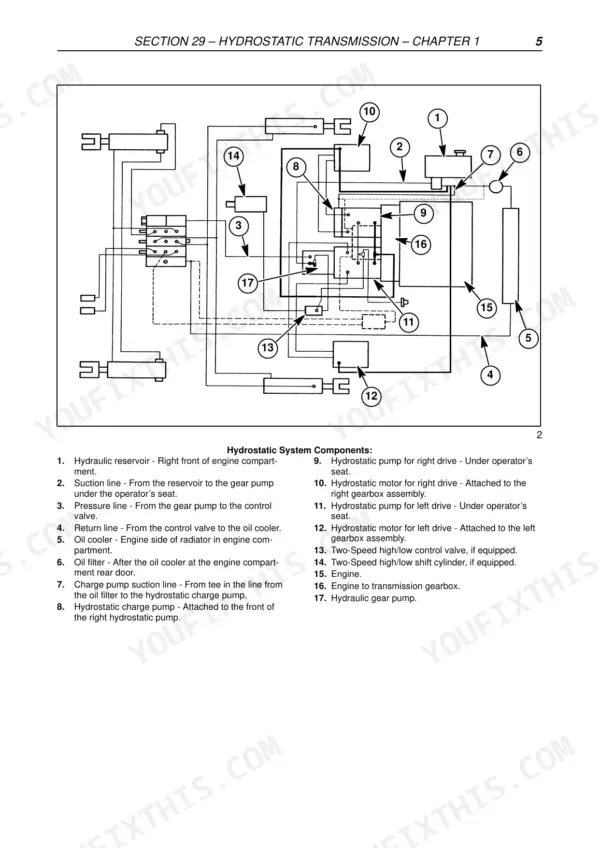

Check hydraulic reservoir level first; system capacity is 42.6 L (11.3 US gal.) per page 54. Test charge pressure next; the pump relief setting is 345 bar (5000 PSI) on page 218. Trace the dead side's circuit on the hydraulic schematic, then inspect that drive motor and coupling in the section starting page 213.
Manual Section: Hydrostatic Transmission p. 213Boom creeps down under load, mounting plate pivot bolts loose after attachment swaps
Rest the boom on the lock pins and remove the attachment before any inspection underneath, page 679. Torque the mounting plate pivot bolts to 80 ft. lbs. (108 N·m) and the boom lower link pivots to 250 ft. lbs. (338 N·m) per page 680. Replace any pivot bolt that will not hold torque.
Manual Section: Front Loader (Boom and Mounting Plate) p. 680Black exhaust smoke and sluggish power, turbo whines louder than normal at full throttle
Inspect the air filter and intake plumbing for leaks before blaming the turbo. Check the shaft for play and look for oil in the compressor housing. When reinstalling, torque the turbocharger to manifold fasteners to 41-47 N·m (30-35 ft. lbs.), page 86. Work the smoke diagnosis chart starting to separate fuel from air-side causes.
Manual Section: Engine p. 86Frequently Asked Questions
What are the recommended service intervals?
The manual specifies engine oil and filter change periods based on oil viscosity and type. For SAE 5W, 5W-30, and 10W-30 API SH-CG4 oils, the change period is 100 hours. If diesel fuel with sulfur content between 0.5% and 1.0% is used, this period is reduced to every 50 hours, and if between 1.0% and 1.3%, it's reduced to every 25 hours. p. 82
What fluids and capacities does this machine require?
The SL65B requires SAE 80W-90 API Service GL-5 Gear Oil for gearboxes and final drive chain cases (9.5 liters each side). The engine uses API Service SH-CG4 10W-30 oil (7 US. qt. or 6.6L including filter), and the cooling system requires Antifreeze/Water 50/50 Mixture (Ethylene Glycol) with a capacity of 15.5 US. qt. (14.7 L). The hydraulic system uses API Service SH/CG-4 10W-30 oil with a capacity of 11.3 US. Gal. (42.6 L). p. 37
How to troubleshoot engine won't start?

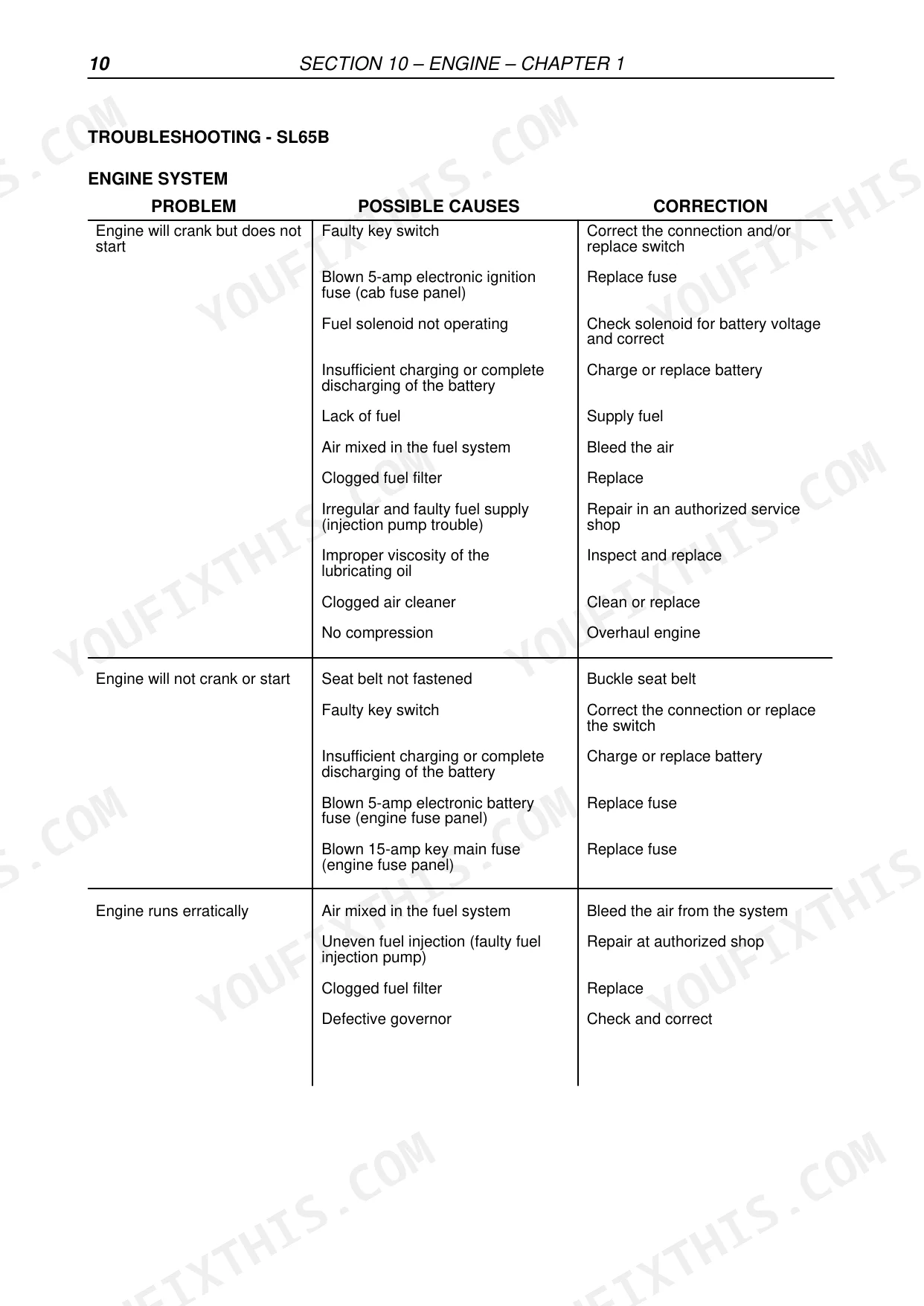

If the engine cranks but does not start, possible causes include a faulty key switch, blown 5-amp electronic ignition fuse, or a non-operating fuel solenoid. If the engine will not crank or start, check for an unfastened seat belt, a faulty key switch, or insufficient battery charge. p. 68
What are the valve clearance specifications?
For exhaust valves, the lash clearance (cold) is 0.43 - 0.53 mm (0.017″ - 0.021″). For intake valves, the lash clearance (cold) is 0.36 - 0.46 mm (0.014″ - 0.018″). p. 77

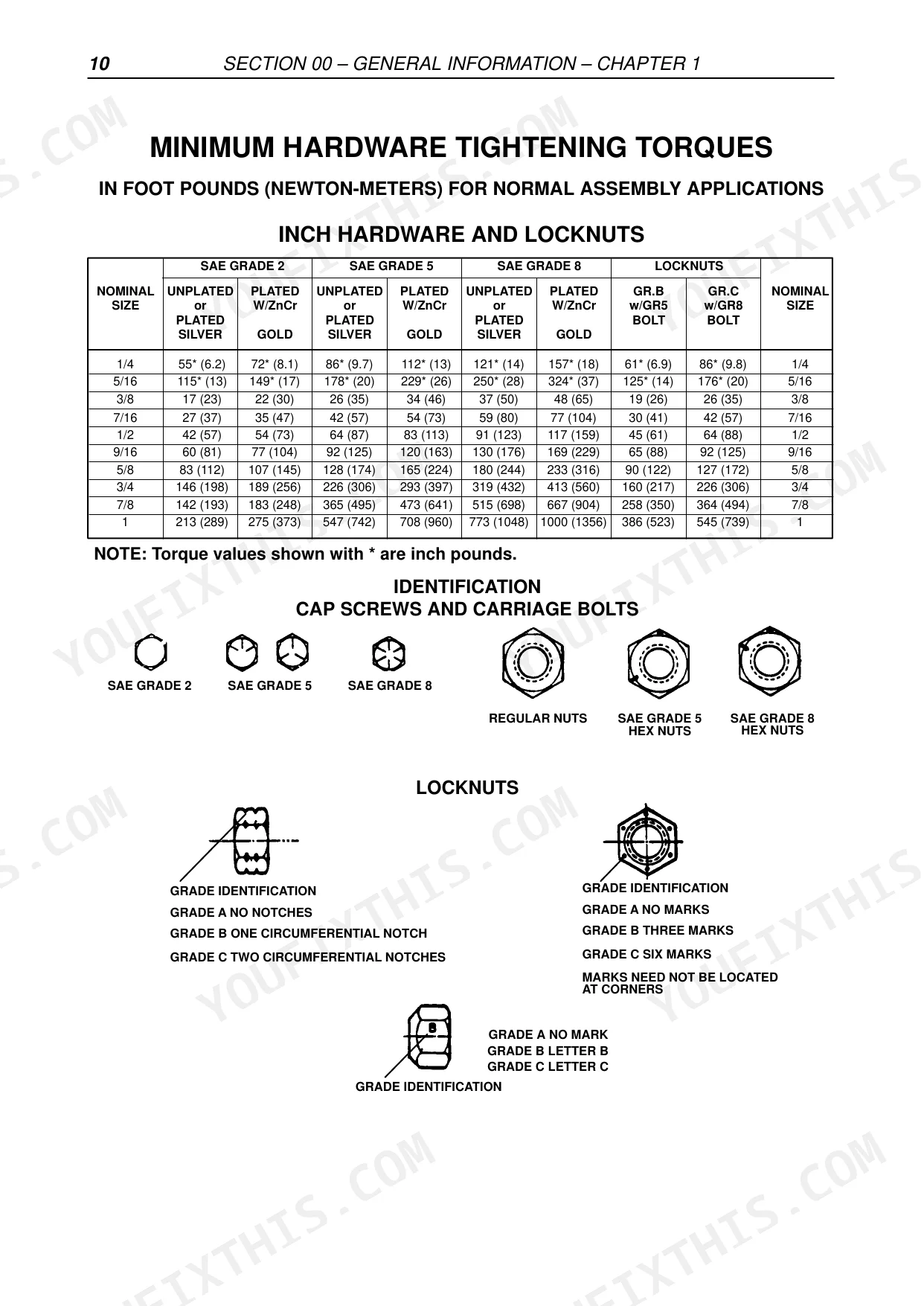

What torque specifications are listed?

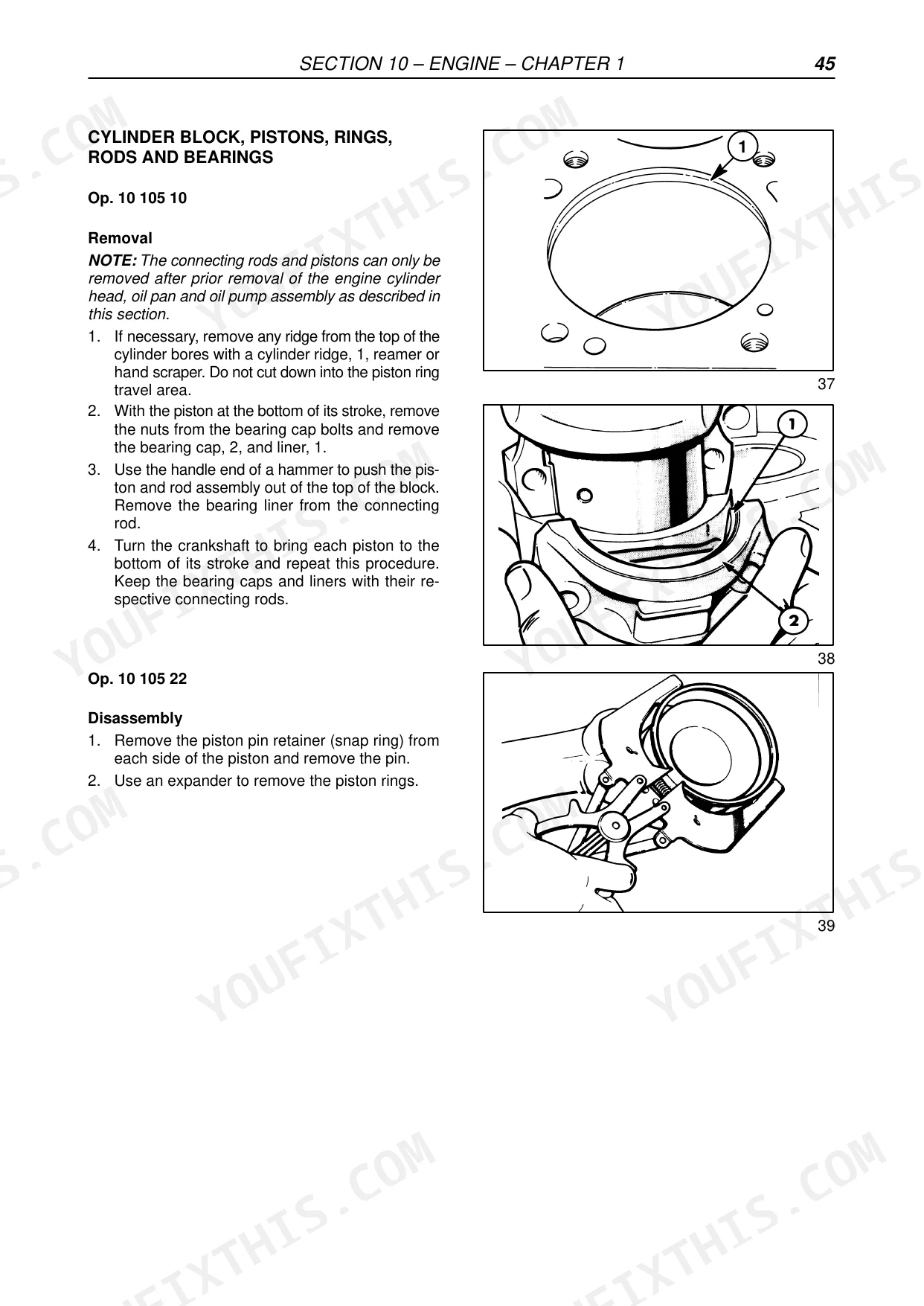

The manual provides extensive torque specifications. For example, Main Bearing Bolts should be torqued to 163 N·m (120 ft. lbs.), Connecting Rod Nuts to 85 N·m (63 ft. lbs.), and Cylinder Head Bolts (with Engine Cold) to 150 N·m (110 ft. lbs.). Hydraulic pump mounting hardware is 39 N·m (29 ft. lbs.), and boom cylinder piston locknut torque is 230 N·m (170 ft. lbs.). p. 85
Is this Fiat Kobelco SL65B Workshop Manual a digital download?
Immediate download of the complete 780-page searchable Workshop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
