This is the complete factory workshop set for the Fiat F100, F110, F120, and F130 turbo tractors — two volumes, 546 pages total, publication numbers 603.54.276.01 (Vol. A) and 603.54.276.00 (Vol. B).
Vol. A (226 pages) carries the 8065 series turbocharged diesel engine in depth — 90 pages of engine data alone, plus specifications, torque data, and trouble-shooting for the clutch, transmission, front and rear drive lines, power take off, brakes, hydraulic lift, hydrostatic steering, and electric system. Vol. B (320 pages) goes deep on the chassis and drivetrain side: a 50-page transmission section, front axle and wheels, front-wheel drive, mechanical rear drive, power take off, brakes, hydraulic systems, steering, auxiliary units, the electric system, and the body and operator's cab. Together the two volumes cover the tractor front to back — no chapter is missing.
With both volumes you can rebuild the engine, set head bolt torque, service the hydraulic lift, bleed the brakes, trace a steering fault, or work on the cab and auxiliary units yourself rather than paying shop rates. Print the pages you need or keep both files for reference.
Complete the set for your F100, F110, F120…
- Operator Manual: Fiat F100–F130 Winner Tractor Operator Manual
What's Inside This Fiat F100, F110, F120, F130 Manual
| System | Pages | Key Topics |
|---|---|---|

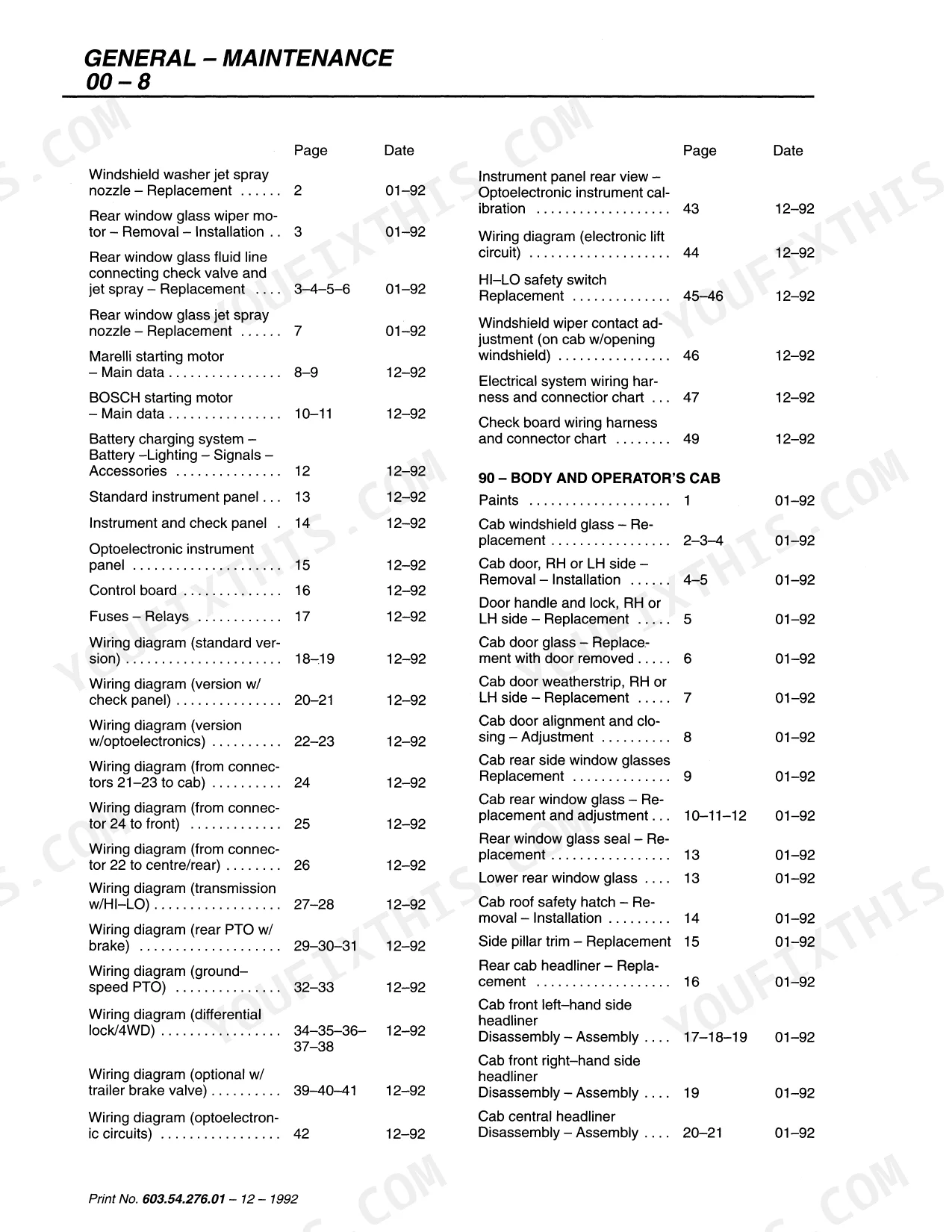

| Vol. A — General - Maintenance | 5-16 | Windshield Washer Jet Spray Nozzle - Replacement, Rear Window Glass Wiper Mo-Tor - Removal - Installation |

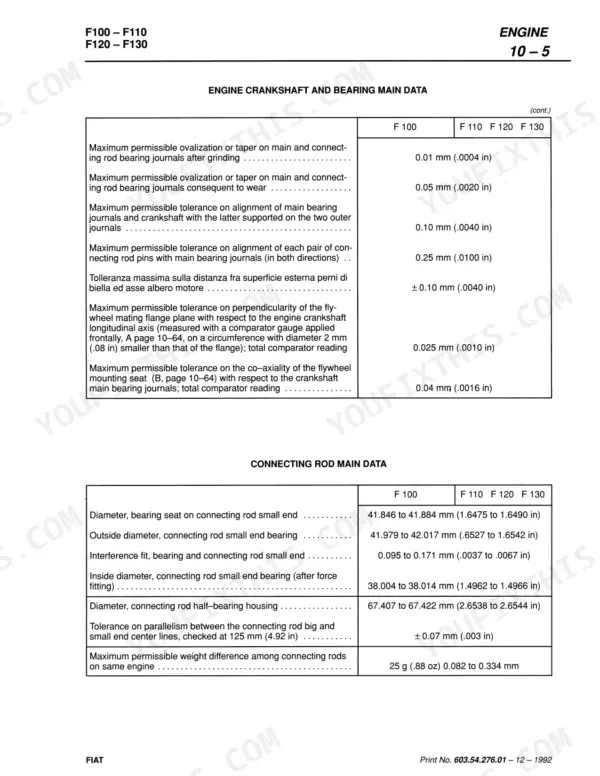

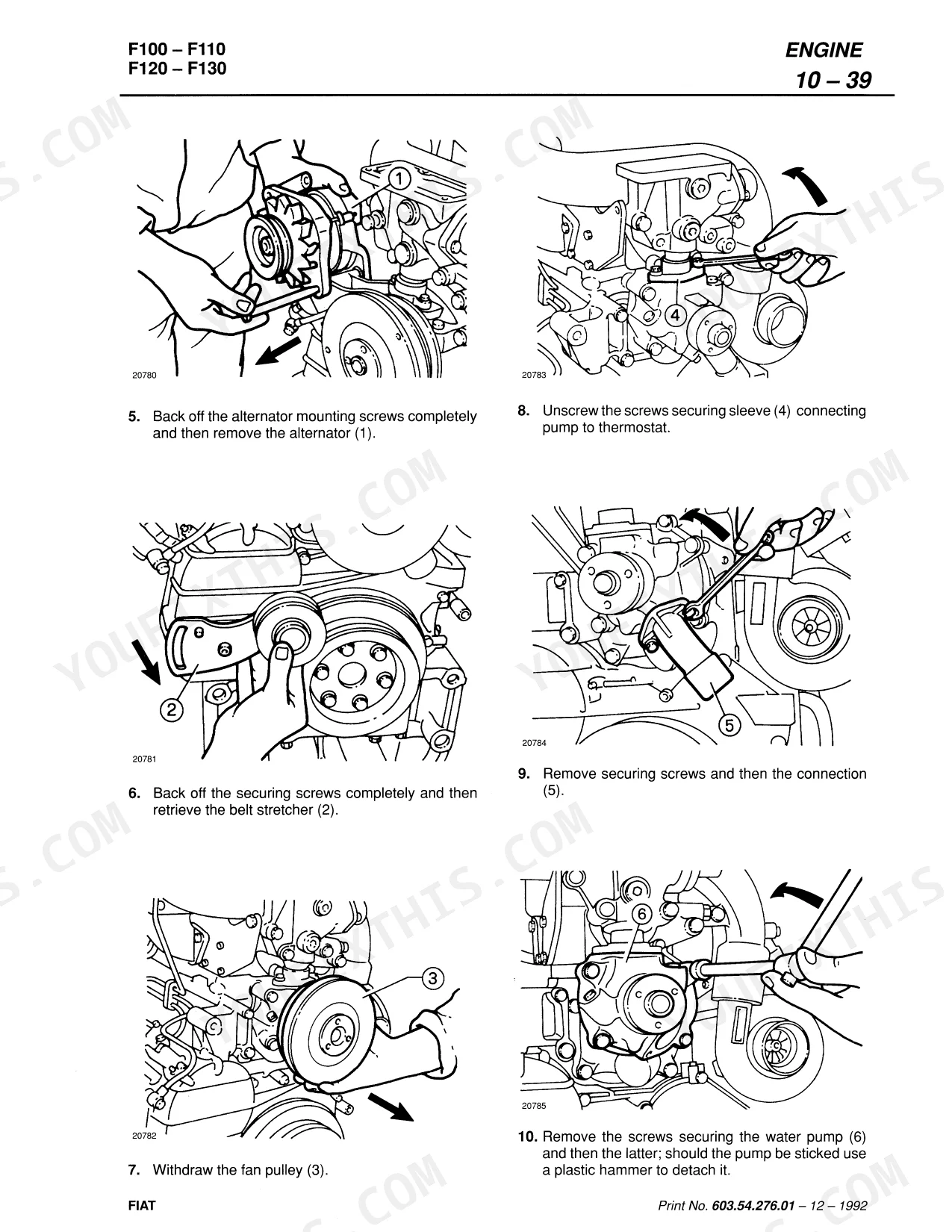

| Vol. A — Engine | 17-106 | General Features and Specifications, Crankcase Main Data, Cylinder Head Main Data, Crankshaft and Bearing Main Data, Fuel System Main Data, Trouble-Shooting |
| Vol. A — Clutch | 107-110 | Retrieve Shafts and Respective Supports, Support the Rear End of the Tractor Through a Station-Ary Stand Positioned Underneath the Rear Trans-Mission Case |
| Vol. A — Transmission | 111-118 | Tool N. 293971 (1, Front) and 293972 (2, Rear), Remove Capscrews and Top Cover Plate (3), Clutch-Transmission Case, Range Drive and Driven Shafts, Slide Out Shifter Shaft (11) |
| Vol. A — Front - Wheel Drive Lines | 119-122 | Fix the Screw of Tool 293995 Onto the Shaft, Fit Test Tool 293995 to Transmission Case |
| Vol. A — Mechanical Rear Wheel Drive | 123-128 | Longitudinal and Cross-Sectional Views of the Mechanical Rear Drive, Bevel Drive and Differential Trouble-Shooting Chart, Final Drive Trouble-Shooting Chart |
| Vol. A — Power Take-Off | 129-132 | Special Tool for the PTO Clutch Spring Cup, Sectional Views of Power Take-Off, Power Take-Off Trouble-Shooting Chart, Remove the Clutch Lines and Speed Selection Control Lever |
| Vol. A — Brakes | 133-138 | Specifications, Torque Data, Service Tools, Trouble-Shooting, Brake Pedal Adjustment, Air Bleeding Brake Hydraulic System |
| Vol. A — Hydraulic Systems | 139-172 | Where Fitted, Disconnect the Trailer Hydraulic Brake, Draft Con-Trol Rod, Lift-O-Matic Control Rod), Remove the Rear Transmission Oil Dipstick, Also Apply the Sealing Compound, Rear-Mounted Hydraulic Lift External Controls, Disassembly-Assembly (Op. 35 110 17) |
| Vol. A — Steering | 173-194 | Hydrostatic Steering, Hydraulic Pump, Sectional Views of the Hydrostatic Steering Control Valve, Hydrostatic Steering Trouble-Shooting Chart, Service Tools |
| Vol. A — Electric System | 195-226 | Rear Window Glass Washer (Replacement, For Replacement, Proceed As Follows, Remove Plugs Covering the Nozzle Holder Sup-Port Screws, Remove the Nozzle Holder Support Screws Using a Phillips-Head Screwdriver, Disconnect Fluid Line From Nozzle After Remov-Ing the Nozzle Holder Support, With the Nozzle Holder Support on Workbench, Remove the Nozzle Locknut Using a 13Mm Wrench, Holding the Nozzle with a 12Mm Wrench, Retrieve Component Parts, Proceed for the Installation of the Rear Window Glass Spray Nozzle by Reversing the Previous Sequence of Operations, Starting From No. 5 Back to No. 1) |
| Vol. B — General - Maintenance | 5-14 | |
| Vol. B — Clutch | 15-28 | |
| Vol. B — Transmission | 29-78 | |
| Vol. B — Front-Wheel Drive Lines | 79-94 | |
| Vol. B — Front-Wheel Drive | 95-120 | |
| Vol. B — Mechanical Rear Wheel Drive | 121-156 | |
| Vol. B — Power Take-Off | 157-170 | |
| Vol. B — Brakes | 171-186 | |
| Vol. B — Hydraulic Systems | 187-218 | |
| Vol. B — Steering | 219-228 | |
| Vol. B — Front Axle and Wheels | 229-236 | |
| Vol. B — Auxiliary Units | 237-288 | |
| Vol. B — Electric System | 289-296 | |
| Vol. B — Body and Operator's Cab | 297-320 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Draft control sensor ring nut distance from lift housing during adjustment | 10 mm (.4 in) | p. 157 |
| Cylinder head capscrews torque (Engine section) | 70 Nm (7.1 kgm, 51.3 ft.lb) + 90° + 90° | p. 26 |
| Final drives to rear axle case stud nuts torque (Brakes section) | 176 Nm (18 kgm, 129 ft.lb) | p. 133 |
| Number of Cylinders | 6 | p. 17 |
| Piston Stroke | 115 mm | p. 17 |
| Engine Compression Ratio | 17.1 | p. 17 |
| Maximum Power Speed | 2300 r.p.m. | p. 17 |
| Maximum Torque Speed | 1500 r.p.m. | p. 17 |
| Cylinder Head Capscrew Torque | 70 Nm (7.1 kgm, 51.3 ft.lb) + 90° + 90° | p. 28 |
| Main Bearing Cap Capscrew Torque | 80 Nm (8.2 kgm, 59.3 ft.lb) + 90° | p. 28 |
| Connecting Rod Capscrew Torque | 40 Nm (4.1 kgm, 29.6 ft.lb) + 60° | p. 28 |
| Hydraulic Brake Working Oil Pressure | 17.6 bar (18 kg/sq.cm) | p. 133 |
