Built from Gehl's own service documentation (OEM #918161 Revision A), this manual targets one outcome: your 153, 193, or 223 back at factory spec. Hydraulics get 30 pages, running from pilot oil supply and main valve block teardown through the dozer blade valve, swivel unit, and drive unit. Wiring diagrams cover the cab, chassis, and diesel engine, with relay box and fuse box layouts laid out alongside lift capacity charts, hose burst protection specs, a maintenance schedule with lubricant callouts, and torque tables sorted by thread class for light and heavy fittings. Numbers are exact: 0.039 in. (1 mm) clearance on the dozer blade cylinder hose burst protection, 88.5 lb-ft. (120 Nm) on the swivel unit bolts. Bookmarked and keyword-searchable, so you find the procedure and get back under the machine.
What's Inside This Gehl 153, 193, 223 Manual
| System | Pages | Key Topics |
|---|---|---|

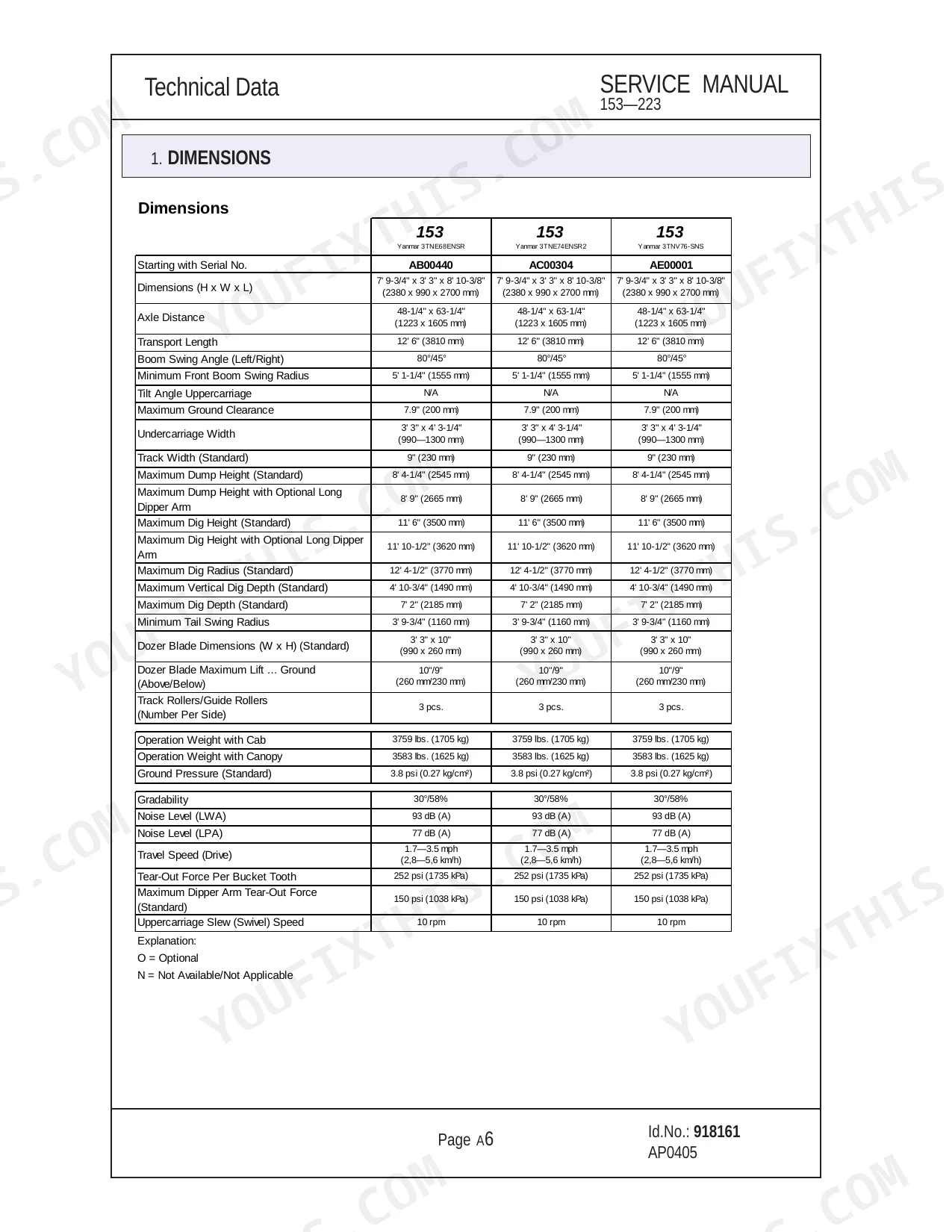

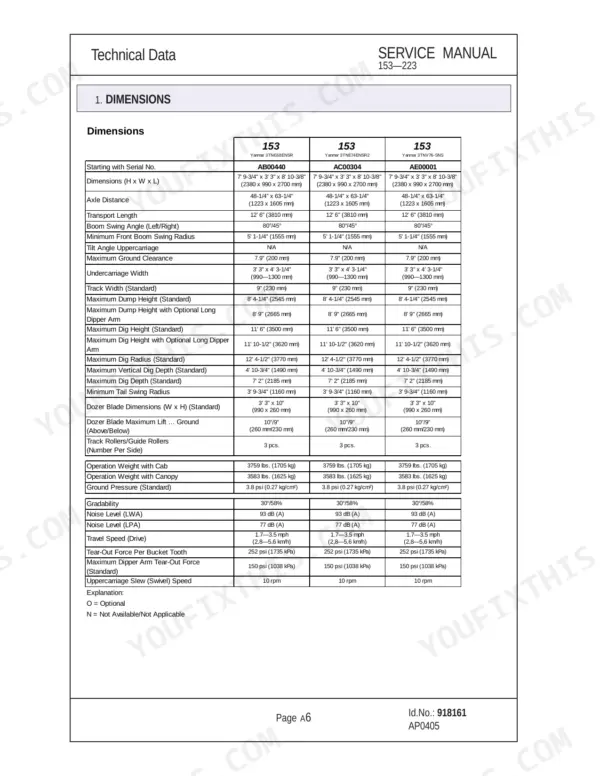

| Technical Data | 5-32 | Primary Dimensions, Bucket & Geometry, Lift Capacity Charts, Hydraulic System, Tightening Torques |

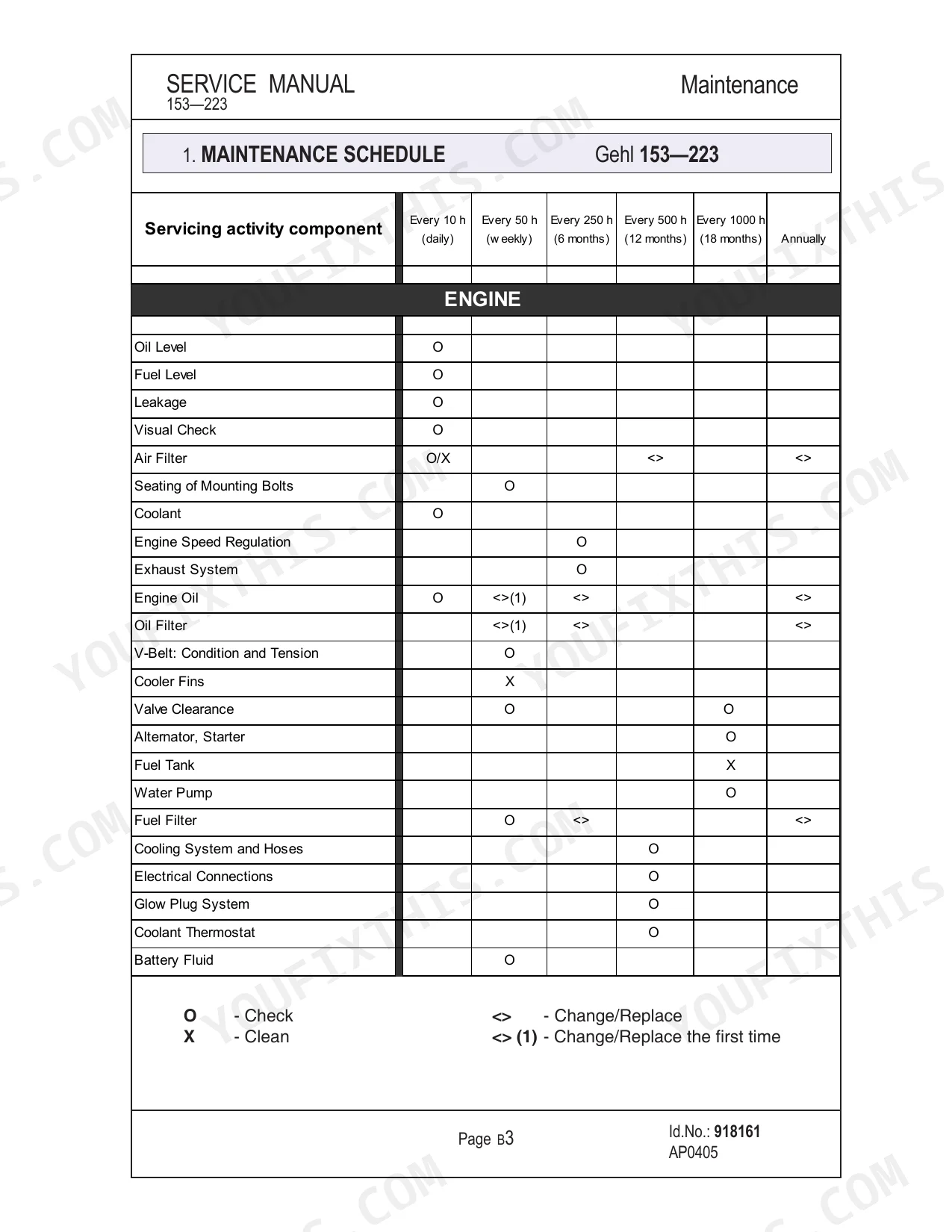

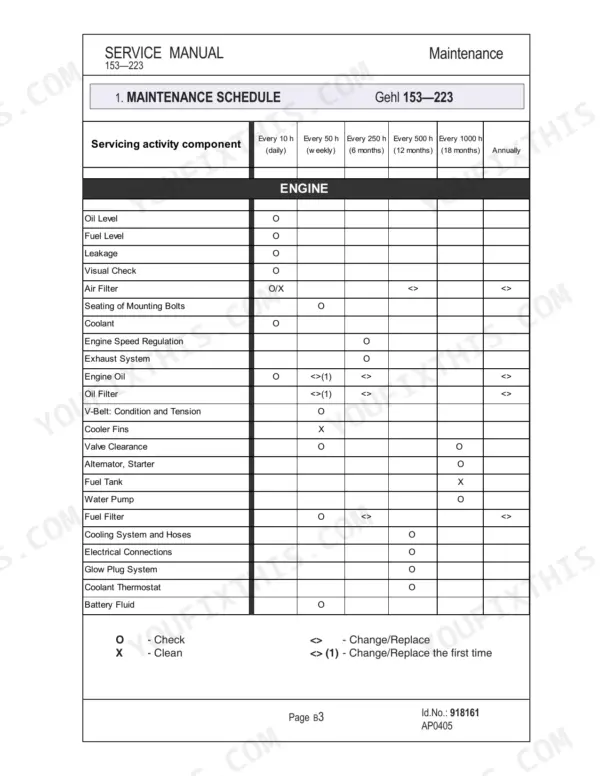

| Maintenance | 33-51 | Maintenance Schedule, Lubricants, Hydraulic System, Hydraulic Pump, Hose Burst Protection, Drive Unit, Swivel Unit, Auxiliary Hydraulic System |

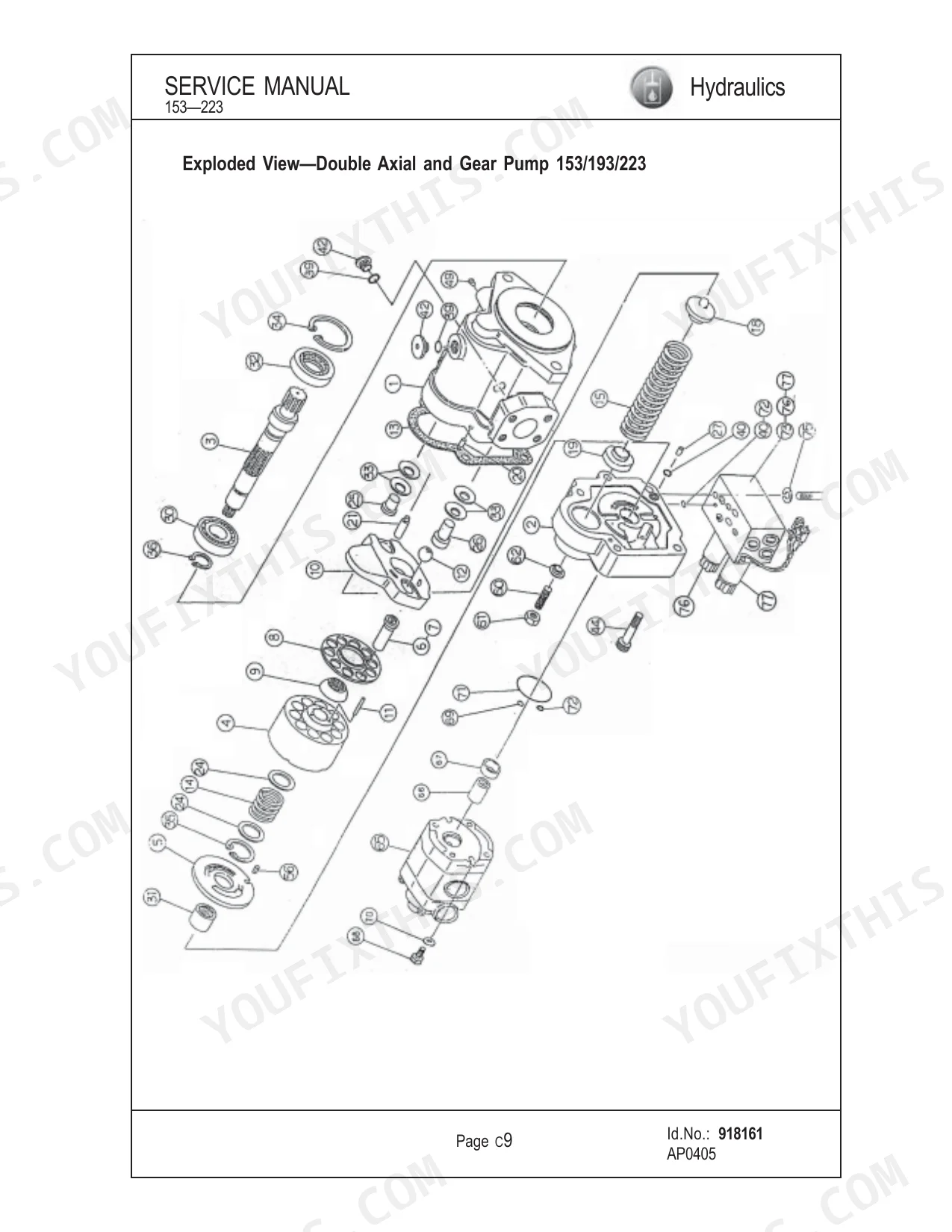

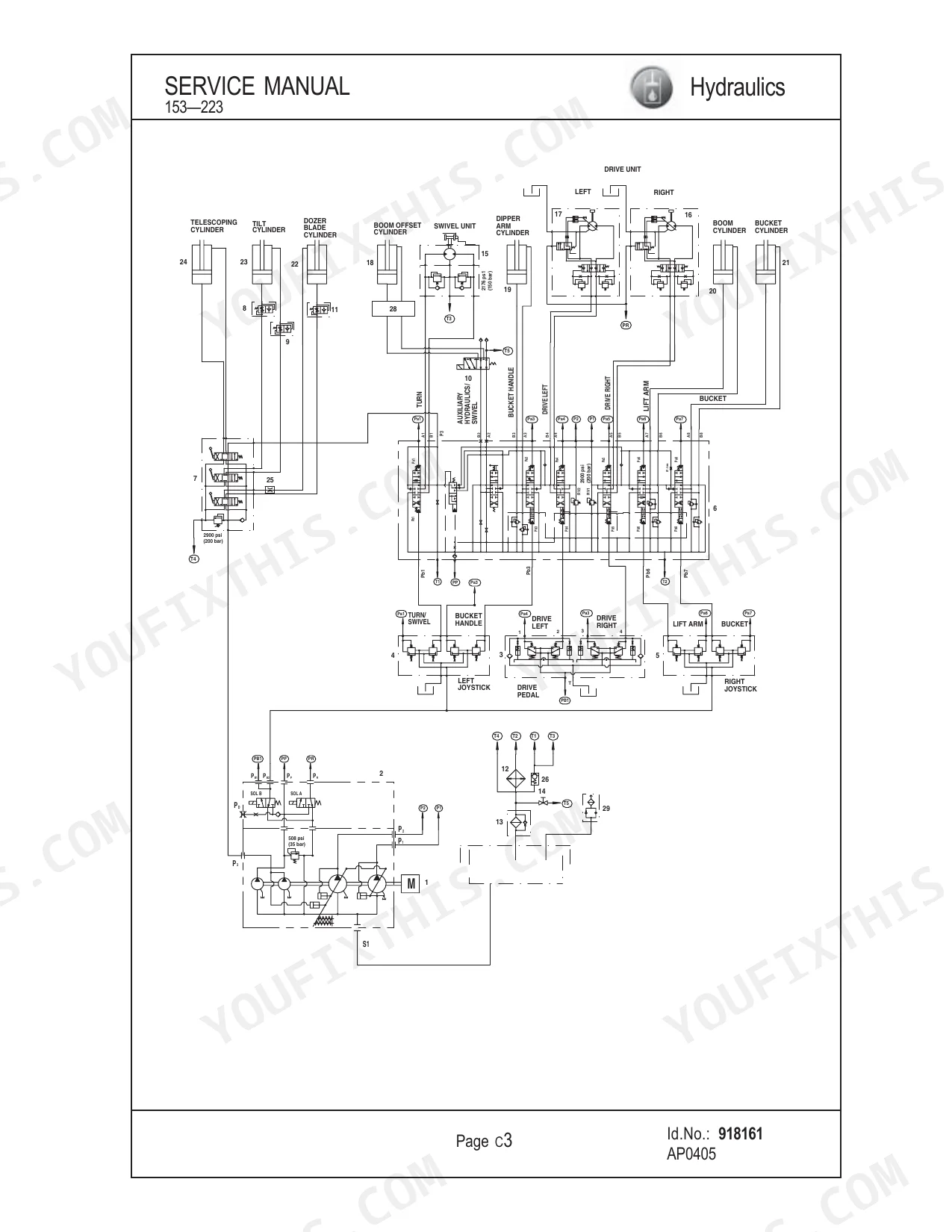

| Hydraulics | 52-97 | Hydraulic Diagram, Hydraulic Pump, Pilot Oil Supply Unit, Main Valve Block, Dozer Blade Valve, Pilot Control Valves, Swivel Unit, Drive Unit |
| Diesel Engine | 98-101 | Diesel Engine Overall, Fuel Supply Line (Fuel Injector Valves, Fuel Injector Pump, Non-Return Valve, Throttle, Main Fuel Filter, Fuel Pump, Water Separator, Fuel Tank) |

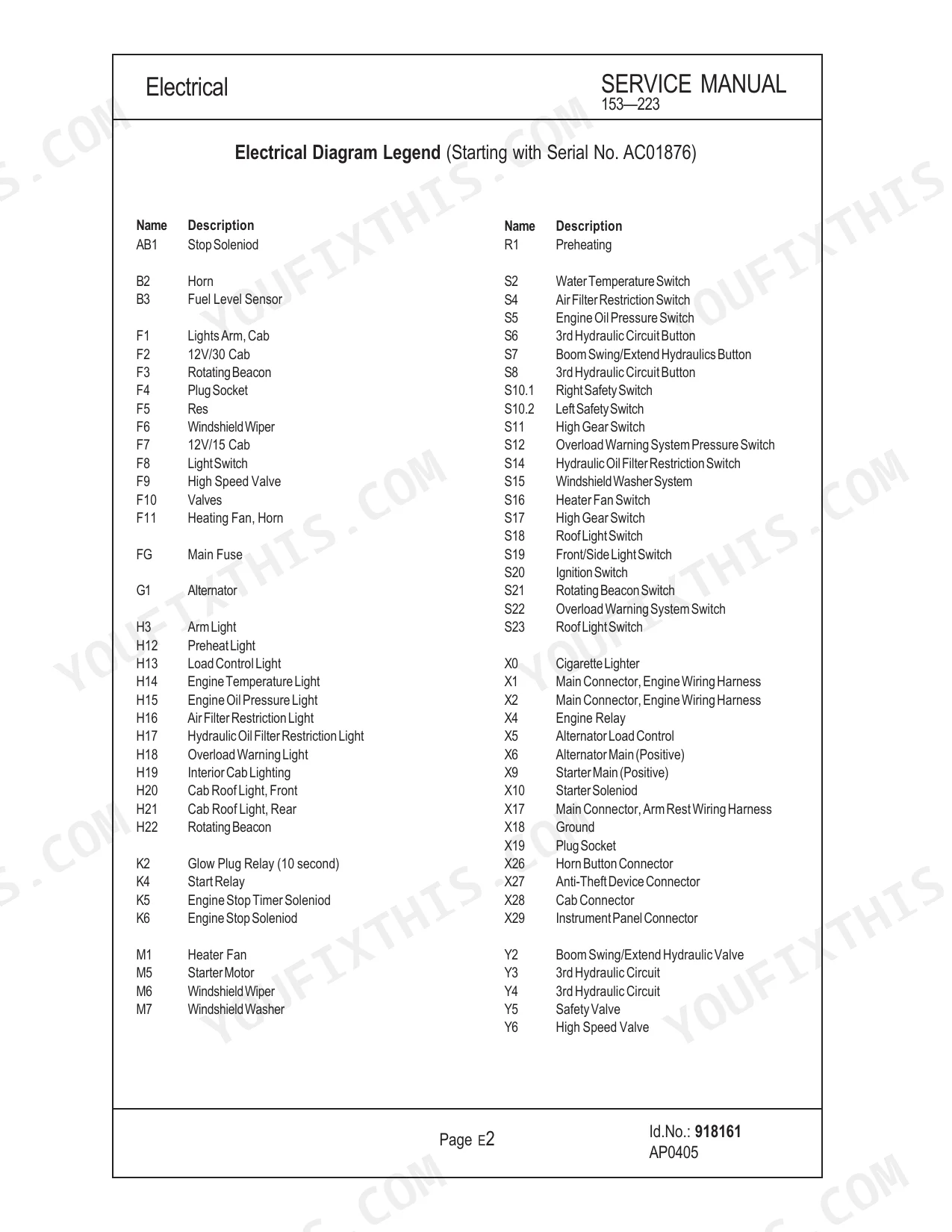

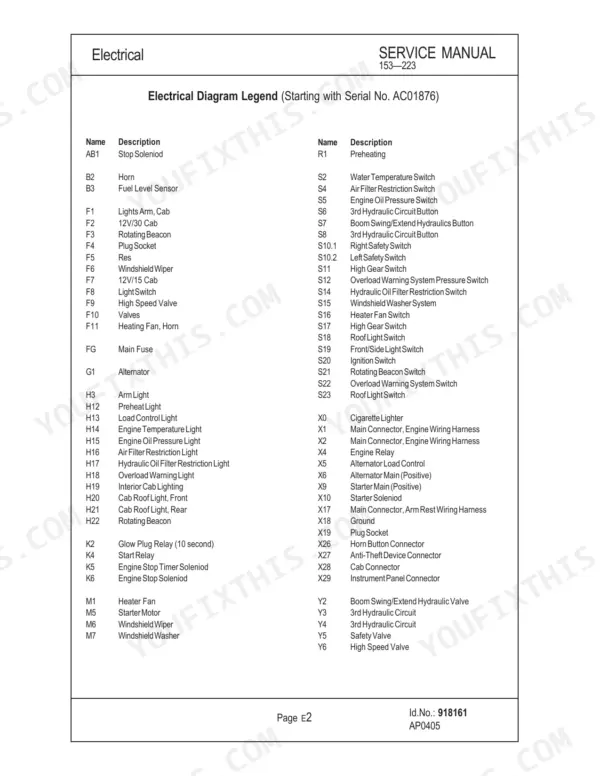

| Electrical | 102-111 | Electrical Diagram Legend, Cab Wiring, Diesel Engine Wiring, Chassis Wiring, Connection Cable Wiring, Relay Box Relay Arrangement, Fuse Box |
| Operating Elements | 112-120 | Major Components, Cab Equipment and Controls, Instrument Panel, Towing the Compact Excavator, Lifting the Compact Excavator, Tilting the Superstructure, Undercarriage Telescoping |
| Torque Specifications | 121-124 | Hydraulic Fittings with Various Seals (Straight Pipe Fitting with Thread and Screwed Plug, Non-Return Valve with Elastic Seal, Identification Aid Outside Ø) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Track Roller bolts torque | 47.2 lb-ft. (64 Nm) | p. 31 |

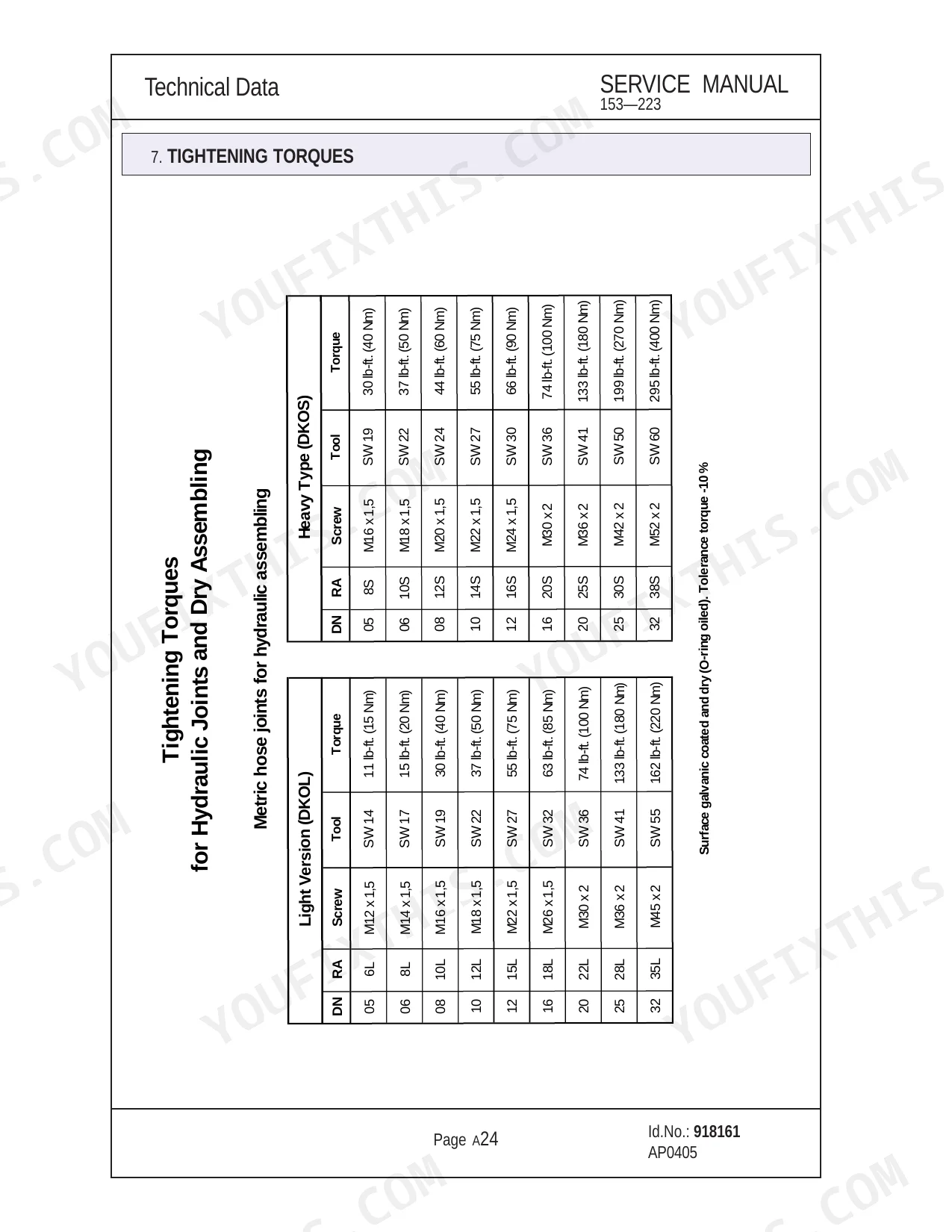

| Metric hose joint (Light Version DKOL) M12 x 1.5 screw torque | 11 lb-ft. (15 Nm) | p. 28 |
| Hose Burst Protection Valve Clearance S for Dozer Blade Cylinder | 0.039" (1 mm) | p. 22 |
| Swivel Unit bolts torque | 88.5 lb-ft. (120 Nm) | p. 31 |
| Fuel Tank capacity | 25.4 qt. (24 L) | p. 25 |
| Engine Oil—Oil Pan (Maximum/Effective) capacity | 2.5/1.05 qt. (2.4/1.0 L) | p. 25 |
| Valve Clearance (IN=OUT) | 0.006—0.010" (0.15—0.25 mm) | p. 24 |
| Glow Plug (M10 x 1.25) torque | 11—15 lb-ft. (15—20 Nm) | p. 25 |
| Maximum allowable pressure drop for Primary Pressure Limiting Valves | 10% of the setting | p. 39 |
| Hydraulic Oil Tank Capacity | 5.5 gal. (21 L) | p. 20 |
| Engine Oil Capacity (Oil Pan Maximum/Effective) | 2.5/1.05 qt. (2.4/1.0 L) | p. 25 |
| Main Pressure Limiting Valve (P1, P2) Pressure | 2900 ±44 psi (200 ±3 bar) | p. 20 |
Gehl 153, 193, 223 Common Problems This Manual Covers
Hydraulic functions on the 153 weaken and turn erratic, bucket and boom slow to respond p. 39
Check hydraulic fluid level first; the tank holds 5.5 gal. (21 L) and low fluid causes erratic response. Test main pressure at the primary limiting valves on page 39; the maximum allowable drop is 10% of the 2900 ±44 psi (200 ±3 bar) setting. Inspect for internal leakage at the main valve block if pressure tests within spec.
Manual Section: Hydraulic System Pressure Test (P1, P2, P3, Pilot Oil)Engine cranks but won't start, or runs rough and loses power under load p. 98
Inspect the fuel supply line components starting on page 98: check the water separator, main fuel filter, and injector pump for contamination or air ingestion. Verify valve clearance falls within 0.006-0.010" (0.15-0.25 mm) per the spec on page 24. If glow plugs are fouled, torque replacements to 11-15 lb-ft. (15-20 Nm) and retest cold-start performance.
Manual Section: Diesel EngineTracks go slack or one side rides loose after hard hours in the field p. 50

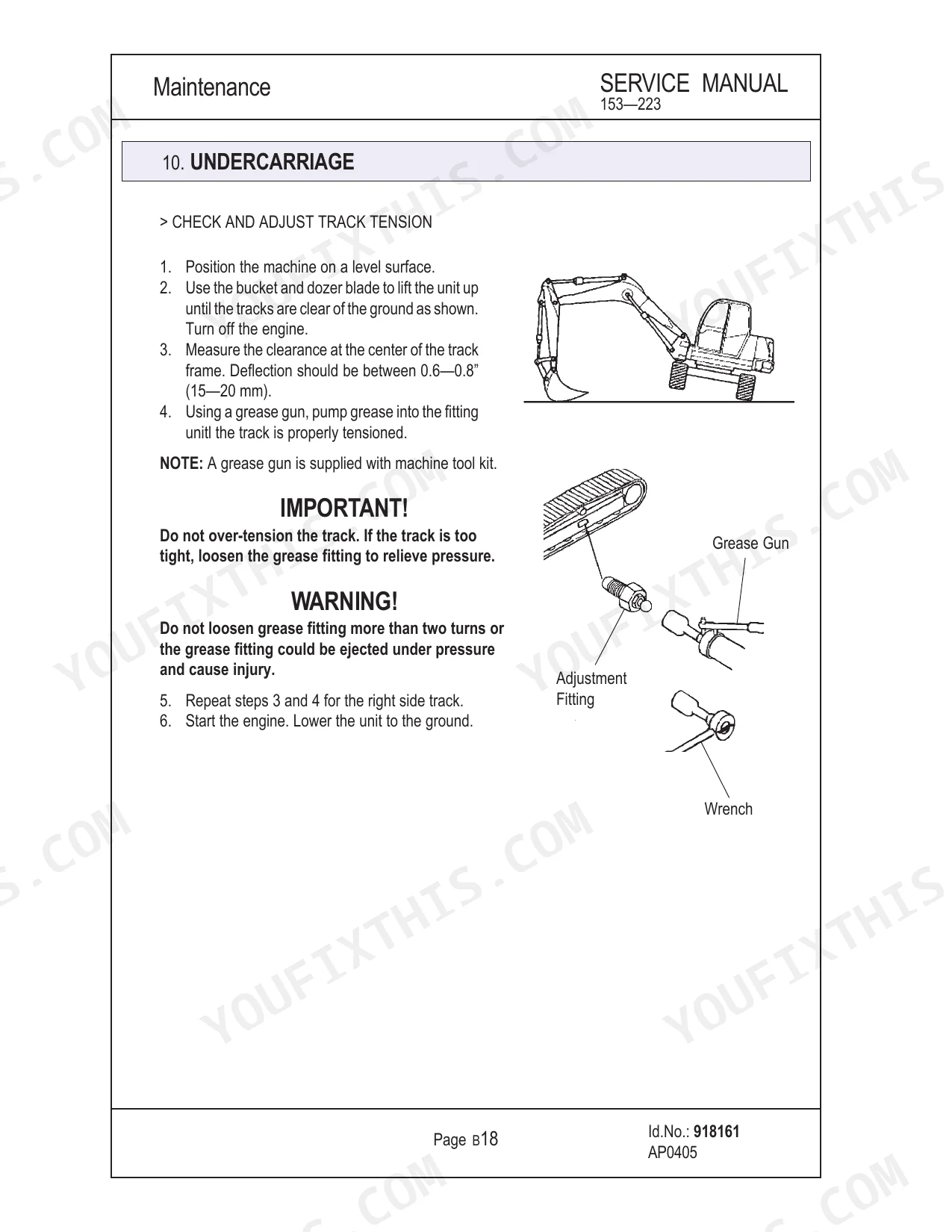

Measure track sag at the midpoint between the sprocket and front idler; correct clearance is 0.6-0.8" (15-20 mm). Use a grease gun to add grease through the tensioner fitting until clearance is within spec, following the adjustment procedure on page 50. Recheck after the first hour of operation under load, as tracks settle into new tension.
Manual Section: Undercarriage Track Tension Check and AdjustmentMachine pulls left or right, won't track straight when arm functions are active p. 71
Verify pilot oil pressure holds at 435 +29/-14.5 psi (30 +2/-1 bar); a drop here causes cross-talk between arm and drive circuits. Inspect the drive counterbalance valves for wear or debris if pressure is within spec but drift continues. Trace the drive and pilot circuits through the hydraulic diagram in the Hydraulics section starting on page 52 to isolate the fault.
Manual Section: Drive Counterbalancing System DiagnosisHydraulic pump noisy after service, cavitation or whining present on startup p. 46
Bleed the hydraulic pump immediately after any work that opens the circuit; trapped air causes cavitation and accelerated wear. Refill the tank to its full 5.5 gal. (21 L) capacity before starting (page 20). Cycle all hydraulic functions slowly at low RPM several times to purge remaining air pockets before returning the machine to full working load.
Manual Section: Hydraulic Pump BleedingFrequently Asked Questions
What are the replacement specifications for hydraulic components?
On the GEHL 153, the hydraulic pump is the Variable/Gear Pump 1528401 (Version A: PVD-0B-20BP-8GA5-4953(A)). Set the Main Pressure Limiting Valve for Pump P1, P2 to 2900 ±44 psi (200 ±3 bar). Tank capacity runs 5.5 gal. (21 L).
What are the replacement specifications for filters?
The oil tank breathing filter changed on GEHL 153 to 223 models: a new filter applies from Serial No. AC00985 and up. Old and new versions do not interchange.
Is this Gehl 153, 193, 223 Service Manual a digital download?
A 124-page Service Manual in searchable PDF, ready the moment checkout completes. Open it on a computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Gehl 153, 193, 223 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Gehl 153, 193, 223 Service Manual cover the hydraulic system?

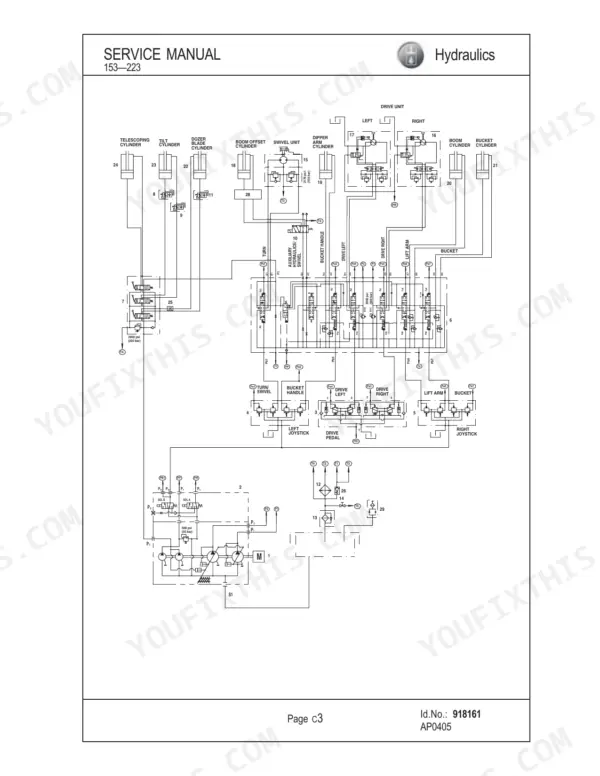

Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Gehl 153, 193, 223.
Document Quality
This document is a scanned PDF, but it includes an accurate OCR layer, so you can search and copy the full text content. The text throughout is crisp and consistently easy to read, with no blurriness or fading. Diagrams and illustrations are primarily raster images or photos, but they are clear, and all labels are readable. Pages are clean with no noticeable scan artifacts, stains, or skewed content, maintaining a professional appearance. There are several "This page intentionally left blank" filler pages present.
