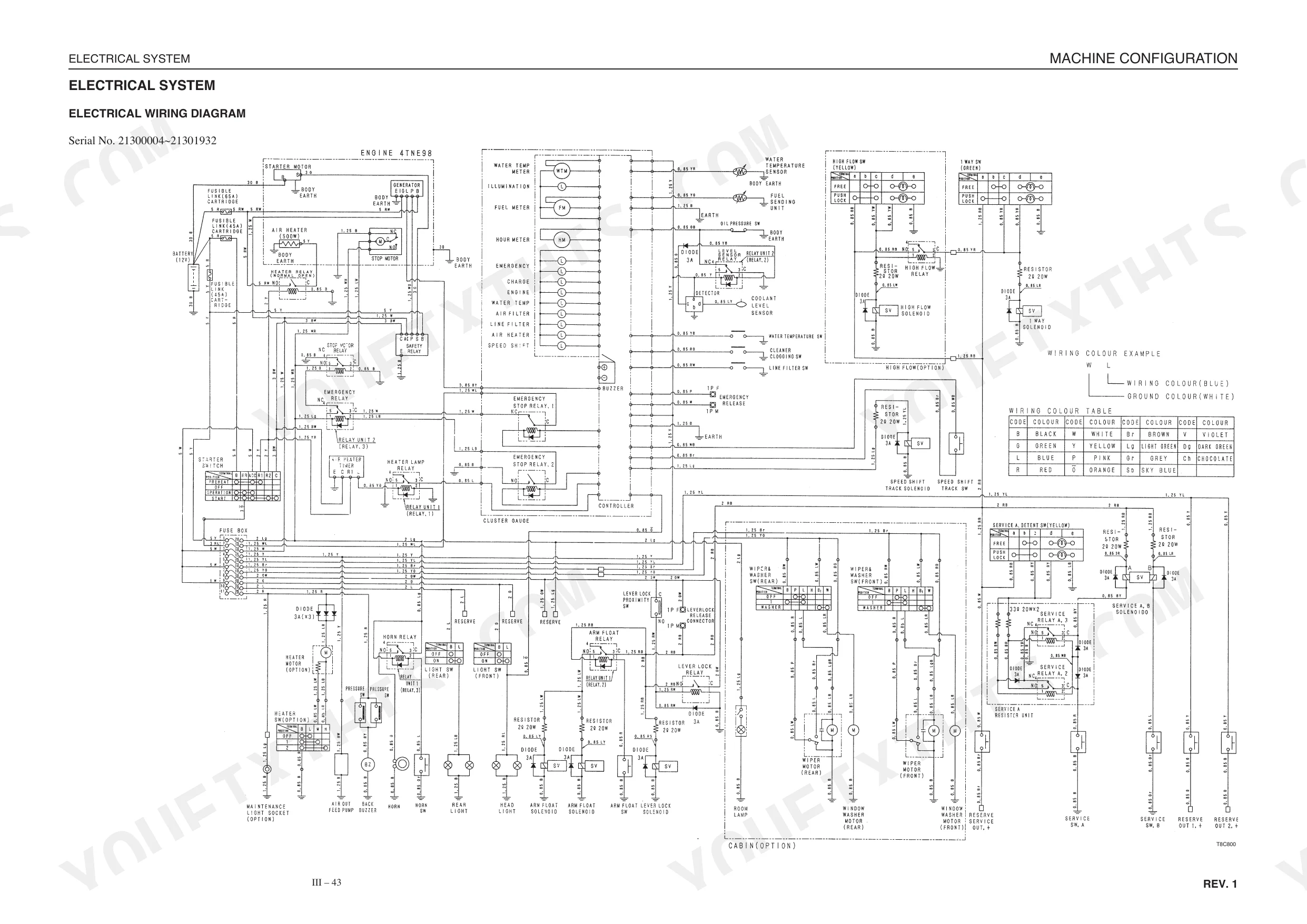

Gehl built the CTL60 and TL130 on shared systems, and this OEM manual (#908310) documents them at factory depth across 755 pages. Hydraulic schematics map the HST pump, gear pump, control valve, pilot valve, and self-level valve circuits, backed by wiring diagrams for the full electrical system. The machine configuration section walks through drive, travel, frame, controls, and attachments, while 15 pages of troubleshooting charts work through travel faults, lift arm issues, and bucket problems in sequence. Engine coverage runs deep for both the 4TNE94/98/106 and the 3TNV/4TNV series, with complete rebuild procedures. Need the real numbers? Track roller A bolts torque to 241 N·m; connecting rod bolts run 53.9 to 58.8 N·m on the 4TNV94L/98. Bookmarked by section and keyword-searchable, so you can pull a spec on any device and get back to the machine.
What's Inside This Gehl CTL60, TL130 Manual

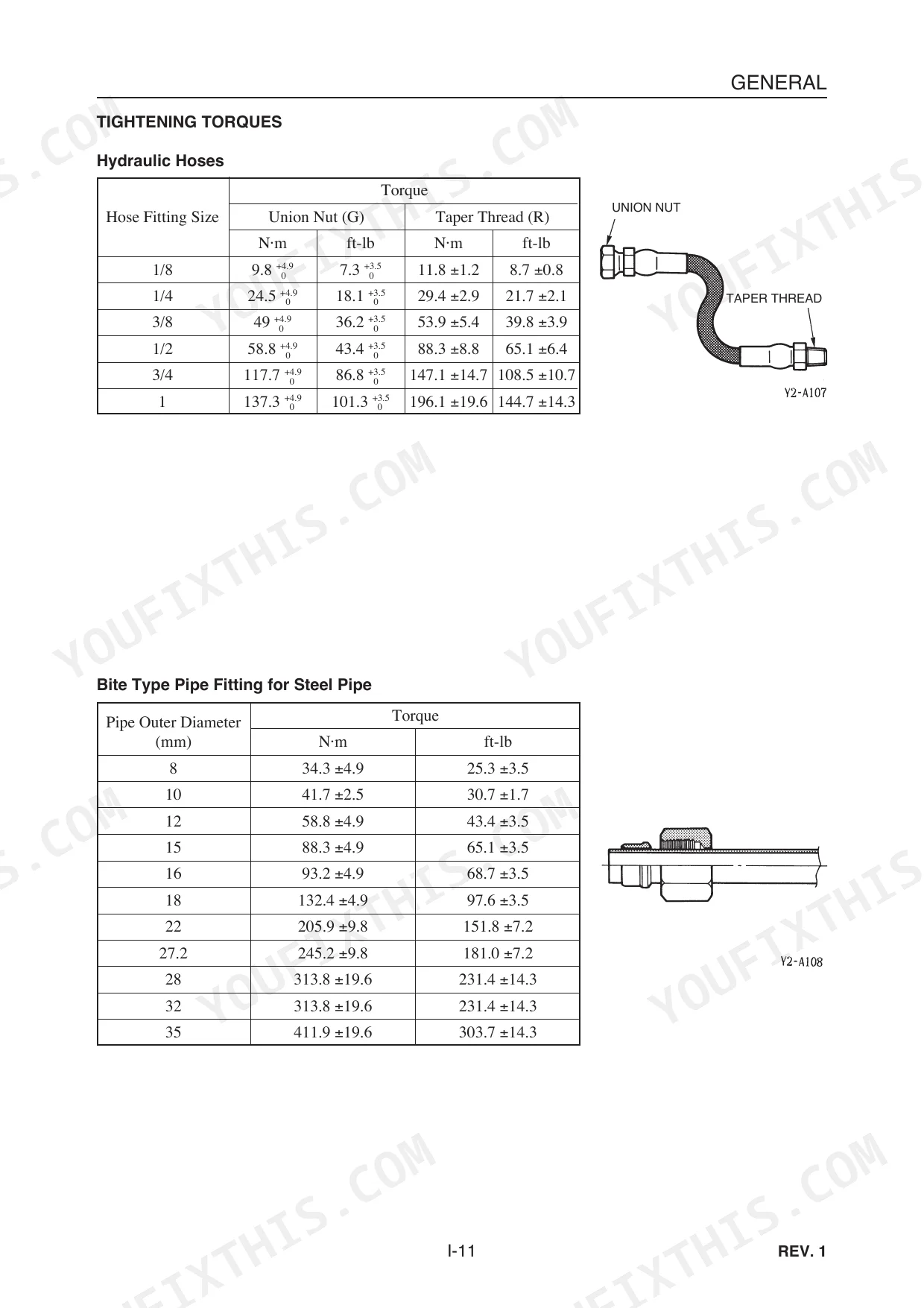

| System | Pages | Key Topics |
|---|---|---|
| General | 9-22 | Safety Precautions, Cautions During Disassembly and Assembly, Cautions During Removal and Installation of the Hydraulic Units, Cautions During Removal and Installation of Piping |

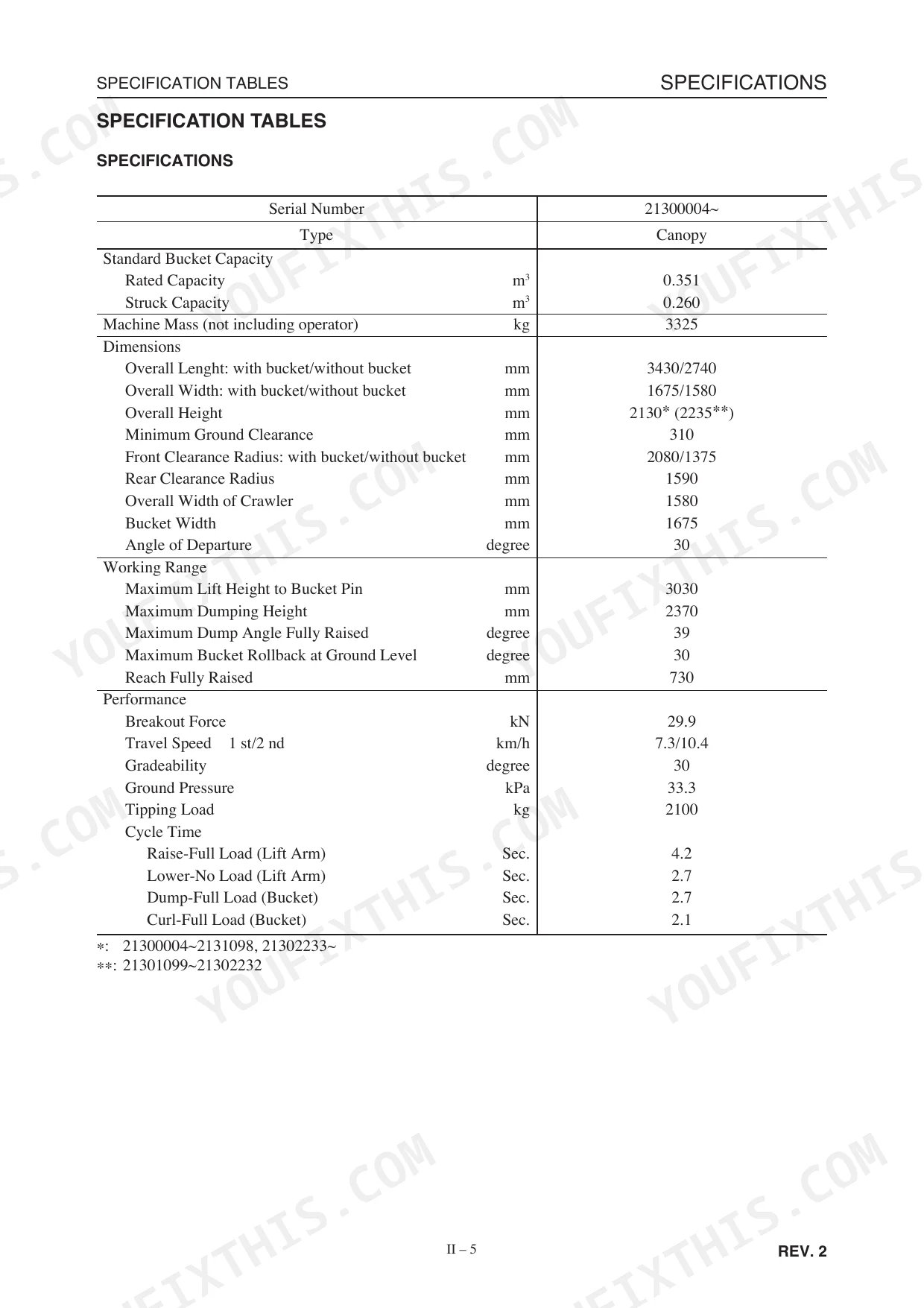

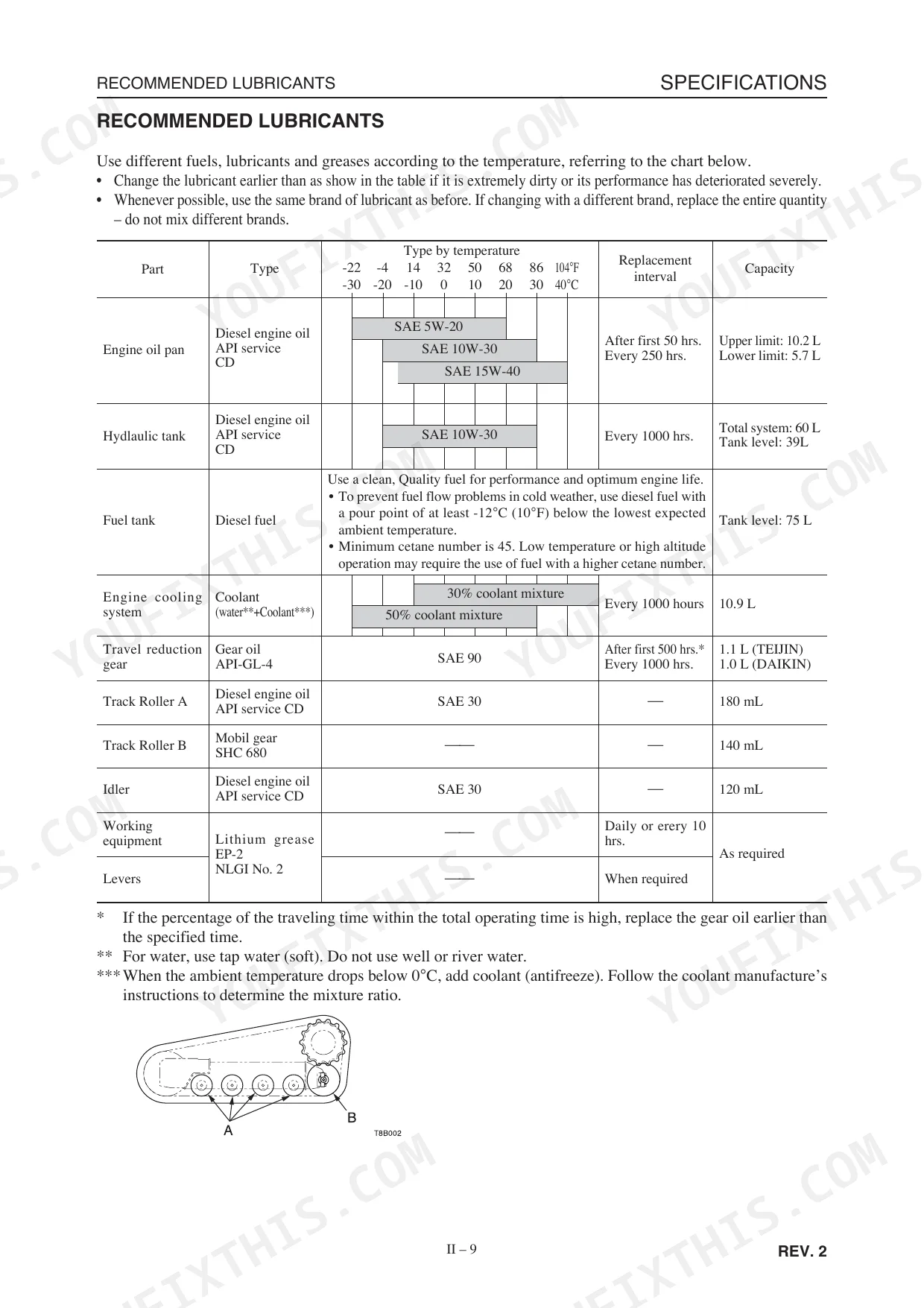

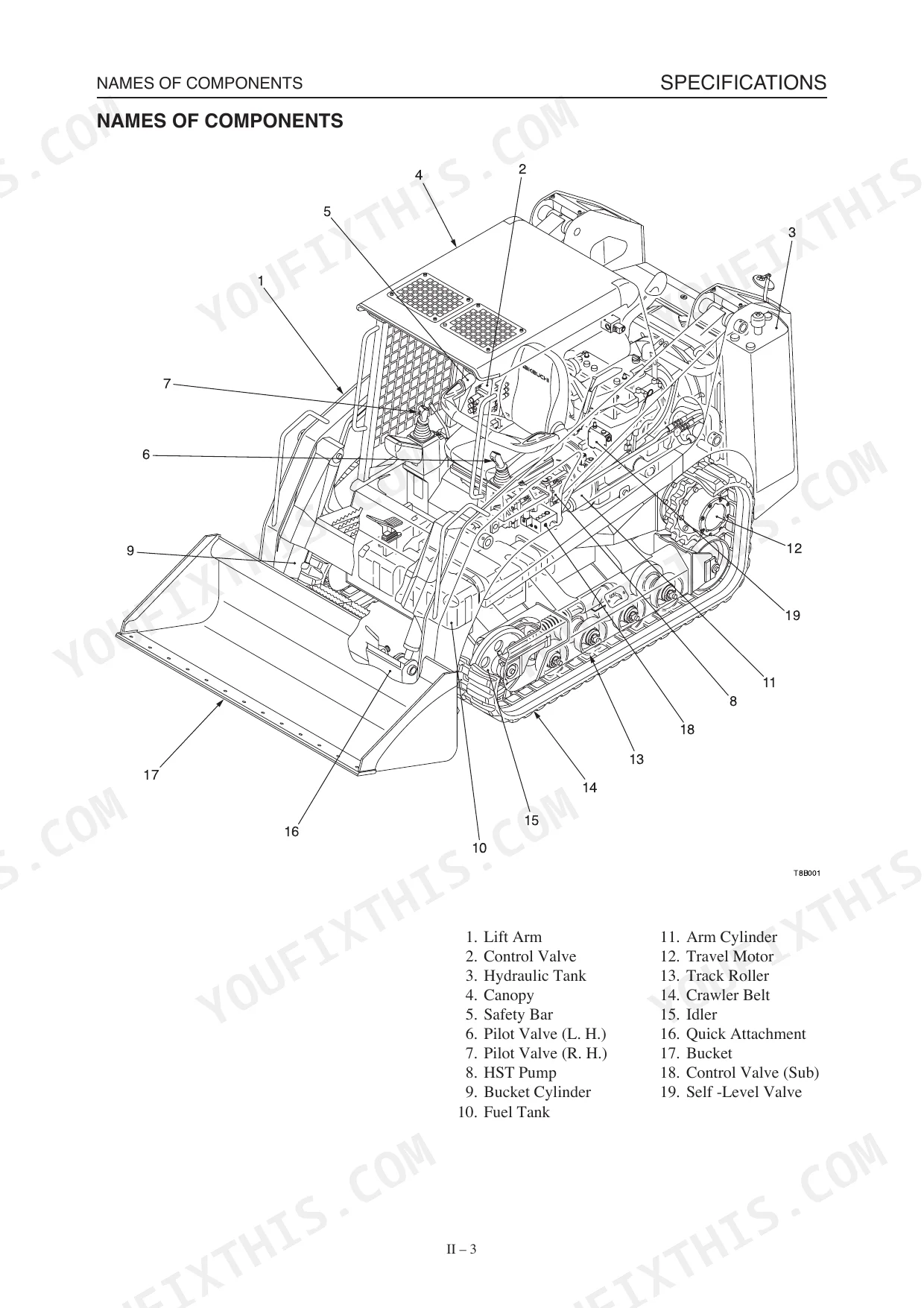

| Specifications | 23-44 | Names of Components, Dimensions, Specification Tables, Mass Tables, Recommended Lubricants, Servicing Standards |
| Machine Configuration | 45-170 | Drive System, Travel System, Frame, Control System, Attachments, Hydraulic System |
| Hydraulic Units | 171-322 | HST Pump, Gear Pump, Control Valve, Pilot Valve, Self-Level Valve, Cylinders |

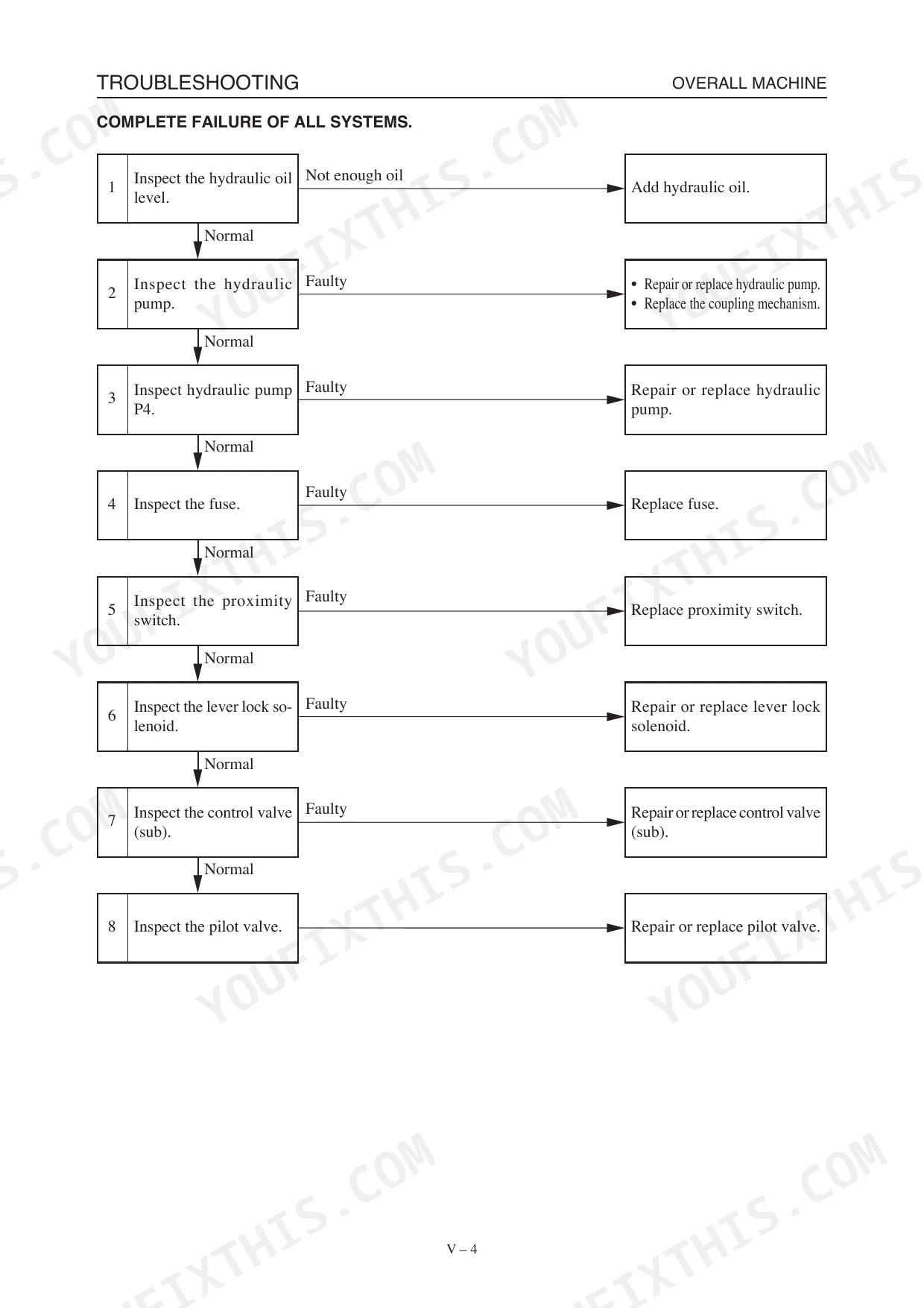

| Troubleshooting | 323-352 | Overall Machine, Machine Travel, Lift Arms, Bucket |
| Engine | 353-755 | 4Tne94/98/106 (Contents), 3TNV/4TNV Series (Cover, History of Revision, Preface, Safety Labels, Contents, Tightening Torque for Bolts and Nuts, Back Cover) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Track roller A installation bolt torque | 241 N·m | p. 67 |
| Track roller B installation bolt torque | 156 N·m | p. 67 |
| Diagnostic step 1: Inspect hydraulic oil level | Check if oil level is normal or add hydraulic oil if not enough | p. 329 |
| Diagnostic step 2: Inspect hydraulic pump noise | Check for unusual noise; if noisy, investigate suction line or foam in tank | p. 329 |
| HST Pump Cylinder Block flatness | 0.000079 in. (0.002 mm) TIR | p. 195 |
| HST Pump Piston and Slipper clearance | 0.006 in. (0.152 mm) or less | p. 195 |
| Control Valve tie rod nut torque | 39.23 ±3.92 N·m | p. 217 |
| Control Valve Main Relief Valve torque | 58.84 ±5.88 N·m | p. 217 |
| 4TNV94L•98 | ||
| Cylinder head bolt tightening torque (Second step) | 103.1 to 112.9 N•m | p. 752 |
| Connecting rod bolt tightening torque | 53.9 to 58.8 N•m | p. 752 |
| 4TNV94L4 to TNV106(T) | ||
| Fuel injection nozzle pressure (Standard) | 21.6-22.6 MPa (220-230 kgf/cm2) | p. 593 |
| 4TNV94L/98/106 (T) | ||
| Fuel pump drive gear set nut tightening torque | 113 to 123 N•m (11.5 to 12.5 kgf•m) | p. 598 |
Gehl CTL60, TL130 Common Problems This Manual Covers
Engine fires, then quits about five seconds later while the top-panel warning light stays on. p. 605
Start with the fuel system: replace the filter element (page 586) and drain any water from the separator (page 578). Confirm the safety interlock circuit isn't forcing an early shutdown. Torque the new fuel filter to 20 to 24 N•m per page 586.
Manual Section: Vi . EngineBoom and bucket lose all hydraulic power while the tracks keep driving normally. p. 331
Test the pilot valve pressure using the procedures on page 331; a healthy reading sits between 0 and 3.0 MPa. Inspect the control valve main relief valve, and check that the tie rod nut is torqued securely.
Manual Section: Lift Arms: Lift arm cylinders fail to moveRough running and a misfiring cylinder, with rocker arms that keep working loose during operation. p. 630
Measure the valve clearance and set it to the standard 0.15 to 0.25 mm spec on page 592. Inspect the rocker arm shaft hole diameter on page 630; if it runs past the 18.500 to 18.520 mm range, replace the worn parts.
Manual Section: Vi . EngineTravel feels sluggish and drive power fades under heavy load. p. 329
Confirm the hydraulic oil level first, following page 329. If it reads normal, verify the HST pump relief valve setting; on the CTL60 it must measure 34.5 MPa. Top off with fresh hydraulic oil if the reservoir is low.
Manual Section: Overall Machine: All systems working, but with insufficient powerFrequently Asked Questions
What is the torque spec for the Gehl CTL60/TL130 track roller bolts?
Tighten the track roller A installation bolts to 241 N·m and the track roller B bolts to 156 N·m. Apply thread-locking compound as you go.
What is the torque spec for the Gehl CTL60/TL130 engine head bolts?
4TNV94L/98 cylinder head bolts go in two stages: first 49.0 to 58.8 N·m (5.0 to 6.0 kgf·m), then 103.1 to 112.9 N·m (10.5 to 11.5 kgf·m). On 4TNV106(T) engines, the first stage is 88.3 to 98.1 N·m (9.0 to 10.0 kgf·m) and the second is 188.0 to 197.8 N·m (19.0 to 20.0 kgf·m).
What are the replacement specifications for Hydraulic pump components?
Replace the HST pump cylinder block if flatness exceeds 0.002 mm TIR or the maximum bore diameter tops 14.30 mm. Swap the valve plate when its thickness drops below 4.97 mm or flatness passes 0.0038 mm TIR. On the gear pump, replace the assembly if housing contact marks exceed 0.1 mm, if gear shaft or side surfaces are rough, or if oil seal contact points are worn deeper than 0.1 mm. Replace any seal that is damaged or worn.
What are the replacement specifications for Hydraulic control valve components?
Replace the housing or section body if you find scratches, rust, or corrosion on sliding parts, seal pockets, or port seals. Swap the spool if it shows scratch marks or won't move smoothly. A load check valve that seals imperfectly needs replacing, as do springs that are corroded or deformed. Solenoid coils get replaced when burned, short-circuited, or carrying a broken wire.
How quickly can I access this Gehl CTL60, TL130 manual after buying?
Download the PDF the moment payment clears. The full 755-page searchable Service Manual opens on a laptop, tablet, or phone, right there in the shop.
Is this Gehl CTL60, TL130 Service Manual printable?
Yes. The PDF carries no DRM, so you can print any page or section you need on any standard printer.

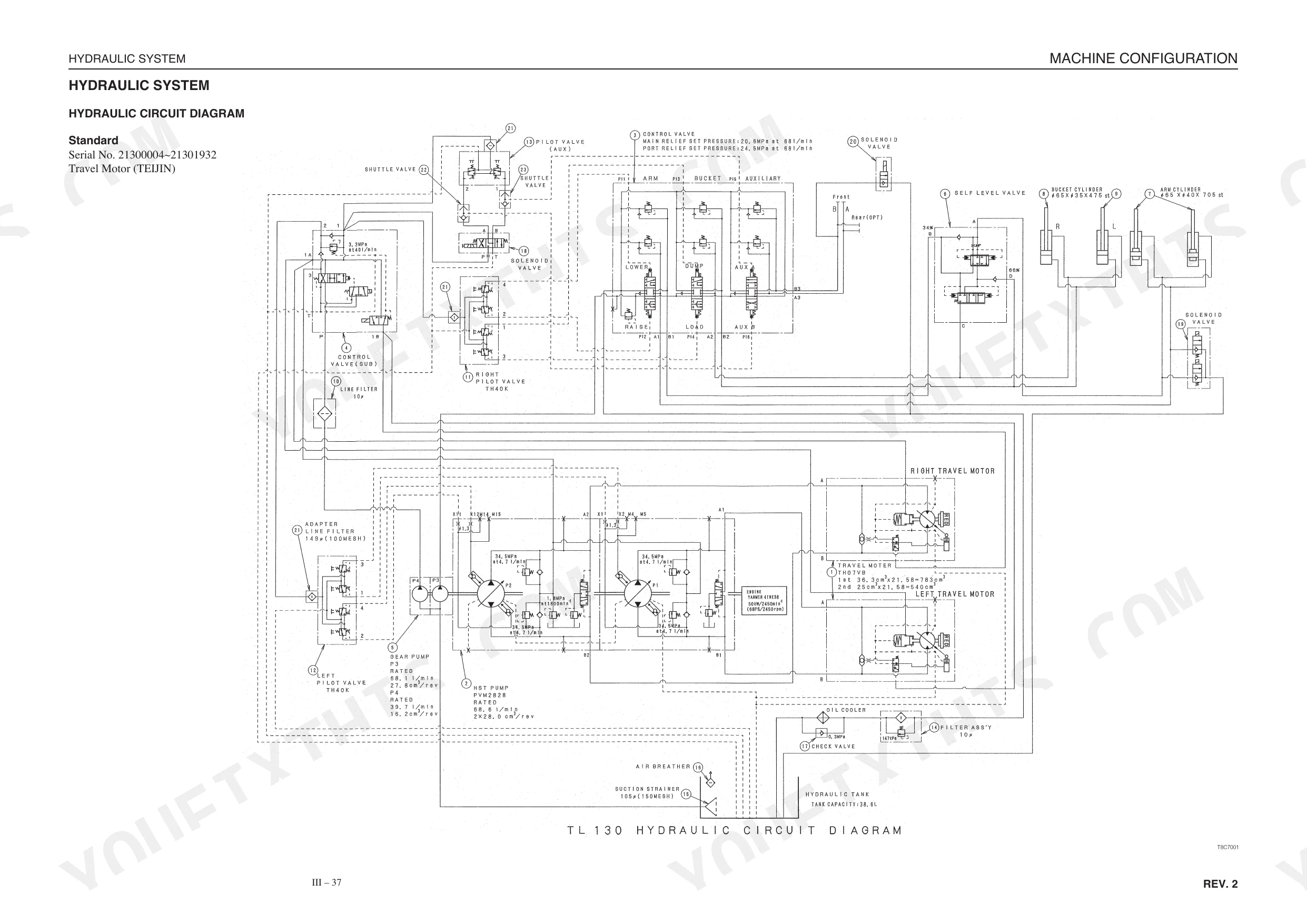

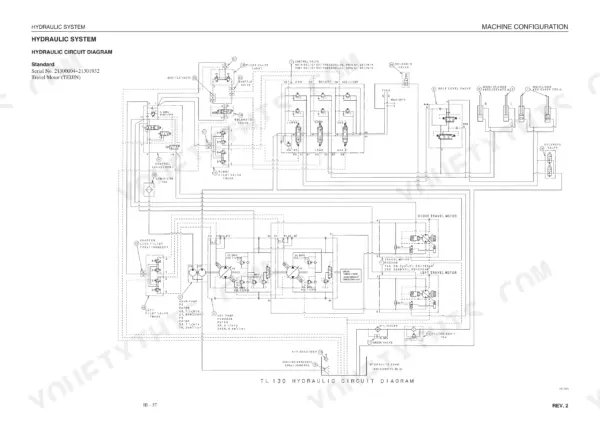

Are hydraulic system diagrams in this Gehl CTL60, TL130 Service Manual?
Yes. It includes full hydraulic schematics with flow diagrams, valve configurations, and pressure specifications.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text is crisp and easy to read on every page. Diagrams and illustrations are raster images, so they may show some pixelation when zoomed, but their labels remain readable. Pages are clean and free from scan artifacts or marks. You will find several intentionally blank pages throughout the document, typically serving as section breaks or to maintain formatting.
