The right bearing, pulley, or sickle section for a Gehl 2175 or MC2175 mower conditioner is settled here, in a 40-page parts catalog PDF (Form No. 906693) built from the factory's own assembly drawings. Exploded views run from tongue and trailer frame through the forming chamber, conditioner rollers, pitman and wobble arm drive, reel, and sickle and guards, each callout tied to a factory part number. If you're holding a worn part and only know its number, the numerical index works backward to its assembly, and separate breakdowns cover both PTO drivelines, the hitchjack, and the gearbox. Spec the safety tow chain at its 10-ton rating, and match each flangette, split taper bushing, and V-belt to its numbered callout before the order goes in. Out in the barn, there's nobody left to ask. Bookmarked by section and text-searchable, the PDF gets the right parts ordered and your 2175 cutting hay again this season.
What's Inside This Gehl 2175, MC2175 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | Fastener Abbreviations |
| Decal Locations | 4-5 | Decal Application Instructions, Paint Ordering, Safety Decals, Decal Set Contents, Striping |

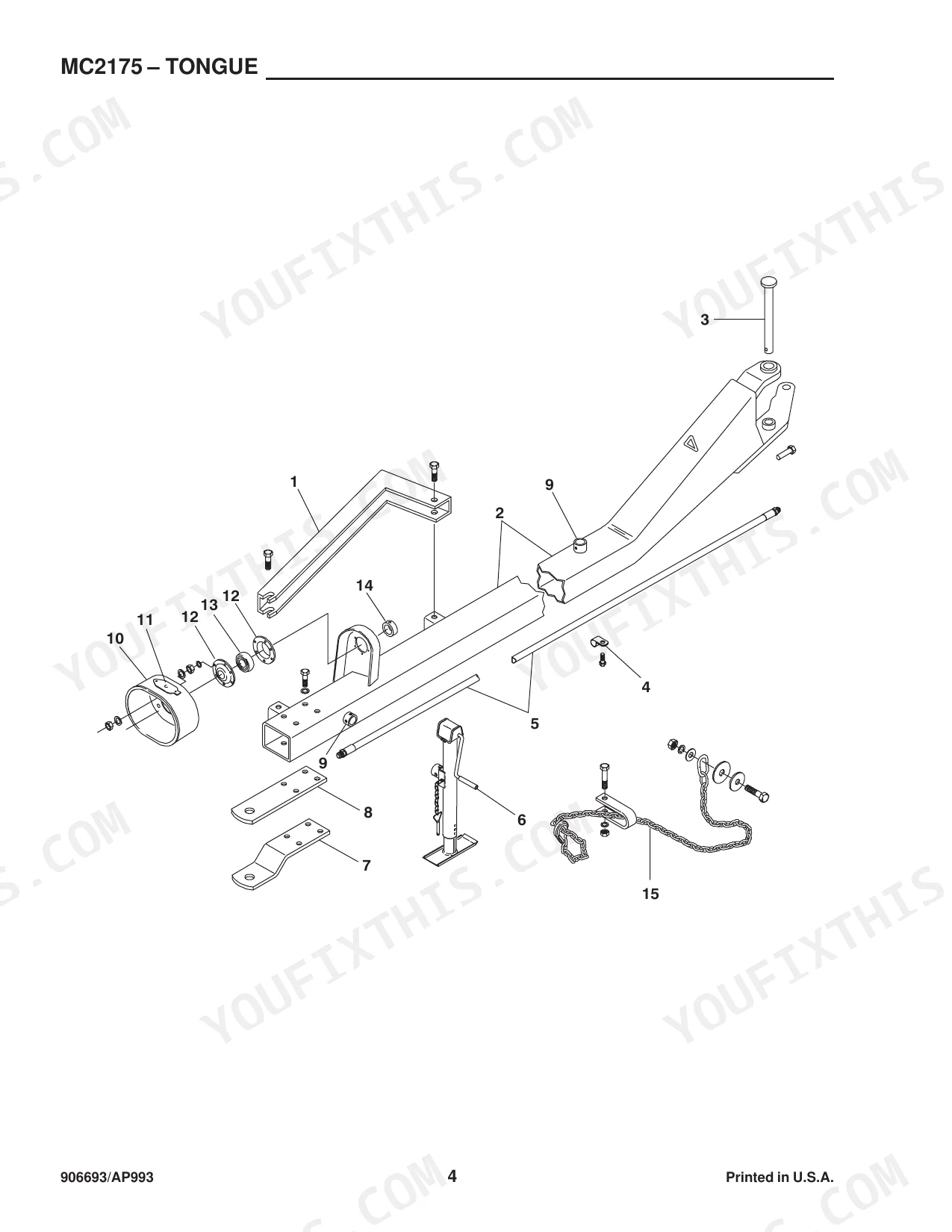

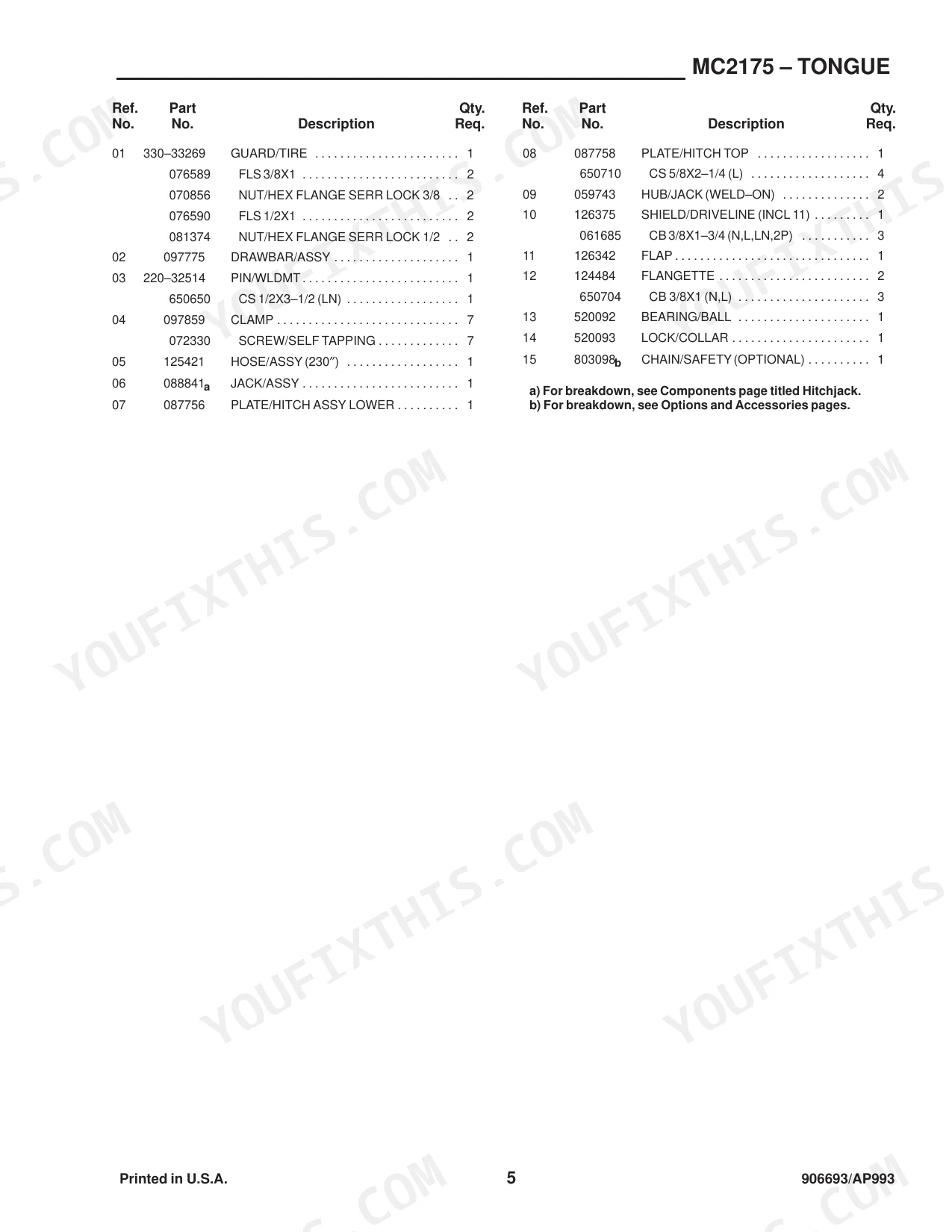

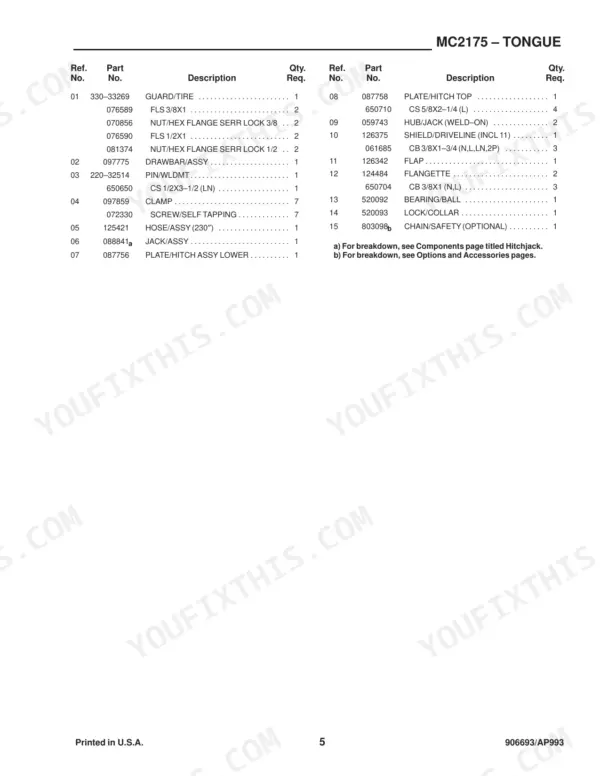

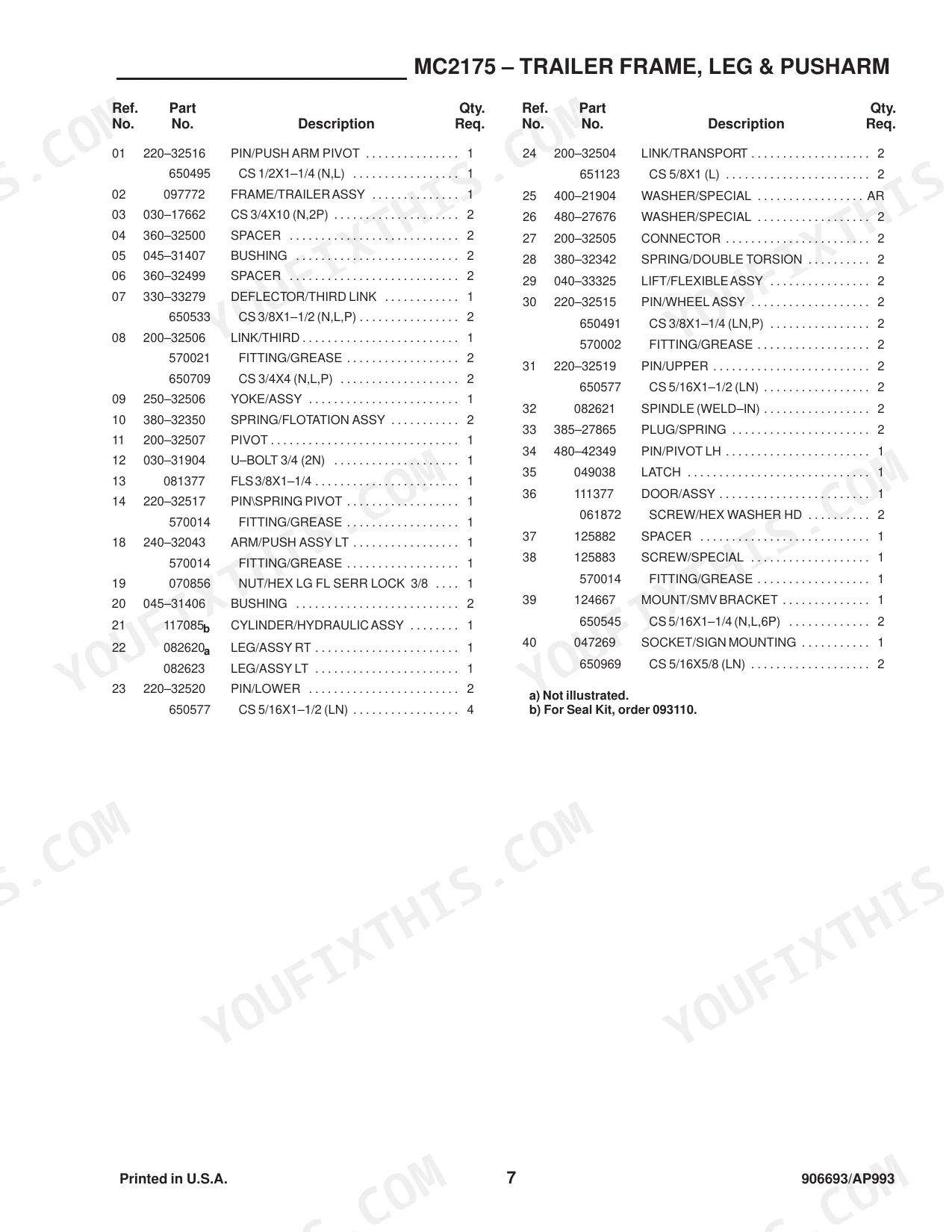

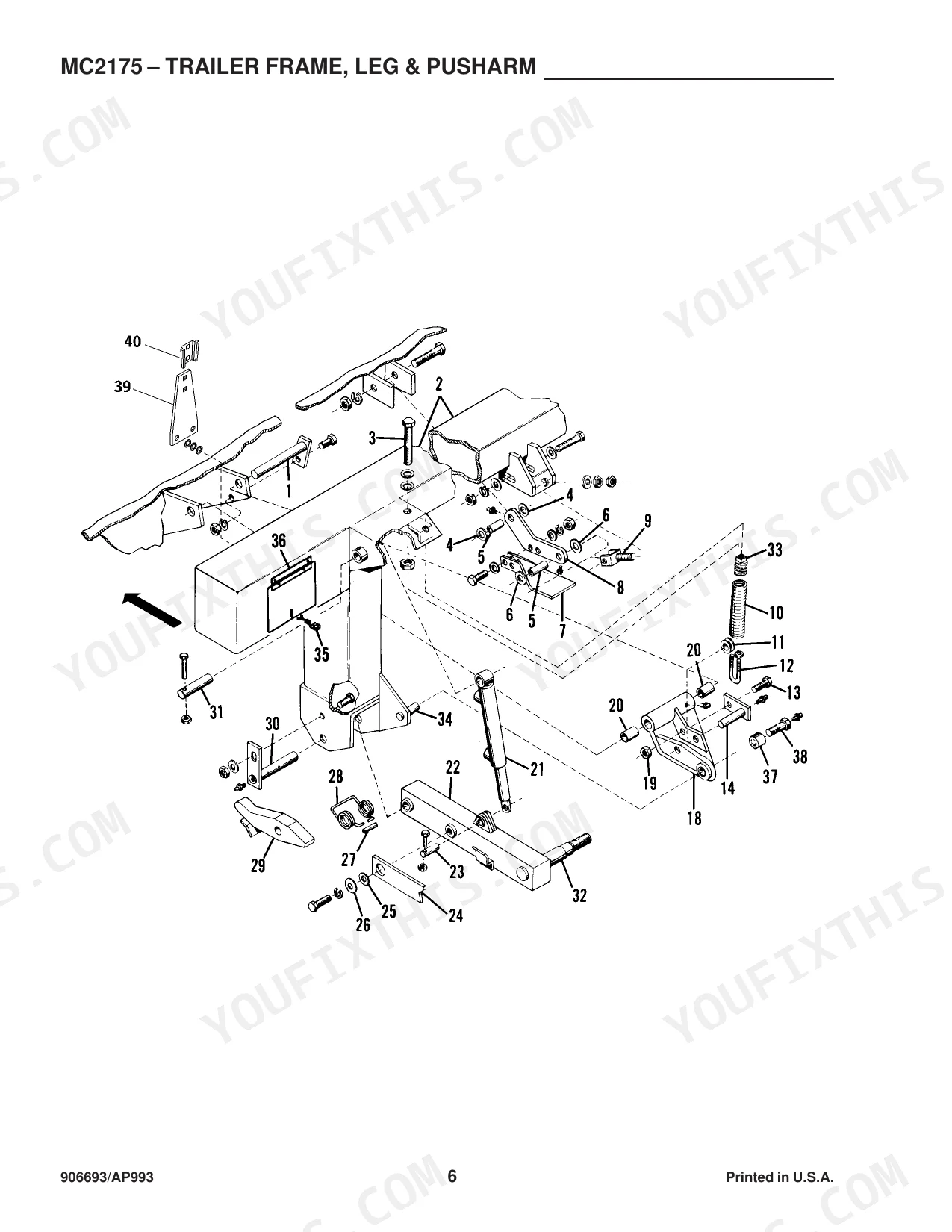

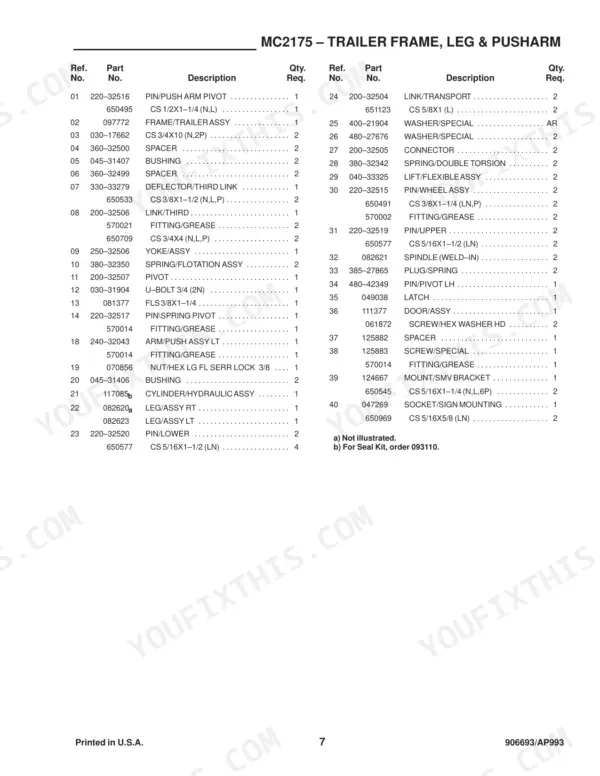

| Trailer Frame, Leg & Pusharm | 8-9 | Push Arm Pivot, Trailer Frame Assembly, Flotation Springs, Transport Links, Pivot Pins, SMV Bracket |

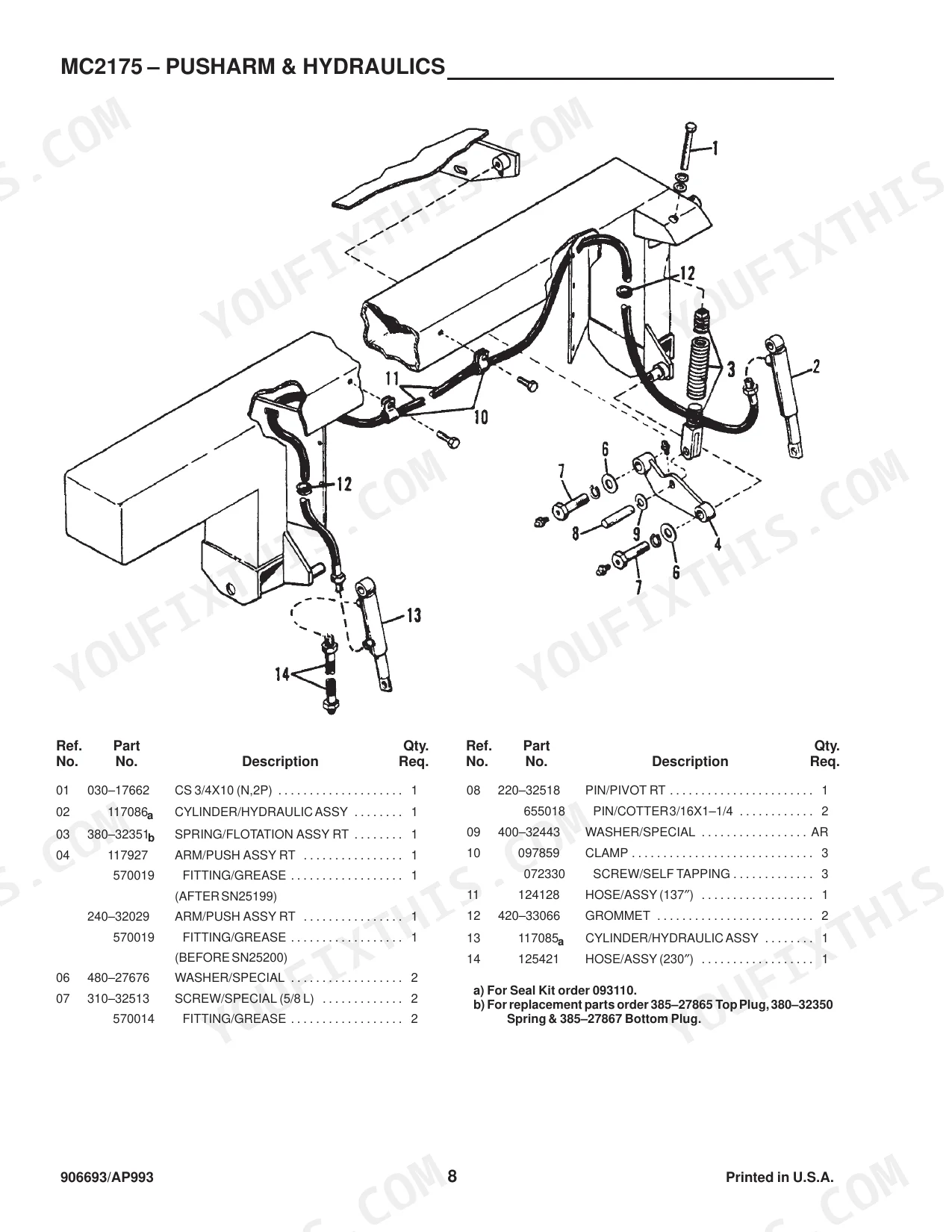

| Pusharm & Hydraulics | 10 | Hydraulic Cylinder, Flotation Springs, Push Arm Assembly, Pivot Pins |
| Wheel Assembly | 11 | Wheel Hub Assembly, Wheel Bearings, Spindle, Wheel Rim |
| Forming Chamber | 12-13 | Fluffer Assembly, Connecting Rods, Side Backing Plates, Director Assembly, Windrower, Stiffener Vein |
| Header Frame & Conditioner Rollers | 14-15 | Header Frame Assembly, Conditioner Rollers, Transmission Shield, Rock Shoe, Push Bar, End Panel Pads |
| Conditioner (Left Side) | 16-17 | Bearing Collar, Flangette, Ball Bearing, Retaining Ring, Roll Arm Assembly, Spring Assembly |
| Conditioner (Right Side) | 18-19 | Shield, Retainer, Bearing, Sprocket, Idler, Chain, Yoke, Spring |
| Pitman & Wobble Arm Drive | 20-21 | V-Belt, Pulley, Split Taper Bushing, Gearbox, Arm, Idler, Pin, Yoke |
| Reel Variable Drive | 22-23 | Flangette, Bearing, Collar, Jackshaft, Pin, Sprocket, Pulley, Shim |
| Reel | 24-25 | Collar, Flangette, Bearing, Mount, Strap, Pulley, Key, V-Belt |
| Sickle & Guards | 26-27 | Guard, Shim, Clip, Head, Clamp, Washer, Section, Bolt |
| Components | 28-31 | Tower-to-Gearbox PTO, Tower-to-Tractor PTO, Hitchjack, Gear Box |
| Options & Accessories | 32-35 | Hydraulic Tongue Positioner, Mechanical Tongue Positioner, Transport Light Kit, Cutterbar Wearplate Kit, Tall Crop Divider Kit, Center Skid Shoe Kit, Safety Tow Chain |
| Standard Hardware Torque Specifications | 39-40 | Unified National Thread, Grade 2, Grade 5, Grade 8, Dry, Lubed |
Gehl 2175, MC2175 Common Problems This Manual Covers
Gehl 2175 right side conditioner bearing, sprocket and drive chain worn out, replacement part numbers unknown
Check the Conditioner (Right Side) exploded view on page 18 and match the bearing, sprocket, idler and chain to their callout numbers in the parts list. Confirm your model and serial number first, since the Introduction on page 2 shows where to find them and how to order service parts.
Manual Section: Conditioner (Right Side) p. 18Sickle sections and guards chipped or broken, correct holddown clip and shim part numbers unclear
Check the Sickle & Guards exploded view on page 26 and pull part numbers for the sections, guards, holddown clips, shims and bolts from the parts list. Order sections and bolts together so the sickle goes back together in one sitting. Verify your model and serial number using the location shown on page 2 before ordering.
Manual Section: Sickle & Guards p. 26Pitman and wobble arm drive V-belt worn, replacement belt, pulley and split taper bushing numbers unknown
Check the Pitman & Wobble Arm Drive exploded view on page 20 and match the V-belt, pulley, split taper bushing and idler to their item numbers in the parts list. Look over the arm, pin and yoke listed there and add any worn pieces to the same order. Confirm model and serial number on page 2 first.
Manual Section: Pitman & Wobble Arm Drive p. 20Wheel hub bearings rough or wheel seal leaking, hub, bearing and seal part numbers unknown
Check the Wheel Assembly view on page 11 for the hub assembly, wheel bearings, wheel seals, spindle and tire valve part numbers. Order bearings and seals together so the hub comes apart only once. Read the Tire Replacement Policy on page 2 before buying a tire, and use the torque chart on page 39 for wheel hardware.
Manual Section: Wheel Assembly p. 11Pusharm hydraulic cylinder or hoses leaking oil, cylinder and hose part numbers unknown
Check the Pusharm & Hydraulics parts list on page 10 for the hydraulic cylinder, hydraulic hoses, grommets and pivot pins. Order new grommets with the hoses so fresh lines don't rub through. If your unit has the hydraulic tongue positioner, its parts are listed under Options & Accessories starting on page 32 instead.
Manual Section: Pusharm & Hydraulics p. 10Gearbox seals leaking oil, housing, shaft, gear and seal part numbers unknown
Check the Components section starting on page 28 for the gear box breakdown, which lists the housing, shafts, gears and seals with part numbers. The tower-to-gearbox and tower-to-tractor PTO drivelines are in the same section, so price any worn PTO parts at the same time. Confirm model and serial number on page 2 before ordering.
Manual Section: Components p. 28Frequently Asked Questions
What are the torque specifications for the Gehl 2175 cutterbar and drive components?
The manual provides a comprehensive table for standard hardware torque specifications on page 39. For example, a 1/2-13 Grade 5 bolt (dry) requires 75 ft-lb of torque, while a 1/2-13 Grade 8 bolt (dry) requires 110 ft-lb. p. 39
What are the replacement specifications for knife guards on the Gehl 2175, MC2175 mower conditioner?
The manual lists several guard options, including the 'GUARD/SICKLE HVY DUTY' (part number 110-32342) and 'GUARD/STUB' (part number 110-32330). Conversion kits are also available, such as order 088743 for regular guards or 190-32585 for stub guards. p. 27
What is the part number for the replacement hydraulic cylinder seal kit on the Gehl 2175, MC2175 mower conditioner?
For the hydraulic cylinder used on the pusharm and tongue positioner, the replacement seal kit is part number 093110. p. 9
What is the correct paint to use for refinishing the Gehl 2175?
The manual specifies using AG Red (part number 906315 for one gallon or 906316 for 12 oz. spray cans) and Light Grey (part number 906324 for one quart or 906325 for 12 oz. spray cans). p. 4
What exactly do I receive with this Gehl 2175 Parts Catalog?
Instant PDF download. You get the full 40-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Does this Gehl 2175 manual allow printing?
Yes. Print individual pages or full chapters for your own shop use, on letter or A4 paper.
